USER MANUAL Colorado Christopeit

Assembly and operating instructions

Order No.: 2562 GB

Page: 11-18

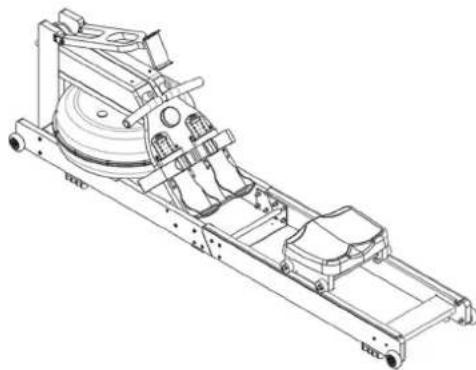

Exterior view of a modern rowing machine (no signage or text visible on the device body)

INHALTSÜBERSICHT

InhaltSeite

Two identical QR codes side by side, no visible text or symbols beyond the matrix patterns

On/Off 106 1 5

Technical line drawing of a mechanical device with a bucket and tubing (no text or symbols)

Einfüllen Entleeren

Technical line drawing of a mechanical assembly with no visible text or symbols

71 63

LEVEL 00:25

Person using a rowing machine in a gym, no visible text or symbols on the equipment or background

Übung 2

Person using a rowing machine in a gym (no visible text or symbols)

Sequence of four sequential illustrations showing a person performing a stretching or kneeling movement (no text or symbols)

11	Important recommendations and safety instructions
12-13	Assembly instructions
14	Computer
14	Kinomap App
15	Operating and exercising instructions
15	Cleaning, checks and storage
16	General training instructions
17-18	Parts list – Spare parts list
46	Declaration of conformity
47	Exploded drawing

We congratulate you on your purchase of this home training sports unit and hope that we will have a great deal of pleasure with it. Please take heed of the enclosed notes and instructions and follow them closely concerning assembly and use. Please do not hesitate to contact us at any time if you should have any questions.

Attention! Before use read operating instructions!

IMPORTANT RECOMMENDATIONS AND SAFETY INSTRUCTIONS

Our products are all tested and therefore represent the current safety standards. However, this fact does not make it unnecessary to observe the following principles strictly.

1. Assembly the machine exactly as described in the installation instructions and use only the enclosed, specific parts of the machine. Before assembling, verify the completeness of the delivery against the delivery notice and the completeness of the carton against the assembly steps in the installation and operating instructions.

2. Check the firm seating off all screws, nuts and other connections before using the machine for the first time and at regular intervals to ensure that the trainer is in a safe condition.

3. Set up the machine in a dry, level place and protect it from moisture and water. Uneven parts of the floor must be compensated by suitable measures and by the provided adjustable parts of the machine if such are installed. Ensure that no contact occurs with moisture or water.

4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine if the area of the machine must be specially protected against indentations, dirt etc.

5. Before beginning training, remove all objects within a radius of 2 metres from the machine.

6. Do not use aggressive cleaning agents to clean the machine and employ only the supplied tools or suitable tools of your own to assemble the machine and for any necessary repairs. Remove drops of sweat from the machine immediately after finishing training.

7. Attention! Systems of the heart frequency supervision can be inexact. Excessive training can lead to serious health damage or to the death. Consulta doctor before beginning a planned training programme. He can define the maximum exertion (pulse, Watts, duration of training etc.) to which you may expose yourself and can give you precise information on the correct posture during training, the targets of your training and your diet. Never train after eating large meals. This item is not suitable for therapeutically purposes!

8. Only train on the machine when it is in correct working order. Use original spare parts only for any necessary repairs. Attention! Replace the worm parts immediately and keep this equipment out of use until repaired.

9. When setting the adjustable parts, observe the correct position and the marked, maximum setting positions and ensure that the newly adjusted position is correctly secured.

10. Unless otherwise described in the instructions, the machine must only be used for training by one person at a time. The exercise time should not overtake 60 min/daily.

11. Wear training clothes and shoes which are suitable for fitness training with the machine. Your clothes must be such that they cannot catch during training due to their shape (e.g. length). Your training shoes should be appropriate for the trainer, must support your feet firmly and must have non-slip soles.

12. Attention! If you notice a feeling of dizziness, sickness, chest pain or other abnormal symptoms, stop training and consult a doctor.

13. Never forget that sports machines are not toys. They must therefore only be used according to their purpose and by suitably informed and instructed persons.

14. People such as children, invalids and handicapped persons should only use the machine in the presence of another person who can give aid and advice. Take suitable measures to ensure that children never use the machine without supervision. Ensure that the person conducting training and other people never move or hold any parts of their body into the vicinity of moving parts.

15. It must be ensured that the user and other people never go or stand with any body parts in the area of still moving parts.

16. ☒ At the end of its life span this product is not allowed to dispose over the normal household waste, but it must be given to an assembly point for the recycling of electric and electronic components. You may find the symbol on the product, on the instructions or on the packing. The materials are reusable in accordance with their marking. With the re-use, the material utilization or the protection of our environment. Please ask the local administration for the responsible disposal place.

17. To protect the environment, do not dispose of the packaging materials, used batteries or parts of the machine as household waste. Put these in the appropriate collection bins or bring them to a suitable collection point.

18. The maximum permissible load (=body weight) is specified as 130 kg.

19. Do not overfill the water tank and pay attention to the max. marking of water level. If the tank is overfilled, water can escape during training or when the device is transported and cause damage. Use normal tap water as this already has additives that do inhibit algae growth. After about 6-12 months (depending on usage), it makes sense to replace the water, as the additives have been used up. Alternatively, you can use 1 chlorine tablet to treat the water and protect the tank from sedimentations. A cleaning process of the inner tank with all parts located there is then done automatically by the training.

20. The assembly and operating instructions is part of the product. If selling or passing to another person the documentation must be provided with the product.

ASSEMBLY INSTRUCTIONS

Remove all the separate parts from the packaging, lay them on the floor and check roughly that all are there on the base of the assembly steps. Please note that a number of parts have been connected directly to the main frame and preassembled. The screw material required for assembly is located on the components to be assembled. This will make it easier and quicker for you to assemble the equipment. Assembly time: 20-25 min.

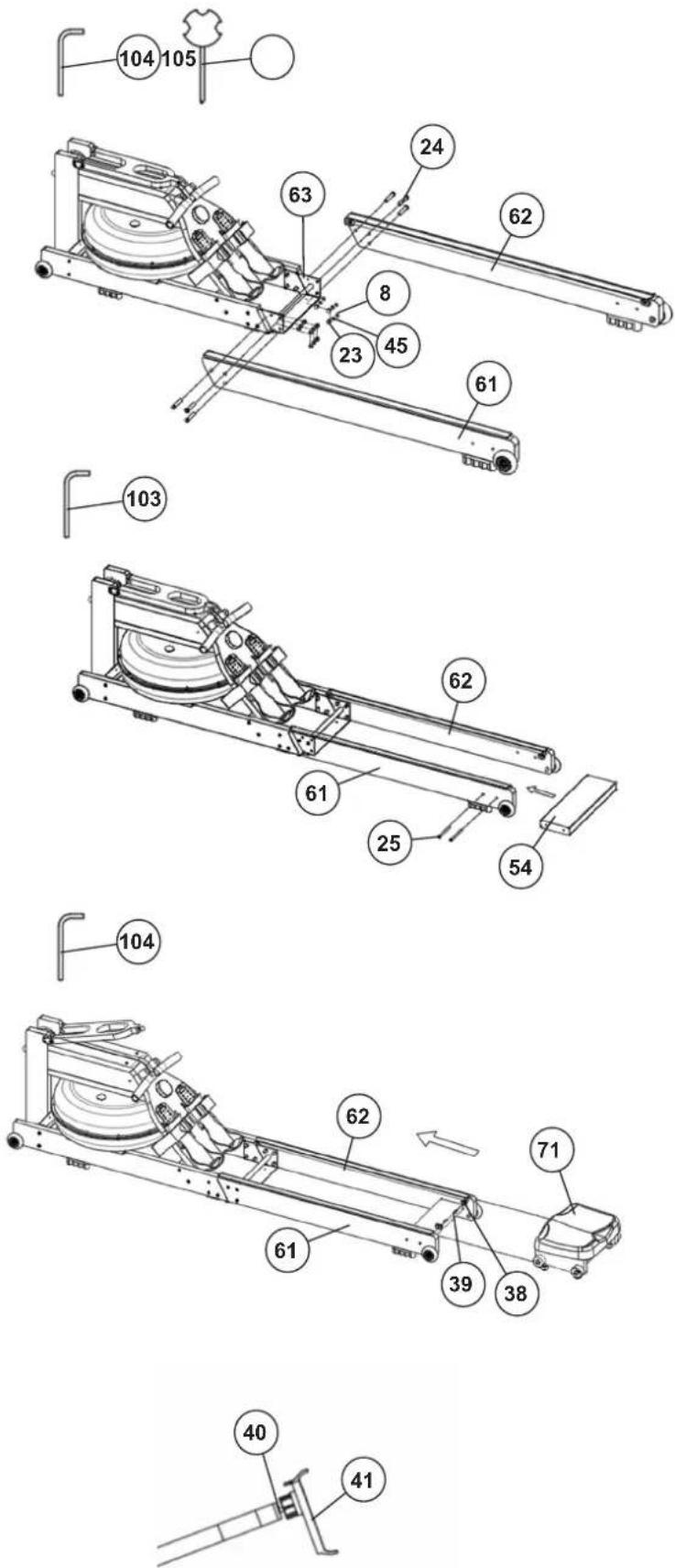

STEP 1

Assembly of the seat frames L+R (61+62) on the centre support (63).

1. Insert the seat frame left and right (61+62) into the corresponding mount on the centre support (63) so that the holes in the seat frames (61+62) and the centre support (63) are aligned. Then insert the M8x40 screws (24) from the outside through the holes and tighten them using washers (8), spring washers (45) and cap nuts M8 (23).

STEP 2

Assembly of the connecting frame (54) on the seat frame left and right (61+62).

1. Guide the connecting frame (54) to the mounts between the seat frames on the left and right (61+62) and screw it tight using the M6x40 screws (25).

STEP 3

Assembly of the seat (71).

1. Unscrew the two end stops (38) at the end of the seat frame (62) by removing the M6x16 screws (39).
2. Push the seat (71) onto the seat frame (62) in the direction shown.
3. Then screw the two end stops (38) back on using the M6x16 screws (39).

STEP 4

Attach the tablet holder (41).

1. Unscrew the plastic screw connection on the back of the tablet holder (41) to attach it to the holder (40) and tighten it.

STEP 5

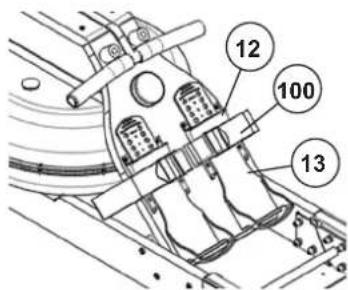

Adjusting the footrests (13).

1. Sit on the seat. Slide your feet between the belt (100) and footrest (13) so that the heel rests on the bottom edge. If necessary, adjust the footrest (13) to suit your shoe size. To do this, lift the upper part of the footrest (13) and re-insert it in the holder (12) into the correct hole for your shoe size. Secure the foot position by tightening the pedal securing straps (100).

STEP 6

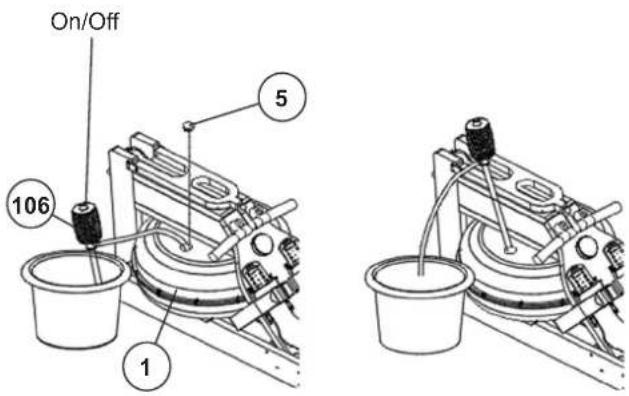

Refill the water tank (1).

1. Use tap water from a bucket to refill water tanks (1). Remove the filling plug (5) from the water tank, insert the flexible pipe end of the water pump (106) approx. 10 cm into the water tank (1) and the rigid pipe end into the bucket with water.
2. Turn on the screw cap and press the hand bellows to pump the water into the tank (1). (If the bucket position is higher than the tank the water will flow automatically into the tank after pressing some hand bellows. Turn off the screw cap to interrupt the water flow.) After filling the tank (1), close it again with the tank plug (5). The tank has a mark for the max. water level. This maximum limit may not be exceeded. Caution: If the tank (1) is overfilled, water will spill out during transport and during training and may cause damage.
3. We recommend refill the water level slightly below max. level, as this is the optimal rowing resistance given. The desired intensity during training is freely selectable by the speed of the rowing. For less water resistance you can remove water from the tank by means of the hand pump (106) by swapping the pipe ends of the hand pump.
4. Make sure the installation location is not exposed to direct sunlight as this promotes algae growth in the tank.

CHECKS

1. Check the correct installation and function of all screwed and plug connections. Installation is thereby complete.
2. When everything is in order, familiarise yourself with the machine at a low resistance setting and make your individual adjustments.

Note: Please keep the tool set and the instructions in a safe place as these may be required for repairs or spare parts orders becoming necessary later.

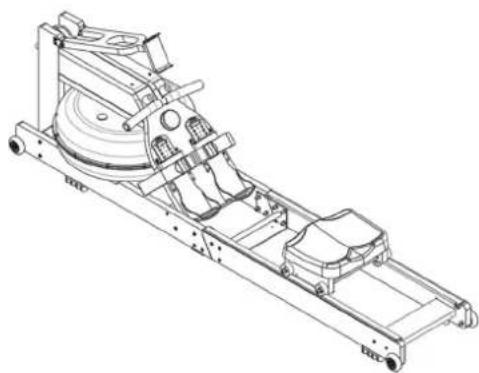

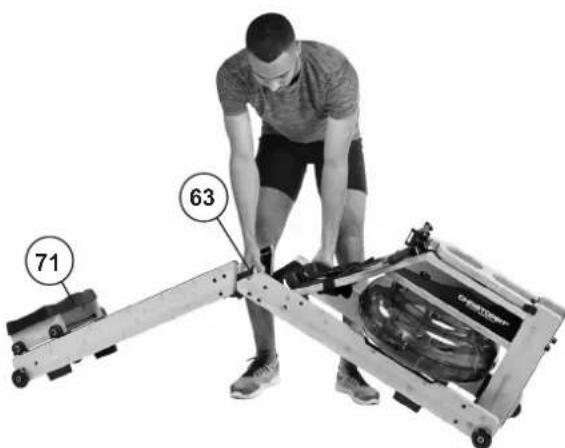

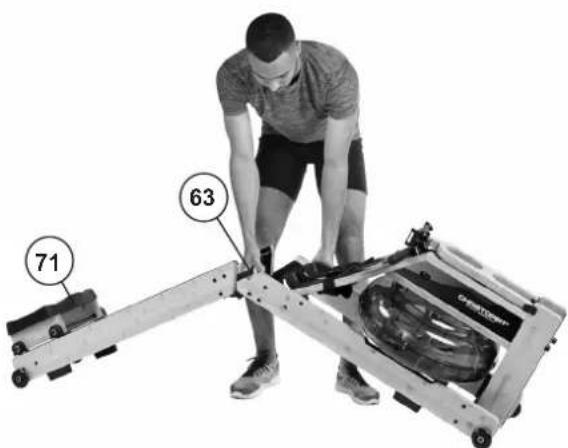

TRANSPORT AND STORAGE

1. Position the seat (71) forward and lift the rowing machine at the back to roll it to the storage location.
2. The rowing machine can be folded up and stored upright. To do this, position the seat (71) at the rear end of the seat carriage, grasp the center support (63) and slowly pull it up until the rowing machine is folded up and upright. Attention! Be aware of the risk of crushing when folding and unfolding.

12 100 13

On/Off 106 5 1

Einfüllen Entleeren

Technical line drawing of a mechanical assembly with no visible text or symbols

71 63

LEVEL 00:25

Turn Temperature 8:8:8 apm LEVEL 10pkm SPLIT 8.3:2.8 km/h NOMM 100000000000000000000000000000000000000000000000000000000000000000000000 Press

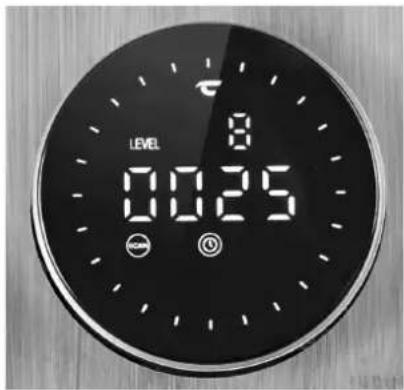

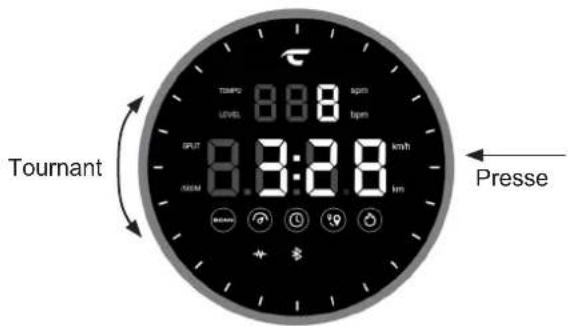

The supplied computer offers the greatest training comfort. All determined values are displayed alternately (scan) or individually in the two-line display. All values count up from zero. The computer switches on with a short press or simply by starting a workout. The computer begins to record all values and display them alternately. To stop the computer, simply end the workout. The computer stops all measurements and saves the achieved values (except speed, time per 500m and rowing strokes per minute) for 1 minutes. If you resume training within these 1 minutes, you can continue training from these values. The computer switches off automatically about 1 minutes after the end of the training session, in stand-by mode. All values reached up to that point will be deleted.

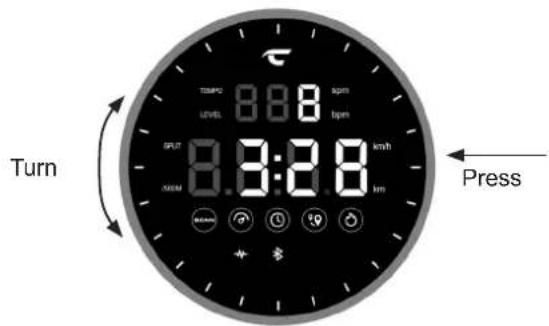

HOW TO USE

Pressing the display turns the display on. Each additional press changes from one function to the next. By turning the outer ring on the computer you can increase or decrease the resistance level. (8 levels)

UPPER DISPLAY

Change all displayed values in the upper display automatically.

LEVEL Level: Shows the set resistance level.

TEMPO Tempo: Shows your tempo in strokes per minute (spm).

LOWER DISPLAY

Change all displayed values in the lower display automatically when the scan function is activated or display a selected function permanently.

Scan: This symbol lights up when the values are displayed alternately

Speed: Shows the speed in km/h.

Time: Shows the training time in minutes.

Distance: Shows the distance in kilometers.

Calories: Shows the approx. consumed calories in Kcal.

Split: Shows the strokes.

Time /500m: Shows the time in minutes for 500m

Pulse: Shows the current heart rate in bpm in the upper display when a compatible heart rate belt is worn.

CONNECTIVITY

HEART RATE MEASUREMENT

Optionally, you can use a compatible bluetooth heart rate belt to measure your heart rate (Christopeit-Sport heart rate belt 2209). The measured pulse value is shown alternately by a heart symbol and pulse value in the upper display. Response time is up to 60 seconds.

Attention! The heart rate measurement is not suitable for medical purposes.

KINOMAP APP

Sport, coaching, gaming and eSport are the keywords of the Kinomap app. This contains many kilometers of real film material to exercise inside as if you were outside; Tracking routes and analysis of your performance; Coaching content; Multiplayer mode; new posts daily; Official indoor races and more ...

Download the app and connect

Scan the adjacent QR code with your smartphone / tablet or use the search function at the Playstore (Android) or APP Store (IOS) to download the Kinomap APP. Register and follow the instructions in the APP. Activate Bluetooth on the smartphone or tablet and select the device manager in the app and then the appropriate product category there. Then select your type designation using the manufacturer logo "Christopeit Sport" to connect the sports equipment. Depending on the sports equipment, different functions are recorded by the APP via Bluetooth or data is exchanged.

Attention! The Kinomap app offers a free trial version for 14 days. You can then decide whether you want to continue training for free with the basic version or use the full range of the Kinomap app for a fee.

Current information and fees can be found at: www.kinomap.com

a) Begin this exercise with your legs straight, knees together and the upper part of your body upright.
b) Bend forward without bending your knees, grip the handle bar and pull back until the upper part of your body is upright again. Important: The oar levers should be pulled back with the arms (and not with the body) until your hands have reached your body.
c) Bring the handle bar back to the starting position again.
d) Rest for a moment and then carry out the exercise again, repeating it quietly and continuously.

Person using a Pilates reformer machine in a gym (no visible text or symbols)

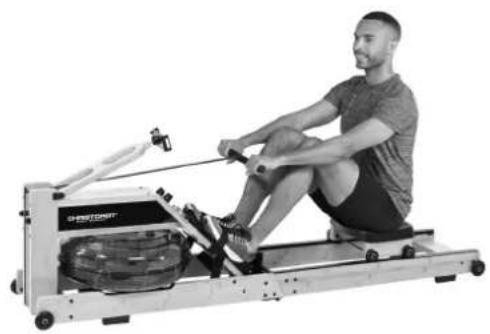

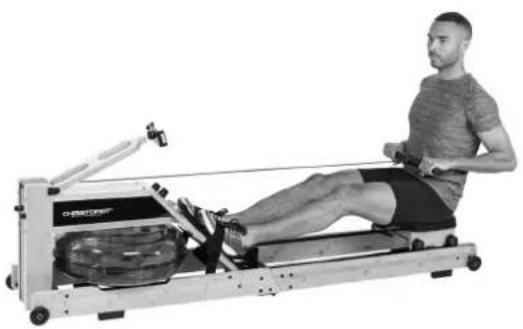

Exercise 2

a) Begin this exercise sitting upright with the seat as far forward as possible and your knees bent.
b) Push back with the legs keeping your knees together and at the same time pulling the handle bar towards you.
c) Continue pulling until your legs are straight and your hands have reached your body.
d) Relax your arms and legs and let the seat slide forward until you have reached the start position (a) again and then repeat the exercise again.

Person using a rowing machine in a gym (no visible text or symbols)

CLEANING, CHECKS AND STORAGE

1. Cleaning

Use only a less wet cloth for cleaning. Attention! Never use benzene, thinner or other aggressive cleaning agents for surface cleaning as this damage caused. The device is only for private home use and for use suitable indoors. Keep the unit clean and moisture from the device.

2. Storage

Empty the water tank if you intend not to use the device for longer than 4 months. Fold it up. Choose a dry indoor location for storage. Cover the device to protect it from discoloration caused by sunlight and dust.

3. Checks

We recommend checking the tightness of the screw connections and the sealing of the tank every 50 operating hours.

4. Water treatment

Use normal tap water as this already has additives that do inhibit algae growth. After about 6-12 months (depending on usage), it makes sense to replace the water, as the additives have been used up. Alternatively, you can use 1 chlorine tablet (for up to 25L) to treat the water and protect the tank from sedimentations. A cleaning process of the inner tank with all parts located there is then done automatically by the training.

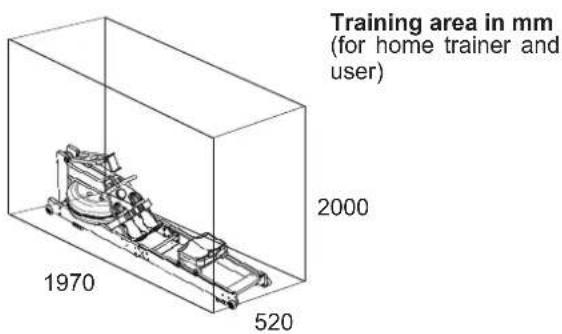

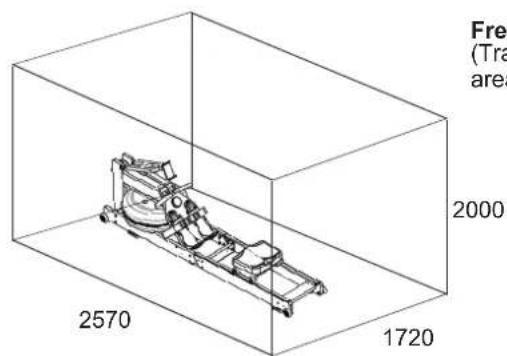

TRAINING SPACE REQUIREMENT

Training area in mm (for home trainer and user) 2000 1970 520

Freed (Trav area) 2000 2570 1720

Free area in mm
(Training area and security area (circulating 600mm))

GENERAL TRAINING INSTRUCTIONS

You must consider the following factors in determining the amount of training effort required in order to attain tangible physical and health benefits.

INTENSITY

The level of physical exertion during training must exceed the point of normal exertion, without going beyond the point of breathlessness and/or exhaustion. A suitable reference value can be the pulse. With each training session, the condition increases and therefore the training requirements should be adjusted. This is possible by extending the duration of the training, increasing the level of difficulty or changing the type of training.

TRAINING HEART RATE

To determine the training heart rate, you can proceed as follows. Please note that these are guide values. If you have health problems or are unsure, consult a doctor or fitness trainer.

01 Maximum heart rate calculation

The maximum pulse value can be determined in many different ways, since the maximum pulse depends on many factors. You can use the main-formula for the calculation (maximum heart rate = 220 - age). This formula is very general. It is used in many home sport products to determine the maximum heart rate. We recommend the Sally-Edwards-formula. This formula calculates the maximum heart rate more precisely and takes gender, age and body weight into account.

Sally-Edwards-formula:

Men:

Maximum heart rate = 214 - (0.5 x age) - (0.11 x body weight)

Women:

Maximum heart rate = 210 - (0.5 x age) - (0.11 x body weight)

02 Training heart rate calculation

The optimal training heart rate is determined by the goal of the training. Training zones were defined for this.

Health - Zone: Regeneration and Compensation

Suitable for: Beginners

Type of training: very light cardio training

Goal: recovery and health promotion. Building the basic condition.

Training heart rate = 50 to 60% of the maximum heart rate

Fat-Metabolism - Zone: Basics endurance training 1

Suitable for: beginners and advanced users

Type of training: light cardio training

Goal: activation of fat metabolism (calorie burning). improvement in endurance performance.

Training heart rate = 60 to 70% of the maximum heart rate

Aerobic - Zone: Basics endurance training 1 to 2

Suitable for: beginners and advanced

Type of training: moderate cardio training.

Goal: Activation of the fat metabolism (calorie burning), improving aerobic performance, Increase in endurance performance.

Training heart rate = 70 to 80% of the maximum heart rate

Anaerobic - Zone: Basics endurance training 2

Suitable for: advanced and competitive athletes

Type of training: moderate endurance training or interval training

Goal: improvement of lactate tolerance, maximum increase in performance.

Training heart rate = 80 to 90% of the maximum heart rate

Competition - Zone: Performance / Competition Training

Suitable for: athletes and high-performance athletes

Type of training: intensive interval training and competition training /

Goal: improvement of maximum speed and power.

Attention! Training in this area can lead to overloading of the cardiovascular system and damage to health.

Training heart rate = 90 to 100% of the maximum heart rate

Sample calculation

Male, 30 years old and weighs 80 kg. I am a beginner and would like to lose some weight and increase my endurance.

01: Maximum pulse - calculation

Maximum heart rate = 214 - (0.5 x age) - (0.11 x body weight)

Maximum heart rate = 214 - (0.5 x 30) - (0.11 x 80)

Maximum pulse = approx. 190 beats/min

02: Training heart rate calculation

Due to my goals and training level, the fat metabolism zone suits me best.

Training heart rate = 60 to 70% of the maximum heart rate

Training heart rate = 190 x 0.6 [60%]

Training heart rate = approx. 114 beats/min

After you have set your training heart rate for your training condition or Once you have identified goals, you can start training. Most of our endurance training equipment have heart rate sensors or are heart rate belt compatible. So you can check your heart rate on the monitor during the workouts. If the pulse rate is not shown on the computer display or you want to be on the safe side and want to check your pulse rate, which could be incorrectly displayed due to possible application errors or similar, you can use the following tools:

a. Pulse measurement in the conventional way (sensing the pulse beat, e.g. on the wrist and counting the beats within a minute).

b. Heart rate measurement with suitable and calibrated heart rate measuring devices (available from medical supply stores).

c. Heart rate measurement with other products such as heart rate monitors, smartphones....

FREQUENCY

Most experts recommend the combination of a health-conscious diet, which must be adjusted according to the training goal, and physical exercise three to five times a week. A normal adult needs twice a week exercise to maintain its current condition. To improve his condition and change his body weight, he needs at least three training sessions per week. Ideal of course is a frequency of five training sessions per week.

TRAINING PLAN

Each training session should consist of three training phases: "warmup phase", "training phase" and "cool-down phase". In the "warm-up phase" the body temperature and the oxygen supply should be increased slowly. This is possible through gymnastic exercises over a period of five to ten minutes. After that you start with actual training "training phase". The training load should be adapted according to the training heart rate. In order to support the circulation after the training phase and to preventaching or strained muscles later, it is necessary to follow the training phase with a cool-down phase. This should be consist of stretching exercises and/or light gymnastic exercises for a period of five to ten minutes.

Example - stretching exercises for the warm-up and cool-down phases

Start your warm up by walking on the spot for at least 3 minutes and then perform the following gymnastic exercises to the body for the training phase to prepare accordingly. The exercises do not overdo it and only as far run until a slight drag felt. This position will hold a while.

Sequence of four sequential illustrations showing a person performing a stretching or kneeling movement (no text or symbols)

Reach with your left hand behind your head to the right shoulder and pull with the right hand slightly to the left elbow. After 20sec. switch arm.

Bend forward as far forward as possible and let your legs almost stretched. Show it with your fingers in the direction of toe. 2 x 20sec.

Sit down with one leg stretched out on the floor and bend forward and try to reach the foot with your hands. 2 x 20sec.

Kneel in a wide lunge forward and support yourself with your hands on the floor. Press the pelvis down. Change after 20 sec leg.

MOTIVATION

The key to a successful program is regular training. You should set a fixed time and place for each day of training and prepare yourself mentally for the training. Only train when you are in the mood for it and always have your goalin view. With continuous training you will be able to see how you are progressing day by day and are approaching your personal training goal bit by bit.

PARTS LIST – SPARE PARTS LIST

Type:

Colorado - 2562

Date of technical data:

15.10.2025

Dimensions approx.:

L 197 x B 52 x H 60 cm

Dimensions folded:

L 75 x B 52 x H 102 cm

Space requirements:

2.5m²

Weight approx.:

29 Kq

User weight (max.):

130 kg

User height (max.):

195 cm

NOTE

Please contact us if any components are defective or missing, or if you need any spare parts or replacements in future.

• Hybrid resistance system through water and paddle brake
• Big tank for up to 13 Liter water
• Computer controlled adjustment of paddle brake with 8 levels
• Comfortable seat with ball bearings
• Fold up storable for saving space
• Transport rollers for easy transportation
- LED Smart control computer shows: speed, time, distance, approx. calories, strokes, time / 500m, strokes per min, resistance level, heart rate and Scan
• Incline adjustable holder for smartphones and tablets
- Bluetooth connection for Kinomap APP (IOS and Android)
- Bluetooth connection for optionally pulse belt

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

This product is created only for private Home sports activity and not allowed to us in a commercial or professional area. Home Sport use class H/C.

Illustration No.	Designation Dimension mm Quantity Attached to ET Number
1 Tank top half 1 4+28 36-2562-01-BT
2 Paddle 1 29 36-2562-04-BT
3 Tank sealing 1 1+4 36-2562-05-BT
4 Tank bottom half 1 1 36-2562-02-BT
5 Tank plug 1 1 36-2461-35-BT
6 Philips screw M3x20 12 1 39-10528
7	Washer	3//7	12	6	39-10510
8	Washer	8//16	42	21,24,60+69	39-9862-SW
9	Nylon nut	M8	12	24+69	39-9918-SW
10	Inner hex screw	M6x25	7	15+55	39-10454-SW
11	Philips screw	4.2x16	29	26,77,78+83	39-9909-SW
12	Foot plate holder		2 14 36-2462-20-BT
13	Foot plate		2 12 36-2462-21-BT
14	Footboard		1 15,33+34	36-2562-06-HZ
15	Foot board support		1	14+59	33-2462-02-SW
16	EVA mat		2	59	36-2462-40-BT
17	Pull rod holder		2 14 36-2462-23-BT
18	Inner hex screw	M6x40	2	17	36-10452-SW
19	Hand grip		2 20 36-2461-29-BT
20	Pull rod		1 29 33-2461-08-SW
21	Inner hex screw	M8x65	4 22 39-9814
22	Transport roller		4	59,61+62	36-2265-08-BT
23	Cap nut	M8	16	21+24	39-9900-SW
24	Inner hex screw	M8x40	22	42,59,61+62	39-10132-SW
25	Inner hex screw	M6x40	4	61+62	36-10452-SW
26	Foot pad		4 59,61+62	36-2462-30-BT
27	Inner hex screw	M8x25	4	91+92	39-10095-SW
28	Tank support frame		1	1+58+85	36-2562-07-HZ
29	Return unit		1 28 36-2462-22-BT
30	Pull rope limit		1 32 36-2562-08-BT
31	Puller axle bushing		1 36 36-2462-24-BT
32	Big pulley		1 58+85	36-2562-09-BT
33	Inner hex screw	M6x30	2	36	36-10451-SW
34	Big pulley axle		1 32 36-2562-10-BT
35	Nylon nut	M3	12	6	39-10126
36	Top cover		1	33,34,58+85	36-2562-14-HZ
37	Seat rail		2 61+62	36-2462-31-BT
38	Seat end stop 4 61+62	36-2462-29-BT
39	Inner hex screw	M6x16	6	38,51+52	39-10120-SW
40	Tab holder support		1 42 36-2462-41-BT
41	Tab holder		1 40 36-2265-31-BT
42	Tab holder frame		1 87 36-2562-15-HZ
Illustration No.	Designation Dimension mm Quantity Attached to ET Number
43 Rubber ring 1 1 36-2562-13-BT
44 Fixed pin 8x40 1 2+29 33-2461-16-SI
45 Spring washer for M8 18 21+24 39-9864-SW
46 Inner hex screw M8x20 1 29	39-10454
47 Seat roller cover	4 70			36-2462-32-BT
48 Rubber foot 2 63	36-2462-39-BT
49 Left cover	1 28+36	36-2562-11-BT
50 Right cover	1 28+36	36-2562-12-BT
51 Centre support left	1 59			33-2462-07-SW
52 Centre support right	1 59			33-2462-08-SW
53 Fold axle	1 63			33-2462-11-SW
54 Rear connection frame	1 61+62	36-2562-16-HZ
55 Front frame support	1 59			33-2462-01-SW
56 Foot bumper	2 58+85	36-2562-17-BT
57 Inner hex screw M6x100	4 58+85 39-10059
58 Right front frame	1 28+55	36-2562-18-HZ
59 Main frame	2 55			36-2562-19-HZ
60 Brake screw	1 84			36-2562-20-BT
61 Left rear frame	1 54+63	36-2562-21-HZ
62 Right rear frame	1 54+63	36-2562-22-HZ
63 Centre support	1 61+62	33-2462-03-SW
64 Barrel nut	M6	4 28+36	36-2562-24-BT
65 PVC sleeve long	1 67			36-2462-37-BT
66 Small webbing wheel	1 67			36-2462-26-BT
67 Webbing wheel shaft	1 65+68	36-2462-16-BT
68 PVC sleeve short	1 28+67	36-2462-36-BT
69 Seat roller axle	2 72			36-2462-18-BT
70 Seat roller	4 69			36-2462-27-BT
71 Seat	1 72			36-2462-34-BT
72 Seat holder	2 69+71	36-2562-25-HZ
73 PVC sleeve	8x15x12	4	75		36-2462-33-BT
74 Support roller	4 75			36-2462-28-BT
75 Inner hex screw M8x110	4 72+74 39-9968-SW
76 Secure ring	C8	4 69		36-2461-28-BT
77 Computer	1 14			36-2562-03-BT
78 Serve motor	1 28+95	36-2562-26-BT
79 Motor brake rod	1 34+95	36-2562-27-BT
80 Hex screw	M4x10 4	81+82 39-9909
81 Leather holder	1 82			36-2562-28-BT
82 Brake support tube	1 81			36-2562-29-BT
83 Brake connection	1 79			36-2562-30-BT
84 Brake leather	1 81			36-2562-31-BT
85 Left front frame	1 28+55	36-2562-23-HZ
86 Plastic sleeve 2	2 34			36-2562-32-BT
87 Tab holder support	2 58+85	33-2462-09-SW
88 Inner hex screw M6x12 4 87	39-9958
89 Axle seal ring	1 105			36-2461-44-BT
90 Silicon seal ring	1 105			36-2461-42-BT
91 Support plate left	1 28+36	33-2462-04-SW
92 Support plate right	1 28+36	33-2462-05-SW
93 Cap nut	M6	2 48		39-9969
94 Motor mounting plate	1 28+78	36-2562-33-BT
95 Connection cable	1 77			36-2562-34-BT
96 DC connection cable	1 95			36-2562-35-BT
97 Bearing holder	1 28			36-2461-43-BT
98 Sensor cable	2 96			36-2461-06-BT
99 AC adapter	9V=DC/1A	1	96		36-1420-17-BT
100 Pedal strap		2 13		36-2462-35-BT
101 Spring washer for M8 1 46	39-9864-VC
102 Magnet		1 32		36-2562-36-BT
103 Hex key	4	1			36-2462-44-BT
104 Hex key	5	1			36-9116-14-BT
105 Cross end wrench		1			36-9107-27-BT
106 Water pump		1			36-1965-46-BT
107 Assembly and exercise instruction		1			36-2562-36-BT

SOMMAIRE

Page Contenu

On/Off 106 5 1

Einfüllen Entleeren

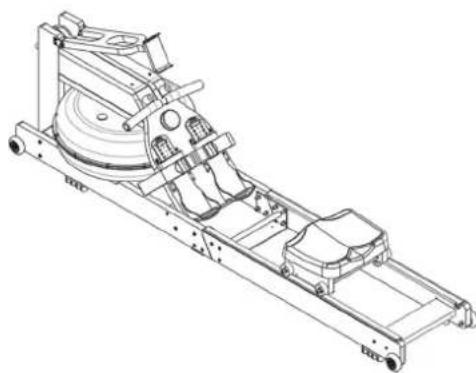

Technical line drawing of a mechanical assembly with no visible text or symbols

71 63

LEVEL 0:025

TURNT LEVEL 8:88 SPLIT 8.3:8.8 km/h Presse

Coups: affiche les coups.

/500M

Person using a rowing machine in a gym, no visible text or symbols on the equipment or background

Exercice 2

Person using a rowing machine in a gym (no visible text or symbols)

NETTOYAGE, VÉRIFICATIONS ET STOCKAGE

1. Nettoyage

Isometric line drawing of a mechanical assembly inside a transparent enclosure, labeled with years 1970 and 520 (no text or symbols on the diagram itself)

Isometric line drawing of a mechanical assembly inside a transparent cube, with dimension labels 2570 and 1720 (no text or symbols on the diagram itself)

On/Off 106 5 1

Einfüllen Entleeren

Technical line drawing of a mechanical assembly with no visible text or symbols

71 63

LEVEL 00:25

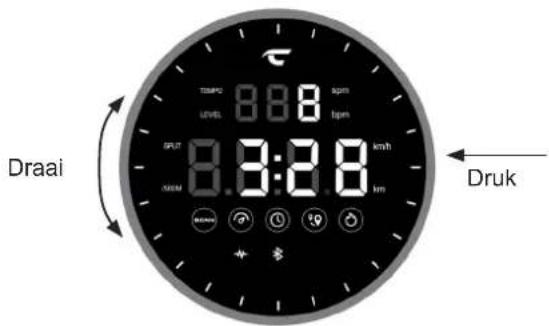

Draai TEMP LEVEL 8:8:8 SPLIT NOM 8.3:2.8 km/h Druk

Person using a rowing machine in a gym, no visible text or symbols

Oefening 2

Person using a rowing machine on a stationary platform (no visible text or symbols)

REINIGING, ONDERHOUD EN OPSLAG

1. Reiniging

Competitie - Zone: Prestaties / Competitie Training

02: Training hartslagberekening

Sequence of four sequential illustrations showing a person performing a stretching or kneeling movement (no text or symbols)

On/Off 106 1 5

Einfüllen

Technical line drawing of a mechanical device with a bucket and tubing (no text or symbols)

Entleeren

Technical line drawing of a mechanical assembly with no visible text or symbols

71 63

LEVEL 00:25

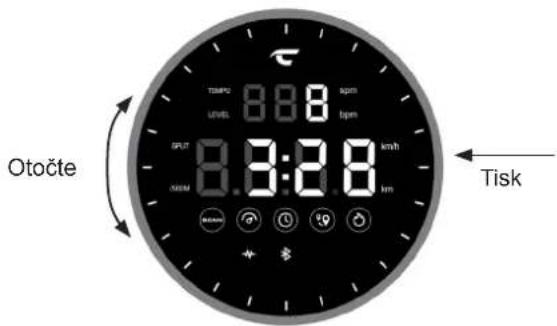

Otočte TISK 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:28 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:29 8:26

Person using a Pilates reformer machine in a gym (no visible text or symbols)

Person using a rowing machine in a gym (no visible text or symbols)

ČIŠTĚNÍ, KONTROLY A SKLADOVÁNÍ

1. Čištění

Sequence of four sequential illustrations showing a person performing a stretching or kneeling movement (no text or symbols)

EN IEC 62368-1:2020+A11:2020

EN 62479:2010

EN 50663:2017

ENIEC 61000-6-3:2021

ENIEC 61000-6-1:2019

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021+A1:2019

EN ISO 20957-1:2013

EN ISO 20957-7:2020

EC-DECLARATION OF CONFORMITY

declares, in our sole responsibility, that the products:

Article:

Product description:

Rowing machine – stationary training equipment

comply with the following essential requirements of the following EU directives

2014/53/EU (RED) Radio Equipment Directive

2011/65/EU (RoHS) Restriction of Hazardous Substances

and additionally standards, guidelines and regulations:

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.6

EN 300 328 V2.2.2

EN 55032:2015/A1:2020+A11:2020

EN 55035:2017/A11:2020

EN IEC 62368-1:2020+A11:2020

EN 62479:2010

EN 50663:2017

ENIEC 61000-6-3:2021

ENIEC 61000-6-1:2019

ENIEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021+A1:2019

ENISO 20957-1:2013

ENISO 20957-7:2020

Technical schematic diagram of a mechanical assembly with numbered components and exploded views

© by Top-Sports Gilles GmbH D-42551 Velbert (Germany)
