We congratulate you on your purchase of this home training sports unit and hope that we will have a great deal of pleasure with it. Please take heed of the enclosed notes and instructions and follow them closely concerning assembly and use. Please do not hesitate to contact us at any time if you should have any questions.
Our products are all TÜV tested and therefore represent the highest current safety standards. However, this fact does not make it unnecessary to observe the following principles strictly.
-
Assembly the machine exactly as described in the installation instructions and use only the enclosed, specific parts of the machine. Before assembling, verify the completeness of the delivery against the delivery notice and the completeness of the carton against the assembly steps in the installation and operating instructions.
-
Check the firm seating off all screws, nuts and other connections before using the machine for the first time and at regular intervals to ensure that the trainer is in a safe condition.
-
Set up the machine in a dry, level place and protect it from moisture and water. Uneven parts of the floor must be compensated by suitable measures and by the provided adjustable parts of the machine if such are installed. Ensure that no contact occurs with moisture or water.
-
Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine if the area of the machine must be specially protected against indentations, dirt etc.
-
Before beginning training, remove all objects within a radius of 2 metres from the machine.
-
Do not use aggressive cleaning agents to clean the machine and employ only the supplied tools or suitable tools of your own to assemble the machine and for any necessary repairs. Remove drops of sweat from the machine immediately after finishing training.
-
Attention! Systems of the heart frequency supervision can be inexact. Excessive training can lead to serious health damage or to the death. Consulta doctor before beginning a planned training programme. He can define the maximum exertion (pulse, Watts, duration of training etc.) to which you may expose yourself and can give you precise information on the correct posture during training, the targets of your training and your diet. Never train after eating large meals. This item is not suitable for therapeutically purposes!
-
Only train on the machine when it is in correct working order. Use original spare parts only for any necessary repairs. Attention! Replace the worm parts immediately and keep this equipment out of use until repaired.
-
When setting the adjustable parts, observe the correct position and the marked, maximum setting positions and ensure that the newly adjusted position is correctly secured.
-
Unless otherwise described in the instructions, the machine must only be used for training by one person at a time. The exercise time should not overtake 60 min/daily.
-
Wear training clothes and shoes which are suitable for fitness training with the machine. Your clothes must be such that they cannot catch during training due to their shape (e.g. length). Your training shoes should be appropriate for the trainer, must support your feet firmly and must have non-slip soles.
-
Attention! If you notice a feeling of dizziness, sickness, chest pain or other abnormal symptoms, stop training and consult a doctor.
-
Never forget that sports machines are not toys. They must therefore only be used according to their purpose and by suitably informed and instructed persons.
-
People such as children, invalids and handicapped persons should only use the machine in the presence of another person who can give aid and advice. Take suitable measures to ensure that children never use the machine without supervision. Ensure that the person conducting training and other people never move or hold any parts of their body into the vicinity of moving parts.
-
It must be ensured that the user and other people never go or stand with any body parts in the area of still moving parts.
-
At the end of its life span this product is not allowed to dispose over the normal household waste, but it must be given to an assembly point for the recycling of electric and electronic components. You may find the symbol on the product, on the instructions or on the packing. The materials are reusable in accordance with their marking. With the re-use, the material utilization or the protection of our environment. Please ask the local administration for the responsible disposal place.
-
To protect the environment, do not dispose of the packaging materials, used batteries or parts of the machine as household waste. Put these in the appropriate collection bins or bring them to a suitable collection point.
-
This machine is a speed-dependant machine, i.e. the power increases with increasing speed, and the reverse.
-
The machine is equipped with 8-speed resistance adjustment. This makes it possible to reduce or increase the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards stage 1 reduces the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards stage 8 increases the braking resistance and thereby the training exertion.
-
The maximum permissible load (=body weight) is specified as 120 kg.
-
The assembly and operating instructions is part of the product. If selling or passing to another person the documentation must be provided with the product.
ASSEMBLY INSTRUCTIONS
Remove all the separate parts from the packaging, lay them on the floor and check roughly that all are there on the base of the assembly steps. Please note that a number of parts have been connected directly to the main frame and preassembled. The screw material required for assembly is located on the components to be assembled. This will make it easier and quicker for you to assemble the equipment. Assembly time: 30 - 40 min.
STEP 1

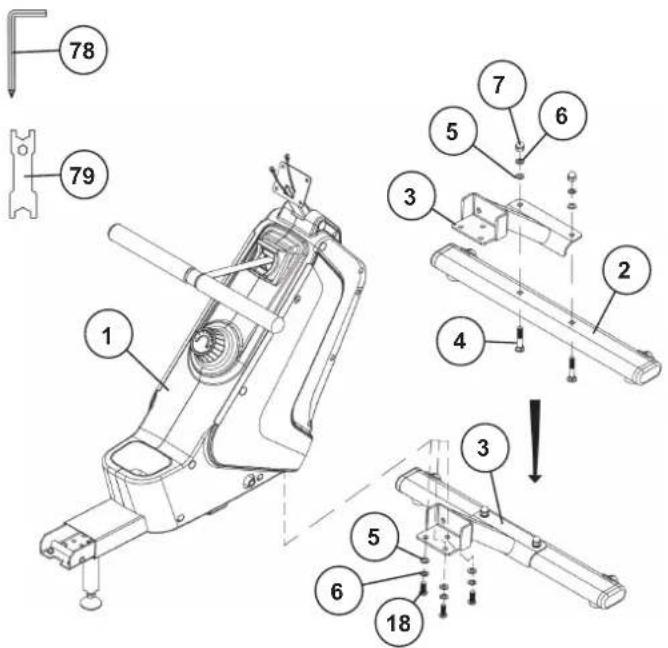

Attach the front Foot (2) and front frame (3) at main frame (1).
-
Place the front foot (2) into the holder in front frame (3) and screw it tightly by using 2 carriage bolts M8x45 (4), washers (5), spring washers (6) and cap nuts (7).
-
Place the front frame (3) into the holder in front of the main frame (1). Put one spring washer (6) and washer (5) on each the screw M8x20 (18) and the tighten the front frame (3) at main frame (1).
STEP 2

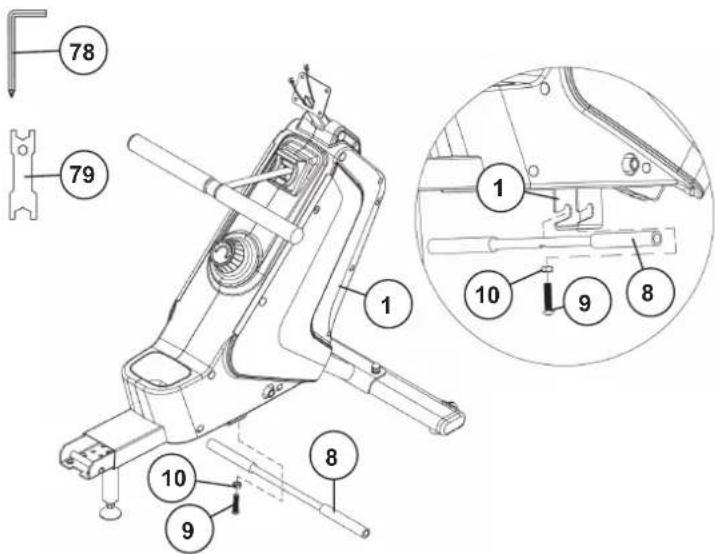

Attach the footplate support (8) at main frame (1).
- Put the footplate support (8) in middle position at appropriate position on bottom side of seat frame (16) and tighten it with screw M8x35 (9). Secure the screws position with nut M8 (10).
STEP 3

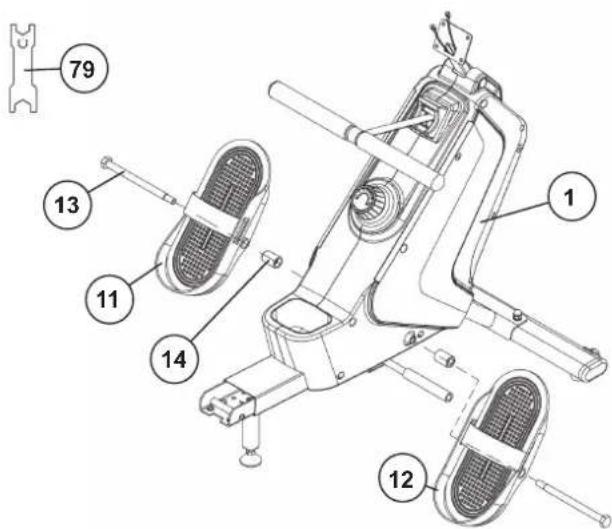

Attach the foot plates (11+12) at main frame (1).
- Screw the foot plates (11+12) by using the M12x165 screw (13) and the distance tubes (14) into the appropriate position at the bottom of main frame (1). The foot plates are marked on backside with L for Left and R for Right. The long, raised edge of the footrests must point towards the base frame.


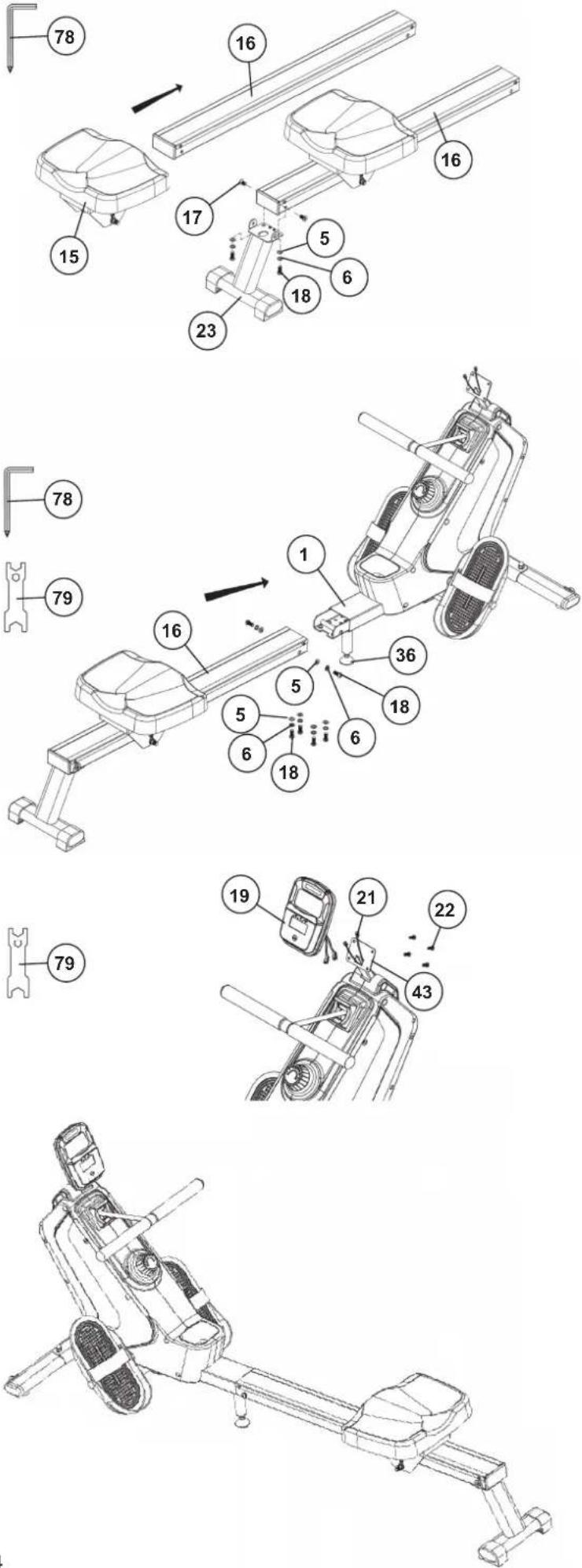

Attach the rear foot (23) and seat (15) at seat frame (16).
- Push the seat frame (16) through the seat slide of seat (15) as shown in picture, so that 2 pulleys can roll onto the top side and 1 pulley can roll onto the bottom side of seat frame (16).
- Put the rear foot (23) into the holder at end of seat frame (16) and screw in the screws M8x15 (17) both sides into the seat frame (16). Then put one spring washer (6) and washer (5) on each screw M8x20 (18) and the tighten the rear foot (23) at seat frame (16).
STEP 5
Attach the seat frame (16) at main frame (1).
- Push the seat frame (16) into the holder of main frame (1), so that the holes pattern. Put one spring washer (6) and washer (5) on each screw M8x20 (18) and the tighten the seat frame (16) at main frame (1).
- Align the middle stand (36) to the floor and secure this position using the nut.
STEP 6
Attach the computer (19) at computer holder (43).
- Insert the batteries (Type AAA - 1.5V) onto the back of the computer (19), observing the correct polarity. (Batteries for the computer are not included in the scope of delivery. Please purchase them from retailers.) Plug the two sensor cables (21) into the corresponding connection sockets on the computer (19) and stow the cable connections as much as possible in computer (19) and in the computer holder (43). Put the computer (19) onto the computer holder (43), so that the holes pattern and screw it tight using the M5x12 screw (22). The screws (22) for the computer are pre-assembled on the backside of computer.
CHECKS
- Check the correct installation and function of all screwed and plug connections. Installation is thereby complete.
- When everything is in order, familiarise yourself with the machine at a low resistance setting and make your individual adjustments.
Note: Please keep the tool set and the instructions in a safe place as these may be required for repairs or spare parts orders becoming necessary later.


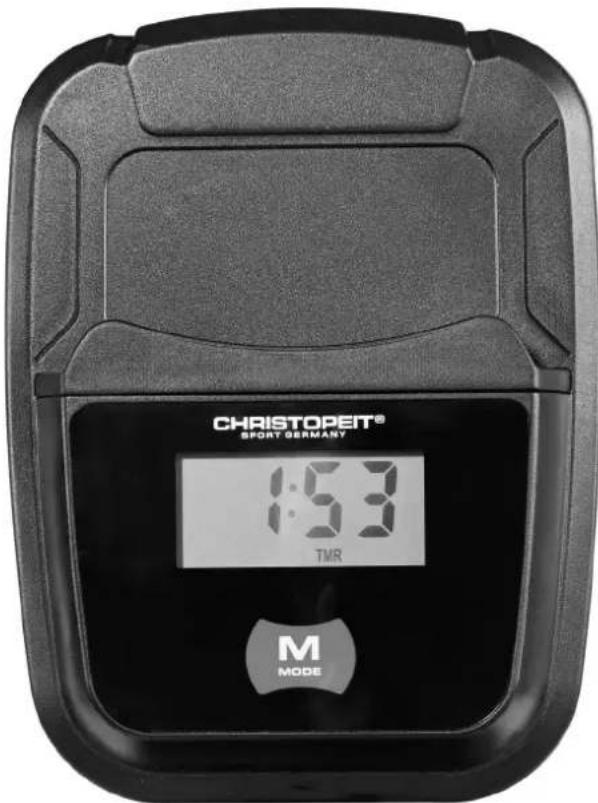

The included computer offers the greatest training comfort. Each training-relevant value is displayed in a corresponding viewing window. From the start of training, the rowing strokes, rowing strokes per minute, training time, calories, rowing stroke total, and the current pulse (optional) are displayed. All values are recorded counting upwards from zero. If you want to have a value permanently displayed during training, select it using the [M] key.
The computer switches on by briefly pressing the [M] button or simply starting training. The computer begins to collect and display all values. To stop the computer, simply stop training. The computer stops all measurements and records the last values reached. The last achieved values in the rowing strokes, training time, calories and rowing strokes total functions are saved and when training is resumed you can continue training from these values. The computer will automatically turn off approximately 4 minutes after you finish training.
[SCAN]:
The current values of all functions are displayed one after the other in a continuous alternation of approx. 6 seconds.
[CNT] Rowing strokes:
The current rowing strokes are displayed.
[SPM] Beats/minute:
The current speed is displayed in rowing strokes per minute.
[TMR] Time:
The currently required time is displayed in minutes and seconds.
[CAL] Calories:
The current number of calories is displayed in approx. (Kcal).
[TCNT] Rowing strokes total:
The total number of rowing strokes completed in all training sessions is displayed. The data on this display is only deleted when the batteries are replaced.
[P] Pulse:
The current pulse is displayed in beats per minute. (only when using the optional Bluetooth heart rate belt.)
KEYS
[M-Mode] Key:
By briefly pressing the key once you can switch from one function to the other; i.e. the respective function can be selected. Pressing the button for a longer period of time (approx. 3 seconds) deletes all the last values reached in all displays, except for total rowing strokes [TCNT].
PULSE RATE
Pulse belt pulse measurement
Optionally, you can use a compatible Bluetooth heart rate monitor to measure your heart rate (Christopeit-Sport heart rate monitor 2209). The measured pulse value is displayed in the heart rate display. Response time is up to 60 seconds.
Attention! The heart rate measurement is not for medical purposes suitable.
REPLACING THE BATTERIES
-
Open the battery compartment cover and then remove the used batteries.(If the batteries should leak remove them under increased considering that the battery acid is not into contact with skin come and clean the battery compartment thoroughly.)
-
Insert the new batteries (type (AAA) 1.5 V in the correct order and taking into account the polarity in the battery compartment and close the battery cover so that it clicks into place.
-
If the computer does not pick up immediately, the function should batteries are removed for 10 seconds and re-inserted.
-
The empty batteries properly in accordance with the disposal regulations disposed of and do not give residual waste.
Battery compartment
AAA Batteries
KINOMAP APP
Sport, coaching, gaming and eSport are the keywords of the Kinomap app. This contains many kilometers of real film material to exercise inside as if you were outside; Tracking routes and analysis of your performance; Coaching content; Multiplayer mode; new posts daily; Official indoor races and more ...
Download the app and connect
Scan the adjacent QR code with your smartphone / tablet or use the search function at the Playstore (Android) or APP Store (IOS) to download the Kinomap APP. Register and follow the instructions in the APP. Activate Bluetooth on the smartphone or tablet and select the device manager in the app and then the appropriate product category there. Then select your type designation using the manufacturer logo "Christopeit Sport" to connect the sports equipment. Depending on the sports equipment, different functions are recorded by the APP via Bluetooth or data is exchanged.
Attention! The Kinomap app offers a free trial version for 14 days. You can then decide whether you want to continue training for free with the basic version or use the full range of the Kinomap app for a fee.
Current information and fees can be found at: www.kinomap.com


IOS / ANDROID APP
OTHER APPS
Fitshow (Android and iOS app)
Use the search function on the Playstore (Android) or APP Store (iOS) to download the respective app or get more information.
OPERATING AND EXERCISING INSTRUCTIONS
Exercise 1
a) Begin this exercise with your legs straight, knees together and the upper part of your body upright.
b) Bend forward without bending your knees, grip the handle bar and pull back until the upper part of your body is upright again. Important: The oar levers should be pulled back with the arms (and not with the body) until your hands have reached your body.
c) Bring the handle bar back to the starting position again.
d) Rest for a moment and then carry out the exercise again, repeating it quietly and continuously.
Exercise 2
a) Begin this exercise sitting upright with the seat as far forward as possible and your knees bent.
b) Push back with the legs keeping your knees together and at the same time pulling the handle bar towards you.
c) Continue pulling until your legs are straight and your hands have reached your body.
d) Relax your arms and legs and let the seat slide forward until you have reached the start position (a) again and then repeat the exercise again.
1. Cleaning
Use only a less wet cloth for cleaning. Caution: Never use benzene, thinner or other aggressive cleaning agents for surface cleaning as this damage caused. The device is only for private home use and for use suitable indoors. Keep the unit clean and moisture from the device.
2. Storage

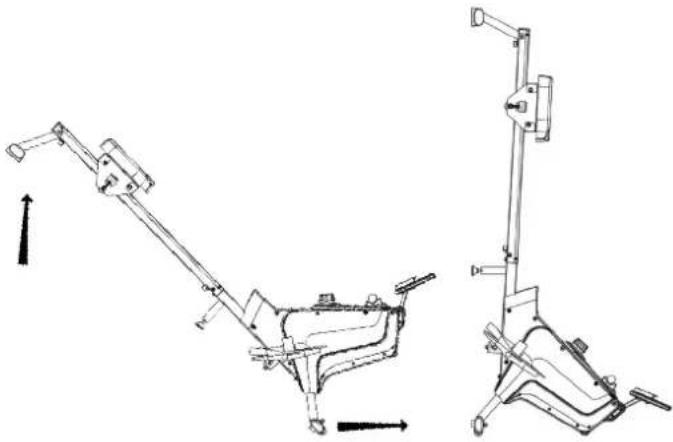

To change the installation location, lift the rear of the device so that it rests on the transport wheels. You can store the device upright. Remove the batteries from the computer if you will not be using the device for more than 4 weeks. Choose a dry storage location in the house. Cover the device to protect it from discoloration caused by sunlight and dust.
3. Checks
We recommend checking the screw connections made during assembly to ensure they are tight every 50 hours of operation.
If you cannot solve the problem with the following information, please contact the authorized service center.
| Problem Possible Cause Solution | ||
| Computer has no value at Display if you press any key. | No Batteries insert or batteries empty Check | the position of batteries at battery compartment or replace batteries. |
| Computer is not counting data and do not switch on after start cycling. | Sensor impulse missing base on not well plugged connection | Check the plug connections at computer and under the fold up constrcution. |
| Computer is not counting data and do not switch on after start cycling. | Sensor impulse missing base on not correct position of sensor. | Check the distance from the sensor to the magnet. A magnet is attached to the drawstring winding and should pass the sensors at a distance of less than < 5mm. |
TRAINING SPACE REQUIREMENT


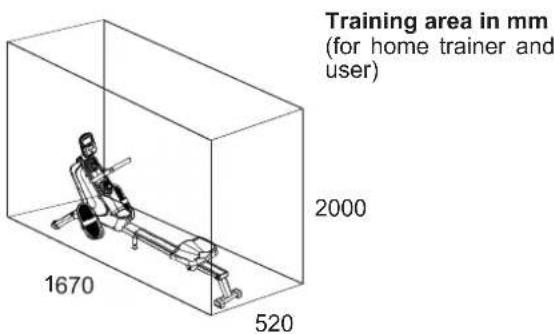

Training area in mm (for home trainer and user) 1670 520 2000


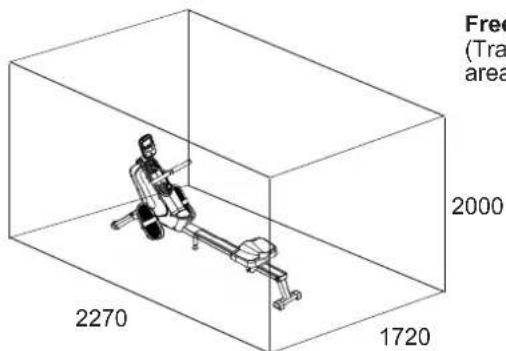

Free (Tra area) 2000 2270 1720Free area in mm
(Training area and security area (circulating 600mm))
GENERAL TRAINING INSTRUCTIONS
You must consider the following factors in determining the amount of training effort required in order to attain tangible physical and health benefits.
INTENSITY
The level of physical exertion during training must exceed the point of normal exertion, without going beyond the point of breathlessness and/or exhaustion. A suitable reference value can be the pulse. With each training session, the condition increases and therefore the training requirements should be adjusted. This is possible by extending the duration of the training, increasing the level of difficulty or changing the type of training.
TRAINING HEART RATE
To determine the training heart rate, you can proceed as follows. Please note that these are guide values. If you have health problems or are unsure, consult a doctor or fitness trainer.
01 Maximum heart rate calculation
The maximum pulse value can be determined in many different ways, since the maximum pulse depends on many factors. You can use the main-formula for the calculation (maximum heart rate = 220 - age). This formula is very general. It is used in many home sport products to determine the maximum heart rate. We recommend the Sally-Edwards-formula. This formula calculates the maximum heart rate more precisely and takes gender, age and body weight into account.
Sally-Edwards-formula:
Men:
Maximum heart rate = 214 - (0.5 x age) - (0.11 x body weight)
Women:
Maximum heart rate = 210 - (0.5 x age) - (0.11 x body weight)
02 Training heart rate calculation
The optimal training heart rate is determined by the goal of the training. Training zones were defined for this.
Health - Zone: Regeneration and Compensation
Suitable for: Beginners
Type of training: very light cardio training
Goal: recovery and health promotion. Building the basic condition.
Training heart rate = 50 to 60% of the maximum heart rate
Fat-Metabolism - Zone: Basics endurance training 1
Suitable for: beginners and advanced users
Type of training: light cardio training
Goal: activation of fat metabolism (calorie burning). improvement in endurance performance.
Training heart rate = 60 to 70% of the maximum heart rate
Aerobic - Zone: Basics endurance training 1 to 2
Suitable for: beginners and advanced
Type of training: moderate cardio training.
Goal: Activation of the fat metabolism (calorie burning), improving aerobic performance, Increase in endurance performance.
Training heart rate = 70 to 80% of the maximum heart rate
Anaerobic - Zone: Basics endurance training 2
Suitable for: advanced and competitive athletes
Type of training: moderate endurance training or interval training
Goal: improvement of lactate tolerance, maximum increase in performance.
Training heart rate = 80 to 90% of the maximum heart rate
Competition - Zone: Performance / Competition Training
Suitable for: athletes and high-performance athletes
Type of training: intensive interval training and competition training /
Goal: improvement of maximum speed and power.
Attention! Training in this area can lead to overloading of the cardiovascular system and damage to health.
Training heart rate = 90 to 100% of the maximum heart rate
Sample calculation
Male, 30 years old and weighs 80 kg. I am a beginner and would like to lose some weight and increase my endurance.
01: Maximum pulse - calculation
Maximum heart rate = 214 - (0.5 x age) - (0.11 x body weight)
Maximum heart rate = 214 - (0.5 x 30) - (0.11 x 80)
Maximum pulse = approx. 190 beats/min
02: Training heart rate calculation
Due to my goals and training level, the fat metabolism zone suits me best.
Training heart rate = 60 to 70% of the maximum heart rate
Training heart rate = 190 x 0.6 [60%]
Training heart rate = approx. 114 beats/min
After you have set your training heart rate for your training condition or Once you have identified goals, you can start training. Most of our endurance training equipment have heart rate sensors or are heart rate belt compatible. So you can check your heart rate on the monitor during the workouts. If the pulse rate is not shown on the computer display or you want to be on the safe side and want to check your pulse rate, which could be incorrectly displayed due to possible application errors or similar, you can use the following tools:
a. Pulse measurement in the conventional way (sensing the pulse beat, e.g. on the wrist and counting the beats within a minute).
b. Heart rate measurement with suitable and calibrated heart rate measuring devices (available from medical supply stores).
c. Heart rate measurement with other products such as heart rate monitors, smartphones....
FREQUENCY
Most experts recommend the combination of a health-conscious diet, which must be adjusted according to the training goal, and physical exercise three to five times a week. A normal adult needs twice a week exercise to maintain its current condition. To improve his condition and change his body weight, he needs at least three training sessions per week. Ideal of course is a frequency of five training sessions per week.
TRAINING PLAN
Each training session should consist of three training phases: "warmup phase", "training phase" and "cool-down phase". In the "warm-up phase" the body temperature and the oxygen supply should be increased slowly. This is possible through gymnastic exercises over a period of five to ten minutes. After that you start with actual training "training phase". The training load should be adapted according to the training heart rate. In order to support the circulation after the training phase and to preventaching or strained muscles later, it is necessary to follow the training phase with a cool-down phase. This should be consist of stretching exercises and/or light gymnastic exercises for a period of five to ten minutes.
Example - stretching exercises for the warm-up and cool-down phases
Start your warm up by walking on the spot for at least 3 minutes and then perform the following gymnastic exercises to the body for the training phase to prepare accordingly. The exercises do not overdo it and only as far run until a slight drag felt. This position will hold a while.
Bend forward as far forward as possible and let your legs almost stretched. Show it with your fingers in the direction of toe. 2 x 20sec.
Sit down with one leg stretched out on the floor and bend forward and try to reach the foot with your hands. 2 x 20sec.
Kneel in a wide lunge forward and support yourself with your hands on the floor. Press the pelvis down. Change after 20 sec leg.
MOTIVATION
The key to a successful program is regular training. You should set a fixed time and place for each day of training and prepare yourself mentally for the training. Only train when you are in the mood for it and always have your goalin view. With continuous training you will be able to see how you are progressing day by day and are approaching your personal training goal bit by bit.
PARTS LIST – SPARE PARTS LIST
| Type - Order.Nr.: | RW1000 - 2460 |
| Date of technical data: | 05.08.2024 |
| Dimensions approx: [cm]: | L 167 x B 52 x H 79 cm |
| Space requirements [ m^2 ]: | 2,5 m^2 |
| Weight approx. [kg]: | 20 kg |
| Load max. (User weight) [kg]: | 120 kg |
FEATURES
• Magnetic brake system
- Approx. 5 kg flywheel mass
• 8 -stepped resistance control
- Upright storable
• Floor level compensation and transport rollers
- Seat slide with ball bearings
- Incline adjustable computer with LCD display shows: Time,
- Rower Beats, Beats/Minute, Beats/Total, approx. calories and pulse frequency.
- Integrated holder for smartphones and tablets
- Bluetooth connection for Kinomap APP (IOS and Android)
- Bluetooth connection for optionally pulse belt
NOTE
Please contact us if any components are defective or missing, or if you need any spare parts or replacements in future.
This product is created only for private Home sports activity and not allowed to us in a commercial or professional area. Home Sport use class H/C.
| Illustration No. | Designation Dimension mm Quantity Attached to ET Number | ||||
| 1 Main frame 1 3+16 33-2460-01-SW | |||||
| 2 Front stabilizer 1 3 33-2460-04-SW | |||||
| 3 Front frame 1 1+2 33-2460-03-SW | |||||
| 4 Carriage bolt M8x45 2 2 39-9953 | |||||
| 5 Washer | 8//16 | 21 | 18,60,61,65+67 | 39-9962-SW | |
| 6 Spring washer | for M8 | 11 | 4+18 | 39-9864-SW | |
| 7 Cap nut M8 | 2 4 39-9900-SW | ||||
| 8 Footplate support | 1 1 33-2460-07-SW | ||||
| 9 Allen bolt M8x35 | 1 1 39-9817 | ||||
| 10 Hex nut | M8 | 1 9 39-10031 | |||
| 11 Footplate left | 1 8 36-2460-07-BT | ||||
| 12 Footplate right | 1 8 36-2460-08-BT | ||||
| 13 Hex bolt | M12x165 | 2 | 11+12 | 39-10331-CR | |
| 14 Distance tube | 2 13 | 36-2460-31-BT | |||
| 15 Saddle | 1 44 | 36-2460-32-BT | |||
| 16 Seat frame | 1 1+23 33-2460-02-SW | ||||
| 17 Innerhex screw | M8x15 | 2 | 23 | 39-9888-CR | |
| 18 Allen bolt | M8x20 | 11 | 1,3,16+23 | 39-10095-SW | |
| 19 Computer | 1 43 | 36-2460-03-BT | |||
| 20 Pull strap | 1 24+32 | 36-2460-33-BT | |||
| 21 Sensor | 2 1+19 36-2460-06-BT | ||||
| 22 Screw | M5x12 | 10 | 19,51+56 | 39-10190 | |
| 23 Rear stabilizer | 1 16 | 33-2460-05-SW | |||
| 24 Hand grip | 1 20 | 33-2460-08-SW | |||
| 25 Round plug | 2 24 | 36-9211-21-BT | |||
| 26 Hand grip foam | 2 24 | 36-2460-09-BT | |||
| 27 Chain cover left | 1 1+30 36-2460-01-BT | ||||
| 28 Decoration strip left | 1 | 27 | 36-2460-04-BT | ||
| 29 Rubber pad | 1 27+30 | 36-2460-10-BT | |||
| 30 Chain cover right | 1 1+27 36-2460-02-BT | ||||
| 31 Decoration strip right | 1 | 30 | 36-2460-05-BT | ||
| 32 Turbine set | 1 1+20 36-2460-11-BT | ||||
| 33 Flywheel | 1 1 33-2460-11-SI | ||||
| 34 Flat belt | 240J | 1 | 32+33 | 36-2460-12-BT | |
| 35 Crossbar protector | 2 8 36-2460-13-BT | ||||
| 36 Adjustable foot | 1 1 36-2460-14-BT | ||||
| 37 Resistance control | 1 1 36-2460-15-BT | ||||
| 38 Bottle holder | 1 27+30 | 36-2460-16-BT | |||
| 39 Connector | 1 27+30 | 36-2460-34-BT | |||
| 40 Adjustable end cap | 2 | 23 | 36-2460-17-BT | ||
| Illustration No. | Designation Dimension mm Quantity Attached to ET Number | ||||
| 41 Oval cap | 2 2 36-2460-18-BT | ||||
| 42 Transportation wheel | 2 2 36-2460-19-BT | ||||
| 43 Computer holder | 1 27+30 | 33-2460-06-SW | |||
| 44 Saddle slide | 2 15 | 33-2460-09-SW | |||
| 45 Saddle slide bracket | 2 44 | 33-2460-10-SW | |||
| 46 Roller with bearing | 3 44 | 36-2460-20-BT | |||
| 47 Aluminum side rail | 2 16 | 36-2460-21-BT | |||
| 48 Strap pulley | 1 65 | 36-2460-22-BT | |||
| 49 Handgrip rack | 1 1 36-2460-23-BT | ||||
| 50 Flywheel Support | 2 1+33 | 33-2460-12-SI | |||
| 51 Upper roller support | 1 1 33-2460-13-SI | ||||
| 52 Upper roller | 1 53 | 36-2460-24-BT | |||
| 53 Upper roller axle | 1 51 | 36-2460-25-BT | |||
| 54 Steel bushing | 2 43 | 36-1660-19-BT | |||
| 55 Sensor bracket | 1 1 36-2460-26-BT | ||||
| 56 Stopper | 2 16 | 36-2460-27-BT | |||
| 57 Front rubber cushion | 2 2 36-2460-28-BT | ||||
| 58 Strap pulley sleeve | 1 48 | 36-2460-29-BT | |||
| 59 Square cap | 1 16 | 36-2460-30-BT | |||
| 60 Allen bolt | M8x120 | 2 44 | 39-10446-SW | ||
| 61 Allen bolt | M8x125 | 1 44 | 39-10446 | ||
| 62 U-piece | 4 63 | 36-9713-55-BT | |||
| 63 Eye bolt | M6x50 | 4 32+33 | 39-10000 | ||
| 64 Nylon nut | M6 | 4 63 | 39-9861-SW | ||
| 65 Allen bolt | M8x80 | 1 1+48 | 39-9973-SW | ||
| 66 Allen bolt | M8x65 | 1 43 | 39-9814 | ||
| 67 Allen bolt | M8x15 | 4 15 | 39-9823 | ||
| 68 Countersunk drill screw | 4x15 | 4 | 42 | 39-10253-SW | |
| 69 Drill screw | 4x15 | 13 | 28,30,47,55+57 | 36-9111-38-BT | |
| 70 Screw | 4x20 | 8 28+30 | 36-9825339-BT | ||
| 71 Nylon nut | M8 | 5 | 60,61,65+66 | 39-9918-CR | |
| 72 Roller sleeve | 6 60+61 | 36-2460-35-BT | |||
| 73 Washer | 10//20 | 1 32 | 39-9989-VC | ||
| 74 Axle nut | M10x1 | 5 32+33 | 39-9820 | ||
| 75 Small nut | M10x1 | 4 32+33 | 39-9820-SW | ||
| 76 Magnet | 1 32 | 36-2460-36-BT | |||
| 77 Pedal strap | 2 11+12 | 36-2460-37-BT | |||
| 78 Allen wrench 5 | 1 | 36-9107-27-BT | |||
| 79 Multi wrench | 1 | 36-2460-38-BT | |||
| 80 Assembly and exercise instruction | 1 | 36-2460-39-BT | |||
Page Contenu
[SPM] Battements/minute:
REEMPLACEMENT DES PILES:
KINOMAP APP
1. Nettoyage
Line drawing of a person using an equestrian machine inside a transparent cube, with dimension labels 2270 and 1720 (no text or symbols on the diagram itself)text_image
Technical diagram of a mechanical assembly with numbered parts and exploded views, likely from an engineering or manufacturing context.
KINOMAP APP
1. Reiniging
Competitie - Zone: Prestaties / Competitie Training
02: Training hartslagberekening
Technical diagram of a mechanical assembly with numbered parts and exploded views, likely from an engineering or manufacturing context.
1. Čištění
EN IEC 61000-6-1:2019
EN ISO 20957-1:2013
EN ISO 20957-7:2021
GB EC-DECLARATION OF CONFORMITY
declares, in our sole responsibility, that the products:
Article:
RW 1000 Art.-No. 2460
Product description:
Rowing machine – stationary training equipment
comply with the following essential requirements of the following EU directives
2014/53/EU (RED) Radio Equipment Directive
2011/65/EU (RoHS) Restriction of Hazardous Substances
and additionally standards, guidelines and regulations:
EN 301 489-1 V2.2.3:2019
EN 301 489-17 V3.2.4:2020
EN 300 328 V2.2.2 :2019
EN 62479:2010
EN 50663:2017
EN 62368-1:2014+A11:2017
EN IEC 61000-6-3:2021
EN IEC 61000-6-1:2019
EN ISO 20957-1:2013
EN ISO 20957-7:2021

