Product Type Linear Actuator
Brand Vevor
Model OK648-A
Available Stroke 150 mm or 200 mm
Maximum Rated Load 9000 N (≈ 917 kg)
Maximum Travel Speed 5 mm/s
Rated Voltage 12 V DC
Rated Current ≤ 2.0 A
Protection Rating IP65
Duty Cycle 25% (do not run continuously)
Operating Temperature -45 °C to 65 °C
Maximum Noise Level ≤ 65 dB
Dimensions (retracted, stroke 150 mm) Length approx. 400 mm, diameter 51 mm
Dimensions (retracted, stroke 200 mm) Length approx. 450 mm, diameter 51 mm
Limit Switch Type Fixed internal (non-adjustable)
Connector Type Female 6.3 mm (to be configured by the customer)
Included Accessories 2 mounting brackets
Electrical Protection Class III (Safety Extra Low Voltage)
Recommended Uses Hospital beds, sofas, desks, marine installations
Approximate Weight 2.5 kg (estimate)

Frequently Asked Questions - OK648-A Vevor

What is the required supply voltage?
The Vevor OK648-A linear actuator operates at a rated voltage of 12 V DC. Use a suitable 12 V DC power adapter.
What is the duty cycle of this actuator?
The duty cycle is 25%. This means it should not run continuously; for example, for 2 minutes of operation, allow 6 minutes of rest.
Is the actuator waterproof?
The protection rating is IP65, which protects against water splashes and dust. However, it is not fully waterproof: do not immerse it in water.
What is the maximum load the actuator can support?
The maximum rated load is 9000 N (approximately 917 kg). Be careful never to exceed this limit to avoid risk of damage or injury.
How to install the actuator correctly?
Install the actuator so that the load force is aligned with the center of the extension tube and the rear mounting adapter. Avoid lateral forces that could damage the unit.
Are there limit switches?
Yes, fixed limit switches (non-adjustable) are integrated. They automatically stop the motor when the tube is fully extended or retracted.
Why does the motor run slowly or lack power?
This may be due to insufficient power supply (voltage too low) or excessive load. Check the power supply and reduce the load if necessary.
What accessories are included with the actuator?
The kit includes 2 mounting brackets for easy installation. The power connector (female 6.3 mm type) is not included and must be chosen by the user.
In what types of applications can I use this actuator?
It is designed for uses such as hospital beds, electric sofas, adjustable desks, automotive and marine installations. Adjust the installation angle according to recommendations (100% thrust at 0°, 75% at 90°).
How to maintain and clean the actuator?
Disconnect the power supply before any maintenance. Clean with a dry cloth. Do not use harsh products. Cleaning and maintenance should not be carried out by children without supervision.

User questions about OK648-A Vevor

1 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

uitschuiven model OK628 résolu
R Rudy - 21 j - 1 réponse communauté

bij het uitschuiven stop ik op een bepaalde hoogte, maar de actuator zakt gewoon.

Report this question
N Notice-Facile - 21 j

Le problème que vous décrivez (l'actionneur redescend après un arrêt à mi-course) est courant avec les actionneurs linéaires sans frein mécanique intégré. Le Vevor OK648-A ne dispose pas de système de maintien de position automatique : une fois que vous arrêtez l'alimentation, la charge reprend son poids et l'actionneur redescend progressivement.

Les causes principales :

  • Charge trop proche de la limite – Si votre charge approche ou dépasse les 9000 N, le système ne peut pas maintenir la position sans alimentation continue. Vérifiez le poids exact supporté.
  • Arrêt avant les butées de fin de course – L'actionneur dispose d'interrupteurs de fin de course fixes. Si vous arrêtez manuellement avant ces points, il n'y a rien pour « verrouiller » la position.
  • Alimentation insuffisante – Une tension de 12 V trop faible peut réduire la force de maintien. Vérifiez votre alimentation.

Solutions pratiques :

  • Utilisez un contrôleur avec fonction de maintien (certains modèles gardent le moteur légèrement alimenté pour maintenir la position).
  • Installez un frein de charge supplémentaire (mécanique ou hydraulique) si le maintien est critique.
  • Réduisez la charge si elle approche les limites spécifiées.
  • Consultez la notice complète ou le SAV Vevor pour confirmer si ce modèle supporte une fonction de maintien.

Report this response
Add a response

Download the instructions for your Linear actuator in PDF format for free! Find your manual OK648-A - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OK648-A by Vevor.

USER MANUAL OK648-A Vevor

Affordable. Reliable. Home Improvement.

Linear Actuator

Model: OK648-A

Model:OK648-A

Vevor OK648-A - Model:OK648-A - 1

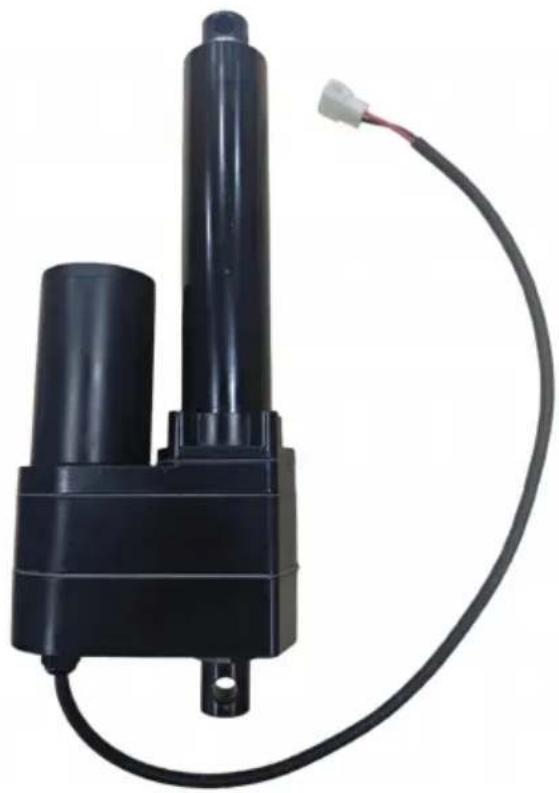

natural_image Close-up of a black electric motor with attached cable and terminal block (no visible text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Vevor OK648-A - Model:OK648-A - 2Warning-To reduce the risk of injury, user must read instruct manual carefully.
Vevor OK648-A - Model:OK648-A - 3This product is of protection class III.
UKCACECompliance is a EC & UK security certification.
Vevor OK648-A - Model:OK648-A - 4This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

INSTRUCTIONS

IMPORTANT SAFEGUARDS

Vevor OK648-A - IMPORTANT SAFEGUARDS - 1

Please read and understand this entire manual before attempting to assemble, operate or install the product.

Failure to follow all instructions listed below may result in electric shock fire and/or serious injury.

WARNING:

  1. The load added onto the actuator must be less than or equal to rated load of actuator.
  2. Install actuator so the force of the load acts in the center of the extension tube and the rear mounting adapter.
  3. Use a 12v DC power adapter.
  4. All products have a working cycle and they cannot keep working non-stop
  5. The linear actuator is not completely waterproof. Please do not im it directly in water
  6. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SAVE THESE INSTRUCTIONS

WARNING:

Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to open the product.

Note:

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

  • Reorient or relocate the receiving antenna.
  • Increase the distance between the product and receiver.
  • Connect the product to an outlet on a circuit different from that to the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for assista

PRODUCT PARAMETERS

SPECIFICATIONSOK648-A
OK648-A-150mmOK648-A-200mm
Stroke Length (Max.)150mm200mm
Rated load(Max.)9000N
Travel Speed (Max.)5mm/s
Rated Voltage12VDC
Rated Current<20A
Limit SwitchesFixed Inner (not Adjustable)
Operation Temperature-45°C~65°C
Protection ClassIP65
Duty Cycle25%
Noise Level≤65dB

Each set of this product comes with the following accessori

- Mounting BracketX2

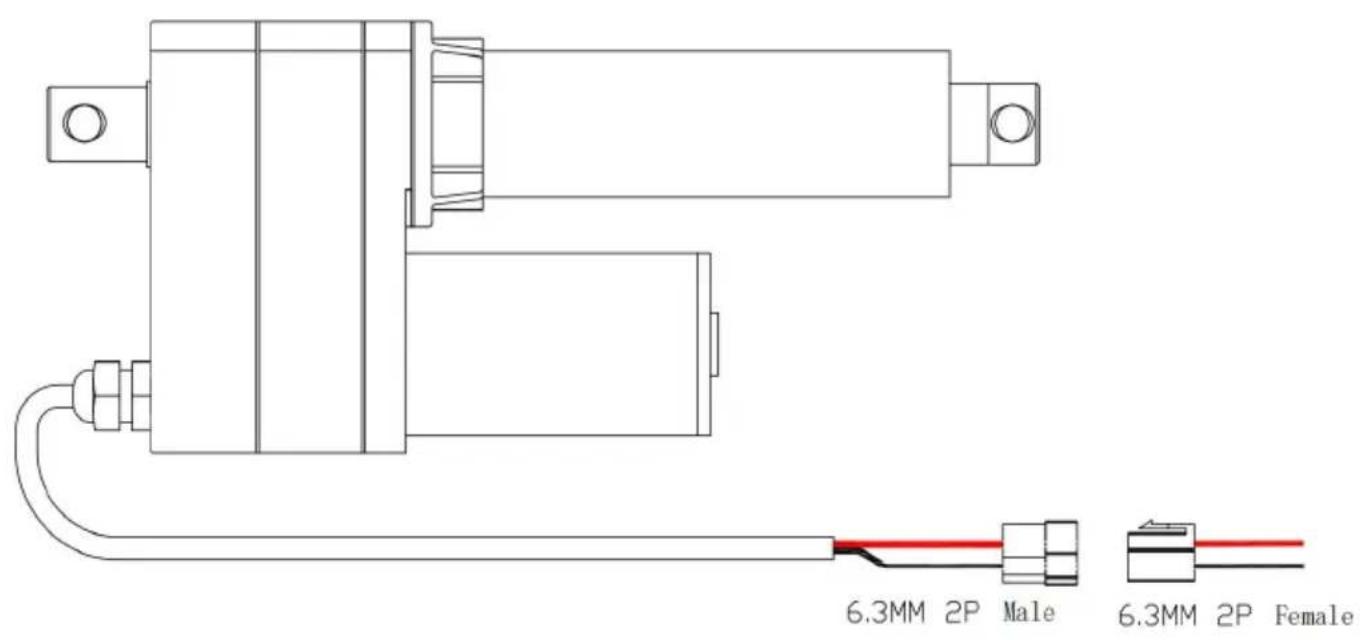

Drawing

OK648-A-150mm
Retracted length=250±150 Stroke=150 14±0.2 24.5±0.5 Ø26±0.3 Ø13+0.3 +0.05 Ø51±0.5 Ø13+0.3 +0.05 Ø28.5±0.2 20 10±0.2 Ø64±1 215±1 400 20

76±1 151±1

NOTE: please allow +5% tolerance due to manual measurement

OK648-A-200mm

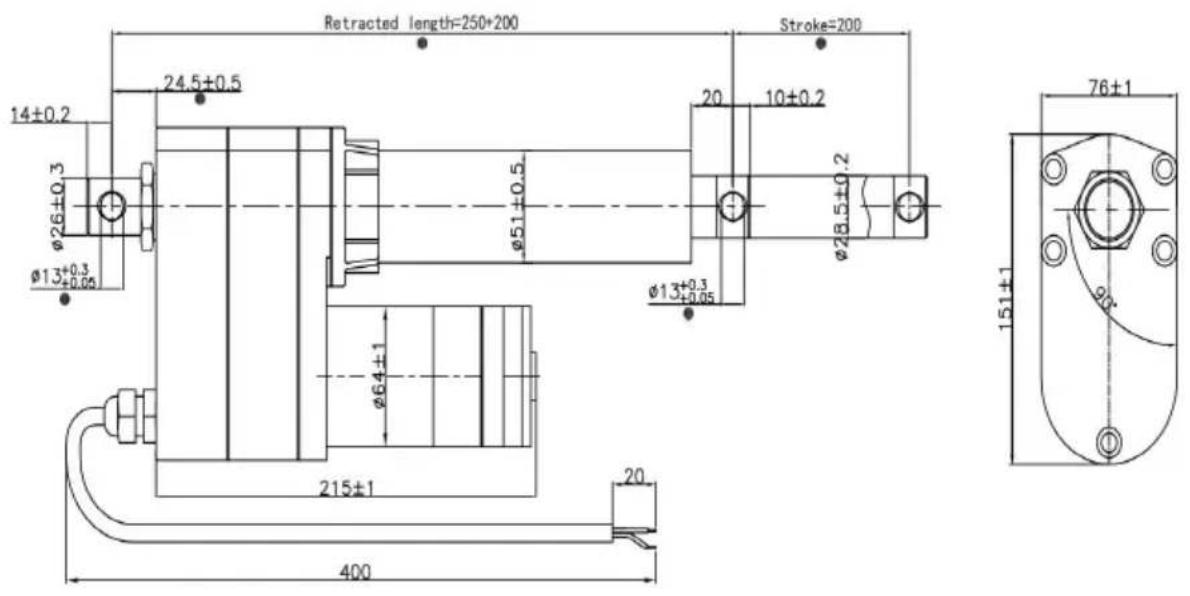

Retracted length=250+200 Stroke=200 14±0.2 24.5±0.5 20 10±0.2 Ø26±0.3 Ø13±0.3 Ø51±0.5 Ø28.5±0.2 Ø13±0.3 Ø64±1 Ø13±0.05 215±1 20 400 76±1 151±1 Ø90

NOTE:please allow +5% tolerance due to manual measurement This product is compatible with the corresponding female plus specifications (configured by the customer): 6.3MM 2P Drawing
6.3MM 2P Male 6.3MM 2P Female

Users should use caution to ensure that:

  1. The travel distance of the actuator satisfies the requirement of the structural design.

  2. The extended and retracted limit switches operate normally. The lin switches should stop the motor when the extension tube is fully retra fully extended.

  3. If the motor speed is too slow or it cannot provide sufficient power

(1) the power supply is insufficient and needs to be increased or.
(2) the load being applied to the actuator is too great and needs to reduced.

The linear drive is only responsible for the linear drive force.

  1. The loss caused by lateral and side forces cannot be estimated
  2. The installation method produces a moment arm ratio
  3. When the stroke exceeds 400 ~mm , the estimated value of the telescope tube's resistance to bending force and lateral force decreases.

0° 100% Push use 90° 75% Push use >90° 50% Push use For example: 1:2 Push and pull forces will drop by 50% 1:3 push and pull force will be reduced by 65% 1:4 push and pull force will be reduced by 75% 9000N Parameter Output 4500N 9000N Parameter Output 2250N

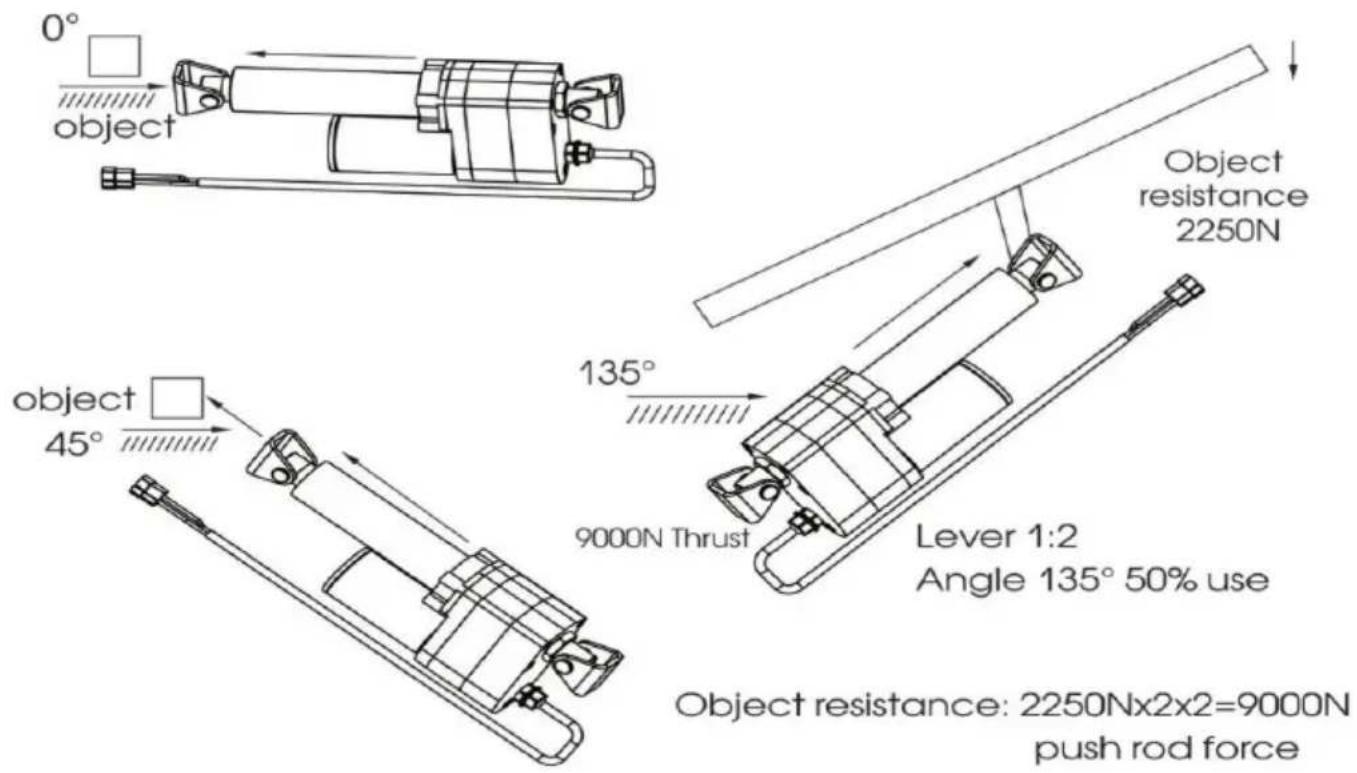

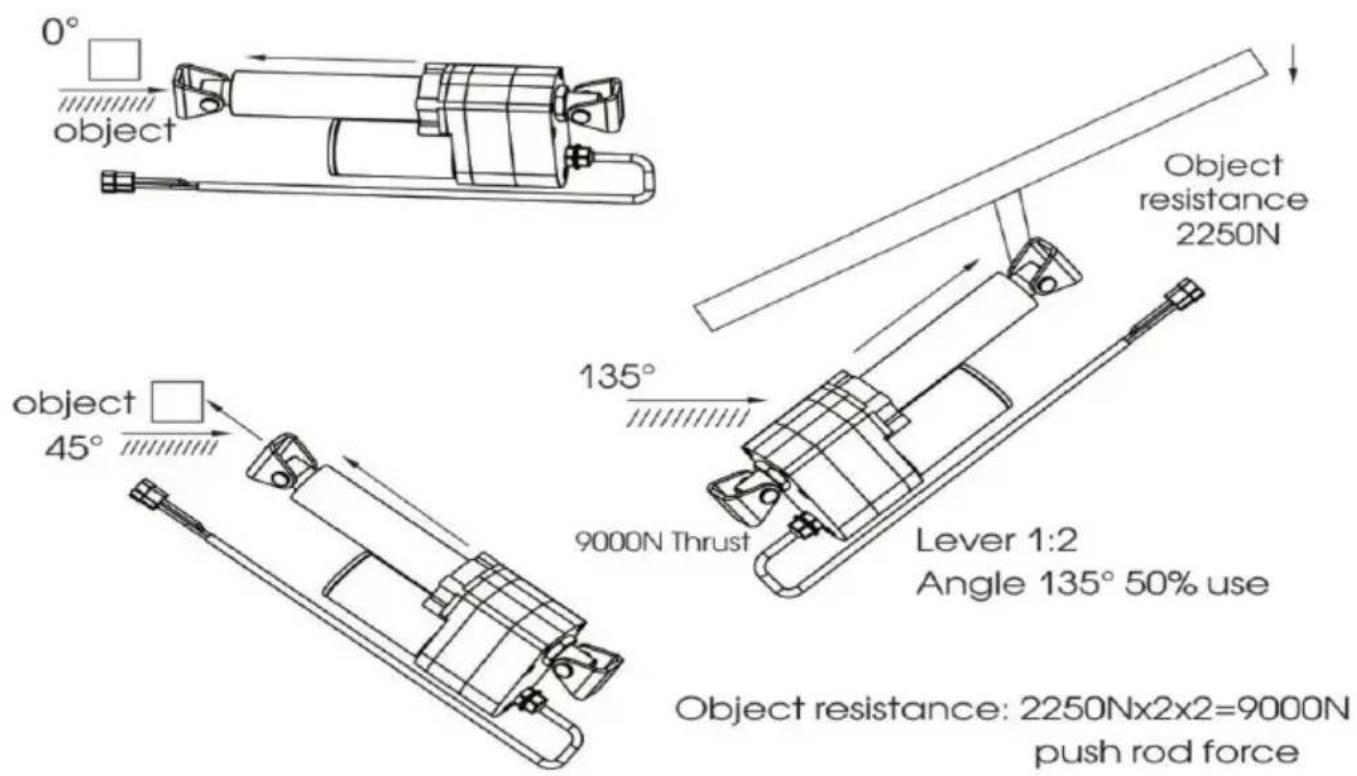

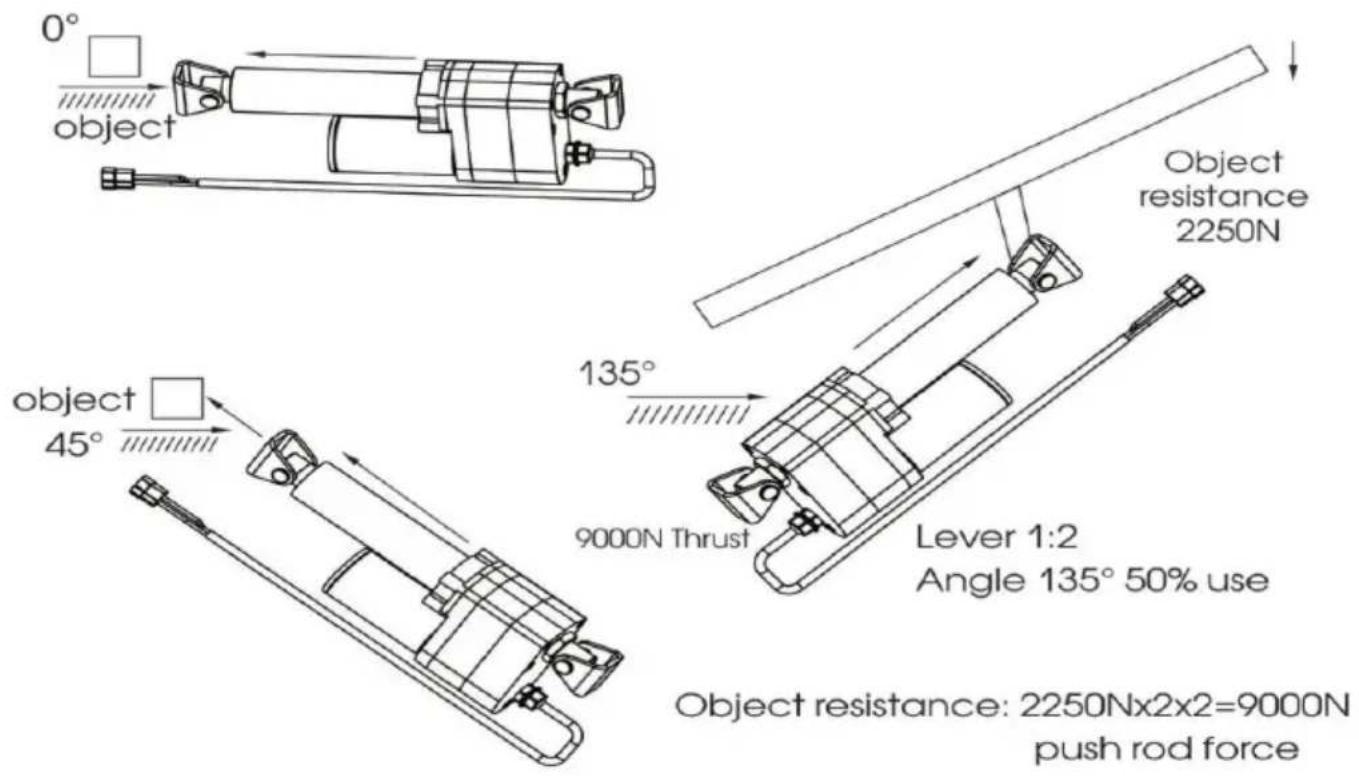

0° object object resistance 2250N 135° object 45° 9000N Thrust Lever 1:2 Angle 135° 50% use Object resistance: 2250Nx2x2=9000N push rod force

0° 100% push use <90° 75% Push use

>90° 50% Push use

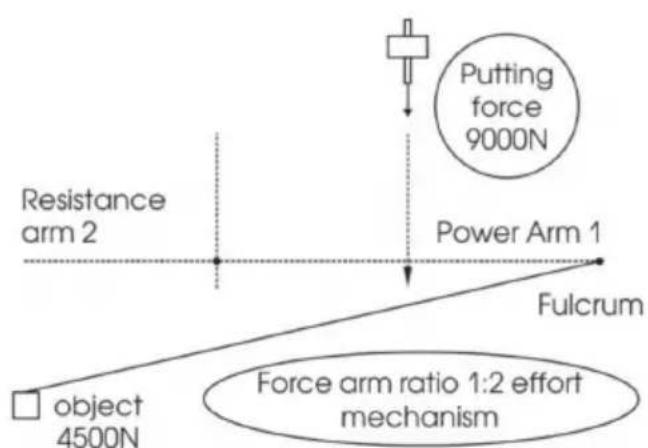

Resistance arm 2 Power Arm 1 Fulcrum □ object 4500N Force arm ratio 1:2 effort mechanism Putting force 9000N

Object resistance: 4500Nx2=9000N push rod force

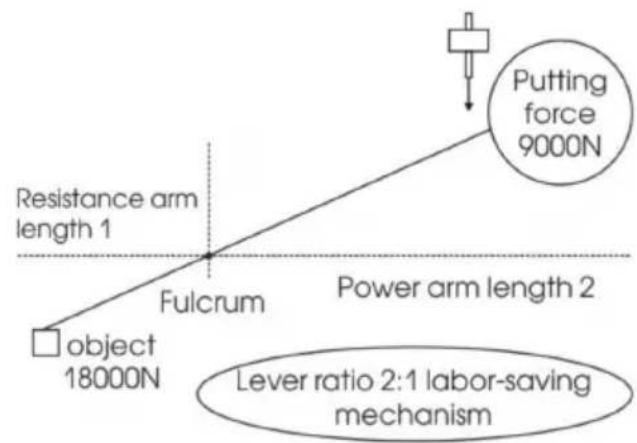

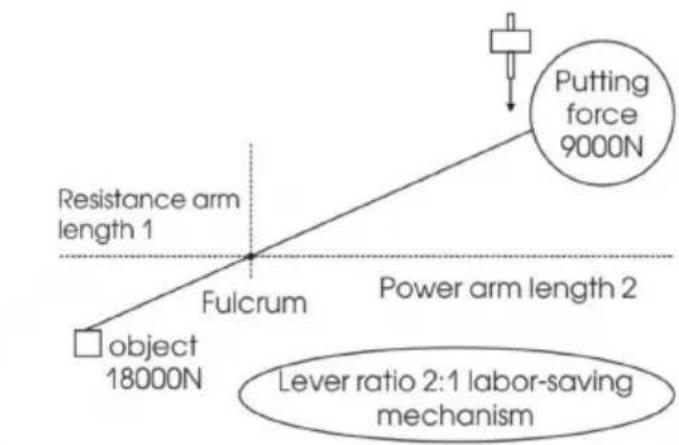

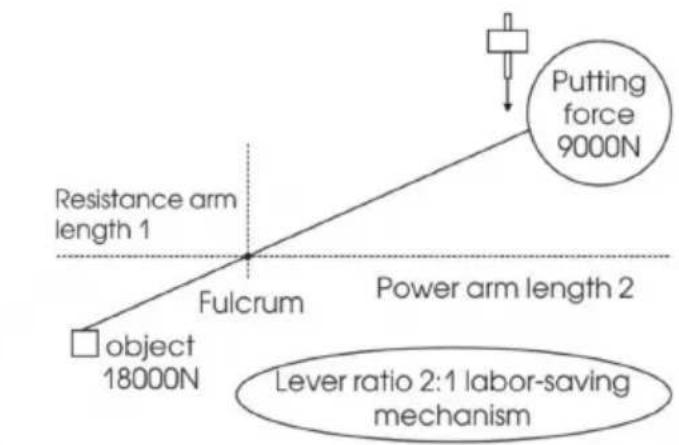

Resistance arm length 1 Fulcrum Power arm length 2 object 18000N Putting force 9000N Lever ratio 2:1 labor-saving mechanism

Object resistance: 18000N ÷ 2=9000N push rod force

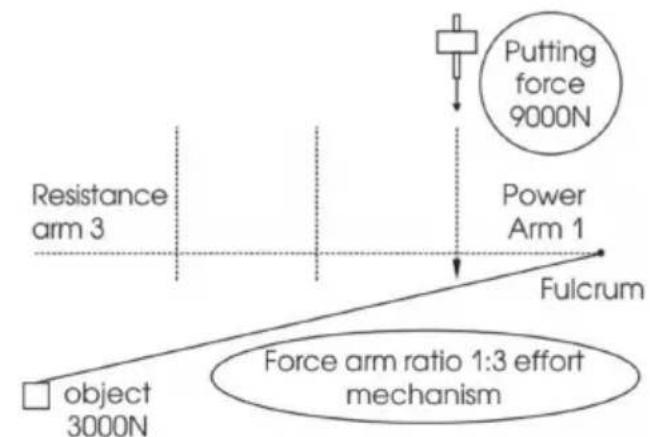

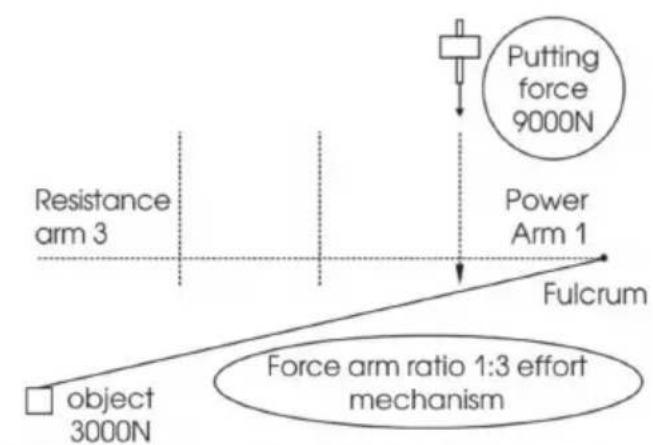

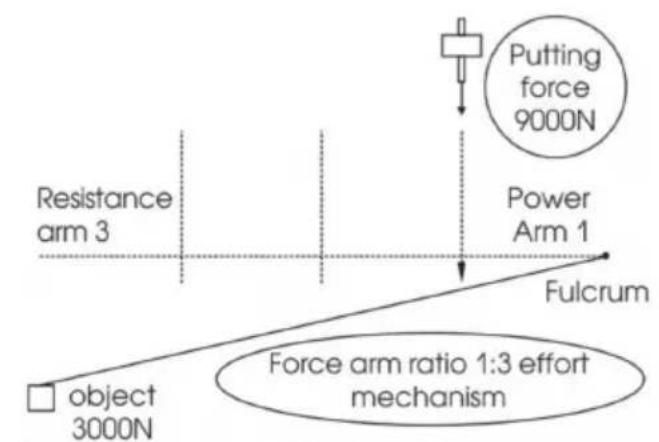

Resistance arm 3 Power Arm 1 Fulcrum Force arm ratio 1:3 effort mechanism Object 3000N Putting force 9000N

Object resistance: 3000N×3=9000N push rod force

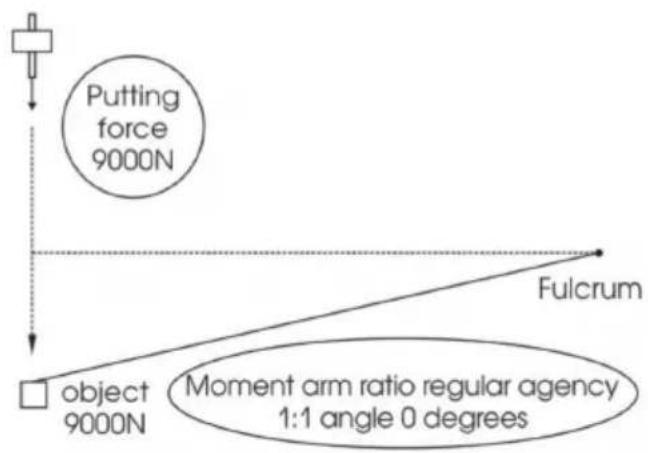

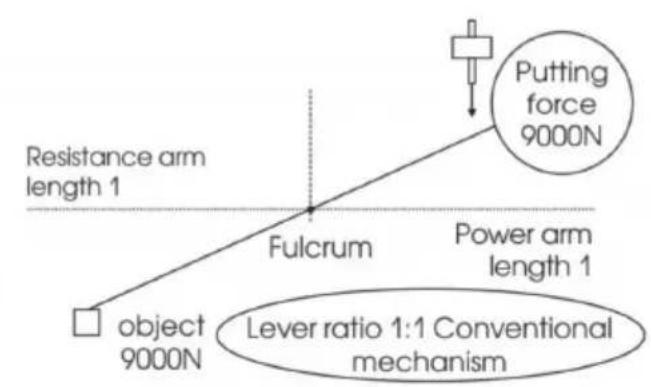

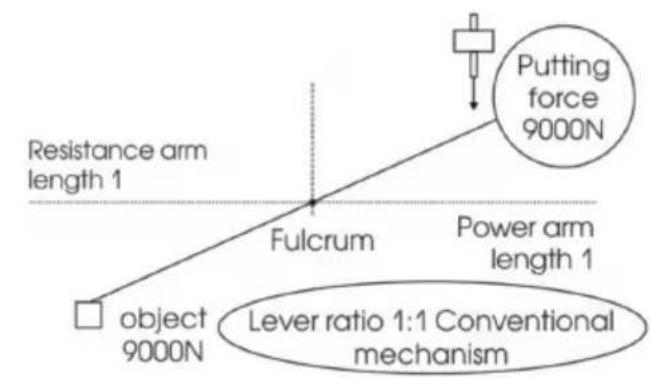

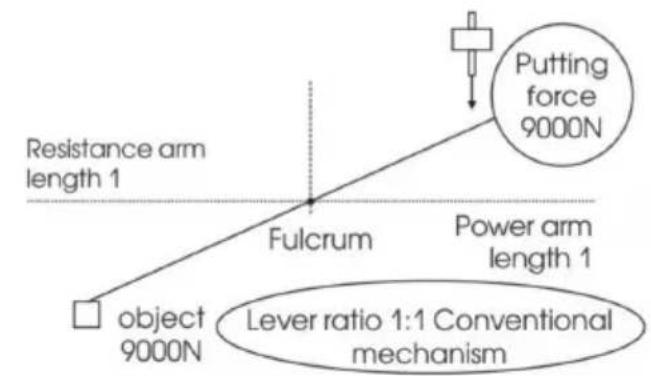

Resistance arm length 1 Fulcrum Power arm length 1 object 9000N Lever ratio 1:1 Conventional mechanism Putting force 9000N

Object resistance: 9000Nx1=9000N push rod force

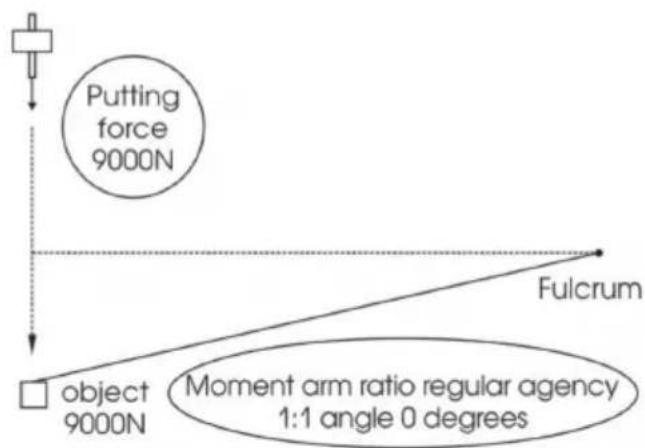

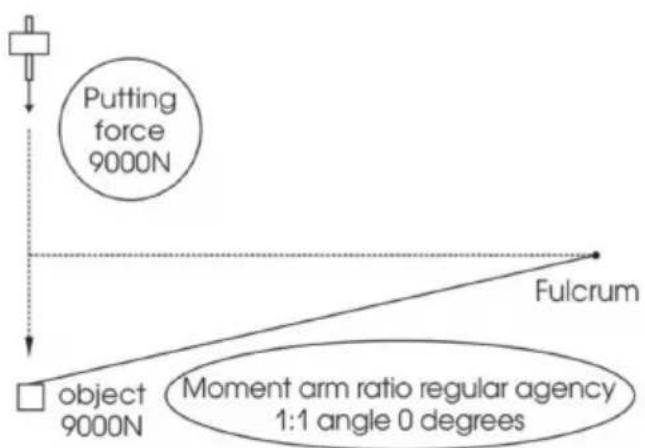

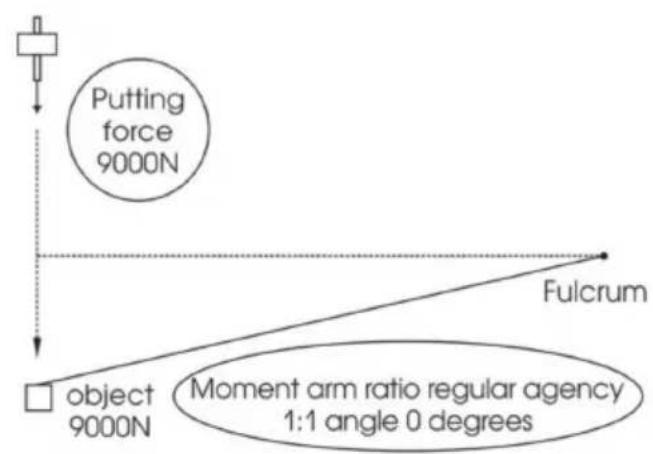

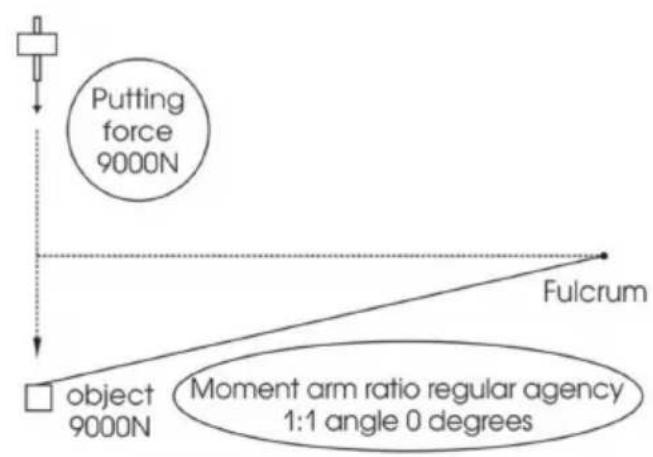

Putting force 9000N Fulcrum object 9000N Moment arm ratio regular agency 1:1 angle 0 degrees

Object resistance: 9000Nx1=9000N push rod force

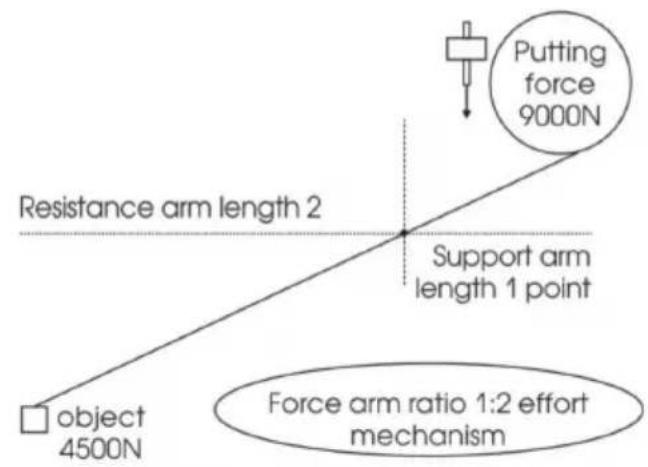

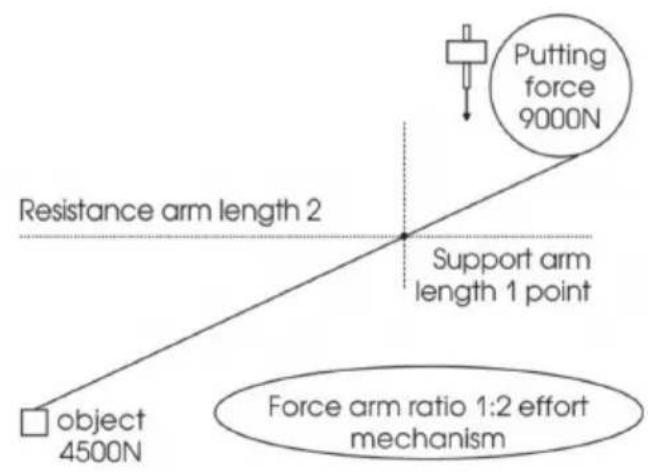

Resistance arm length 2 Support arm length 1 point Object 4500N Putting force 9000N Force arm ratio 1:2 effort mechanism

Object resistance: 4500Nx2=9000N push rod force

Usage scenarios:

hospital beds, home sofas, patient beds, office desks, car installations, ship installations, etc.
