OK648-1000N - Linear actuator Vevor - Free user manual and instructions

Product type	Linear actuator
Brand	Vevor
Model	OK648-1000N
Supply voltage	12 V DC
Rated force	1000 N
Protection class	III
Duty cycle	Intermittent (do not operate continuously)
Protection rating	Not waterproof (do not immerse)
Body material	Steel
Motor type	DC motor
Limit switch	Built-in (automatic stop at end of stroke)
Holding function	Holds position when power off (auto brake)
Movement direction	Extension and retraction (reverse polarity)
Mounting system	Top and bottom mounting holes
Maintenance	Clean with dry cloth, do not immerse
Safety	Respect rated load, centered mounting, use 12 V DC adapter
Spare parts	Contact manufacturer
Warranty	Electronic warranty certificate at www.vvor.com/support
Manufacturer	Vevor, made in China
Compliance	CE, UKCA, FCC Part 15

Frequently Asked Questions - OK648-1000N Vevor

What is the operating voltage of the Vevor OK648-1000N linear actuator?

The actuator operates on 12 V DC. Always use a 12 V DC power adapter.

How do I extend and retract the actuator rod?

To extend the actuator, connect the red wire to positive and black wire to negative. To retract, reverse the connections. Use a relay or reverse polarity switch to simplify operation.

What is the maximum force of the actuator?

The rated force is 1000 N. Never exceed this load to avoid damage or injury.

Can the actuator be used continuously?

No, the actuator has an intermittent duty cycle. It should not run continuously. Allow it to cool between uses.

Is the actuator waterproof?

No, it is not fully waterproof. Do not immerse it in water and protect it from excessive moisture.

What should I do if the motor runs slowly or does not provide full force?

Check the power supply: voltage may be insufficient. If the applied load is too heavy, reduce it. Ensure the actuator is not blocked.

How do I install the actuator?

Mount the top and bottom mounting holes to two fixed brackets. The stroke and application limits determine the location. Ensure the movement is free and unobstructed.

Does the actuator hold its position when power is off?

Yes, it holds its position thanks to a built-in automatic brake.

What are the limit switches?

The actuator is equipped with internal limit switches that automatically stop the motor when the rod is fully extended or retracted.

Where can I find technical support and warranty?

Go to www.vvor.com/support for technical support and the electronic warranty certificate.

USER MANUAL OK648-1000N Vevor

LINEAR ACTUATOR

MODEL: OK648/OK648-A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

LINEAR ACTUATOR

MODEL: OK648/OK648-A

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instruct manual carefully.

CORRECT DISPOSAL This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed throb indicates that the product requires separate refuse collection European Union. This applies to the product and all accessmarked with this symbol. Products marked as such may notdiscarded with normal domestic waste, but must be taken toa collection point for recycling electrical and electronic devices.

This product is of protection class III.

Compliance is a EC & UK security certification.

IMPORTANT SAFEGUARDS

Please read and understand this entire manual before attempting to assemble, operate or install the product. Failure to follow all

instructions listed below may result in electric shock, fire and/or serious injury.

WARNING:

1. The load added onto the actuator must be less than or equal to the rated load of the actuator.
2. Install the actuator so that the force of the load acts in the center of the tube and the rear mounting adapter.
3. Use the 12 V DC power adapter.
4. All actuators have a duty cycle; they cannot work continuously without stopping.
5. The actuator is not completely waterproof; please do not submerge it directly in water.
6. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING:

Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note:

This product has been tested and found to comply with the limits for a Class 1 digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

PRODUCT PARAMETERS

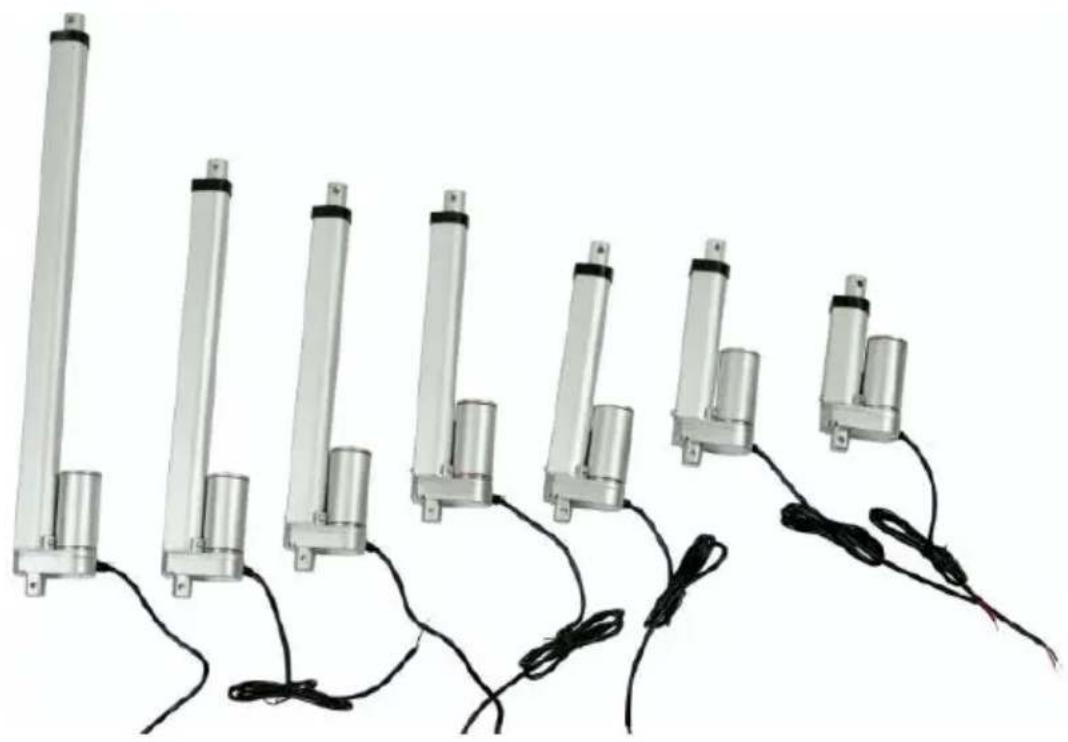

SPECIFICATIONS	OK648								OK648-A
Stroke Length	150mm	300mm	500mm	100mm	150mm	300mm	400mm	450mm	500mm
Rated Load	1000N			1500N					3000N
Travel Speed (Max.)	14mm/s			5mm/s					5mm/s
Rated Voltage	12VDC			12VDC					12VDC
Rated Current (Max.)	5A			5A					6A
Limit Switches	Fixed Inner(not Adjustable)
Operation Temperature	-20℃~+65℃
Protection Class	IP54			IP54					IP65
Duty Cycle	25%
Noise Level	≤50dB			≤60dB					≤60dB

Accessories:

OK648: 2 x Mounting Bracket, 2 x Connecting Rod, 2 x R-type Pin. OK648-A: 2 x Mounting Bracket, 2 x Connecting Rod, 2 x R-type Pin, 1 x Set of Protective Kit.

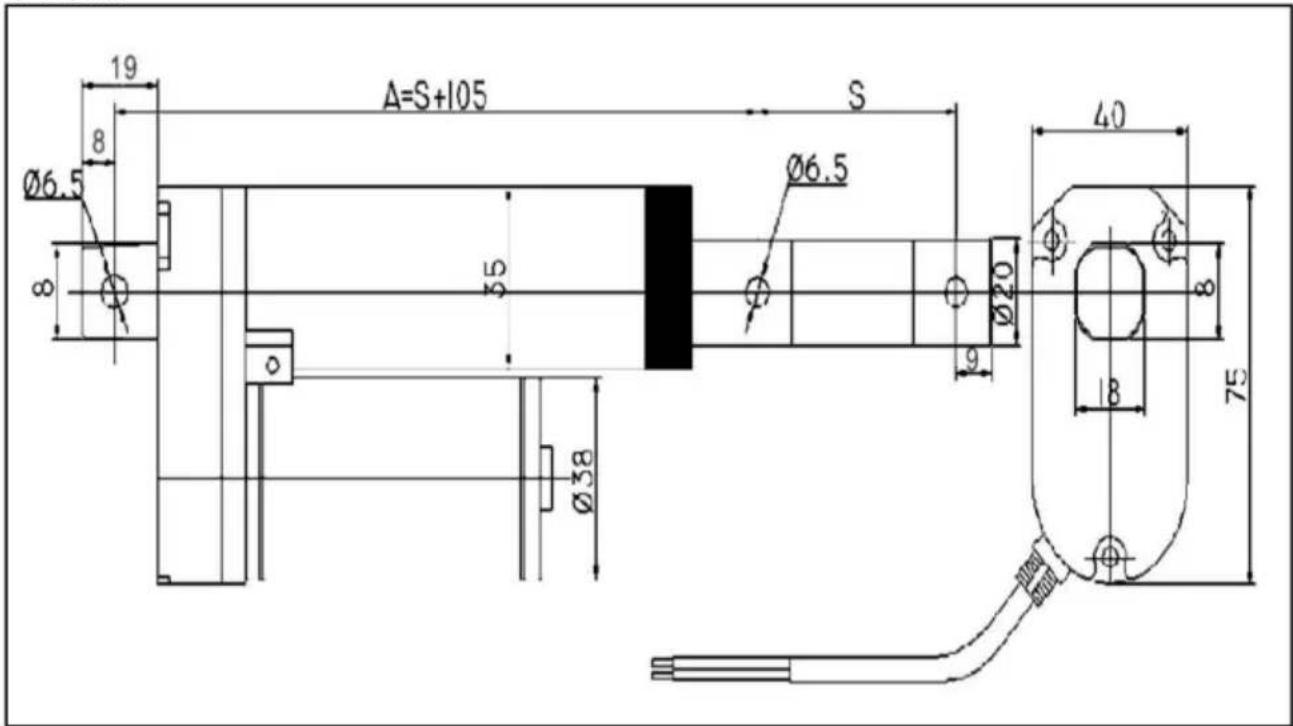

Drawing OK648

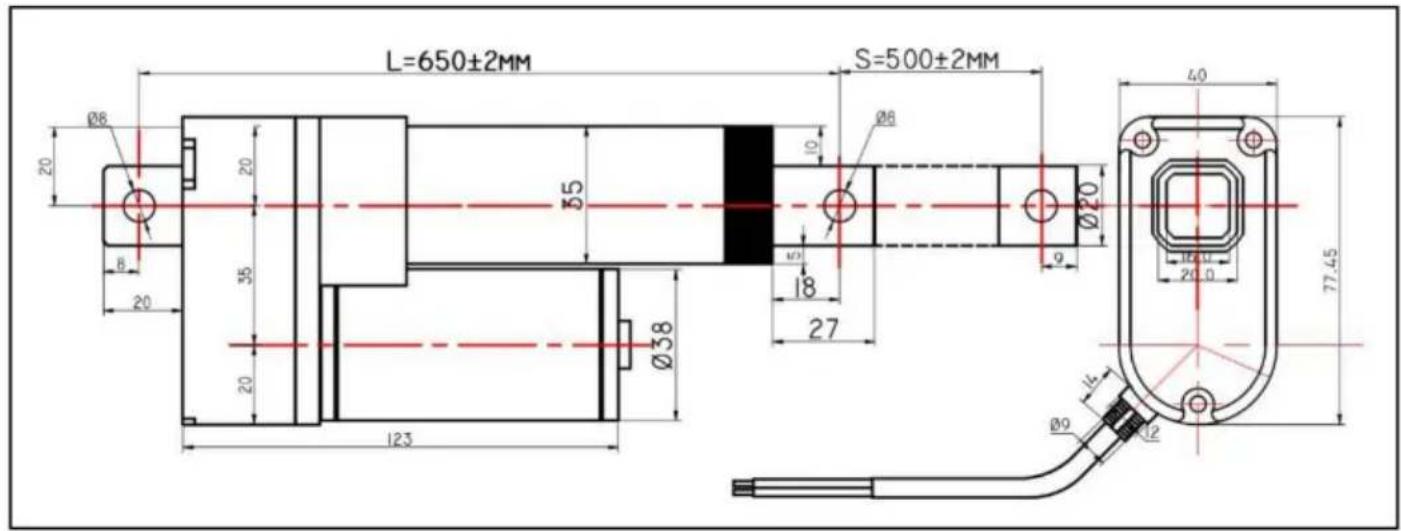

OK648-A

Precautions for use

1. Prepare to connect the two wires of the actuator to a 12 volt battery.
2. Red wire to the positive terminal and Black wire to negative terminal will the actuator extend. To make it retract, just reverse the terminal connections.
3. To simplify the last step, you can prepare a reverse polarity relay or switch (included) for the actuator. When you want the actuator to extend and retract, press the switch.
4. Your actuator will hold its position when the power is off. It will automatically stop when it reaches the end.
5. The actuator has pre-installed inner limit switches, so it cannot.
6. Mount the actuator by securing the top and bottom mounting holes to two positions. The stroke length of the actuator (e.g., 12 inches) and the limitations of the particular application will determine the location of the fixed mounting position.
7. Confirm that the two-way movement of the linear actuator is smooth and the actuator's stroke length after it has been installed. Additionally, confirm that no obstacles exist along the travel path of the actuator.
8. Secure the top and bottom mounting holes of the linear actuator onto the mounting fixtures using diameter bolts.
9. The operation of the linear actuator should be tested manually after the installation is completed.

Users should use caution to ensure that:

1. The travel distance of the actuator satisfies the requirement of the structure design.
2. The extended and retracted limit switches operate normally. The limit switches should stop the motor when the extension tube is fully retracted or fully extended.
3. If the motor runs too slow or does not give full force:

(1) The power supply is insufficient and needs to be increased, or (2) The load applied to the actuator is too great and needs to be reduced.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Technical Support and E-Warranty Certificate www. vvor. com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www. vvor. com/support

LINEAR ACTUATOR

MODEL: OK648/OK648-A

SPECIFICATIONS	OK648								OK648-A
Stroke Length	150mm	300mm	500mm	100mm	150mm	300mm	400mm	450mm	500mm
Rated Load	1000N			1500N					3000N
Travel Speed (Max.)	14mm/s			5mm/s					5mm/s
Rated Voltage	12VDC			12VDC					12VDC
Rated Current (Max.)	5A			5A					6A
Limit Switches	Fixed Inner(not Adjustable)
Operation Temperature	-20℃~+65℃
Protection Class	IP54			IP54					IP65
Duty Cycle	25%
Noise Level	≤50dB			≤60dB					≤60dB

Accessories:

OK648: 2x mounting bracket, 2x connecting rod, 2x R-type pins

OK648-A: 2x mounting brackets, 2x connecting rods, 2x R-type pins,

1 x protective kit set

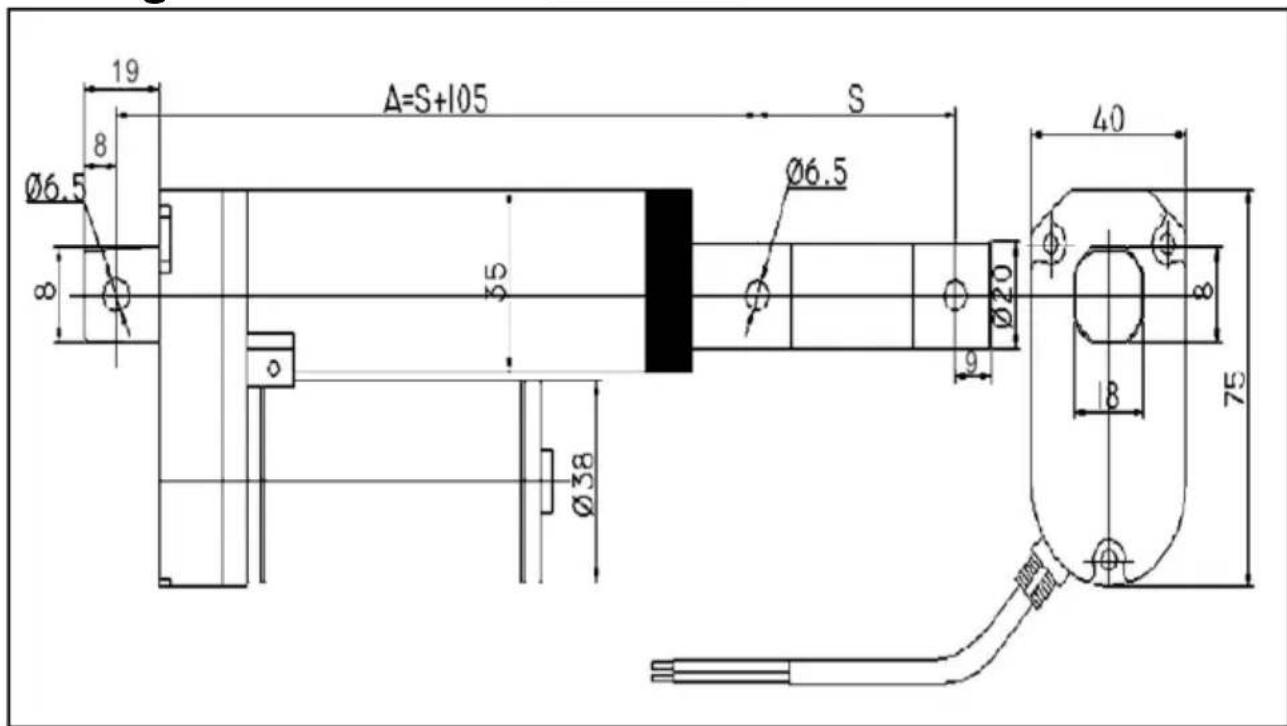

Drawing OK648

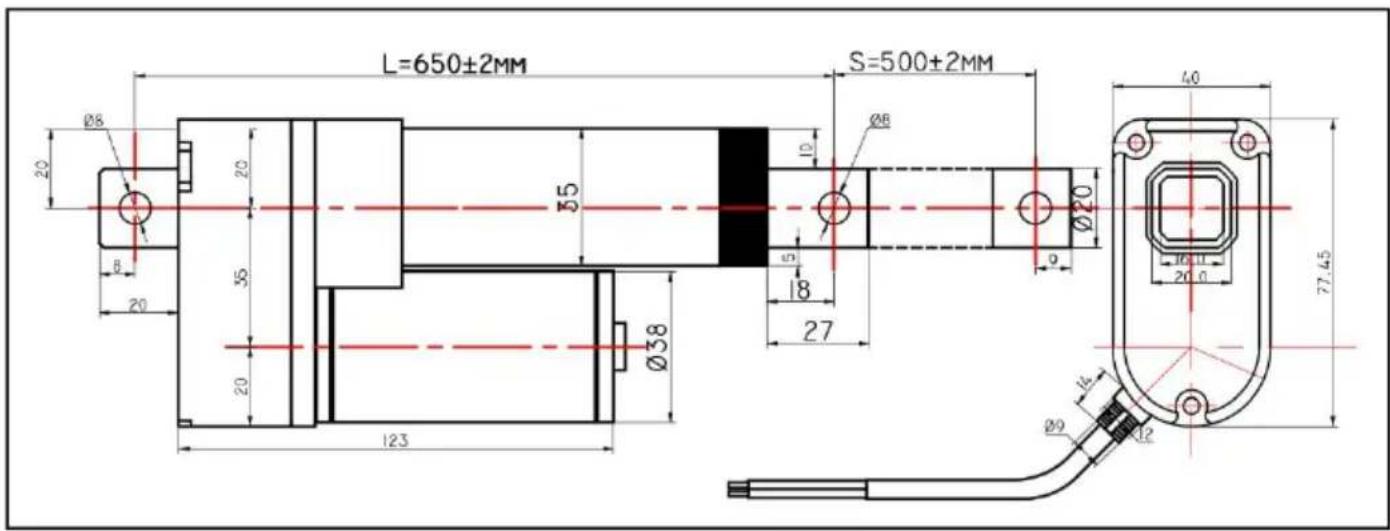

OK648-A

SPECIFICATIONS	OK648								OK648-A
Stroke Length	150mm	300mm	500mm	100mm	150mm	300mm	400mm	450mm	500mm
Rated Load	1000N			1500N					3000N
Travel Speed (Max.)	14mm/s			5mm/s					5mm/s
Rated Voltage	12VDC			12VDC					12VDC
Rated Current (Max.)	5A			5A					6A
Limit Switches	Fixed Inner(not Adjustable)
Operation Temperature	-20℃~+65℃
Protection Class	IP54			IP54					IP65
Duty Cycle	25%
Noise Level	≤50dB			≤60dB					≤60dB

Accessories:

SPECIFICATIONS	OK648								OK648-A
Stroke Length	150mm	300mm	500mm	100mm	150mm	300mm	400mm	450mm	500mm
Rated Load	1000N			1500N					3000N
Travel Speed (Max.)	14mm/s			5mm/s					5mm/s
Rated Voltage	12VDC			12VDC					12VDC
Rated Current (Max.)	5A			5A					6A
Limit Switches	Fixed Inner(not Adjustable)
Operation Temperature	-20℃~+65℃
Protection Class	IP54			IP54					IP65
Duty Cycle	25%
Noise Level	≤50dB			≤60dB					≤60dB

Accessories:

Place, Rancho Cucamonga, CA

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Pooledas Ltd Group

SPECIFICATIONS	OK648								OK648-A
Stroke Length	150mm	300mm	500mm	100mm	150mm	300mm	400mm	450mm	500mm
Rated Load	1000N			1500N					3000N
Travel Speed (Max.)	14mm/s			5mm/s					5mm/s
Rated Voltage	12VDC			12VDC					12VDC
Rated Current (Max.)	5A			5A					6A
Limit Switches	Fixed Inner(not Adjustable)
Operation Temperature	-20℃~+65℃
Protection Class	IP54			IP54					IP65
Duty Cycle	25%
Noise Level	≤50dB			≤60dB					≤60dB

Accessories:

SPECIFICATIONS	OK648								OK648-A
Stroke Length	150mm	300mm	500mm	100mm	150mm	300mm	400mm	450mm	500mm
Rated Load	1000N			1500N					3000N
Travel Speed (Max.)	14mm/s			5mm/s					5mm/s
Rated Voltage	12VDC			12VDC					12VDC
Rated Current (Max.)	5A			5A					6A
Limit Switches	Fixed Inner(not Adjustable)
Operation Temperature	-20℃~+65℃
Protection Class	IP54			IP54					IP65
Duty Cycle	25%
Noise Level	≤50dB			≤60dB					≤60dB

Accessories:

NEED HELP? CONTACT US!

SPECIFICATIONS	OK648								OK648-A
Stroke Length	150mm	300mm	500mm	100mm	150mm	300mm	400mm	450mm	500mm
Rated Load	1000N			1500N					3000N
Travel Speed (Max.)	14mm/s			5mm/s					5mm/s
Rated Voltage	12VDC			12VDC					12VDC
Rated Current (Max.)	5A			5A					6A
Limit Switches	Fixed Inner(not Adjustable)
Operation Temperature	-20℃~+65℃
Protection Class	IP54			IP54					IP65
Duty Cycle	25%
Noise Level	≤50dB			≤60dB					≤60dB

Accessories:

SPECIFICATIONS	OK648								OK648-A
Stroke Length	150mm	300mm	500mm	100mm	150mm	300mm	400mm	450mm	500mm
Rated Load	1000N			1500N					3000N
Travel Speed (Max.)	14mm/s			5mm/s					5mm/s
Rated Voltage	12VDC			12VDC					12VDC
Rated Current (Max.)	5A			5A					6A
Limit Switches	Fixed Inner(not Adjustable)
Operation Temperature	-20℃~+65℃
Protection Class	IP54			IP54					IP65
Duty Cycle	25%
Noise Level	≤50dB			≤60dB					≤60dB

Accessories:

OK648: 2 x mounting brackets, 2 x crank arm, 2 x R-type pin

Unit 5 Albert Edward House, The Pavilions
