USER MANUAL BPT700-40Li SCHEPPACH

Product photo of four different hair tools with metal tips, no visible text or symbols

BPT700-40Li

Exploded view diagram of a hair power tool with numbered parts for identification

2 17 OREGON DOUBLE GUARD™ 91

3 18 17 OREGON DOUBLE GRASS 91

4 19

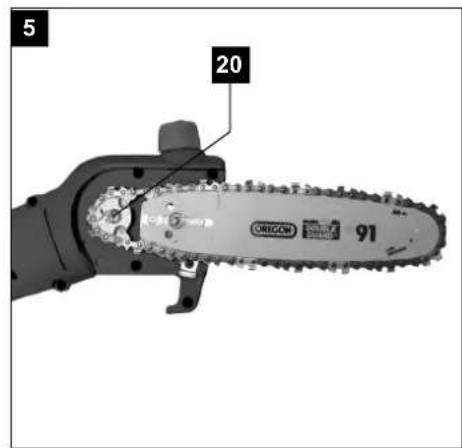

5 20 OREGON 91

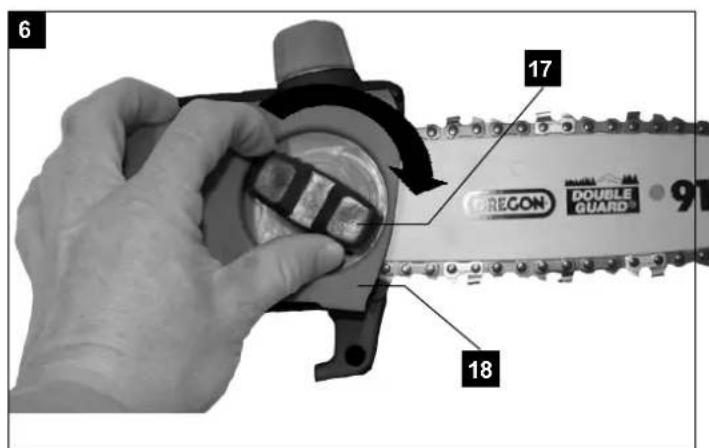

6 17 18 OREGON DOUBLE GUARD® 91

Close-up of a mechanical device with a paper strip and chain attachment, labeled with numbers 7 and 21 (no readable text or symbols beyond labels)

8 2mm

9 22 23

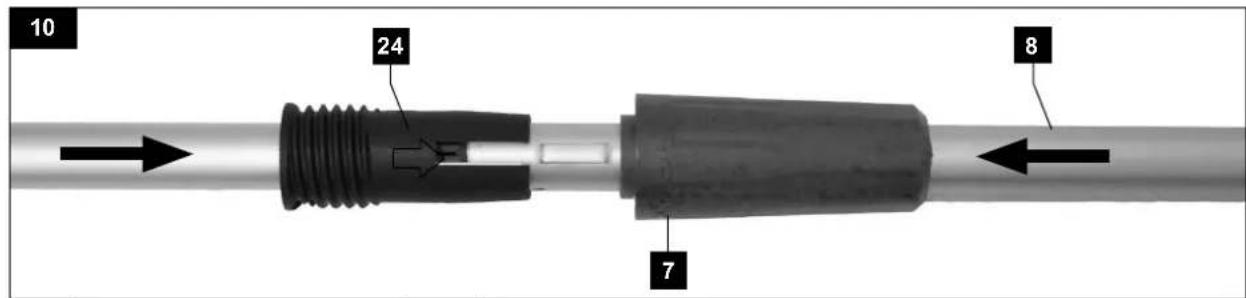

10 24 7 8

10.1 9 10.2

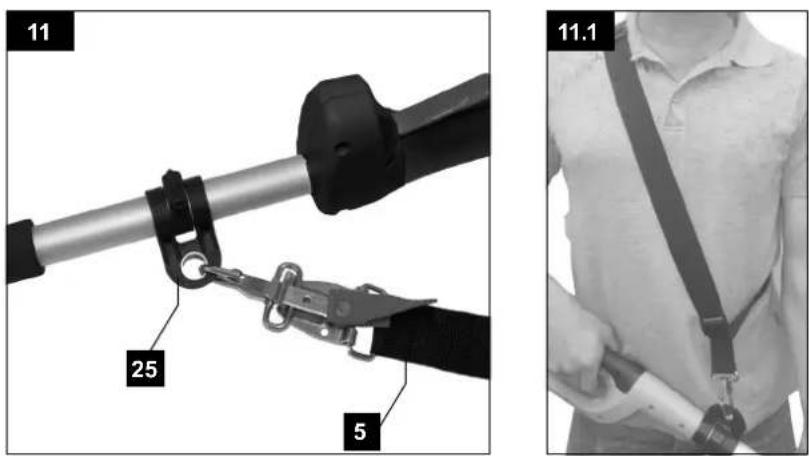

11 25 5 11.1

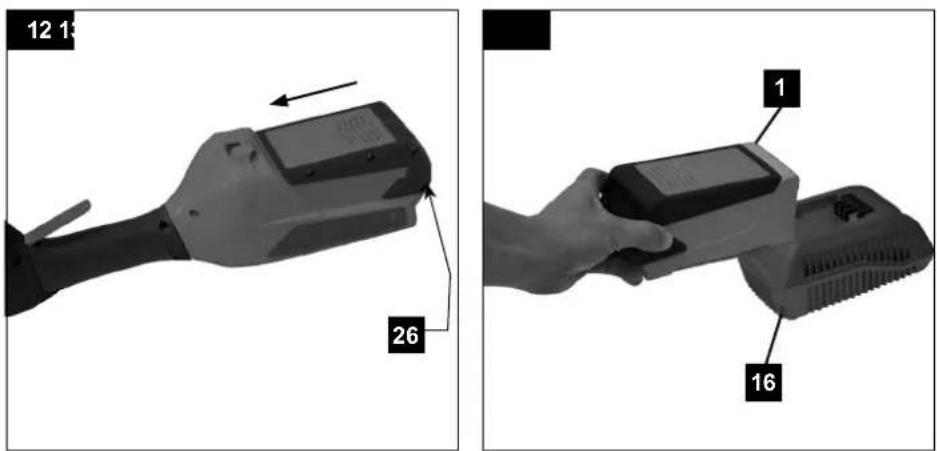

12 1 26 1 16

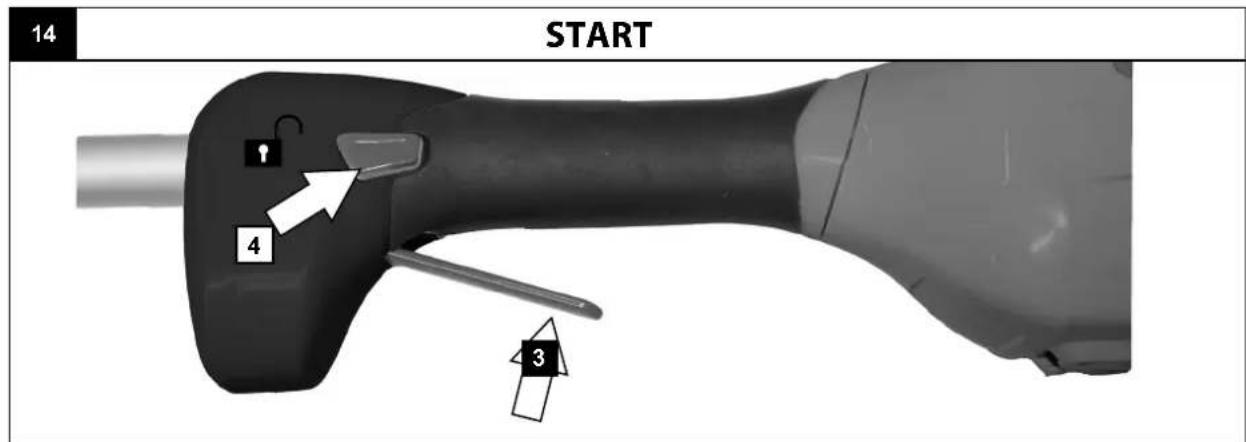

14 START 4 3

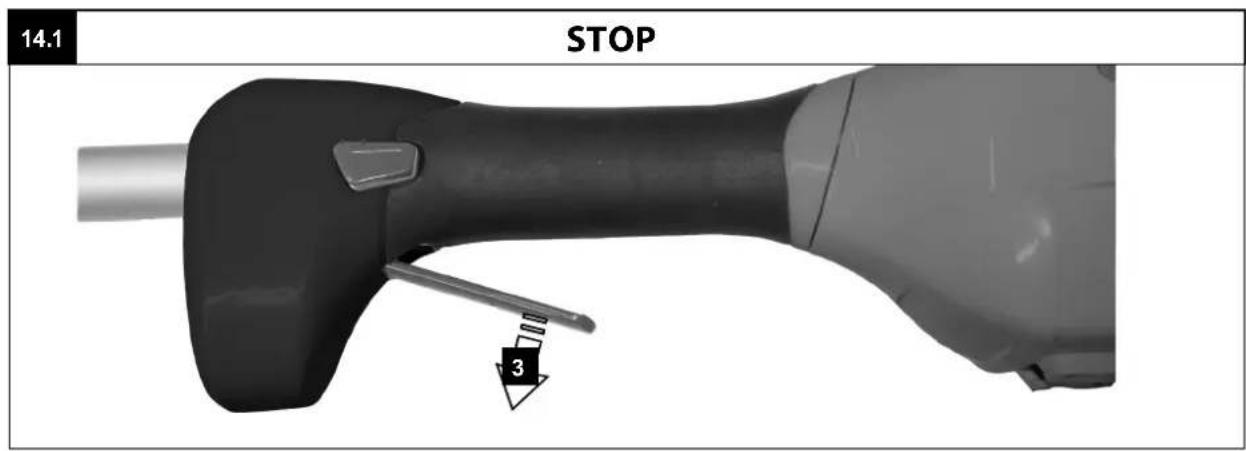

14.1 STOP 3

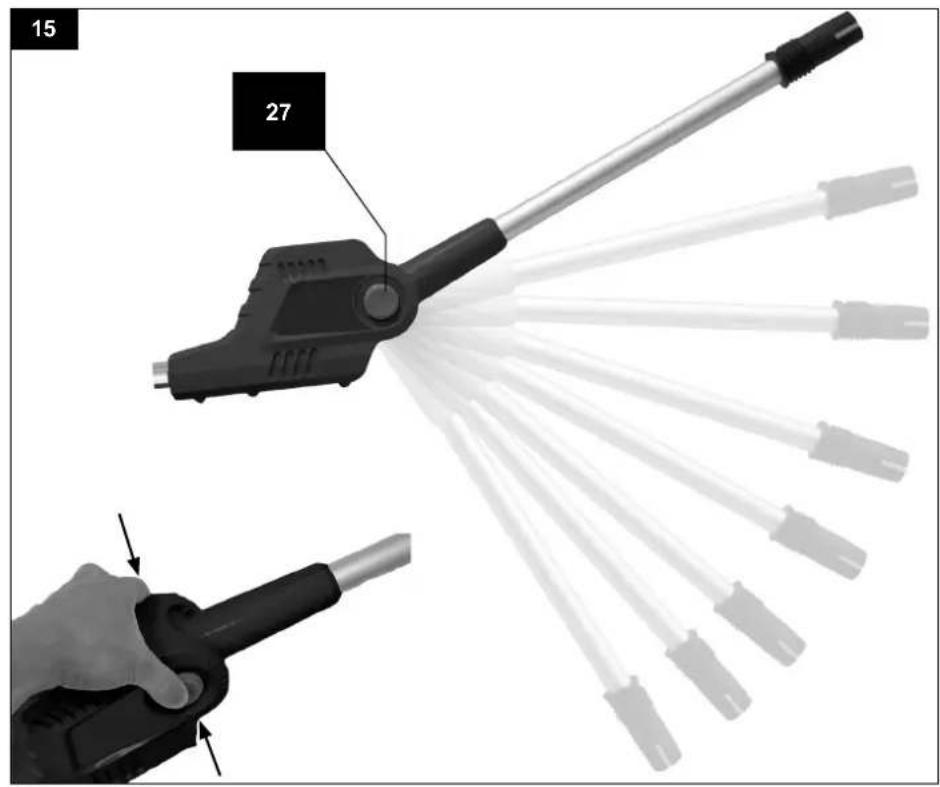

15 27

15.1 max. 60°

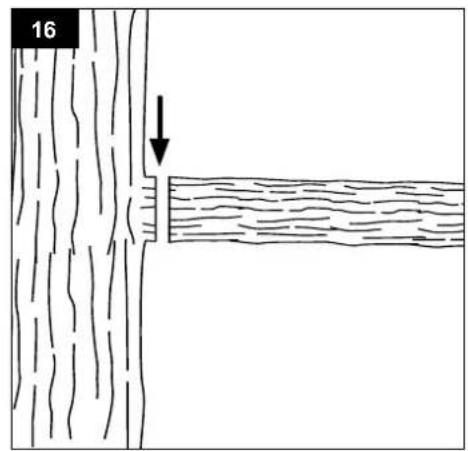

16

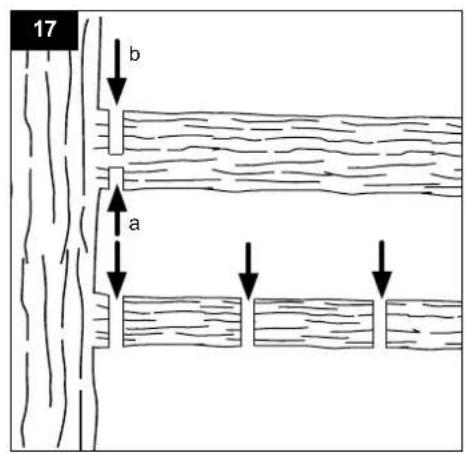

17 b a

Günzburger Straße 69

D-89335 Ichenhausen

VEREHRTER KUNDE,

Exploded view diagram of a power tool assembly with numbered parts for identification

Table of contents: Page:

1. Introduction 23
2. Device description 23
3. Scope of delivery 23
4. Proper use 24
5. Safety information 24
6. Technical data 27
7. Before starting the equipment 28
8. Operation 29
9. Cleaning and Maintenance 31
10. Storage 31
11. Disposal and recycling 32
12. Troubleshooting 33
13. Declaration of conformity 99
14. Warranty 100

Explanation of the symbols on the equipment

	Warning! Disregard results in a risk of death or injury, or damage to the tool!
	Caution - Read the operating instructions to reduce the risk of inquiry
	Wear protective helmet!
	Wear eye protective goggles!
	Wear ear protectors!
	Wear safety cut through resistant shoes with safety sole and steel toe !
	Wear protective gloves !
	Protect against humidity. Never expose tool to rain.
	Electrical hazard , keep at least 10 m distance away from electrical power lines.
	Always remove the rechargeable battery pack from the electrical tool before performing maintenance and service work!
	Prescribed running direction of the saw chain
	Chain cover locking/unlocking
	Cutting length pruner
	Cutting length hedge trimmer
	Chainsaw oi
	sound power level guaranteed
	The product complies with the applicable European directives and an evaluation method of conformity for this directives was done.

1. Introduction

MANUFACTURER:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

DEAR CUSTOMER,

We hope your new tool brings you much enjoyment and success.

NOTE:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,

- Installation and replacement of non-original spare parts,

• Application other than specified,

- A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

WE RECOMMEND:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety requirements in these operating instructions and your country's applicable regulations, you should observe the generally recognized technical rules concerning the operation of woodworking machines.

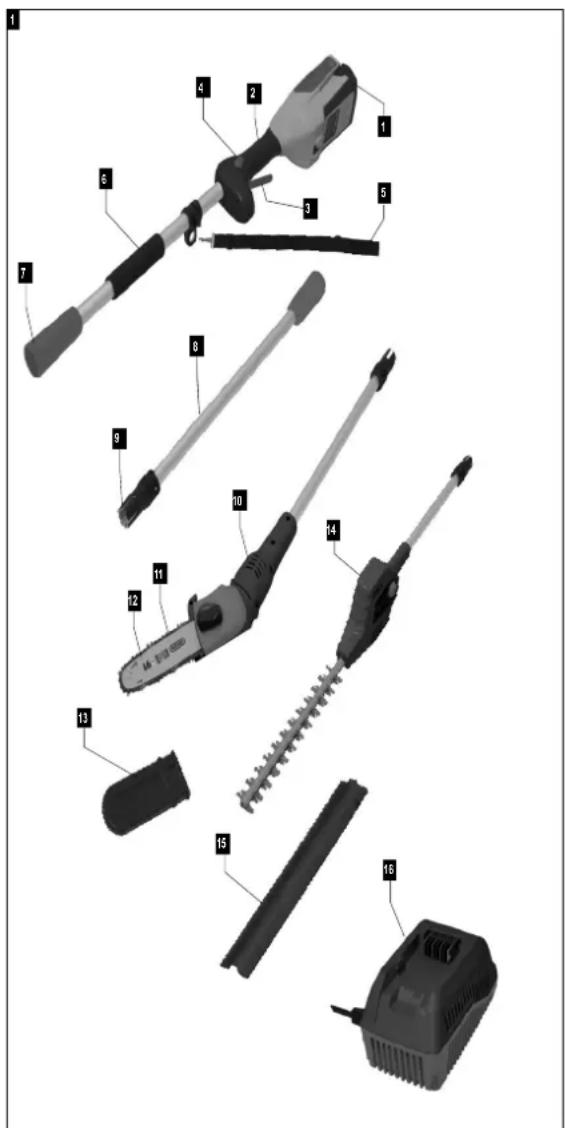

2. Layoutitems supplied (Fig. 1)

1. Battery*
2. Handle
3. On/Off switch
4. Safety lock-off
5. Shoulder strap
6. Additional handle
7. Locking telescopic tube 1
8. Telescopic tube
9. Locking telescopic tube 2
10. Chain saw mounting kit
11. Cutter bar
12. Saw chain
13. Cutter guard
14. Hedge trimmer mounting kit
15. Guard for hedge cutter blade
16. Charging unit*

3. Items supplied

Fig. 1 (1-16)

Exploded view diagram of a power tool with numbered parts for identification

*not included

Unpacking

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

4. Proper use

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Hedge trimmer

The hedge trimmer mounting kit is allowed to be used only on the supplied motor head.

Caution! This hedge trimmer is suitable for cutting hedges, bushes and shrubs. Caution! Do not use this equipment to cut grass.

Pole-mounted pruner (chainsaw with telescopic handle)

The chain saw mounting kit is allowed to be used only on the supplied motor head.

The chainsaw with telescopic handle is designed for lopping off tree branches. It is not suitable for extensive sawing work, felling trees or sawing any materials other than wood.

5. Safety instructions

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (cordepower tool or battery-operated (cordless) power tool.

1. Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

• The electrical tool's connection plug must fit into the socket. The plug may not be modified in any way. Do not use an adaptor plug together with earthed electric tools. Unmodified plugs and suitable sockets reduce the risk of an electric shock
• Avoid body contact with earthed surfaces, such as pipes, heaters, ovens and refrigerators. There is an increased risk of electric shock if your body is earthed.
• Keep electric tools away from rain and moisture. Water entering an electric tool increases the risk of an electric shock.
• Do not use the cable for another purpose, for example, carrying or hanging the electric tool or pulling the plug out of the socket. Keep the cable away from heat, oil, sharp edges or moving device parts. Damaged or coiled cables increase the risk of an electric shock.
• If you work with an electric tool outdoors, only use extension cables that are also suitable for outdoor use. Using an extension cable suitable for outdoor use reduces the risk of an electric shock.
• If you cannot avoid using the electrical tool in a wet environment, use a fault-current circuit breaker. Using a fault-current circuit breaker reduces the risk of an electric shock.

3. Personal safety

• Be alert, be careful what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If dust extraction and collection devices can be mounted, make sure that they are connected and used properly. Using a dust extraction unit can reduce hazards caused by dust.

4. Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

- Treat electric tools carefully. Check whether the moving parts work perfectly and do not drag, whether not broken or damaged to such an extent that functioning of electric tools could be affected. Have any damaged parts repaired before using the machine. Many accidents are caused by poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

- Ensure that all handles and safety equipment are installed when using the electrical tool. Never attempt to use an incomplete electrical tool or one with an impermissible modification.

- Always familiarise yourself with your environment and pay attention to possible hazards that you may not hear due to the noise from the electrical tool.

- Avoid using the electrical tool if people, and especially children, are in the vicinity.

5. Using and treatment of cordless tools.

- Charge the batteries only in chargers recommended by the manufacturer. Risk of fire for a charger suitable only for a certain type of batteries or, as appropriate, accumulators, if used for other accumulators.

- Use only such accumulators in this electric appliance that have been designed for this appliance. Use of other accumulators may lead to injuries and risk of fire.

- Do not leave an accumulator not being used near office clips, coins, keys, nails, screws or other small metal items that could cause contact bridging. Short circuit between accumulator contacts may result in burns or fire.

- Liquid may leak from an accumulator if used improperly. Prevent contact with such liquid. Rinse an affected body part with water in case of accidental contact. If liquid gets to your eye, seek medical advice. Liquid leaking from a battery may cause skin irritation or burns.

- Observe the operating manual and the safety instructions enclosed with the rechargeable battery or charging unit.

6. Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This ensures that the safety of the device is maintained.

Safety instructions for Hedge trimmer

This hedge trimmer can cause serious injuries! Read the instructions for correct handling, preparation, maintenance, starting and shutting down the hedge trimmer carefully. Familiarise yourself with all actuators and with using the hedge trimmer properly.

Keep all parts of the body in safe distance from the knife. Do not try to remove the material being cut or hold material to be cut when the knife is running. Jammed cuttings to be removed only when the machine is off and the battery taken out. A moment of inattention when using the hedge trimmer may result in serious injuries.

Carry the hedge trimmer by the handle when the knife is off. Fit the protective cover whenever the hedge trimmer is to be transported or stored. Careful appliance handling reduces the risk of injury by knife.

Hold the power tools by the insulated handles as the cutting knife may come into contact with hidden cables/lines. Contact of the cutting knife with a live conductor may bring the metal parts of the appliance under voltage and cause electric shock.

Safety instructions for Electrical branch chainsaw

Keep all parts of your body in safe distance from the saw when running. Before starting the saw, make sure the saw chain does not touch anything. A moment of inattention when working with the chainsaw is able to cause the saw chain to catch your clothes or parts of your body.

Wear protective glasses and ear protectors. Further, wearing head, hand and leg protection equipment is recommended. Suitable protective clothing minimises the risk of injury by thrown-away wood chips and possible contact with the saw chain. Do not work on trees with the chainsaw. There is a risk of injury when working on a tree.

Provide safe posture at all times and use the chainsaw only when standing on a solid, safe and level surface. A slippery or unstable surface, such as ladder, may lead to loss of balance or loss of control over the chainsaw.

When cutting a tense branch, be sure to know that the branch will bounce back. If tension in the wood fibres gets released, the tense branch may hit the operator and/or cause a loss of control over the chainsaw.

Be especially careful when cutting scrubs and saplings. Thin material may get caught in the chain-saw and hit you or you may lose your balance.

Carry the chainsaw by the front handle in a switched-off condition and the saw chain must be deflected from your body. Fit a protection cover on the chainsaw whenever it is transported or stored. Careful chainsaw treatment reduces the likelihood of an accidental contact with the running saw chain.

Follow the instructions for lubrication, chain tensioning and replacing accessories. An improperly tensioned or lubricated chain can break and increase the risk of kickback.

Only saw wood. Do not use the branch chainsaw for work for which it is not intended. Example: Do not use the branch chainsaw to saw plastic, brickwork or building materials other than wood. Using the branch chainsaw for unintended work can cause dangerous situations.

Other safety instructions

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 10 m. Provide adequate lighting or good lighting conditions when working with the machine.

Wear suitable protective clothing such as sturdy shoes with non-slip sole, robust long trousers, gloves, safety glasses and hearing protection!

Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.

Electrical hazard, keep at least 10 m distance away from electrical power lines.

During appliance operation, it is necessary to take a safe and firm posture, especially when steps or a ladder are being used. ⚠️ Be careful when going backwards – risk of tripping!

Immediately remove cut branches/knots from the work area to prevent injuries.

Walk! Do not run! As soon as a branch being cut off starts cracking and falling down, move to the side immediately and keep safe distance from the falling wood as it can hurl back up and cause injuries.

Switch the appliance immediately off and remove the replaceable battery from the appliance when the saw chain gets blocked. Remove the blocked object.

When working, keep the appliance firmly with both hands and with a distance from your body. Before starting the device, ensure that the cutting unit is not touching anything. Before starting the device, ensure that the cutting unit is not touching anything. Make sure the appliance is off before inserting a battery. The ON/OFF switch and safety switch must not be locked.

Before using, check the tightness and proper seating of all screwed and socket joints and protective equipment and if all moving parts are moving smoothly. It is strictly prohibited to demount, adjust and alienate the protective equipment on the machine or put other protective equipment on the machine.

Do not use the appliance if damaged or the safety equipment is defective. Replace any worn and damaged parts.

Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit.

⚠ Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

Battery

Vapours may leak out in case of unauthorised use or when using a damaged accumulator. Bring fresh air and seek medical advice if experiencing difficulties. Vapours may irritate the respiratory system.

⚠️ Risk of fire! Risk of explosion!

Never use damaged, defective or deformed accumulators. Never open or damage the accumulator or let it fall on the ground.

Never charge the battery in an environment with acids and easily flammable materials.

Protect the battery against heat and fire.

Battery to be used at the ambient temperatures between 10^ C and +40^ C only.

Never put the battery on heaters and do not expose it to strong sunlight for a long time.

After being subject to heavy load, let the battery cool down first.

Short circuit - do not bridge the accumulator contacts with metal parts.

The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage.

Residual risks

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

• Cutting injury
• Hearing damage
  A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!
• Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.
• Vibration dampening systems do not guarantee protection against Raynaud syndrome or carpal tunnel syndrome. For this reason, the condition of the fingers and the wrist must be thoroughly monitored in case of regular, continuous use of the device. If symptoms of the illnesses indicated above occur, contact a doctor immediately. To reduce the risk of Raynaud syndrome, keep your hands warm while working and take breaks at regular intervals.

Despite the observance of the operating instructions there still may be some hidden residual risks.

6. Technical data

Pole Saw
Cutter bar length	8" / 240 mm
Max. Cutting length	200 mm
Chain pitch	3/8" (9,525mm)
Chain thickness	1.3 mm
Sprocket wheel	6 Teeth, 3/8"
Cutting speed at rated rpm:	8,8 m/s
Oil tank capacity	0.065 l
Saw chain	Oregon 91P033X
Cutter bar	Oregon 080SDEA318

Hedge Trimmer
Max. cutting length	410 mm
Tooth spacing	24 mm
Cuts	1400 /min
Cutting Diameter max.	24 mm

Sound and vibration

Sound and vibration values were measured in accordance with ISO 22868.

Hedge Trimmer Pole Saw
L_pA sound pressure level	- dB(A) - dB(A)
K_WA uncertainty 3 dB(A 3 dB(A))
L_WA sound power level measured	86.5 dB(A) 88.9 dB(A)
K_WA uncertainty 3 dB(A 3 dB(A))
L_WA sound power level guaranteed	102 dB(A) 102 dB(A)

Wear ear-muffs.

The impact of noise can cause damage to hearing. Total vibration values (vector sum of three directions) determined in accordance with ISO 22867.

	Hedge Trimmer	Pole Saw
Vibration emission value ah	2.87 m/s2	1.635 m/s2
K uncertainty 1.5 m/s	2	1.5 m/s2

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools. The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

- Only use appliances which are in perfect working order.

• Service and clean the appliance regularly.
- Adapt your working style to suit the appliance.
- Do not overload the appliance.
- Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
- Wear protective gloves.

7. Before starting the equipment

Caution! Do not fit the battery until the equipment has been fully assembled and all the settings have been actuated. Always wear protective gloves when working on the equipment to protect yourself against injury. Carefully unpack all parts and check that they are complete.

Assembly

Fitting the chain saw mounting kit (for use as a pole-operated pruner)

Assembly of the cutter rail and the saw chain

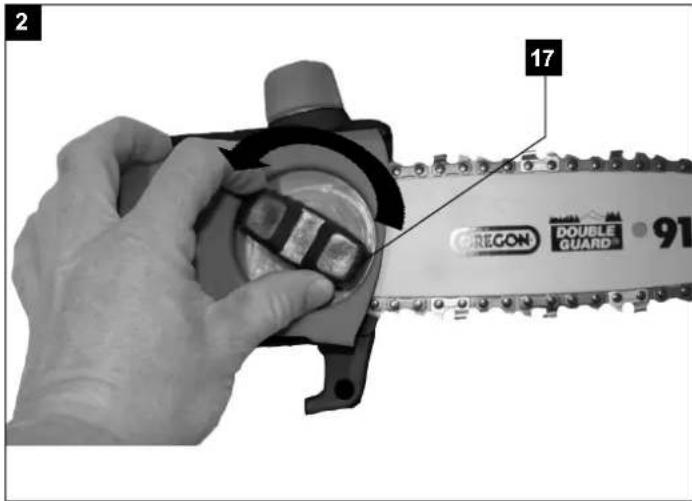

• Undo the fixing screw (17) of the chain wheel cover (Fig. 2).

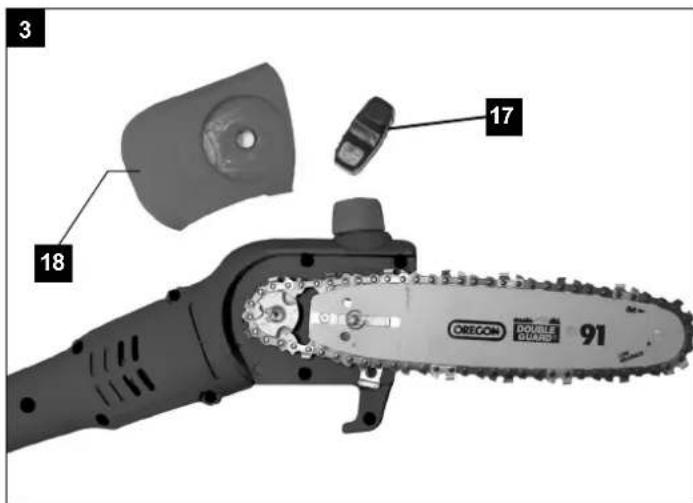

  • Take off the chain wheel cover (18). (Fig. 3)

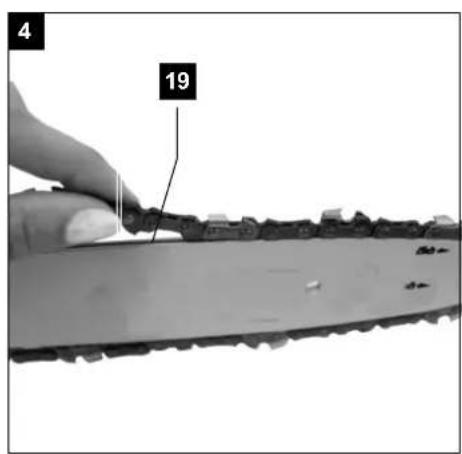

• Lay the chain as shown in the groove which runs around the cutter rail (Fig. 4/Item 19).
• Insert the cutter rail and chain as shown in the mounting in the chainsaw (Fig. 5).
• At the same time guide the chain around the chain wheel (Fig. 5/Item 20).
• Attach the chain wheel cover (Fig. 6/Item 18) and fasten it hand-tight with the fastening screw.
• Do not fully tighten the fastening screw until after you have adjusted the chain tension.

Tensioning the saw chain

Caution! Always remove the battery from the device before inspection and adjustment. Always wear protective gloves when working on the chainsaw to protect yourself against injury.

• Undo the fixing screw (18) of the chain wheel cover a few turns (Fig. 6).

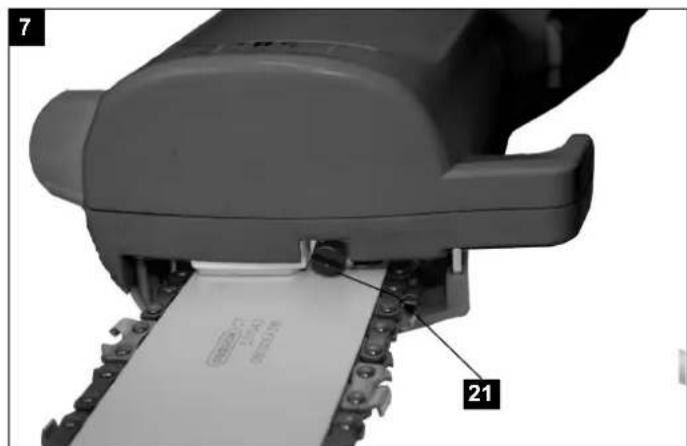

• Adjust the chain tension with the chain tensioning screw (Fig. 7/Item 21). Turning the screw clockwise increases the chain tension, turning it counterclockwise decreases the chain tension. The saw chain is correctly tensioned if it can be lifted approx. 2mm in the middle of the cutter rail (Fig. 8).
• Secure the fixing screw (18) of the chain wheel cover (Fig. 6).

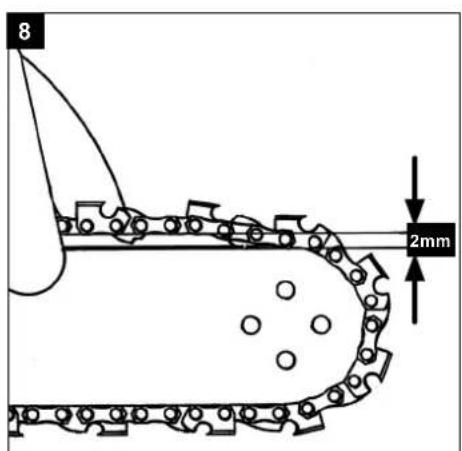

Notice! All the chain links must lie properly in the guide groove of the cutter bar.

Notes on tensioning the chain:

The saw chain must be properly tensioned to ensure safe operation. You can tell that the chain tension is perfect if the saw chain can be lifted by around 2 mm in the middle of the cutter rail. As the saw chain heats up during cutting and thus changes in length, check the chain tension no less than every 10 minutes and adjust it again as required. This applies in particular to new saw chains. When you have finished working slacken the chain again, as the chain will shorten when it cools down. This will prevent the chain from being damaged.

Saw chain lubrication

Caution! Always remove the battery from the device before inspection and adjustment. Always wear protective gloves when working on the chainsaw to protect yourself against injury.

Important! Never operate the chain if it is not lubricated with saw chain oil. Use of the chainsaw without saw chain oil or if the oil level is below the viewing window will result in damage to the chainsaw!

Important! Be aware of the temperature conditions: different lubricants with completely different viscosities are required at different ambient temperatures. At lower temperatures you will need low viscosity oils in order to achieve a sufficient lubricating film. However, if the same low viscosity oil is used during the summer it will become even thinner due to the ambient temperatures alone, and as a result the lubricating film could break down, causing the chain to overheat and become damaged. In addition, the chain oil would burn and produce unnecessary pollutants.

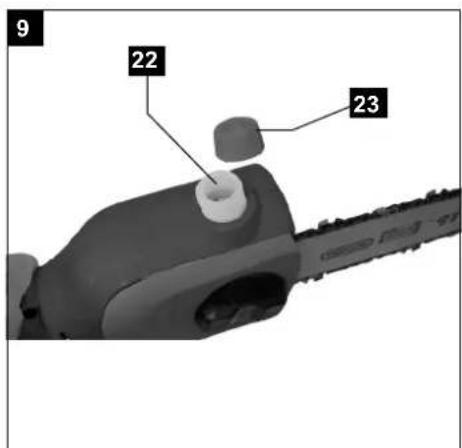

Filling the oil tank (Fig. 9):

• Place the chainsaw on a flat surface.
• Clean the area around the oil tank cover (Item 23) and then clean the oil tank cover.
• Fill the tank (Item 22) with saw chain oil. In the process, make sure that no dirt enters the tank, as this could cause the oil nozzle to become blocked.
• Close the oil tank cover (Item 23).

After the chain saw mounting kit has been fitted and when the equipment is not being used, slip the cutter guard (Fig. 1/Item 13) over the mounted cutter bar with saw chain in order to prevent injuries.

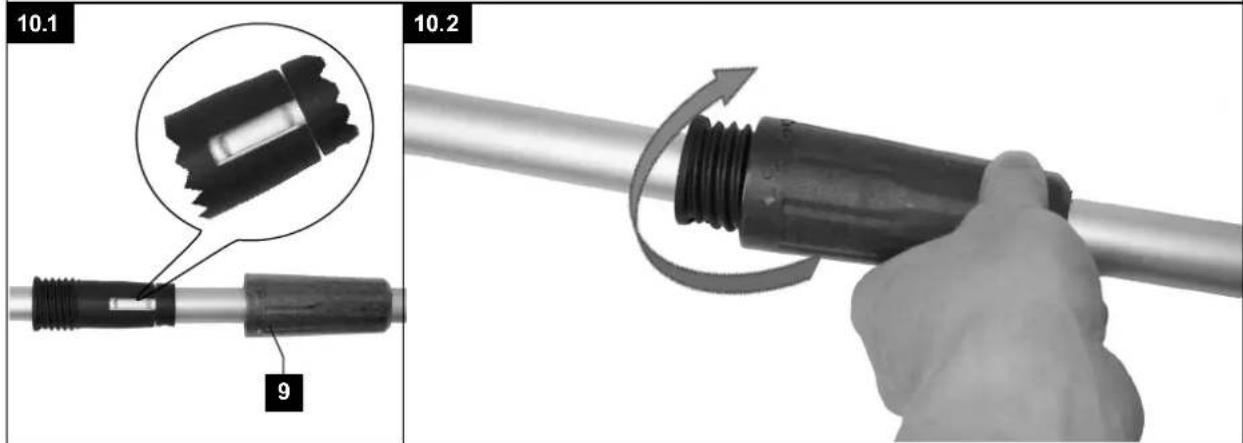

Mounting telescopic tube and attachment (Fig. 10)

• Insert the telescopic pipe (8) into the pipe (24) (Fig. 10); pay attention to the groove and spring position (Fig. 10.1). Screw the locking mechanism (7/9) (Fig. 10.1) to affix the extension or the attachment.
  The desired attachment can also be mounted without telescopic tube. see Fig. 10.1

Using the shoulder strap

Warning! Always use the shoulder strap when working with the equipment. Switch off the equipment before you take off the shoulder strap (risk of injury).

1. Hook the carabiner (5) into the strap holder (25). (Fig. 11)
2. Slip the shoulder strap over your shoulder. (Fig. 11.1)
3. Adjust the length of the shoulder strap so that the strap attachment is at waist level.

Fitting the battery (Fig. 12)

Press the side pushlock button (26) of the battery pack and push the battery pack into the mount provided. When the battery pack is positioned as in Fig. 12, make sure that the pushlock button latches in place! To remove the battery pack, proceed in reverse order.

Charging the battery (Fig. 13)

By pressing the red button on the battery, status can be read based on the green lights.

1. Take the battery pack out of the equipment.

2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (16) into the mains socket outlet. The light on the power cord turns green.

3. Insert the battery into the charger. Green flashing of light on the charger indicates that the battery is in charging mode.

4. Depending on the battery charge status lights either

1, 2 or 3 green lights on the battery.

1 green light: battery 1/3 charged

2 green light: Battery 2/3 charged

3 green LED: Battery is fully charged

The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check:

• whether there is voltage at the socket outlet
• whether there is good contact at the charging contacts.

If the battery pack still fails to charge, send

- the charging unit

• and the battery pack

to our customer service center.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops. Never fully discharge the battery pack. This will cause it to develop a defect.

8. Operation

Please note that the statutory regulations governing noise abatement may differ from one location to another.

Caution! Always use the shoulder strap when working with the equipment. Always switch off the equipment before you take off the shoulder strap. Otherwise there is a risk of injury.

Put on the shoulder strap as described above, fi t the required mounting kit and adjust the equipment to suit your needs. Ensure that the electrical tool is properly in the prescribed working position before starting the motor.

ATTENTION!

Do not use the electrical tool's attachments with a faulty or heavily worn cutting unit.

Switching on/off

Switching on

• Hold the equipment by the handles with both hands
• Push Safety lock-off (Fig. 14 / Item 4).
• Switch on the equipment with the On/Off switch (Fig. 14/Item 3).
• You can then release the safety lock-off.

Switching off

Release the On/Off switch (Fig. 3/Item 3).

ATTENTION!

If the cutting unit touches a foreign object, the operating noises get louder or the electrical device vibrates unusually excessively, stop the motor and allow the electrical device to come to a standstill. Remove the rechargeable battery and take the following measures:

• Check for damage
• Check for loose parts and secure all loose parts
• Replace damaged parts with similar parts or have them repaired.

Working with the hedge trimmer mounting kit

• Check that the cutters work properly. The twin-bladed cutters rotate in opposite directions, thus guaranteeing high cutting performance and smooth operation.
• Take care to maintain a steady foothold and hold the equipment firmly in both hands away from your body. Before you switch on, make sure that the equipment is not touching any objects.

Adjust inclination of the motor housing (Fig. 15)

- Press the two locking knobs (27) and adjust the incline of the motor housing in a latching steps.

Work practice

• A hedge trimmer can be used to cut shrubs and bushes as well as hedges.
• To obtain the best cutting results, hold the hedge trimmer so that the cutter teeth are at an angle of approx. 15^ in relation to the hedge.
• The twin-bladed cutters rotate in opposite directions, thus enabling cutting in both directions.
• It is recommended to tie a guide line of string or the like along the hedge so that you cut the hedge to a level height. Cut off all branches which protrude beyond the guide line.
• Cut the sides of the hedge with curve-shaped movements from the bottom up.

The right time to cut:

Leaf hedge: June and October

Conifer hedge: April and August

Fast growing hedge: around every 6 weeks from May

Pay attention to nesting birds in the hedge. Delay the hedge cut or leave this area out if this is the case.

Working with the chainsaw mounting kit

Preparations

To ensure that you can work safely, check the following points before every use:

Condition of the chainsaw

Inspect the chainsaw before the start of work for damage to the housing, the power cable, the saw chain and the cutter rail. Never use a chainsaw which is obviously damaged.

Oil container

Fill level of the oil container. Even while working, keep checking that sufficient oil is in the system. To avoid damaging the chainsaw, never run the saw if there is no oil in the system or if the oil drops below the "min" mark.

On average, a single filling will last around 20 minutes depending on the number of pauses in cutting and the loads involved.

Saw chain

Tension of the saw chain, condition of the cutting elements. The sharper the chainsaw, the easier and more controllable it is to operate the chainsaw. The same also applies to the chain tension. Also while working you should check the chain tension no less than every 10 minutes in order to increase your safety. New saw chains in particular often tend to expand more.

Safety clothing

Always wear appropriate tight-fitting safety clothing like special trousers which protect against cuts, protective gloves and safety shoes.

Hearing protection and protective goggles.

Wear a protective helmet with integral face and hearing protection. This will offer protection against falling branches and any branches if they spring back.

Safe working

• To ensure that you can work in safety you must use the equipment at a working angle of max. 60^ .
• Never stand under the branch you want to saw.
• Use special caution when working with branches under tension and splintered wood.
• Possible risk of injury caused by falling branches and catapulting pieces of wood.

• When the equipment is in operation keep other persons and animals away from the danger zone.

• The equipment is not protected from electric shock through contact with high-voltage cables. Keep a minimum distance of 10 m from live cables. Electric shock can cause fatal injury.

• When working on slopes always stand to the upper or left or right side of the branch you wish to cut.
• Hold the equipment as close as possible to your body. This will help you to keep your balance.

Cutting techniques

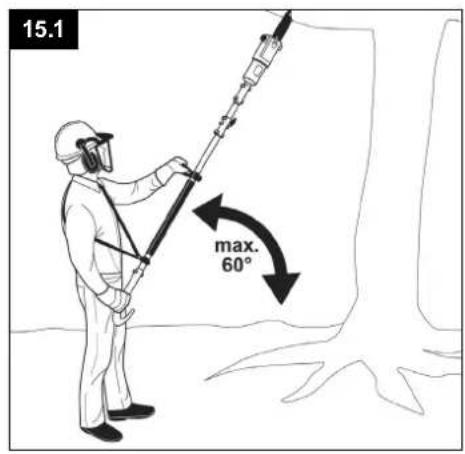

• When removing branches, hold the equipment at an angle of max. 60^ to the horizontal to avoid being hit by a falling branch (Fig. 15.1).
• Start with the bottom branches on the tree. This will make it easier for the cut branches to drop.
• After completing a cut, the weight of the saw will abruptly increase for the operator as the saw is no longer supported by the branch. This can result in you losing control over the saw.
• Remove the saw from the cut only with the saw chain still running. This will prevent the saw from getting jammed.
• Never cut with the tip of the saw.
• Never cut into the bulging branch

Sawing off smaller branches (Fig. 16):

Place the contact surface of the saw onto the branch. This will prevent the saw from making jerky movements when you begin a cut. Exerting slight pressure, guide the saw from the top to the bottom through the branch.

Sawing off larger and longer branches (Fig. 17):

Carry out a relief cut when working on larger branches. Start by sawing through 1/3 of the branch diameter (a) from the bottom to the top with the top side of the cutter rail. Then saw towards the first cut (b) from the top to the bottom with the bottom side of the cutter rail.

Saw off longer branches in several steps to keep control over the impact location.

Kick-back!

The term “kickback” describes what happens when the running chainsaw suddenly kicks upward and backward. Usually, this is caused by contact between the tip of the cutter rail and the workpiece or the saw chain becoming trapped.

In the event of kickback, large forces occur suddenly and violently. As a result, the chainsaw usually reacts uncontrollably. This can often result in very serious injuries to the worker or persons in the vicinity. The risk of kickback is at its greatest when the saw is positioned for a cut in the region of the tip of the cutter rail, as the leverage effect is greatest there. It is therefore safest to position the saw as flat as possible.

Important!

• Make sure that the chain tension is always correctly adjusted.
• Only use a chainsaw if it is in perfect working order.
• Only work with a saw chain that has been properly sharpened in accordance with the instructions.
• Never cut with the upper edge or the tip of the cutter rail.
  • Always hold the chainsaw firmly with both hands.

Cutting wood which is under tension

Special care is required when cutting wood which is under tension. Wood which is under tension from which it is released by cutting may in some cases react completely unpredictably and uncontrollably. In the worst case this could result in extremely severe or even fatal injuries. This type of work must only be performed by persons who have been specially trained.

9. Cleaning and maintenance

Danger!

Remove the battery pack before doing any cleaning and maintenance work.

Cleaning

• Regularly clean the clamping mechanism by blowing it out with compressed air or cleaning it with a brush. Do not use tools for cleaning.
• Keep the handles free of grease so that you can maintain a firm grip.
• Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid.
• If the chainsaw is not to be used for an extended period of time then you should remove the chain oil from the tank. Briefly immerse the saw chain and the cutter rail in an oil bath and then wrap them in oil paper.
• Never immerse the equipment in water or other liquids in order to clean it.
• Use a brush to remove deposits from the safety guards.
• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Maintenance

Chainsaw mounting kit

Replacing the saw chain and cutter rail

The cutter rail needs to be replaced if the guide groove of the cutter rail is worn; Proceed as described in the section "Assembly of the cutter rail and the saw chain".

Checking the automatic chain lubrication

You should check the operation of the automatic chain lubrication system on a regular basis in order to guard against overheating and the associated damage to the cutter rail and the saw chain. To do this, point the tip of the cutter rail towards a smooth surface (board, section of a cut tree) and allow the chainsaw to run. If an increasing oil trace becomes evident during this process then the automatic chain lubrication system is working properly. If no clear oil trace is evident then please refer to the corresponding instructions in "Troubleshooting". If the information contained there still fails to remedy the situation then please contact our service department or another similarly qualified workshop.

Important! Do not actually touch the surface with the tip of the cutter rail when performing this test. Keep a safe distance (approx. 20 cm).

Sharpening the saw chain

Effective working with the chainsaw is only possible if the saw chain is in good condition and sharp. This also reduces the risk of kickback. The saw chain can be re-sharpened by any dealer. Do not attempt to sharpen the saw chain yourself unless you have the necessary special tools and experience.

Hedge trimmer mounting kit

The cutters should be cleaned and lubricated at regular intervals in order to ensure best performance at all times. Remove deposits with a brush and apply a thin film of oil.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Cutting device, Saw chain, chain bar, chain oil, chain oil filter

* Not necessarily included in the scope of delivery!

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

When transporting or storing the electrical tool and the attachment kits in particular, always cover the cutting unit with the cutting unit protector (13/15).

11. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Batteries and rechargeable batteries do not belong in the household waste!

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

- Remove the batteries from the laser before disposing of the machine and the batteries.

12. Troubleshooting guide

Fault Possible cause Remedy
The equipment does not work	Battery empty Charge battery
	Battery is not correctly inserted	Remove battery and insert again
Equipment operates intermittently	Loose connection (external)	Consult a specialist workshop. Loose connection (internal)
	ON/OFF switch defective
Saw chain is dry	No oil in the tank Top up with oil
	Vent in the oil tank cap is blocked	Clean the oil tank cap
	Oil outlet is blocked Clear the oil outlet
Chain/guide bar is hot	No oil in the tank Top up with oil
	Vent in the oil tank cap is blocked	Clean the oil tank cap
	Oil outlet is blocked Clear the oil outlet
	Chain is blunt Re-sharpen or replace the chain
	Chain is overtensioned Check the chain tension
Chainsaw judders, vibrates or does not saw properly	Chain is undertensioned Adjust the chain tension
	Chain is blunt Re-sharpen or replace the chain
	Chain is worn Replace the chain
	Saw teeth point in the wrong direction	Refit the chain with the teeth facing in the correct direction

Table des matières: Page:

Günzburger Straße 69

D-89335 Ichenhausen

CHER CLIENT,

Exploded view diagram of a power tool with numbered parts for identification

*non inclus

Günzburger Straße 69

D-89335 Ichenhausen

VÁŽENÝ ZÁKAZNÍKU,

Exploded view diagram of a power tool with numbered parts for identification

Günzburger Straße 69

D-89335 Ichenhausen

SZANOWNY KLIENCIE!

Exploded view diagram of a power tool with numbered parts for identification

* nieuwzględnione

Rozpakowywanie

Günzburger Straße 69

D-89335 Ichenhausen

VÁŽENÝ ZÁKAZNÍK,

Exploded view diagram of a power tool with numbered parts for identification

Günzburger Straße 69

D-89335 Ichenhausen

TISZTELT VÁSÁRLÓ!

Exploded view diagram of a power tool assembly with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly paths or features.

CE - Declaration of Conformity

	2014/29/EU		2004/22/EC	89/686/EC_96/58/EC	X	2000/14/EC_2005/88/EC
X	2014/35/EU		2014/68/EU	90/396/EC			Annex V
X	2014/30/EU	X	2011/65/EU*			X	Annex VI Noise: measured LWA = 99,4 dB(A) guaranteed LWA = 102 dB(A) P = xx KW; LØ = cm Notified Body: Notified Body No.:
X	2006/42/EC
		Annex IV Notified Body: Intertek Notified Body No.: Certificate No.:			2010/26/EC
					Emission. No:

Standard references:

Standard references: EN 60745-1; EN 60745-2; EN ISO 10517; EN 55014-1; EN 55014-2; EN ISO 11680; EN 60335-1; EN 60335-2; EN 61000-3-2; EN 61000-3-3

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
