Product Type	Torque Screwdriver (Torque Driver)
Brand	Vevor
Model	RTD-10-50in.lbB
Torque Range	10 to 50 in·lb (inch-pounds)
Accuracy	± 5% of full scale (FS)
Adjustment Increment	5 lbf·in
Drive Size	1/4 inch (6.35 mm) hexagonal
Included Bits	22 pieces in S2 and CrV steel
Break Bar	1 piece included
Alarm Function	Triggers an audible click and manual vibration when preset torque is reached
Rotation Direction	Only counterclockwise (unscrewing) for triggering, suitable for left-hand threading
Torque Preset	Yes, via graduated collar with main and secondary scales
Body Material	Forged aluminum alloy
Recommended Use	Locking screws on precision instruments, electronic circuits, etc.
Maintenance	After use, reset torque to zero; do not disassemble; avoid contact with acids or corrosive gases
Safety	Do not use as other tool; do not force after triggering; read manual before use
Manufacturer	Shanghai Muxin Muye Youxian Gongsi (Shanghai, China)
Technical Support	www.vevor.com/support

Frequently Asked Questions - RTD-10-50in.lbB Vevor

How to set torque on the Vevor RTD-10-50in.lbB torque screwdriver?

Hold the fixed part of the screwdriver with one hand, and with the other turn the collar clockwise to move the graduated ring. Adjust until the main and secondary scale lines match the desired torque value. Release the collar to lock the setting.

What does the click and vibration mean during tightening?

The audible click and vibration in the hand indicate that the tightening torque has reached the preset value. You should then stop applying force to avoid over-tightening.

Can I use this screwdriver in clockwise direction (right-hand tightening)?

No, this model is designed to work only in counterclockwise direction (anticlockwise). It is intended for tightening screws with left-hand threads or for specific applications where triggering occurs when unscrewing.

What bits are included with the RTD-10-50in.lbB model?

The kit includes 22 screwdriver bits in S2 and CrV steel, as well as a break bar. The bits cover various sizes and profiles for slotted, Phillips, Torx, etc. (see detailed list in the manual).

How to maintain the torque screwdriver?

After each use, reset the torque value to zero (minimum position). Never disassemble the tool as this may affect accuracy. Store it in a dry place, away from acids and corrosive gases. Use only suitable bits.

What is the accuracy of this tool?

The accuracy is ±5% of full scale (FS). For example, at 50 in·lb, the tolerance is ±2.5 in·lb. It is factory calibrated and should not be disassembled.

Can I use an extension or adapter?

Yes, you can install a break bar at the rear of the screwdriver if you need more leverage. For models RTD-10-70in.lb and RTD-20-70in.lb, specific adapters are provided.

How to know if the screwdriver is properly calibrated?

The tool is factory calibrated and does not require user recalibration. If you suspect a precision issue, contact after-sales service via www.vevor.com/support.

What are the essential safety precautions?

Read the manual carefully before use. Do not use the tool for striking or as a lever. Stop immediately upon audible trigger. Do not wear loose clothing that could get caught. Wear safety goggles if necessary.

Is this screwdriver suitable for DIY or only professional use?

It is suitable for both, especially for precise tightening of screws on precision instruments, printed circuit boards, or delicate mechanical assemblies. Its range of 10 to 50 in·lb makes it ideal for light to medium applications.

USER MANUAL RTD-10-50in.lbB Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TORQUE SCREWDRIVER USER MANUAL

MODEL: RTD-10-50in.lbB / RTD-10-70in.lb / RTD-20-70in.lb

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TORQUE SCREWDRIVER

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

	Warning - To reduce the risk of injury, the user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates a k precaution, warning, or danger. Ignoring this warning may lean an accident. To reduce the risk of injury, fire, or electrocut please always follow the recommendations shown below.

WARNING!

1. This product is only suitable for tightening and testing within the calibration range.
2. Do not use strong impact during use.
3. Absolutely not allowed to use as other tools.
4. The starter "kada". Do not continue to apply force after the alarm.
5. The measured value of this product has been corrected, and it is allowed to disassemble it privately, so as to avoid errors in measurer accuracy.
6. After use, the torque value should be adjusted to zero to maintain screwdriver's precision and prolong the service life.
7. This product should not be in contact with acids, alkalis and corrc gases.
8. If you can not turn these tools by hand, you can install an after the tail of the torque driver.

1 PRODUCT OVERVIEWS

Top-grade preset torque drivers are used to tighten work pieces to meet torque requirements. The product operates counterclockwise and can preset torque values. If the set value is idling beyond the set value, the thread tightening controlled preferentially. It is suitable for precision instrument screw locking, cir board fixing, etc., which have high requirements for screw locking and high requirements on locking precision. Widely used in a variety of electrical, light industry, machinery manufacturing, scientific research structure and other industries.

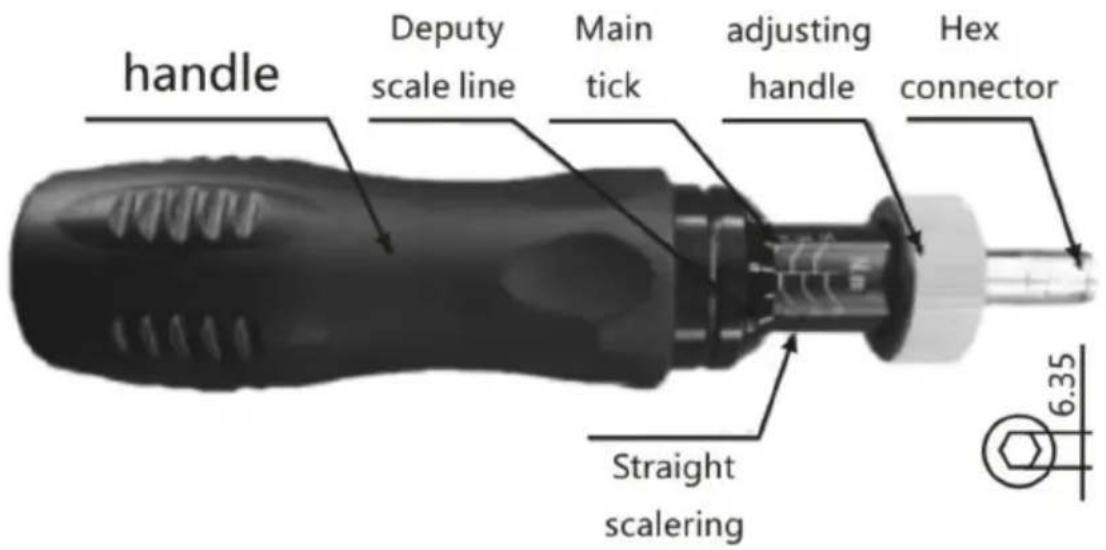

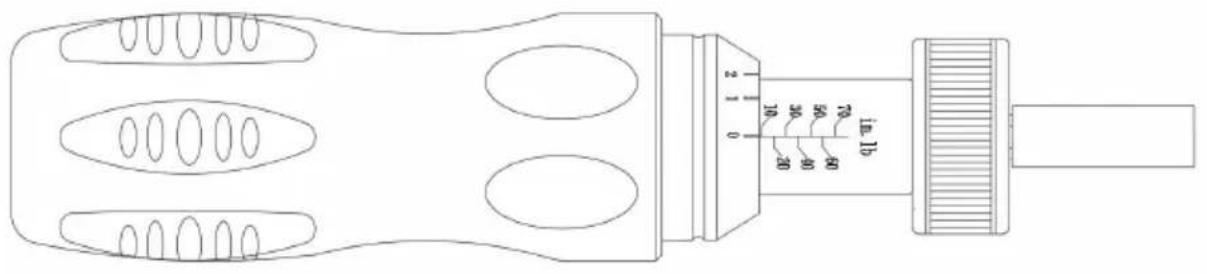

2 Product structure

3 The functional characteristics

1. The torque value can be preset and has an audible alarm prompt. When tightening torque of the fastener reaches the preset torque value, it can automatically emit a signal “kada”, accompanied by obvious hand vibration, indicating that the work is completed. After the force is removed, each relation is automatically reset.
2. Automatic switching in the reverse direction, easy to use in both directions
3. Using the scale circle plus the scale wheel, the scale line reading is clear accurate.
4. 1. Aluminum alloy material forging is durable and has a long life.

4 PRODUCT PARAMETERS

4.1 Model:RTD-10-50in.lbB

1) Range and Precision: 10\~50in.lb (±5%)FS
2) Increment : 5 lbf.in
3) Driver size: 1/4inch
4) Screwdriver bit Material and QTY: S2/CrV ; 22pcs ;
5) Breaker bar: 1pcs

4.2 Model:RTD-10-70in.lb

1) Range and Precision: 10\~70in.lb (±5%)FS
2) Increment : 1 lbf.in
3) Driver size: 1/4inch
4) Screwdriver bit Material and QTY: S2/CrV ;13pcs ;
5) Breaker bar: 1pcs
6) 1/4" to 1/4" adapter: 1pcs

4.3 Model:RTD-20-70in.lb

1) Range and Precision: 20\~70in.lb (±5%)FS
2) Increment : 2 lbf.in
3) Driver size: 1/4inch
4) Screwdriver bit Material and QTY: S2/CrV ;16pcs ;
5) Extension rod: 1pcs
6) Breaker bar: 1pcs

5 How To Use

Step 1:

Set the torque value of the screwdriver according to the torque required when fastener is tightened. When the torque value is preset, hold the hand part first the hand wheel with the other hand, and move it to the straight circle. Pres direction and then adjust the hand-wheel clockwise to make the linear scale. Let the value of the main scale line and the sub-scale line reach the required torque value, then release the adjustment hand-wheel and the preset torque v is completed.

Step 2:

According to the head form of the fastener, select the batch head from the accessory and insert it into the hexagonal joint of the screwdriver (if there is suitable batch head in the attachment, the batch head can be processed by The size of the hex joint is as shown in the above figure. Show).

Step 3:

Install the batch head of the corresponding specification on the screwdriver, align the bit to the fastener with the handle, and turn the

screwdriver until the tightening torque of the fastener reaches the set value, and the idling of the screwdriver occurs. At the same time, it is accompanied by obvious hand vibration, prompting to complete the operation.

Step 4:

If it is not used for a long time, adjust the tick mark to the minimum torque

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
