Product Type	Torque Multiplier (Manual Impact Wrench)
Brand	Vevor
Model	BD-64D-A
Gear Ratio	1:64
Max Torque	6800 N.m
Material	Heat-treated alloy steel
Main Use	Removing and tightening vehicle wheel nuts
Dimensions (approx.)	40 x 10 x 10 cm (estimated)
Weight (approx.)	2.5 kg (estimated)
Power Source	None (manual tool)
Drive Type	Impact socket wrench (not included)
Main Function	Multiply applied torque to loosen or tighten nuts
Planetary System	Multiple planetary stages
Maintenance	Wipe after use, avoid rust, light lubrication if necessary
Safety	Wear gloves and safety glasses; do not use as a hammer; do not exceed 100 N.m during final tightening
Precautions	Do not insert fingers into jaws; keep out of reach of children
Assembly	Insert impact socket wrench into output end
Warranty	Electronic warranty certificate available at www.vevor.com/support
Compatible Models	BD-78D-C, BD-58D-A, BD-58D-C (same series)
Repairability	Spare parts available via Vevor support

Frequently Asked Questions - BD-64D-A Vevor

How to use the BD-64D-A torque multiplier?

Insert an impact socket wrench into the output end. Place the wrench on the nut and turn the rocker arm in the desired direction. To loosen, use a long bar after unlocking. To tighten, do not exceed 100 N.m to avoid damaging the nut or tool.

What is the maximum torque of the BD-64D-A?

The maximum torque is 6800 N.m thanks to the 1:64 gear ratio.

Can I use this tool as a hammer?

No, this tool is not designed for striking. Using it as a hammer may damage it or cause injury.

How to maintain the torque multiplier?

Wipe the tool after each use to prevent rust. If necessary, apply a light coat of oil to moving parts. Store in a dry place.

What safety precautions should I take?

Wear gloves and safety glasses. Keep the tool out of reach of children. Do not insert your fingers in the jaws. Do not force if the nut does not turn – check the rotation direction.

Is this product compatible with all vehicles?

It is suitable for removing and tightening wheel nuts of most vehicles (cars, light trucks) provided the appropriate socket is used.

How to know if the nut is sufficiently tightened?

When the rocker arm bounces back in a half-circle, it indicates the nut is fully tightened. Do not force beyond.

Can I use a pinch bar with the rocker arm?

No, do not connect a socket wrench or pinch bar to the rocker arm. Use only the provided handle or a long pole after unlocking.

What to do if the nut does not loosen despite force?

Check the rotation direction of the rocker arm. It is possible you are turning in the wrong direction. Reverse the direction.

Where can I find the full manual or technical support?

The full manual is available free on our website. For technical support, go to www.vevor.com/support.

USER MANUAL BD-64D-A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TORQUE MULTIPLIER

USER MANUAL

MODEL: BD-78D-C/BD-64D-A/BD-58D-A/BD-58D-C

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TORQUE MULTIPLIER

MODEL: BD-78D-C/BD-64D-A/BD-58D-A/BD-58D-C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

1. Before using this product, please read the instructions carefully and follow the specifications.
2. This product is not a toy. This product contains small parts. If swallowed, they pose a choking hazard. Keep these small parts away from children when assembling! Keep this product out of the reach of children.
3. When using this product, be sure to wear personal protective equipment such as protective gloves and goggles to prevent accidental injury.
4. When using this product, do not put your fingers or other objects in it to avoid injury.
5. Please don't use a torque multiplier instead of a hammer to strike.
6. Be sure to wipe dry when wet to avoid rust.
7. Be careful when opening, closing, and using to avoid accidental injury.

Product Introduction

The Labor Saving Wrench, the assistant for dismantling and assembling, is made from advanced metal alloy steel, bears precise and fine hot processing, and is of a multiple-planet tire system of combination. It has characteristics of good hand feeling, small dimension, light weight, and convenient use. It is used to dismantle and assemble all sizes of vehicles' tires. When your tire needs to be changed on your way in an emergency, it can not only save your time but also your strength. It is really an ideal tool for all the way.

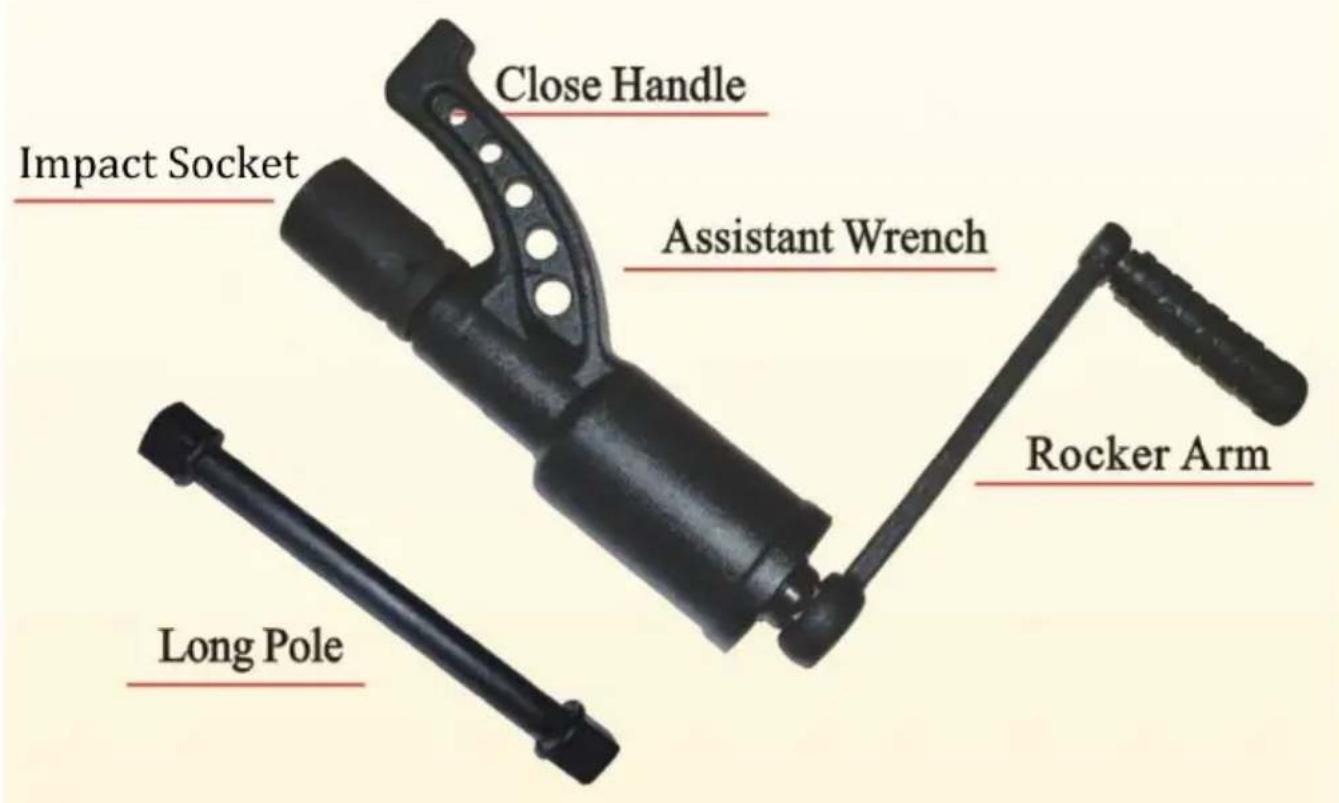

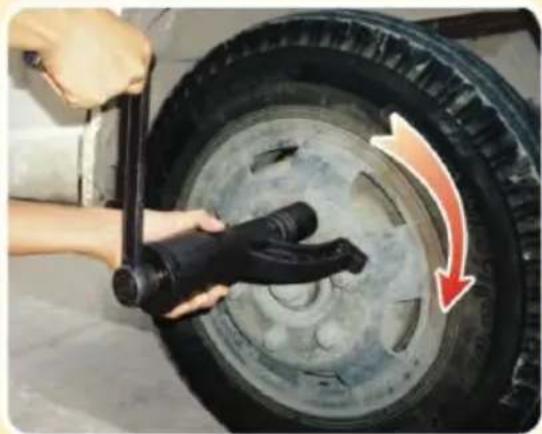

The Sketch Map For Operating

I. Operating Methods

1. Pack the impact socket wrench into the output end linked to a handle end is packed by the rocker arm;
2. Pack the impact socket wrench into the screw nut, which is to dismantle or fasten; meanwhile, pay attention to your turning direction. Turn the rocker in the direction which makes the handle to close the side of another screw bolt extent that the handle is closely against the side of the screw bolt;
3. When the screw nut is loosened, replace it with a long pole, and it promptly, (when fastening, first have a quick action to turn the then use this wrench to turn it tightly)

II. Regulations Need To Be Attention

1. When fastening the screw nut, do not apply more than 100 N·m of torque. The arm should rebound half a circle, indicating that the screw has reached the firm point. Remember, overexerting may damage the screw nut itself or even the tool.
2. Do not use it as a striking tool.
3. Do not attach a socket wrench or a pinch bar to the rocker arm to increase your strength when using it.
4. Special attention: If you have already applied considerable force but the screw nut does not loosen, at this moment you should check the turning direction of the screw nut to see whether the rocker arm is upside down in direction.

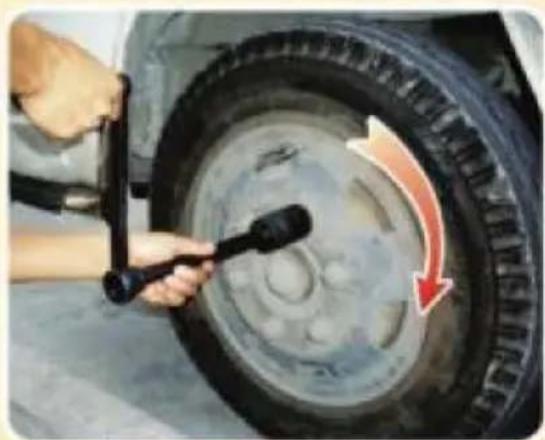

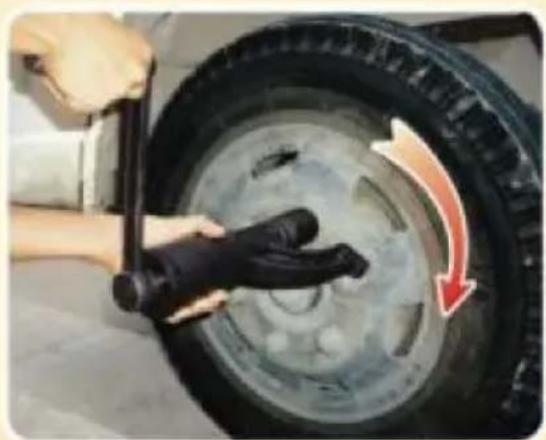

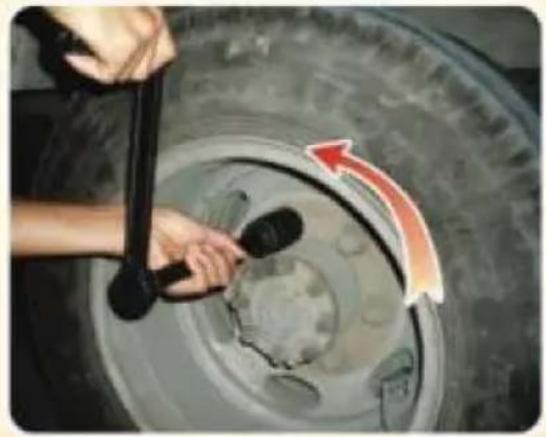

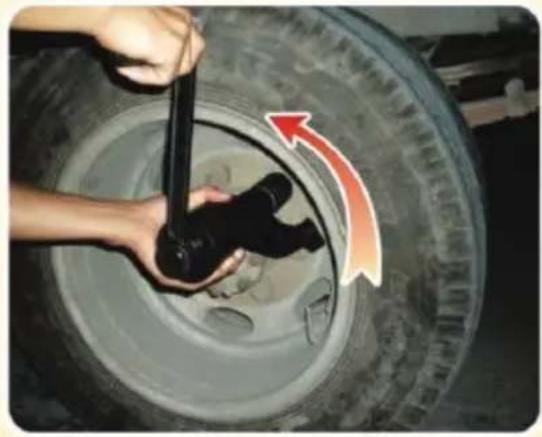

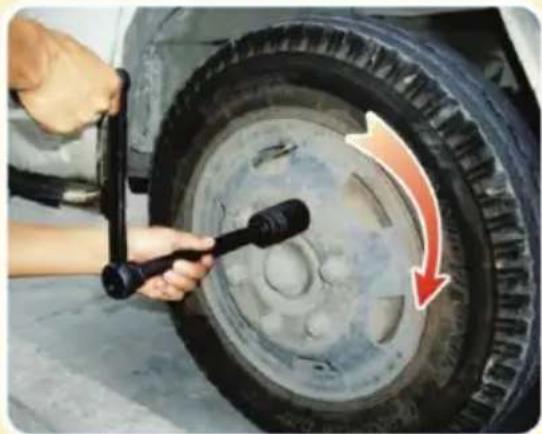

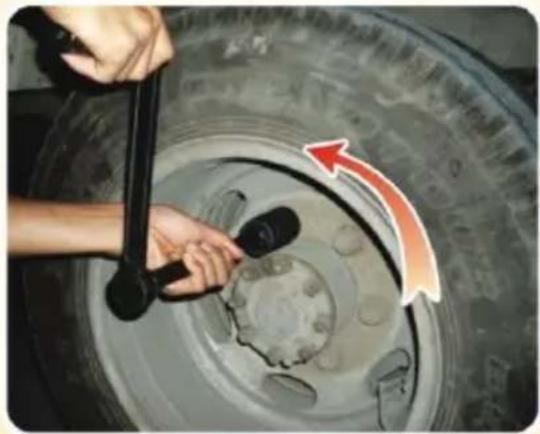

loosen it

quickly unscrew

quickly screw

fasten it

	Items Description
1	Name	Torque Multiplier
2	Model	BD-78D-C
3	Parameter	Enlarge scale1:64 MT6800N.m

	Items Description
1	Name	Torque Multiplier
2	Model	BD-64D-A
3	Parameter	Enlarge scale1:64 MT6800N.m
	Items	Description
1	Name	Torque Multiplier
2	Model	BD-58D-A
3	Parameter	Enlarge scale1:58, MT4800N.m

	Items	Description
1	Name	Torque Multiplier
2	Model	BD-58D-C
3	Parameter	Enlarge scale1:58, MT4800N.m
