USER MANUAL 15RGB Party light & sound

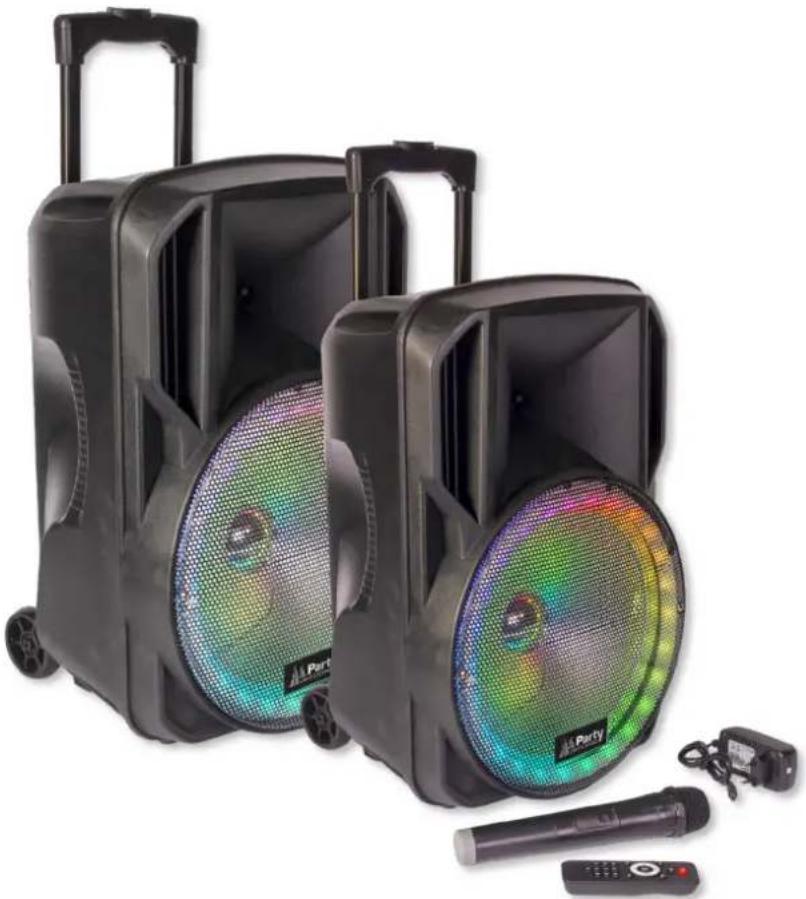

PORTABLE SOUND SYSTEMS
WITH USB, TF, VHF MIC, BATTERY & REMOTE CONTROL
REF.: PARTY-12RGB / PARTY-15RGB
Code: 15-6115PLS / 15-6116PLS
MANUAL
EN- Instruction Manual - p. 3
WITH USB, MICROSD, BLUETOOTH, REMOTE CONTROL & VHF MIC
INSTRUCTION MANUAL
OPERATING INSTRUCTIONS
Congratulations to the purchase of your new speaker.
EXPLANATION OF SIGNS
Accordance with the requirements of UK standards
The product is for indoor use only
To avoid hearing loss, do not expose yourself to high volume levels for long periods of time.
Correct disposal of the product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe
recycling.
IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS
- Please read the manual carefully and keep it for future reference.
- All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
- Any warranty claims are rendered invalid if damage occurs due to non-observation of these operating an safety instructions. We assume no liability for any consequent damage.
- Unauthorized conversions and/or modifications of the product are not permitted for safety and licensing reasons (CE). The product shall be connected to a power supply only of the type described.
- To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.
- The product is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.
- Do not expose the product to extreme temperatures (< +5^ / > +35^) , strong vibrations or heavy mechanical strain during operation.
- Unplug the product from the wall socket when it is not to be used for a long time.
- Do not let foreign objects or liquids enter the housing.
- Do not remove the cover or back, as there are no user-serviceable parts inside.
- Do not place naked flame sources, such as lighted candles on the product.
- Do not use the product in a tropical climate. Only for use in moderate climates.
- A minimum distance of 1m around the product must be kept ensuring sufficient ventilation.
- Do not place the product on soft surfaces such as carpets or beds. Do not cover the air vents of the product.
- Do not obstruct the air circulation with objects such as magazines, table cloths or curtains. This prevents the dissipation of heat from the appliance and can result in overheating.
- Do not expose the internal battery to excessive heat such as sunshine, fire or the like.
- The internal battery is not user-replaceable.
- To avoid injury or falls, only lift the device using the handle provided.
- To avoid injury or falls, do not use the device as a seat.
- The device complies with current European legislation regarding human exposure to electromagnetic fields.
- DISCONNECT DEVICE: The power outlet must be installed near the equipment and be easily accessible.
RESTRICTIONS OF USE
The product contains a VHF transmission system. It is intended for professional use only.
It may only be used in certain EU countries (FR - BE - PT - D - NL - LU - GR - SP - RO).
The user of the product takes full responsibility for its use.
The manufacturer cannot be held responsible for misuse by the user or use in an unauthorised country or area.
IMPORTANT NOTE ON BATTERIES
Prior to using these systems for the first time, please insert the supplied mains adaptor into the DC15V input on the rear panel and plug the other end on a suitable wall outlet. Make sure that the "CHARGE INDICATOR" is ON 14 hours continuously.
NOTE: Please shut down the power switch after you have finished using the system.
PARTY-12RGB:IMPORTANT NOTE ON LITHIUM-ION BATTERIES
- PRIOR TO USING THE UNIT FOR THE FIRST TIME, PLEASE CHARGE FULLY THE BATTERY
- CHARGE THE BATTERY REGULARLY AFTER EACH USE. DON'T WAIT UNTIL IT IS DISCHARGED!
- DON'T ALLOW THE BATTERY TO DISCHARGE COMPLETELY, OTHERWISE IT WILL LOSE 20% OF ITS CAPACITY OR EVEN BE TOTALLY DAMAGED!
IF THE VOLTAGE BECOMES TOO LOW, THE INTERNAL CIRCUITS ARE NOT POWERED ANYMORE AND IT WILL BECOME IMPOSSIBLE TO RECHARGE THE BATTERY!
4. IF YOU DON'T USE THE UNIT FOR A LONGER PERIOD OF TIME, IT IS RECOMMENDED TO CHARGE IT AT 40% OF ITS CAPACITY AND CHECK/CHARGE IT ONCE PER MONTH.
** BATTERIES ARE NOT COVERED BY THE WARRANTY **
WE CANNOT BE HELD RESPONSIBLE FOR DAMAGED BATTERIES FURTHER TO THE NON-OBSERVAN-CE OF THESE BASIC RULES.
PARTY-15RGB: IMPORTANT NOTE ON LEAD-ACID BATTERIES
- PRIOR TO USING THE UNIT FOR THE FIRST TIME, PLEASE CHARGE FULLY THE BATTERY WITHOUT ANY INTERRUPTION.
- CHARGE THE BATTERY REGULARLY AFTER EACH USE. DON'T WAIT UNTIL IT IS DISCHARGED!
- DON'T ALLOW THE BATTERY TO DISCHARGE COMPLETELY! ONCE THE BATTERY IS FULLY DISCHARGED, THE CURRENT DRAIN FOR RECHARGING WILL BE SO HIGH THAT IT WILL DAMAGE THE CHARGER AND/OR THE POWER SUPPLY OF THE UNIT.
- IF YOU DON'T USE THE UNIT FOR A LONGER PERIOD OF TIME, PLEASE CHARGE THE BATTERY COMPLETELY AT 100% AND CHECK/CHARGE IT ONCE PER MONTH OTHERWISE THE BATTERY WILL BE OUT OF USE.
THE LIFE TIME OF THE BATTERY DEPENDS ON THE OBSERVANCE OF THESE RECOMMENDATIONS.
** BATTERIES ARE NOT COVERED BY THE WARRANTY **
WE CANNOT BE HELD RESPONSIBLE FOR DAMAGED BATTERIES FURTHER TO THE NON-OBSERVAN-CE OF THESE BASIC RULES.
Use of the Remote Control
- Please operate the remote control within a distance of 6m and 30^ between the remote and the appliance. Aim the remote at the sensor. Remove all obstacles between the remote and the sensor.
- The remote control might not work properly if the sensor is exposed to strong sunshine.
- If the remote control doesn't work properly, please check the batteries.
INSTALLING THE BATTERIES
Remove the battery cover from the back of the remote control as shown and insert 2x AAA size batteries ensuring correct polarity
RECOMMENDATIONS FOR BATTERIES
This symbol indicates that used batteries should not be disposed of with household waste but deposited in separate collection points for recycling.
ATTENTION!
Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.
WARNING!
Do not swallow the battery. Danger of chemical burns.
Keep new and old batteries out of the reach of children.
If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.
If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.
DESCRIPTION OF THE REAR PANEL CONTROLS (SEE PAGE 2)
- Master volume control
- BASS control: Adjustment of low frequencies
- TREBLE control: Adjustment of high frequencies
- Microphone volume control
- Echo control for the microphone
- Input for a wired mic (not supplied)
- Switches the LED on the woofer on/off
- When the power adaptor is connected, the indicator lamp will be lit a and the battery will charge
- Wireless mic antenna: when you use the wireless microphone, please make sure the antenna is pointing vertically upwards to optimize the reception.
- 12V battery input: please make sure to connect the external battery with the correct polarity (+ and -). The cable section must not be smaller than 0.75mm^2
- AUX input via 3.5mm Jack
- Input selector: Press this button to switch between the various inputs (AUX, USB, TF, Bluetooth)
- REC button: Press this button to record the sound of the wired or wireless mic on the USB or SD.
- REPEAT: Press to toggle between repeating the current track or repeating all tracks.
- In USB/TF/Bluetooth mode: press to go back to the previous track.
- Play/pause in USB/TF/Bluetooth mode.
- In USB/TF Bluetooth mode: press to go to the next track
- USB stick input
- ON/OFF switch of the system
- 15Vdc input connector
- TF card input
- Lights up when the LED light effect on the woofer is switched on

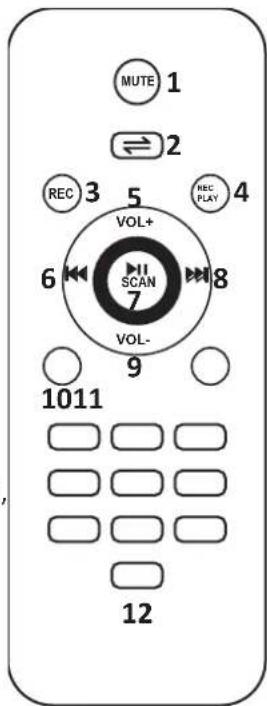

DESCRIPTION OF THE REMOTE CONTROL
- MUTE: Mutes the sound output
- Input selector: Press this button to switch between the various inputs (AUX, USB, TF, Bluetooth)
- REC: Press to record your voice
- REC PLAY: Press to play your record
- Increase the volume
- Select previous file
- Play/Pause/Select
- Select next file
- Reduce the volume
- Repeat tracks / random play
- Equalizer: Cycles through the various music styles: Normal - Rock - Classic - Jazz - Pop
- Number buttons for direct input of a file number. Press the number of the file to access it directly. For files numbers above 9, press 1+ the unit. Ex. For file number 15, press 1+5 . For file number 38, press 3+8
CONNECTION OF A WIRED MICROPHONE (NOT INCLUDED)
Connect the microphone to the MIC IN socket and switch it on.
Note: If you are playing music from any other input, connecting the microphone will not mute the sound output.
- Open the battery compartment and insert two AA batteries with the correct polarity.
- Turn the switch on the mic to ON. If the power indicator lamp doesn't flash or doesn't light up, check if the battery has been properly inserted.
- Extend the antenna on the rear panel of the unit to its full length in a vertical position.
- Start singing into the microphone and adjust the volume to the desired level.
- The antenna must not touch any metal object.
- When the indicator lamp on the mic lights up, you have to replace the battery.
- Don't use the microphone close to the speaker in order to avoid feedback.
KARAOKE FUNCTION
This feature is available with any input. Play a track through AUX/USB/TF/Bluetooth, connect a microphone and sing along.
BUILT-IN REC FUNCTION
- Plug a microphone into the MIC IN input.
- Insert a USB/TF card into the corresponding port. Press Input selector button and select USB/TF mode.
- If the USB/TF card is plugged into the speaker for the first time, the system will automatically create a folder named 'record' to save the recorded files.
- When you are ready to record, press REC button to record the sound of the wireless or wired microphone.
USB/TF OPERATION
Keep the speaker away from high temperatures, strong magnetic fields and any equipment that could generate interference. If the speaker stops working, switch it off and on again, or unplug USB/TF card and re-plug it. The speaker should be back to normal status.
The maximum size of USB/TF device that can be connected is 32 GB.
Supported music formats: MP3, WMA
BLUETOOTH OPERATION
- Turn on the unit and press the input selector button on unit to select the Bluetooth function.
- Activate the Bluetooth feature on the external device to be paired.
- Initiate a search for devices. The device shows up as «PARTY».
- Press the to start playing and the buttons and for the selection of songs.
TROUBLE SHOOTING
If a problem occurs, follow the steps in the table below. If problem still can't be solved, please contact your retailer.
| Problem Possible cause Solution | ||
| No sound when power on | 1. No input source 1. Connect an AUX signal | |
| 2. Volume down 2. Adjust volume | ||
| No sound from the microphone | 1. Bad mic connection 1. Plug in the mic properly | |
| 2. Mic not switched on 2. Switch mic on | ||
| 3. Mic volume down 3. Increase mic volume | ||
| No sound after inserting USB/TF card | 1. Incorrect file format 1. File format should be MP3 | |
| 2. Bad connection of USB/TF card 2. Plug in USB/TF card properly | ||
| If Speaker makes loud noises | 1. Microphone switched on but may be too close to the speaker | 1. Keep the microphone 2 meters away from the speaker |
| 2. Microphone switched on but is not being used. | 2. Turn off microphone if not in use. | |
| 3. Microphone volume may be too loud 3. Adjust microphone volume to lower mode | ||
| 4. Mobile phone is being used too close to the speaker | 4. Keep mobile away from the speaker whilst attending a call. | |
| 5. Other wireless equipment may be placed very close to the speaker. | 5. Keep the speaker away from other wireless equipment | |
SPECIFICATIONS
| Input voltage | 15V= 2A via supplied 100-240V~ mains adaptor | |
| Built-in battery | Lithium 11.1V= 2.2Ah | Lead-acid 12V= 4.5Ah |
| Power 700W 800W | ||
| VHF mic frequency 202.2MHz | ||
| Max. RF transmission power 7.66dBm | ||
| BT frequency 2402-2480MHz | ||
| Max. RF transmission power 3.77dBm | ||
| Dimensions 32.5 x 29.5 x 52cm | 43 x 36 x 60cm | |
| Weight 6.25kg 8.75kg | ||
ENCEINTES PORTABLES AUTONOMES
AVEC USB, TF, BLUETOOTH, TELEMANDE & MICRO VHF
INTRODUCTION
RECOMMANDATIONS POUR LES PILES
FUNCTIE REC INCORPORATA
DAHILI REC FONKSIYONU
EU Declaration of Conformity
Hereby we, LOTRONIC SA
Avenue Zénobe Gramme, 9
1480 SAINTES
Belgique
+32.2.390.91.91
Certify and declare under our sole responsibility that the following product:
Trade name: PARTY
Product name: PORTABLE SPEAKER WITH VHF MICROPHONE USB/BT
Type or model: PARTY-12RGB, PARTY15RGB
Conforms to the essential requirements of the RED directive 2014/53/EU, ErP directive 2009/125/EC, Commission Regulation (EC) No 2019/1782, 2011/65/EU RoHS directive, the Commission Delegated Directive (EU) 2015/863 and the battery directive 2006/66/EC, based on the following specifications applied:
EN IEC 62368-1:2020 + A11:2020
EN 62479:2010
EN 50663:2017
ETSI EN301 489-1 V2.2.3 : 2019-11
ETSI EN301 489-17 V3.2.4 : 2020-09
EN 55032:2015+A11:2020
IEC 62321-1-7-2:2017
IEC 62321-1-8:2017
Place and date of issue:
Saintes (Belgium), on 29/11/2022
Manuel De Sousa
Quality Manager
CE
EN IEC 62368-1:2020 + A11:2020
EN 62479:2010
EN 50663 : 2017
ETSI EN301 489-1 V2.2.3 : 2019-11
ETSI EN301 489-17 V3.2.4 : 2020-09
EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN61000-3-2:2014
EN61000-3-3:2013
ETSI EN300 328 V2.2.2 : 2019-07
EN 50563:2011+A11:2013
