USER MANUAL 8LED Party light & sound

WITH USB, BLUETOOTH, FM & MIC

REF.: PARTY-8LED

Code: 15-6100PLS

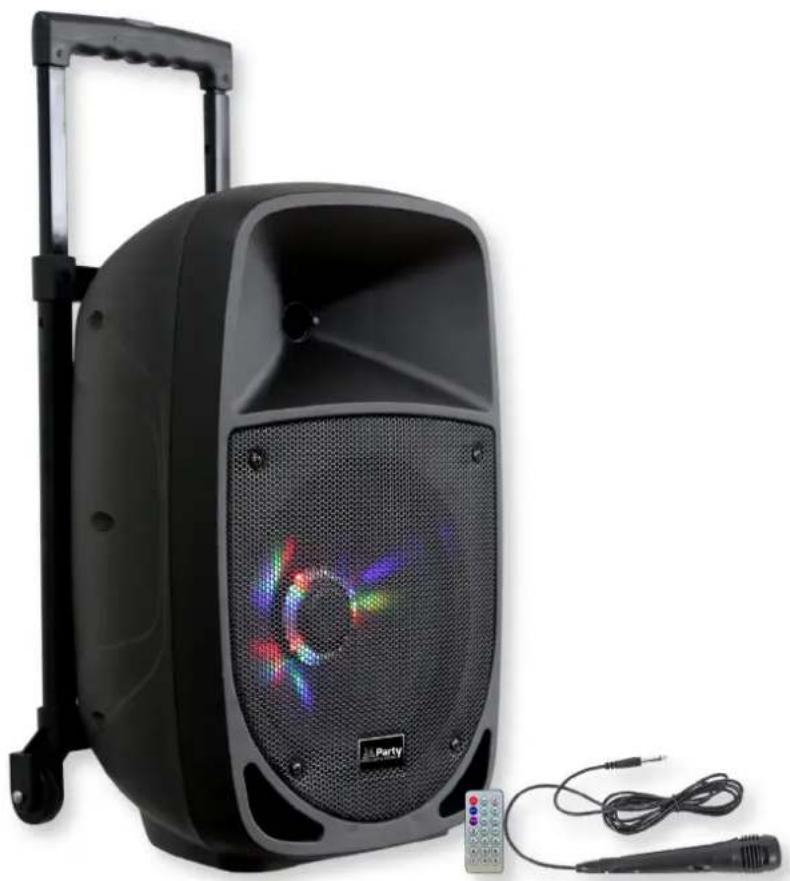

Black Party TV portable speaker with colorful LED display and external microphone (no text or symbols visible)

MANUAL

EN- Instruction Manual - p. 3

WITH USB, BLUETOOTH, FM & MIC

INSTRUCTION MANUAL

EXPLANATION OF SIGNS

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

Accordance with the requirements of UK standards

The product is for indoor use only

Class II protection with dual protection without earth connection

To avoid hearing loss, do not expose yourself to high volume levels for long periods of time.

Correct disposal of the product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe

recycling.

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

- Please read the manual carefully and keep it for future reference.

- All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.

- Any warranty claims are rendered invalid if damage occurs due to non-observance of these operating an safety instructions. We assume no liability for any consequent damage.

- Unauthorized conversions and/or modifications of the product are not permitted for safety and licensing reasons (CE). The product shall be connected to a power supply only of the type described.

• To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.

- The product is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.

- Do not expose the product to extreme temperatures (< +5°C / > +35°C), strong vibrations or heavy mechanical strain during operation.

- Unplug the product from the wall socket when it is not to be used for a long time.

- Do not let foreign objects or liquids enter the housing.

- Do not remove the cover or back, as there are no user-serviceable parts inside.

- Do not place naked flame sources, such as lighted candles on the product.

- Do not use the product in a tropical climate. Only for use in moderate climates.

- A minimum distance of 1m around the product must be kept ensuring sufficient ventilation.

- Do not place the product on soft surfaces such as carpets or beds. Do not cover the air vents of the product. Do not obstruct the air circulation with objects such as magazines, table cloths or curtains. This prevents the dissipation of heat from the appliance and can result in overheating.

- Do not expose the internal battery to excessive heat such as sunshine, fire or the like.

- The internal battery is not user-replaceable.

• To avoid injury or falls, only lift the device using the handle provided.

• To avoid injury or falls, do not use the device as a seat.

• The device complies with current European legislation regarding human exposure to electromagnetic fields.

- DISCONNECT DEVICE: The power outlet must be installed near the equipment and be easily accessible.

CHARGING THE UNIT

This speaker has a high capacity battery. Please use the supplied lead for charging.

The power adapter has an indicator light that will illuminate red when the speaker is on charge. It takes around 6-8 hours to fully charge the speakers. Disconnect the power adaptor as soon as the battery is fully charged.

Note: When the battery of the speaker is low, please charge it within 48 hours.

NOTE: Please shut down the power switch after you have finished using the system.

IMPORTANT NOTE ON LITHIUM-ION BATTERIES

1. PRIOR to using the unit for the first time, please charge fully the battery
2. Charge the battery regularly after each use. Don't wait until it is discharged!
3. DON'T allow the battery to discharge completely, otherwise it will lose 20% of its capacity or even be totally damaged!
   If the voltage becomes too low, the internal circuits are not powered anymore and it will become impossible to recharge the battery!
4. If you don't use the unit for a longer period of time, it is recommended to charge it at 40% of its capacity and check/charge it once per month.

** BATTERIES ARE NOT COVERED BY THE WARRANTY **

We cannot be held responsible for damaged batteries further to the non-observance of these basic rules.

USE OF THE REMOTE CONTROL

• Please operate the remote control within 6m and 30^ between the remote and the appliance. Aim the remote at the sensor. Remove all obstacles between the remote and the sensor.
• The remote control might not work properly if the sensor is exposed to strong sunshine.
• If the remote control doesn't work properly, please check the batteries.

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposited in separate collection points for recycling.

WARNING

Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.

The supplied remote control contains a button cell. In case of ingestion, it might cause serious internal burns within only 2 hours that might lead to death.

Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.

If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

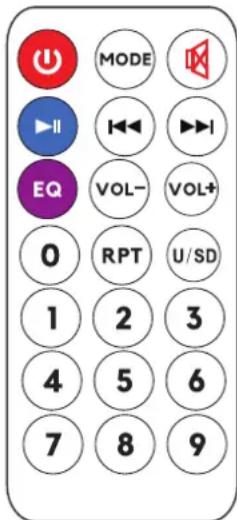

REMOTE CONTROL

• Standby button
• MODE: Press briefly to cycle through the BT/LINE IN/USB/SD/FM operating modes
• MUTE: Stops the sound. Press again to turn the sound back on.

• Play / Pause in USB/SD/Bluetooth mode.
  In FM mode, hold the button down to search for radio stations and save them automatically.
  In LINE/AUX mode, this button has no function

• In USB/SD mode: Press briefly: Previous track; press and hold: fast rewind.
  In BT mode: Press briefly: Previous track
  In LINE/AUX mode: no function
  In FM mode: back to the last saved station.

- In USB/SD mode: Press briefly = next track; press and hold (>3 sec.) = fast forward.

In BT mode: Short press: Next track

In FM mode: Continue to the next saved station

In LINE mode: No function

• EQ sound effects: Rock, Jazz, Classic, etc.

• VOL-: Reduce volume

• VOL+: Increase volume

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

• RPT: Repeat one-all tracks-exit repeat function.
• SCN: Switch between USB and Micro-SD
• Number keys: In USB/SD mode: Direct selection of track number

DESCRIPTION OF THE REAR PANEL

1. Digital MP3 player
2. Master volume control
3. Input selector: Press this button to switch between the various inputs (USB, SD, Bluetooth, FM)
4. In USB/SD/Bluetooth mode: press to go back to the previous track. In FM mode: press to go to the previously stored FM station.
5. Play/pause in USB/SD/Bluetooth mode. In FM mode, press and hold this button to start searching for radio stations and store them automatically in the memory
6. In USB/SD/Bluetooth mode: press to go to the next track. In FM mode: press to go to the next stored FM station.
7. EQ
8. Sensor for remote control
9. USB stick input
10. Mini SD card input
11. AUX input via 3.5mm mini stereo jack
12. Mic priority
13. Echo control for the microphone
14. AUX input via 6.35mm mini stereo jack
15. Microphone volume control
16. When the power adaptor is connected, the indicator lamp lights up in red as long as the battery is charging. It lights up in green, when the battery is fully charged.
17. ON/OFF switch of the system
18. 12Vdc battery input
19. Switches the LED on the woofer on /off
20. AC input connector

Connect the microphone to the MIC IN socket and switch it on.

Note: If you are playing music from any other input, connecting the microphone will not mute the sound output.

KARAOKE FUNCTION

This feature is available with any input. Play a track through AUX/USB/SD/Bluetooth/FM, connect a microphone and sing along.

USB/SD OPERATION

Keep the speaker away from high temperatures, strong magnetic fields and any equipment that could generate interference. If the speaker stops working, switch it off and on again, or unplug USB/SD card and re-plug it. The speaker should be back to normal status.

The maximum size of USB/SD device that can be connected is 32 GB.

Supported music formats: MP3, WMA

• After turning on the speaker, press the "MODE" key to select USB or TF mode and connect a USB or TF device.
• Short press "▶" to play or pause the song.
• Short press "◀◀" to skip to the previous track.
• Short press "▶" to skip to the next track.

FM RADIO FUNCTION

1. Turn on the unit and press repeatedly the input selector key on unit and select FM function (the display will show the frequency).
2. Press the PLAY/PAUSE button to activate the auto memory (the radio starts an automatic search for available radio stations and saves them automatically). The station's number stored depends on the radio signal in your area. During the search, press PLAY button to stop searching.
3. Use the ▶ and ◀ keys to listen to the various radio stations saved in memory.

BLUETOOTH OPERATION

1. Turn on the unit and press the input selector button on unit to select the Bluetooth function.
2. Activate the Bluetooth feature on the external device to be paired.
3. Initiate a search for devices. The device shows up as «PARTY-LED».
4. Press the ▶|| button to start playing and the buttons ▶ and ◀ for the selection of songs.

TROUBLE SHOOTING

If a problem occurs, follow the steps in the table below. If problem still can't be solved, please contact your retailer.

Problem Possible cause Solution
No sound when power on	1. No input source 1. Connect an AUX signal
	2. Volume down 2. Adjust volume
No sound from the microphone	1. Bad mic connection 1. Plug in the mic properly
	2. Mic not switched on 2. Switch mic on
	3. Mic volume down 3. Increase mic volume
No sound after inserting USB/SD card	1. Incorrect file format 1. File format should be MP3
	2. Bad connection of USB/SD card 2. Plug in USB/SD card properly
If Speaker makes loud noises	1. Microphone switched on but may be too close to the speaker	1. Keep the microphone 2 meters away from the speaker
	2. Microphone switched on but is not being used.	2. Turn off microphone if not in use.
	3. Microphone volume may be too loud 3.	Adjust microphone volume to lower mode
	4. Mobile phone is being used too close to the speaker	4. Keep mobile away from the speaker whilst attending a call.
	5. Other wireless equipment may be placed very close to the speaker.	5. Keep the speaker away from other wireless equipment

SPECIFICATIONS

Power 300W

Woofer 8"/20cm with LED illumination

Magnet....15oz

Voice coil....1"

Tweeter Piezo

Impedance....4 ohms

SPL (1W/1m) 90±2 dB

Freq. response....60Hz-18KHz

Input/ output connectors....JACK/AUX

FM band 87.5-108MHz

Bluetooth band 2402 - 2480MHz

Max. RF emission power ....-2,2dBm

Battery....7.4V== 1.8Ah Li-ion Battery

Power supply....100-240V\~ 50-60Hz

Consumption....25W

Weight....8.5kgs

ENCEINTE PORTABLE 8"/20CM - 300W

AVEC USB, BLUETOOTH, FM ET MICRO

MANUEL D'INSTRUCTION

EXPLICATION DES SYMBOLES

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

In BT-modus: Kort indrukken: Volgende track

CON USB, BLUETOOTH, FM & MIC

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

Banda FM 87,5-108 MHz

Banda Bluetooth 2402 - 2480 MHz

COM USB, BLUETOOTH, FM E MIC

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

Banda FM 87,5-108 MHz

Banda Bluetooth 2402 - 2480 MHz

CU USB, BLUETOOTH, FM & MIC

INSTRUCTIUNI DE UTILIZARE

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

MED USB, BLUETOOTH, FM & MIC

BRUKSANVISNING

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

BESKRIVNING AV BAKPANELEN

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

MODE EQ VOL- VOL+ 0 RPT U/SD 1 2 3 4 5 6 7 8 9

ARKA PANELIN TANIMI

FM bandi 87.5-108MHz

Bluetooth bandi 2402 - 2480MHz

EC Declaration of Conformity

We, LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgique

+32.2.390.91.91

certify and declare under our sole responsibility that the following product:

Trade name: PARTY LIGHT & SOUND

Product name: Portable PA led battery speaker with microphone

Type or model: PARTY-6LED / PARTY-7LED / PARTY-8LED

conforms with the essential requirements of:

RED directive 2014/53/EU – LVD directive 2014/35/EU – EMC directive 2014/30/EU

based on the following standards applied:

EN60065: 2014

EN62479:2010

EN 301 489-1 V1.9.2

EN 301 489-17 V2.2.1

EN 300 328 V1.9.1

EN55013:2013

EN61000-3-2:2014

EN61000-3-3:2013

EN55020:2007+A11:2011

Place and date of issue: Saintes (Belgium), on 27/04/2017
