USER MANUAL DISCO1 Party light & sound

Stacked speakers with reflective packaging, no visible text or symbols

Ref. PARTY-DISCO1/2/4

INSTRUCTION MANUAL

This product is a portable audio system supporting Bluetooth, USB, TF card, external sound source input and FM radio.

Precautions

Read the manual prior to first using the product and keep it for further reference.

For best sound performances, keep the unit away from water, moisture, direct sunlight, extreme temperatures.

Place the unit in such a way that it can't fall down.

- Never disassemble the unit. Otherwise, it may invalidate the warranty.

:

Warning:

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus to avoid any accident.

To prevent fire or electric shock, please check the compliance of the voltage of power grid with the specified supply voltage of this unit.

Appliances containing Lithium-ion batteries

1. PRIOR to using the unit for the first time, please charge fully the battery
2. Charge the battery regularly after each use. Don't wait until it is discharged!
3. DON'T allow the battery to discharge completely, otherwise it will lose 20% of its capacity or even be totally damaged!
   If the voltage becomes too low, the internal circuits are not powered anymore and it will become impossible to recharge the battery!
4. If you don't use the unit for a longer period of time, it is recommended to charge it at 40% of its capacity and check/charge it once per month.
   The life time of the battery depends on the observance of these recommendations.

\*\* BATTERIES ARE NOT COVERED BY THE WARRANTY \*\*

We cannot be held responsible for damaged batteries further to the non-observance of these basic rules.

Accessories

Unit
User Manual
Mini-USB to USB & 3.5mm Jack lead

Features

USB & Micro-SD player (MP3 file formats)
FM tuner
Bluetooth
AUX input
LED illuminated speaker cone
Built-in Li-ion battery
Top handle
Supplied with USB charging lead

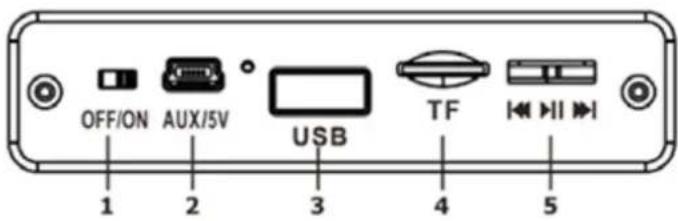

Description of the Control panel

1. Power ON/OFF

2. AUX/5V: Charging port for the built-in battery. Connect the mini USB connector of the charger lead to this connector and the USB connector to a USB port on a PC.

AUX input: Connect the mini USB connector of the charger lead to this connector and the 3.5mm Jack to

the headphones connector of a PC, MP3 player, smartphone or Walkman.

OFF/ON AUX/5V USB TF I/O I 1 2 3 4 5

1. USB port: Connect a USB source to this connector and enjoy music in MP3 format.

2. TF port: Connect a micro SD card and listen to music in MP3 format.

3. MP3 controls: Short slide to the left: Select previous song in TF, USB or Bluetooth mode; go to previous radio station in FM mode. Long slide = volume reduction.

Short slide to the right: Select next song in TF, USB or Bluetooth mode; go to next radio station in FM mode. Long slide = volume increase.

Short click in the middle: Play, pause, or automatic search for frequencies in radio mode.

Long click in the middle: to switch mode among FM, TF CARD, USB, Bluetooth and audio input.

BLUETOOTH CONNECTION

1. Power on the speaker. The blue LED will blink.
2. Select PARTY-DISCO in the list of found devices.
3. The device will automatically pair.

Specifications

PARTY-DISCO1 PARTY-DISCO2 PARTY-DISCO4
Speakers 1 x 3"/8cm 2 x 3"/8cm 4 x 3"/8cm
Output power: 10W 20W 40W
Frequency range 100Hz - 20kHz
S/N ratio >80dB
THD <1%
Micro USB input 5V/800mAh
Battery 800mAh DC 3.7V lithium-ion battery
Dimensions:	112 x 85 x 155mm	112 x 85 x 255mm	112 x 85 x 455mm
Weight	0,336kg	0,56kg	0.952kg

The product design and specifications may be changed without prior notice!

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

MANUEL D'UTILISATION

Imported from China by LOTRONIC S.A.

Avenue Zénobe Gramme 9

B-1480 Saintes

CE

EU Declaraon of Conformity

Hereby we, LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgique

+32.2.390.91.91

Cerfy and declare under our sole responsibility that the following product:

Trade name: PARTY LIGHT & SOUND

Product name: BLUETOOTH "DISCO" SPEAKER

Type or model: PARTY-DISCO1 / PARTY-DISCO2 / PARTY-DISCO4

Conforms to the essenal requirements of the:

RED direcve 2014/53/EU

Based on the following specicaons applied:

EN60950-1: 2006+A11:2009+A1:2010+A12:2011+A2:2013

EN62479:2010

ETSI EN301 489-1 V2.1.1

ETSI EN301 489-17 V3.2.0

ETSI EN300 328 V2.1.1

Place and date of issue: Saintes (Belgium), on 10/08/2017

Guive Akbar

Responsible technique GG
