USER MANUAL SS-14570 Sogo

White SOGO food blender with clear glass casing and side brush (no visible text or symbols)

Descarga tu manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram showing exploded view of a mechanical component with numbered parts labeled 6, 7, 8, and 9.

5. INSTRUCCIONES DE USO

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• This appliance is intended to be use used in household and similar applications.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Restrictions on use to avoid personal injury

- Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates, Ovens or Electric burners) or open flames.

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• Never immerse the appliance or the plugin water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been properly instructed concerning use of the appliance and are fully supervised by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of the children.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not allow the children to use the appliance.
• Appliances can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.

Instructions to follow when using the appliance

• This appliance includes a safety switch which prevents operation unless the accessories are securely installed.
• This appliance is designed with a protective device in case of operation in high temperatures. If the temperature becomes too high, the unit will turn off automatically and will resume operation when the motor cools completely (after about 30-60 minutes).

Note: Do not operate the appliance for more than 3 minutes continuously. Need to use it for more than 5 minutes, it may trigger overheat protection of the motor, which may cause some damages to the appliance.

• Caution: If the operation is not completed within 3 minutes, turn off the machine and cool it for 1 minute before the next operation. If more than 5 rounds operations are required, cool the machine for 30-60 minutes to room temperature. This can lengthen lifespan of the appliance.
• The temperature of accessible surfaces may be high when the appliance is operating.
• To protect against risk of electric shock, fire or personal injury, do not immerse the power cord, plug or motor base into water or any form of liquid.
• Do not immerse the motor base into water, or rinse it under tap water.
• Do not push food with fingers, or other objects (like knives), always use the enclosed pusher for feeding food.
  • Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.
• Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming.
• WARNING: The blades are very sharp!
• Avoid contacting moving parts of the appliance while in function.
• Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.
• Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.
• Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.

• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.

• The unit is equipped with a security function. The unit can only be switched on if all the accessories are mounted properly.

• CAUTION: Do not operate the unit when empty.
• CAUTION: Do not put hot ingredients into the jar. Before food preparation, allow food to cool down for a few minutes.
• CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.
• Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30 Ma in the house installation. Please consult your installing electrician.
• Always use a reliable earthed power supply to operate the appliance.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

3. TECHNICAL SPECIFICATIONS

Voltage Frequency Power Capacity
AC 220-240V 50-60Hz 800W 1.2L

This product complies with EU regulation 2023/826 under directive 2009/125/EC on the Eco design requirements.

Power consumption in off mode: <0.3W

Power consumption in standby mode: N/A

Time after which the product enters into off mode: N/A

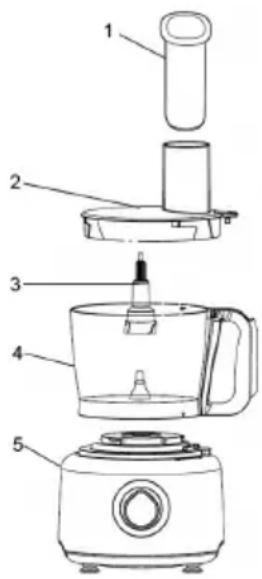

4. PARTS DESCRIPTION

1. Food pusher
2. Lid of processing bowl
3. Accessories Driving shaft
4. Processing bowl
5. Motor base.
6. Chopping blade.
7. Motor Driving shaft
8. Thin shredding blade
9. Thick shredding blade

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram showing a sequence of labeled parts of a mechanical or electronic component, including a propeller, dropper, and textured surfaces.

5. INSTRUCTIONS FOR USE

Knob with different speed functions

P — Pulse: Stainless steel blades operate with transitorily highest speed.

How to use the pulse function.

1. Turn rotary switch to «0» position to turn off the appliance.
2. Turn the knob and keep it in same position as long as you want motor to run.

Note: make sure to not to run the motor more than 1 minute continuously.

1 — Low speed - Blades operate with low speed, suitable for elementary blending.

1. Turn motor switch clockwise to position speed 1.

2. The blender starts blending.

3. To stop turn rotary switch to «O» position.

2 — High speed - Blades operate with high speed, suitable for symmetrical blending.

This function can be used for grinding and blending some kinds of vegetables and fruits.

0 — Turn off the unit.

Operation:

1- Chopper:

- Accessories to use (Lid of processing bowl, Driving shaft, Processing Bowl, Motor base, Chopping Blade).

Firstly, mount Motor driving shaft on the motor body, followed by Processing bowl. Place Accessories driving shaft on to the motor driving shaft and chopping blade. Place the lid on the working bowl and close firmly. Your food processor is ready to process and chop the food.

Step 1: Put the food like Boneless beef or the Pork which has been cut into the pieces of approximately size 20 mm x 20 mm x 60 mm and total weight should not exceed 300 gms.

Step 2: Operate the appliance on the highest speed setting for approximately 1 minute.

2- Shredder :

Useful parts / areas (Food pusher, Lid of processing bowl, Processing bowl, Motor base, Motor Driving shaft, Thin shredding blade, Thick shredding blade).

Firstly, mount Motor driving shaft on the motor body, followed by Processing bowl. Place Accessories driving shaft on to the motor driving shaft and Shredder. Place the lid on the working bowl and close firmly. Your food processor is ready to process and shredding.

Step: 1: Choose the shredding blade you need.

Step 2: Prepare 500 gm Carrot or similar food and cut into the size that could easily pass through the feeding hole.

Step 3: Operate the product on speed 1 and then put the food into the feeding hole and press the food with the Pusher.

Step 4: Operate the appliance till the food is shredded (approx. 30 seconds).

Note: Please let the appliance cool down before next operation.

6. TIPS AND RECOMMENDATIONS

• It is recommended to choose the pulse function 2-3 times for pre-mixing the food ingredients before the operation.
  • 1.2L is Max. quantity for one batch.
• Make sure that the base is installed properly before the operation.
• Food pusher can be used to pus the food inside through feeder.
• Please do not operate the blender function for more than 1 minute. After operating it for 1 minute, let it cool it for 3 minutes before the next operation.

7. CLEANING AND MAINTENANCE

HOW TO DISASSEMBLE

1. Remove the pusher. Turn the cover counter clockwise, lift and remove it.
2. Lift the accessory from the driving shaft.
3. Turn the processor bowl counter clockwise to unlock it from the motor base. Lift it and remove it.

Cleaning:

1. Please unplug the power cord to protect from electric shock while cleaning the machine. Do not immerse the motor base and power cord into water.
2. All the removable accessories can be cleaned in water except the motor base. Dry the wet parts after cleaning. All the detachable accessories can be washed in a dishwasher.
3. For easy cleaning, while cleaning the processing bowl, you can use some warm water and detergent in the blender jar and leave it for some time.
4. Always place the machine in a dry place with air circulation.
5. Do not use the hard (solid) detergent to avoid any scratch on the product.
6. Do not operate the appliance for more than 1 minute at a stretch for chopping and cutting functions and do not operate it more than 1 minute for the blender function. Using this appliance more than 5 minutes, can trigger of overheating of motor.
7. Please do not operate the appliance for too long to avoid damages to it.
8. DO NOT IMMERSE THE MOTOR BASE INTO WATER.

[CYD]

1. This symbol means, it can be cleaned by water.

1. This symbol means, it can be cleaned in Dish-washing machine.

1. This symbol means, it can only be cleaned by the Dry cloth.

Note: If the product is operating with abnormal noise or shaking seriously, please stop using the product and send it to the service agent to check it. Never repair the product by yourself.

PORTANT:

Exploded view diagram of a kitchen appliance with numbered parts for identification

5. MODE D'EMPLOI

Exploded diagram of a kitchen appliance with numbered parts for identification

Exploded view diagram of a kitchen appliance with numbered parts for identification

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram showing a multi-step assembly of a mechanical component with numbered parts

5. ISTRUZIONI PER L'USO

Exploded view diagram of a kitchen appliance with numbered parts for identification

5. NÁVOD K POUŽITÍ

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram showing exploded view of a food item with numbered parts labeled 6, 7, 8, and 9.

5. BRUGSANVISNING

Exploded view diagram of a kitchen appliance with numbered parts for identification

5. NAVODILA ZA UPORABO

Exploded view diagram of a kitchen appliance with numbered parts for identification

5. UPUTE ZA UPOTREBU

Gumb s različitim funkcijama brzine

P — Puls: Oštrice od nehrđajućeg čelika rade privremeno najvećom brzinom.

Kako koristiti pulsnu funkciju:

Exploded view diagram of a kitchen appliance with numbered parts for identification

5. INSTRUKCJE UŻYTKOWANIA

Exploded diagram of a kitchen appliance with numbered parts for identification

5. INSTRUCTIUNI DE UTILIZARE

Exploded view diagram of a kitchen appliance with numbered parts for identification

Exploded diagram of a kitchen appliance with numbered parts for identification

5. INSTRUCCIONS D'ÚS

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
