USER MANUAL SS-14510 Sogo

Exterior view of a modern stand mixer with a metal bowl and control panel (no visible text or symbols)

AMASADORA, MEZCLADORA Y BATIDORA POWERFUL 3 IN 1 STANDMIXER IMPASTATRICE, MISCELATORE E FRULLATORE PÉTRISSEUR, MIXER ET MÉLANGEUR AMASSADEIRA, MISTURADOR E LIQUIDIFICADOR KNETER, MISCHE UND SCHLÄGER

Caution: please read and preserve these important instructions

Three technical diagrams of a mechanical component with numbered parts (8, 9, 10), no visible text or symbols.

Modern kitchen mixer with a hand mixer inside, showing the mixing bowl and whisk (no text or symbols visible)

Modern kitchen mixer with a bowl and stand mixer (no visible text or symbols)

Modern kitchen mixer with whisk inside a bowl (no visible text or symbols)

Modern kitchen mixer with a bowl and whisk, no visible text or symbols

IMPORTANT SAFETY PRECAUTION:

When using electrical appliance, basic precautions should always be followed including the following:

• Read all instructions.
• To protect against risk of electrical shock do not put the appliance unit cord or plug in water or other liquid.
• Close supervision is necessary when a appliance is used by or near children.
• Unplug the appliance when not in use, changing accessory and before cleaning.
• Avoid contacting moving parts.
• If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electrical shock or injury.
• Do not use outdoors.
• Do let cord to hang over edge of table or counter.
• Keep hands and utensils away from moving blades or discs while processing food to reduce risk of severe injury to person or damage to the food mixer.
• Be certain is securely locked in place before operating the appliance.
• Do not attempt to defeat the lid interlock mechanism.
  • Always operate blender with cap is placed.
• When blending not liquid, remove center piece of two-piece cap.

- Turn off the machine before replace attachment.

- Use the product and assembly the accessory as mentioned on user manual only.

- Switch off the appliance before changing accessories or approaching parts which move in use.

- This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

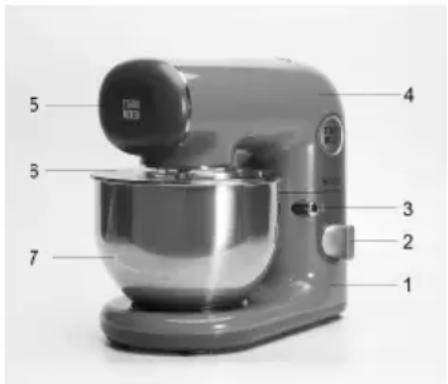

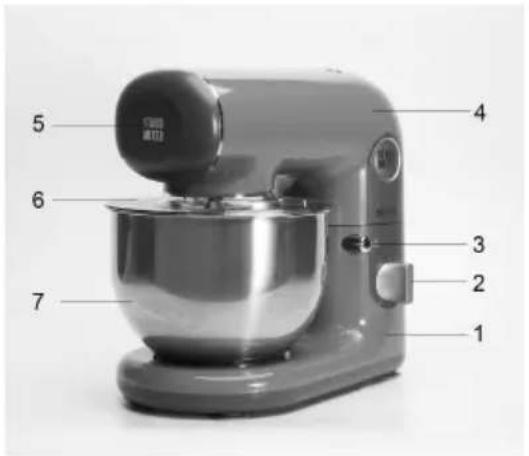

1. Bottom
2. Speed control switch
3. Release button for multifunction head
4. Multifunction head
5. Front cover
6. Bowl cover
7. Stainless Bowl
8. Dough hook
9. Mixer blade
10. Whisk

5 4 6 3 2 7 1

8 9 10

CONTROL PANEL SPEED SETTING

Pulse----Maximum speed—fast

0 ----Stop

Setting1-6----Operating speed

Setting1----Minimum speed—slow

Setting6----Maximum speed—fast

PULSE 0 1 2 3 4 5 6

Setting Speed

ACCESSORIES PICTURE SPEED		SETTING	TIME CAPACITY
Kneeding Hook	[40C8]	1-2 30sec at	speed1 and 3-5min at speed3	1000 g flour and 600 ml water
Flat beater		2-4 5-7min
Whisk		5-6 5-7min At least 3 eggs

OPERATING POSITIONS

Warning!

Operate the appliance only when the accessory/tool is attached according to this table and is in the operating position.

ITEM POSITION ACCESSORY
1
2			Set up Kneading Hook, Flat beater,Wisk, according to your desire.

Risk of injury from the rotating tools!

While the appliance is operating, keep fingers clear of the mixing bowl.

Do not change tools until the appliance is at a standstill and have been unplugged.

When switch off, the drive continues running briefly.

HOW TO USE KNEADING HOOK, FLAT BEATER, WHISK

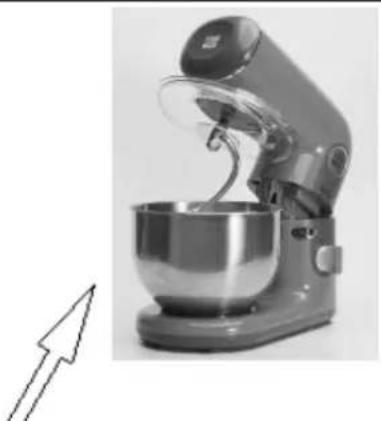

Turn the arm release button clockwise. at the same time lift the swivel arm with hand so that it locks into place with a click. The swivel arm tilts up.

Fit the bowl cover onto the swivel arm and turn it slightly clockwise, so that it locks into position securely.

1. Place the food into the mixing bowl.
2. Fit the mixing bowl in the recess on the motor house.
3. Turn the mixing bowl slightly clockwise, so it locks into position.

Modern kitchen mixer with whisk inside a bowl, no visible text or symbols

Exterior view of a modern kitchen mixer with a stainless steel bowl (no visible text or symbols)

1. Put the splashguard to swivel Arm, as shown picture and ensure it fix well.

2. Fit the required accessory onto the motor spindle on the underside of the swivel arm.

3. A. The kneading hook is used for heavy dough, minced meat or other demanding kneading jobs.

B. The flat beater is used to mix lighter types of dough.

C. The whisk is used for whisking cream, egg whites, etc.

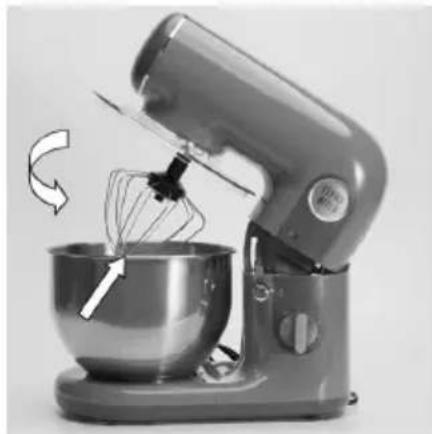

1. Turn the accessory, so the pins on the spindle are aligned with the depressions on the accessory top edge. Press the accessory against the swivel arm and turn it anti-clockwise at the same time until the pins engage and the accessory locks into positionsecurely. The accessory must not be loose nor should you be able to pull it free.

2. Lower the swivel arm so that it locks into place with a click. The lid must fit tightly with the mixing bowl, otherwise it is fitted incorrectly. The appliance is now ready for use.

3. Plug the power cord into main power outlet and switches it ON. Turn Speed control knob to speed 1(or any speed setting) indicator light on the control panel will now be illuminated.

4. Select the speed you want using. Speed button 1 is the slowest and speed button 6 is the fastest speed. Recommended speeds, time and capacity are shown in the table above.

5. If you need to scrape inside the mixing bowl, wait until the accessory has stopped completely. Use the spatula, never your fingers.

Modern kitchen mixer with whisk inside a bowl (no visible text or symbols)

Modern kitchen mixer with mixing bowl and whisk (no visible text or symbols)

1. Switch off the appliance by turn knob to O when you have finished mixing. Switch off the appliance and unplug it before you change the accessories, or before you take the appliance apart or when not in use.

2. Turn the swivel arm release button clockwise. at the same time lift the swivel arm with hand so that it locks into place with a click. The swivel arm tilts up.

3. Detach the accessory by turning it clockwise.

4. Remove mixing bowl with prepared food anti-clockwise.

IMPORTANT!

The temperature of water which will be added into dough at 40+/-5 °Cdegree when preparing for dough is on progress

CLEANING

When cleaning the appliance, you should pay attention to the following points:

• Remove plug from the mains socket, and allow the appliance to cool down before cleaning it.
• Do not immerse the motor section of the appliance in water and make sure no water enters the appliance.
• Clean the motor section by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.
• Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they may damage the outside surfaces of the appliance.
  • Take the appliance apart and clean all of the accessories separately.
• Be careful not to touch the blades or sharp parts during use and cleaning.
  • IMPORTANT! Allow to dry fully after cleaning before using again. Do not use the appliance if damp.
  • After washing and drying, immediately place attachment into the protective sleeve for storage.

APPLICATION EXAMPLES

Beating of egg-white

8 egg-white in the BOWL with the WHISK at speed 6.

Beating of cream

600g cream with the FLAT BEATER in the BOWL at speed 4.

Kneading of dough

700g flour

200g chopped almonds

15g salt

28g butter

28g sugar

app.500g water(Temperature 40+/-5°C.)

AC 220-240V\~ 50-60Hz 1000W

MESURE DE SÉCURITÉ IMPORTANTE:

Pulse----Maximum speed—fast

0 ----Stop

Setting1-6----Operating speed

Setting1----Minimum speed—slow

Setting6----Maximum speed—fast

5 4 3 2 1 7

Three technical diagrams of a mechanical component with numbered parts (8, 9, 10), no visible text or symbols.

PULSE 0 1 2 3 4 5 6

Modern kitchen mixer with whisk inside a bowl, no visible text or symbols

Modern kitchen mixer with a bowl and control panel (no visible text or symbols)

Modern kitchen mixer with mixing bowl and whisk (no visible text or symbols)

Close-up of a kitchen mixer with a bowl and whisk, no visible text or symbols

Pulse----Maximum speed—fast

0 ----Stop

Setting1-6----Operating speed

Setting1----Minimum speed—slow

Setting6----Maximum speed—fast

PULSE 0 1 2 3 4 5 6

Modern kitchen mixer with whisk inside a bowl, no visible text or symbols

Modern kitchen mixer with a bowl and control panel (no visible text or symbols)

Modern kitchen mixer with whisk inside a bowl (no visible text or symbols)

Modern kitchen mixer with mixing bowl and whisk (no visible text or symbols)

Three views of a mechanical component with numbered parts (8, 9, 10), no visible text or symbols.

Modern kitchen mixer with whisk inside a bowl, no visible text or symbols

Modern kitchen mixer with a bowl and control panel (no visible text or symbols)

Modern kitchen mixer with whisk inside a bowl (no visible text or symbols)

Modern kitchen mixer with mixing bowl and whisk (no visible text or symbols)

Modern kitchen mixer with mixing bowl and whisk, no visible text or symbols

Exterior view of a modern kitchen mixer with a bowl and stand (no visible text or symbols)

Modern kitchen mixer with whisk inside a bowl (no visible text or symbols)

Close-up of a kitchen mixer with a bowl and whisk, no visible text or symbols

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
