USER MANUAL SS-14505 Sogo

Exterior view of a modern kitchen mixer with metal bowl and stand (no visible text or symbols)

BATIDORA MEZCLADORA Y AMASADORA MIXER BLENDER AND DOUGH MAKER BATTEUR MÉLANGEUR AVEC BOL TOURNANT BATEDOR MISTURADOR COM TIGELA GIRATÓRIA SCHLÄGER MIXER MIT ROTIERENDER SCHÜSSEL BATTITORE MISCELATORE CON VASCA ROTANTE

Labeled diagram of a kitchen mixer with numbered parts for identification

Fig. 1

GUÍA DE MEZCLADO

Close-up of a red KFC mixer with metal wicks, showing mechanical components (no text or symbols visible)

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully before you use the appliance.
2. This appliance is designed for domestic use only. No responsibility is
   accepted for damage resulting from use non-compatible with the instructions.
3. To protect against risk of electrical shock do not put the hand mixer in water or other liquid.
4. Do not operate the hand mixer with wet hands.
5. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
6. Unplug before inserting or removing parts.
7. Avoid contacting moving parts.
8. Keep hands, hair, clothing, as well as spatulas and other utensils away from the beaters during operation to reduce the risk of injury to persons, and/or damaged to the mixer.
9. Remove beaters from the hand mixer before washing them.
10. Do not continuously operate the mixer too long. The motor may overheat. For 1\~5 Speed, continuously operate time must be less than 5 minutes.
11. Do not use the beaters to mix too hard ingredients.

12. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.

13. Do not let cord contact hot surface, including the stove.

14. Do not let cord hang over edge of table or counter.

15. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

16. Do not put it in water.

17. Do not use outdoors.

18. Switch off the appliance before changing accessories or approaching parts which move in use.

19. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

20. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

21. Do not use this appliance with a programmer, counter, remote control or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire or serious injury.

22. If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

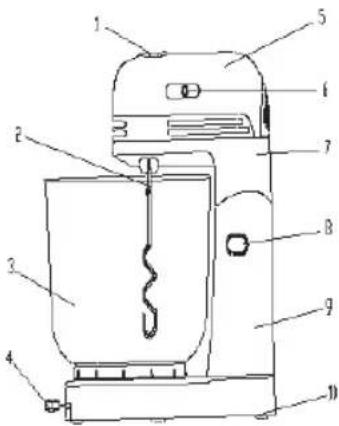

PARTS DESCRIPTION:

1. Ejector knob
2. Beaters / Hooks
3. Stainless steel bowl
4. Hand shank
5. Outer Body( upper)
6. Speed control
7. Outer Body (down)
8. Stand release button
9. Stand
10. Bottom cover
11. Holes

Labeled diagram of a kitchen mixer with numbered parts for identification

Fig. 1

MIXING GUIDE

SPEED DESCRIPTION
1 FOLD This is a good starting speed for bulk and dry foods such as flour. butter and potatoes.
2 BLEND Best speed to start liquid ingredients for mixing salad dressings.
3 MIX For mixing cakes. cookies and quick breads.
4 CREAM For creaming butter and sugar. Beating uncooked candy. desserts. etc.
5 WHIP For beating eggs. cooked icings. Whipping	potatoes. whipping cream. etc.

Note: Use beaters if beat eggs. Use hooks if mix thick sticky flour.
During mixing dough, add water in bowl first, then add four. Use your hand to rotate bowl for about 2\~3 minutes, after that bowl can be rotating itself.

USING YOUR HAND MIXER

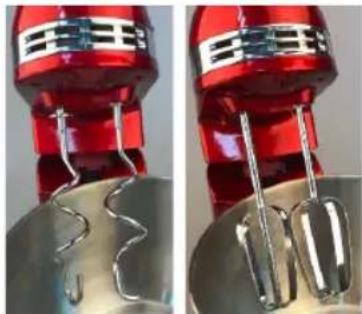

1. Fit the beaters or hooks to the beater holes (Fig 2).

2pcs beaters are different.

2pcs hooks are different.

They have to be fit in the correct position

Fig 2

Close-up of a red mixing bowl with metal struts, showing internal wavy lines (no text or symbols visible)

1. Plug in the appliance.
2. Hold the mixer handle. Lower the beaters or hooks into ingredients.
3. Switch on (6) and select the speed desired. The mixer begins to mix the ingredients in the bowl.
4. When you have finished mixing, stop the mixer by pushing the speed button to "0" immediately.
5. Wait until the beaters/hooks have stopped revolving, press the ejector knob (1) to remove the beaters/hook. "Switch off the appliance before changing accessories or approaching which move in use."
6. Unplug the appliance when you have finished mixing. Clean the beaters/hooks with water. Make them dry, store in the box together with the main body.
7. Hand shank(4), Stainless steel bowl can move around.
8. Stand release button(8), Can shake up and down, convenient take material and to take off the fork.

CLEANING:

1. Wash the bowl, beaters and hooks with water after using.

2. Make them dry with cloth, store in the box.

PRODUCT SPECIFICATIONS:

Model: SS-14505 / SS-14505-R

Rating: 220-240V\~, 50/60Hz, 350W

Work time: 1-5 speed, KB 5 minutes.

This instruction manual can also be downloaded from our web page www.sogo.es

MESURES DE SÉCURITÉ IMPORTANTES

Labeled diagram of a kitchen mixer with numbered parts for identification

Fig. 1

GUIDE DE MÉLANGE

Close-up of a red mixing bowl with metal struts, showing internal wavy lines (no text or symbols visible)

Labeled diagram of a kitchen mixer with numbered parts for identification

Fig. 1

GUIA DE MISTURA

Close-up of a red mixing bowl with metal struts, showing internal wavy lines (no text or symbols visible)

Labeled diagram of a kitchen mixer with numbered parts for identification

Close-up of a red mixing bowl with metal struts and a hand mixer, showing mechanical components (no text or symbols visible)

Labeled diagram of a kitchen mixer with numbered parts for identification

Fig. 1

Close-up of a red mixing bowl with metal struts and a coiled handle, showing mechanical components (no text or symbols visible)

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
