Product Type	Auto-darkening Welding Helmet
Brand	Vevor
Model	BY950T-1
LCD Viewing Area	100 x 95 mm
Cartridge Size	114 x 133 mm
UV/IR Protection	Built-in
Arc Sensors	4
Welding Shades	No. 9 to No. 13
Cutting Shades	No. 5 to No. 9
Grinding Shade	No. 4 (fixed)
Switching Time (light to dark)	1/25000 s
Switching Time (dark to light)	0.3 s - 0.6 s - 0.9 s (adjustable)
Power Supply	Solar cells + CR2032 battery (x2)
Low Battery Indicator	Red LED
Sensitivity Control	Variable adjustment via external button
Delay Control	Adjustable: 0.3 / 0.6 / 0.9 s
Modes	Welding, cutting, grinding
Operating Temperature	-5°C to 55°C
Storage Temperature	-20°C to 70°C
Minimum TIG Current	DC ≥ 5 A, AC ≥ 5 A
Optical Class	1/1/1/2
Spare Parts	Front and inner protective lenses, ADF cartridge, etc.
Maintenance	Clean with a soft cloth and soapy water
Safety	Follow instructions; wear safety glasses under the helmet

Frequently Asked Questions - BY950T-1 Vevor

How to adjust the helmet shade?

Use the shade control button (5) to adjust the shade in welding mode (No. 9 to No. 13) or cutting mode (No. 5 to No. 9). In grinding mode, the shade is fixed at No. 4.

What to do if the filter does not darken when the arc is struck?

First check that the sensitivity is not too low. Clean or replace the front protective lens. Make sure the arc sensors are not obstructed. If grinding mode is selected, switch to welding or cutting mode.

How to change the helmet battery?

The battery is located in the lower corner of the ADF cartridge. Replace it with two CR2032 batteries, respecting polarity (+ side inward). Use a screwdriver to open the compartment.

How to clean the helmet?

Clean the lens and cartridge with a soft cloth dampened with a soapy water solution. Avoid solvents. Replace the protective lenses if they are scratched or damaged.

What modes are available?

The modes are Welding, Cutting, and Grinding. The selector (3) switches between them. In grinding mode, the shade is fixed at No. 4 and the delay is disabled.

How to adjust sensitivity?

Press the SENSITIVITY button (1) to adjust. Reduce sensitivity in case of stray arcs or very bright environment. Increase it for low welding currents (TIG).

How to adjust the filter delay time?

Turn the Delay knob (2) to choose between 0.3 s, 0.6 s, or 0.9 s. A longer delay prevents glare after high amperage welding.

What does the red LED lighting up mean?

The red LED indicates low battery. Replace the CR2032 batteries within 2-3 days to ensure auto-darkening operation.

How to replace the front protective lens?

Remove the old lens by prying from the groove on the frame. Insert a new protective lens (ref. BY-010003) making sure it is securely in place.

What safety precautions should I take?

Always wear safety glasses under the helmet. Use fire-resistant clothing. Do not weld in a confined space without ventilation. Regularly check the condition of the protective lenses.

USER MANUAL BY950T-1 Vevor

Affordable. Reliable. Home Improvement.

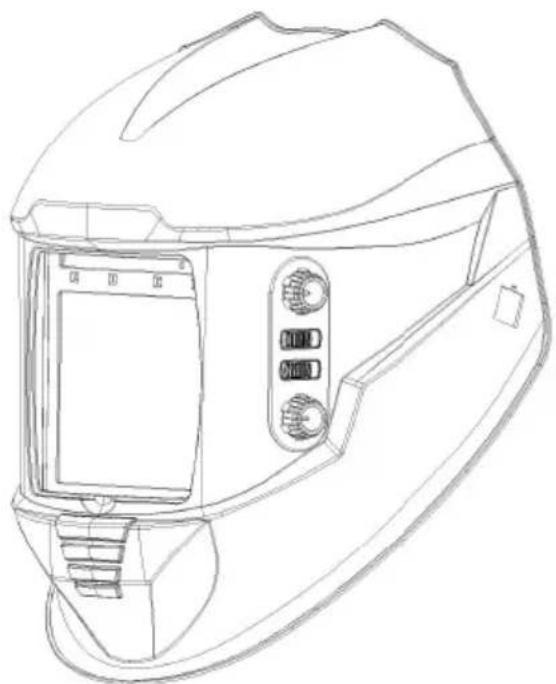

Welding Helmet

Model: BY950T-1

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Warning: To reduce the risk of injury, user must read the instruction manual carefully.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in injury.

WELDING HELMET SAFETY PRECAUTIONS READ BEFORE USING

Protect yourself and others from injury — read, follow, and save these important safety precautions and operating instructions.

Symbol Usage

DANGER! - Indicates a hazardous situation which, if not avoided, will result in death or serious injury. The possible hazards are shown in the adjoining symbols or explained in the text.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury. The possible hazards are shown in the adjoining symbols or explained in the text.

NOTICE - Indicates statements not related to personal injury.

Indicates special instructions.

This group of symbols means Warning!

Watch Out! ELECTRIC SHOCK, MOVING PARTS, and HOT PARTS hazards.

Consult symbols and related instructions below for necessary actions to avoid hazards.

Arc Welding Hazards

Only qualified persons should install, operate, maintain, and repair the unit.

ARC RAYS can burn eyes and skin.

Arc rays from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin. Sparks fly off from the weld.

• Wear a welding helmet fitted with a proper shade of filter to protect your eyes when welding or watching (see ANSI Z49.1 and Z87.1 listed in Safety Standards). Refer to Shade and sensitivity charts.
• Wear approved safety glasses with side shields under your helmet.
• Use protective screens or barriers to protect others from flash, glare, and sparks; warn others not to watch the arc.
• Wear body protection made from durable, flame-resistant material (leather, heavy cotton, wool). Body protection includes oil-free clothing such as leather gloves, heavy shirt, cuffless trousers, high shoes, and a cap.
• Before welding, adjust the auto-darkening lens sensitivity setting to meet the application.
• Stop welding immediately if the auto-darkening lens does not darken when the arc is struck. See the Owner's Manual for more information.

WELDING HELMETS do not provide unlimited eye, ear, and face protection.

Arc rays from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin. Sparks fly off from the weld.

• Use impact resistant safety spectacles or goggles and ear protection at all times when using this welding helmet.
• Do not use this helmet while working with or around explosives or corrosive liquids.
• Do not weld in the overhead position while using this helmet.
• Inspect the auto-lens frequently. Immediately replace any scratched, cracked, or pitted cover lenses or auto-lenses.

• NOISE can damage hearing.
• Noise from some processes or equipment can damage hearing.
• Wear approved ear protection if noise level is high.

READ INSTRUCTIONS.

• Read and follow all labels and the Owner's Manual carefully before installing, operating, or servicing unit. Read the safety information at the beginning of the manual and in each section.
• Use only genuine replacement parts from the manufacturer.
• Perform maintenance and service according to the Owner's Manuals, industry standards, and national, state, and local codes.

FUMES AND GASES can be hazardous.

Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to your health.

• Keep your head out of the fumes. Do not breathe the fumes.
• If inside, ventilate the area and/or use local forced ventilation at the arc to remove welding fumes and gases. The recommended way to determine adequate ventilation is to sample for the composition and quantity of fumes and gases to which personnel are exposed.
• If ventilation is poor, wear an approved air-supplied respirator.
• Read and understand the Safety Data Sheets (SDSs) and the manufacturer instructions for adhesives, coatings, cleaners, consumables, coolants, degreasers, fluxes, and metals.
• Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Always have a trained watch person nearby. Welding fumes and gases can displace air and lower the oxygen level causing injury or death. Be sure the breathing air is safe.
• Do not weld in locations near degreasing, cleaning, or spraying operations. The heat and rays of the arc can react with vapors to form highly toxic irritating gases.
• Do not weld on coated metals, such as galvanized, lead, or cadmium plate steel, unless the coating is removed from the weld area, the area is well ventilated, and while wearing an air-supplied respirator. The coatings and any metals containing these elements can give off toxic fumes if welded.

Proposition 65 Warnings

Welding or cutting equipment produces fumes or gases which contain chemicals known to the State of California to cause birth defects and, in some cases, cancer. (California Health & Safety Code Section 25249.5

seq.)

Wash hands after use.

SPECIFICATIONS

Optical Class	1/1/1/2
LCD viewing Area	100 x 95 mm (3.94 x 3.74 in)
Cartridge size	114 x 133mm (4.50 x 5.25in.)
UV/IR protection	UV/IR protection
Arc senso	4
variable welding shades	WELD Model Darkened State:NO.9-13/Light State:NO.4 CUT Model Darkened State:NO.5-9/Light State:NO.4 Grind Model LightState:NO.4
shade Control	variable adjust by external knob
sensitivity Control	variable adjust by external knob
power supply	solar cells with battery assist
Low Battery warning	Red Light
Battery	CR203 Lithium (2 Required)
Power On/Off	Fully automatic
Light to Dark switching Time	1/25,000sec.
Dark to Light switching Time	0.3sec. - 0.6 sec. -0.9 sec.
TIG Rating	DC≥ 5 amps; AC≥ 5 amps
Operating Temperature	23。F~131。F(-5。C~55。C)
storage Temperature	-4。F~ 158 F (-20。C ~ 70C)

OPERATING INSTRUCTIONS

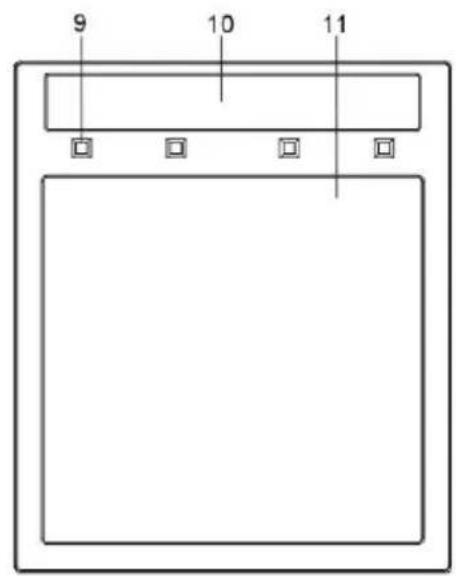

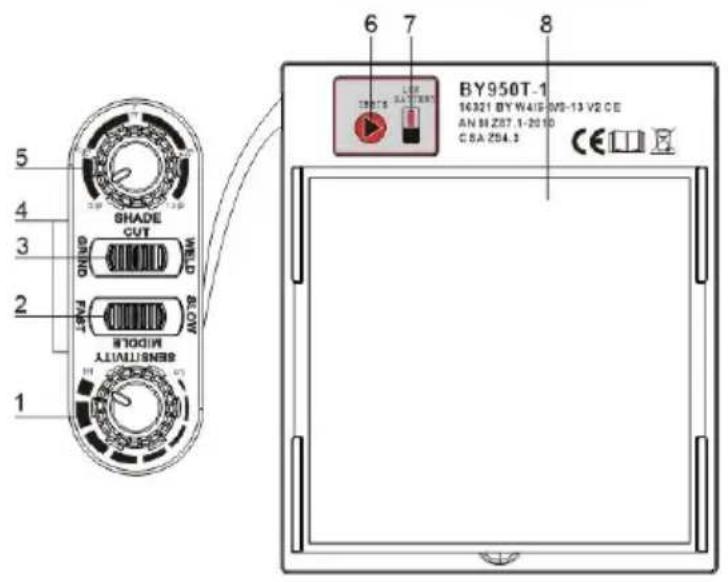

Helmet Controls

NO.	DESCRIPTIONLON
1	Sensitivity control knob
2	Delay time control knob
3	Grind-Cut-Weld
4	Lithium battery
5	Shade control knob
6	Self-test button
7	Low voltage indicator
8	LCD
9	Arc sensor
10	Solar cell
11	UV/IR filter

OPERATING INSTRUCTIONS

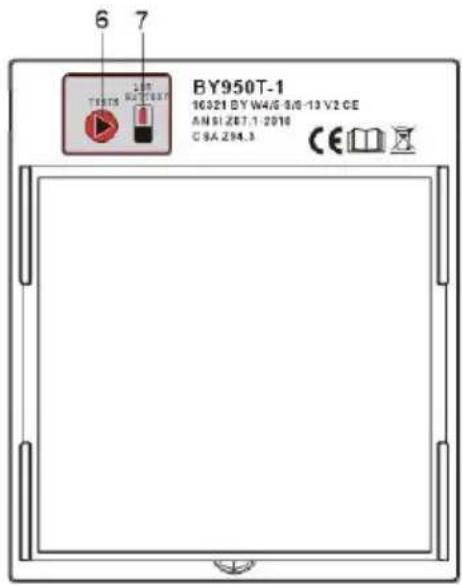

Reset Button And Low Battery Indicator

CR2030 lithium batteries

1. Reset Button: Press the Reset button to check if the lens is working properly. When the Reset button is pressed, the lens should darken and return to the clear state. Do not use the helmet if the lens does not function as described.
2. Low Battery Indicator: The low battery indicator lights when 2-3 days of battery life remain. If battery power is low, replace with

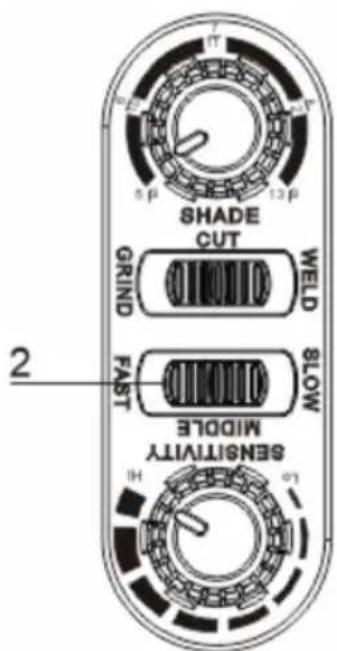

Lens Delay Control

1. Lens Delay Control

The lens delay control is used to adjust the time for the lens to switch to the clear state after welding.

The delay is particularly useful in eliminating bright after-rays present in higher amperage applications where the molten puddle remains bright momentarily after welding. Lens delay adjusts from min (0.30-0.60-0.90 second)

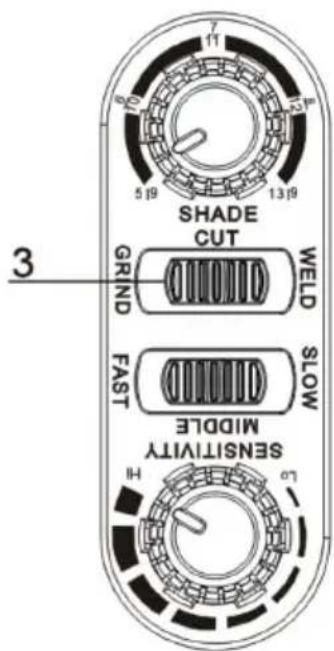

Mode Control

1. Weld Mode

Used for most welding applications. In this mode the lens turns on when it optically senses a welding arc. Adjust shade, sensitivity, and delay settings as needed.

2. Cut Mode

Used for cutting applications. In this mode the lens turns on when it optically senses a cutting arc. Adjust shade, sensitivity, and delay settings as needed.

3 Grind Mode

Used for metal grinding applications. In this mode the lens is fixed at shade No. 4. No lens adjustments are possible.

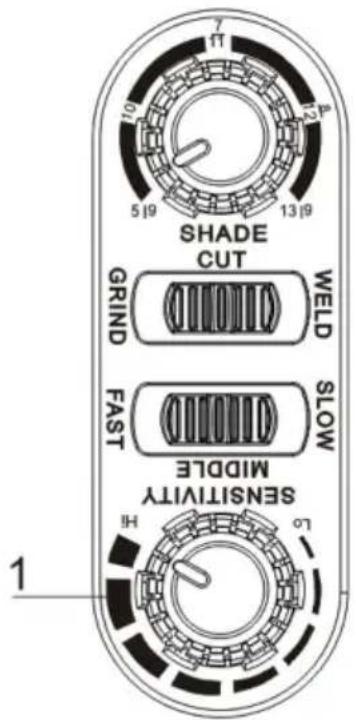

Sensitivity Control

Press the "SENSITIVITY" button; it is selected according to welding process and environmental light. The default sensitivity is medium.

1. Select minimum: Suitable for high amperage welding or welding in bright environmental light (for example, there is disturbing light from other welders in the vicinity).
2. Select maximum: Suitable for low amperage welding, using in poor light conditions (for example, pipe welding where part of the arc is obscured from view) where the welding arc becomes stable (for example, TIG welding).
3. Warning: When the LED is turned on or in a strong

light environment, the ADF may mistakenly trigger and cause work. It is recommended to reduce the sensitivity to a position below 5.

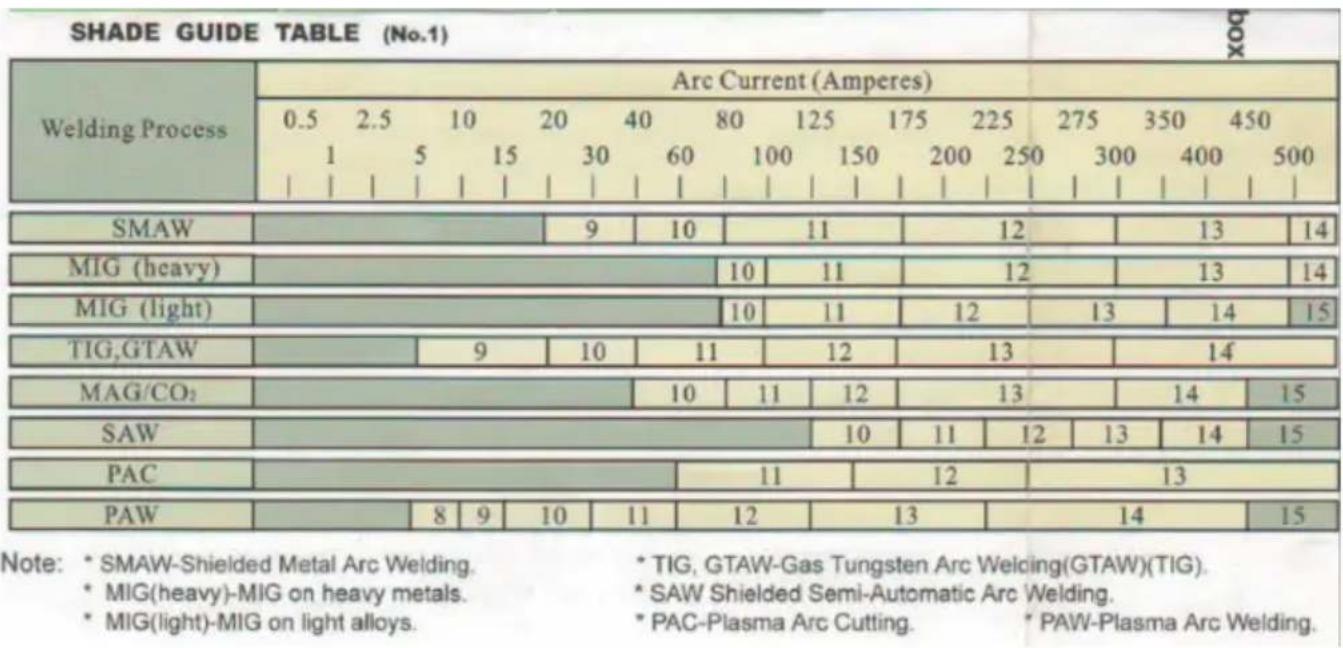

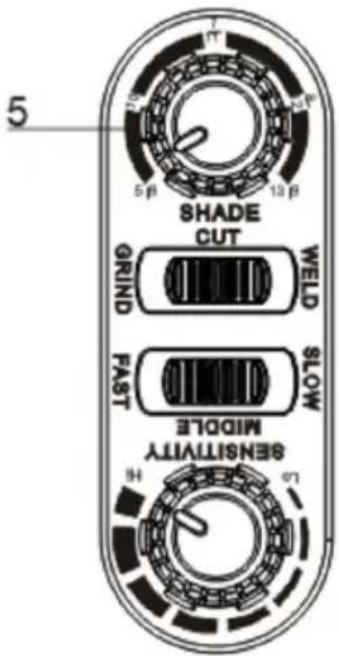

Variable Shade Control

1 Variable Shade Control

Use the control to adjust the lens shade in the dark state. Use the table below to select the proper shade control setting based on your welding process. The shade ranges for each

mode are as follows: Weld - No. 9 - No. 13; Cut - No. 5 - No. 9.

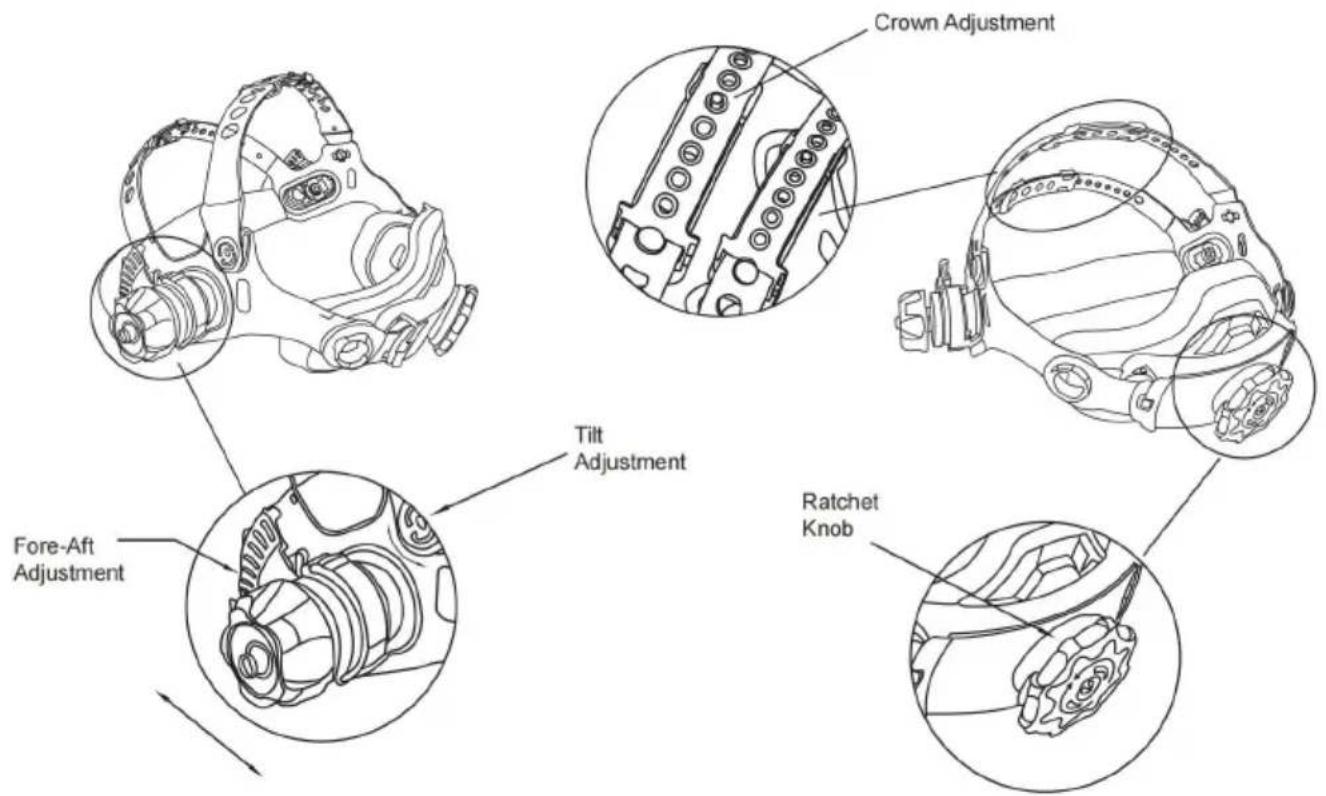

ADJUSTING HEADGEAR

HEAD SIZE ADJUSTMENT: Headgear tightness is adjusted by turning the ratchet knob to the right or left to adjust for the desired head size. This is located at the back of the helmet.

ADJUSTMENT is made by adjusting the comfort then placing the strap under guide and snapping the pins into the holes to lock securely in place.

TILT: Tilt adjustment is located on the right side of the helmet. Loosen the headgear tension knob and push the top end of the adjustment lever outward until the lever's Stop Tab clears the notches. Then rotate the lever forward or backward to the desired tilt position. The Stop will automatically engage again when released, locking the helmet into position.

FORE / AFT ADJUSTMENT: Adjusts the distance between the user's face and lens. To

adjust, slide and hold the spring loaded caps upward while moving the head into one of four slotted locations. Once the desired distance has been achieved, let go of the cap and it will return to its resting position once the adapter is in one of the four slots.

NOTE: Make sure both sides are equally positioned for proper orientation.

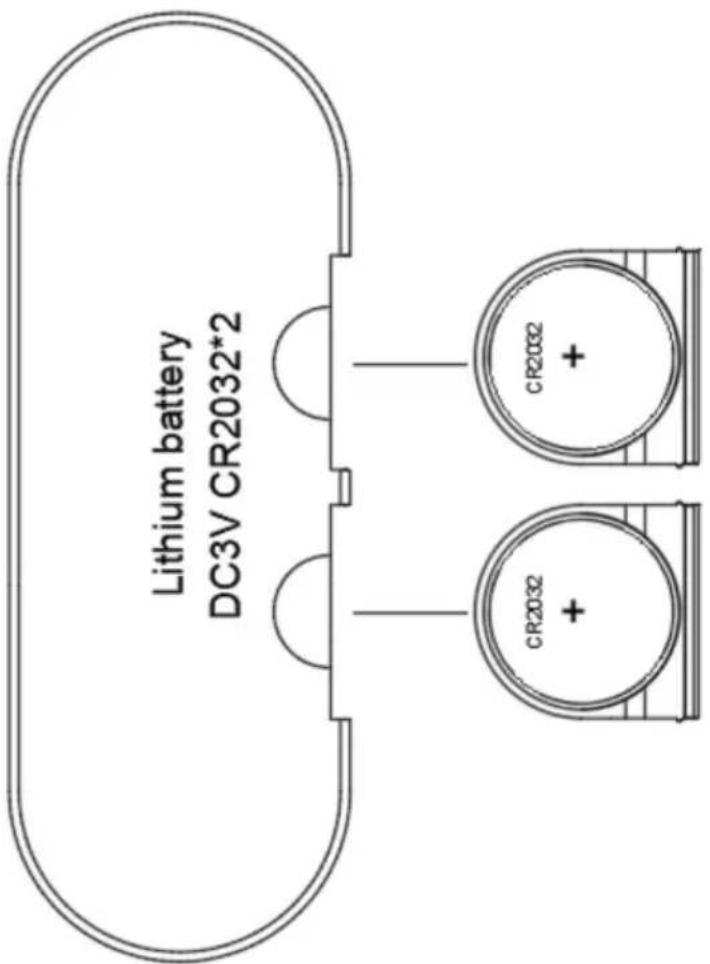

REPLACING THE BATTERY

This ADF is powered by a replaceable battery and solar power. The battery is located at the bottom corner of the ADF cartridge. Replace the battery when the LOW BATTERY light is lit.

Replace with CR2032 lithium type batteries (2 required) or equivalent. Be sure the Positive (+) side of the battery faces up (toward inside of helmet).

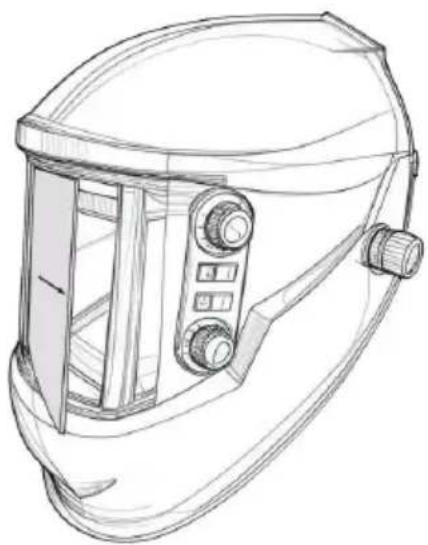

CARTRIDGE AND LENS REPLACEMENT

Warning: Never use the auto-darkening lens without the inside and outside lens covers properly installed. Welding spatter will damage the auto-darkening lens and void the warranty.

Front clear cover Lens:

Remove the outside cover lens by prying from groove and reinstall a new one.

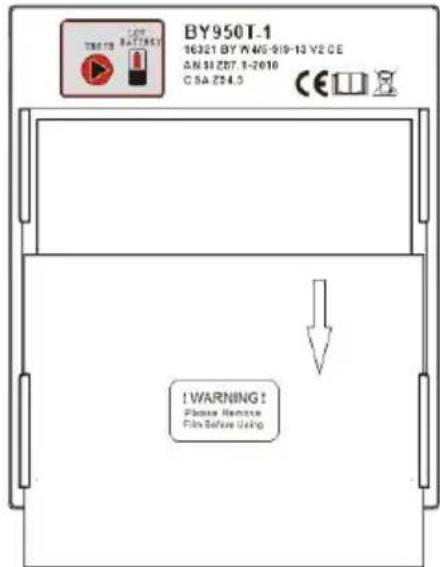

Replacing inside clear Lens

Warning: There is a cable connecting the battery and the lens. Please be careful not to break it.

Inside Lens Cover

Remove the inside lens cover by prying the cover from the groove in the gasket and reinstall a new one.

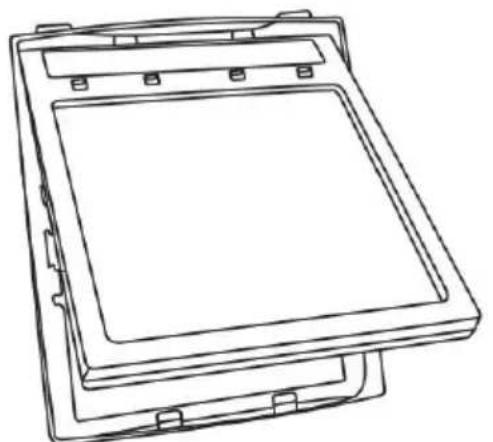

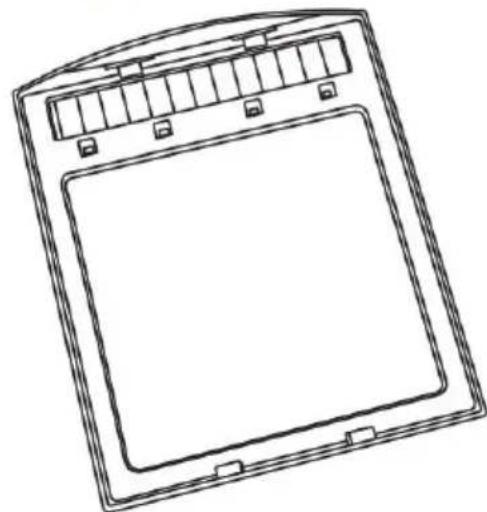

CARTRIDGE AND LENS REPLACEMENT: Change the Shade Cartridge

Figure 2

Figure 3

Remove the ADF holder assembly from the helmet shell. See Figure 2 for reference. Flex the bottom end of the ADF holder to allow the ADF cartridge to be removed from the frame. Install the new ADF cartridge into the frame as shown in the figure below. Make sure that the ADF cartridge is inserted in the ADF holder as shown. Install the ADF holder assembly into the helmet shell.

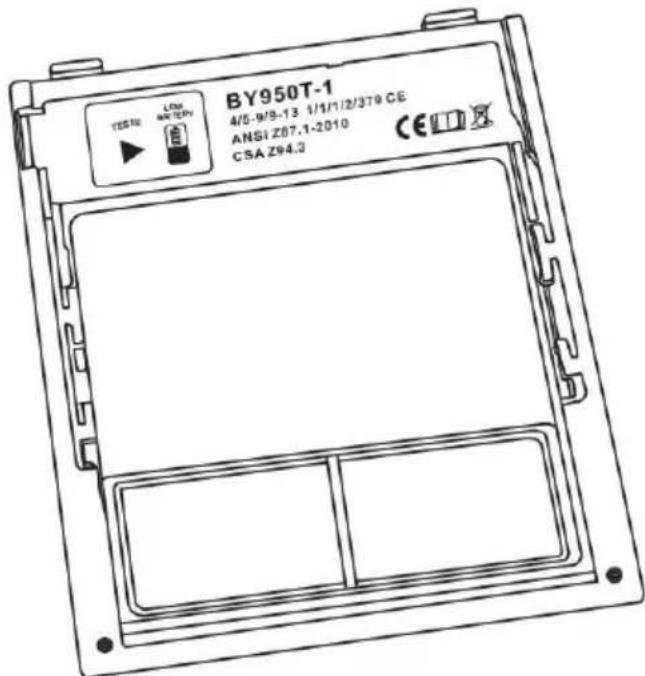

Installing an Aftermarket Magnifying Lens

Figure 1

Simply slide the magnifying lens into the short rail located on the side of the ADF holder per Figure 1. The shade cartridge must be removed from the ADF holder to install the magnifying lens.

COMMON PROBLEMS AND REMINDERS

PROBLEM	POSSIBLE CAUSE	SOLUTION
Difficult to see through filter.	Front cover lens dirty.	Clean or replace front cover lens.
	Cartridge dirty.	Clean the Auto-Darkening cartridge with soapy water solution and soft cloth.
Filter does not darke when arc is struck.	sensitivity is set too low.	Adjust sensitivity to required level.
	Front cover lens dirty.	Clean or replace front cover lens.
	Front cover lens is	Check for cracked or pitt
	damaged.	front cover lens and replace a required.
	sensors are blocked or solar panel is blocked.	Make sure you are not blocking the sensors or solar panels with your arm or other obstacle while welding. Adjust your position so that the sensors can see the well arc.
	Grind Mode selected.	Make sure proper shade selected.
	Is the switch on 5-9/9-13 stuck in the middle.	Turn the switch to the correct position.
Filter remains dark after completing a weld.	sensitivity set too high	Adjust sensitivity to required level.
	Delay time set too high	Adjust delay time to required level.
	Low Battery.	Replacing battery.
Filter does not darken when TEST button is pushed.	Low battery.	Replacing battery.
the LED will not turn on after pressing button.	Plug-in jack from filter is not completely inserted	Remove plug-in jack port and re-insert it into the

WARNING! Operator must stop using the auto-darkening filter welding helmet immediately if the above-mentioned problems cannot be corrected. Contact the dealer.

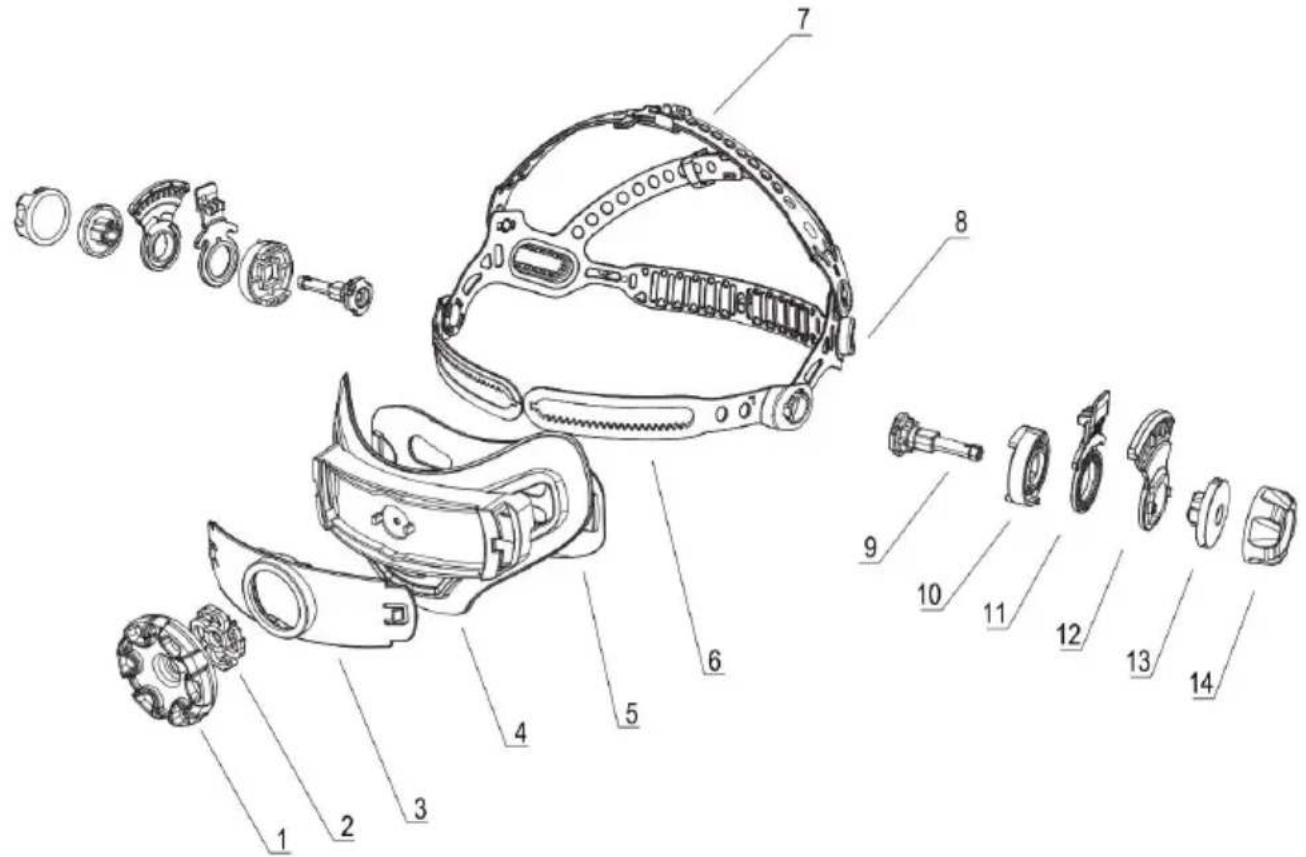

REPLACEMENT PARTS

NO .	DESCRIPTIONLON	NO .	DESCRIPTIONLON
1	Hand wheel gear	8	Fastener
2	Pinion	9	Retainer
3	Back cover1	10	Position-hold button-1
4	Back cover2	11	Position-hold plate
5	Gear bar	12	Position-hold button-2
6	Scallops1	13	Nut
7	Scallops2	14

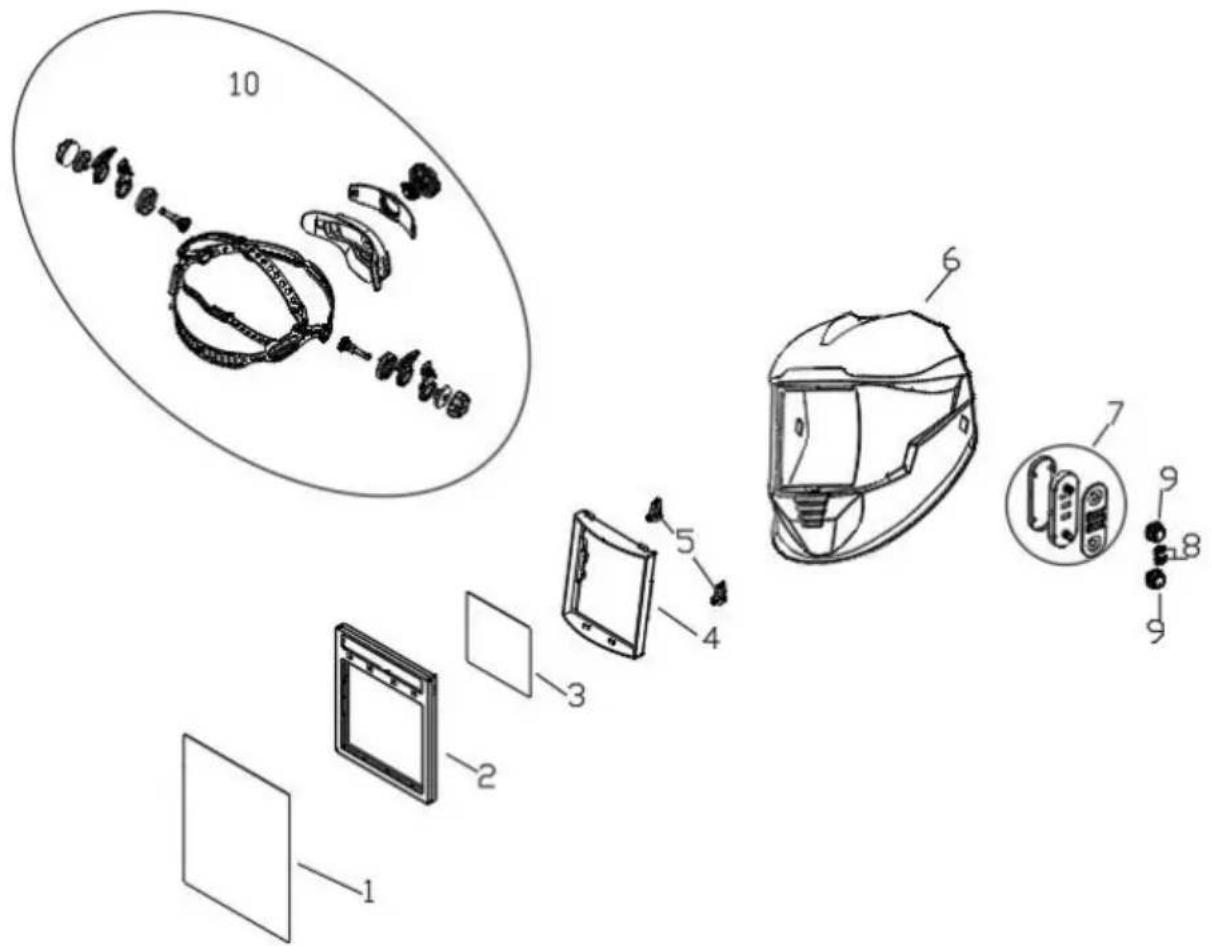

REPLACEMENT PARTS

NO .	PART NO .	DESCRIPTIONLON	QTY
1	BY-010003	Front Cover Lens	1
2	BY-010001	ADF	1
3	BY-010005	Inside Cover Lens	1
4	BY-010018	Cartridge Holder	1
5	BY-010019	Cartridge Holder Knob	2
6	BY-010002	Helmet Shell	1
7	BY-010021	External Adjusting Module	1
8	BY-010016	Mode Switch/Delay Time Button	2
9	BY-010015	Shade/Sensitivity Adjustment Knob	2
10	BY-010014	Headgear	1

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all

accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Manufacturer: Shanghai Xinmu Ye You Xiang Gong Si

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Affordable. Reliable. Home Improvement.

Welding helmet

Model: BY950T-1

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Affordable. Reliable. Home Improvement.

Welding helmet

Model: BY950T-1

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

Affordable. Reliable. Home Improvement.

Welding helmet

Model: BY950T-1

Imported in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported in USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Affordable. Reliable. Home Improvement.

Welding helmet

Model: BY950T-1

SHADE GUIDE TABLE (No.1)
Welding Process	Arc Current (Amperes)
	0.5	2.5	10		20		40		80		125		175		225		275		350		450
	1		5		15		30		60		100		150		200		250		300		400		500
SMAW					9		10		11					12					13				14
MIG (heavy)									10		11				12					13				14
MIG (light)									10		11				12					14				15
TIG,GTAW			9		10		11		12					13					14				15
MAG/CO2							10		11		12				13					14				15
SAW									10		11		12		13					14				15
PAC								11		12					13					15				15
PAW			8	9	10	11	12		13		14					15					15				15
Note: * SMAW-Shielded Metal Arc Welding. * MIG(heavy)-MIG on heavy metals. * MIG(light)-MIG on light alloys. * SAW Shielded Semi-Automatic Arc Welding. * PAC-Plasma Arc Cutting. * PAW-Plasma Arc Welding.																																																																* SMAW-Shielded Metal Arc Welding. * MIG(heavy)-MIG on heavy metals. * SAW Shielded Semi-Automatic Arc Welding. * PAC-Plasma Arc Cutting. * PAW-Plasma Arc Welding.																																																																* SMAW-Shielded Metal Arc Welding. * MIG(heavy)-MIG on heavy metals. * SAW Shielded Semi-Automorphic Arc Welding. * PAC-Plasma Arc Cutting. * PAW-Plasma Arc Welding.																																																																* SMAW-Shielded Metal Arc Welding. * MIG(heavy)-MIG on heavy metal. * SAW Shielded Semi-Automorphic Arc Welding. * PAC-Plasma Arc Cutting. * PAW-Plasma Arc Welding.

ADJUSTMENT KNOB

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Affordable. Reliable. Home Improvement.

Welding helmet

Model: BY950T-1

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Affordable. Reliable. Home Improvement.

Welding helmet

Model: BY950T-1

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Affordable. Reliable. Home Improvement.

Welding helmet

Model: BY950T-1

COMMON PROBLEMS AND REMINDERS

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP
