1RAF3020F-1 - Air filter Vevor - Free user manual and instructions

Product Type	Return Air Filter Grille Kit
Brand	Vevor
Model	1RAF3020F-1
Product Dimensions (inches)	32.68 × 22.52 × 1.57
Product Dimensions (mm)	830 × 572 × 40
Net Weight	4.05 kg
Main Material	Painted Steel
Compatible Filter Thickness	1 inch (25.4 mm)
Recommended Filter Type	Standard 1\" thick air filter
Fine Mesh Screen	Included (model F)
Number of Mounting Screws	4 (M4×50)
Air Outlet Assembly	1 (air outlet seat + grille)
Main Functions	Return air grille with locking latches, integrated screen for debris
Installation	Wall or ceiling mount, fixing with provided screws
Maintenance	Clean the screen regularly; replace filter as needed
Safety	Detach the door before removal to avoid falling
Spare Parts Available	Replacement screws, fine mesh screen
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - 1RAF3020F-1 Vevor

How to measure the duct opening to choose the right size?

Measure the width and height of the duct opening (wall or ceiling). The first number corresponds to the width, the second to the height. Do not measure the old grille, as it may be smaller.

What types of filters are compatible with this grille?

This grille accepts standard 1-inch thick air filters (25.4 mm). Model F is also equipped with an integrated fine mesh screen.

How to install the return air grille?

1. Detach the door from the frame. 2. Secure the frame to the wall or ceiling using the 4 provided screws. 3. Insert the 1" thick air filter. 4. Replace the door and lock the latches.

Can this grille be installed on the ceiling?

Yes, ceiling installation is possible. For your safety, ensure the frame and door are securely fastened to prevent falling.

How to clean the fine mesh screen?

Remove the screen and clean it with warm soapy water or a vacuum cleaner. Allow to dry completely before reinstalling.

What if the provided screws are not suitable for my mounting surface?

Use screws suitable for your material (wood, plaster, etc.) of similar diameter and length. Ensure the fixing is secure.

Is the grille compatible with all HVAC systems?

Yes, it is suitable for most heating, ventilation, and air conditioning (HVAC) systems that use return air filters.

How to lock the door correctly?

After closing the door, push both latches inward until you hear a click. Check that they are properly engaged.

Can the fine mesh screen be removed?

Yes, it is removable for cleaning or replacement. Gently pull it out of its housing.

Where to find warranty and technical support?

Visit www.vevor.com/support for technical assistance and the electronic warranty certificate.

USER MANUAL 1RAF3020F-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RETURN AIR FILTER GRILLE KIT

MODEL:1RAF2020-1/1RAF2025-1

1RAF2030-1/1RAF2418-1/1RAF3020-1

1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020 -1/1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you as there are any technology or software updates on our product.

PARAMETER LIST

Model	Product size(inch)	Net weight(kg)
1RAF2020-1	22.64×22.64×1.57	2.5
1RAF2025-1	22.6× 27.64×1.57	3.2
1RAF2030-1	22.52×32.68×1.57	3.65
1RAF2418-1	26.61×20.67×1.57	3.15
1RAF3020-1	32.68×22.52×1.57	3.65
1RAF2025F-1	32.68×22.52×1.57	3.5
1RAF2020F-1	22.64×22.64×1.57	2.75
1RAF3020F-1	32.68×22.52×1.57	4.05

PART LIST

Name	1RAF2020-1/1RAF2025 -1/1RAF2030-1/1RAF2 418-1/1RAF3020-1	1RAF2025F-1/1RAF2 020F-1/1RAF3020F-1
cross-head screw(M4*50)	4	4
Air outlet assembly (Air outlet mounting seat *1, grille *1)	1	1
fine mesh strainer	/	1

OPERATION

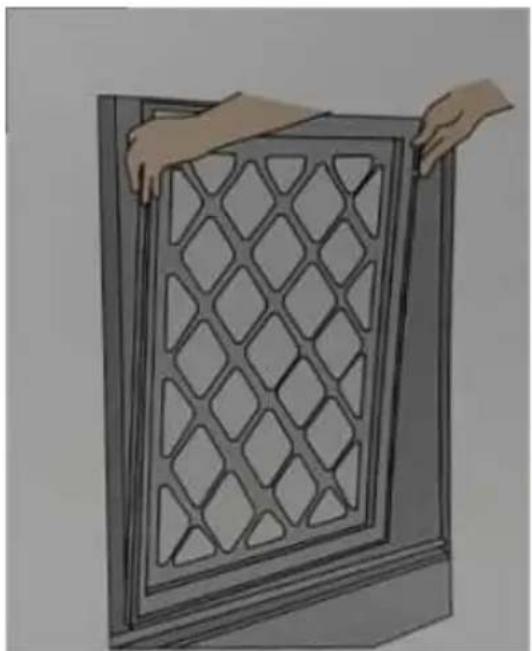

1.To remove your old return air filter grille,open the grille door and-fo safety detach the door if possible

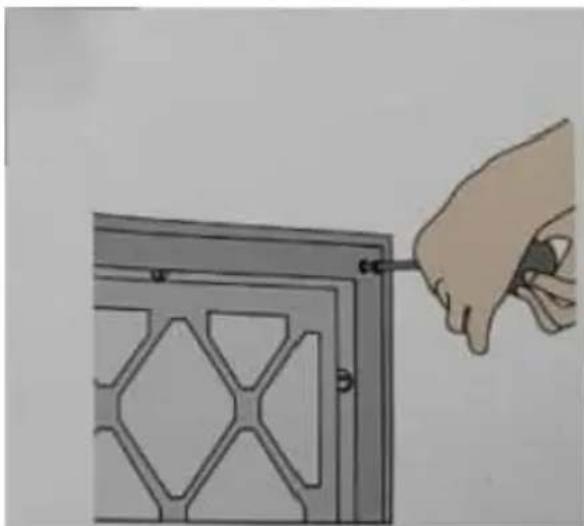

2. Remove the screws that secure the frame onto the wall or ceiling. ① If this is a ceiling application, for your safety, prevent the frame/grille/filter from falling down.

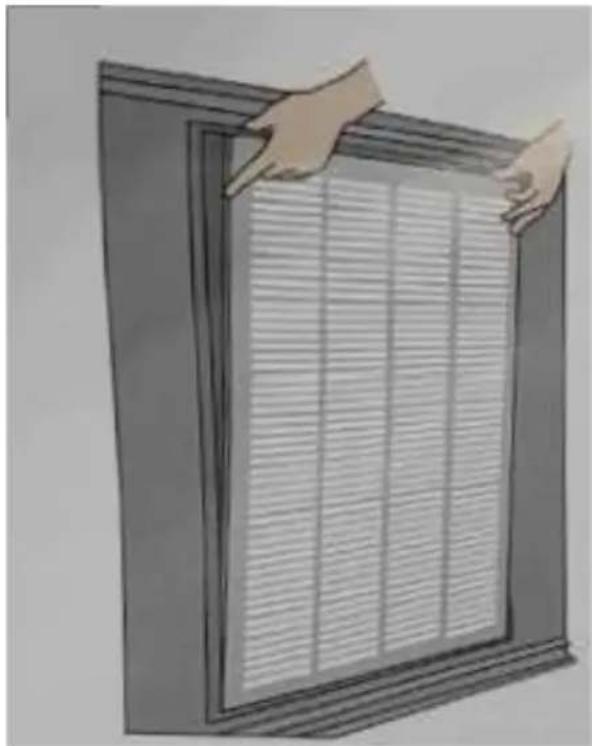

3. Remove the old frame and the filter carefully.

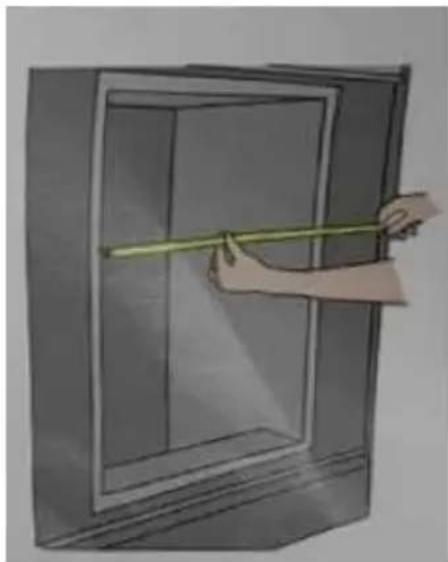

4. Measure the DUCT OPENING (Wall/Ceiling) and make sure it's the size written on the box.

First number is always the Width, second number is always the

Height.

DO NOT MEASURE YOUR OLD GRILLE.

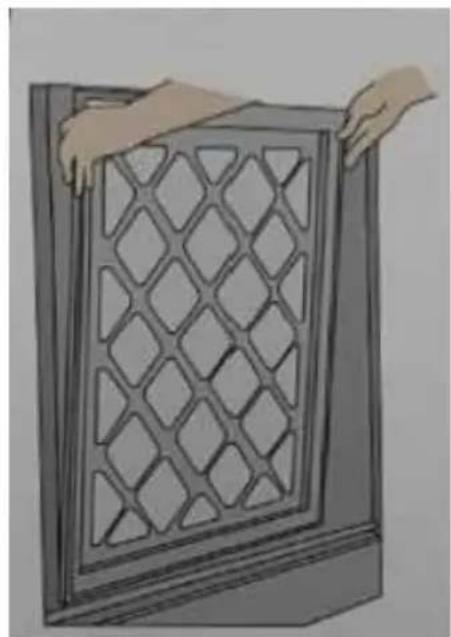

5. To install the new Return Air Filter Grille, detach the door (for eligible

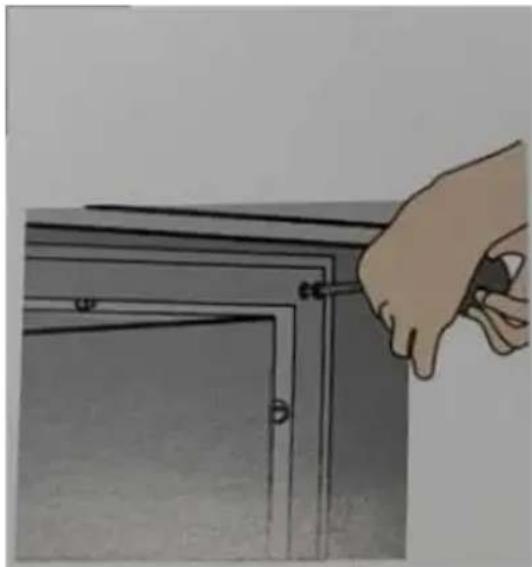

models) from the frame and install the frame onto the wall/ceiling with the 4 screws provided.

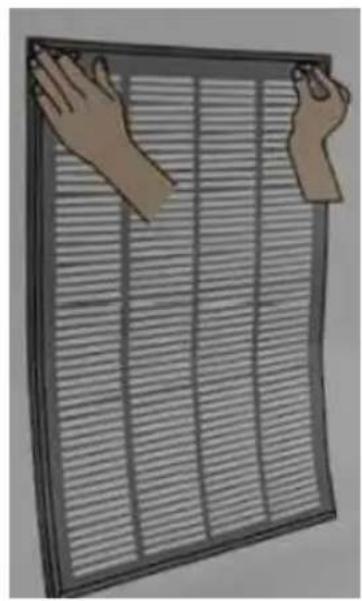

1. Place a 1-inch thick air filter into the frame. ① You may use the small tabs to tighten the filter.

1. Attach the door by hinges (for eligible models) and close it by both latches.

Manufacturer: Shanghai Xinmu Ye You Xiang Gong Si

Address: Shuangcheng Road 803, Nong 11, Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
