1RAF2030-1 - Air filter Vevor - Free user manual and instructions

Product Type	Return Air Filter Grille
Brand	Vevor
Model	1RAF2030-1
Dimensions (product)	22.52 x 32.68 x 1.57 inches (approx. 57.2 x 83.0 x 4.0 cm)
Net Weight	3.65 kg
Material	Lacquered steel
Usage	Return air for heating, ventilation, and air conditioning (HVAC) systems
Mounting	Wall or ceiling
Fastening	4 M4x50 screws included
Door	With hinges and two locking latches
Filter Capacity	Accepts a 1-inch thick air filter (dimensions according to duct opening)
Package Contents	Grille frame, door, air outlet assembly, 4 M4x50 screws
Maintenance	Clean the grille with a damp cloth; replace filter regularly (every 3 to 6 months recommended)
Safety	Turn off HVAC system power before installation; avoid falls when mounting on ceiling; check dimension matching
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - 1RAF2030-1 Vevor

What are the exact dimensions of the Vevor air filter grille model 1RAF2030-1?

The product dimensions are 22.52 x 32.68 x 1.57 inches (approx. 57.2 x 83.0 x 4.0 cm).

What type of filter can I use with this grille?

This grille accepts a 1-inch thick air filter. The filter dimensions must match your duct opening. Always measure the duct opening, not the old grille.

Can this grille be installed on the ceiling?

Yes, this grille can be installed on the wall or ceiling. For ceiling installation, take precautions to prevent the frame or filter from falling during mounting.

What tools are needed for installation?

You will need a screwdriver to secure the 4 included M4x50 screws. A spirit level is recommended for proper alignment.

Is the grille delivered with a filter?

No, the air filter is not included. You must purchase a 1-inch thick filter matching your duct dimensions.

How do I maintain the return air grille?

Clean the grille with a damp cloth to remove dust. Replace the air filter regularly, ideally every 3 to 6 months depending on usage.

What is the procedure to replace the old grille?

1. Open and detach the door of the old grille. 2. Remove the screws securing the frame. 3. Carefully remove the old frame and filter. 4. Measure the duct opening. 5. Install the new frame with the provided screws. 6. Insert a new filter. 7. Attach the door and lock the latches.

What accessories are included with the grille?

The kit includes: a grille frame with door, an air outlet assembly (mounting seat and louver), and 4 M4x50 screws.

Is there a warranty on this product?

Yes, Vevor offers an electronic warranty certificate. For technical support and warranty, visit www.vevor.com/support.

Can I use this grille with a central air conditioning system?

Yes, this grille is designed for return air systems of heating, ventilation, and air conditioning (HVAC). Ensure your duct dimensions match those of the grille.

USER MANUAL 1RAF2030-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RETURN AIR FILTER GRILLE KIT

MODEL:1RAF2020-1/1RAF2025-1

1RAF2030-1/1RAF2418-1/1RAF3020-1

1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1/1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

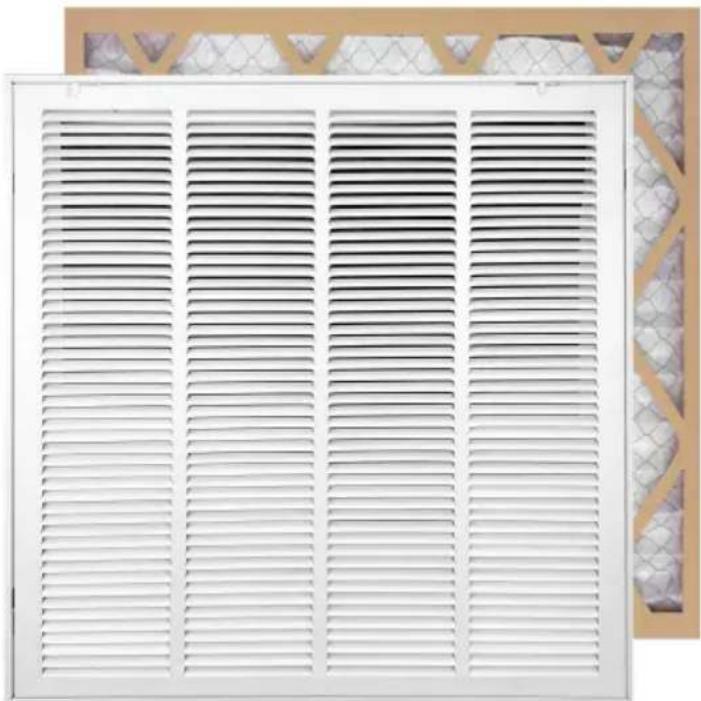

White ventilation grille with parallel slats, mounted on a wooden frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

PARAMETER LIST

Model	Product size(inch)	Net weight(kg)
1RAF2020-1	22.64×22.64×1.57	2.5
1RAF2025-1	22.6× 27.64×1.57	3.2
1RAF2030-1	22.52×32.68×1.57	3.65
1RAF2418-1	26.61×20.67×1.57	3.15
1RAF3020-1	32.68×22.52×1.57	3.65
1RAF2025F-1	32.68×22.52×1.57	3.5
1RAF2020F-1	22.64×22.64×1.57	2.75
1RAF3020F-1	32.68×22.52×1.57	4.05

PART LIST

Name	1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1	1RAF2025F-1/1RAF2020F-1/1RAF3020F-1
cross-headscrew(M4*50)	4	4
Air outlet assembly(Air outlet mountingseat *1, grille *1)	1	1
fine mesh strainer	/	1

OPERATION

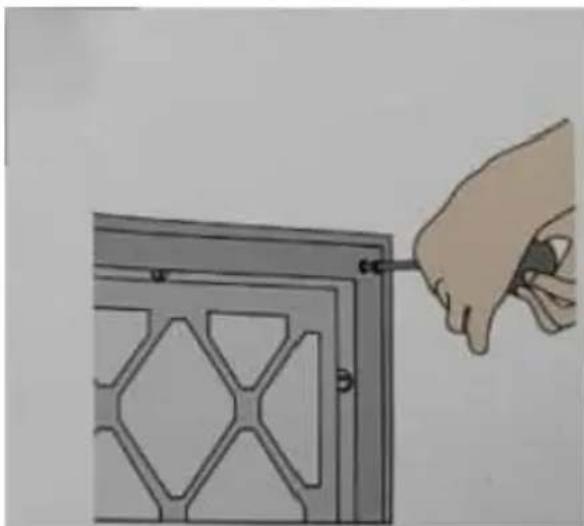

1. To remove your old return air filter grille, open the grille door and - fo safety detach the door if possible

Illustration of a hand holding a window with horizontal slats, no text or symbols present

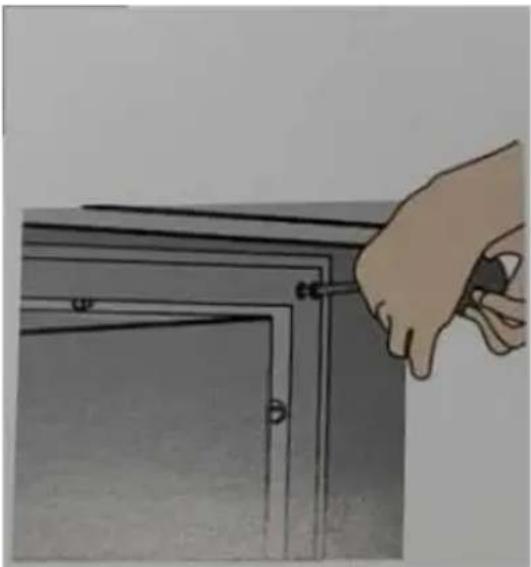

1. Remove the screws that secure the frame onto the wall or ceiling ① If this is a ceiling application-for your safety-prevent the frame/grille/filter from falling down

Hand using a tool to adjust or install a geometric panel (no text or symbols visible)

1. Remove the old frame and the filter carefully

Illustration of hands holding a rectangular panel with diamond patterns (no text or symbols)

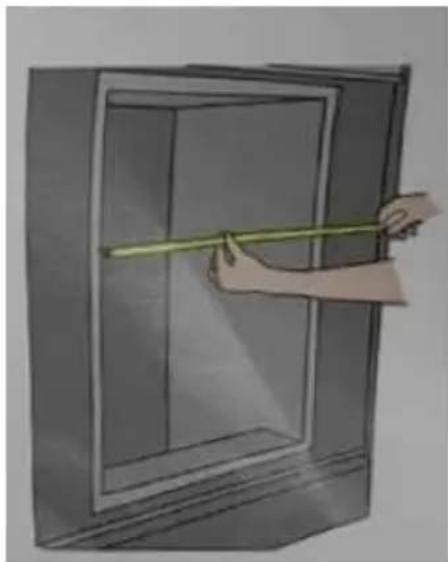

1. Measure the DUCT OPENING (Wall/Ceiling) and make sure it's the size written on the box

First number is always the Width, second number is always the

Height.

DO NOT MEASURE YOUR OLD GRILLE

Illustration of a hand holding a measuring stick inside a large cabinet (no text or symbols)

1. To install the vevor Return Air Filter Grille, detach the door (for eligil

models)from the frame and install the frame onto the wall/ceiling with 4screws provided.

Hand holding a tool interacting with a corner panel (no text or symbols visible)

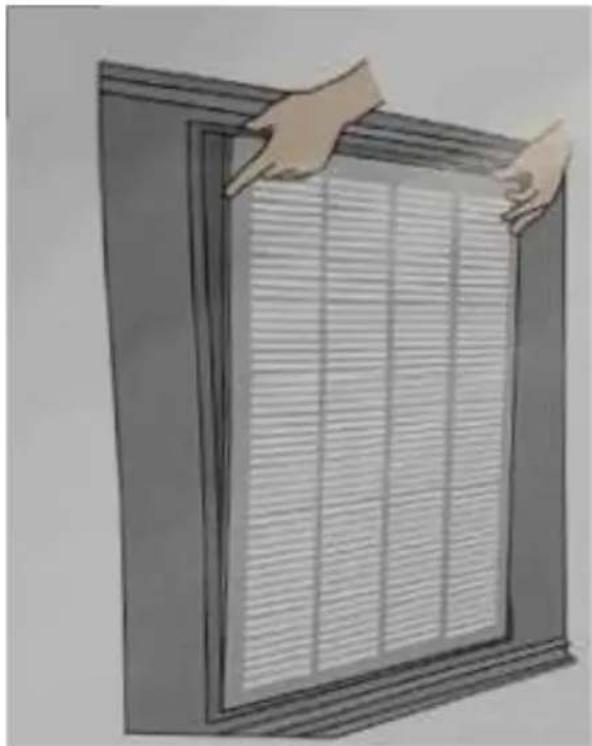

1. Place 1"thick air filter into the frame ①You may use the small tabs tighten the filter

Illustration of hands holding a decorative panel with geometric patterns (no text or symbols)

1. Attach the door by hinges (for eligible models) and close it by both latches

Illustration of two hands hanging over a slatted metal panel with vertical lines (no text or symbols)
