1RAF2025F-1 - Air filter Vevor - Free user manual and instructions

Product Type	Return Air Filter Grille
Brand	Vevor
Model	1RAF2025F-1
Product Dimensions (L × W × H)	32.68 × 22.52 × 1.57 inches (83.0 × 57.2 × 4.0 cm)
Net Weight	3.5 kg
Material	Painted Steel
Color	White
Compatible Filter Type	1-inch (2.54 cm) thick air filter
Usage	Wall or ceiling
Mounting	4 M4×50 Phillips head screws included
Kit Contents	Frame, grille, door, fine mesh screen, air outlet assembly (seat and grille), 4 screws
Removable door	Yes, with locking latches
Safety	Avoid falling during ceiling installation
Maintenance	Clean the grille with soapy water; replace filter regularly
Repairability	Spare parts available (grille, screen, screws) – contact customer service
Warranty	Electronic warranty certificate at www.vevor.com/support
Technical Support	www.vevor.com/support
Origin	Designed and distributed by Vevor (Germany)

Frequently Asked Questions - 1RAF2025F-1 Vevor

How to install the Vevor return air filter grille?

To install the grille, first remove the old grille by unscrewing the screws. Measure the duct opening (wall/ceiling) and ensure it matches the dimensions indicated on the packaging. Detach the door from the frame, attach the frame with the 4 included screws, place a 1-inch thick filter in the frame, then replace the door and lock the latches.

What are the product dimensions for model 1RAF2025F-1?

The product dimensions are 32.68 × 22.52 × 1.57 inches (83.0 × 57.2 × 4.0 cm). The net weight is 3.5 kg.

What type of filter to use with this grille?

This grille is designed to accept a 1-inch (2.54 cm) thick air filter. Make sure the filter dimensions match the duct opening.

Can the grille be installed on the ceiling?

Yes, the grille can be installed on the ceiling as well as the wall. Make sure to secure the frame to avoid falling during installation.

How to clean the grille?

Clean the grille regularly with a soft cloth and soapy water. Avoid abrasive cleaners. The fine mesh screen can be rinsed with clear water.

Does the kit include mounting screws?

Yes, the kit includes 4 M4×50 Phillips head screws to attach the frame to the wall or ceiling.

How to measure the duct opening?

Measure the width and height of the duct opening. The first number indicates the width, the second the height. Do not measure the old grille, but the actual opening.

What to do if the filter does not fit well in the frame?

Use the small tabs inside the frame to tighten the filter in place. If the filter is too small, replace it with a filter of appropriate dimensions.

Where to find technical support for this product?

Technical support and the electronic warranty certificate are available at www.vevor.com/support. You can ask questions or request help there.

What is the warranty of the Vevor grille?

Vevor provides an electronic warranty certificate on their website. The warranty period is not specified in the manual, but you can check the terms on their website.

USER MANUAL 1RAF2025F-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

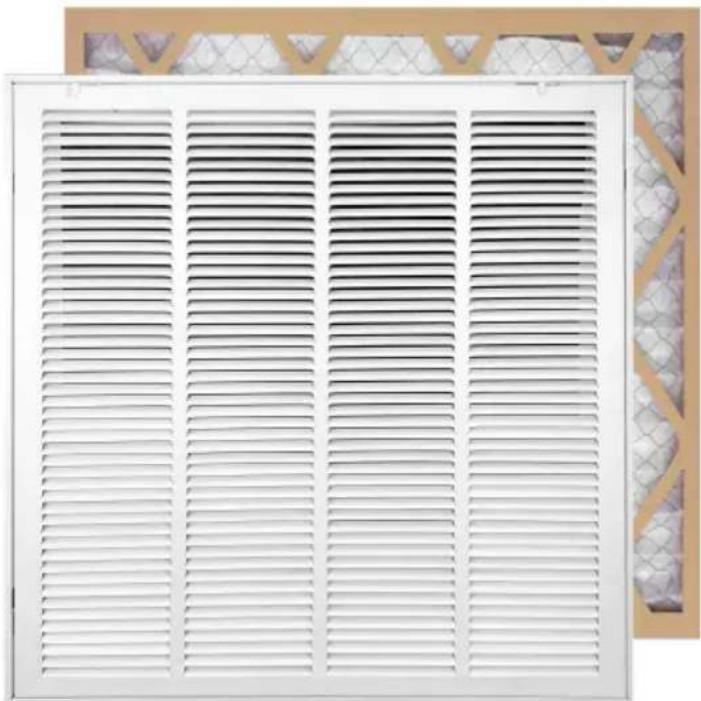

RETURN AIR FILTER GRILLE KIT

MODEL:1RAF2020-1/1RAF2025-1

1RAF2030-1/1RAF2418-1/1RAF3020-1

1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1/1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

White ventilation grille with parallel slats, mounted on a wooden frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

PARAMETER LIST

Model	Product size(inch)	Net weight(kg)
1RAF2020-1	22.64×22.64×1.57	2.5
1RAF2025-1	22.6× 27.64×1.57	3.2
1RAF2030-1	22.52×32.68×1.57	3.65
1RAF2418-1	26.61×20.67×1.57	3.15
1RAF3020-1	32.68×22.52×1.57	3.65
1RAF2025F-1	32.68×22.52×1.57	3.5
1RAF2020F-1	22.64×22.64×1.57	2.75
1RAF3020F-1	32.68×22.52×1.57	4.05

PART LIST

Name	1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1	1RAF2025F-1/1RAF2020F-1/1RAF3020F-1
cross-headscrew(M4*50)	4	4
Air outlet assembly(Air outlet mountingseat *1, grille *1)	1	1
fine mesh strainer	/	1

OPERATION

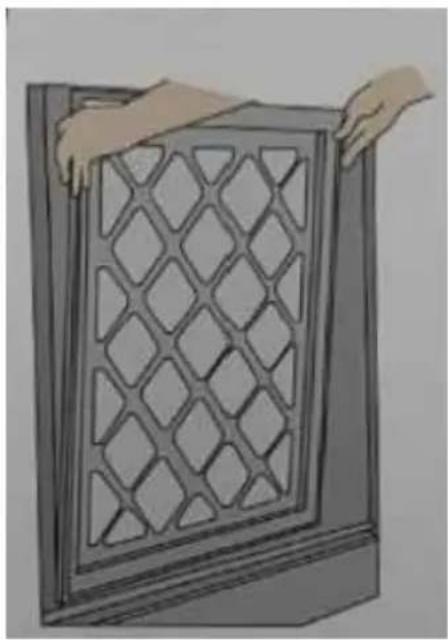

1. To remove your old return air filter grille, open the grille door and - fo safety detach the door if possible

Illustration of a hand holding a window with horizontal slats, no text or symbols present

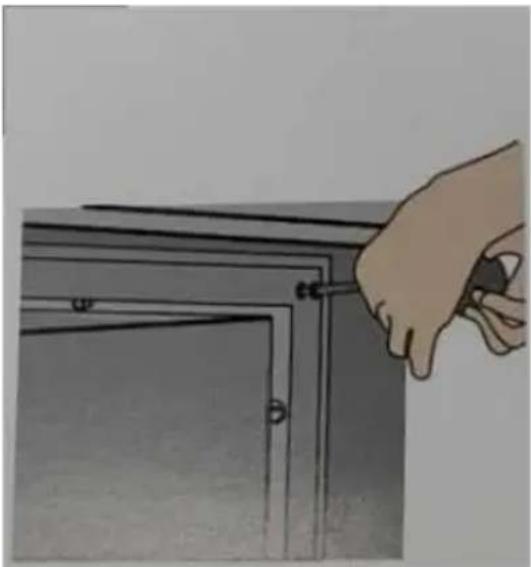

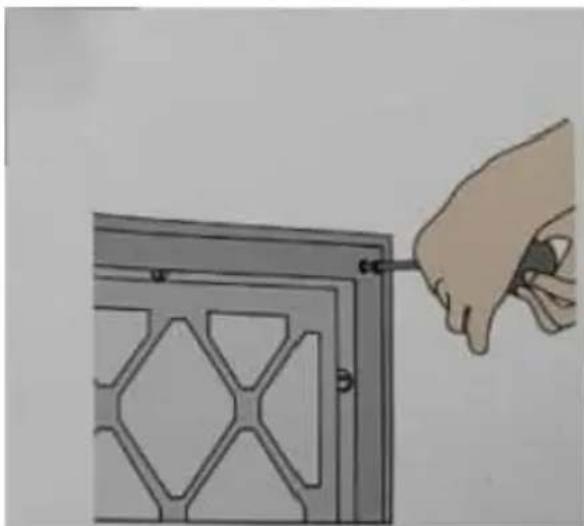

1. Remove the screws that secure the frame onto the wall or ceiling ① If this is a ceiling application-for your safety-prevent the frame/grille/filter from falling down

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

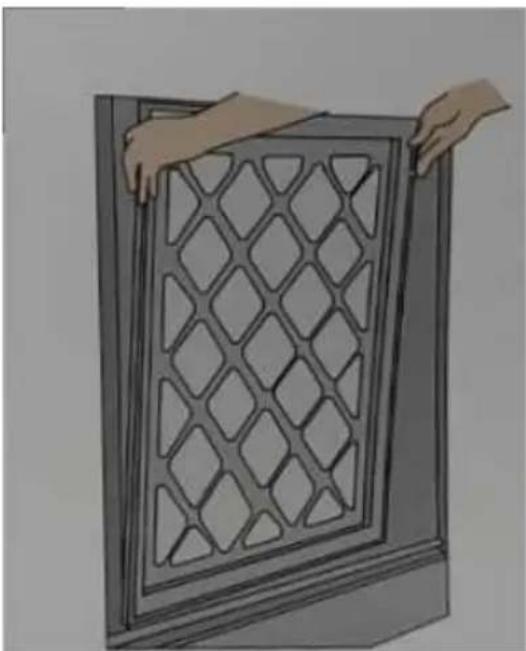

1. Remove the old frame and the filter carefully

Illustration of hands holding a rectangular panel with diamond patterns (no text or symbols)

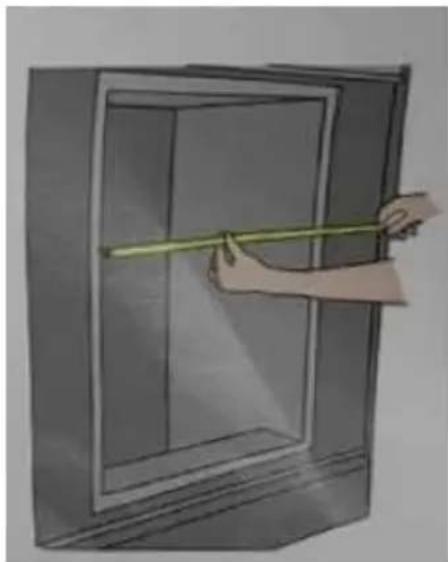

1. Measure the DUCT OPENING (Wall/Ceiling) and make sure it's the size written on the box

First number is always the Width, second number is always the

Height.

DO NOT MEASURE YOUR OLD GRILLE

Illustration of a hand holding a measuring stick inside a large cabinet (no text or symbols)

1. To install the vevor Return Air Filter Grille, detach the door (for eligil

models)from the frame and install the frame onto the wall/ceiling with 4screws provided.

Hand holding a tool interacting with a corner panel (no text or symbols visible)

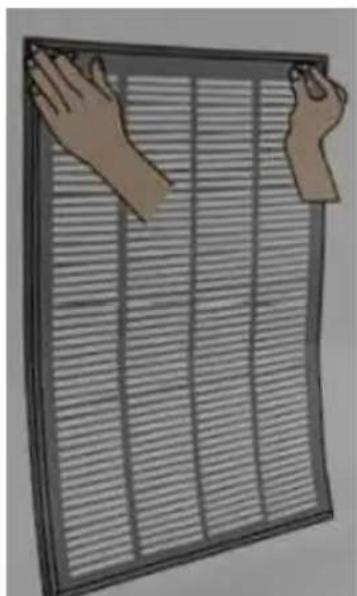

1. Place 1"thick air filter into the frame ①You may use the small tabs tighten the filter

Illustration of two hands holding a decorative panel with geometric patterns (no text or symbols)

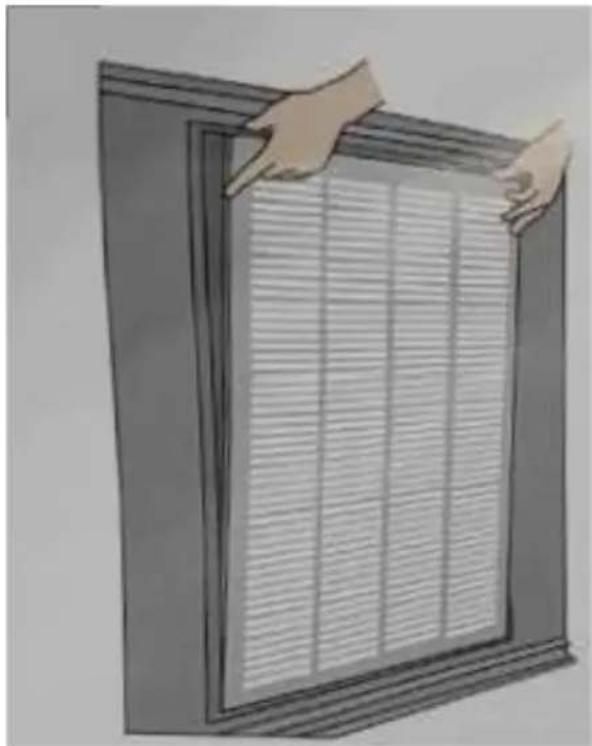

1. Attach the door by hinges (for eligible models) and close it by both latches

Illustration of two hands hanging over a slatted metal panel with vertical lines (no text or symbols)
