1RAF2020F-1 - Air filter Vevor - Free user manual and instructions

Product Type	Return Air Filter Grille Kit
Brand	Vevor
Model	1RAF2020F-1
Product Dimensions	57.5 × 57.5 × 4 cm
Net Weight	2.75 kg
Compatible Duct Size	22.64 × 22.64 inches
Accepted Filter Thickness	1 inch (2.54 cm)
Mounting Type	Wall or Ceiling
Material	Steel
Color	Black
Screws Included	4 cross-head screws (M4×50)
Kit Contents	Frame, door, air outlet grille, fine mesh screen
Usage	Return air for HVAC system
Maintenance	Clean the grille with a damp cloth; replace the filter every 3 months
Safety	Avoid dropping during ceiling installation; disconnect the door before removal
Warranty	Refer to www.vevor.com/support for the electronic warranty certificate
Technical Support	www.vevor.com/support
Repairability	Spare parts available on request (screws, grille, screen)

Frequently Asked Questions - 1RAF2020F-1 Vevor

How to install the Vevor return air filter grille?

To install the grille, first remove the old grille by unscrewing the screws. Measure the duct opening (width × height) and ensure it matches the model dimensions (22.64 × 22.64 inches). Place the frame against the wall or ceiling, then secure it with the 4 provided screws. Insert a 1-inch thick filter into the frame, then close the door by locking the latches. For ceiling mounting, ensure the frame does not fall.

What size filter to use with model 1RAF2020F-1?

This model accepts a 1 inch thick air filter (2.54 cm). The filter dimensions must match the duct opening, approximately 57.5 × 57.5 cm (22.64 × 22.64 inches). Use a standard return air filter.

Does this grille work for ceiling mounting?

Yes, the grille can be installed on the ceiling. However, for safety reasons, ensure the frame is securely fastened with the 4 provided screws and that it cannot fall. Disconnect the door if possible before removing the old grille.

What are the exact dimensions of the frame?

The product dimensions are 57.5 × 57.5 × 4 cm (22.64 × 22.64 × 1.57 inches). These are the outer frame dimensions. The duct opening must match 22.64 × 22.64 inches.

How to clean the air filter grille?

Regularly clean the grille with a damp cloth to remove dust. Avoid abrasive products. The filter inside should be replaced approximately every 3 months.

Where can I find the complete user manual?

The user manual is available for free download on notice-facile.com or on the official Vevor website. You can also contact customer service via www.vevor.com/support.

What tools are needed for installation?

For installation, you will need a screwdriver (cross-head) for the provided screws, and optionally a tape measure to check the duct dimensions. Screws are included in the kit.

Does the kit include a filter?

No, the kit does not include a filter. It includes the frame, door, air outlet grille, and a fine mesh screen (for this F model). You must purchase a 1-inch thick air filter separately.

Can I use this product with a central air conditioning system?

Yes, this return air grille kit is designed for central HVAC (heating, ventilation, and air conditioning) systems. It is used to direct air to the system.

How to contact Vevor customer service?

You can contact customer service and obtain the electronic warranty certificate at www.vevor.com/support. For any technical questions, feel free to use this portal.

USER MANUAL 1RAF2020F-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

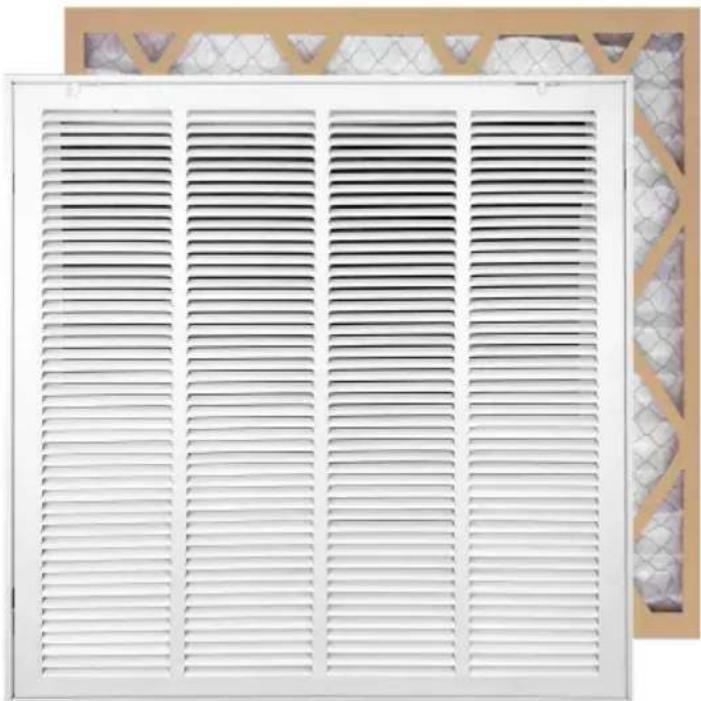

RETURN AIR FILTER GRILLE KIT

MODEL:1RAF2020-1/1RAF2025-1

1RAF2030-1/1RAF2418-1/1RAF3020-1

1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1/1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

White ventilation grille with parallel slats, mounted on a wooden frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

PARAMETER LIST

Model	Product size(inch)	Net weight(kg)
1RAF2020-1	22.64×22.64×1.57	2.5
1RAF2025-1	22.6× 27.64×1.57	3.2
1RAF2030-1	22.52×32.68×1.57	3.65
1RAF2418-1	26.61×20.67×1.57	3.15
1RAF3020-1	32.68×22.52×1.57	3.65
1RAF2025F-1	32.68×22.52×1.57	3.5
1RAF2020F-1	22.64×22.64×1.57	2.75
1RAF3020F-1	32.68×22.52×1.57	4.05

PART LIST

Name	1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1	1RAF2025F-1/1RAF2020F-1/1RAF3020F-1
cross-headscrew(M4*50)	4	4
Air outlet assembly(Air outlet mountingseat *1, grille *1)	1	1
fine mesh strainer	/	1

OPERATION

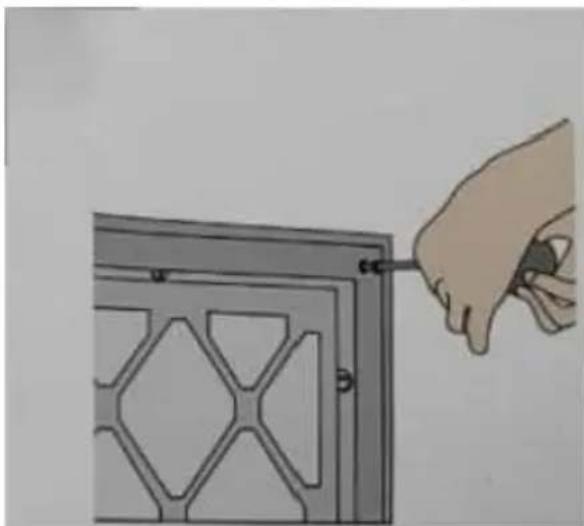

1. To remove your old return air filter grille, open the grille door and - fo safety detach the door if possible

Illustration of a hand holding a window with horizontal slats, no text or symbols present

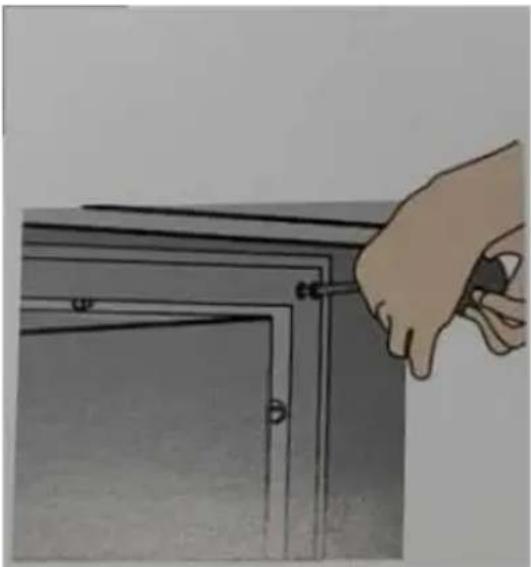

1. Remove the screws that secure the frame onto the wall or ceiling ① If this is a ceiling application-for your safety-prevent the frame/grille/filter from falling down

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

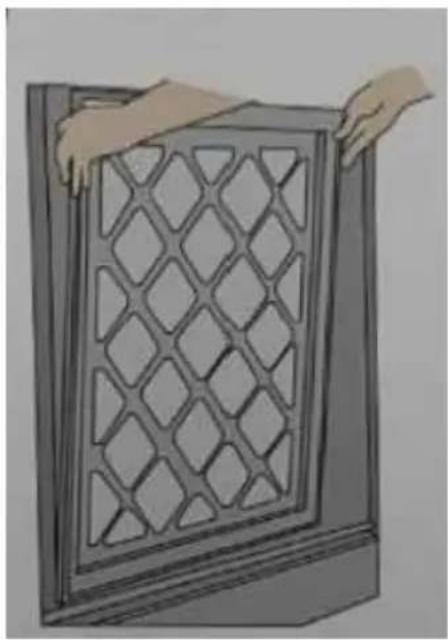

1. Remove the old frame and the filter carefully

Illustration of hands holding a rectangular panel with diamond patterns (no text or symbols)

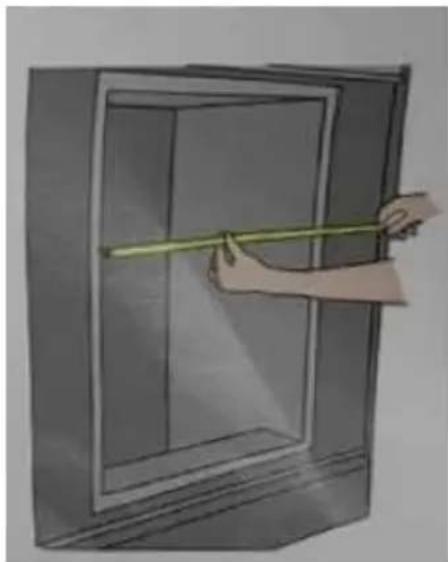

1. Measure the DUCT OPENING (Wall/Ceiling) and make sure it's the size written on the box

First number is always the Width, second number is always the Height.

DO NOT MEASURE YOUR OLD GRILLE

Illustration of a hand holding a measuring stick inside a large cabinet (no text or symbols)

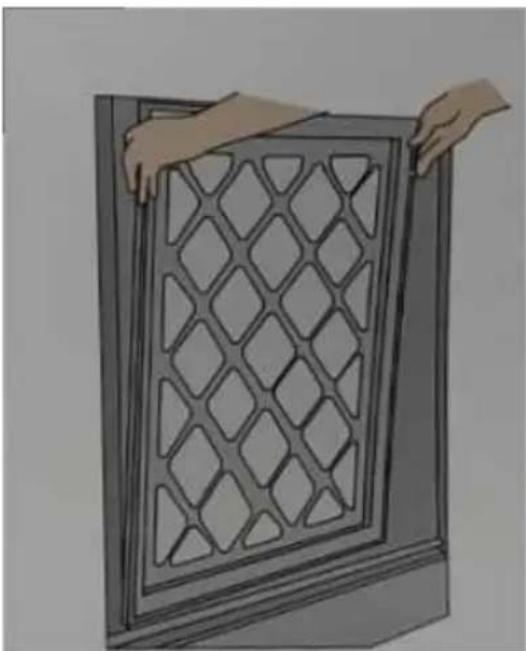

1. To install the vevor Return Air Filter Grille, detach the door (for eligil

models)from the frame and install the frame onto the wall/ceiling with 4screws provided.

Hand holding a tool interacting with a corner panel (no text or symbols visible)

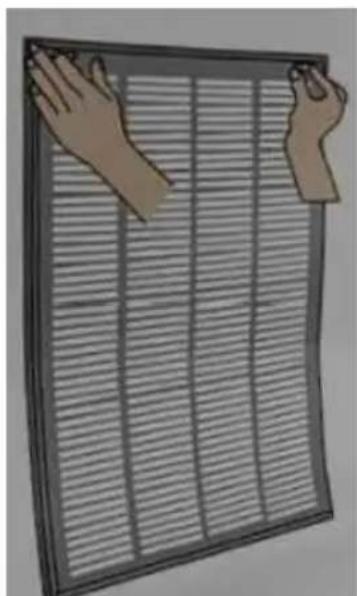

1. Place 1"thick air filter into the frame ①You may use the small tabs tighten the filter

Illustration of two hands holding a decorative panel with geometric patterns (no text or symbols)

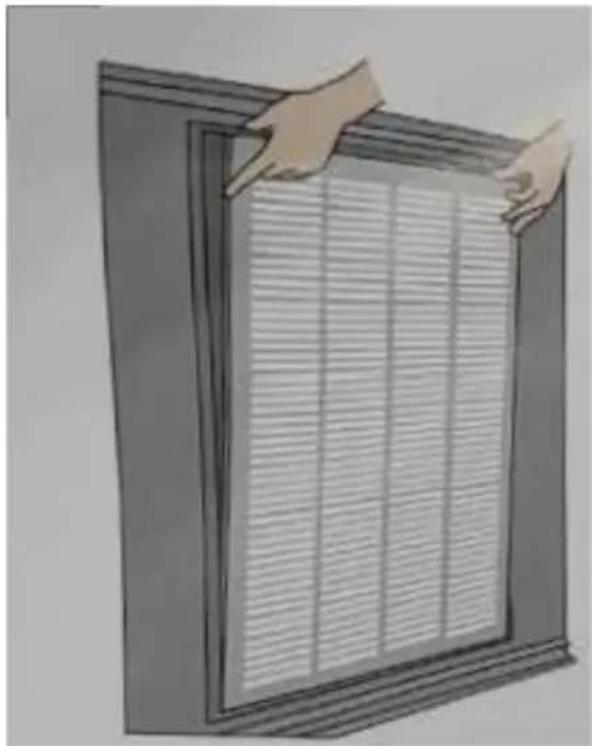

1. Attach the door by hinges (for eligible models) and close it by both latches

Illustration of two hands hanging over a slatted metal panel with vertical lines (no text or symbols)
