1RAF2020-1 - Air filter Vevor - Free user manual and instructions

Product Type	Return Air Filter Grille Kit
Brand	Vevor
Model	1RAF2020-1 (and variants: 1RAF2025-1, 1RAF2030-1, 1RAF2418-1, 1RAF3020-1, 1RAF2025F-1, 1RAF2020F-1, 1RAF3020F-1)
Dimensions (L x W x H)	22.64 x 22.64 x 1.57 inches (approx 57.5 x 57.5 x 4 cm)
Net Weight	2.5 kg
Compatible Filter Thickness	1 inch (2.54 cm)
Filter Type	Standard Return Air Filter
Frame Material	Steel
Color	White
Usage	Heating, Ventilation and Air Conditioning (HVAC) Systems
Installation	Wall or Ceiling
Included Screws	4 M4 x 50 mm Screws
Included Parts	Frame, Door (Air Outlet Assembly), Screws
Compatible Models	1RAF2020-1, 1RAF2025-1, 1RAF2030-1, 1RAF2418-1, 1RAF3020-1, 1RAF2025F-1, 1RAF2020F-1, 1RAF3020F-1
Warranty	Electronic warranty certificate at www.vevor.com/support
Technical Support	www.vevor.com/support
Maintenance	Clean the grille regularly and replace the filter every 3 months or so
Safety	Ensure secure fixing to prevent falls during ceiling installation
Main Function	Filter particles from return air
Repairability	Spare parts available via Vevor support

Frequently Asked Questions - 1RAF2020-1 Vevor

How to install the Vevor 1RAF2020-1 return air filter grille?

To install, first remove the old grille. Measure the duct opening to check compatibility. Place the frame on the wall or ceiling and secure it with the 4 provided M4x50 screws. Insert a 1 inch thick air filter. Close the door and lock the latches.

What are the exact dimensions of the 1RAF2020-1 model?

The 1RAF2020-1 model has dimensions of 22.64 x 22.64 x 1.57 inches (approx 57.5 x 57.5 x 4 cm). It is designed for a corresponding duct opening. Do not measure the old grille, but the duct opening.

What type of filter should I use with this grille?

Use a standard air filter of 1 inch (2.54 cm) thickness. Filters of dimensions matching the opening (e.g., 20x20 inches for 1RAF2020-1) are compatible. You can use disposable or washable filters.

Can I install this grille on the ceiling?

Yes, this grille can be installed on the ceiling. Make sure to securely attach the frame with the provided screws and take precautions to prevent the frame, grille, or filter from falling during installation. For your safety, detach the door if possible.

How to clean the air filter grille?

Clean the grille regularly with a damp cloth to remove dust. The filter should be replaced every 3 months or so, or more often if the air is highly polluted. Use a vacuum cleaner on the grille if needed.

Is this grille compatible with all return air systems?

The grille is designed for return air systems in HVAC installations. It is compatible with standard size duct openings. Check that the opening size matches the chosen model (e.g., 20x20 inches for 1RAF2020-1).

How many screws are provided with the kit?

The kit includes 4 M4x50 mm screws to attach the frame to the wall or ceiling. These screws are suitable for standard installation. If your walls require anchors, get them separately.

What is the warranty of this Vevor product?

Vevor provides an electronic warranty certificate available at www.vevor.com/support. The warranty period is not specified in the manual. For any questions, contact technical support via the same site.

How to remove the old air filter grille?

Open the door of the old grille and, for your safety, detach the door if possible. Remove the screws attaching the frame to the wall or ceiling. For a ceiling installation, prevent the frame from falling. Carefully remove the old frame and filter.

Can I use a filter thicker than 1 inch?

It is recommended to use a filter of 1 inch thickness maximum. A thicker filter may not fit properly and could compromise airflow or door closure. Follow the specifications for optimal operation.

USER MANUAL 1RAF2020-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RETURN AIR FILTER GRILLE KIT

MODEL:1RAF2020-1/1RAF2025-1

1RAF2030-1/1RAF2418-1/1RAF3020-1

1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1/1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

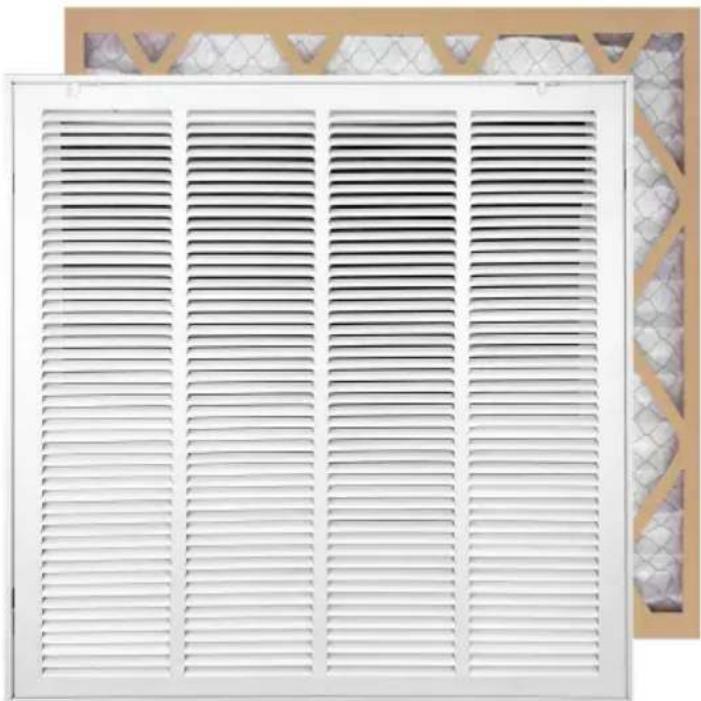

White ventilation grille with parallel slats, mounted on a wooden frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

PARAMETER LIST

Model	Product size(inch)	Net weight(kg)
1RAF2020-1	22.64×22.64×1.57	2.5
1RAF2025-1	22.6× 27.64×1.57	3.2
1RAF2030-1	22.52×32.68×1.57	3.65
1RAF2418-1	26.61×20.67×1.57	3.15
1RAF3020-1	32.68×22.52×1.57	3.65
1RAF2025F-1	32.68×22.52×1.57	3.5
1RAF2020F-1	22.64×22.64×1.57	2.75
1RAF3020F-1	32.68×22.52×1.57	4.05

PART LIST

Name	1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1	1RAF2025F-1/1RAF2020F-1/1RAF3020F-1
cross-headscrew(M4*50)	4	4
Air outlet assembly(Air outlet mountingseat *1, grille *1)	1	1
fine mesh strainer	/	1

OPERATION

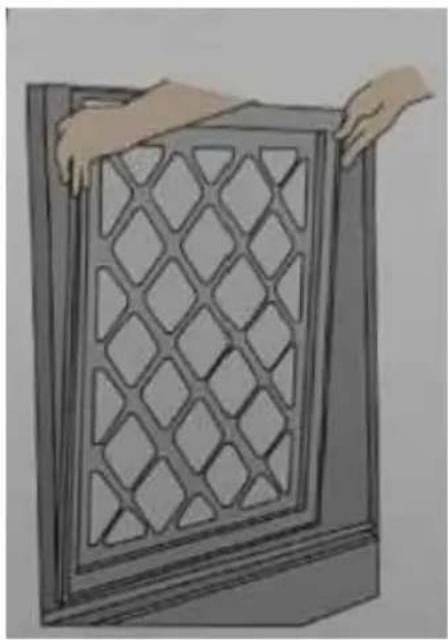

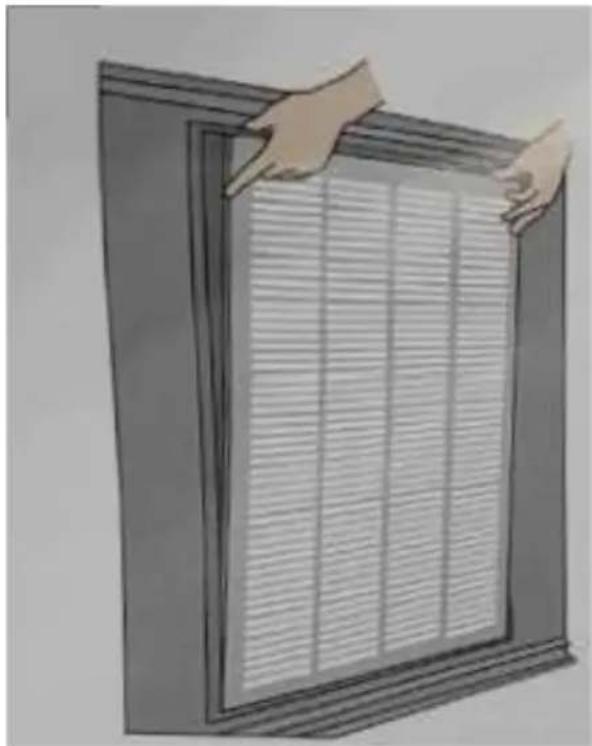

1. To remove your old return air filter grille, open the grille door and - fo safety detach the door if possible

Illustration of a hand holding a window with horizontal slats, no text or symbols present

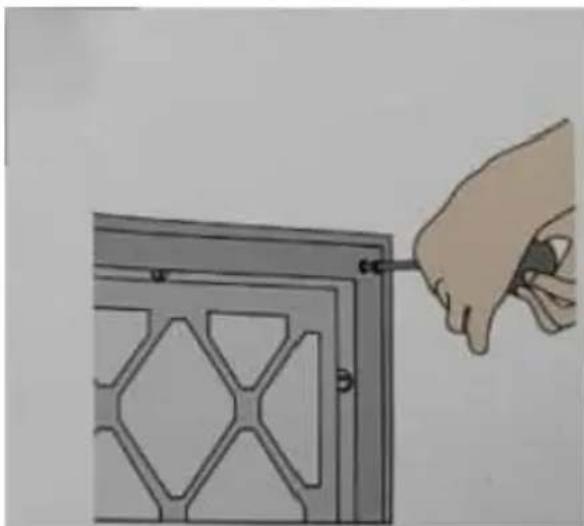

1. Remove the screws that secure the frame onto the wall or ceiling ① If this is a ceiling application-for your safety-prevent the frame/grille/filter from falling down

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

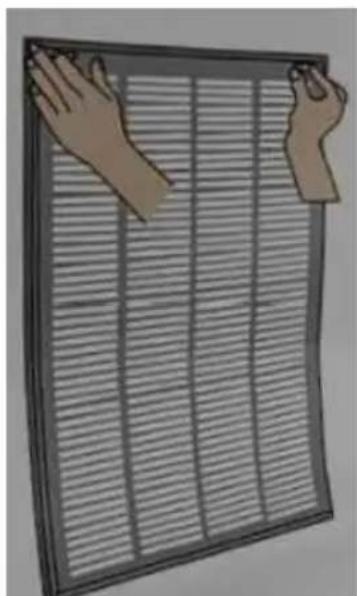

1. Remove the old frame and the filter carefully

Illustration of hands holding a rectangular panel with diamond patterns (no text or symbols)

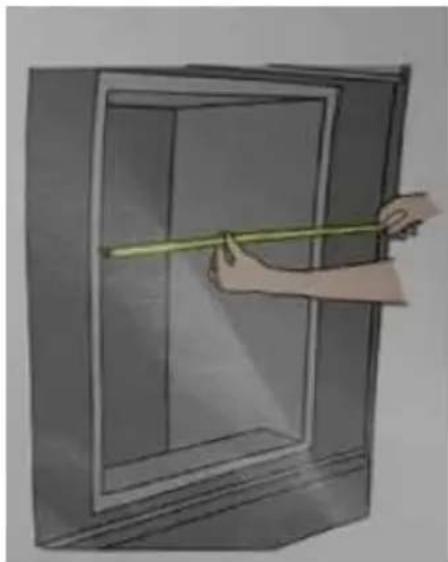

1. Measure the DUCT OPENING (Wall/Ceiling) and make sure it's the size written on the box

First number is always the Width, second number is always the

Height.

DO NOT MEASURE YOUR OLD GRILLE

Illustration of a hand holding a measuring stick inside a large cabinet (no text or symbols)

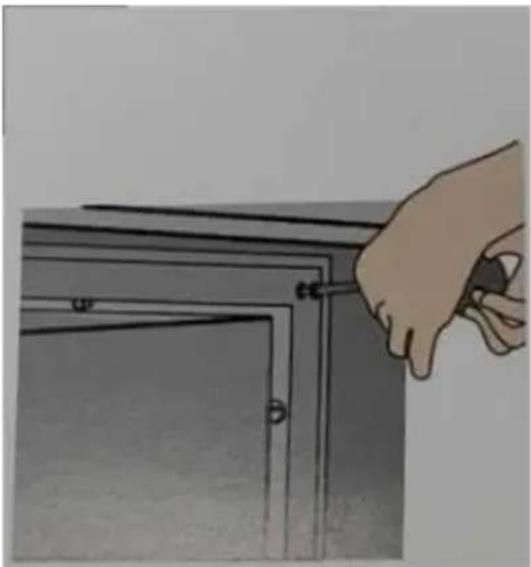

1. To install the vevor Return Air Filter Grille, detach the door (for eligil

models)from the frame and install the frame onto the wall/ceiling with 4screws provided.

Hand holding a tool interacting with a corner panel (no text or symbols visible)

1. Place 1"thick air filter into the frame ①You may use the small tabs tighten the filter

Illustration of two hands holding a decorative panel with geometric patterns (no text or symbols)

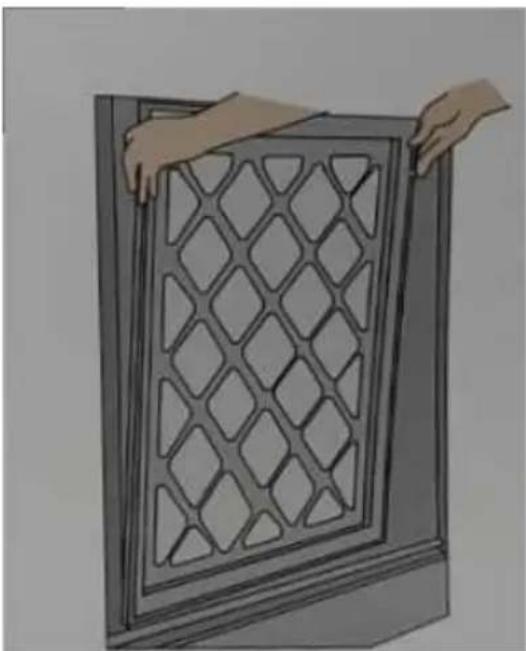

1. Attach the door by hinges (for eligible models) and close it by both latches

Illustration of two hands hanging over a slatted metal panel with vertical lines (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

White ventilation grille with four vertical slats, mounted on a wooden frame (no text or symbols visible)
