Product Type	Digital Rotational Viscometer
Brand	Vevor
Model	NDJ-9S
Measurement Range	10 to 6,000,000 mPa·s
Accuracy	±1 % (Newtonian liquid)
Rotor Types	1#, 2#, 3#, 4# (0# optional)
Rotation Speeds	0.1 / 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm
Display	LCD screen displaying viscosity, torque, and temperature
Power Supply	Input: AC 100-240 V, 50/60 Hz; Adapter output: DC 12 V, 2 A
Operating Temperature	Ambient temperature, sample tolerance of ±0.1 °C
Main Functions	Dynamic viscosity measurement, rotor and speed selection, deviation correction, zero adjustment, RS232 output (9600 baud)
Maintenance and Cleaning	Regularly clean the housing and measuring head; do not use acidic or alkaline products; frequent calibration recommended
Safety	Avoid electromagnetic interference, vibrations, and corrosive gases; handle rotor and pivot with care; disconnect before cleaning
Spare Parts and Repairability	Rotors 0# to 4# available; power adapter; technical support via www.vevor.com/support
Package Contents	Main unit, lifting rod and cursor, protective bracket, rotors 1#-4#, rotor 0#, power cord, user manual

Frequently Asked Questions - NDJ-9S Vevor

How to choose the appropriate spindle and rotation speed?

For low viscosity liquids, use a larger spindle with high speed. For high viscosity, use a small spindle with low speed. Refer to the measurement range table in the manual to select the appropriate combination.

How to perform zero adjustment of the device?

Press and hold the OK button and turn on the device. In setting mode, select 'Zero' with ▲, press AUTO, change the percentage (0.0 to 1.0%) with ▲/▼, then confirm with OK.

What to do if the viscosity reading is unstable?

Check that the sample and environment temperatures are stable (±0.1 °C tolerance). Ensure the spindle is properly immersed at the mark and there are no vibrations. For low viscosity liquids, rotate the spindle 3 to 5 times before reading.

How to correct a measured viscosity deviation?

In correction mode, hold ▲ and ▼ and turn on the device. Select CPO (idle) or CPX (deviation) with ▲, press AUTO to change the value with ▲/▼, then confirm with OK. Example: if actual viscosity is 376.2 mPa·s and measured is 360 mPa·s, the error is -4.5%, so CPX should be set to -4.5%.

How to install spindle No. 0?

Screw spindle 0 onto the connector. Place the fixing tube, screw the bolt (1) to secure the rotating sleeve 0. Pour 25 to 30 ml of liquid into the lower sleeve, then gently insert the outer tube aligning the V-groove with the liquid level.

The device displays 'CP' with zeros, what does this indication mean?

The 'CP' symbol displays the viscosity value in mPa·s. If zeros are displayed, it may indicate that measurement has not started or torque is below the set zero threshold. Press the Start button to begin measurement.

What is the recommended operating temperature range?

The viscometer operates at ambient temperature. For optimal accuracy, sample temperature should be maintained at ±0.1 °C. Significant variations affect measured viscosity.

How to clean the device after use?

Regularly clean the housing and measuring head with a soft cloth. Do not use acidic or alkaline products. Keep the spindle and direction connector clean after each use. Avoid any liquid penetration into the device.

What to do if the displayed torque percentage is too high or too low?

The torque percentage should be between 15% and 85% of full scale. If too high, reduce rotation speed or use a smaller spindle. If too low, increase speed or use a larger spindle.

Where can I get technical support or a warranty certificate?

Visit www.vevor.com/support for technical support and the electronic warranty certificate. You can also download the full manual in PDF format from notice-facile.com.

USER MANUAL NDJ-9S Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

VISCOMETER

MODEL:NDJ-5S/NDJ-9S

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VISCOMETER

Model:NDJ-5S/NDJ-9S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Before application, it is necessary to understand all safety procedures including instrument power, water, and pressure.
2. Ensure that all safe operating procedures are fully understood and followed: including personal safety, but also the safety of instruments and samples.
3. No strong electromagnet interference, drastic vibrations, corrosive gases in the vicinity of the instrument.

Correct Disposal:

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires

separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices.

MODEL AND PARAMETERS

Model	NDJ-5S	NDJ-9S
Adapter Input	AC 100-240V 50/60Hz
Adapter Power	9W
Rating(adapter	DC12V 2A
Measuring Range	1~100000	10~6000000mpa.s
Measurement	+/-1% (Newtonian liquid)
Rotor Type	1#, 2#, 3#, 4#( Spindle 0 is optional.)
Rotational Speed	6/12/30/60RPM	0.1/0.3/0.6/1.5/3/6/12/30/60
Operation	Temperature: 5-35 °C; Humidity: ≤80%

STRUCTURE DIAGRAM

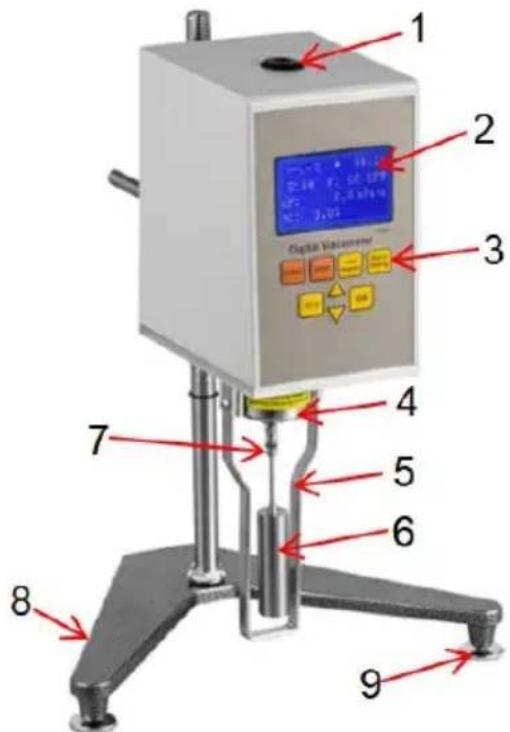

1.Level Vial 2.LCD Screen 3.Operation Panel

1. Outer Cover 5. Spindle Protection 6. Spindle

7.Spindle Connector 8.Base 9.Base Adjusting Knob

INSTALLATION

1). Take out base, lifting column, handle from the packing box. Screw the column into the base (rack side towards the user). Fix handle onto the lifting block. 2). Adjust lifting button for tightness. Put T-shaped block on the rear of the instrument into handle and get it fixed, making the instrument balanced. 3). Adjust 3 screws on the base to keep the level bubble at the center black circle. 4). Take off the protection cap at the bottom of the instrument. 5). Plug in.

HOW TO USE

1. Prepare liquid sample to be tested, pour it into beaker or flat container with diameter no less than 70mm. Control the temperature of the liquid sample correctly. (Variations of temperature will affect viscosity directly.)
2. Screw the anti-clockwise protection bracket (T-shape) into the bottom end of the instrument.
3. Choose the appropriate spindle and screw it anti-clockwise into the connector.

ATTENTION: Slightly lift the direction connector up when the spindle is installed to avoid damage to the pivot.

1. Turn the lifting button to slowly immerse the spindle into the liquid until the marker on the spindle (groove or marking line) is aligned with the liquid level.
2. Adjust the balance of the instrument again.
3. Keep the testing temperature stable to ensure accurate readout. Otherwise, the readout may fluctuate.

OPERATION

1. Date and Time Setting:

Turn on the instrument; it will display the date and time for 3 seconds, then automatically enter the measurement state. During this period, press OK to enter the measurement state. If you press AUTO, you can set the date and time.

For example:

2018-01-01

12:00:00

2. Parameter Setting:

Hold the OK button and turn on the power; the instrument shows:

→Zero : 0.0%

Buzzer: ON

Bit rate : 9600

Language : english

Press ▲ and to select, then press AUTO. Press and to modify parameters. Press OK to confirm.

There are two ways to exit the set state and enter the state of measurement.

A. Hold the AUTO not loose, about 2 seconds, it will exit setting, and the modified parameters are not saved. B. Hold the OK not loose, about 2 seconds, it will exit setting and keep modified parameters.

1). Zero setting range: 0.0%-1.0%, for example, setting is 0.5% when measuring, if the torque is less than 0.5%, and the viscosity values show

2). With and to choose Zero, press AUTO, "XX%" flicker, then

presss and to modify %, and press OK to confirm.

3). Buzzer setting

With and to choose Buzzer. Press AUTO, "ON"And "OFF"flicker, and press OK to confirm.

4). Bit Rate setting

With and to choose bit rate. Press AUTO, select 1200, 2400, 4800, 9600, then press OK to confirm.

5). Language

Use ▲ and to choose Chinese or English.

3. Correction of Viscosity Deviation

Hold and at the same time, and turn on the power, the viscometer shows:

viscosity correction

spindle: 1 speed: 6

→CP0: X X.X%

CPX: XX .X%

The range of viscosity correction percentage is ± 12.5%. CP0 is the percentage of the idling. CPX is the percentage of viscosity deviation. Such as, the viscosity is 376.2mpa.s, No. 1 spindle, speed 6RPM, the test

value is 360mpa.s. The error is (360-376.2) /360= -4.5%, the CPX should be -4.5%. If the test value is 390mpa.s, the error is (390-376.2) /390= 3.5%, the CPX should be 3.5%.

How to revise CPO and CPX:

1.). Choose the same spindle and speed of testing. 2). Press to choose CPO or CPX. 3). Press AUTO, and to modify the value, and press OK to confirm.

Exit Correction

1). Hold AUTO for 2 second, exit the modified parameters are not preserved. 2). Hold OK for 2 seconds, exit and keep the modified parameters.

After modify the CPX, under the idlling, if the torque % is not zero, should in the CPO.

4. Panel Operation:

Turn on the power at the back of the instrument, and the instrument will be in standby mode. The following information will be displayed on the panel.

S1 V6 T.....°C

%... CP 000000

1) If spindle 1 is used at 6 RPM, you can directly press the start button on the panel to begin testing. When the displayed values become stable, read the CP value. (To ensure a stable reading, if the viscosity is relatively low, rotate the spindle about 3-5 times; if the viscosity is relatively high, rotate the spindle about 1-2 times.) 2) If the user does not choose the default values S1 and V6, press the spindle select and speed select buttons to enter the selection mode, then press the confirm button to confirm. Once the setup is complete, press the start button to begin testing.

NOTE: Spindles S0~S4 and speeds V0.1/V0.3/V0.6/V1.5/V3/V6/V12/V30/V60 will scroll and display repeatedly.

Explanations:

S: Stands for spindle number. S1 refers to spindle 1. (default value)

V: Stands for rotation speed. V6 refers to 6 RPM. (default value)

T:.....°C: Temperature

%.....: The test value as a percentage of the full scale of the measuring range.

Cp: Viscosity value in mPa·S

For example: If the viscosity of the liquid to be tested is estimated to be

3000 mPa·S, it is recommended to choose the combination S2, V6 or S3, V0.3.

For the correlations between the combination of spindle and rotation speed and the corresponding viscosity range, please refer to the table below.

NDJ-5S measuring range table

Rotating speed\Rotor	0#	1#	2#	3#	4#
tids	100	1000	5000	20000	100000
12 rotations	50	500	2500	10000	50000
30 rotations	20	200	1000	4000	20000
60 rotations	10	100		500	2000	10000

NDJ-9S measuring range table

Rotating speed\Rotor	0#	1#	2#	3#	4#
0.1 rotations	6000	60000	300000	1200000	6000000
0.3 rotations	2000	20000	100000	400000	2000000
0.6 rotations	1000	10000	50000	200000	1000000
1.5 rotations	400	4000	20000	80000	400000
3 rotations	200	2000	10000	40000	200000
6 ions	100	1000	5000	20000	100000
12 rotations	50	500	2500	10000	50000
30 rotations	20	200	1000	4000	20000
60 rotations	10	100	500	2000	10000

Attentions

1. When this viscometer works under room temperature, the tolerance of the test temperature should keep within ±0.1. Otherwise measurement accuracy will be substantially affected.
2. Pay attention to test values and their percentage rates of the entire measurement range. When numbers are too high or too low, spindle or rotating speed should be changed to keep the percentage within 15%~85%. Otherwise measurement accuracy will be affected.
3. Viscometer should be used under allowed voltages and frequencies. Otherwise measurement accuracy will be affected.
4. Be careful when spindle is assembled or unassembled. Slightly lift up direction connector. Don't handle it with big force.
5. Keep spindle and direction connector clean after use.
6. When instrument goes down, it should be held by hands to avoid vibrations which could do damages to the pivot.
7. When instrument is moved or transported, direction connector should be covered by protection cap.
8. Many of suspension liquids, emulsions, high polymers and other high viscosity liquids are non-Newtonian liquids, whose viscosity values are changing with changes of shear rate and time. It is normal that the test results could be different on different spindles, rotating speed, or time.
9. In order to get accurate measurement, please pay attention to the following points: 1). Control the temperature of the tested liquid accurately. 2). Keep environmental temperature uniform. 3). Keep spindle and liquid to be tested under constant temperature at the same time so as to keep the same temperature for both. 4). Use bigger spindle with higher rotating speed for low viscosity liquid. Use smaller spindle with lower speed for high viscosity liquid. 5). Keep the surface of the spindle clean.

Installation Procedure :

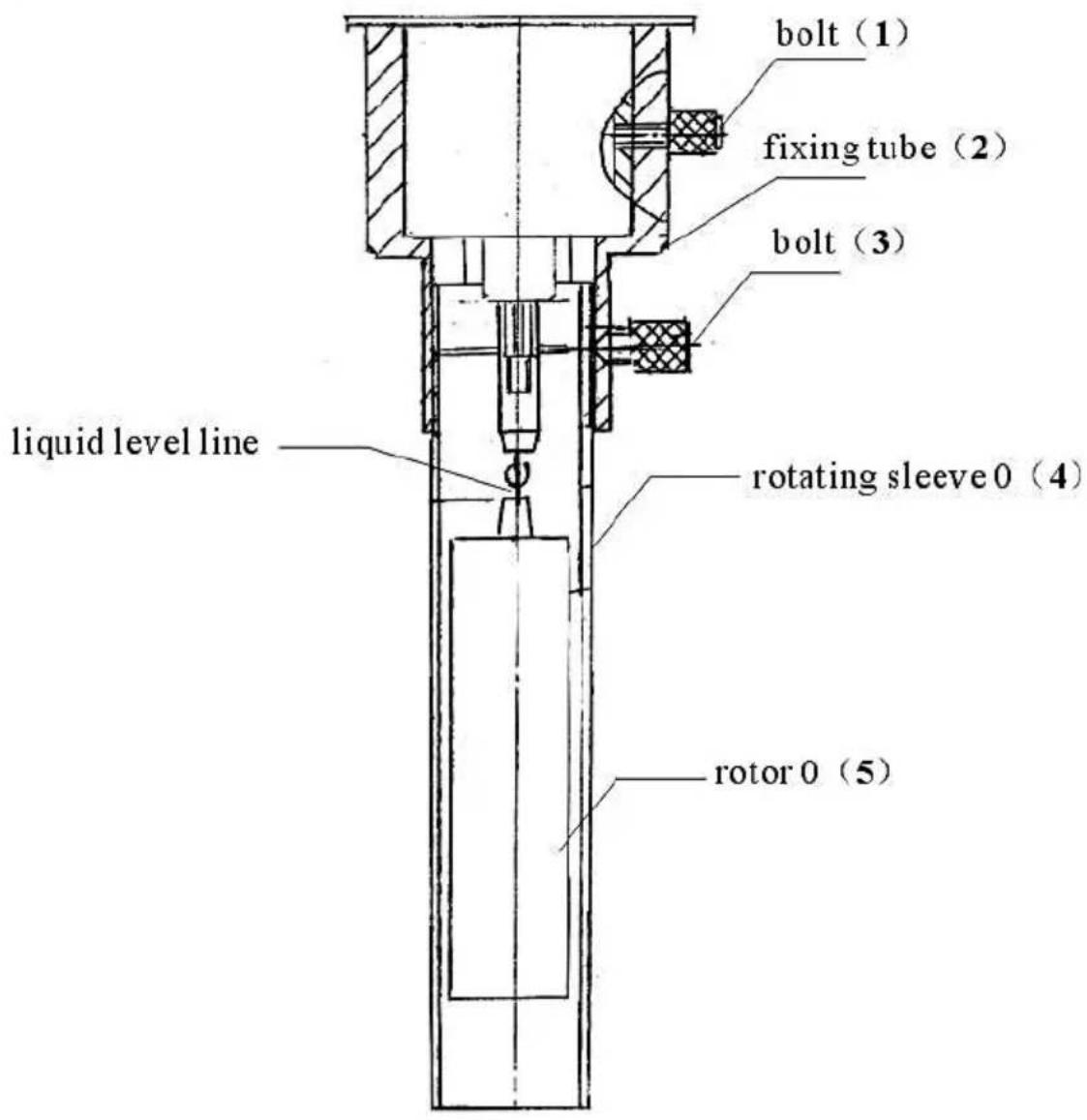

Screw on spindle 0 (5) put on fixing tube (2) screw on bolt (1) and get it fixed put on rotating sleeve 0 (4) screw bolt (3) tight and get it fixed.

No. 0 spindle table

Speed	60	30	12	6	3	1.5	0.6	0.3
Range	10	20	50	100

Appendix: Spindle 0 installation procedure and usage.

1). Should consider instrument components operation when spindle 0 is used. 2). Pour 25~30ml liquid to be tested into lower sleeve. 3). Gently put outer testing tube from down to up on the fixing sleeve and get it fixed. (On the testing tube is a V-shaped groove) 4). The same method as the above applies when bottomless testing tube used. Take V-shaped groove on the inner wall of outer testing tube as the immersed level line for spindle 0 when outer testing tube and spindle are immersed in the liquid.

MAINTENANCE

1. Clean the shell and internal components of the viscometer regularly, especially the measuring head, to avoid contamination and bacterial growth.
2. Do not use any acidic or alkaline cleaning agents.
3. Viscometers require frequent calibration to ensure accuracy and repeatability. It is recommended to calibrate before each use, while calibrating at different temperatures. (Please be calibrated by professional technicians.)
4. Pay attention to avoid collision and falling during use, especially the measuring head.

Packing List

Name	Quantity
Digital viscometer (Master device)	1
Lifting rod and slider	1
Protection Bracket	1
Spindles No.1,2,3,4	1 for each
Spindles No.0	1
Power cord	1
User Manual	1

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VISCOMETER

MODEL: NDJ-5S / NDJ-9S

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VISCOMETER

Model: NDJ-5S/NDJ-9S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VISCOMETER

Model: NDJ-5S/NDJ-9S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VISCOMETER

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VISCOMETER

MODEL: NDJ-5S / NDJ-9S

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VISCOMETER

Model: NDJ-5S/NDJ-9S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

Installation procedure:

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

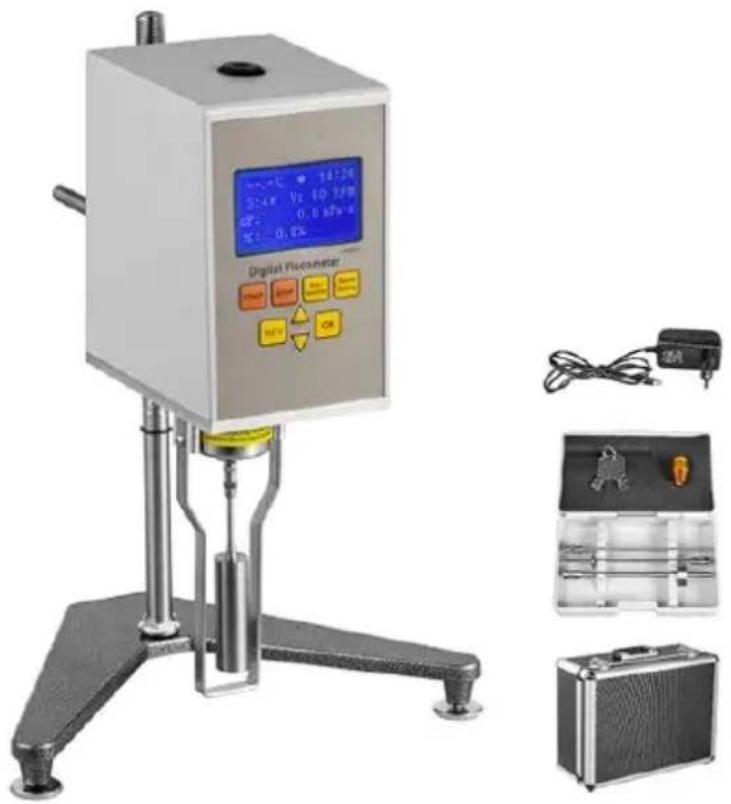

VISCOMETER

MODEL: NDJ-5S / NDJ-9S

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VISCOMETER

Model: NDJ-5S/NDJ-9S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

Installation procedure:

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VISCOMETER

Model: NDJ-5S/NDJ-9S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

Imported in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported in USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VISCOSIMETER

MODEL: NDJ-5S / NDJ-9S

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VISCOMETER

Model: NDJ-5S/NDJ-9S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
