EV-B06-EU003B - Phone charger Vevor - Free user manual and instructions

Product Type	Portable Electric Vehicle Charger
Brand	Vevor
Model	EV-B06-EU003B
Dimensions (H x W x D)	245 x 105 x 63 mm
Weight	Approx. 2 kg (estimate)
Power Supply	220-240 V ~ 50 Hz, 16 A max
Output Power	3.7 kW
Protection Rating	IP66
Plug Type	Schuko (input), European standard gun (output)
Main Functions	Adjustable charging (8/10/13/16 A), scheduled charging (0-12 h), control via Tuya app (Bluetooth + Wi-Fi), 1.5-inch LCD screen and LED indicators
Safety Features	Fire protection, overcurrent, overvoltage, undervoltage, ground fault, overheating, self-monitoring and automatic recovery
LED Indicators	Solid green (standby), Flashing yellow (charging), Solid red (fault)
Operating Temperature	-25 °C to 45 °C
Humidity	5 % to 95 % (non-condensing)
Standard	EN 62752
Maintenance and Cleaning	Wipe with a clean, dry cloth; keep the charging terminal clean and dry
Spare Parts and Repairability	No user-serviceable parts; any intervention must be carried out by a qualified professional
Package Contents	EV charger, wall mount, expansion screws, cable hook, carry bag, user manual

Frequently Asked Questions - EV-B06-EU003B Vevor

What does the red flashing light once per second mean?

This indicates an overvoltage or undervoltage fault (input voltage out of range). Check your power supply.

How to reset the Wi-Fi of the device?

Simultaneously press buttons A and < (or as per the manual) for 3 seconds until the screen displays 'WIFI Reset'. To exit, press again for 2 seconds.

The yellow light is solid and charging does not start, what to do?

Check that the app is installed and use it to start charging. You can also remove the cable, press button A for 5 seconds, then reconnect.

How to adjust the charging current?

Click the adjustment button to cycle through values: 16 A → 13 A → 10 A → 8 A → 16 A. Changes can only be made before charging starts.

Can I use this charger in the rain?

Yes, the IP66 rating allows outdoor use, but as a precaution, avoid thunderstorms and heavy weather.

What to do if the screen shows 'Ground Fault'?

Check the grounding of the outlet. If it is correct, contact after-sales service with the virtual ID of the device (visible in the app).

How to schedule a delayed charge?

On the device, click to increase the reservation time from 0 to 12 hours. Via the app, you can schedule charging to a specific time.

The charging current is lower than expected, is this normal?

Yes, if the mains voltage is low, the device automatically reduces the current by 50% to protect your installation. Contact an electrician if the problem persists.

What types of vehicles are compatible?

This charger is compatible with electric vehicles equipped with a Type 2 plug (European standard gun) and compliant with EN 62752 standard.

How to link the device to the Tuya app?

Download the Tuya Smart or Smart Life app. Activate APP mode by holding button A until you see 'APP STAR'. Follow the instructions in the app to add the device via Bluetooth and Wi-Fi.

USER MANUAL EV-B06-EU003B Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

AC EV CHARGER

USER MANUAL

MODEL:EV-B06-EU003B

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: EV-B06-EU003B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

[e-mail]

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Before operation, please read the operation manual carefully to know the equipment and the correct method of use. Please keep it for future reference.

WARNING

● This device has a home grid voltage monitoring function. When it detects the low voltage safety range of your home grid, it will automatically reduce the current by 50% for charging. ● This function of automatically monitoring the voltage of the home grid is added to prevent excessive charging current from damaging the home cable and its control switch device. When you find that the charging current is relatively low during the charging process, please contact a qualified electrician to detect and replace your home cables and switch devices, so as to ensure that the expected charging current can be achieved and the safety of electricity can be ensured.

SAFETY PRECAUTIONS

1. Before installation, please check that the grid is single-phase 230 V ±10% (50 Hz). Otherwise, the device cannot be used.
2. The charging device has a function that detects the load capacity of the user's network circuit. When the user's grid circuit cannot bear the charging power of the device, the device will automatically reduce the charging power and then charge the electric vehicle. This function can solve the problem of frequent tripping caused by grid voltage instability, circuit aging, and other issues. At the same time, it can reduce safety problems caused by user circuit problems. If the charging power is reduced during use, it is a normal phenomenon.
3. This equipment has over-voltage and under-voltage protection, as well as overload protection. After the device automatically adjusts the

charging power, if the user's grid voltage is still abnormal, the device will automatically shut down charging and stop using.

1. When installing the equipment, circuit breakers must be installed at the front-end total input.
2. Do not use flammable, explosive, or combustible materials, chemicals, combustible gas, or other dangerous goods near the charging pile.
3. Keep the charging point dry and clean. If there is any dirt, use a clean, dry cloth to wipe it. It is forbidden to touch the charging pin.
4. For hybrid cars, please recharge again after the engine is turned off. During charging, driving the vehicle is prohibited.
5. Children should not get close during the charging process to avoid harm.
6. In case of rain, thunder, or other weather, please charge with caution.
7. It is strictly prohibited to use the charging pile if the charging cable is broken, worn, or exposed, or if the charging pile has been obviously knocked down or damaged. If such conditions are found, please stay away from the charging pile immediately and contact the staff.
8. If a fire, electric shock, or other abnormal situation occurs during charging, immediately press the stop button to ensure personal safety.
9. Please do not attempt to remove, maintain, or modify the charging pile. Improper use may cause damage, leakage, and other hazards.

PRODUCT INTRODUCTION

The EV-B06-EU series portable charger is designed to address the pain points in the portable charging industry. It is characterized by convenient installation, use, and debugging, simple operation and maintenance, accurate measurement, and complete protection functions. It has good compatibility and meets the charging requirements of national standards.

The EV-B06-EU series portable charger has an IP66 protection rating, providing excellent dust and water resistance for safe operation both indoors and outdoors.

1. Product Parameters

Type no.	EV-B06-EU003B
In put voltage	220-240V~ 50Hz
Ou tput voltage	220-240V~ 50Hz
Power output	3.7KW
Maximum output current	16A
Class of protection	IP66
Protection Function	Fire protection, over current, over voltage, under voltage, gro protection, over temperature protection, self monitoring and recovery,
Indicator light	Standby - Green on; Charging - Yellow blinking; Alarm - re
Liquid crystal screen	3*LED light indicator1.5-inch LCD
Mode of charging	Plug and Play/APP charging
Charging interface	European standard charging gun
Input plug	Schuko
Material of case	PC+ABS
Operating temperature	-25°C~45°C
Relative humidity	5% to 95% no condensation
Overall dimensions	245*105*63mm(H*W*D)
Standard of reference	EN 62752

EQUIPMENT INSTRUCTIONS

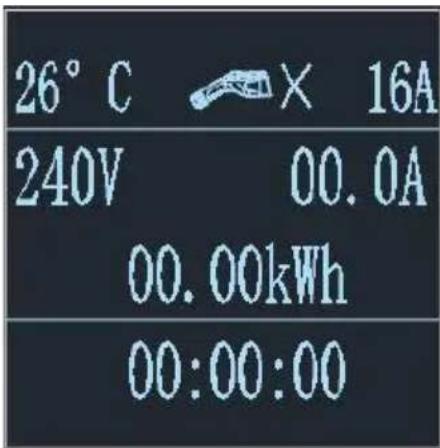

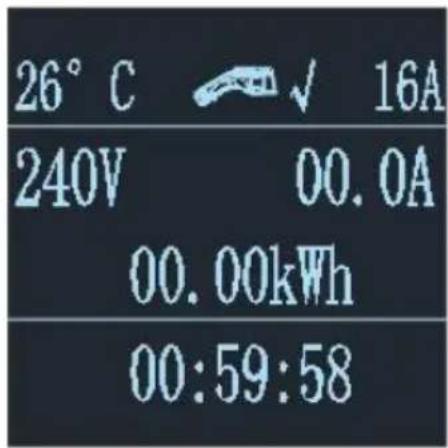

1. After the device is powered on, it enters standby mode. The standby interface is shown below:

2.1 Adjusting the charging current: Press the button to cycle through the charging levels: 16A-13A-10A-8A-16A. After selecting the desired current, plug in the charging connector to begin charging.

2.2 Scheduled charging: Press to increase the delay time. You can set a delay between 0 and 12 hours. After the set delay, charging will start automatically. All models covered in this manual

support scheduled charging via the app.

Note: Once charging has started, the charging speed and schedule cannot be changed (neither via buttons nor the app).

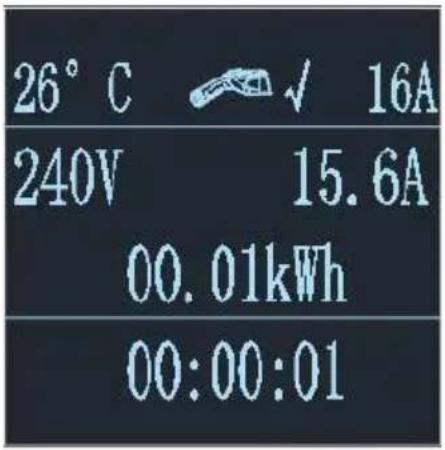

2.3 After inserting the charging connector into the vehicle's charging port, the charging interface is shown below:

MOBILE APP CHARGING OPERATION INSTRUCTIONS

3. App download and binding

a. To download the smart app, enter the following address in your mobile browser:

https://developer.tuya.com/cn/docs/iot/tuya-smart-app-smart-life-app-advantages?id=K989rqa49rluq

Click the link and follow the on-screen instructions to install.

b. QR code download:

Open the mobile browser or other social software, scan the QR code, and follow the APP according to the prompts.

3.1 Binding and Using Devices

Open the installed APP, click Agree privacy Statement, you can register with your mobile phone number, social software binding registration, and log in to the APP after a successful registration.

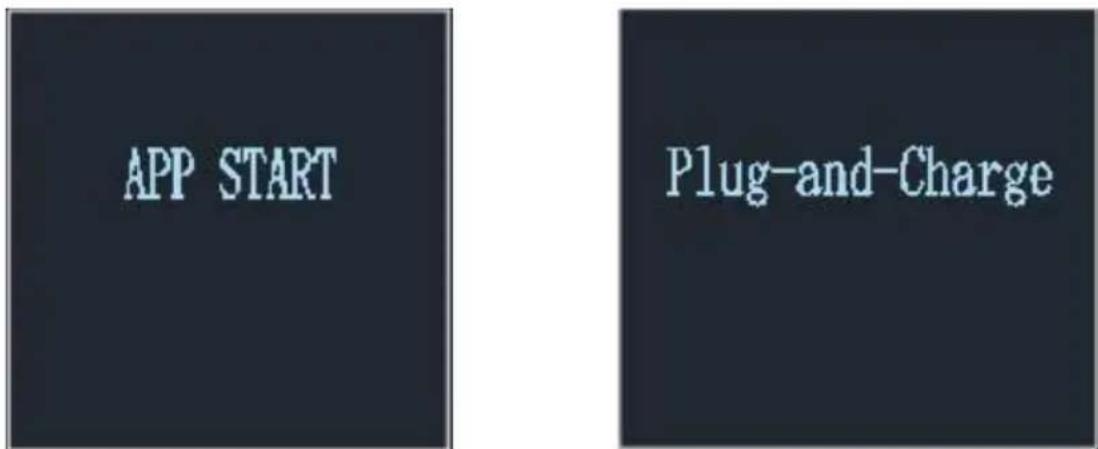

Long press A on the charging panel, and APP START appears on the display screen to enter the APP mode;

Press and hold on the charging panel again, and the display screen will display Plug and Charge to enter the Plug and Play charging mode. Open the Location, Bluetooth, and Wifi of the mobile phone. If the charging device is in standby state, the APP will automatically search for the charging device and the device name will be displayed.

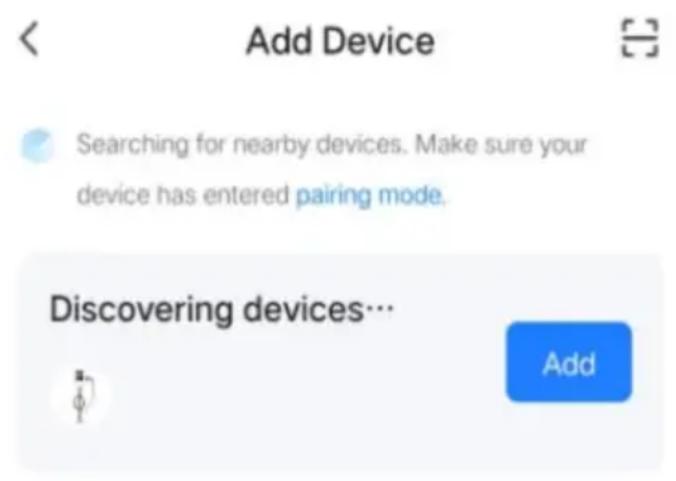

c. Click Add to add the device, enter the WIFI pairing interface, automatically identify the WIFI name of the phone. Click Next, and the device will be automatically bound. After the binding is successful, a message will be displayed indicating that the device has been successfully added. Finally, click the icon of "Finish" and wait about 5 seconds for the device to be bound.

d. You can also click "+" in the upper right corner of the APP to manage add the device, select the category of "Energy saving" in the left column pull up the device type, find the device "Car charging pile (Bluetooth + WIFI)", click to enter, and then click "Confirm indicator flashing" and "Fas flashing" as prompted. Enter the WIFI password (WIFI password connected to the mobile phone) and click Next to match the password, always set the bound device as prompted. After binding the device, charge it according to the APP interface.

e. Device WIFI is reset:

EV-B06-EU003B

Press both buttor the lower panel simultaneously for 3 seconds device displa panel for 3 seconds, After waiting for the displ screen to display WIFI Reset, the device's WiFi be reset.

Under the WiFi reset interface,simultaneously press theand buttons on the devicepanel for 2 seconds to return to the device status interface.

Note: The APP can set charging current, reserve charging time and other functions; You can also query the real-time charging status. APP controls the charging function, which is not limited by the charging mode of the device.

CHARGING FAULT DESCRIPTION

1. Charging indicator LED indicator status table.

Device Status	Three-color indicator status (green light: standby, yellow charging, red light: failure)
Standby mode	Green light steady on
The gun has been fired	Steady yellow light
The gun is charging	Yellow light flashing
EV-B06-EU003AEV-B06-EU003BSwitch current gear status	Press the current button and the yellow light will flash once (8)Press the current button and the yellow light will flash twice (1)Press the current button and the yellow light will flash 3 timesPress the current button and the yellow light will flash 4 times
CP fault	The red light is on
Overpressure and underpressure	The red light flashes once per second
The PE cable is not connected	The red light flashes once in two seconds
Over-Current	The red light flashes every four seconds
Electrical leakage of equipment	The green and red lights flash once every second
Equipment overtemperature	The green and red lights flash every two seconds

4.1 Fault display description (EV-B06-EU003B)

Ground Fault

4.2 Ground Fault: The ground wire is not connected or the ground wire is poor.

CP Fault

4.3 CP Fault: The device detects that the CP voltage exceeds 6V ± 0.8 or 9V ± 0.8, reports a CP fault, recovers the voltage to within range, and recovers the fault.

CP Fault

4.4 Overcurrent Fault: If the charging current of the device exceeds the threshold and continues to exceed 5s, the device will disconnect charging and report a fault, which cannot be automatically restored.

Overcurrent Fault

4.5 Undervoltage Fault: The rated input voltage is 230V, and a fault is reported if the voltage value is lower than 184V ± 5V.

Undervoltage Fault

4.6 Overvoltage Fault: The rated input voltage is 230V, and a fault is reported if the voltage value is higher than 276V ± 5V.

Overvoltage Fault

TROUBLESHOOTING GUIDANCE

1. Poor grounding alerts for faults.

Failure manifestations: Red light flashes once in 2s and "Ground Fault" is displayed on the screen.

Fault clearance:

A. Check whether the socket is well grounded, and if not, do a good job of grounding. B. If it is confirmed that it is well grounded, check the virtual ID of the device in APP and provide the virtual ID to the after-sales. C. Wait for after-sales to notify customers to update the device software version in the APP.

1. The device has a solid yellow light and cannot be charged.

Failure manifestations: The device is powered on and connected to the electric vehicle, the yellow light of the device is always on, and it cannot be charged.

Fault clearance:

A. Check the instruction manual, download and install the APP, and start charging in the APP.

B. It is also possible to remove the charging cable, press the device "A" button for 5s, and then plug the charging cable into the electric car.

1. Charging is not possible and the red light flashes.

Failure manifestations: The device is plugged in, the charging cable is connected to the electric car, the device flashes red and cannot be charged.

Fault clearance:

A. If the product has a display, check the display fault message of the display. B. If the product does not have a display screen, download the APP by referring to the manual

and view the alarm information in the APP.

C. Feedback the fault information to our after-sales service.

1. Screen flowers

Failure manifestations: The screen is not clear and appears snowflake-like.

Fault clearance:

A. Disconnect the device input power, wait 3 minutes, and then reconnect the power.

B. If you still can't solve it, please report the problem to our after-sales service.

INSTALLATION INSTRUCTIONS

5. List of Parts

General purpose accessories
Product specification	Ac pile instruction manual	1 copy
Storage bag	Portable hard case travel bag	1 PCS
Wall mount installation
Wall mount	Wall mounted fasteners	1 PCS
Expansion screw	M8*60 expansion screw	4 PCS
Charging cable hook	Iron hook	1 PCS

5.1 The installation method is wall hanging.

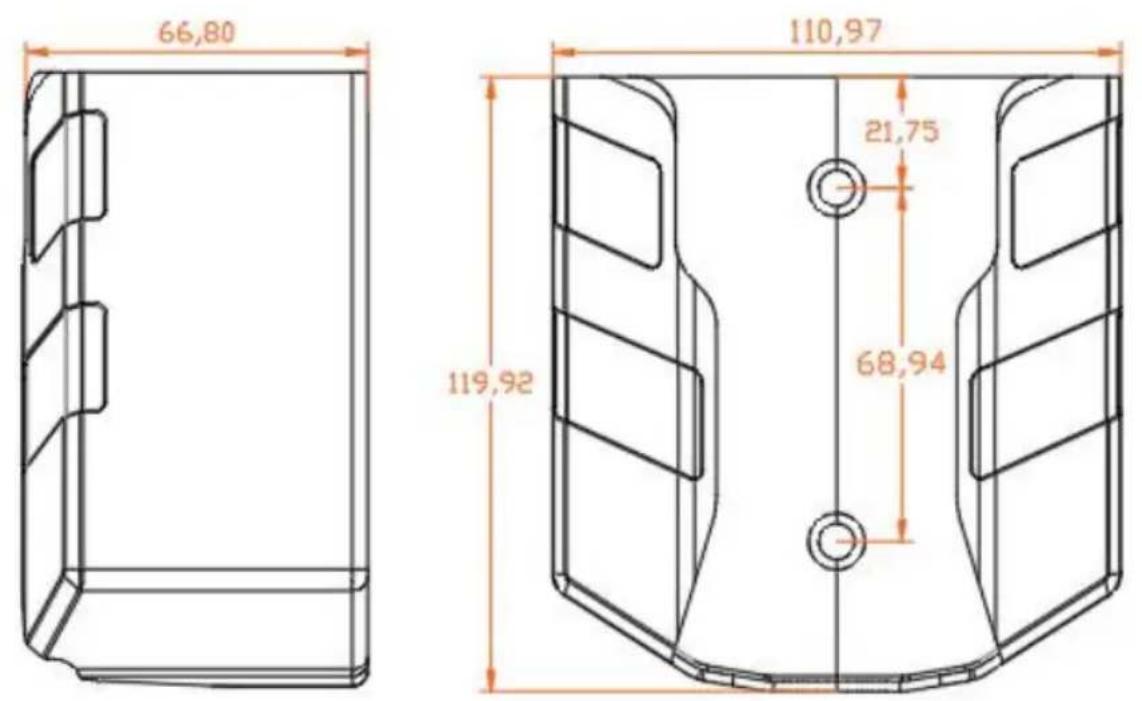

a. Take out the provided wall mounting fasteners and carefully check the installation dimensions of the screw holes. b. Select the installation location of the device. The lowest position of the equipment is a wall mounted fastener 1200 mm above the ground. c. Drill 2 holes with a diameter of 8 mm according to the location of the first screw holes of Wall mounted fasteners, and tap in the expansion rubber plugs. Fix the mounting plate with nuts to fix the chassis.

Dimension unit is mm.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China
