USER MANUAL 1909 Vevor

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODEL:1909

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODEL:1909

Vevor 1909 - MODEL:1909 - 1

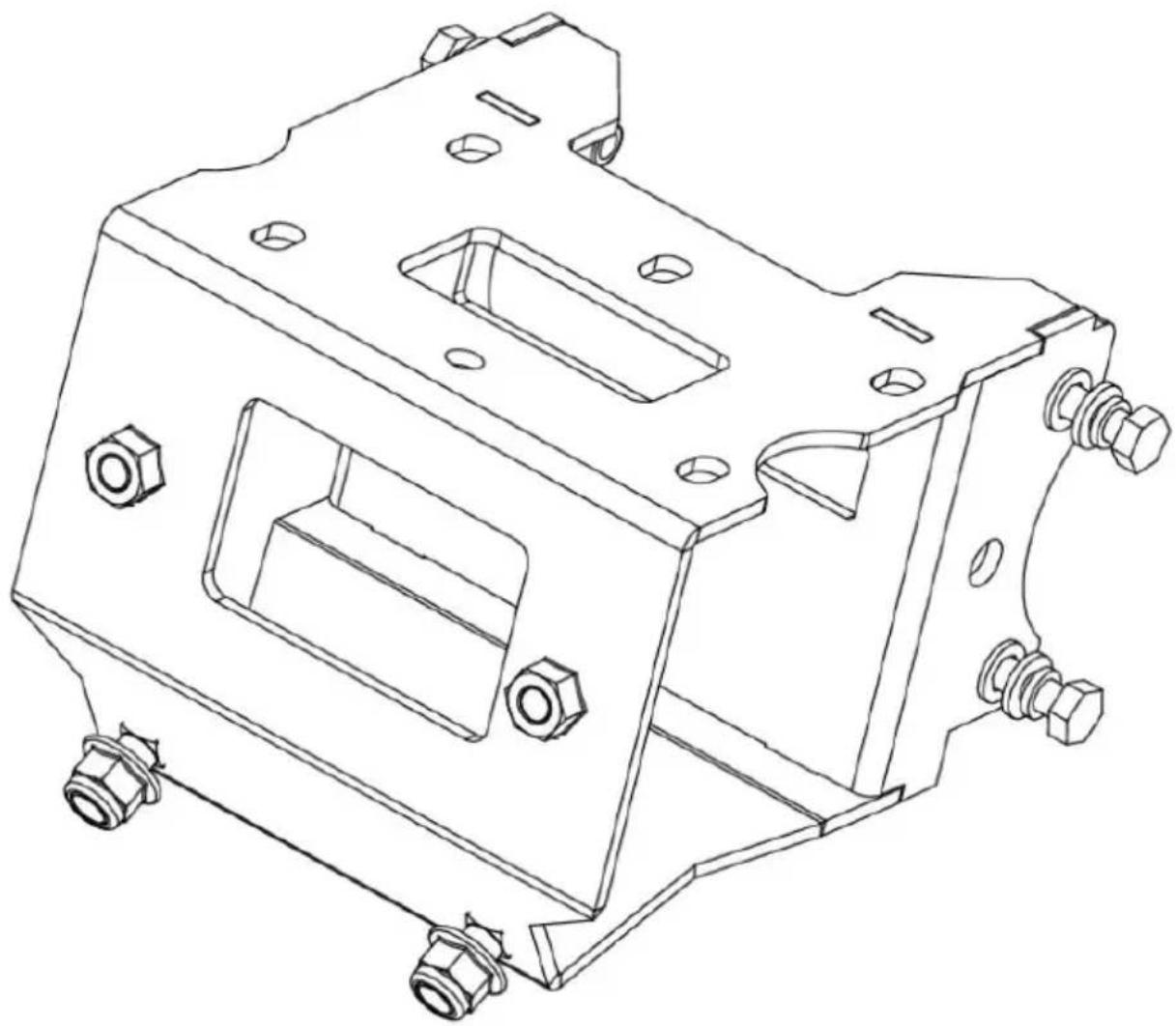

natural_image Technical line drawing of a mechanical housing component with bolt holes and mounting holes (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

IMPORTANT SAFEGUARDS

Vevor 1909 - IMPORTANT SAFEGUARDS - 1

WARNING: Read and understand this entire manual before operatir or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable prope

  1. Assemble only according to these instructions. Improper assembly can create hazards.
  2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
  3. Keep the assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble when tired or when under the influence of alcohol, drugs medication.
  6. Product capabilities apply to properly and completely assembled product only.
  7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's

PACKAGE CONTENTS

PartDescriptionQTY
1WINCH MOUNT1
2M8*25 hex bolt4
3M8 washer4
4M8 spring washer4
5M10*20 carriage bolt2
6M10 lock nut2
7M10 flange nut2
8M10*25 carriage bolt2

INSTALLATION GUIDE:

Vevor 1909 - INSTALLATION GUIDE: - 1

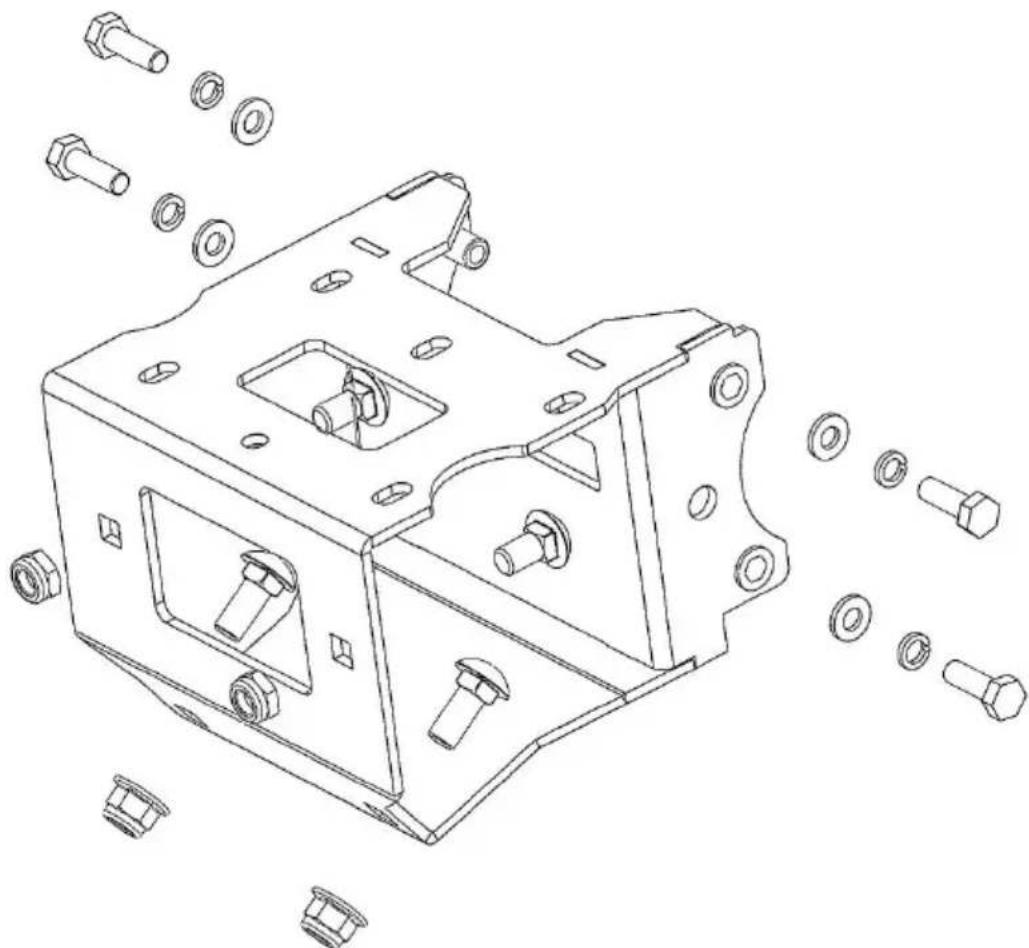

natural_image Technical line drawing of a mechanical housing with exploded view and bolt holes (no text or symbols)

Prior to installation:

  1. Power off the engine.
  2. Find the battery compartment.
  3. Disconnect the battery cables by removing the negative terminal first followed by the positive terminal.
  4. Secure the hawse/roller fairlead (sold separately) to the mount with M10-15 carriage bolts and nuts. Refer to Fig1 for guidance.

OPTIONS: For Warn RT/XT Series winches, we advise connecting the power w now. Determining whether your battery is mounted at the front or rear will ensur use the appropriate wire length (shorter or longer) when routing them to the win

WINCH TO MOUNT:

  1. Secure the winch to the mount using the provided hardware. Note: Ensure there is sufficient space for the winch leads. If needed, adjust lead orientation to achieve proper clearance. (Consult the winch manufacturer if unsure.)
  2. Thread the winch cable through the fairlead.
  3. Connect the hook. (Continued on the back.)

Vevor 1909 - WINCH TO MOUNT: - 1

natural_image Top-down technical drawing of a vehicle's front grille and dashboard (no text or symbols)

Fig 2.1:550/850 XP

Vevor 1909 - WINCH TO MOUNT: - 2

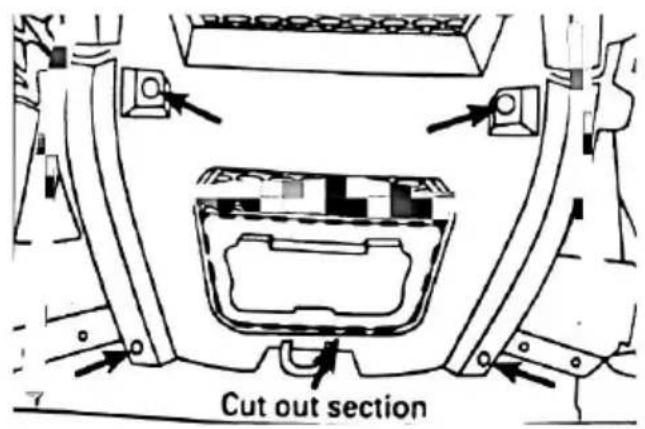

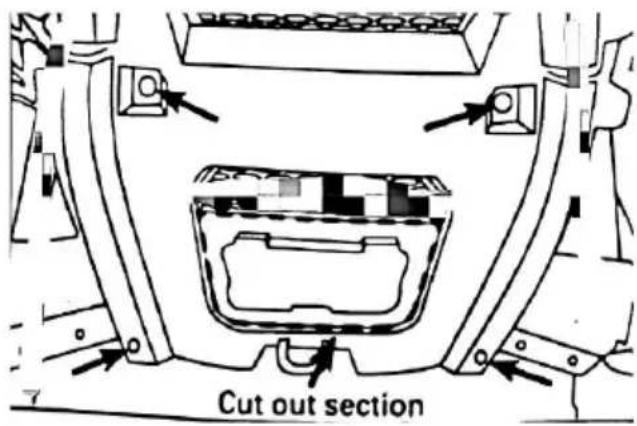

text_image Cut out section

Fig 2.2:400/500/800

VEHICLE PREPARATION:

  1. If needed, detach the front brush guards.
    2.Front Plastic Removal:

For 550/850 XP models: Take out bolts and plastic as illustrated in F Loosen the bolts indicated in the f

Adjust the metal cover to create s for the winch assembly. Alternatively you may remove the cover (shown Fig 3) by detaching the upper hard

Vevor 1909 - VEHICLE PREPARATION: - 1

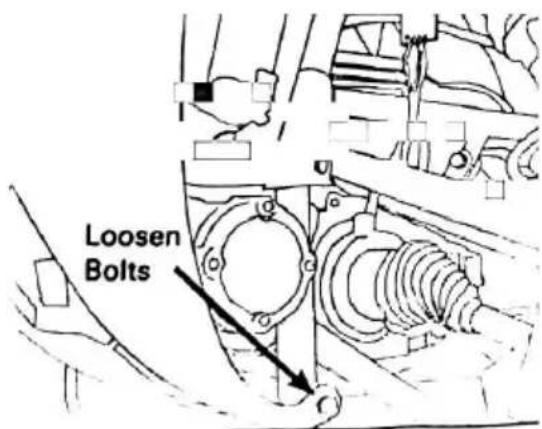

text_image Loosen Bolts

Fig 3 550/850XP

INSTALLATION STEPS:

  1. Position the winch assembly (including the winch, mount, and fairlead) illustrated in Fig4. For 550/850 XP models, refer to Figure 4.1, and for 400/500/800 models, see Fig 4.2. (Note: Fig4 omits the mounting brace for better clarity.)
  2. Secure the assembly using the provided M8 hardware.
  3. Ensure proper wiring by adhering to the winch manufacturer's guideli

Fig 4: Winch Assembly Placement
Vevor 1909 - INSTALLATION STEPS: - 1

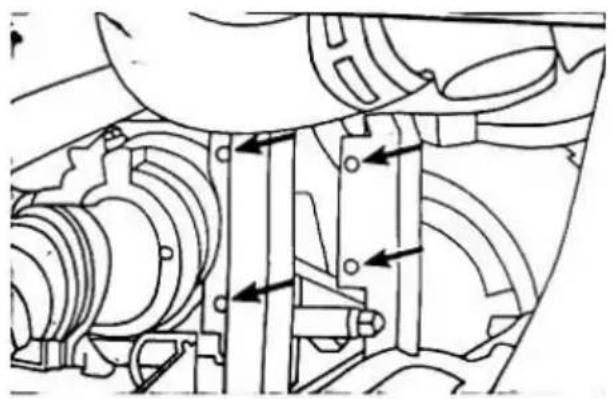

natural_image Mechanical assembly diagram showing internal components and directional arrows (no text or labels)

Fig 4.1 550/850 XP

Vevor 1909 - INSTALLATION STEPS: - 2

natural_image Mechanical diagram showing a gear mechanism with directional arrows and a circular component (no text or labels)

Fig 4.2 400/500 /800

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Affordable. Reliable. Home Improvement.

SUPPORT DE TREUIL

MODÈLE : 1909

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODÈLE : 1909

Vevor 1909 - WINCH MOUNT - 1

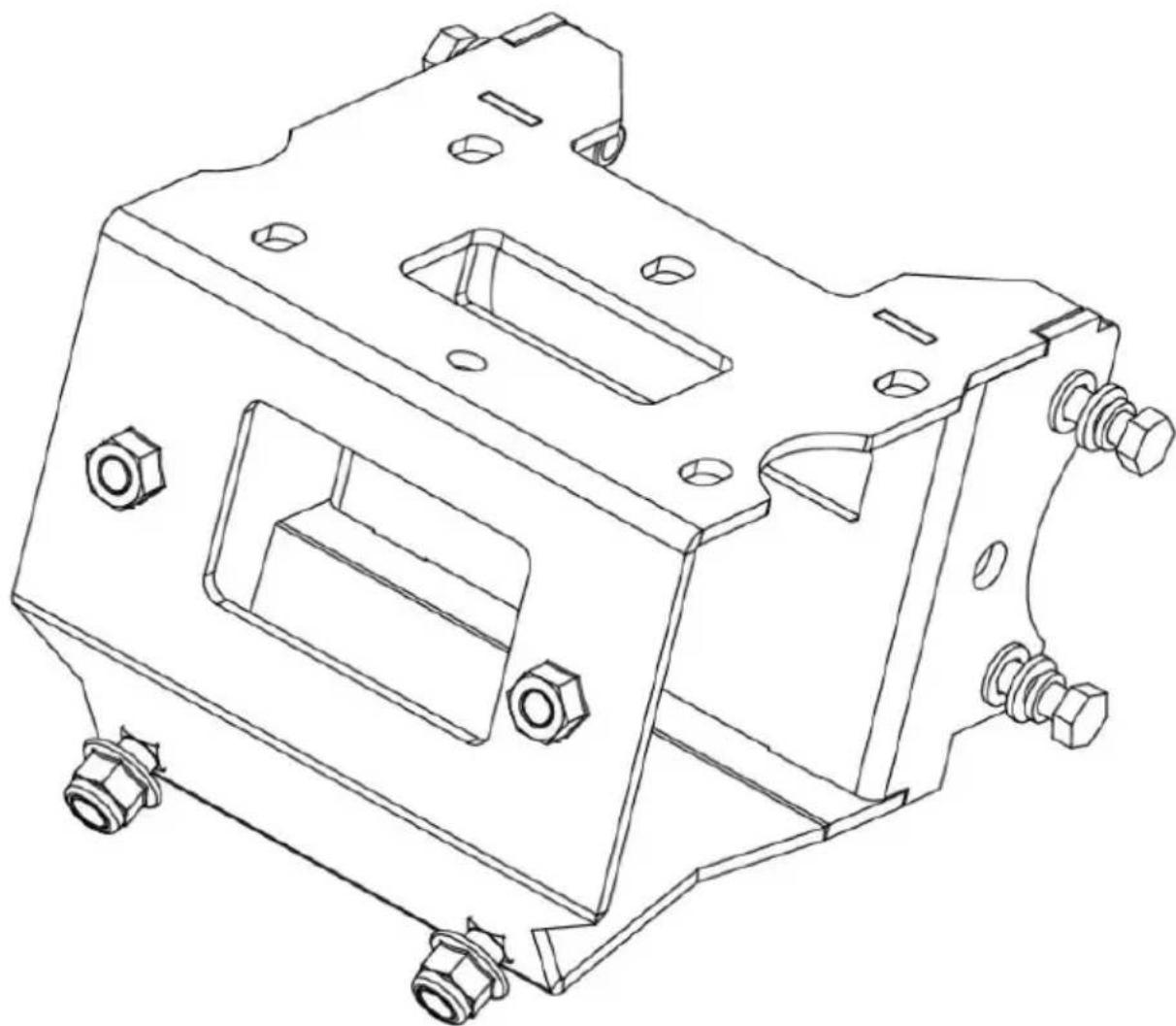

natural_image Technical line drawing of a mechanical housing component with bolts and mounting holes (no text or symbols)
natural_image Technical line drawing of a mechanical housing with exploded view and bolt holes (no text or symbols)
natural_image Front view of a car's head and dashboard with visible grille and control buttons (no text or symbols)

Fig 2.1:550/850 XP

Vevor 1909 - WINCH MOUNT - 2

text_image Cut out section

Fig 2.2:400/500/800

PRÉPARATION DU VÉHICULE :

text_image Loosen Bolts

Fig 3 550/850XP

natural_image Mechanical assembly diagram showing gear and shaft components with directional arrows indicating motion (no text or labels)

Fig 4.1 550/850 XP

Vevor 1909 - PRÉPARATION DU VÉHICULE : - 1

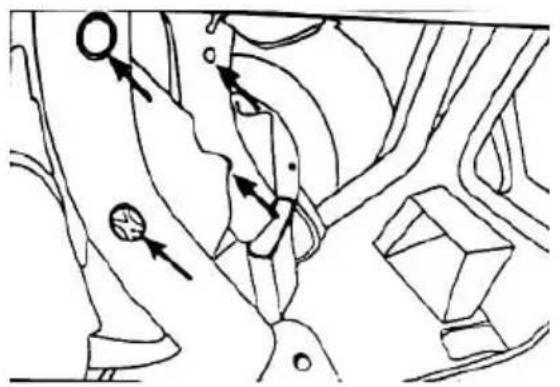

natural_image Technical diagram of a mechanical component with directional arrows indicating movement or force (no text or labels)

Fig 4.2 400/500 /800

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREET, ASTV NSW 2122 Australie

Lieu, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Affordable. Reliable. Home Improvement.

WINDENHALTERUNG

MODELL:1909

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODELL:1909

Vevor 1909 - MODELL:1909 - 1

natural_image Technical line drawing of a mechanical housing component with bolt holes and mounting features (no text or symbols)
natural_image Technical line drawing of a mechanical housing with exploded view and bolt holes (no text or symbols)
natural_image Top-down technical drawing of a car's front grille and dashboard (no text or symbols)

Fig 2.1:550/850 XP

Vevor 1909 - MODELL:1909 - 2

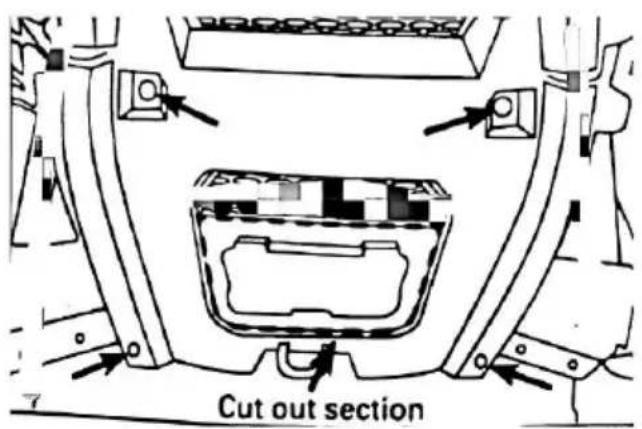

text_image Cut out section

Fig 2.2:400/500/800

text_image Loosen Bolts

Fig 3 550/850XP

INSTALLATIONSSCHRITTE:

natural_image Mechanical assembly diagram showing gear and shaft components with directional arrows (no text or labels)

Fig 4.1 550/850 XP

Vevor 1909 - INSTALLATIONSSCHRITTE: - 1

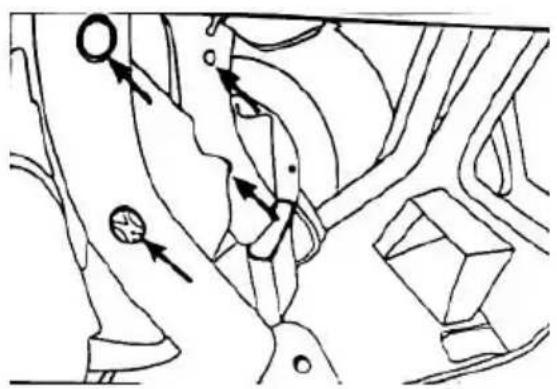

natural_image Technical diagram of a mechanical assembly with directional arrows and components (no text or labels)

Fig 4.2 400/500 /800

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200.000 CN.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Affordable. Reliable. Home Improvement.

SUPPORTO PER VERRICELLO

MODELLO: 1909

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODELLO: 1909

Vevor 1909 - MODELLO: 1909 - 1

natural_image Technical line drawing of a mechanical housing component with bolt holes and mounting holes (no text or symbols)
natural_image Technical line drawing of a mechanical housing with exploded view and bolt holes (no text or symbols)
natural_image Front view of a car's head and dashboard with visible grille and control buttons (no text or symbols)

Fig 2.1:550/850 XP

Vevor 1909 - MODELLO: 1909 - 2

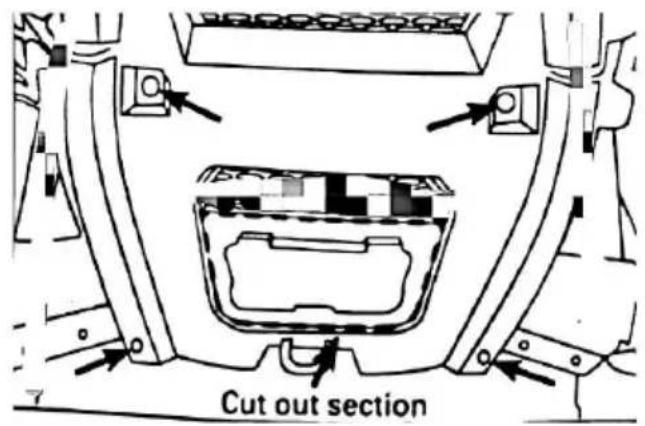

text_image Cut out section

Fig 2.2:400/500/800

text_image Loosen Bolts

Fig 3 550/850XP

natural_image Mechanical assembly diagram showing gear and shaft components with directional arrows indicating motion (no text or labels)

Fig 4.1 550/850 XP

Vevor 1909 - MODELLO: 1909 - 3

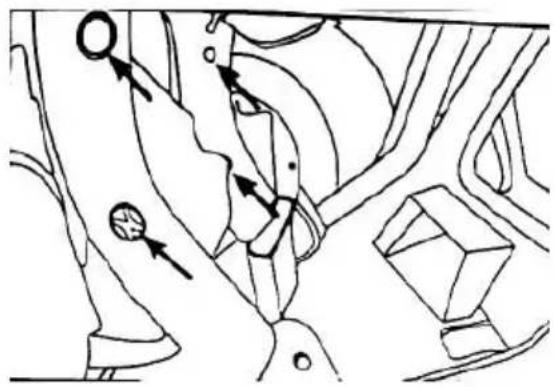

natural_image Technical diagram of a mechanical assembly with directional arrows and components (no text or labels)

Fig 4.2 400/500/800

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Affordable. Reliable. Home Improvement.

MONTAJE DEL CABRESTANTE

MODELO:1909

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODELO:1909

Vevor 1909 - MODELO:1909 - 1

natural_image Technical line drawing of a mechanical housing component with bolt holes and mounting features (no text or symbols)
natural_image Technical line drawing of a mechanical housing with exploded view and bolt holes (no text or symbols)
natural_image Front view of a car's head and dashboard with visible grille and control buttons (no text or symbols)

Fig 2.1:550/850 XP

Vevor 1909 - MODELO:1909 - 2

text_image Cut out section

Fig 2.2:400/500/800

text_image Loosen Bolts

Fig 3 550/850XP

natural_image Mechanical assembly diagram showing internal components and directional arrows (no text or labels)

Fig 4.1 550/850 XP

Vevor 1909 - MODELO:1909 - 3

natural_image Mechanical diagram showing directional arrows and a circular symbol on a vehicle or mechanical component (no text or labels)

Fig 4.2 400/500 /800

Fabricante: Shanghaimuxinmuyeyouxiangongsi

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Affordable. Reliable. Home Improvement.

MOCOWANIE WYCIĄGARKI

MODEL:1909

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODEL:1909

Vevor 1909 - MODEL:1909 - 1

natural_image Technical line drawing of a mechanical housing component with bolt holes and mounting holes (no text or symbols)
natural_image Technical line drawing of a mechanical housing with exploded view of bolts and components (no text or symbols)

Przed instalacją:

natural_image Top-down technical drawing of a car's front grille and dashboard (no text or symbols)

Fig 2.1:550/850 XP

Vevor 1909 - Przed instalacją: - 1

text_image Cut out section

Fig 2.2:400/500/800

PRZYGOTOWANIE POJAZDU:

text_image Loosen Bolts

Fig 3 550/850XP

KROKI INSTALACJI:

natural_image Mechanical assembly diagram showing internal components and directional arrows (no text or labels)

Fig 4.1 550/850 XP

Vevor 1909 - KROKI INSTALACJI: - 1

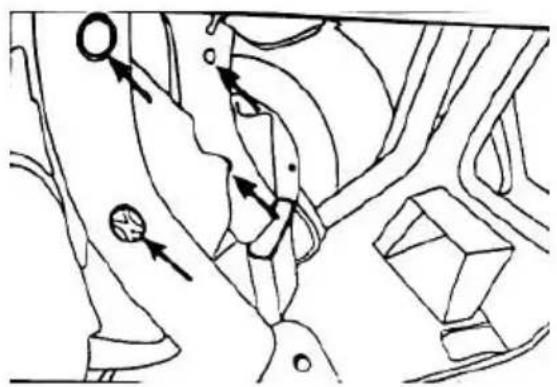

natural_image Mechanical component diagram showing linkage and force vectors (no text or labels)

Fig 4.2 400/500 /800

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA

STREETEASTWOOD

NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Affordable. Reliable. Home Improvement.

LIERBEVESTIGING

MODEL:1909

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODEL:1909

Vevor 1909 - MODEL:1909 - 1

natural_image Technical line drawing of a mechanical housing component with bolt holes and mounting features (no text or symbols)
natural_image Technical line drawing of a mechanical housing with exploded view of bolts and components (no text or symbols)
natural_image Front view of a car's head and dashboard with visible grille and control buttons (no text or symbols)

Fig 2.1:550/850 XP

Vevor 1909 - MODEL:1909 - 2

text_image Cut out section

Fig 2.2:400/500/800

VOORBEREIDING VAN HET VOERTUIG:

text_image Loosen Bolts

Fig 3 550/850XP

afbeelding.

natural_image Mechanical assembly diagram showing internal components and directional arrows (no text or labels)

Fig 4.1 550/850 XP

Vevor 1909 - VOORBEREIDING VAN HET VOERTUIG: - 1

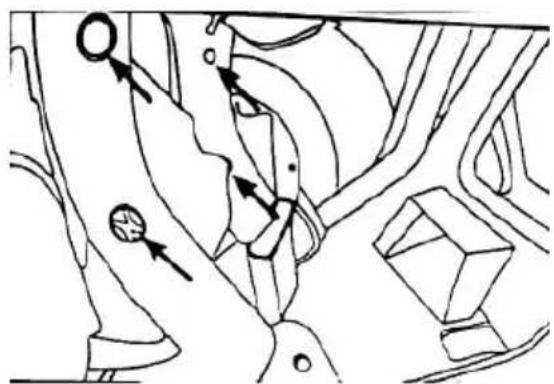

natural_image Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or labels)

Fig 4.2 400/500 /800

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Affordable. Reliable. Home Improvement.

VINSCHFÄSTE

MODELL: 1909

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODELL: 1909

Vevor 1909 - WINCH MOUNT - 1

natural_image Technical line drawing of a mechanical housing component with bolt holes and mounting holes (no text or symbols)
natural_image Technical line drawing of a mechanical housing with exploded view and bolt holes (no text or symbols)

Före installation:

natural_image Front view of a car's head and dashboard with visible grille and control buttons (no text or symbols)

Fig 2.1:550/850 XP

Vevor 1909 - Före installation: - 1

text_image Cut out section

Fig 2.2:400/500/800

FORDONSFÖRBEREDELSE:

text_image Loosen Bolts

Fig 3 550/850XP

natural_image Mechanical assembly diagram showing internal components and directional arrows (no text or labels)

Fig 4.1 550/850 XP

Vevor 1909 - FORDONSFÖRBEREDELSE: - 1

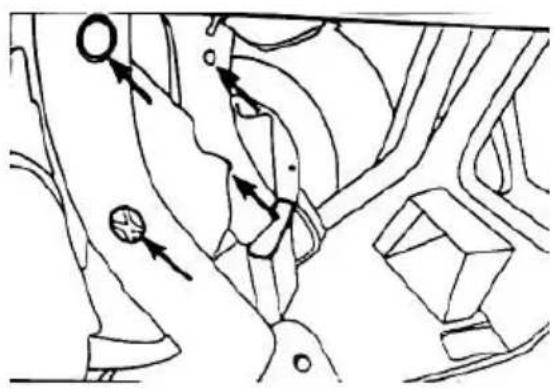

natural_image Diagram of a vehicle's internal components with directional arrows indicating movement (no text or labels)

Fig 4.2 400/500/800

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 kanadensiska republiken.

Importerad till Australien: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plats, Rancho Cucamonga, Kalifornien 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP
