USER MANUAL 1910 Vevor

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODEL:1910

VEVOR

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODEL:1910

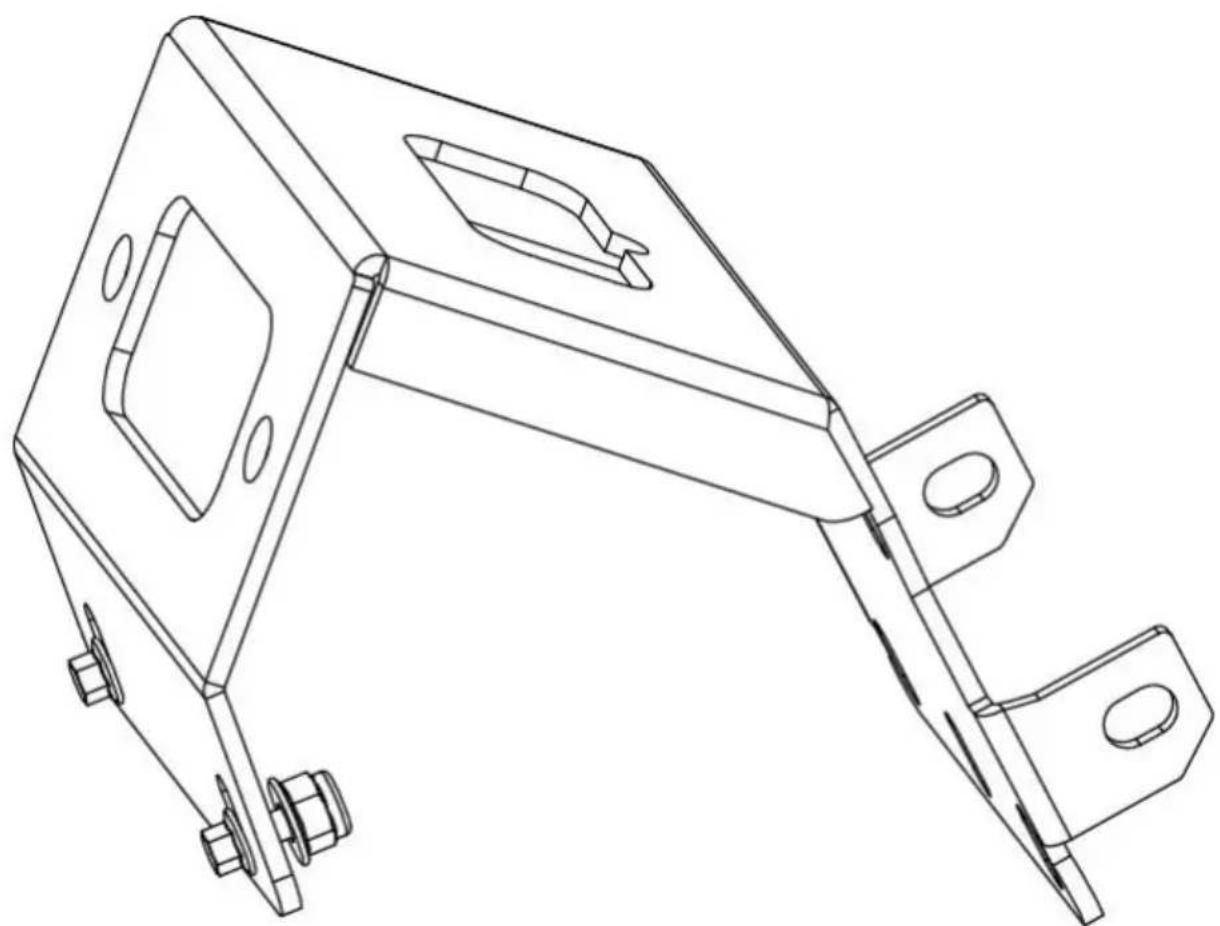

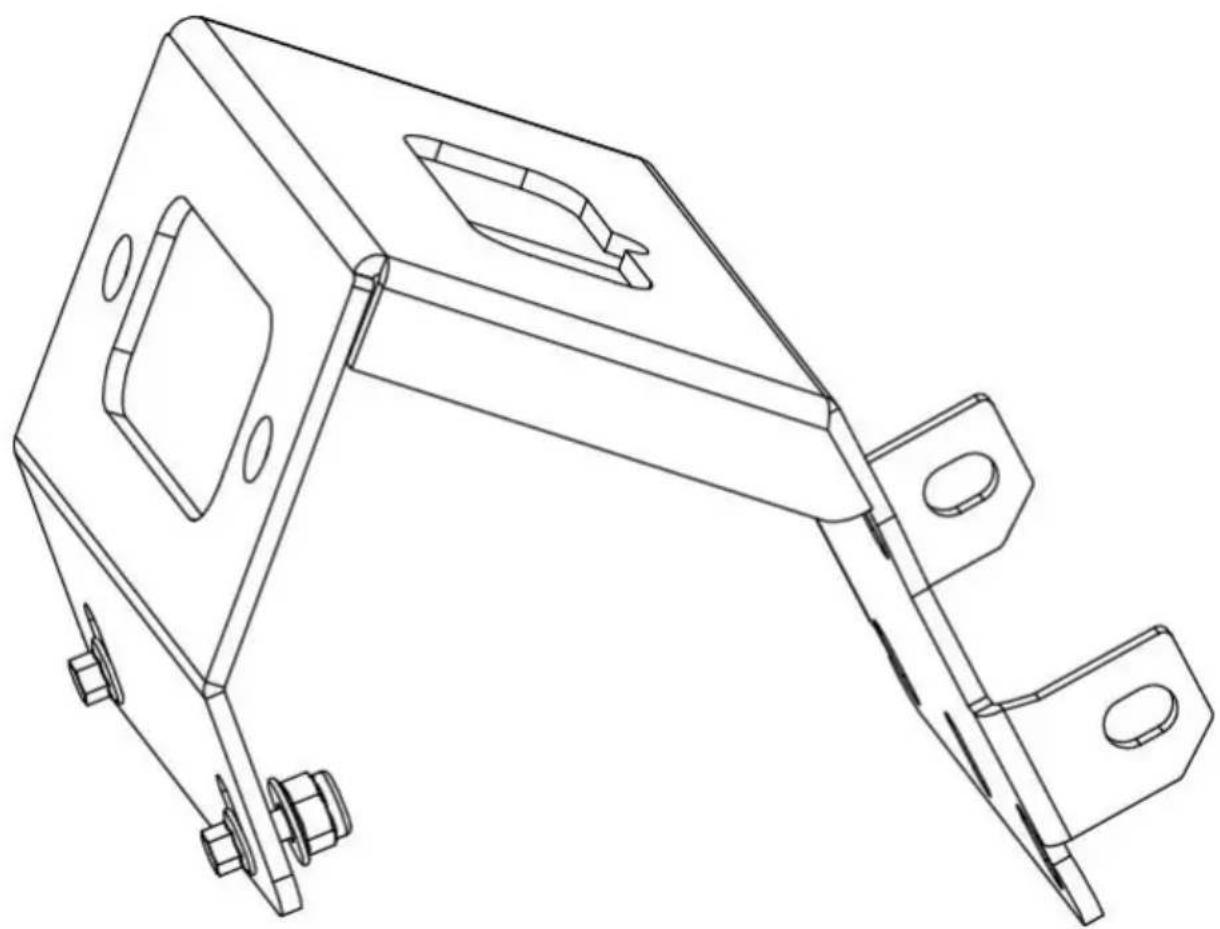

Technical line drawing of a mechanical bracket assembly (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage

to valuable property.

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

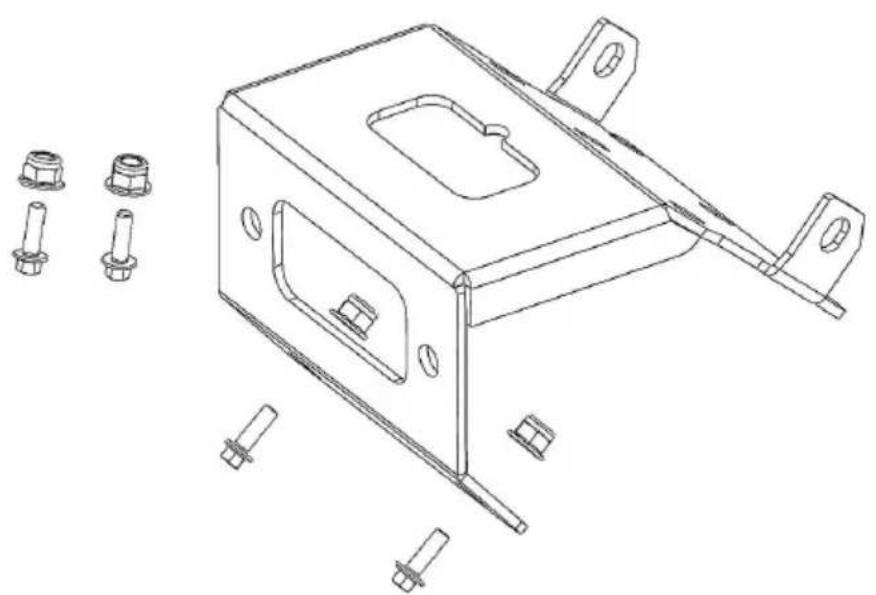

PACKAGE CONTENTS

Part	Description	QTY
1	WINCH MOUNT	1
2	M8*20 flanged hex bolt	4
3	M8 nuts	4

Technical line drawing of a mechanical housing component with bolted components and mounting holes (no text or symbols)

BEFORE INSTALLATION:

1. Switch off the vehicle and engage the parking brake.
2. Find the battery compartment. Disconnect the battery cables by removing the negative terminal first, followed by the positive terminal.

INSTALLATION INSTRUCTIONS:

1. To remove or loosen the ATV's skid plate, undo the two bolts loca the top of its sidewall.

2. The bumper is secured to the frame with 8 bolts: two at the top, inside the fender close to the headlight pod, and four near the front suspension arm mounts (two on each side). Once all bolts are removed take off the front bumper and place it in a clean work area.

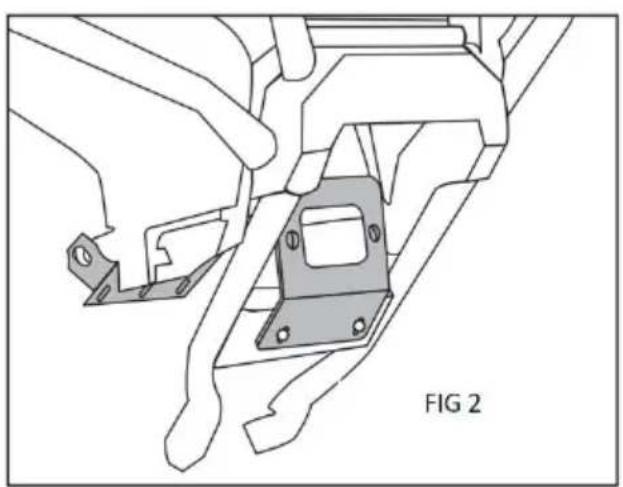

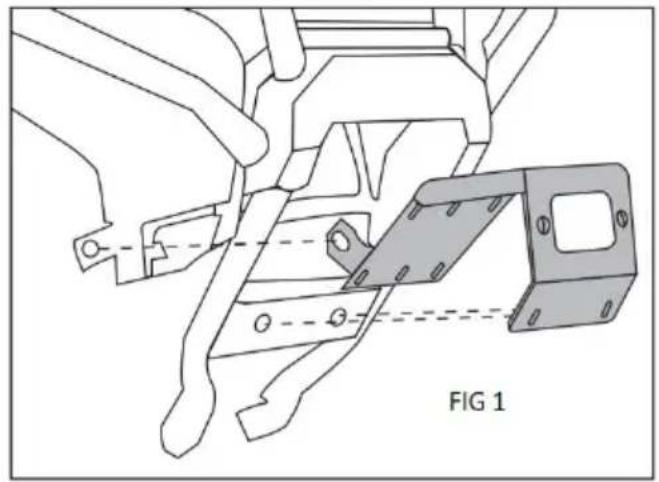

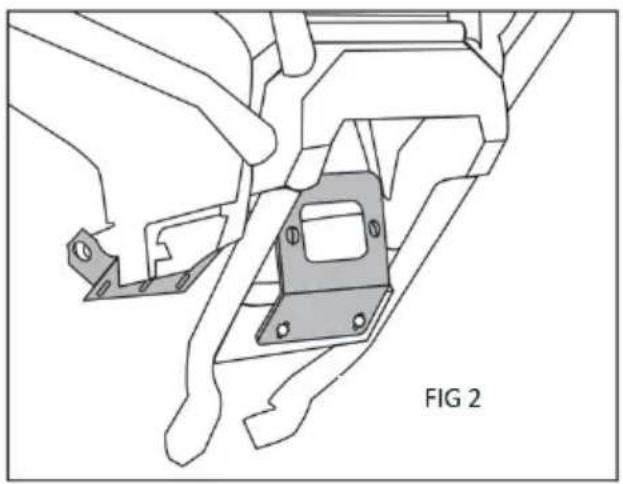

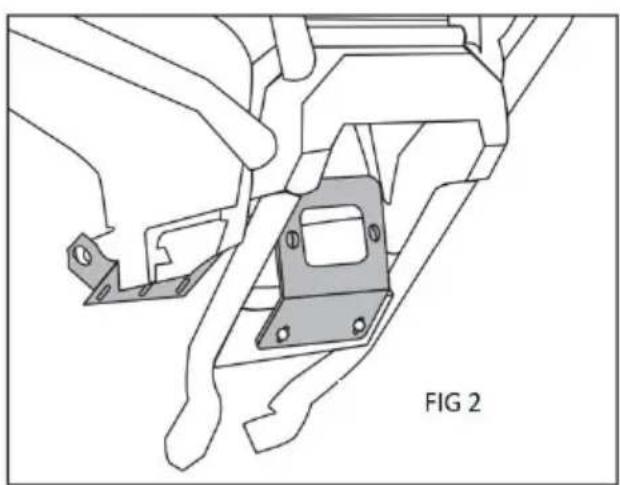

3. Place the winch mounting bracket onto the front bumper, ensuring the two mounting holes beneath the fairlead cutout on the bracket line up the corresponding holes at the bumper's lower front. Then, align the rear winged mounting tabs on the bracket with the bumper's center fin attachment holes. (Refer to Fig 1 and 2.)

4. Attach the front of the winch mounting plate to the bumper by inse flanged hex bolt and flanged lock nut through the aligned holes and tightening them.

Note: Depending on the winch model, the flanged bolts may need to installed in reverse, with the lock nut positioned on the outer side of assembly.

1. Attach the roller fairlead to the front of the winch mounting bracket the included hardware.

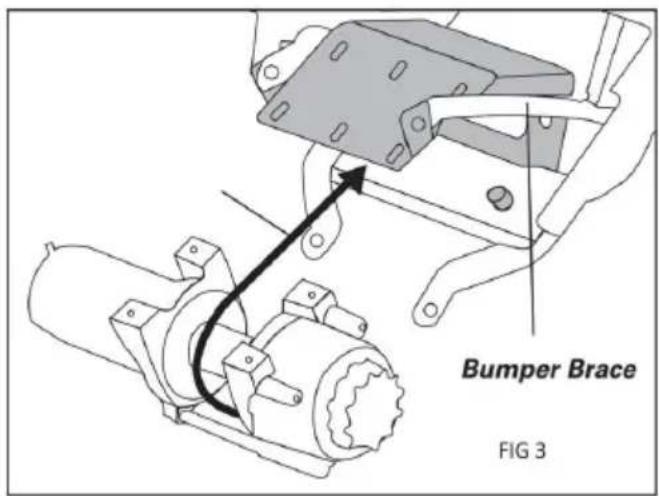

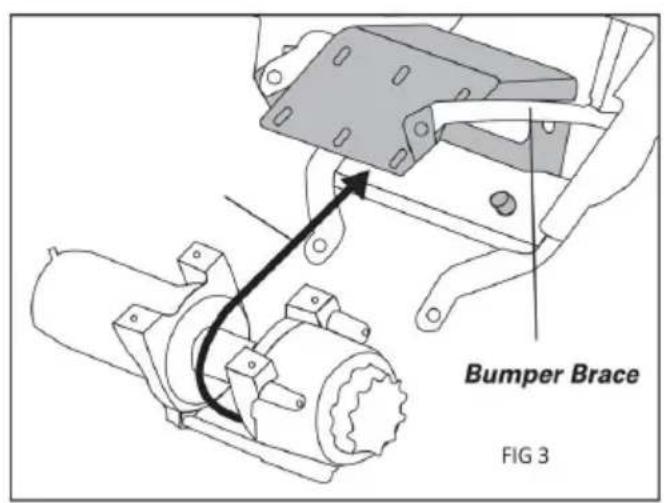

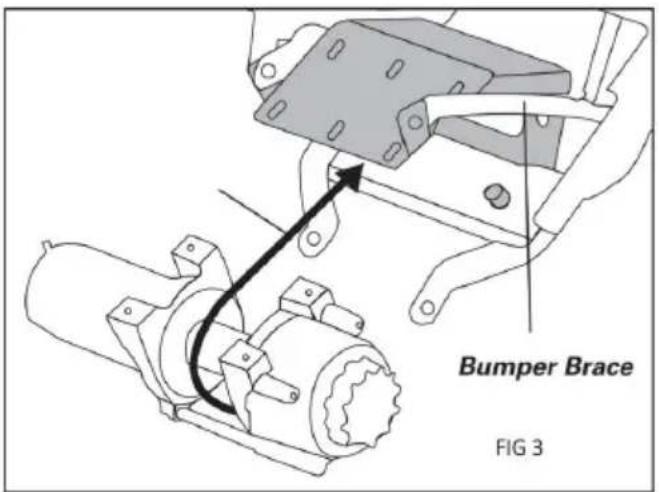

2. Turn the winch so its mounting holes face upward, then slide it into bracket from below. Ensure the winch cable feeds out from the bottom side facing the mounting bracket). (Refer to Figure 3.) Line up the appropriate mounting holes and fasten the winch using the provided hardware.
3. Reattach the bumper assembly to the ATV frame. Temporarily secure top mounting bolts without fully tightening them. Verify that the winged mounting tabs on the bracket align with the corresponding holes on the bumper and frame. Use the original bolts to fix the tabs in place.
4. Reinstall the rest of the original hardware to firmly attach the front bumper to the ATV. Once everything is in position, tighten all fastene 9. Follow the winch manufacturer's wiring guide to correctly connect the winch to the ATV's electrical system.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Bumper Brace FIG 3
