MECHANICAL KEYLESS DOOR LOCK USER MANUAL

MODEL:OL601HD2-B-01 OL601HD2-B-03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:OL601HD2-B-01/OL601HD2-B-03

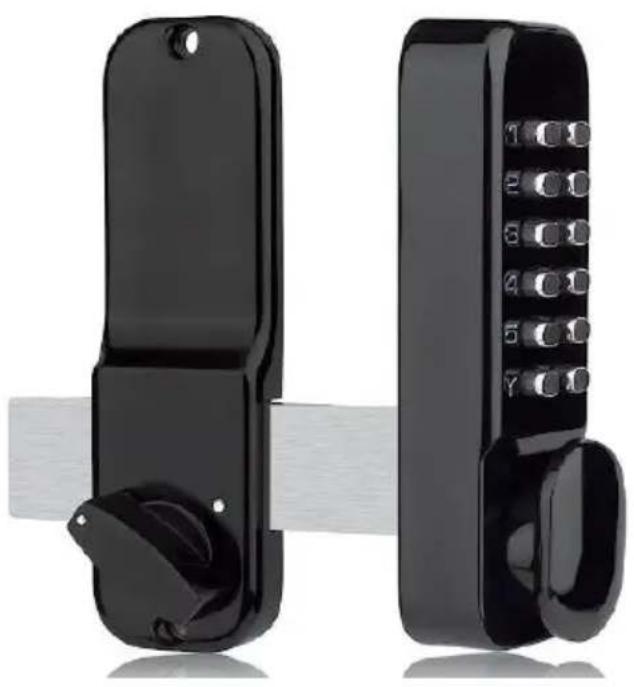

Two black handshells with buttons and a textured handle, one extending horizontally (no text or symbols visible)

(The picture is for reference only; please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result serious injury.

Assembly precautions:

1) Assemble only according to these instructions. Improper assembly can create hazards.
2) Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3) Keep assembly area clean and well lit.
4) Keep bystanders out of the area during assembly.

NOTE:

1. Recommended password length is 4-6 digits.
2. Press the C key to reset before entering your password.
3. The password does not need to be entered in sequence.
4. Changing the password requires disassembly and replacement.

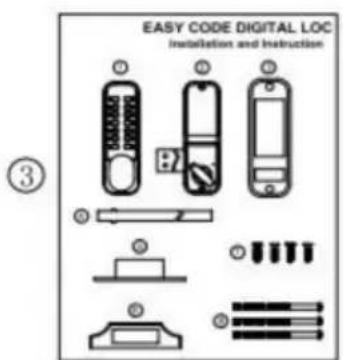

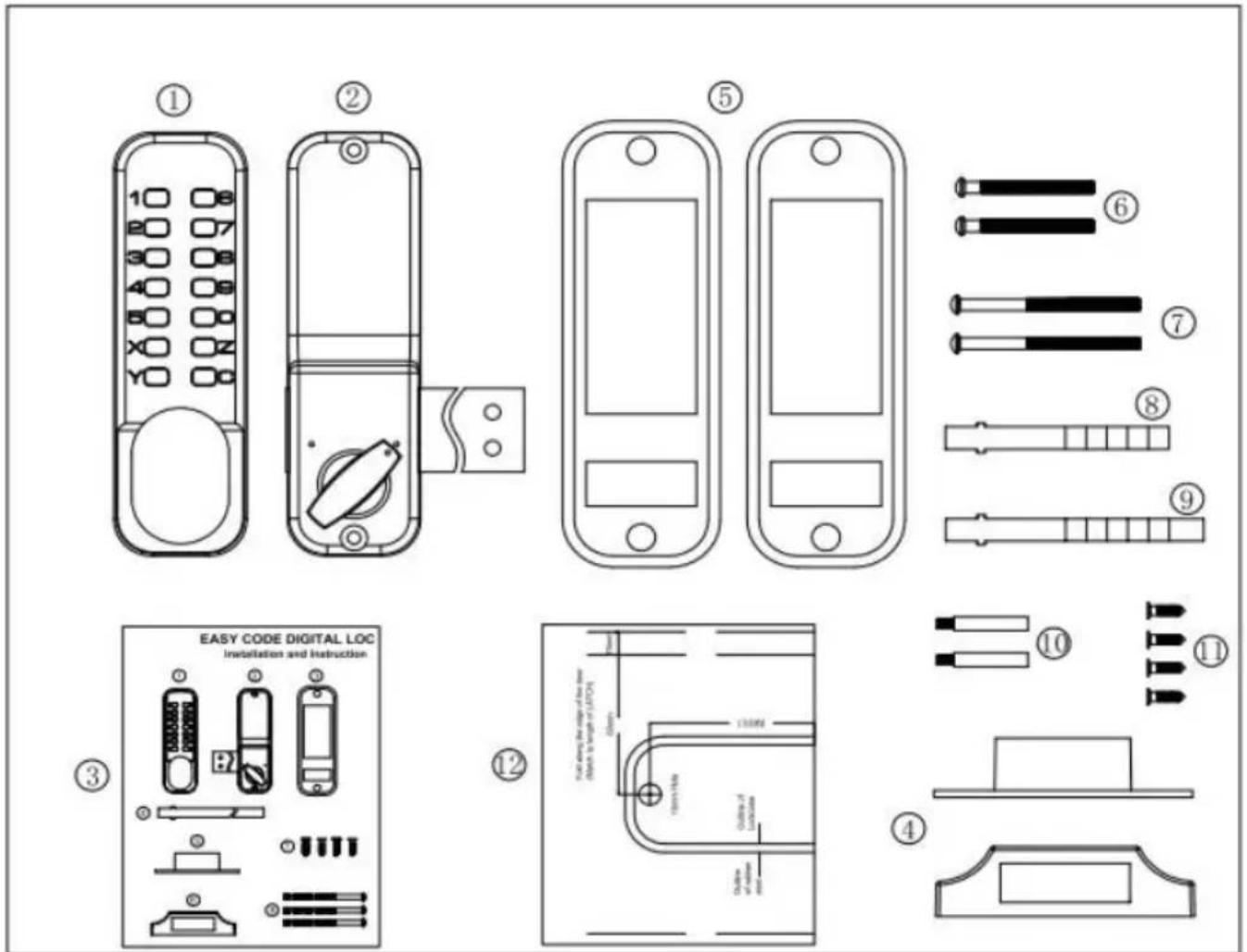

List of Parts

1、Front panel x 1
2、Rear panel x 1
3、Manual x1

4、Door fastening plate x 1 set

5、Widened protection rubber mat(160x65mm)x2 pieces

6、Mounting screws M4x40mm x2pcs.

7、Mounting screws M4x50mmx2 pcs.
8、Mounting flat bar 80mmx 1pc
9, Mounting flat bar 95mm x 1pc
10、Solid stud (M5xM4x40mm)x2 pcs.
11、Cross-slot flat head self-tapping screws (wood screws) x 4
12、Assisted installation drilling sticker x 1

MODEL:OL601HD2-B-01/OL601HD2-B-03

Technical diagram showing exploded and assembled views of a mobile phone's internal components, including keypad, buttons, and control panel.

Installation Process:

1、Check to make sure all parts are working properly.

2、Follow the instructions in "Setting a Password" to set a password.

It is recommended that you set a password of 4 to 6 digits in any order.

3、According to the opening direction of the door, check whether it is

necessary to change the locking direction of the front lock and the left/right direction of the lock bolt of the back lock. If you need to change, follow the instructions.

4、Using the back lock as a reference, work with the opening template

to open the holes in the door.

5、Install the locks and check that the front and rear locks switch locks

properly.

BEFORE INSTALLATION PLEASE:

1) Make sure all parts are working properly
2) Set or change the password "Setting/Changing Passwords". The passwords are in no order and cannot be repeated. Setting a 4-digit code is the most s
3) Ensure that the door lock can be used normally after setting the code Insert the square stem into the square hole of the lock cylinder and turn the square stem.

The latch can be normally extended and retracted.

Setting/Changing Passwords

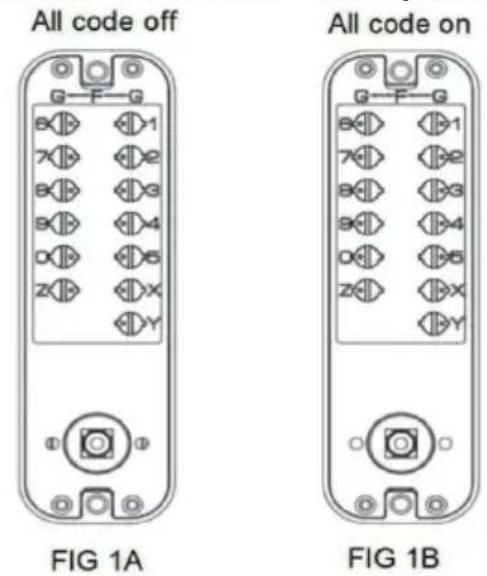

1) On the back of the lock body with numeric buttons, you will see the knob with slots, the point direction towards the center

This position is no password status.(See figure 1A)

2) If you want to set a button as the password, gently push down the button slotted screwdriver and rotate it 180 degrees so that the dot aligns with a r This button will then become the password. The dot should point outward to 'G' (see figure 1B)

3) To cancel a password, gently push down the button with a slotted screw and rotate it 180 degrees so that the dot faces the center of the lock body towards 'F').

Before installing the door, remember the password you have set.

To set the password:

Insert a slotted screwdriver into the slot of the button, push it into the lock and then turn it 180 degrees so that the dot on the button is close to the letter. This number or letter will be the password. There is no order for the password. The C key is used to clear or reset the password, and all other and letters are used as password keys.

To remove the password:

Rotate the button so that the dot on the button moves away from the numb letter.

FIG 2

Door Opening Direction

Confirm the opening direction

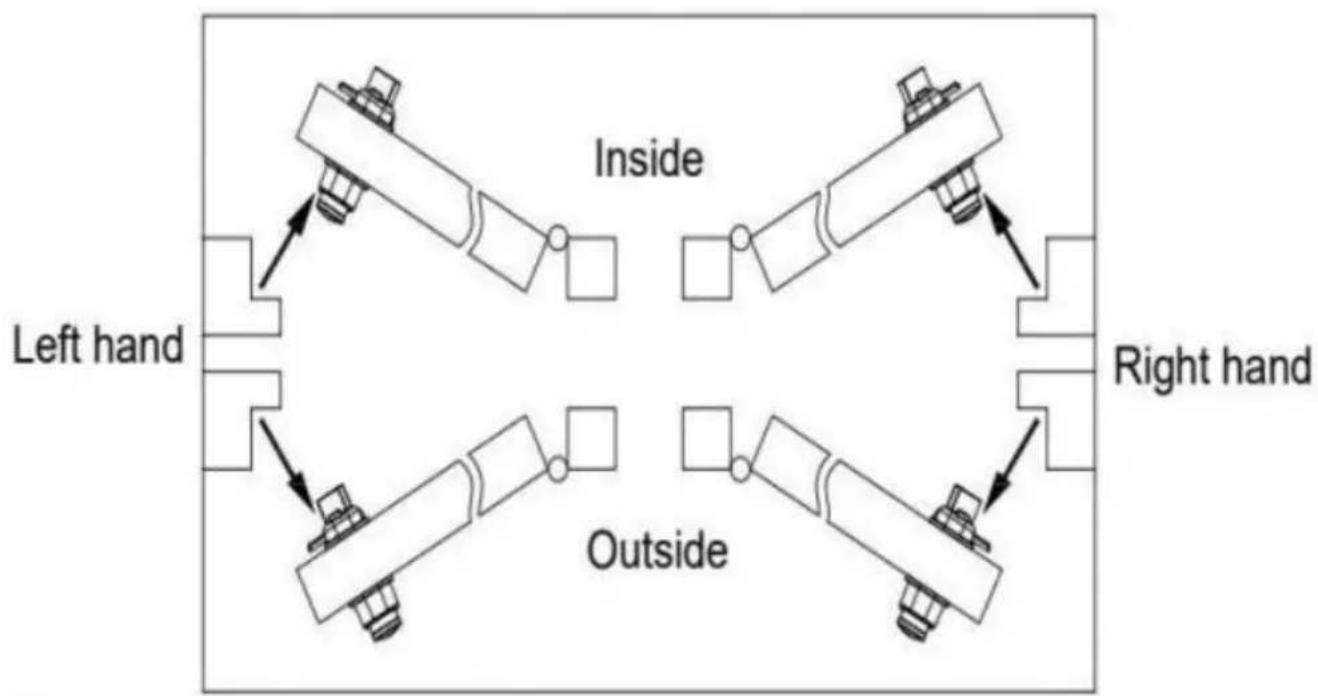

To confirm the door opening direction, refer to the diagram on the right, which can help determine whether the door swings inward or outward.

For doors that swing inward, use the surface-mounted latch plate for installation.

For doors that swing outward, use the side-mounted strike box for installation.

reversing linkage seat

A

Technical line drawing of a mechanical component with no visible text or symbols

B

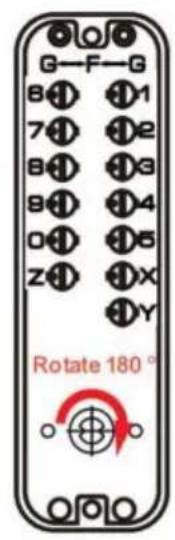

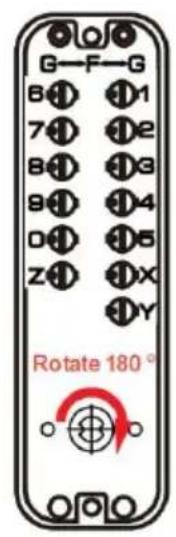

G—F—G 6⊕⊕⊕1 7⊕⊕⊕2 8⊕⊕⊕3 9⊕⊕⊕4 0⊕⊕⊕5 Z⊕⊕⊕X Y⊕⊕⊕ Rotate 180°

©

Technical line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

D

Change the unlocking direction of the lock

The default direction for the front door lock of the password lock is set to the right at the factory. If you want to adjust it to open on the left, you need switch the unlocking direction of the lock. The steps are as follows:

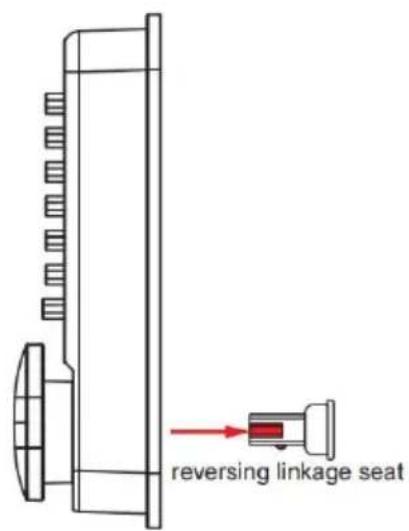

1) First, pull out the reversing linkage seat on the back of the front panel outward (Fig A)
2) Place the reversing linkage seat into the square hole on the front panel (Fig B)
3) Rotate the reversing linkage seat clockwise by 180^ (Fig C), and if switched to the right unlocking direction, rotate it counterclockwise by 180^
4) Finally, press the reversing linkage seat into the square hole on the front panel (Fig D), and the direction exchange is completed.

Technical line drawing of a remote control panel with mounting holes and a separate housing (no text or symbols)

FIG 4A

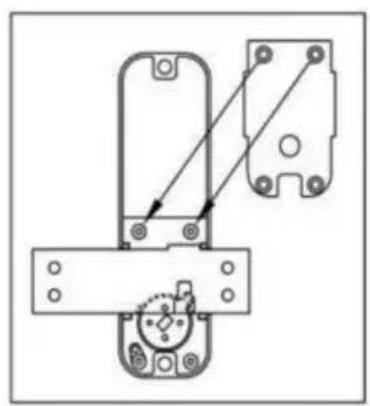

Technical line drawing of a mechanical assembly with mounting holes and a central rotating component (no text or symbols)

Right hand assembly
FIG 4B

Change the direction of the locking bolt:

The password lock is initially set to open on the right by default. If you need adjust it to open on the left, follow these steps:

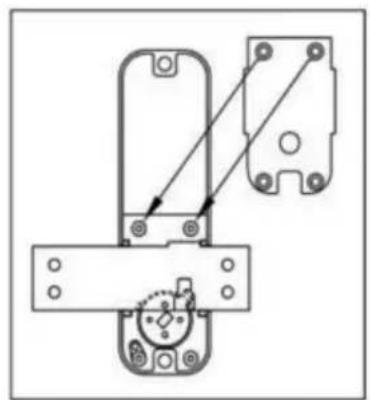

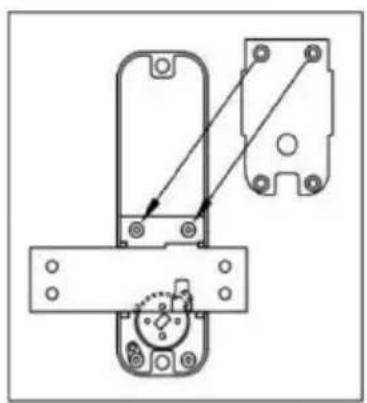

1. Remove the 4 screws and cover plate on the back of the internal lock.
2. Disassemble the locking bolt and flip it (on the left or right with the drive facing downward).
3. Secure the cover plate with screws, turn the knob, and check if the locking retracts and extends normally.

Positioning drilling

1. Press the back of the lock vertically against the door, aligning one end of locking bolt with the edge of the door.
2. Make the corresponding markings for the lock's position.
3. Use the hole drilling template to align with the marked positions, indicating the screw holes and drive shaft hole locations.
4. Drill 10mm holes for the screw holes and 10mm hole for the drive shaft h 5. If there is a larger gap between the door and the frame, you can position in a way that allows the end face of the locking bolt to extend beyond the the door, ensuring a tighter fit when the lock engages with the striker plate.

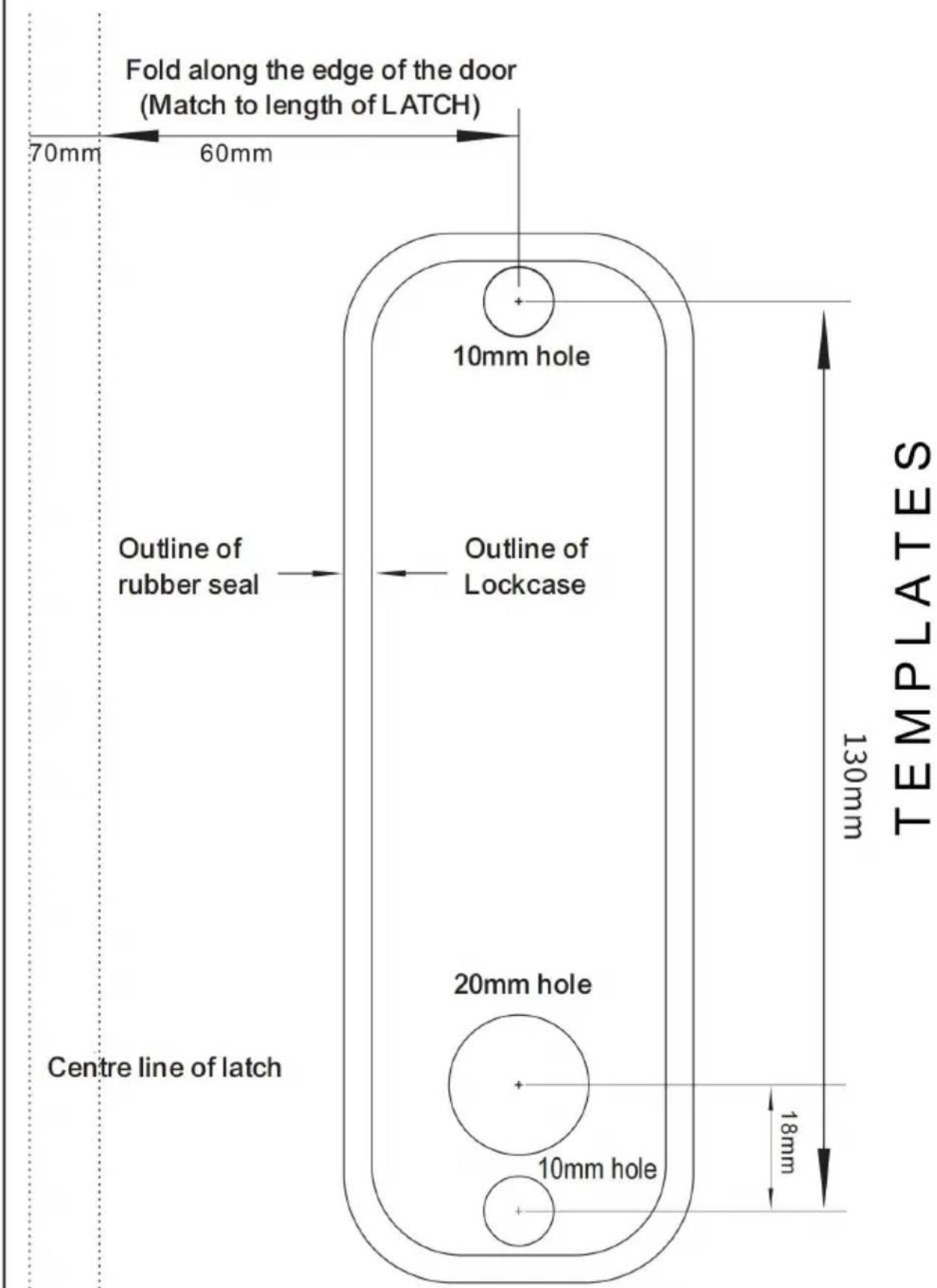

TEMP LATE S 130mm 18mm 10mm hole Outline of Lockcase 20mm hole 10mm hole Outline of rubber seal 60mm 70mm Fold along the edge of the door (Match to length of LATCH) Centre line of latch

Installation and Debugging

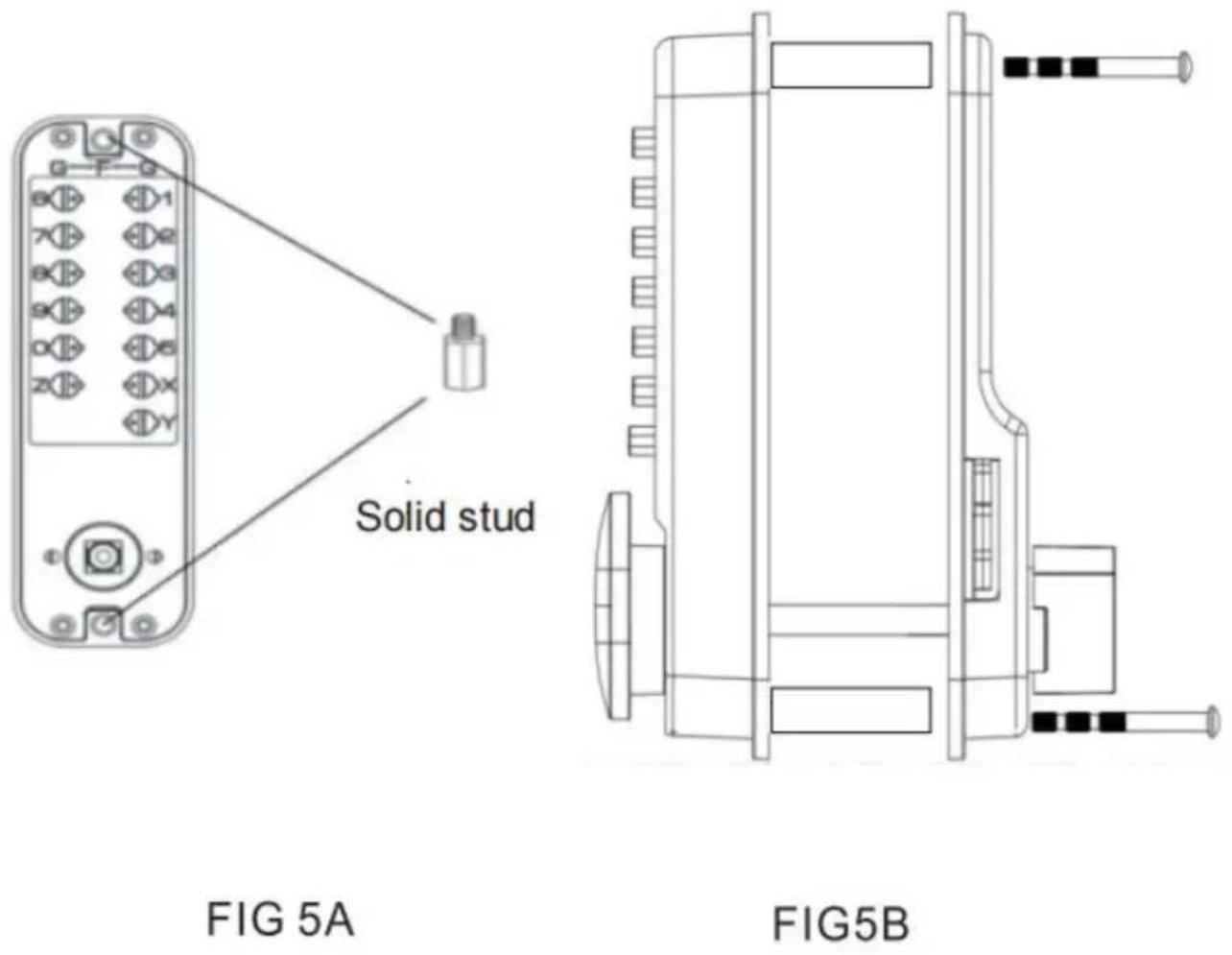

1. First, screw the hollow screw into the corresponding screw hole of the fro password lock, and then select the appropriate size of the drive shaft and installation screws according to the thickness of the door, and install them wi rubber gasket.
2. Do not close the door until it is confirmed that the lock can be opened n using the password. The drive shaft is designed for doors with a thickness of 100mm or less,
3. After the lock is installed, check whether the front and rear locks can be closed normally. When closing the lock, there is no need to enter the password. When opening the lock, press the "C* key to reset before entering correct password to unlock.

The thickness of the door	Solid stud	Screw	Flat bar
35mm-42mm	(M5xM4x40mm) x 2	M4x40 x 2	Flat bar 80mm x 1
43mm-50mm
51mm-58mm		M4x50 x 2	Flat bar 95mm x 1
59mm-65mm

Installing the Door Latch

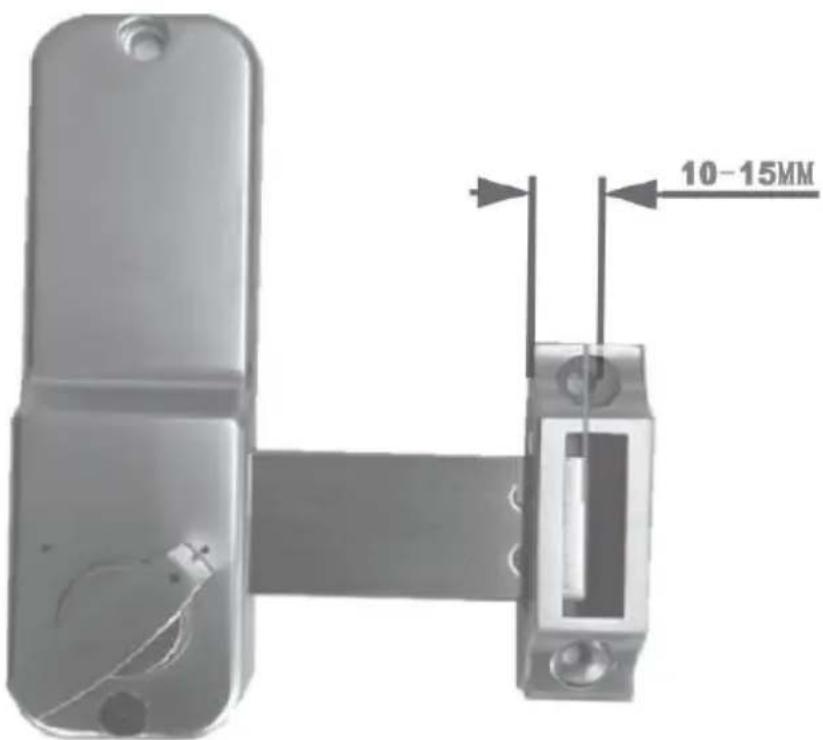

The bolt should be within the size range of 10mm-15mm for the latch box a plate. The positioning of the door latch must allow the bolt to combine with latch when it is locked. Once the correct installation position is determined, o it and install it flush with the door frame.

Ensure that the bolt can fully extend when locked to ensure the anti-theft full of the door lock.

Start by fixing the door latch with one screw and check if the bolt extends retracts properly. If there are any issues, adjustments can be made. Then, tigs with two screws.

10-15MM

FIG 6

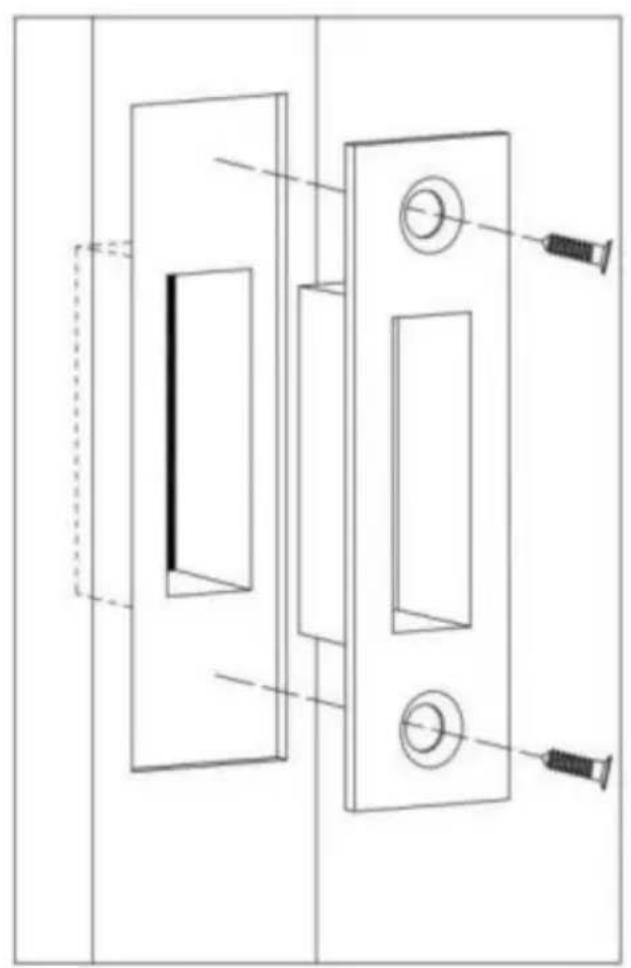

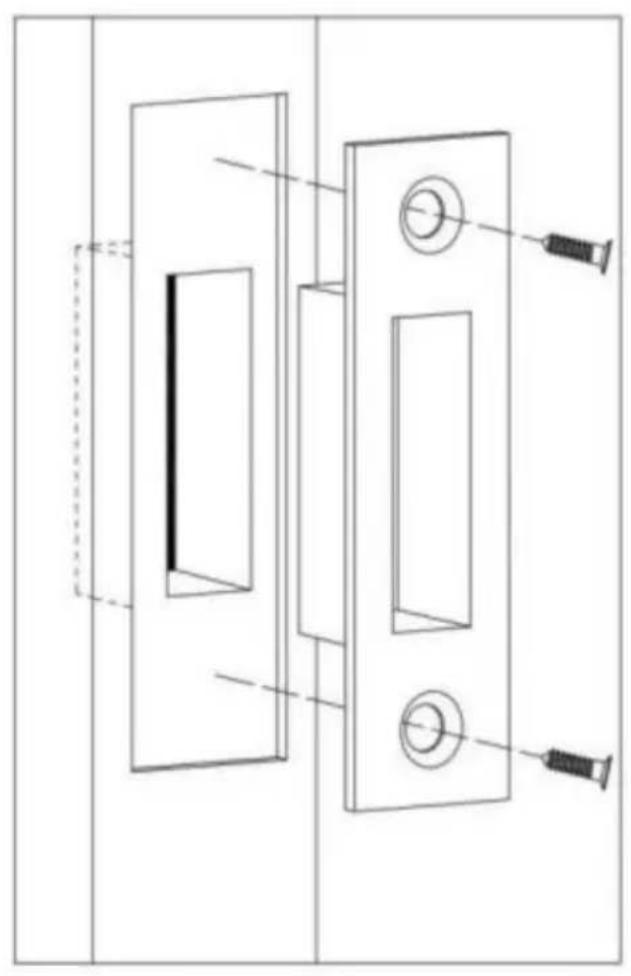

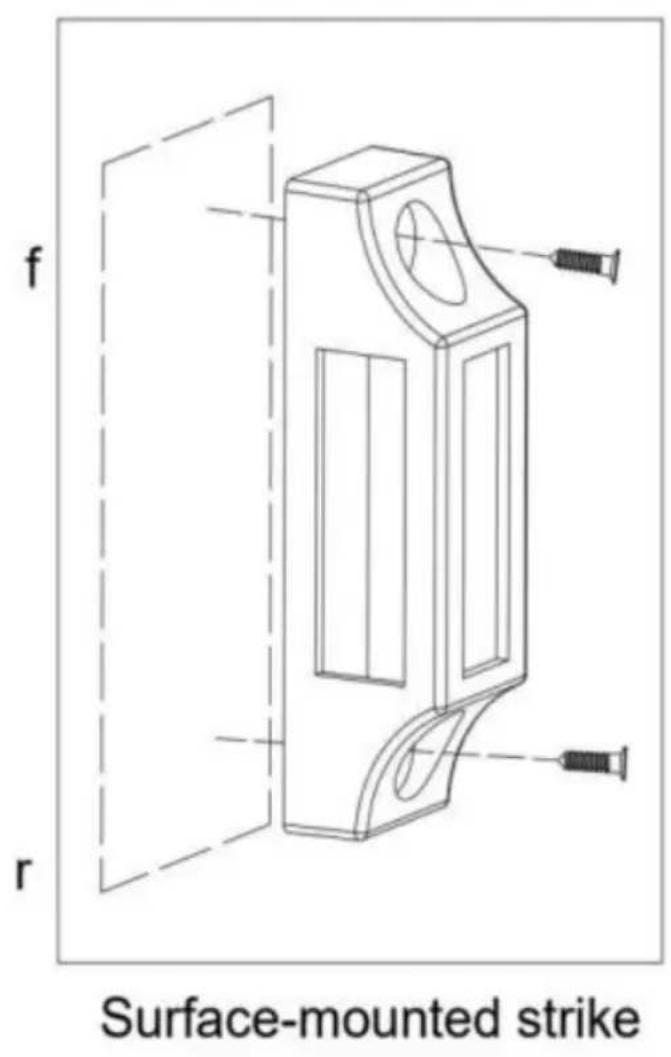

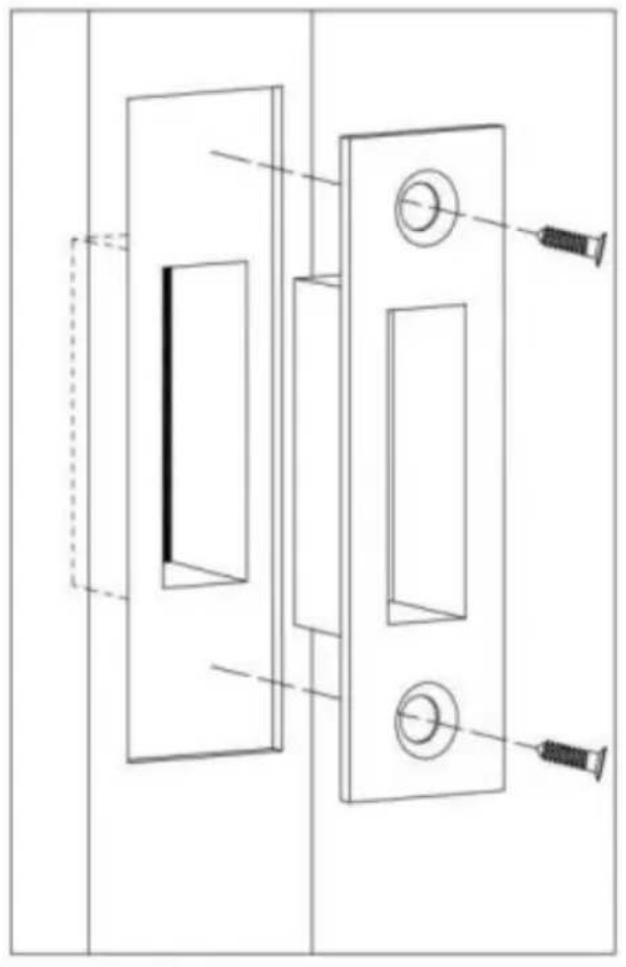

f r Surface-mounted strike

FIG 7A

Technical line drawing of a door latch with two doors and a screw, showing alignment and mounting details (no text or symbols)

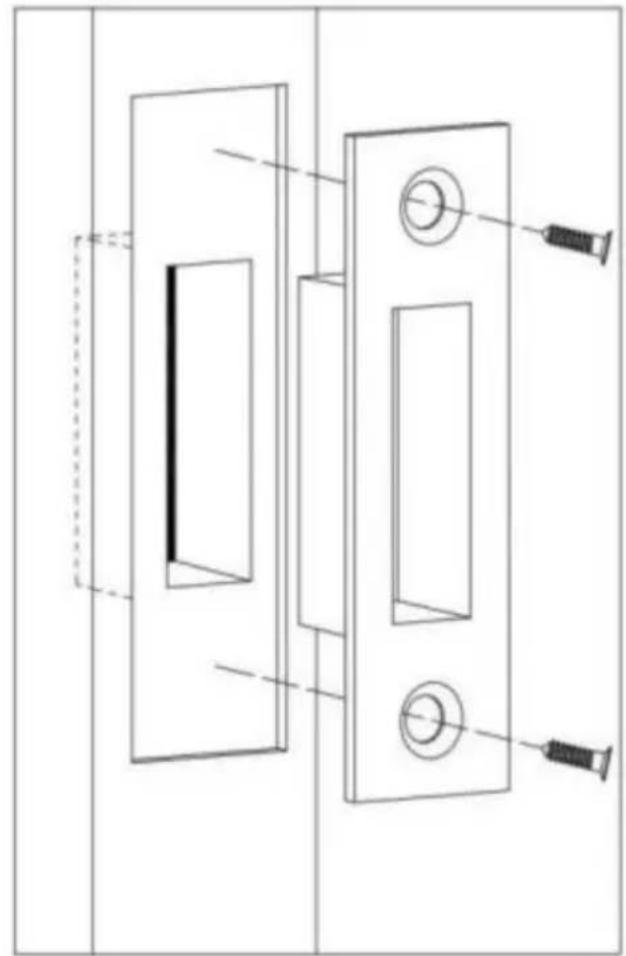

Flush-mounted strike
FIG 7B

Unlock and lock

Tips:C key is clear and reset key. The default button direction to unlock the clockwise, if you change the lock to left-handed , the button direction to unlock door is counterclockwise.

1) Press the correct password, and then turn the button to the opening door's direction to unlock the lock. When you press the password, you are unable the button, check that the password settings whether are correct or not, and t you have pressed the C key before pressing the key.
2) And turn the button in the other direction to re-lock the door.
3) Only from outside, code is necessary to turn the knob for opening. From i the bolt go in and out freely with the internal button.

Setting or cancelling the always-open mode setting the always-open mode, the door can be opened directly by turning the handle without entering password)

First, enter the correct password, press down the handle and hold down the Y at the same time, release the handle first and then release the Y key, and always-open mode is set.

Cancel always-open mode hold down the C key, press down on the handle and the always-open mode will be canceled.

QR code image containing encoded data, no visible human-readable text

Scan the QR code to obtain the operation video
