Brand	Vevor
Model	10190010215
Product Type	Annular cutter (cutting tool)
Shank Type	Weldon Shank
Depth of Cut (DOC)	2 inches
Available cutter diameters	1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", 2"
Cutter material	High-speed steel (HSS)
Compatible materials	Steel, alloy steel, stainless steel, aluminum, cast iron, copper, non-metallic materials
Machine compatibility	Magnetic drill presses (CHTOOLS, ALFRA, RUKO, HOUGEN, Rotabroach, BDS, etc.)
Recommended cutting speed	Varies by diameter and material (e.g., carbon steel 447-88 RPM for diameters 12-65 mm)
Recommended feed speed	0.08 to 0.12 mm/rev or 0.6-1.0 mm/s
Cooling	Use of metal cutting fluid recommended
Installation method	Fixation by socket head screw on the spindle (tighten with clearance of 0.2-0.3 mm)
Safety	Wear goggles and helmet; do not wear loose clothing; cut off power before replacement
Maintenance and cleaning	Remove chips after use; sharpen when wear width reaches 0.5 mm
Common problem: core stuck	Tap the drill lightly or apply pressure on the core with a non-metallic material
Reparability	Sharpenable; spare parts available via Vevor
Warranty	Electronic warranty certificate at www.vevor.com/support
Origin	Made in China

Frequently Asked Questions - 10190010215 Vevor

What cutter diameters are included in model 10190010215?

Model 10190010215 includes six diameters: 1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", and 2". All with a Weldon shank and a depth of cut of 2".

Is this annular cutter compatible with all magnetic drills?

The Weldon shank is compatible with most magnetic drill presses, except Fein machines. For Fein machines, use a specific fine shank.

How to properly install the cutter on the drill?

Screw the shank into the spindle aligning the two screw holes, tighten with a hex key leaving a clearance of 0.2-0.3 mm. Make sure the screw is perpendicular to both planes.

What cutting speed should I use for stainless steel?

For stainless steel, the recommended speed is 76 to 63 RPM for diameters from 12 to 65 mm. Consult the speed table provided in the manual.

How to avoid cutter breakage?

Ensure sufficient cooling with cutting fluid, check the rigidity of the drill tube, that the magnetic base is flat and clean, and reduce the feed by 1/3 at the beginning and end of drilling.

What to do if the cutting core gets stuck in the cutter?

Use a non-metallic tool to lightly tap the drill or apply repeated pressure on the core to dislodge it. You can also remove the cutter and gently tap on a thimble.

When should I sharpen the cutter?

When chips turn blue-black despite normal cooling, check the cutting edge. If the wear width exceeds 0.5 mm, it's time to sharpen.

Can I use this cutter on copper or cast iron?

Yes, it is suitable for cast copper and cast iron. For cast iron, use compressed air instead of cooling fluid to facilitate removal of fine chips.

What safety precautions should I take?

Wear safety goggles and a helmet. Avoid loose clothing and wool gloves. Do not touch the cutter while it is running and cut off power before any replacement.

Where can I get technical support or a warranty certificate?

Go to www.vevor.com/support for technical support and the electronic warranty certificate.

USER MANUAL 10190010215 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ANNULAR CUTTER

USER MANUAL

MODEL: 10190010215/10190010216/10190010146 10190010213/10190010214

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 10190010215/10190010216/10190010146
10190010213/10190010214

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Safety Caution

For your safety please wear goggles and helmet. Do not wear loose clothes or yarn gloves.

1. Please use hook to remove the chip to prevent injuries of hand.
2. Before using, make sure the cutter is sound and securely. Do not cutter with damage.
3. Turn off the machine immediately if the cutter gets stuck.
4. Turn off the power before replace and disassemble cutter.
5. Do not touch the cutter when it is working.
6. Cutter's tip is hard but also fragile. Please protect the cutter to p tipping.

[The usage of annular cutter]

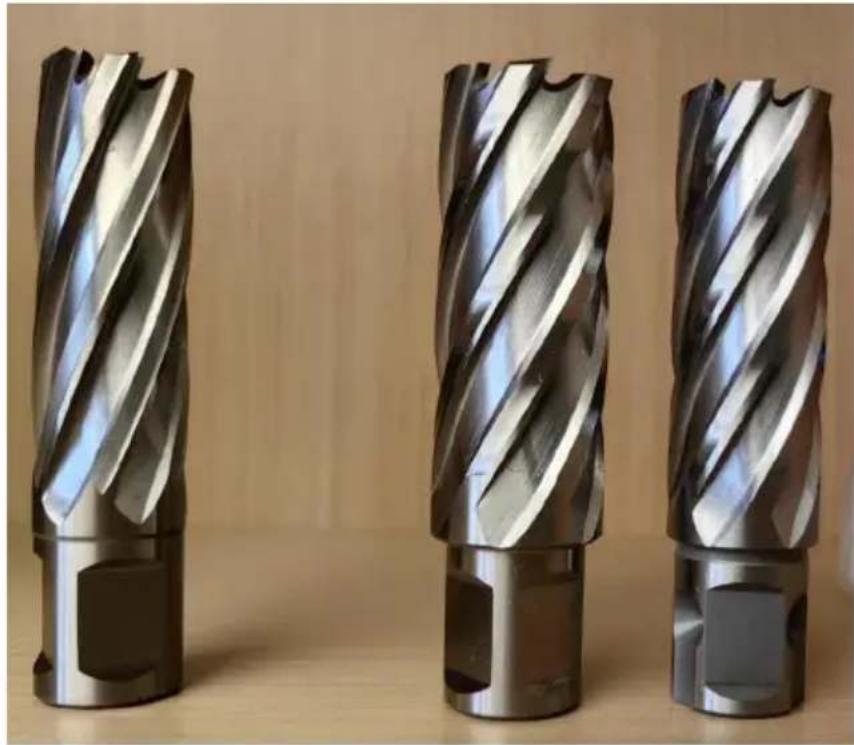

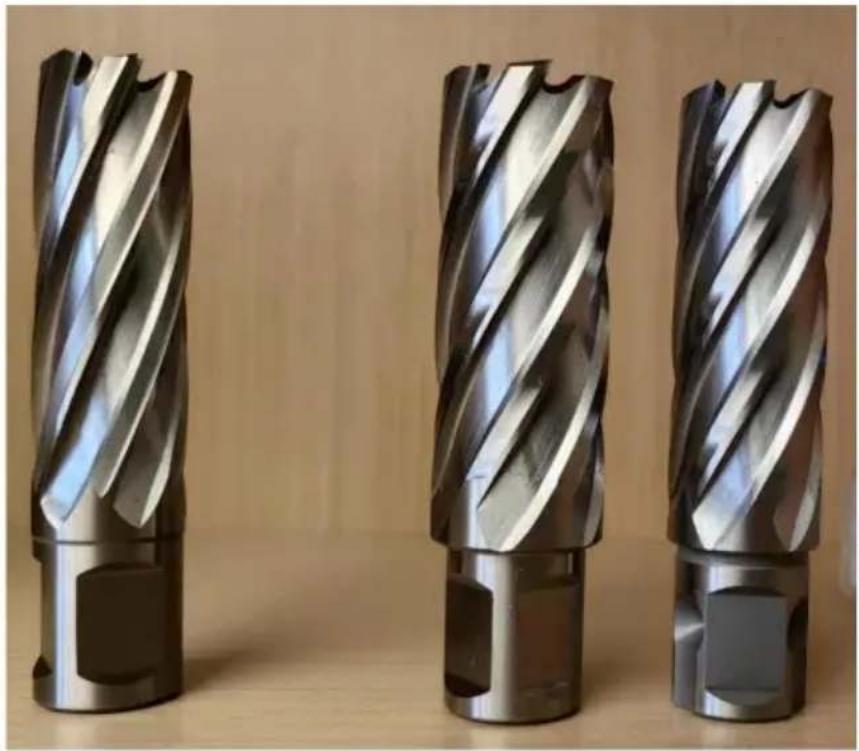

Annular cutter (Core drill). It can cutting all kinds of steel, steel pipe, cast

iron, stainless steel, aluminum, copper and various non-metallic materia

[The type]

Shank	Suitable types of magnetic drill
Weldon shank	Applicable to all kinds of Magnetic core drill machine. Like: CHT ALFRA、RUKO、HOUGEN、Rotabroach、BDS etc.
Universal shank (Nitto shank)	Applicable to all kinds of Magnetic core drill machine, unless Fe machine. Like: CHTOOLS、ALFRA、RUKO、HOUGEN、Rotabroach、BDS etc.
Fein shank	Applicable to Fein machine from Germany

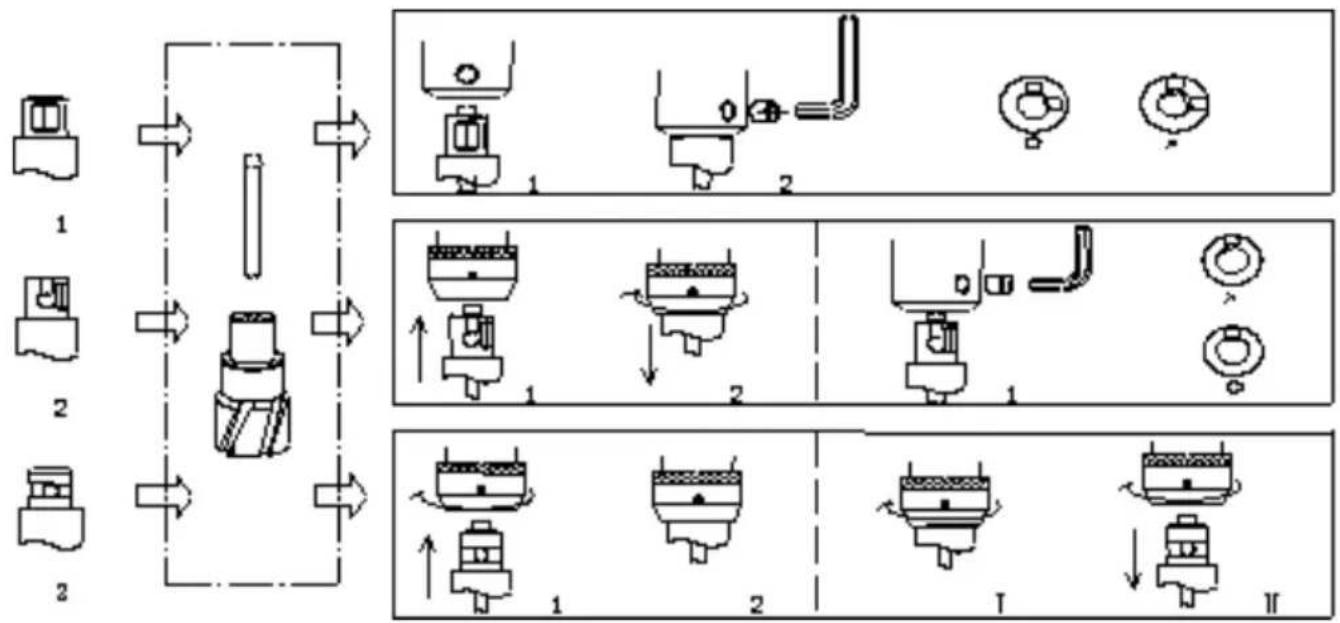

[Method of application]

1. Installation method:

• Weldon shank (1): The handle of two planes aim at the two screw holes

on the drill spindle, With a hex wrench to tighten and leaving a gap 0.2-0.3mm, Back and forth with your hand to confirm socket head screw perpendicular to the two planes, then screw down the screws.

• Universal shank (2): The handle of two planes aim at steel ball within the drill chuck, then loaded into chuck.

Universal shank can also be used socket head screws, As long as shead screw perpendicular to the two planes.

• Fein shank (3): Turn on insurance ring of the main shaft clockwise to the

right way, let the handle end insert into directly, rotate in small range steel ball enter into the hole.

1. Recommended cutting speed for high speed steel annular cutter:

Dia Material	12-18	19-25	26-32	33-39	40-46	47-53	54-60	61-65
carbon steel	447-318	301-229	220-179	173-146	143-124	121-108	106-95	93-88
alloy steel	371-247	234-178	171-139	135-114	111-96	94-84	82-74	73-68
stainless steel	345-230	217-165	159-129	125-106	103-90	88-78	76-69	67-63
Aluminum	1857-1238	1173-891	857-696	675-571	557-484	474-420	412-371	365-342
cast iron	796-530	502-382	367-298	289-244	238-207	203-180	176-159	156-146
cast copper	1194-796	754-573	551-447	434-367	358-311	304-270	265-238	234-220

1. Feed speed: The recommended feed speed is 0.08-0.12mm/R or 0.6-1.0mm/sec. Different feed speed will cause different chip and affect performance of removal of chips.
2. Positioning: Chisel a positioning point in the center of the position drilled or mark a "cross" line with an alloy needle to ensure the acc the drilled position. Note that when using the center chisel to hit the positioning point, please make sure that the center chisel is perpendicular to the surface of the workpiece to avoid affecting the smooth discharge the cutting core
3. Start to drill: Make sure the button of magnetic drill machine is cl before power on. Turn on the switch of coolant liquid when start to First feed slowly and feed in the normal speed after drill 1-2mm.
4. Finish drill: Turn off the power and use hook to remove the chips cutter after it stops.

[Notice]

The following actions will help to reduce or slow wearing and fracturil cutter.

1. When drilling steel parts, please make sure enough amount of cock and use metal cutting fluid.
2. Good rigidity of drill pipe and the guide rail gap can improve the precision of drilling and the life of the bit.
3. Please make sure flat and clean between the magnetic holder and artifacts.

4. Before cutting, make sure all parts to be locked surely.

5. Drilling in the start and at the end, the drilling feed should reduce 6. For a large amount of fine powder material which occurs in the cell such as cast iron, cast copper, etc., can use compressed air instead of coolant liquid to help chip removal.

6. Please remove the chips on the cutter, to ensure smooth chip rer

[The solutions of common problem]

The solutions of chip core stuck:

Use nonmetallic material lightly slaping drill, or lightly pressure core material repeatedly, in order to make it loose to pop up, also can rent the bit, tap the thimble, so that it is out.

The wearing of tools:

Under the normal cooling, when chip appear blue-black color, it need check the drill bit blade, when the most big wear width is 0.5 mm, grinding.

	Items	Description
1	Name	Annular Cutter
2	Model	10190010215
3	Parameter	Shank: Weldon shank D.O.C: 2" Cutter Dia.: 1"、1-1/8"、1-1/4"、1-1/2"、1-3/4"、2"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010216
3	Parameter	Shank: Universal shank D.O.C: 2" Cutter Dia: 1"、1-1/8"、1-1/4"、1-1/2"、1-3/4"、2"
2	Model	10190010146
3	Parameter	Shank: Weldon shank D.O.C: 1" Cutter Dia.: 1/2"、9/16"、11/16"、13/16"、15/16"、1-1/16"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010213
3	Parameter	Shank: Weldon shank D.O.C: 1" Cutter Dia.: 7/16"、1/2"、9/16"、11/16"、5/8"、3/4"、13/16"、7/8"、15/16"、1"、1-1/16"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010214
3	Parameter	Shank: Weldon shank D.O.C: 2" Cutter Dia: 7/16"、1/2"、9/16"、11/16"、5/8"、3/4"、13/16"、7/8"、15/16"、1"、1-1/16"
