Product Type	Annular cutter (core drill) for magnetic drills
Brand	Vevor
Model	10190010214
Shank Type	Weldon Shank
Cutting Depth (DOC)	2 inches (50.8 mm)
Available cutter diameters	7/16", 1/2", 9/16", 11/16", 5/8", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16"
Compatible materials	Carbon steel, alloy steel, stainless steel, aluminum, cast iron, cast copper, various non-metallic materials
Applications	Cutting pipes, tubes, and metal parts with magnetic drill
Recommended cutting speed	Varies by diameter and material (see manual)
Recommended feed rate	0.08 to 0.12 mm/rev or 0.6-1.0 mm/sec
Safety instructions	Wear safety glasses and helmet; do not wear loose clothing; use a hook to remove chips; cut power before replacement; do not touch the cutter while operating
Maintenance	Ensure sufficient cooling; regularly remove chips; sharpen the cutter if wear width > 0.5 mm
Troubleshooting (stuck core)	Tap lightly with a non-metallic material or apply pressure on the core to release it
Replacement parts	Replacement annular cutter available in different diameters
Manufacturer	Made in China by Vevor
Technical support	www.vevor.com/support

Frequently Asked Questions - 10190010214 Vevor

What materials can I cut with this Vevor 10190010214 annular cutter?

This cutter can cut carbon steel, alloy steel, stainless steel, aluminum, cast iron, cast copper, and various non-metallic materials. Refer to the speed table in the manual for optimal settings.

How do I install the cutter on my magnetic drill?

For a Weldon shank, insert the shank into the spindle and tighten the socket head cap screws on both sides leaving a gap of 0.2-0.3 mm. Ensure the shank is perpendicular to both planes.

What cutting speed should I use for stainless steel?

The recommended speed for stainless steel varies by diameter. For example, for a diameter of 12-18 mm, use 345-230 rpm. Refer to the full table in the manual.

What to do if the core (slug) remains stuck in the cutter?

Use a non-metallic material to tap the cutter lightly or apply repeated pressure on the core to dislodge it. You can also remove the cutter and tap it on a thimble to release the core.

How to maintain the annular cutter to extend its life?

Always use metal cutting coolant, remove chips regularly, and sharpen the cutter when wear width exceeds 0.5 mm.

Can I use this cutter on a Fein drill?

This model is designed for a Weldon shank, suitable for most magnetic drills except Fein. For a Fein machine, use a specific fine-shank cutter.

What safety precautions should I take?

Wear safety glasses and a helmet, avoid loose clothing, use a hook to remove chips, and always cut power before replacing or removing the cutter.

How to precisely position the hole before drilling?

Chisel a positioning mark at the center of the area to be drilled or draw a cross with an alloy needle. Ensure the center punch is perpendicular to the surface.

The cutter wears out quickly, what should I do?

Check that you are using appropriate speed and feed for the material, that cooling is sufficient, and that the magnetic drill is stable. If wear exceeds 0.5 mm, sharpen the cutter.

Where can I find the full manual and get support?

The manual is available for free at www.notice-facile.com for model 10190010214 Vevor. For technical support, visit www.vevor.com/support.

USER MANUAL 10190010214 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ANNULAR CUTTER

USER MANUAL

MODEL: 10190010215/10190010216/10190010146 10190010213/10190010214

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ANNULAR CUTTER

MODEL: 10190010215/10190010216/10190010146
10190010213/10190010214

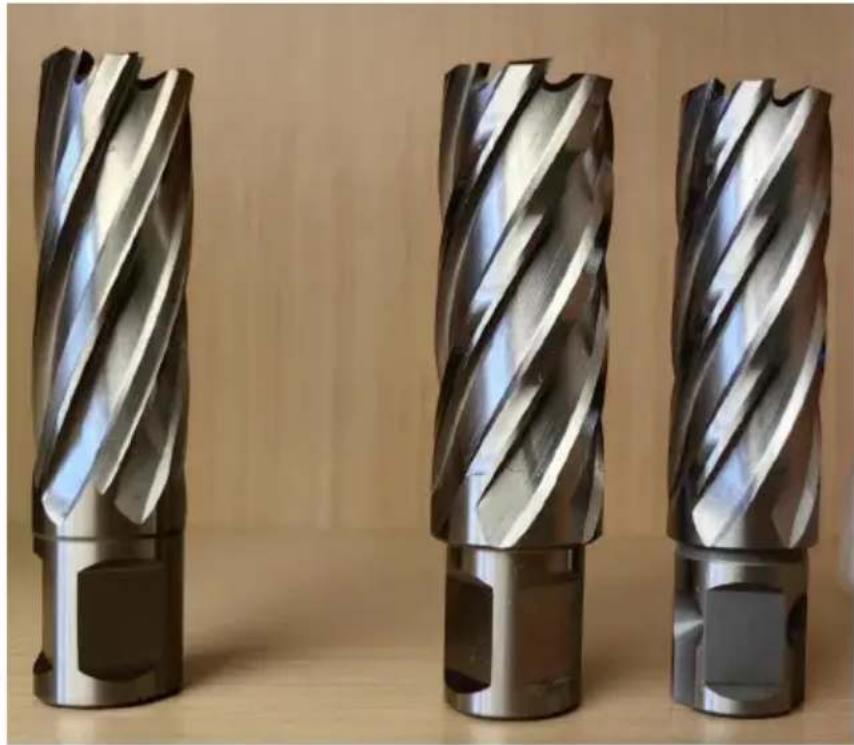

Three metallic twist drill bit designs displayed side by side (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Safety Caution

For your safety please wear goggles and helmet. Do not wear loose clothes or yarn gloves.

1. Please use hook to remove the chip to prevent injuries of hand.
2. Before using, make sure the cutter is sound and securely. Do not cutter with damage.
3. Turn off the machine immediately if the cutter gets stuck.
4. Turn off the power before replace and disassemble cutter.
5. Do not touch the cutter when it is working.
6. Cutter's tip is hard but also fragile. Please protect the cutter to p tipping.

[The usage of annular cutter]

Annular cutter (Core drill). It can cutting all kinds of steel, steel pipe, cast iron, stainless steel, aluminum, copper and various non-metallic materia

[The type]

Shank	Suitable types of magnetic drill
Weldon shank	Applicable to all kinds of Magnetic core drill machine. Like: CHT ALFRA、RUKO、HOUGEN、Rotabroach、BDS etc.
Universal shank (Nitto shank)	Applicable to all kinds of Magnetic core drill machine, unless Fe machine .Like: CHTOOLS、ALFRA、RUKO、HOUGEN、Rotabroach、BDS etc.
Fein shank	Applicable to Fein machine from Germany

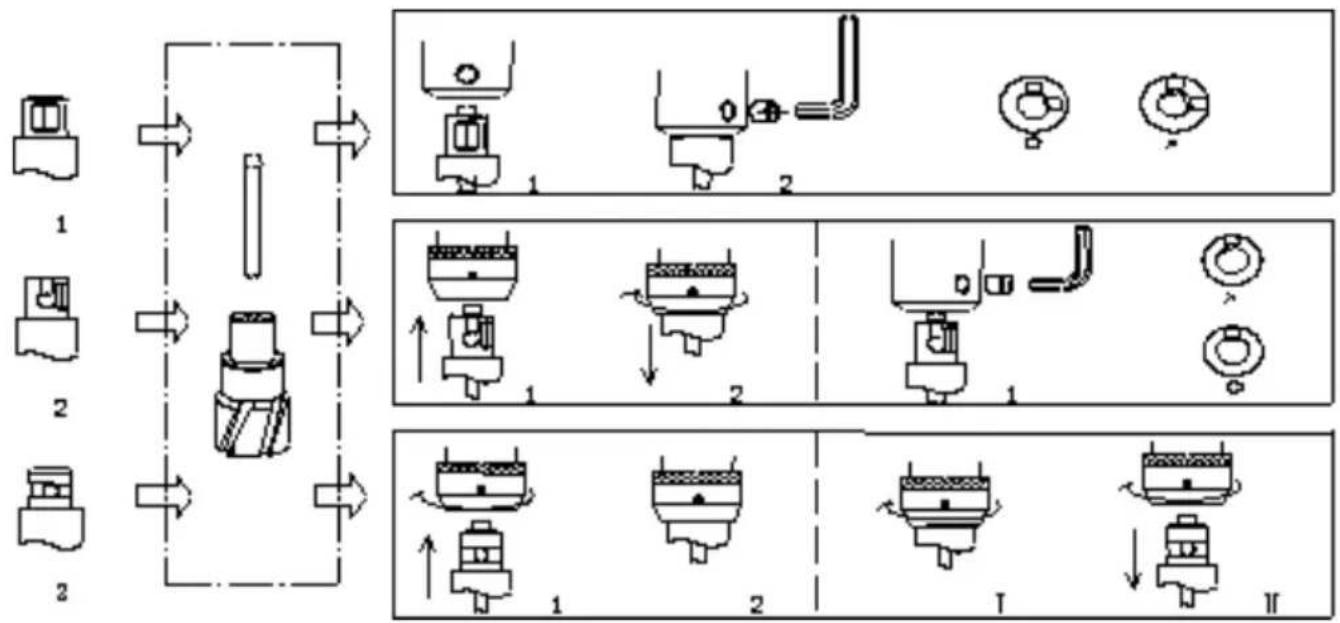

[Method of application]

1. Installation method:

• Weldon shank (1): The handle of two planes aim at the two screw holes on the drill spindle, With a hex wrench to tighten and leaving a gap 0.2-0.3mm, Back and forth with your hand to confirm socket head screw perpendicular to the two planes, then screw down the screws.
  • Universal shank (2): The handle of two planes aim at steel ball within the drill chuck, then loaded into chuck.

Universal shank can also be used socket head screws, As long as s head screw perpendicular to the two planes.

- Fein shank (3): Turn on insurance ring of the main shaft clockwise to the right way, let the handle end insert into directly, rotate in small range steel ball enter into the hole.

1. Recommended cutting speed for high speed steel annular cutter:

Dia Material	12-18	19-25	26-32	33-39	40-46	47-53	54-60	61-65
carbon steel	447-318	301-229	220-179	173-146	143-124	121-108	106-95	93-88
alloy steel	371-247	234-178	171-139	135-114	111-96	94-84	82-74	73-68
stainless steel	345-230	217-165	159-129	125-106	103-90	88-78	76-69	67-63
Aluminum	1857-1238	1173-891	857-696	675-571	557-484	474-420	412-371	365-342
cast iron	796-530	502-382	367-298	289-244	238-207	203-180	176-159	156-146
cast copper	1194-796	754-573	551-447	434-367	358-311	304-270	265-238	234-220

1. Feed speed: The recommended feed speed is 0.08-0.12mm/R or 0.6-1.0mm/sec. Different feed speed will cause different chip and affect performance of removal of chips.

2. Positioning: Chisel a positioning point in the center of the position drilled or mark a "cross" line with an alloy needle to ensure the acc the drilled position. Note that when using the center chisel to hit the positioning point, please make sure that the center chisel is perpendicular to the surface of the workpiece to avoid affecting the smooth discharge the cutting core

3. Start to drill: Make sure the button of magnetic drill machine is cl before power on. Turn on the switch of coolant liquid when start to First feed slowly and feed in the normal speed after drill 1-2mm.

4. Finish drill: Turn off the power and use hook to remove the chips cutter after it stops.

[Notice]

The following actions will help to reduce or slow wearing and fracturic cutter.

1. When drilling steel parts, please make sure enough amount of cocl and use metal cutting fluid.

2. Good rigidity of drill pipe and the guide rail gap can improve the precision of drilling and the life of the bit.

3. Please make sure flat and clean between the magnetic holder and artifacts.

4. Before cutting, make sure all parts to be locked surely.

5. Drilling in the start and at the end, the drilling feed should reduce 6. For a large amount of fine powder material which occurs in the case such as cast iron, cast copper, etc., can use compressed air instead of coolant liquid to help chip removal.

6. Please remove the chips on the cutter, to ensure smooth chip rer

[The solutions of common problem]

The solutions of chip core stuck:

Use nonmetallic material lightly slaping drill, or lightly pressure core material repeatedly, in order to make it loose to pop up, also can ren the bit, tap the thimble, so that it is out.

The wearing of tools:

Under the normal cooling, when chip appear blue-black color, it need check the drill bit blade, when the most big wear width is 0.5 mm, grinding.

	Items	Description
1	Name	Annular Cutter
2	Model	10190010215
3	Parameter	Shank: Weldon shankD.O.C: 2"Cutter Dia.: 1"、1-1/8"、1-1/4"、1-1/2"、1-3/4"、2"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010216
3	Parameter	Shank: Universal shankD.O.C: 2"Cutter Dia: 1"、1-1/8"、1-1/4"、1-1/2"、1-3/4"、2"
2	Model	10190010146
3	Parameter	Shank: Weldon shankD.O.C: 1"Cutter Dia.: 1/2"、9/16"、11/16"、13/16"、15/16"、1-1/16"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010213
3	Parameter	Shank: Weldon shankD.O.C: 1"Cutter Dia.: 7/16"、1/2"、9/16"、11/16"、5/8"、3/4"、13/16"、7/8"、15/16"、1"、1-1/16"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010214
3	Parameter	Shank: Weldon shankD.O.C: 2"Cutter Dia: 7/16"、1/2"、9/16"、11/16"、5/8"、3/4"、13/16"、7/8"、15/16"、1"、1-1/16"
