Product Type	Annular Cutter (Core Drill Bit)
Brand	Vevor
Model	10190010216
Shank Type	Universal Shank (compatible with most magnetic drills except Fein)
Depth of Cut (DOC)	2 inches (50.8 mm)
Cutter Diameters	1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", 2" (6 pieces)
Compatible Materials	Carbon steel, alloy steel, stainless steel, cast iron, aluminum, copper, and other non-metallic materials
Recommended Cutting Speed	Varies by diameter and material (e.g., carbon steel Ø12-18mm: 447-318 RPM)
Recommended Feed Speed	0.08-0.12 mm/rev (0.6-1.0 mm/sec)
Main Use	Precise hole cutting in metal materials for industrial applications
Safety	Wear safety glasses and helmet; use a hook to remove chips; do not touch the cutter while operating; cut power before changing
Installation	Universal shank: insert into chuck with steel ball; can be tightened with socket head screw
Cooling	Use cutting fluid for metal; for cast iron and copper, compressed air possible
Maintenance	Remove chips regularly; sharpen cutter if wear width exceeds 0.5 mm
Common Issues	Chip jam: tap lightly or remove drill and tap on the slug pusher; tool wear: check blade and sharpen
Reparability	Sharpenable; spare parts not specified
Package Contents	6 annular cutters of different diameters (depending on model)

Frequently Asked Questions - 10190010216 Vevor

What materials can I cut with this annular cutter?

This cutter can cut carbon steel, alloy steel, stainless steel, cast iron, aluminum, copper, and various non-metallic materials. Refer to the speed table for each material.

How to install the cutter with a universal shank?

Insert the shank into the chuck of the magnetic drill, aligning the steel ball. You can also use a socket head screw for additional clamping, ensuring the screw is perpendicular to both planes.

What cutting speed should I use?

The speed depends on the cutter diameter and material. For example, for carbon steel between 12 and 18 mm, use 447-318 RPM. Refer to the table in the manual for exact values.

How to avoid cutter breakage?

Ensure sufficient cooling with cutting fluid, good rigidity of the setup, and reduced feed at the start and end of drilling. Remove chips regularly.

What to do if the cutter jams or chips block?

If the chip core is stuck, tap the drill lightly with a non-metallic material or apply pressure to the core. You can also remove the cutter and tap the slug pusher to release it.

How to know when to sharpen the cutter?

If chips turn blue-black under normal cooling or if the maximum wear width reaches 0.5 mm, it is time to sharpen the cutter.

Can I use these cutters with a Fein magnetic drill?

The universal shank is not compatible with Fein machines. For Fein, use a slim shank (specific model). Check the shank type of your drill.

What is the maximum depth of cut?

The depth of cut (DOC) for this model is 2 inches (50.8 mm). Do not exceed this depth.

How to clean and maintain the cutters?

After each use, remove chips with a hook. Store cutters in a dry place. Sharpen if necessary. Do not drop them, as the tip is fragile.

Where to find technical support and warranty?

Visit www.vevor.com/support for technical support and electronic warranty certificate.

USER MANUAL 10190010216 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ANNULAR CUTTER

USER MANUAL

MODEL: 10190010215/10190010216/10190010146 10190010213/10190010214

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ANNULAR CUTTER

MODEL: 10190010215/10190010216/10190010146
10190010213/10190010214

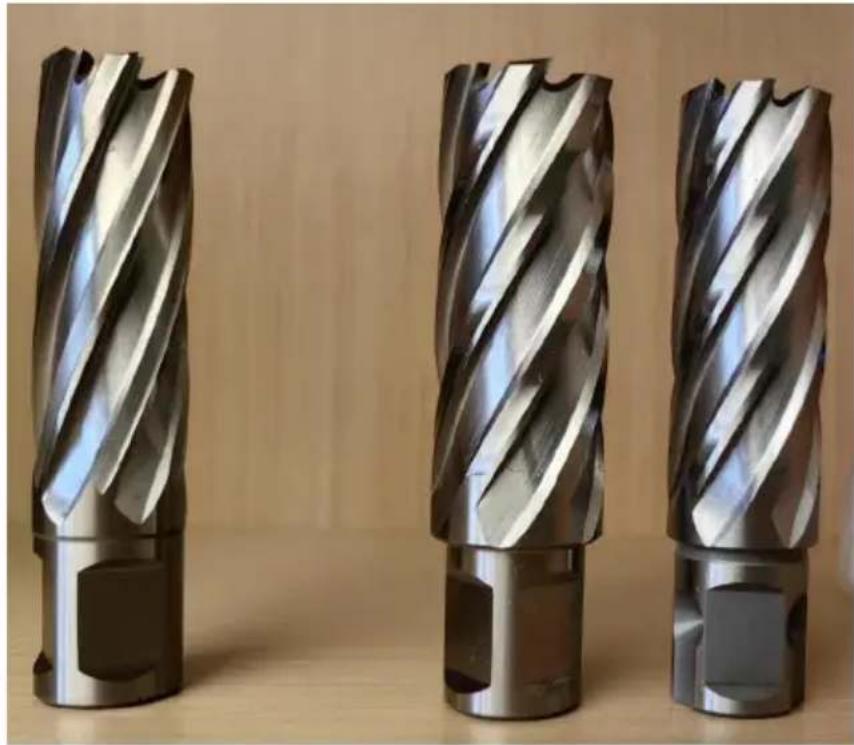

Three metallic twist drill bit designs displayed side by side (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Safety Caution

For your safety please wear goggles and helmet. Do not wear loose clothes or yarn gloves.

1. Please use hook to remove the chip to prevent injuries of hand.
2. Before using, make sure the cutter is sound and securely. Do not cutter with damage.
3. Turn off the machine immediately if the cutter gets stuck.
4. Turn off the power before replace and disassemble cutter.
5. Do not touch the cutter when it is working.
6. Cutter's tip is hard but also fragile. Please protect the cutter to p tipping.

[The usage of annular cutter]

Annular cutter (Core drill). It can cutting all kinds of steel, steel pipe, cast iron, stainless steel, aluminum, copper and various non-metallic materia

[The type]

Shank	Suitable types of magnetic drill
Weldon shank	Applicable to all kinds of Magnetic core drill machine. Like: CHT ALFRA、RUKO、HOUGEN、Rotabroach、BDS etc.
Universal shank (Nitto shank)	Applicable to all kinds of Magnetic core drill machine, unless Fe machine .Like: CHTOOLS、ALFRA、RUKO、HOUGEN、Rotabroach、BDS etc.
Fein shank	Applicable to Fein machine from Germany

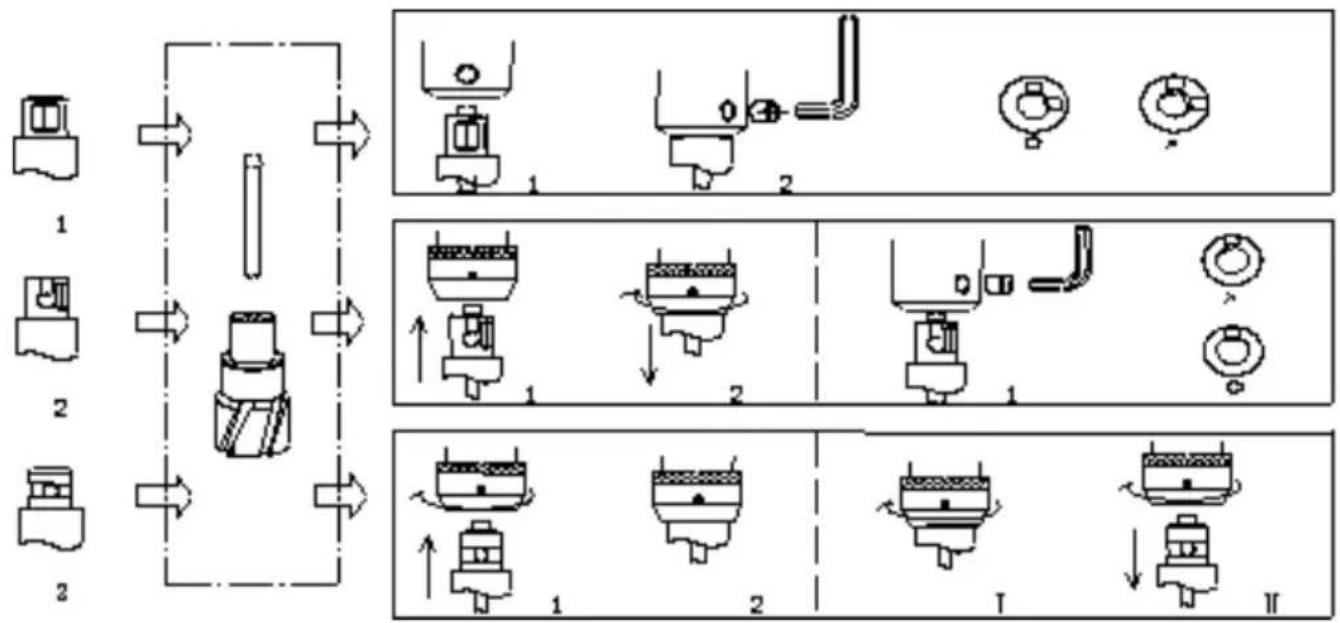

[Method of application]

1. Installation method:

- Weldon shank (1): The handle of two planes aim at the two screw holes on the drill spindle, With a hex wrench to tighten and leaving a gap 0.2-0.3mm, Back and forth with your hand to confirm socket head sc perpendicular to the two planes, then screw down the screws. - Universal shank (2): The handle of two planes aim at steel ball within the drill chuck, then loaded into chuck.

Universal shank can also be used socket head screws, As long as s head screw perpendicular to the two planes.

- Fein shank (3): Turn on insurance ring of the main shaft clockwise to the right way, let the handle end insert into directly, rotate in small range steel ball enter into the hole.

1. Recommended cutting speed for high speed steel annular cutter:

Dia Material	12-18	19-25	26-32	33-39	40-46	47-53	54-60	61-65
carbon steel	447-318	301-229	220-179	173-146	143-124	121-108	106-95	93-88
alloy steel	371-247	234-178	171-139	135-114	111-96	94-84	82-74	73-68
stainless steel	345-230	217-165	159-129	125-106	103-90	88-78	76-69	67-63
Aluminum	1857-1238	1173-891	857-696	675-571	557-484	474-420	412-371	365-342
cast iron	796-530	502-382	367-298	289-244	238-207	203-180	176-159	156-146
cast copper	1194-796	754-573	551-447	434-367	358-311	304-270	265-238	234-220

1. Feed speed: The recommended feed speed is 0.08-0.12mm/R or 0.6-1.0mm/sec. Different feed speed will cause different chip and affect performance of removal of chips.

2. Positioning: Chisel a positioning point in the center of the position drilled or mark a "cross" line with an alloy needle to ensure the acc the drilled position. Note that when using the center chisel to hit the positioning point, please make sure that the center chisel is perpendicular to the surface of the workpiece to avoid affecting the smooth discharge the cutting core

3. Start to drill: Make sure the button of magnetic drill machine is cl before power on. Turn on the switch of coolant liquid when start to First feed slowly and feed in the normal speed after drill 1-2mm.

4. Finish drill: Turn off the power and use hook to remove the chips cutter after it stops.

[Notice]

The following actions will help to reduce or slow wearing and fracturic cutter.

1. When drilling steel parts, please make sure enough amount of cocl and use metal cutting fluid.

2. Good rigidity of drill pipe and the guide rail gap can improve the precision of drilling and the life of the bit.

3. Please make sure flat and clean between the magnetic holder and artifacts.

4. Before cutting, make sure all parts to be locked surely.

5. Drilling in the start and at the end, the drilling feed should reduce 6. For a large amount of fine powder material which occurs in the case such as cast iron, cast copper, etc., can use compressed air instead of coolant liquid to help chip removal.

6. Please remove the chips on the cutter, to ensure smooth chip rer

[The solutions of common problem]

The solutions of chip core stuck:

Use nonmetallic material lightly slaping drill, or lightly pressure core material repeatedly, in order to make it loose to pop up, also can ren the bit, tap the thimble, so that it is out.

The wearing of tools:

Under the normal cooling, when chip appear blue-black color, it need check the drill bit blade, when the most big wear width is 0.5 mm, grinding.

	Items	Description
1	Name	Annular Cutter
2	Model	10190010215
3	Parameter	Shank: Weldon shankD.O.C: 2"Cutter Dia.: 1"、1-1/8"、1-1/4"、1-1/2"、1-3/4"、2"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010216
3	Parameter	Shank: Universal shankD.O.C: 2"Cutter Dia: 1"、1-1/8"、1-1/4"、1-1/2"、1-3/4"、2"
2	Model	10190010146
3	Parameter	Shank: Weldon shankD.O.C: 1"Cutter Dia.: 1/2"、9/16"、11/16"、13/16"、15/16"、1-1/16"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010213
3	Parameter	Shank: Weldon shankD.O.C: 1"Cutter Dia.: 7/16"、1/2"、9/16"、11/16"、5/8"、3/4"、13/16"、7/8"、15/16"、1"、1-1/16"

	Items	Description
1	Name	Annular Cutter
2	Model	10190010214
3	Parameter	Shank: Weldon shankD.O.C: 2"Cutter Dia: 7/16"、1/2"、9/16"、11/16"、5/8"、3/4"、13/16"、7/8"、15/16"、1"、1-1/16"
