SOAP CUTTER

MODEL: KH-Q03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SOAP CUTTER

MODEL: KH-Q03

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Always follow basic safety precautions when using these devices.

These include:

1. The device should not be used with children. There are blades or steels wire on the device. Children may encounter injury accidents. Therefore, this product should be placed in a position not touched by children.
2. For optimal operation and service life of the device, please follow the instructions.
3. Always clean this equipment immediately after every use. To maintain the appearance and increase the service life, clean it daily.
4. Care should be taken not to touch the banging blades or steels directly or operate with gloves during operation.
5. Do not put these devices in a dishwasher or other automatic cleaning device cleaning.
6. The use of accessories or modifications not provided by the manufacturer m cause hazards.
7. Only use this equipment for cutting soap! This product is not suitable for processing foods.
8. Before using this equipment for the first time, please remove all packaging fixing materials according to the illustration and use them after installation.
9. To the replace blade or steel sets, please ensure that the specification and models of blade plate are consistent.

WARNING: Blades or steels can cause cuts. To avoid injury from blades or handle with care and watch your fingers.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	KH-Q03
Cutting Mode	Single-wire Cutting
Cutting Spacing	0-2inch(Adjustable)
Material	Bamboo & Stainless Steel

STRUCTURE DIAGRAM AND COMPONENTS

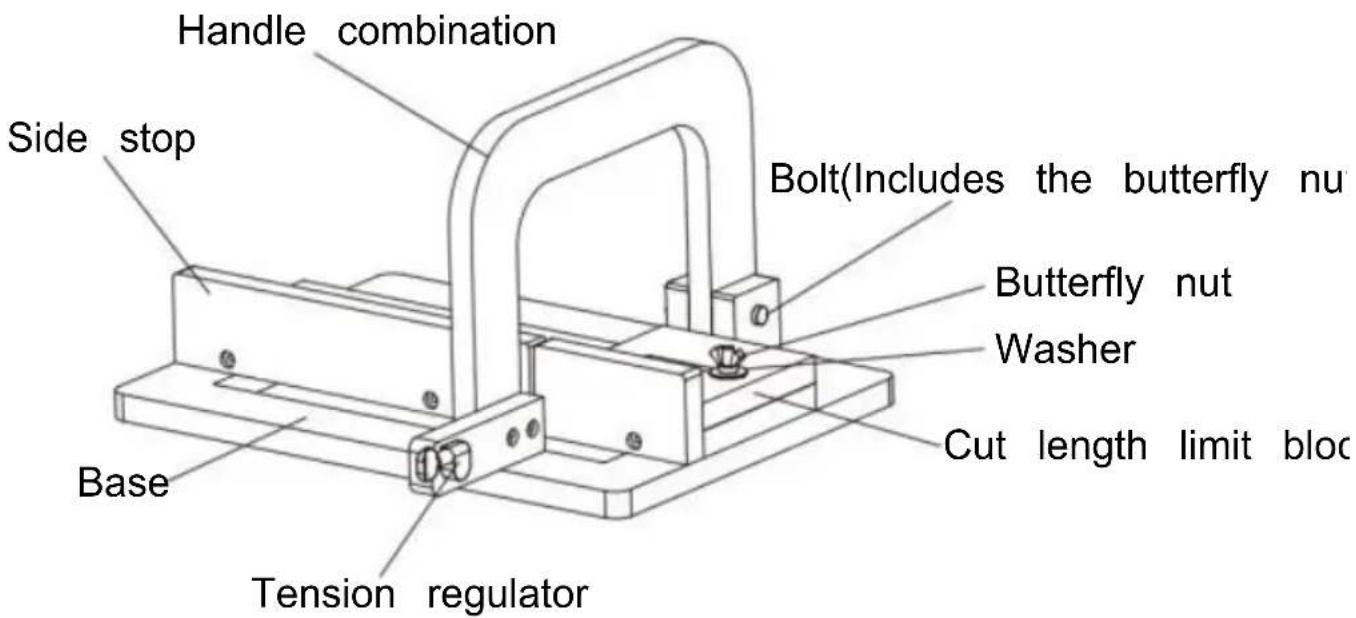

Handle combination Side stop Bolt(Includes the butterfly nu Butterfly nut Washer Cut length limit block Base Tension regulator

No.	Picture	Name	Qty
1		Base	1
2		Side stop	1
3		Cutting length limit block	1
4		Handle combination	1
5		Screwdriver	1
6		Open spanner	1
7		Screws	3
8		Bolts	2
9		Butterfly nuts	2
10		Washer	2
11		Cutting wire	10
12		User Manual	1

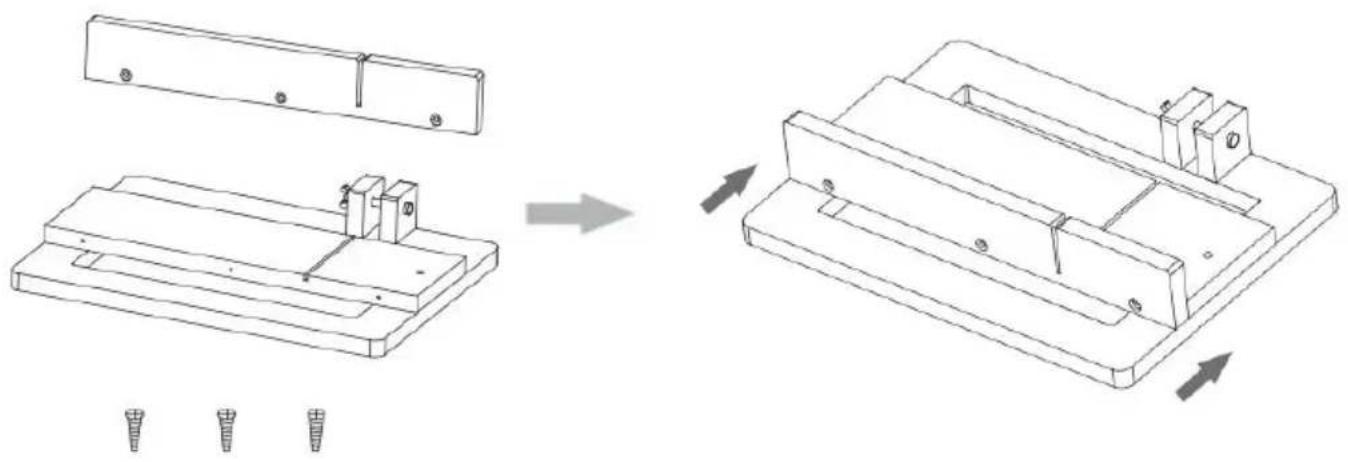

1. Assemble the base and the side stop with 3 screws in the direction indicated by the arrow.

Technical line drawing of a mechanical assembly showing a bracket, mounting base, and housing with four screw holes (no text or symbols)

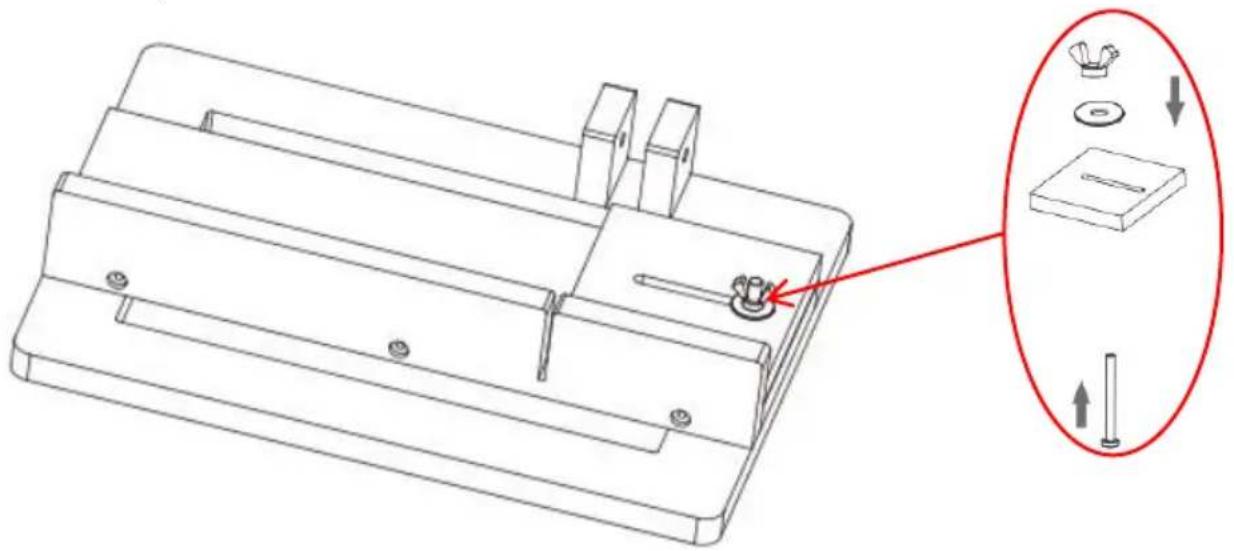

1. The bolt is threaded from the bottom of the base, and then the cut length limit block, gasket and the butterfly nut are put down in turn fc assembly.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a close-up view of a component with a red arrow pointing to a specific part.

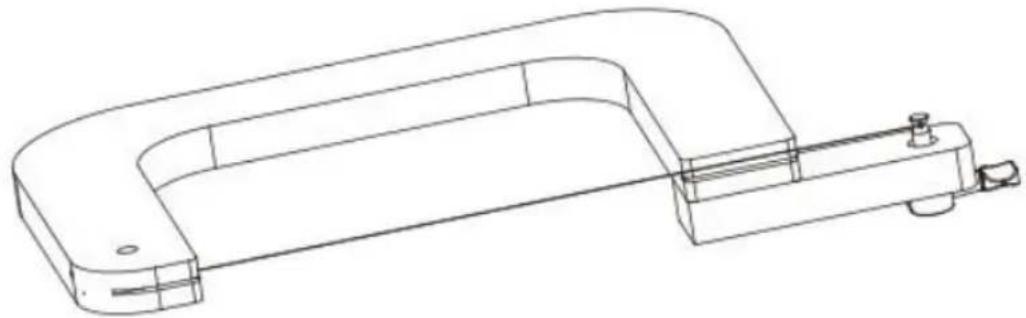

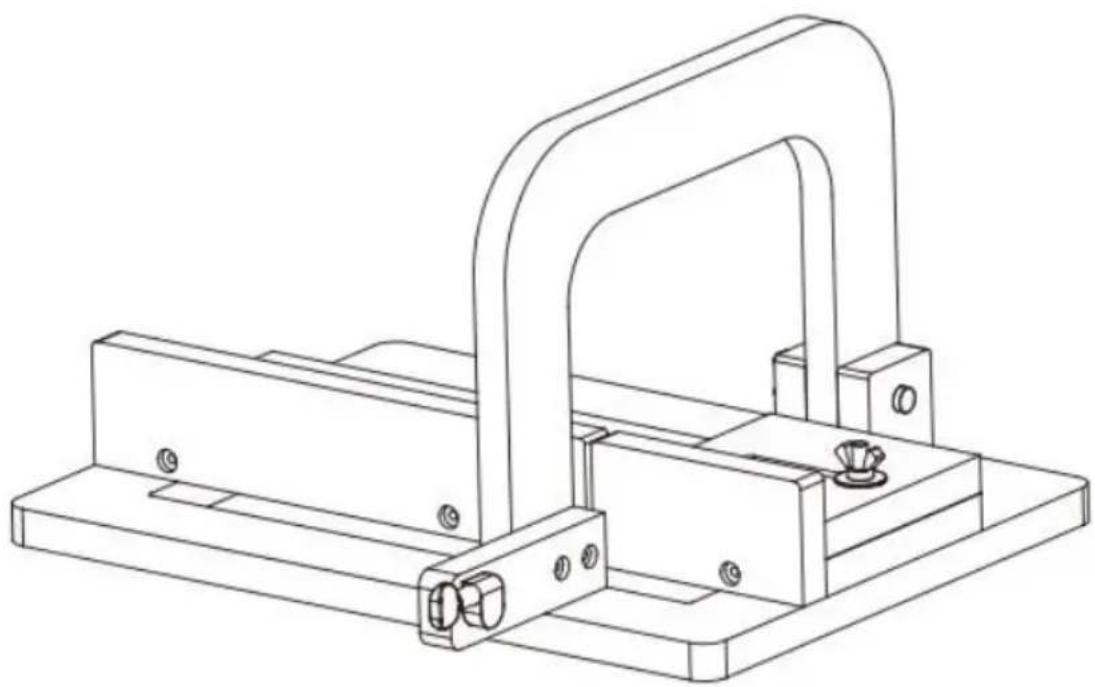

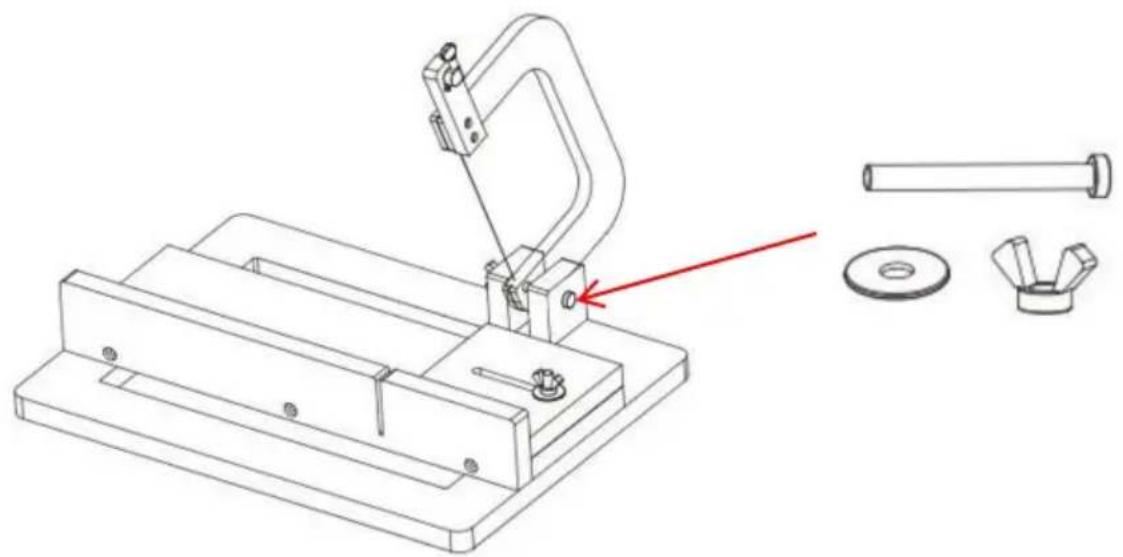

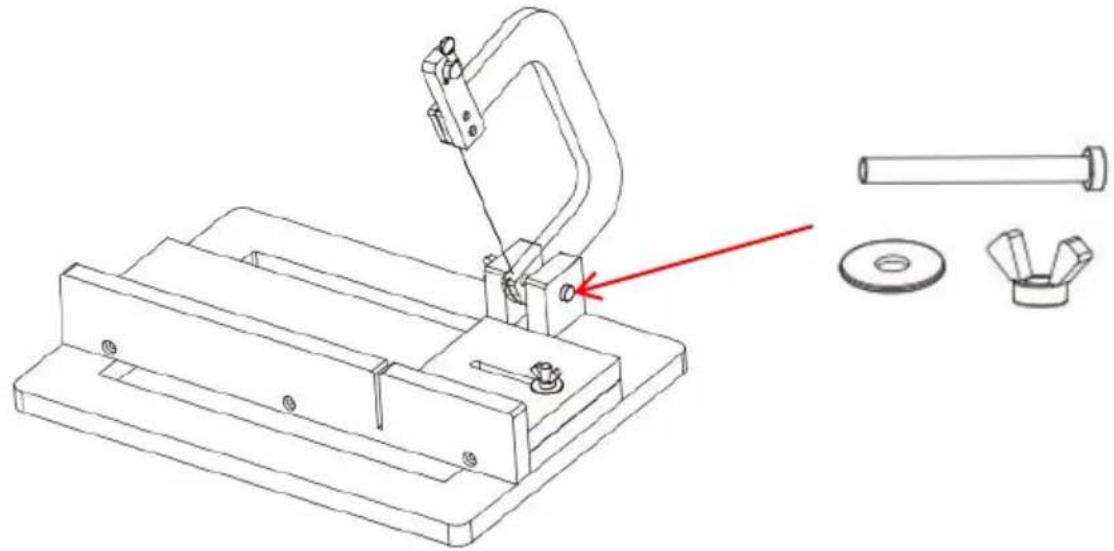

1. Assemble the handle combination.

Technical line drawing of a mechanical assembly with no visible text or symbols

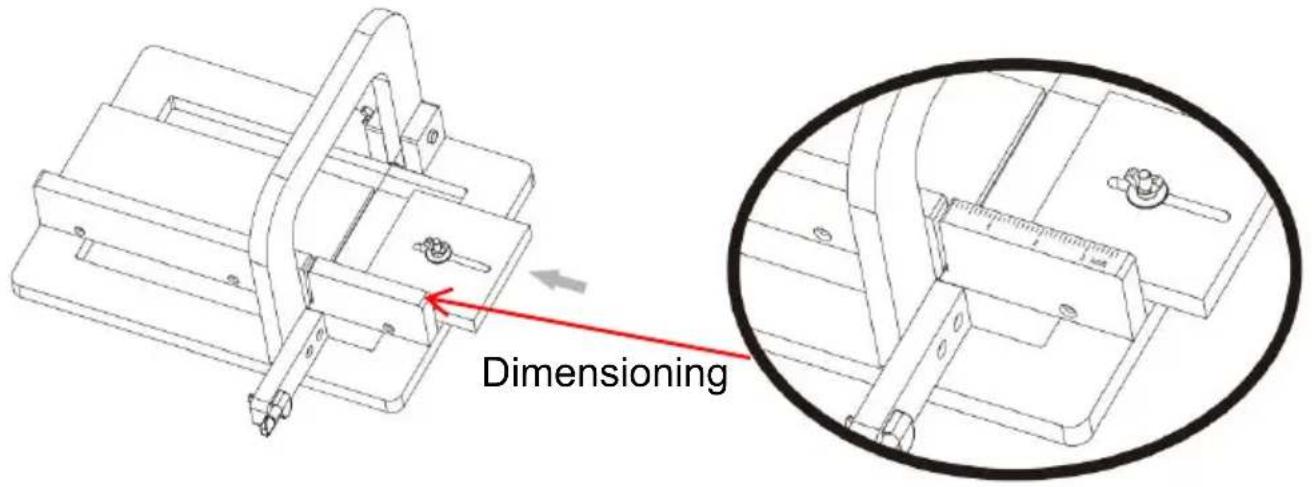

1. After loosening the butterfly nut, the cutting length limit block can be adjusted to select the cutting length you need.

Dimensioning

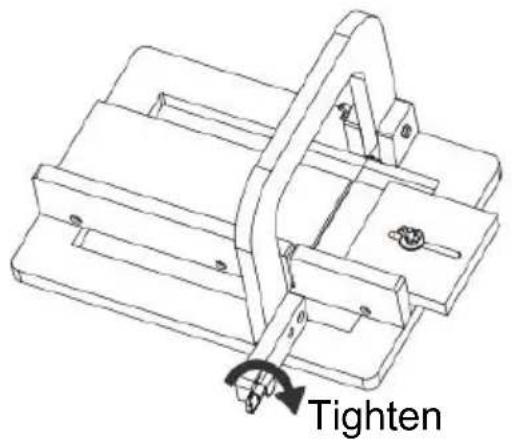

1. Ensure that all components are installed, and then check the tightness of the cutting wire.

Tighten

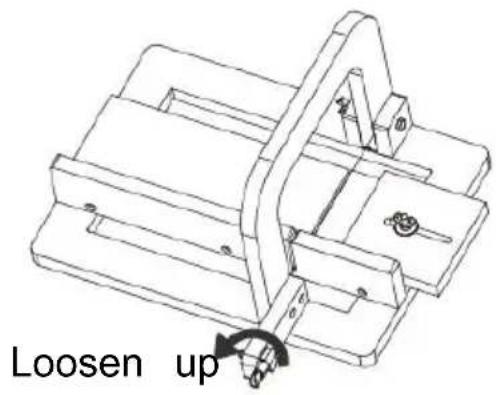

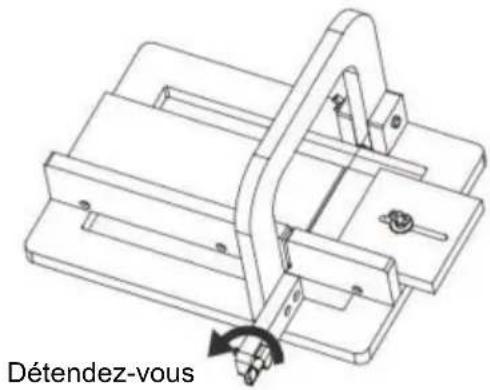

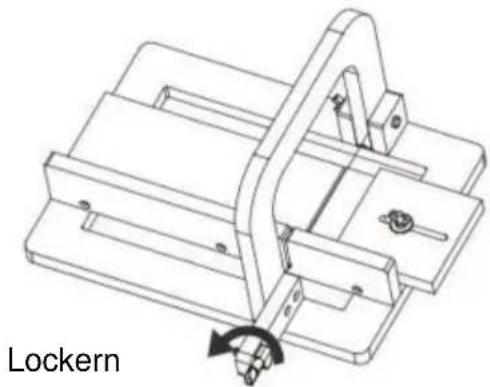

Loosen up

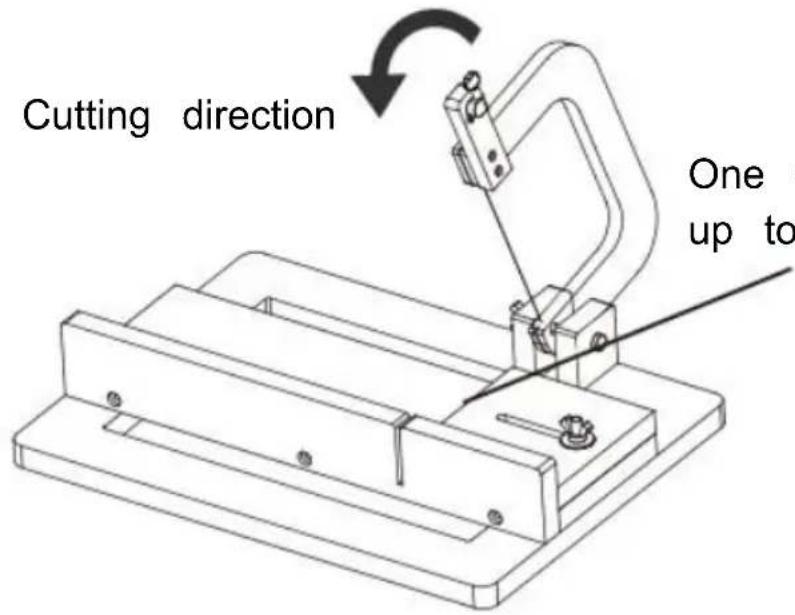

1. Prepare the soap, then press the handle to cut the soap.

Cutting direction One up to

One end of the soap should be t up to the cutting length limit block

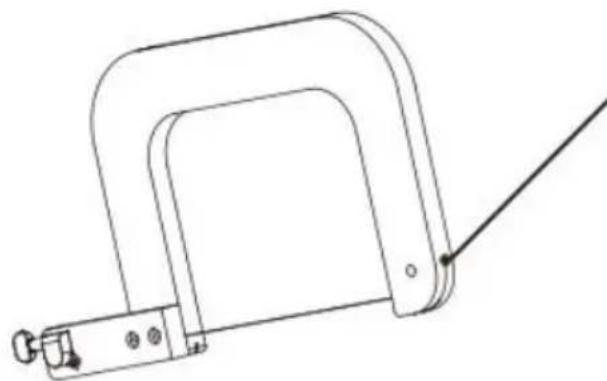

1. Replacement of the cutting wire.

Line drawing of a mechanical clamp or saw tool with a handle and mounting bracket (no text or symbols)

①Loosen the bolt here with a screwdriver
②Remove the other end wire.

Cutting wire

③Pass the new steel wire through the small round gask and tighten the bolt here with the screwdriver.

④Pass the other end of the wire through the regulator hole, wrap a few more turns to ensure that the pull is not loose, and then manually adjust (Excess length of wire can be cut off).

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

NOTE: In the case of continuous soap cutting, check whether the wire has bee loosened or broken.

MAINTENANCE

1. Keep the machine level, clean the surface of the body in time, and keep dry
2. Keep out of reach of children.
3. Do not use hard objects to touch the wire, which may damage the wire and affect the service life.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
