USER MANUAL ZT2017 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: ZT2017

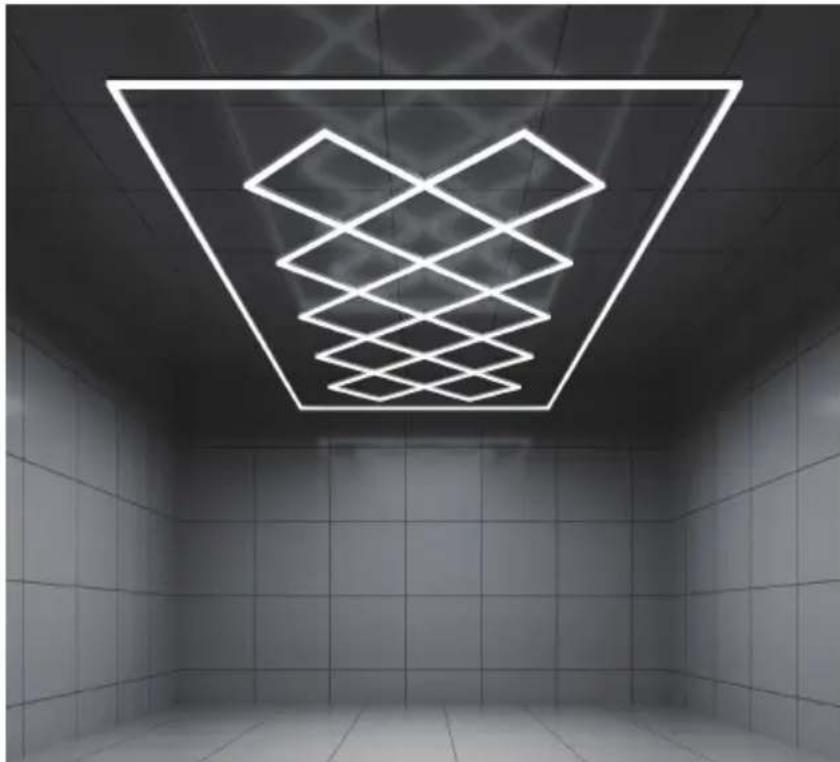

Interior ceiling with a white geometric pattern and diamond-shaped ceiling light fixture, set against a dark tiled wall (no text or symbols)

(The picture is for reference only, please refer to the actual object)

NEEDHELP?CONTACTUS!

Have product questions? Need technical support? Please feel free to contact us:

TechnicalSupportandE-WarrantyCertificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

CorrectDisposalThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.

FCCInformation:CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) This product may cause harmful interference.2) This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receiver.Connect the product to an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for assistance.

HEXAGON LED LIGHT

Note: The package includes one spare unit for each tube

Tubes L=440mm 6w*8pcs

Tubes L=568mm 8w*58pcs

Connectors

180° *22pcs

+-Connectors 13pcs

Connector -T+ Ac Supply *2pcs

3-terminal quick union*6pcs

Screws*70pcsAnohoring*70pcs Nylon zip tie*70pcs

Instruction Manual 1pc AC Input Cord 2pcs

Dismantal Tool*1pcs

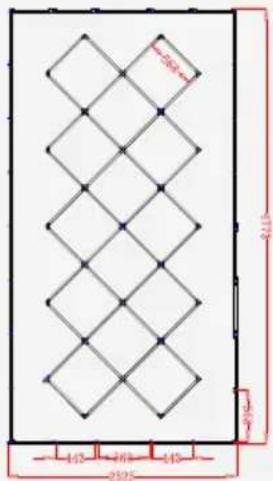

FEATURES & SPECIFICATIONS

15 HEXPerformance D

Power	512W
Input Voltage	100-240V AC
CCT	6500K
Mounting	Suspension /Surface mount

145 2905 4.16 4.16 4.16

INSTALLATION

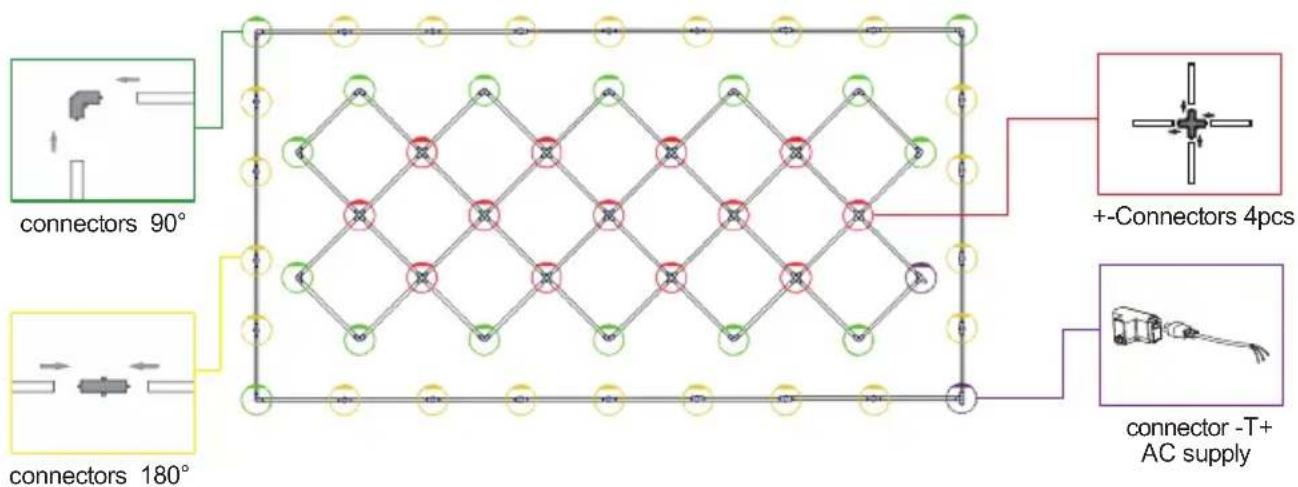

Connect the tubes by series as follows, each purple circles requires its own power source

CAUTION!!

1. Please be careful when connecting the light bars with the connectors. Don't damage the copper needle in the connectors.
2. Make your desired pattern and test it before installing it on the ceiling.
   3.Only 2 connectors for AC input cord: Brown-Line, Blue-Neutral, Yellow-Ground

Note: The number of cables needed is dependent on the size and amount of lighting tubes.

(1 cable per 65 six-watt tubes or 25 sixteen-watt tubes, max: 400W connection.)

HOW TO INSTALL IT ON THE CEILING.

Remarks:

1. There should be 2 wires out to connect 100-240AC 50/60Hz;
2. Please install by professional electrician;

Technical illustration of a roof structure with hexagonal grid pattern and metal bracket (no text or symbols)

1. Flat roof-Screw the connector from the hole to the ceiling directly

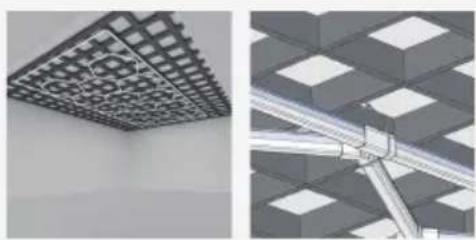

Architectural ceiling and wall views showing structural details (no text or symbols)

1. Grid roof - Tie it with zip ties

Step①

Step ②

Step ③

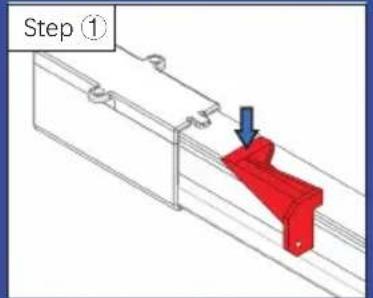

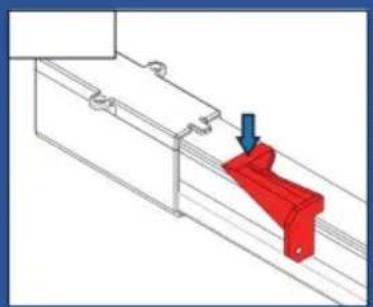

Step 1: Stick the right-angle surface on the inside of the removal tool to the lamp.

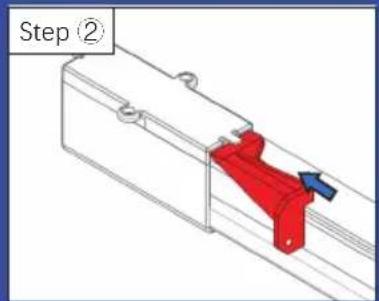

Step 2: Push in the direction of the connector and push the connector buckle up
Step 3: When the connector buckle is pushed up, remove the lamp tube.

INSTALLATION INSTRUCTIONS

1. Flat roof-Screw the connector from the hole to the ceiling directly

Step 1

Pure geometric lines forming an L-shape with a diagonal hatching (no text or symbols)

Firstly, determine the position of installing the lamp according to the overall size of the whole lamp, and then assemble the lamps into the shape of picture, and then fix it on the ceiling with screws

Pure geometric lines forming an L-shape with a diagonal hatching (no text or symbols)

Assemble the light into the shape of picture, connect it with the components installed on the ceiling, and then fix it on the ceiling with screws

Step 3

Pure architectural line drawing of a structural beam or channel with no text, numbers, or symbols

Assemble the lights into the shape of two picture, connect it with the components installed on the ceiling, and then fix it on the ceiling with screws

Step 4

Pure geometric diagram showing a rectangle with hatched top edge and arrows indicating direction (no text or symbols)

Assemble the light into the shape of picture, connect it with the components installed on the ceiling, and then fix it on the ceiling with screws

Step 5

Diagram showing a hexagonal lattice structure inside a rectangular frame (no text or symbols)

Assemble the light into the shape of picture, determine its installation position, and then fix it on the ceiling with screws (When start installing, it is recommended to install screws at the four positions "O" in the above figure first, so as to preliminarily fix the lamp.)

Step 6

Diagram of hexagonal lattice structures on a rectangular base, with no text or symbols present.

Assemble the light into the shape of picture, connect it with the components installed on the ceiling, and then fix it on the ceiling with screws (When start in stalling, it is recommended to install screws at the four positions "O" in the above figure first, so as to preliminarily fix the lamp.) Finally, it is recommended to fix the entire internal combination with 20 screws at least

Step 7

Assemble the light into the shape of picture, connect it with the components installed on the ceiling, and then fix it on the ceiling with screws (When start in stalling, it is recommended to install screws at the four positions "O" in the above figure first, so as to preliminarily fix the lamp.) Finally, it is recommended to fix the entire internal combination with 20 screws at least

Pure geometric pattern of interconnected hexagons within a grid (no text or symbols)

2. Grid roof - Tie it with zip ties

Step 1

Diagram of a hexagonal grid pattern inside a rectangular boundary, with no text or symbols present.

You can use cable ties instead of screws to fix the lights, if there is grid-type ceiling in your room

Step 2

Connecting to the power cable.
