MX-6005-D - Lighting Vevor - Free user manual and instructions

Product type	Rechargeable wireless LED projector
Model	MX-6005-D
Brand	Vevor
Power supply	DC5V/2A via Type-C port
Battery type	Lithium 18650
Battery life	300 recharge cycles
Charging interface	Type-C
Waterproof rating	IP67
Body material	ABS
Lighting modes	Full beam, medium beam, SOS flashing, high-frequency flashing
Battery charger function	Can serve as a power bank for mobile devices
Color filter	Removable filter for different colors
Charge indicator	4 blue LEDs (25% to 100%)
Initial charging time	4 to 5 hours before first use
Standards	Compliant with FCC Part 15, WEEE Directive 2012/19/EU
Included accessories	USB Type-C cable, color filter
Maintenance	Clean with a soft cloth, do not use solvents
Safety	Read the manual, do not expose to extreme temperatures, unplug before cleaning
Support	www.vevor.com/support

Frequently Asked Questions - MX-6005-D Vevor

How to charge the Vevor MX-6005-D projector?

Use the provided USB Type-C cable. Plug it into a 5V/2A charger (wall adapter, computer USB port, etc.). The charging indicator lights up. For first use, charge for 4 to 5 hours.

How to change the lighting modes?

Press the MODE button to cycle through modes: press once for full beam, twice for medium beam, three times for SOS flashing, four times for high-frequency flashing.

Can the projector be used while charging?

Yes, the projector can be used while plugged into a power source via the Type-C port.

Is the projector waterproof?

Yes, it has a waterproof rating of IP67, which means it is protected against temporary immersion in water (up to 1 meter for 30 minutes). Suitable for outdoor use.

How to clean the projector?

Use a soft, dry cloth. Do not use chemicals or solvents. Ensure the device is turned off and unplugged before cleaning.

What does SOS mode mean?

SOS mode emits a distress signal in the form of light flashes. It is useful in emergencies to attract attention.

Can I use the projector as a power bank?

Yes, the projector can serve as a power bank to charge your mobile devices. Simply connect your phone with a USB cable to the output port (located under the rear cover).

How to install the color filter?

Place the filter over the lamp head. It allows you to change the color of the emitted light. Make sure it is securely attached before use.

What is the battery lifespan?

The lithium 18650 battery can withstand approximately 300 recharge cycles before its capacity decreases. A full charge takes 4 to 5 hours.

Where to find technical support and warranty?

Visit the website www.vevor.com/support for technical support and the electronic warranty certificate.

USER MANUAL MX-6005-D Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Cordless Spotlight

Instruction Manual

MODEL: MX-6 005 - D

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: MX-6005-D

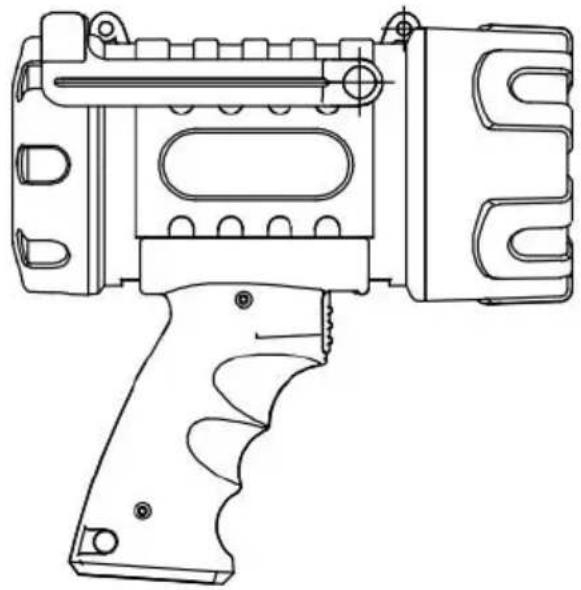

Technical line drawing of a firearm with trigger and grip (no text or symbols)

★ The picture is for reference only, please refer to the actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

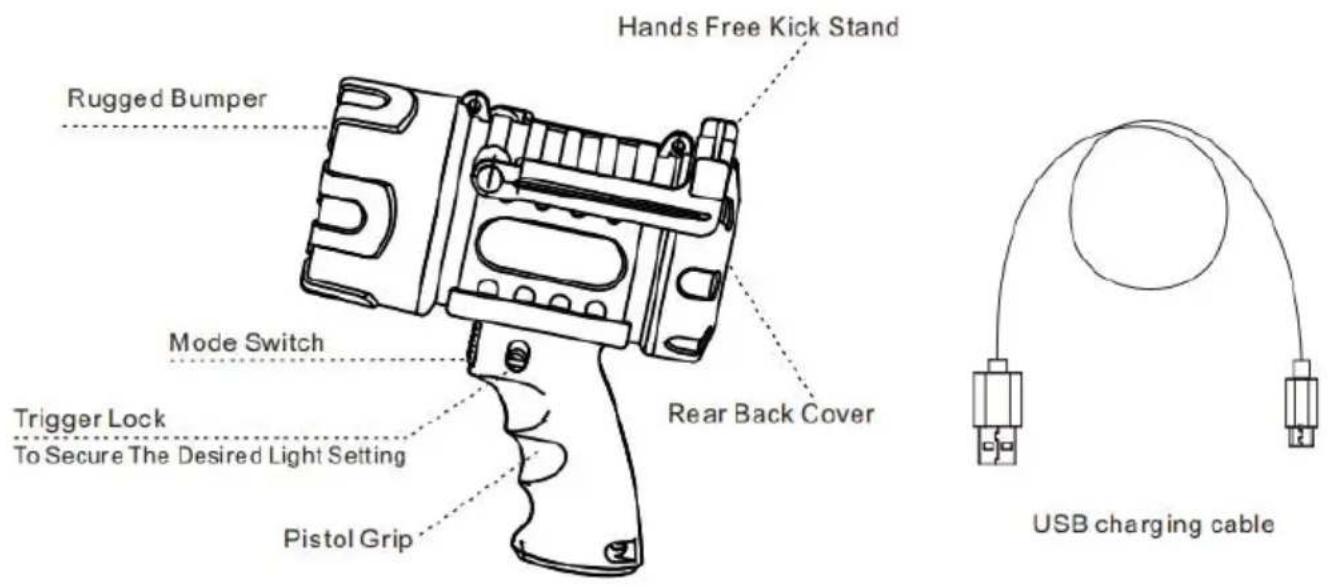

Product Introduction

Operating Instruction

Please read these instructions carefully before use. Unless direction are followed physical injury or property damage may result.

Save these instructions for further reference.

Operating

• Unlock the ON/OFF switch by pushing it downwards.
• Press the MODE switch once. The LED Rechargeable Spotlight

will illuminate in a high beam.

• Press the MODE switch twice. The LED Rechargeable Spotlight will illuminate in a medium beam.
• Press the MODE switch three times. The LED Rechargeable Spotlight will illuminate in a SOS flashing beam.
• Press the MODE switch four times. The LED Rechargeable Spotlight will illuminate in a high-frequency flashing beam.

NOTE: If you want light of different colors, please put the filter on the lamp head.

Product Parameter

Model	MX-6005-D
Input	DC5V/2A
Battery type	18650 lithium battery
Battery life	300 cycles
Charging interface	Type-C
Body material	ABS
Waterproof level	IP67

Charging Instructions

(1) Spotlight shipped with a partially charged battery. Please charge the spotlight for 4-5 hours before first use. The spotlight be charged using the USB cable at home, car, boat or RV.
(2) The light has four blue charging indicator light showing the

level of charge(1 being 25% to 4 being 100%).

(3) Our Spotlight can be used as a battery back-up charger for your mobile devices.
(4) To charge your mobile device, simply connect your phone charger's USB cable to the USB phone charger output on the I the spotlight and then to your phone. The spotlight's Internal ba bank will charge your mobile device.

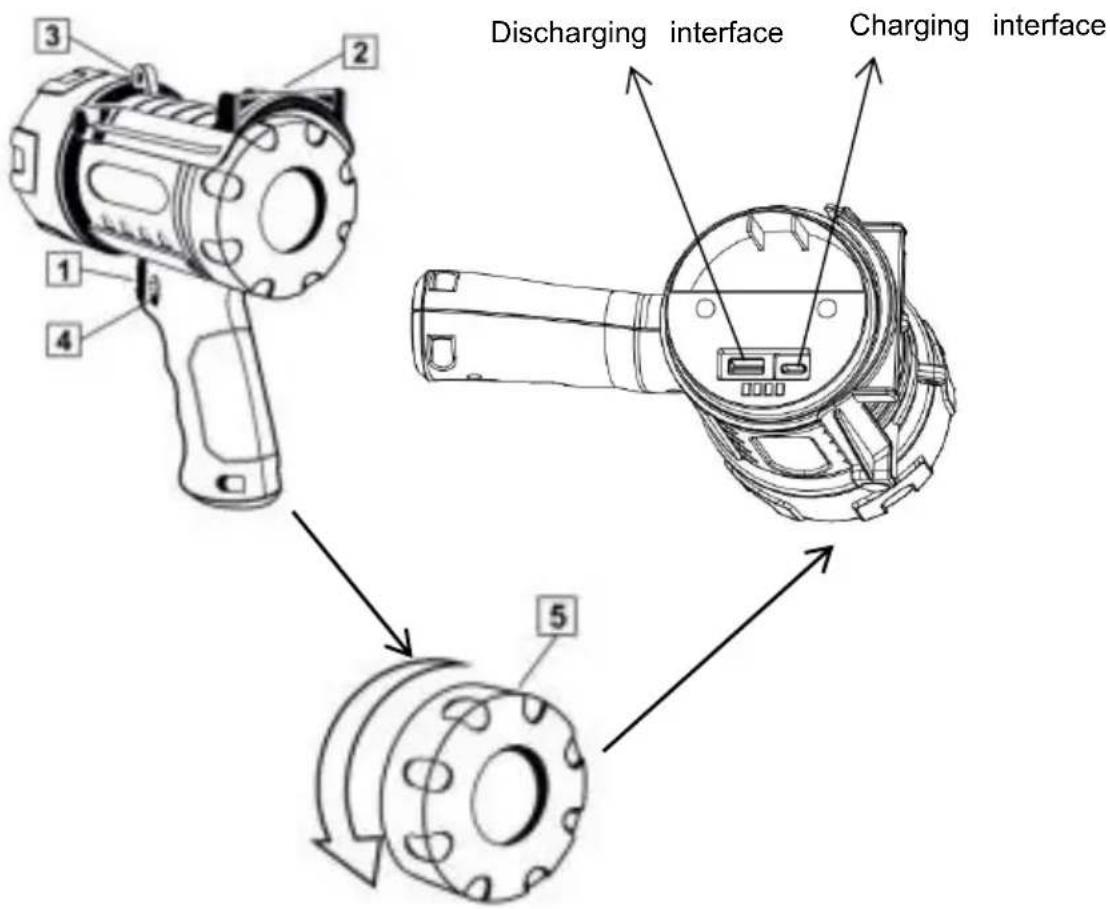

Disconnect the rear back cover from the spotlight by turning it anticlockwise

★ The picture is for reference only, please refer to the actual.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no readable text or symbols)

Correct Disposal

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not express approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the F Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does ca harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encou to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from the which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®
