USER MANUAL ZT1012 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

GARAGE LIGHT USER MANUAL

MODEL: ZT1012

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: ZT1012

Interior corner with a glowing geometric ceiling light fixture and tiled floor (no text or symbols)

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Correct DisposalThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.

FCC Information:CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) This product may cause harmful interference.2) This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receiver.Connect the product to an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for assistance.

HEXAGON LED LIGHT

Note: The package includes one spare unit for each tube and connector.

Five technical line drawings of mechanical components: a rod, bracket, cross-shaped housing, electrical enclosure, and screw (no text or symbols)

8w*16pcs
Connectors 90° *7Tobet-Cellectors 4pcs Screw Connector -T+ Ac Supply *1pcs

USER INSTRUCTION MANUAL

union*3pcs

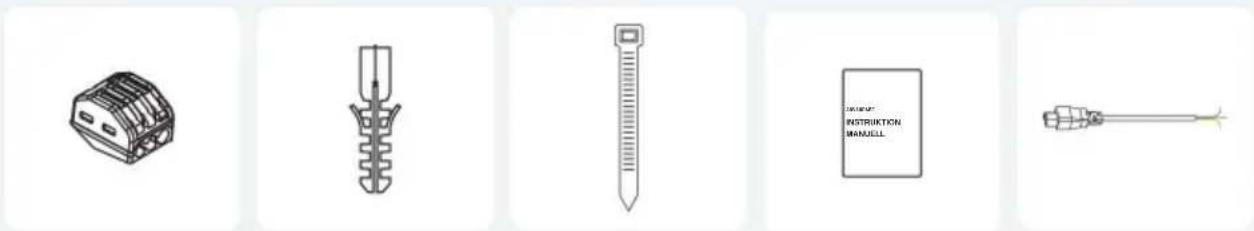

Anohoring*20pcs3-ternyhal quidle*20pcs instruction manual 1PC AC Input Cord 1pc

FEATURES & SPECIFICATIONS

15 HEXPerformance D
Power	128W
Input Voltage	100-240V AC
CCT	6500K
Mounting	Suspension /Surface mount
Life span	>30,000hours

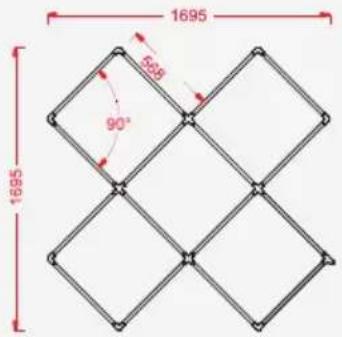

1695 90° 1695

INSTALLATION

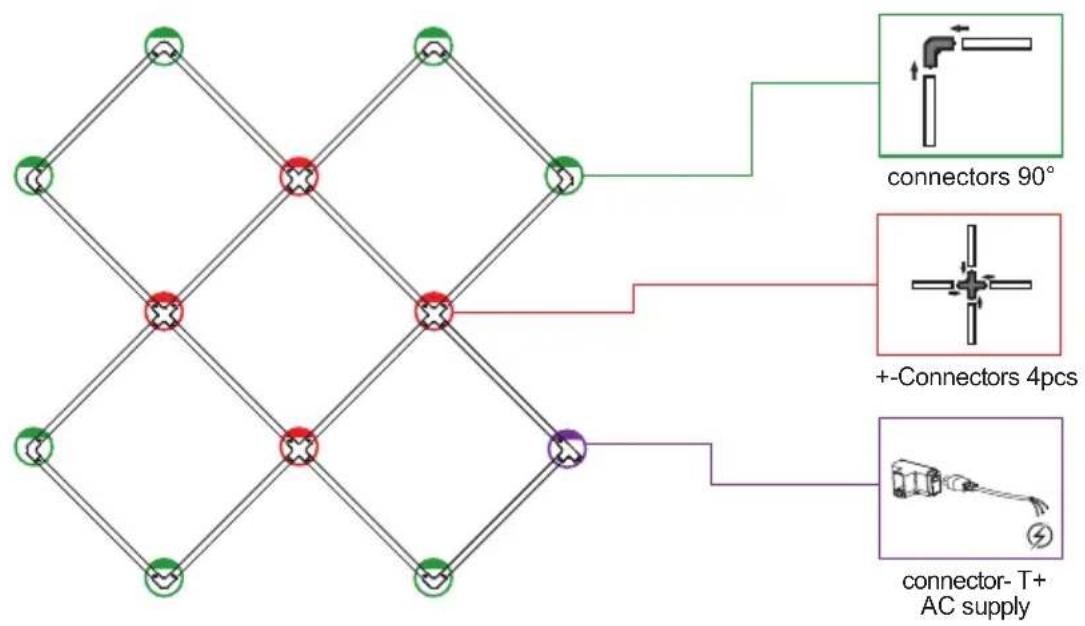

Connect the tubes by series as follows, each purple circles requires its own power source

CAUTION!!

1. Please be careful when connecting the light bars with the connectors. Don't damage the copper needle in the connectors.
2. Make your desired pattern and test it before installing it on the ceiling.
   3.Only 1 connectors for AC input cord: Black-Line, White-Neutral, Green-Ground

HOW TO INSTALL IT ON THE CEILING.

Remarks:

1. There should be 2 wires out to connect 100-240AC 50/60Hz;
2. Please install by professional electrician;

Simple 3D illustration of a rectangular block with a grid pattern on top (no text or symbols)

Pure mechanical assembly diagram showing intersecting rods and a central bracket (no text or symbols)

1. Flat roof-Screw the connector from the hole to the ceiling directly

Close-up of a geometric ceiling structure with grid pattern (no text or symbols)

Pure electrical circuit lines without any symbols

1. Grid roof - Tie it with zip ties

Close-up of a transparent plastic mechanical component with a red laser line overlay (no text or symbols visible)

The well made copper parts

Close-up of a transparent plastic enclosure with internal connectors and a red laser pointer (no text or symbols visible)

The deformed copper parts by violence

WARNING

Installation and servicing to be performed only by qualified personnel. If not qualified, consult an electrician.

LED tube hook connectors hole

When the LED tube is inserted into connectors, make sure that the hook on the connectors is stuck into the hole of the LED tube

screwdriver LED tube connectors

When disassembling the LED tube, the hook on the connectors needs to be lifted with a single batch, so that the LED tube can be easily removed

INSTALLATION INSTRUCTIONS

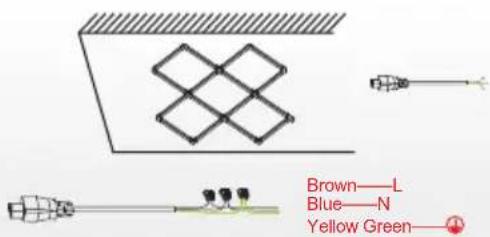

1. Flat roof-Screw the connector from the hole to the ceiling directly

Step 1

Pure geometric diagram of interlocking diamond shapes within a rectangular frame (no text or symbols)

Determine the position of installing the lamp according to the overall size of the whole lamp, and then assemble the lamps into the shape of picture, and then fix it on the ceiling with screws

Brown—L Blue—N Yellow Green—

Connecting to the power cable.

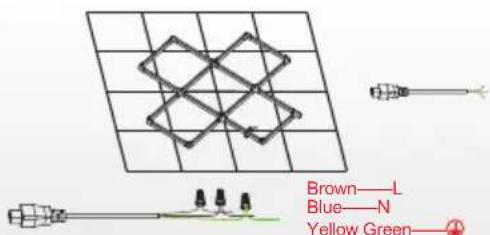

1. Grid roof - Tie it with zip ties

Step 1

Diagram showing a grid pattern with intersecting lines and a magnified circular detail (no text or symbols)

You can use cable ties instead of screws to fix the lights, if there is grid-type ceiling in your room

Step 2

Brown—L Blue—N Yellow Green—

Connecting to the power cable.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

K/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
