KJ-1268 - Lighting Vevor - Free user manual and instructions

Product Type	Rechargeable LED Camping Lantern with Power Bank Function
Brand	Vevor
Model	KJ-1268
Body Material	ABS
Battery Type	Rechargeable 18650 Lithium-ion
Battery Capacity	4400 mAh
Charging Input	DC 4.2 V / 3 A via Type-C port
Lighting Autonomy	Up to 26 hours depending on mode
Lighting Functions	Flashlight (high/low/strobe), camping light (cool white/warm white/high brightness), red SOS light (high-frequency flash)
Brightness Adjustment	Long press on the camping light switch
Power Bank Function	Yes, can recharge a smartphone via USB port (output)
Output Port	USB (not detailed, but built-in)
Handle and Hook	Integrated handle and bidirectional hook for carrying and hanging
Approximate Dimensions	Approximately 10 x 10 x 20 cm (estimated)
Approximate Weight	Approximately 400 g (estimated)
Care and Cleaning	Clean with a soft, dry cloth. Avoid moisture and harsh chemicals.
Safety	Do not look directly at the light. Keep away from fire and extreme heat. Avoid humid environments.
Spare Parts and Repairability	Internal 18650 battery potentially replaceable by a professional. No other spare parts specified.
General Information	Complies with WEEE Directive (2012/19/EU) and part 15 of FCC rules. Manufacturer: Shanghaimuxinmuyeyouxiangongsi.

Frequently Asked Questions - KJ-1268 Vevor

How to turn on the camping lantern?

Press the Camping Light switch to turn on the camping light. Press multiple times to change mode (cool white, warm white, high brightness).

How to use the flashlight?

Press the Flashlight switch to turn on the flashlight. The successive modes are: high light, low light, fast strobe.

How to activate the red SOS light?

Press the SOS Red light switch to activate the red light. The modes are: SOS flash (first speed), then high-frequency flash (second speed).

How to adjust the brightness of the camping light?

Press and hold the Camping Light switch to adjust brightness continuously.

How to recharge the lantern?

Use the provided USB Type-C cable (not included) and plug it into the Type-C Charge Port. Recommended input is DC 4.2 V / 3 A.

How to use the power bank function?

Connect your smartphone or other device to the output port (USB) using a USB cable. The built-in 4400 mAh battery can recharge your mobile devices.

What is the maximum battery life?

Battery life can reach up to 26 hours in suitable lighting mode, depending on intensity and mode used.

Can I replace the battery myself?

The battery is an integrated 18650 lithium-ion. Replacement is possible by a qualified technician. Opening the casing may void the warranty.

Is the lantern waterproof?

No, it is not waterproof. Avoid exposing it to moisture or rain. Clean with a dry cloth only.

What to do if the lantern does not turn on?

Check that the battery is sufficiently charged. Plug it into a power source via the Type-C port and let it charge for a few hours. If the problem persists, contact Vevor support.

USER MANUAL KJ-1268 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Portable LED Camping Lantern

Instruction Manual

MODEL: KJ-1268

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Portable LED Camping Lantern

MODEL: KJ-1268

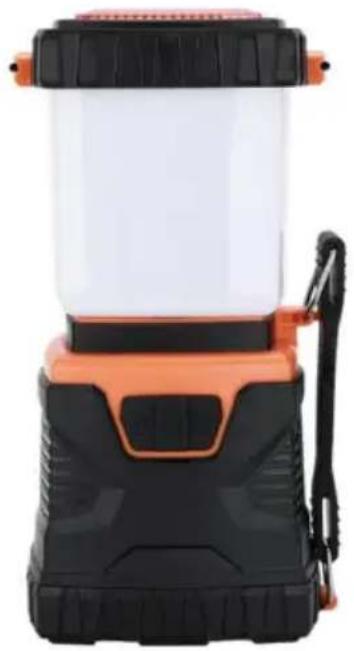

Exterior view of a portable nightlight device with black and orange casing (no text or symbols visible)

★ The picture is for reference only, please refer to the actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

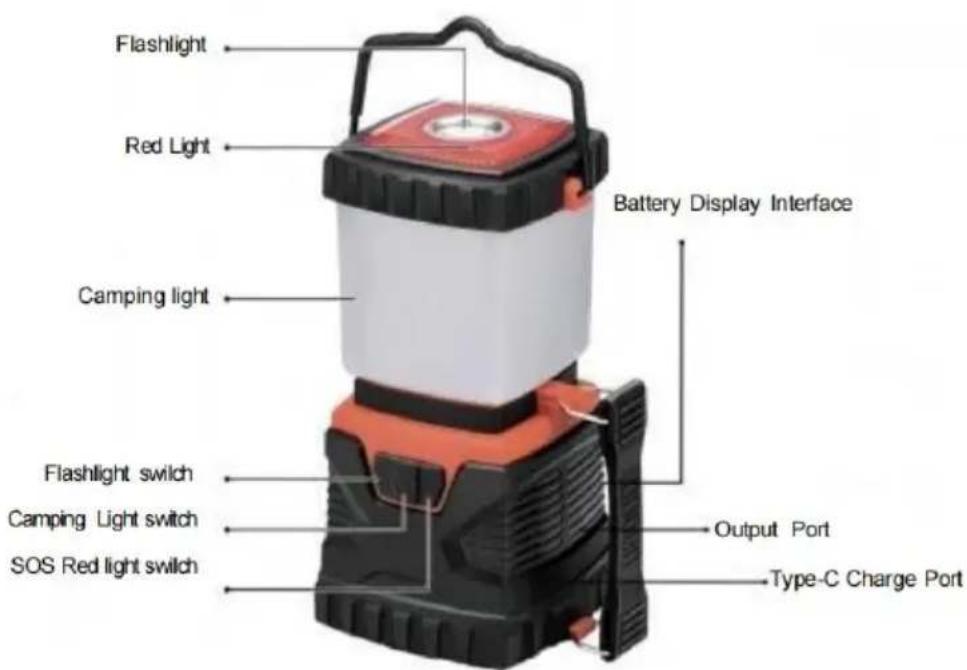

Product Introduction

Fuction:

1. Lighting mode:

(1)Top Red light: SOS flash, High-frequency flash.(Press the SOS Red light switch)
(2)Top flashlight: bright light, low light, flash fast.(Press the Flash switch)
(3)Camping Light: Cold white light/Warm white light/High brightness light.(Press the Camping Light switch)
(4)Adjusting brightness (Long press the Camping Light switch)

1. This rechargeable emergency camping lantern works as a power bank for smartphones or mobile services and USB cable holder recharging brings convenience to you.
2. With the handle and a two way hook, it can be portable ar hanging from everywhere.
3. High power 18650 rechargeable battery can work long time.

100% high light and 75% low light torchThird gear strobe.More brighter than normal LED	Power bank functionRecharging battery
Handle DesignCan be used as a torch	Camping light modes for side light·First gear white light·Second gear warm light·Third gear warm light plus white light·Press and hold for adjusting brightness
Hook DesignCan be easily taken to anywhere	Top red light functionFirst gear SOS flashSecond gear High-frequency flash

Product Parameter

Model	KJ-1268
Input	DC4.2V/3A
Battery model	18650 lithium battery
Battery capacity	4400mAh
Charging interface	Type-C
Lighting time	26h
Body materials	ABS

NOTE

1. Before use, please make sure the battery is fully charged.
2. Avoid looking directly into the light from the Camping Lantern
3. Keep away from fire and extreme heat, Avoid leaving the Ca Lantern in wet conditions.

Symbol of a trash bin crossed with no text or labels

Correct Disposal

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not express approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the F Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does ca harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encou to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from the which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Portable LED Camping Lantern

MODEL: KJ-1268

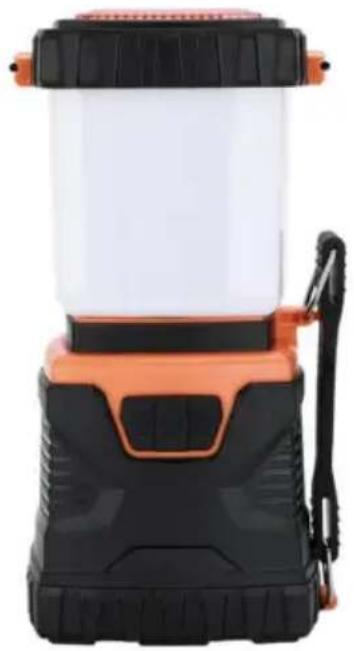

Exterior view of a portable nightlight device with black and orange casing (no text or symbols visible)
