USER MANUAL ZT-D1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LOCKOUT TAGOUT KIT USER MANUAL

MODEL: ZT-D1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LOCKOUT TAGOUT KIT

MODEL: ZT-D1
LOCKOUT/TAGOUT WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS BUY WORKS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING ITEMS SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES SELLERING TANGLES

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

  1. Assemble only according to these instructions. Improper assembly c create hazards.
  2. Wear safety goggles and duty work gloves during assembly.
  3. Keep the assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
  6. The product capabilities apply to properly and completely assembled products only.
  7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Lockout Tagout Kit.
  8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwra and separate all parts in a clean work area.

Use precautions

  1. DO NOT SIT OR STAND ON THIS ITEM.
  2. This product is not a toy. Do not allow children to play with or item.
  3. Do not exceed capacities.

  4. Use only on a flat, level, hard and smooth surface capable of sa supporting a fully loaded Lockout Tagout Kit.

  5. Use as intended only.

  6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PRODUCT PARAMETER

ModelZT-D1
Number Of Sets47
Product Size300*270*110 mm

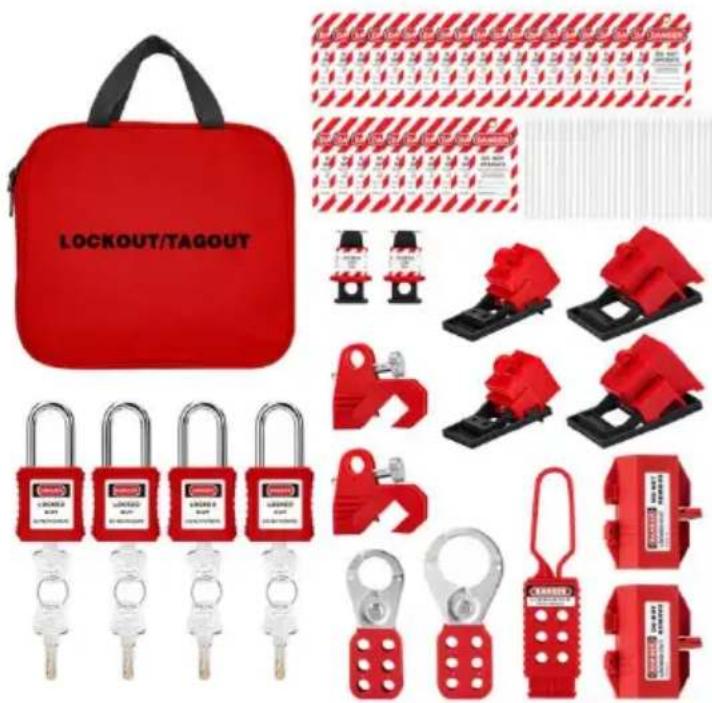

PARTS LIST

NameCodeqty
Handbag/1
Safety padlockG01 (2keys per lock)4
Lockout TagoutP0130
PA coated steel haspK011
K021
Nylon coated steel haspK421
Miniature circuit breaker lockoD012
Clamp-on breaker lockoutD112
D122
Multi-function miniature breake lockoutD142
Medium circuit breaker lockouD411
Cable tie/46

INSTRUCTIONS

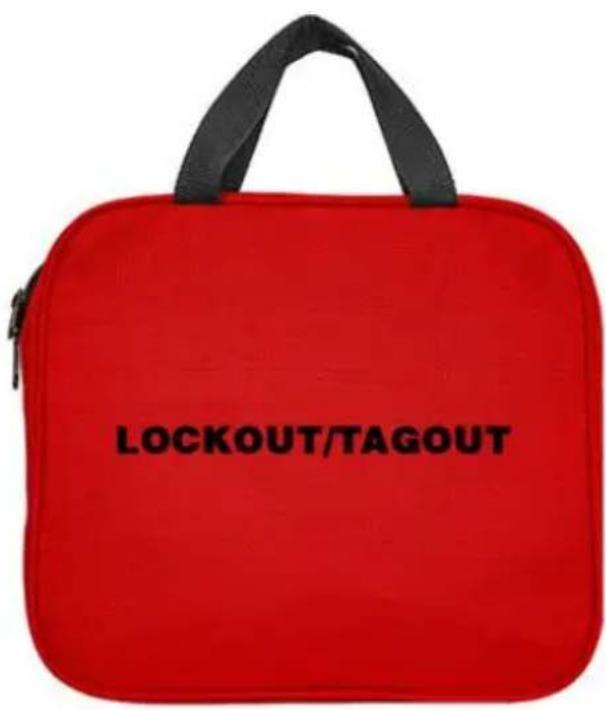

Handbag

LOCKOUT/TAGOUT

Material : polyester fabrics

Dimension : 280*90*250mm

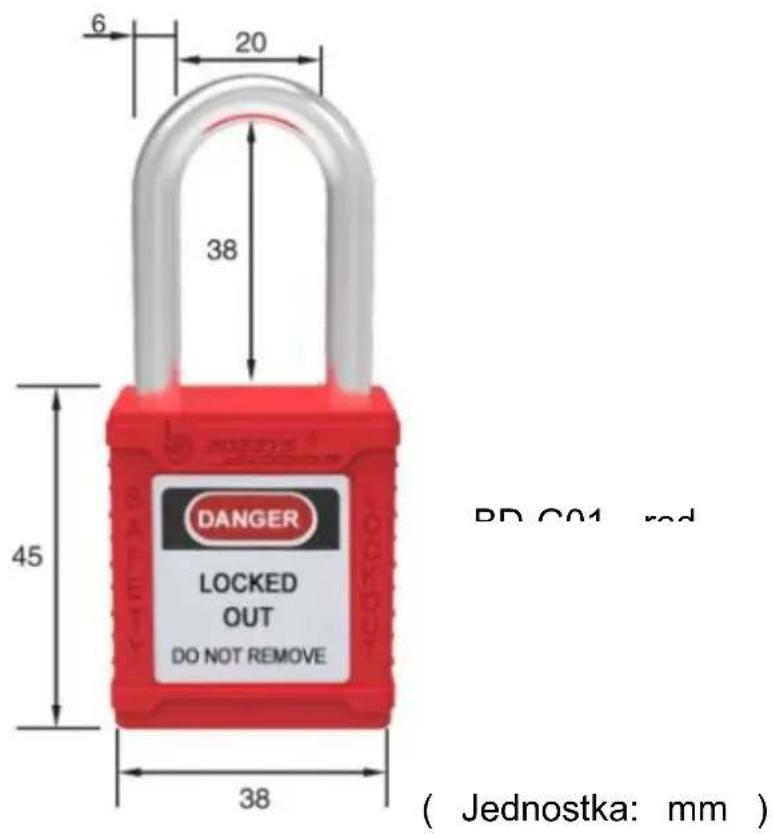

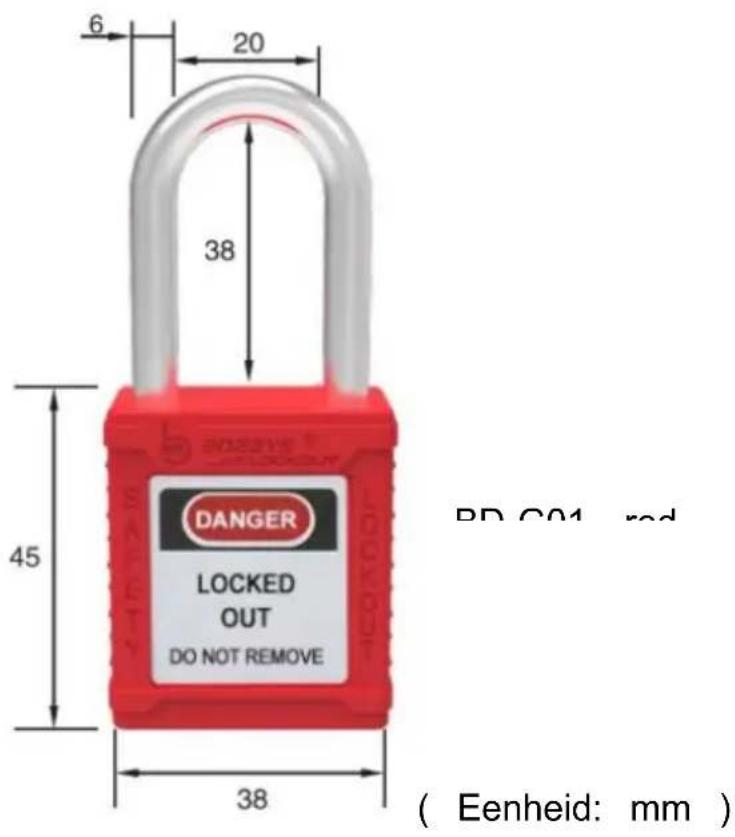

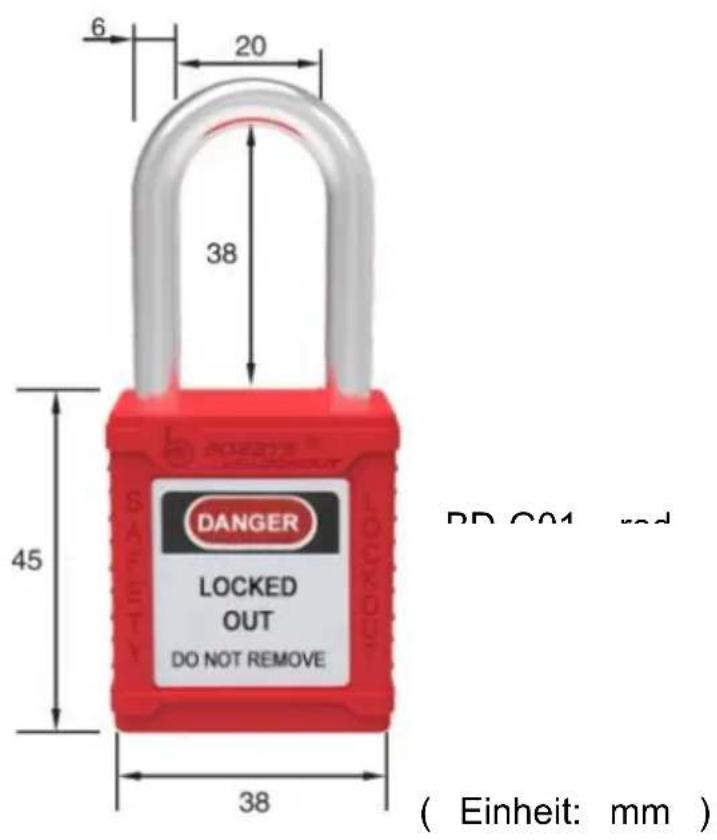

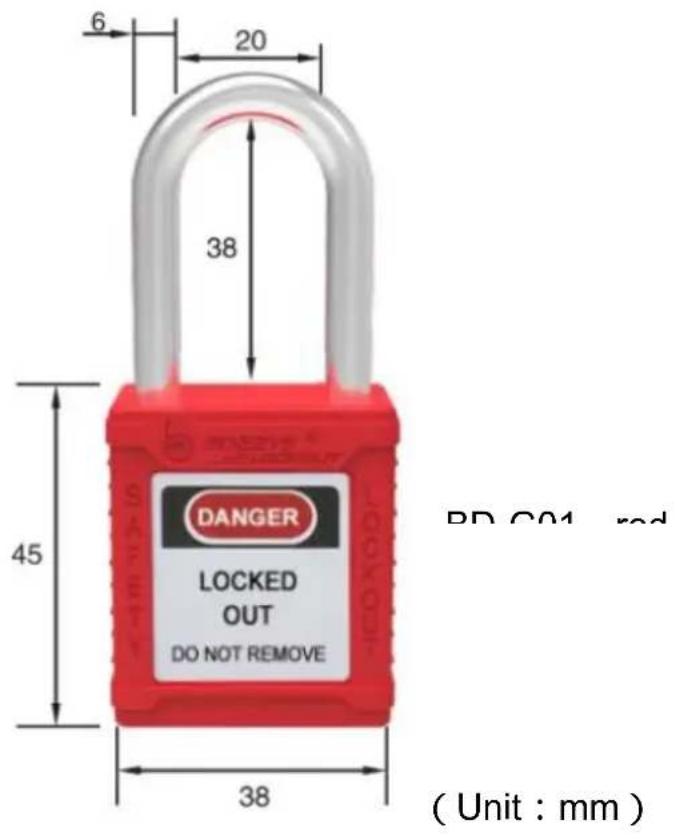

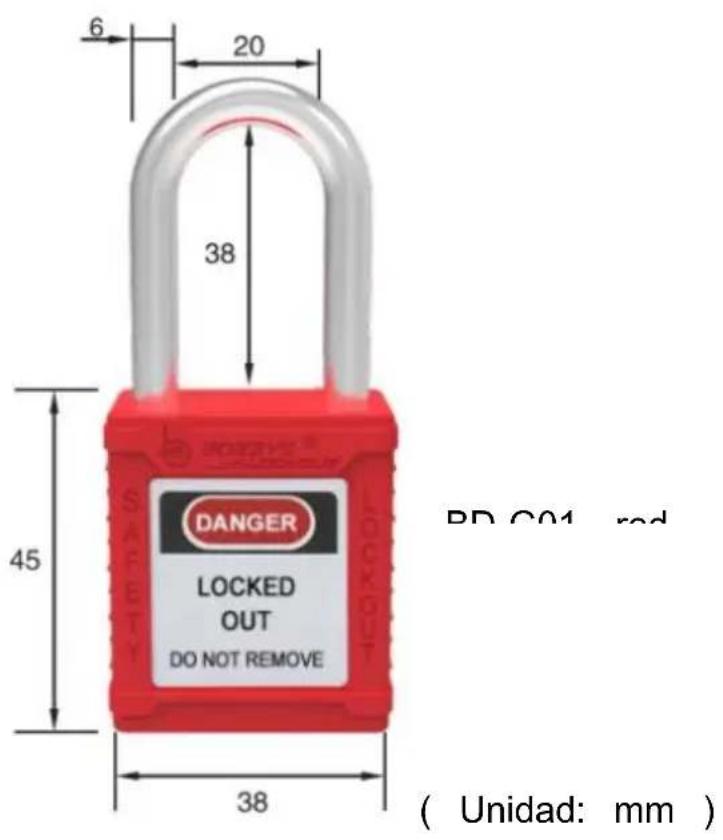

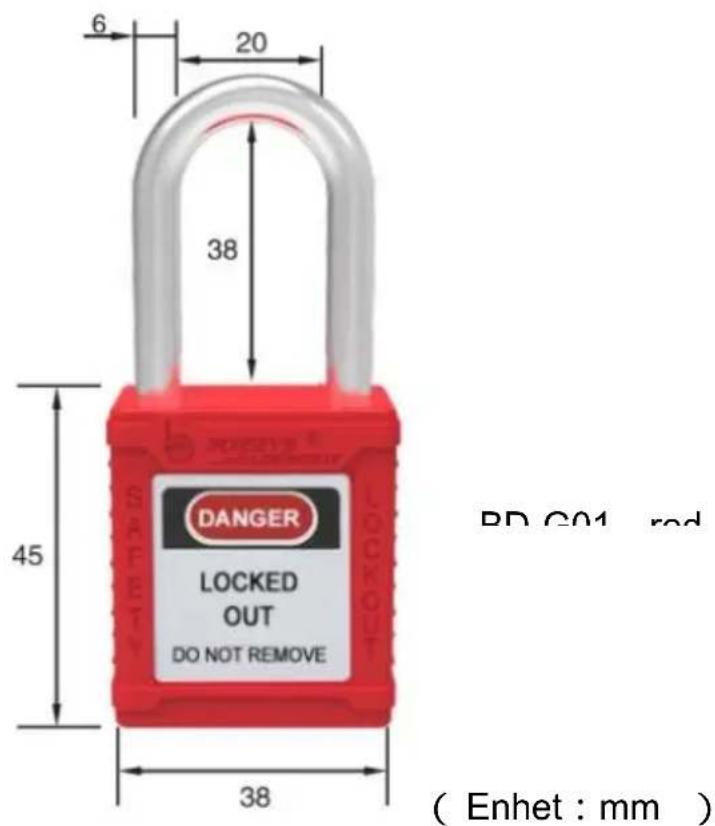

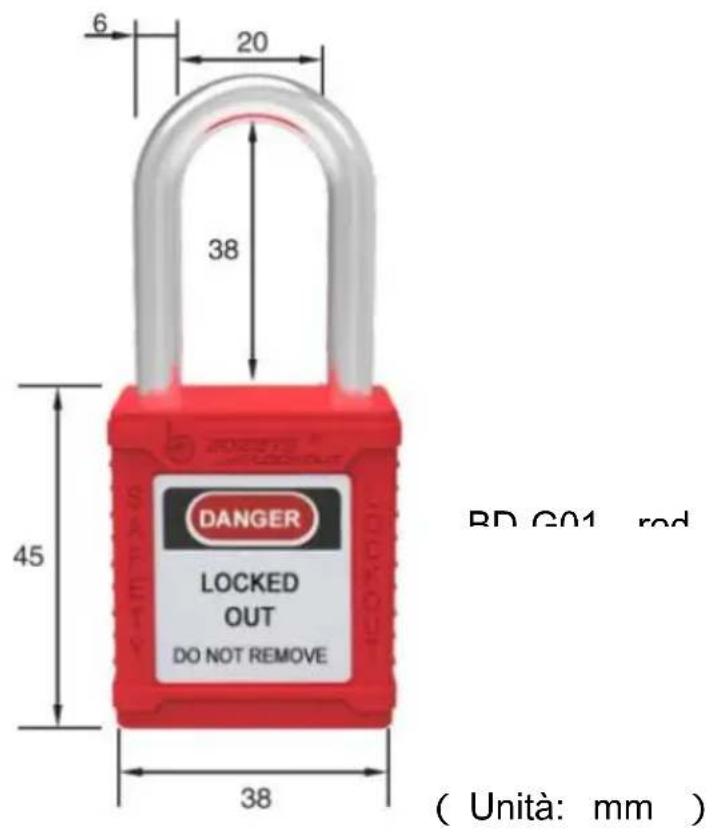

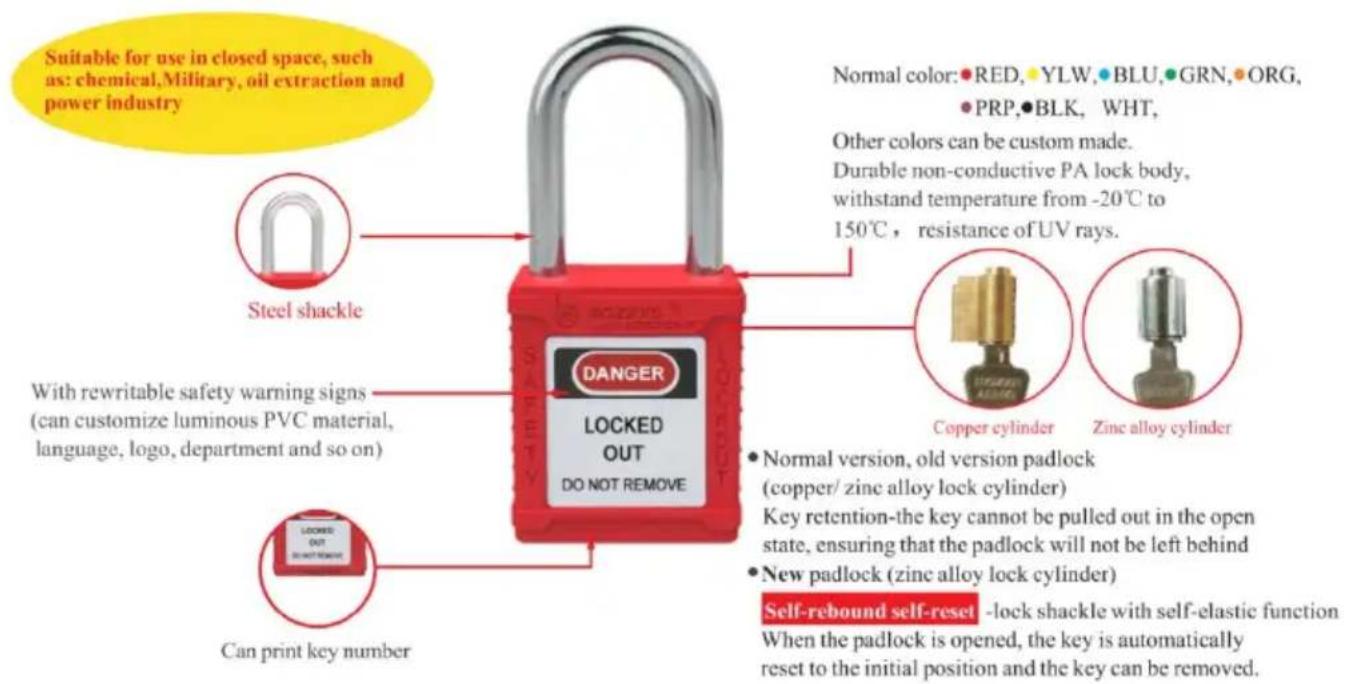

SAFETY PADLOCK

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number DANGER LOCKED OUT DO NOT REMOVE Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

6 20 38 45 DANGER LOCKED OUT DO NOT REMOVE 38 (Unit : mm)

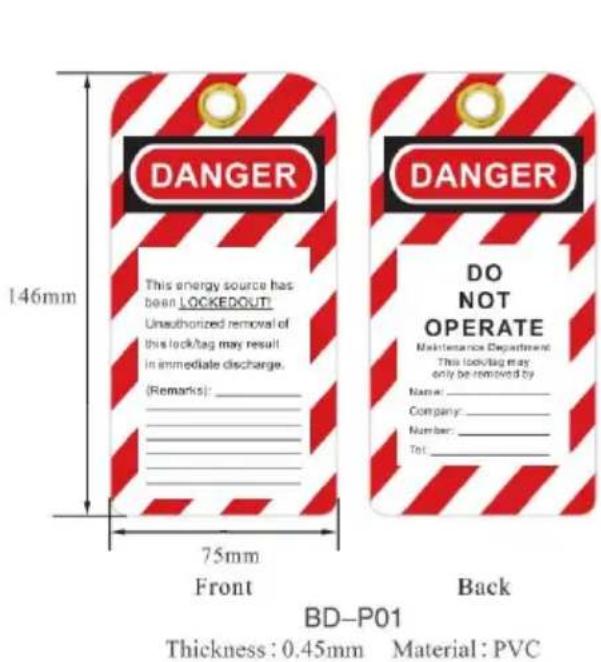

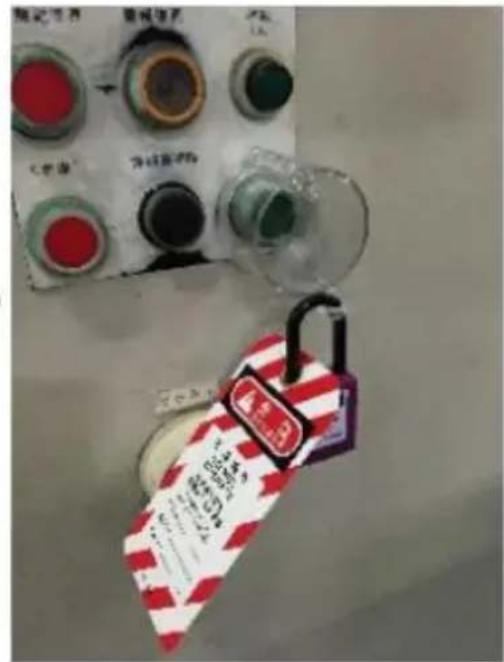

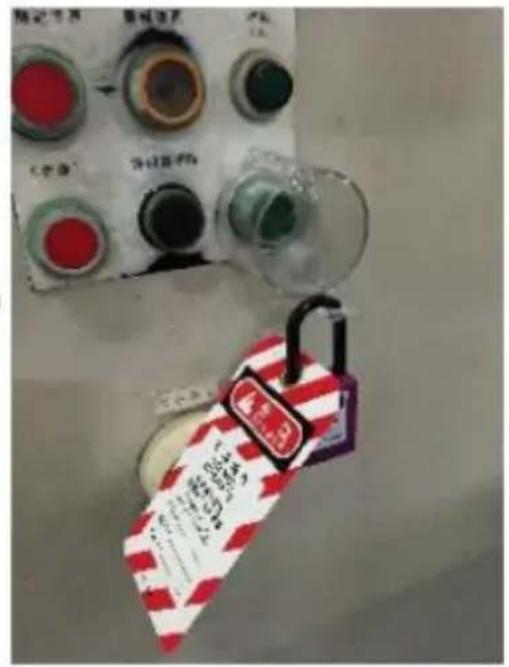

LOCKOUT TAGOUT

a. Lockout tagout can be used to make a holistic control of the equipment to protect workers from accident and equipment from damage.
b. Use with padlock to remind that the device has been locked and can not operate. It can only be opened by the one who lock it. It enables people who lock it and so that they know it is danger to operate the device.
c. On the tag, you can see "Danger/Do not operate/caution" etc security warning language and also "Name/department/Date" etc blank for you to fill in.
d. Offer language customization.

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/tag may result in immediate discharge. (Remarks): _ 75mm Front 146mm 75mm Back DO NOT OPERATE Maintenance Department This lock/tag may only be removed by Name: _ Company: _ Number: _ Tel: _ BD-P01 Thickness: 0.45mm Material: PVC

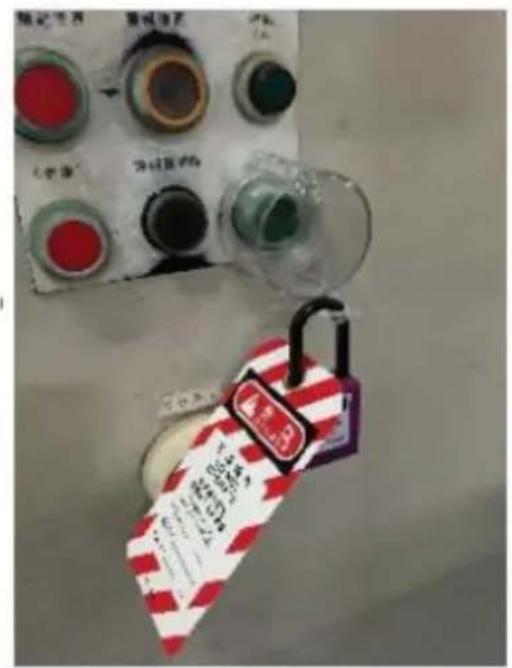

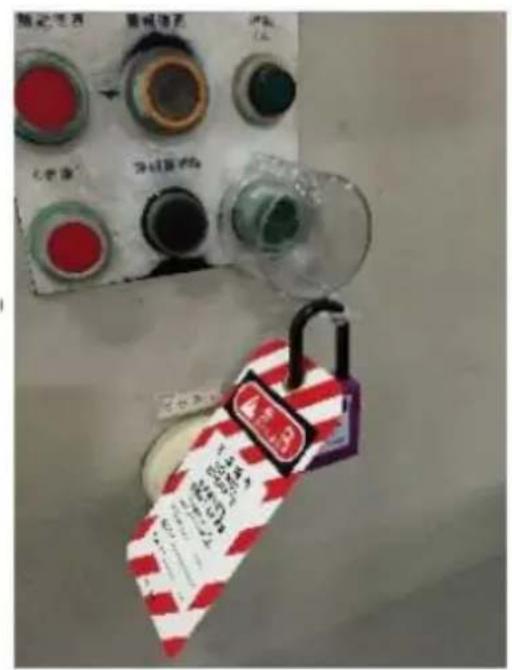

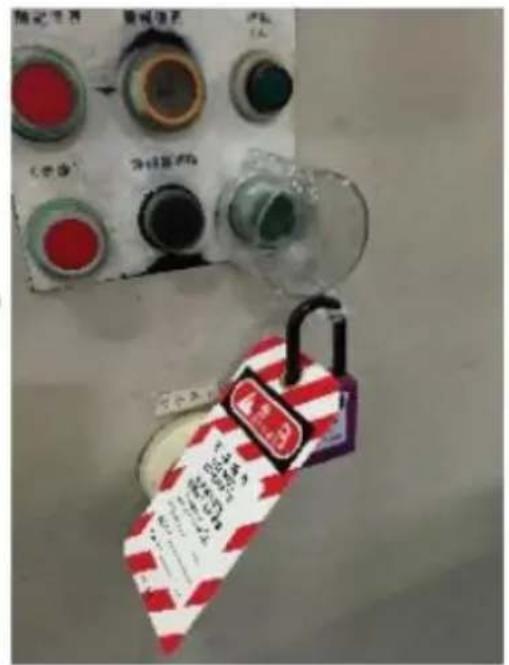

Photo of industrial control panel with red and green buttons, a red-and-white striped tag, and a hanging keychain, with visible Chinese text on the tag.

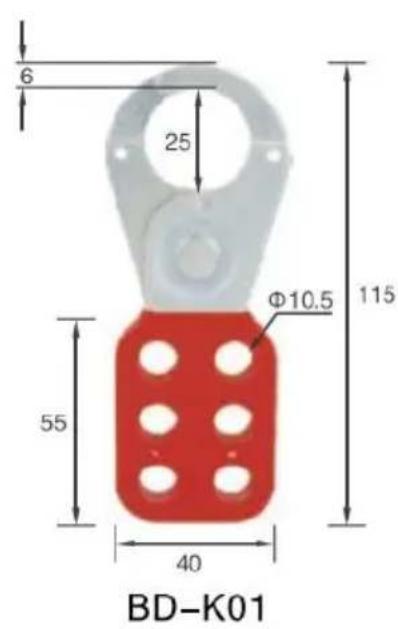

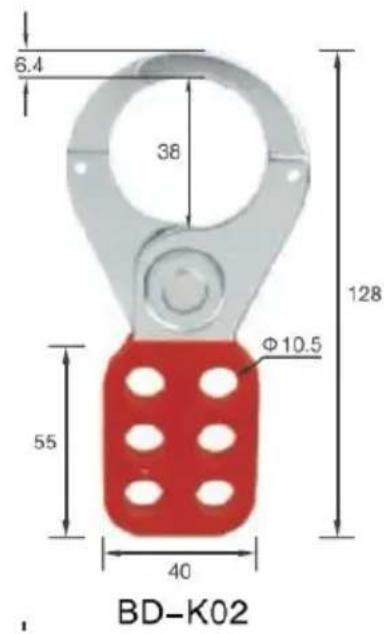

PA COATED STEEL HASP

a. Made from Engineering plastic nylon PA injection molding, galvanize rustproof surface.
b, Lock hole diameter: 10.5mm(2/5").
c.Lock shackle diameter: 25mm(1")&38mm(1.5")
d. Such as custom made stainless steel material, the model behind p "S".

Part CodeDescription
BD-K01Lock shackle 25mm(1”)
BD-K02Lock shackle 38mm (1.5”)

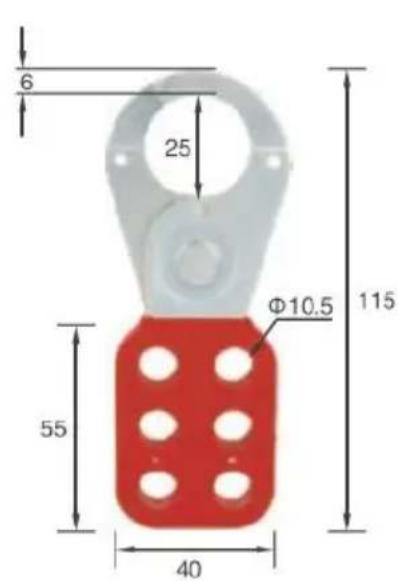

6 25 Φ10.5 115 55 40

BD-K01

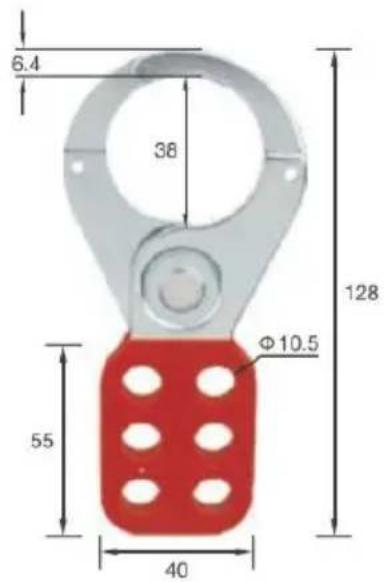

6.4 38 128 Φ10.5 55 40

BD-K02

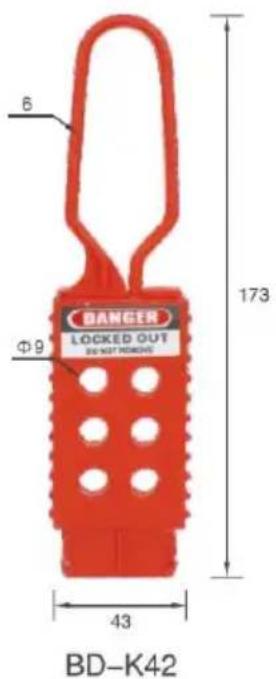

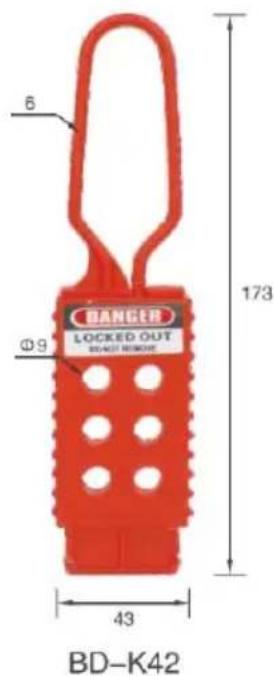

NYLON LOCKOUT HASP

a. High fire-resistant aluminum alloy.
b. Apply to places where need electric power isolation and lock and high requires about corrosive and explosion-proof,

Opening: push up and down.

Part CodeDescription
BD-K42Allow to 6 padlocks

6 BANCKER LOCKED OUT BEACH REMOCE Φ9 173 43 BD-K42

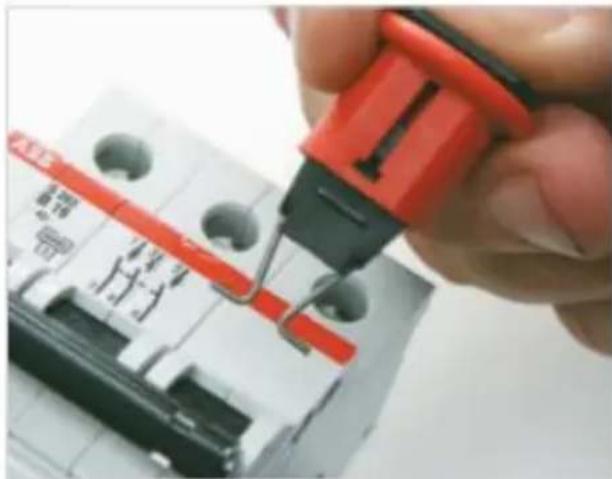

MINIATURE CIRCUIT BREAKER LOCKOUT

e. Made from engineering plastic strengthened nylon PA.

f. Fit most existing types of European and Asia Circuit Breaker.

g. Easily installed with the aid a push button or rotate roller.

h. Available for single and multi-pole circuit breaker

i. Recommended to use in combination with a padlock for added safety.

j. Can use padlocks with a shackle diameter up to 7mm.

Part CodeDescription
BD-D01POS (Pin Out Standard), hole spacing ≤slant 12 mm

Vevor ZT-D1 - MINIATURE CIRCUIT BREAKER LOCKOUT - 1

natural_image Close-up of a hand using a red tool to cut electrical components, no visible text or symbols

BD-D01(Pin Out Standard)

a. Made from rugged polypropylene PP and impact modified PA.
b. Use thumbscrew to clamp lockout securely onto switch tongue, then pull cov and lock in place to prevent clamp from being loosened.
c. New blade design provides tighter grip with less torque on thumb screw.
d. Detachable cleats expand the range of applicable breakers.
e. The lockouts can take padlocks with a shackle diameter up to 7mm.

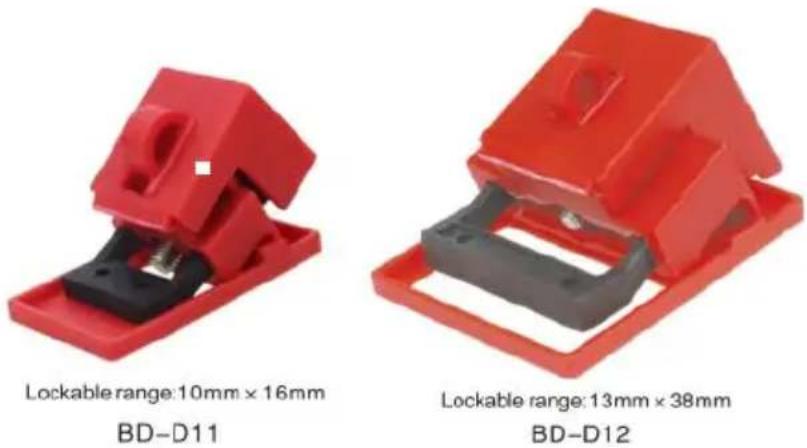

Part CodeDescription

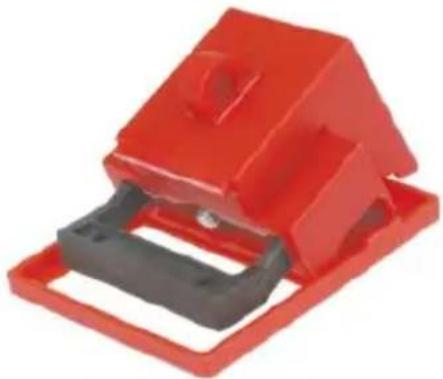

BD-D11Can lock handle width ≤18mm
BD-D12Can lock handle width ≤42mm

Vevor ZT-D1 - MINIATURE CIRCUIT BREAKER LOCKOUT - 2

natural_image Red and black plastic mechanical component (no visible text or symbols)

Lockable range: 10mm × 16mm
BD-D11

Vevor ZT-D1 - MINIATURE CIRCUIT BREAKER LOCKOUT - 3

natural_image Red and black plastic mechanical component with a handle attachment (no text or symbols visible)

Lockable range: 13mm × 38mm
BD-D12

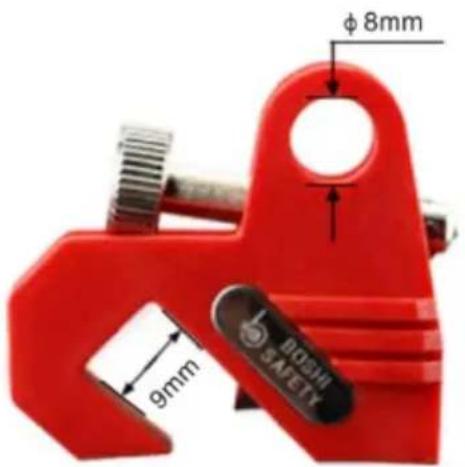

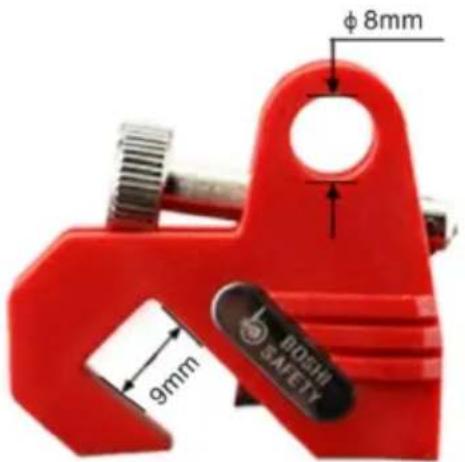

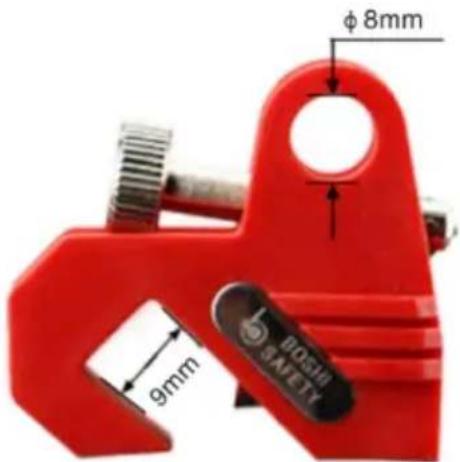

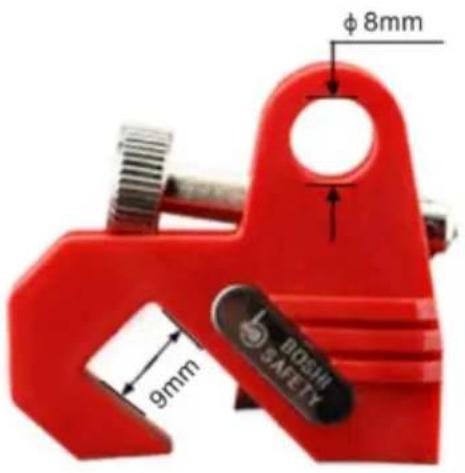

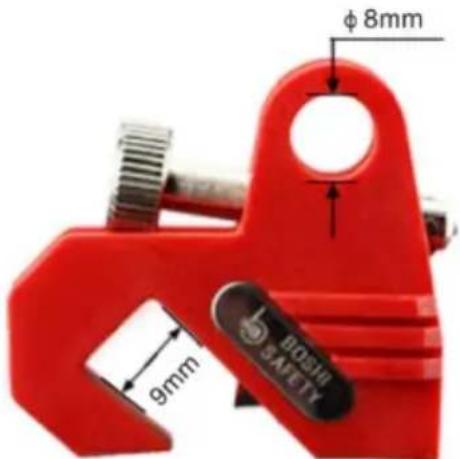

MULTI-FUNCTION MINIATURE BREAKER LOCKOUT

a. Made from engineering plastic strengthened nylon PA and chrome plated by screw.
b. With locking screws, can be locked without tools.
c. Widely used: applicable to all kinds of small and medium sized MCCB, and miniature circuit breaker.
d.Can be customized stainless steel brand.

Part CodeDescription
BD-D14Allow 1 padlock with shackle diameter ≤ 7 mm

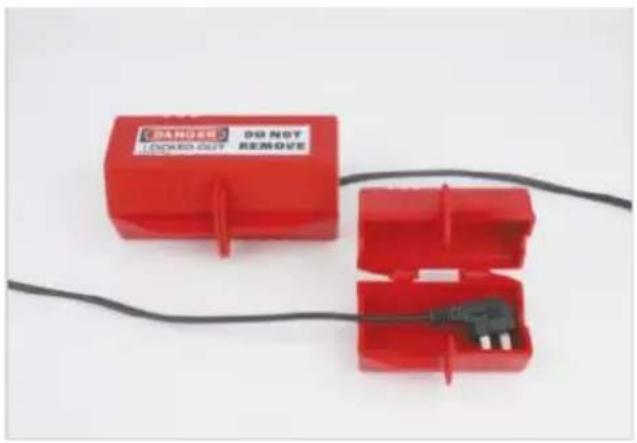

Description

φ 8mm 9mm BOSHI SAFETY

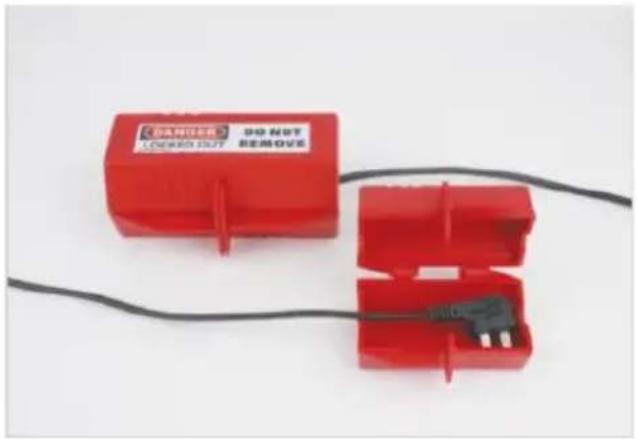

a. Made from rugged polypropylene.
b. Double open and hexagon lockout design, suitable for all kinds of industrial plugs.
c. Accommodates 2 to 4 pieces padlocks with shackle diameter less than 7 ~m lock it at the same time.

Part CodeDescription

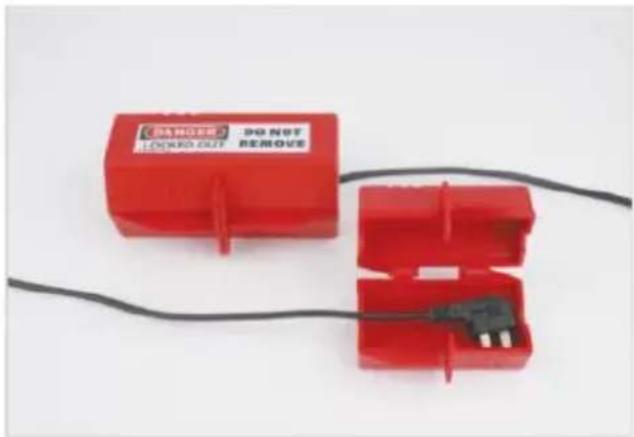

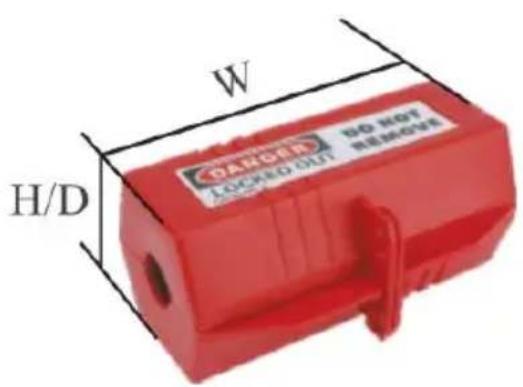

BD-D4151mm(height)*51mm(thickness)*89mm(width), for cable diameter 13mm

W H/D TANGER LOCKED OUT 100 MHz 500 MHz

DO NOT LOCKED OUT REMOVE

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

pooledas123@gmail.com

Tel: 01772418127

Made In China
