USER MANUAL BD-X07-D41 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LOCKOUT TAGOUT KIT USER MANUAL

MODEL: BD-X07-D41

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LOCKOUT TAGOUT KIT

MODEL: BD-X07-D41

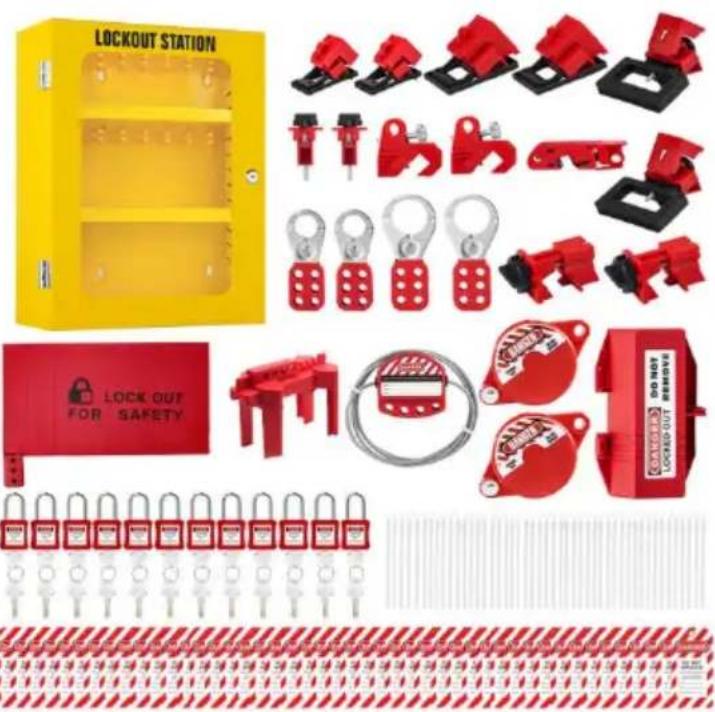

Collection of red safety lockout components including lock-out stations, safety locks, and safety enclosures (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear safety goggles and duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Lockout Tagout Kit.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwra and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed capacities.

4. Use only on a flat, level, hard and smooth surface capable of sa supporting a fully loaded Lockout Tagout Kit.

5. Use as intended only.

6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PRODUCT PARAMETER

Model	BD-X07-D41
Number Of Sets	59
Product Size	500*420*225 mm

PARTS LIST

Name	Code	qty
Lockout management station	X07	1
Safety padlock	G01 (2keys per lock)	12
Lockout Tagout	P01	46
PA coated steel hasp	K01	2
	K02	2
Miniature circuit breaker lockout	D03	2
Clamp-on breaker lockout	D11	2
	D12	2
	D13	2
Multi-function miniature breaker lockout	D14	2
Medium circuit breaker lockout	D17	1
Small-scale circuit breaker locko	D20	2
Electrical plug lockout	D43	1
Lockout bag	D71	1
Adjustable ball valve lockout	F01	1
Adjustable gate valve lockout	F11	2
Adjustable cable lockout	L11	1
Cable tie	/	46

INSTRUCTIONS

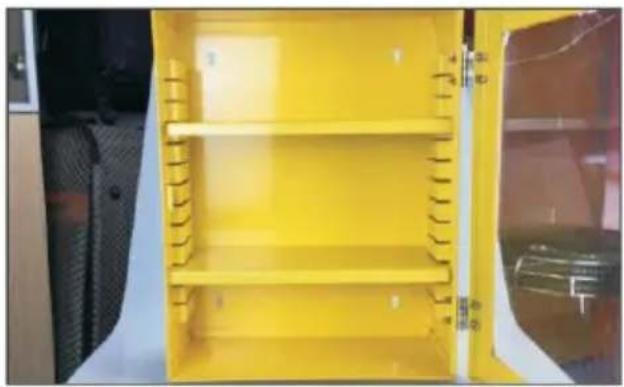

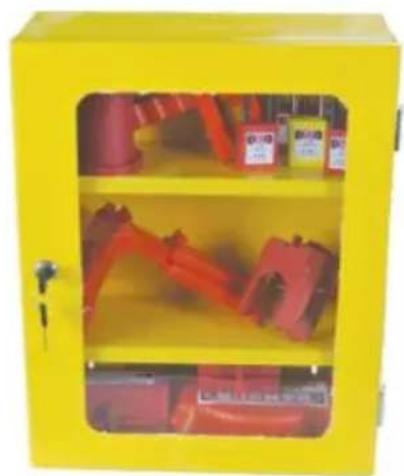

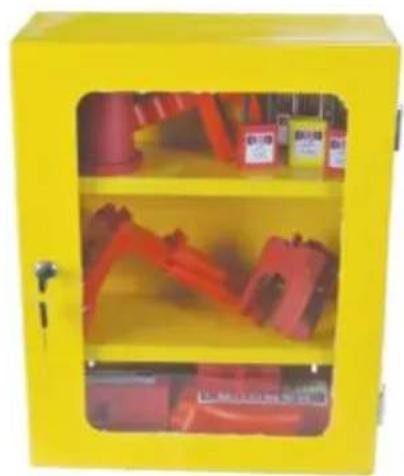

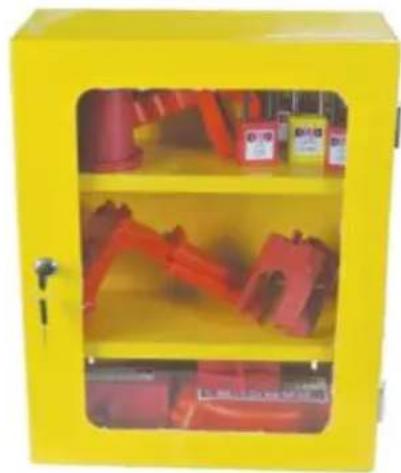

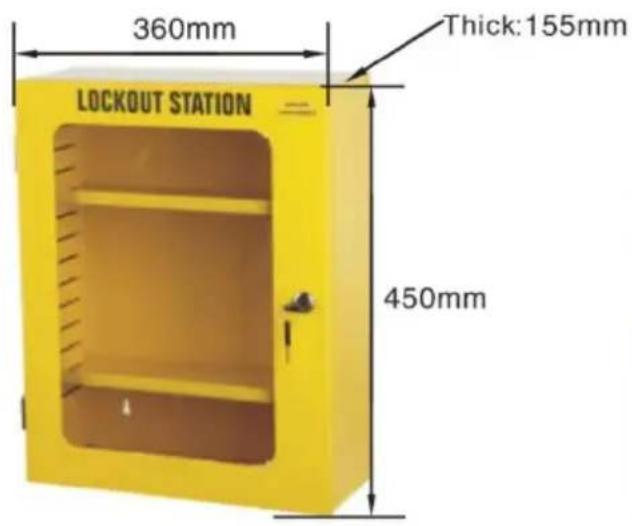

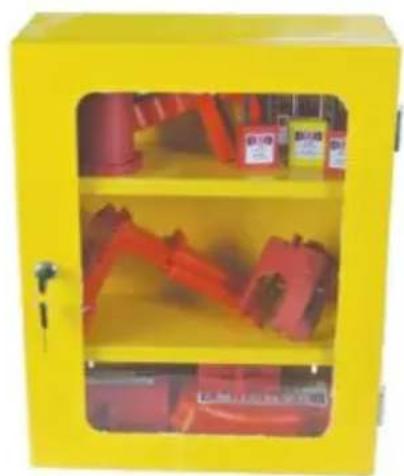

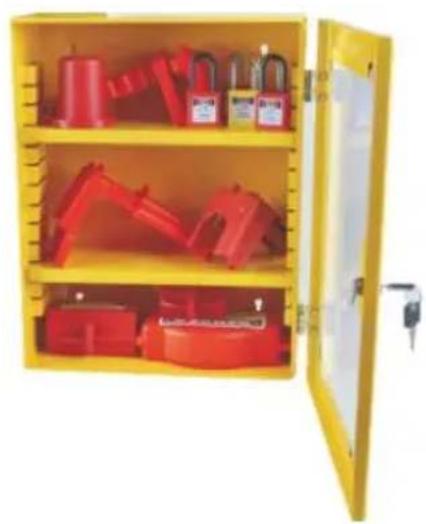

LOCKOUT MANAGEMENT STATION

a. Made from surface high temperature spraying plastic treatment steel plate.
b. With two mobile division plates, can set the division space flexibly.
c. Fix it by screw.
d. Can be customized non-perspective panel.

Part Code	Description
BD-X07	Width×height×thickness: 360×450×155mm

360mm Thick: 155mm LOCKOUT STATION 450mm

Yellow plastic door with side ribs and internal ribs, no visible text or symbols

Yellow safety guard cabinet with red mechanical components and a door open (no visible text or symbols)

Yellow industrial safety cabinet with red components and labeled parts (no readable text or symbols)

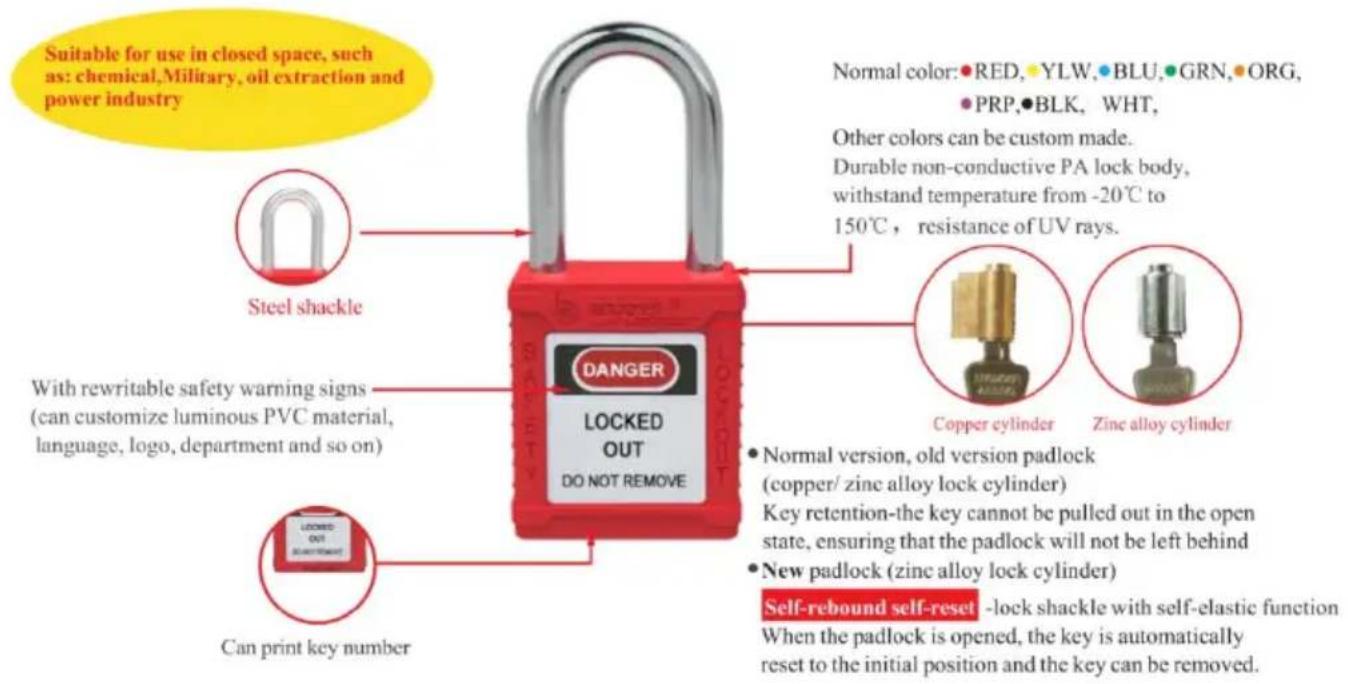

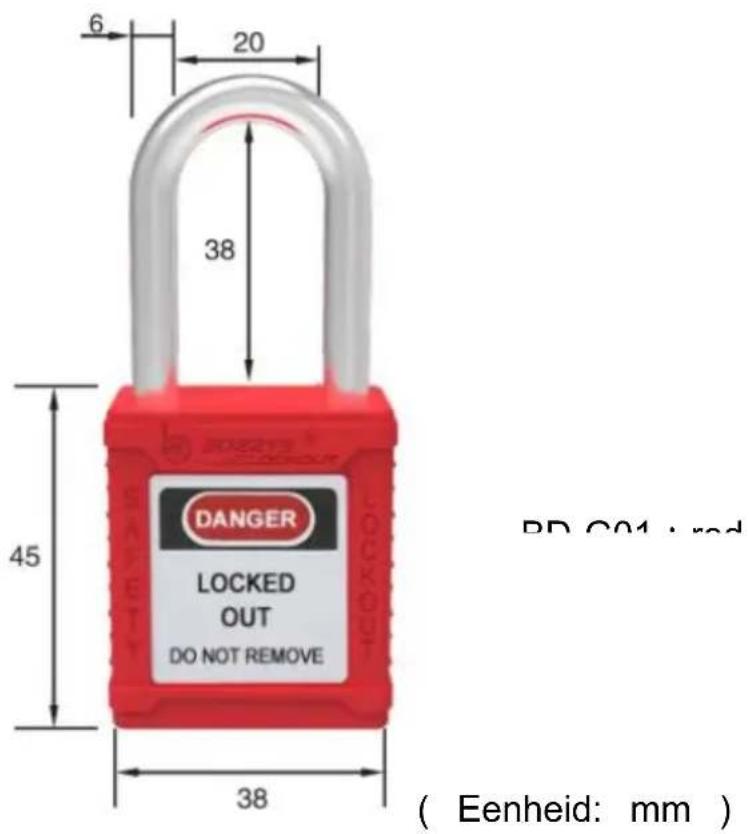

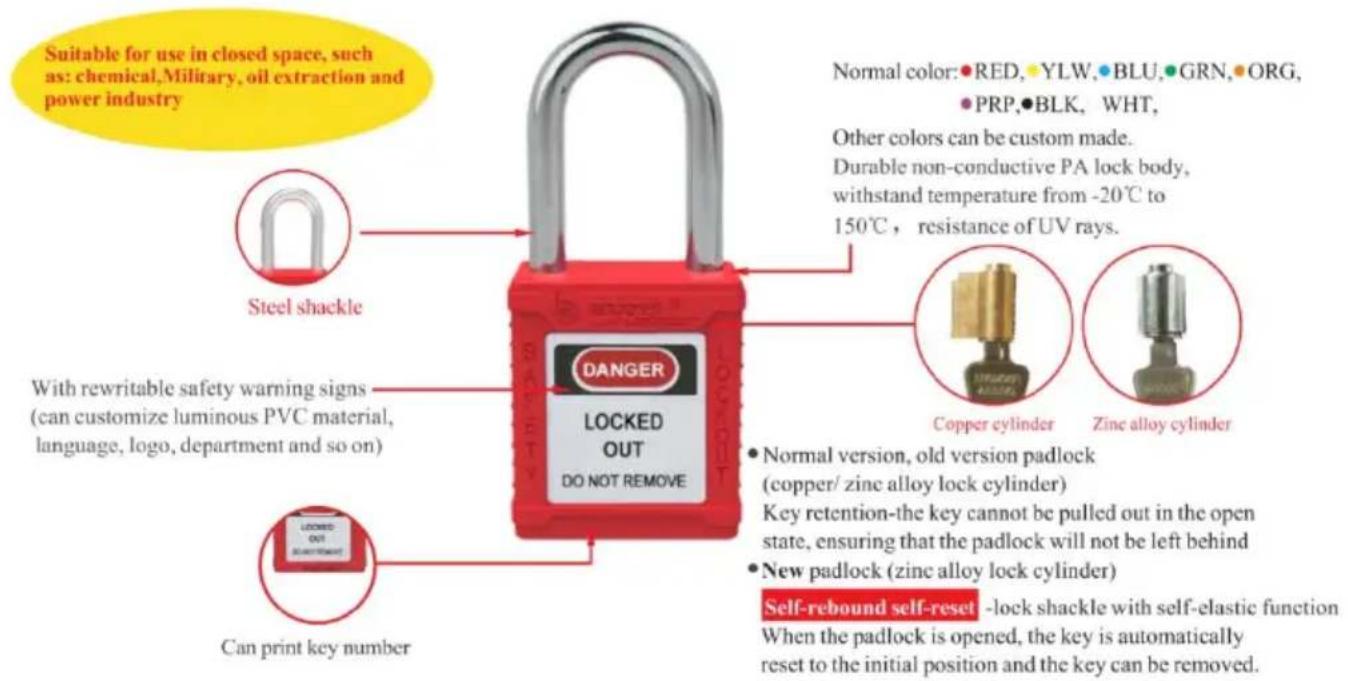

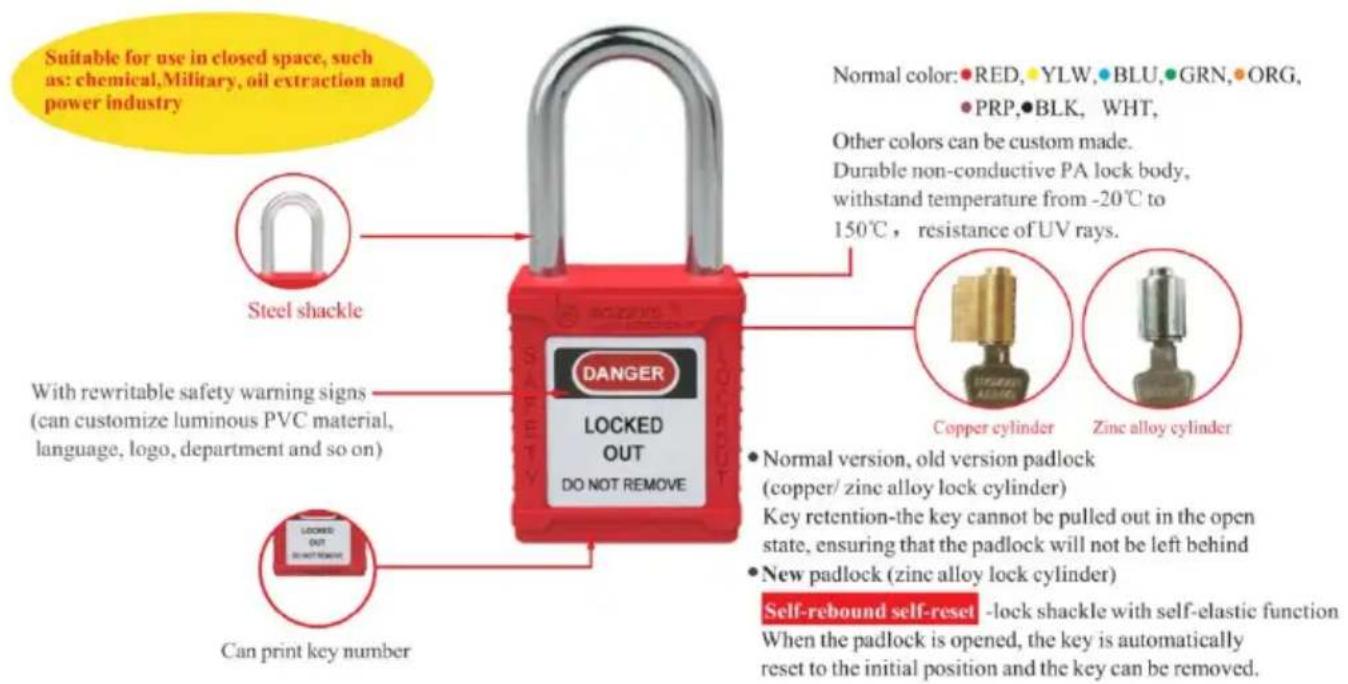

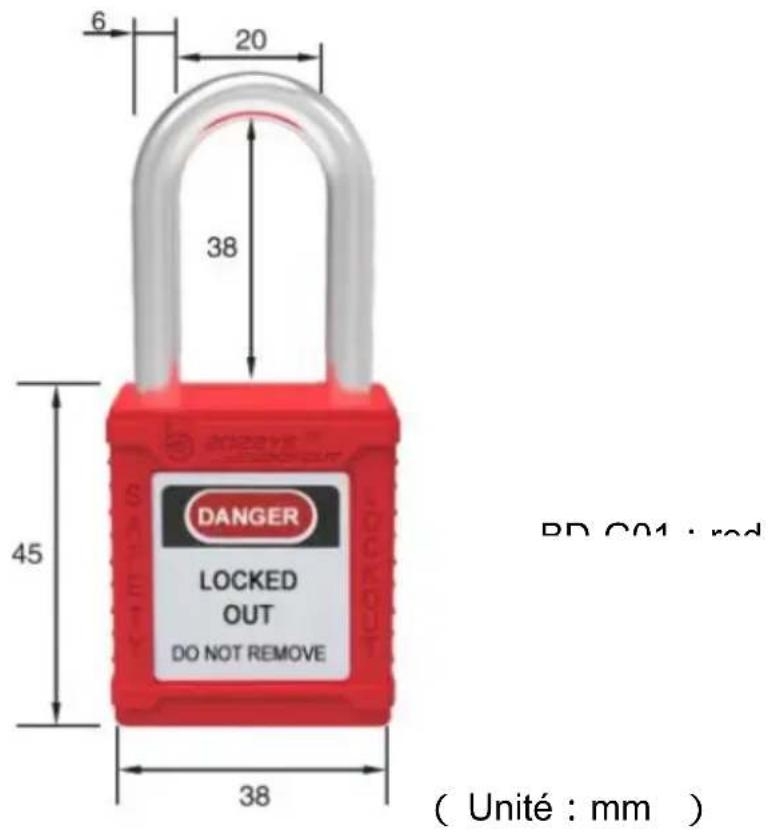

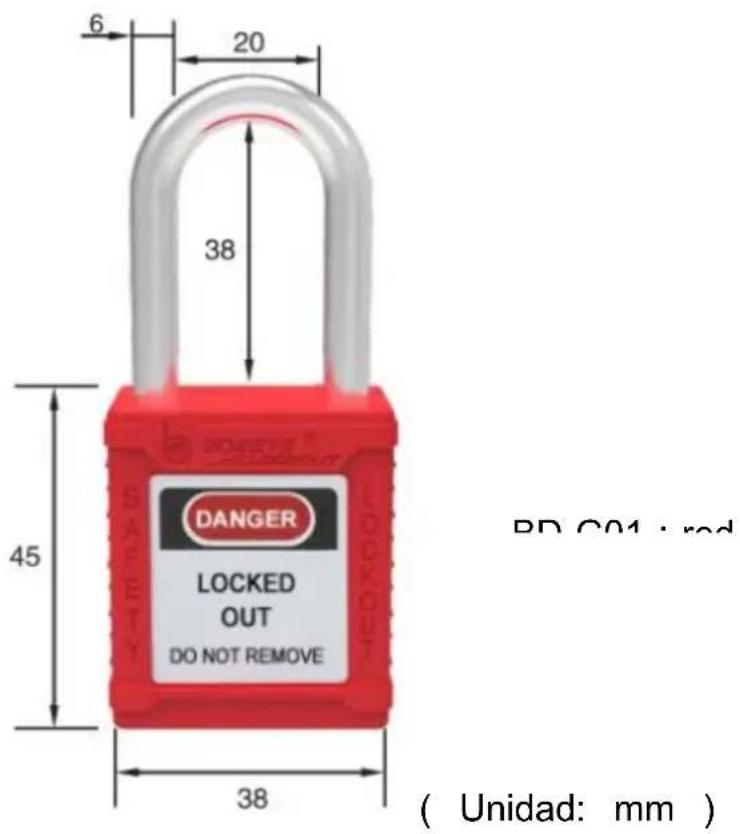

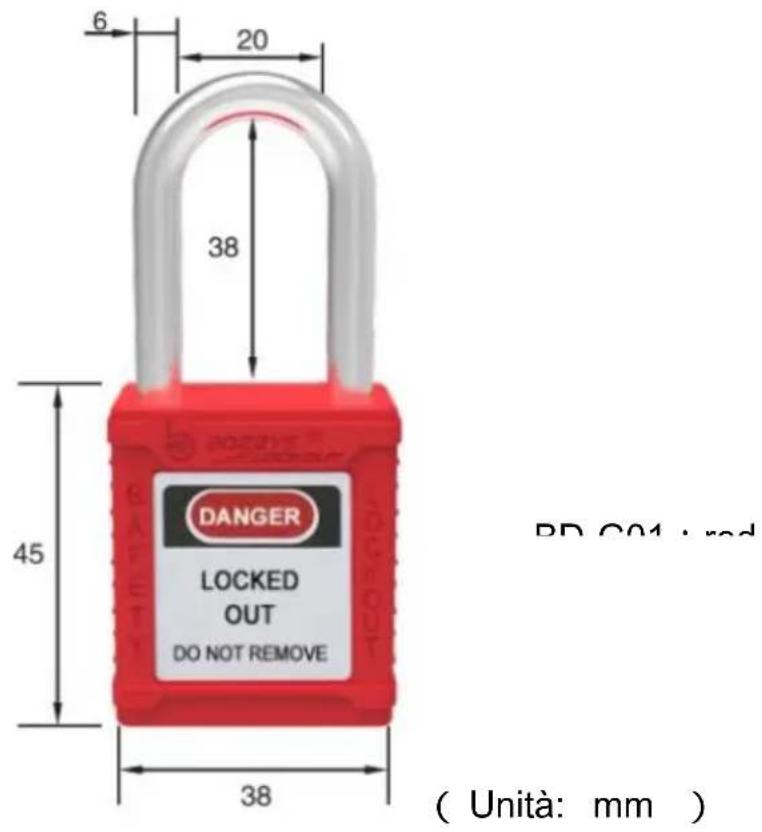

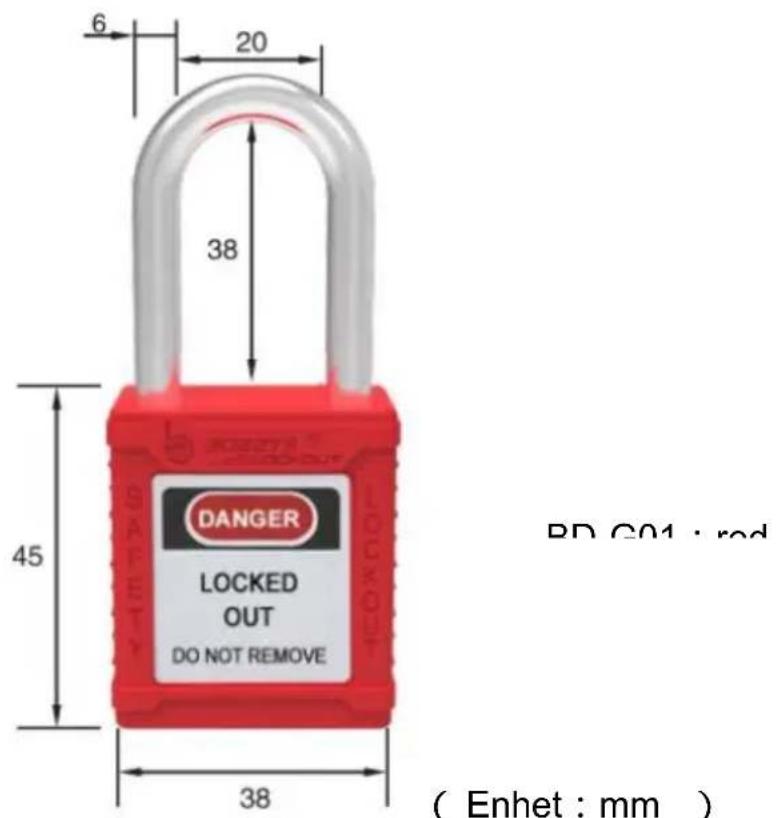

SAFETY PADLOCK

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number DANGER LOCKED OUT DO NOT REMOVE Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

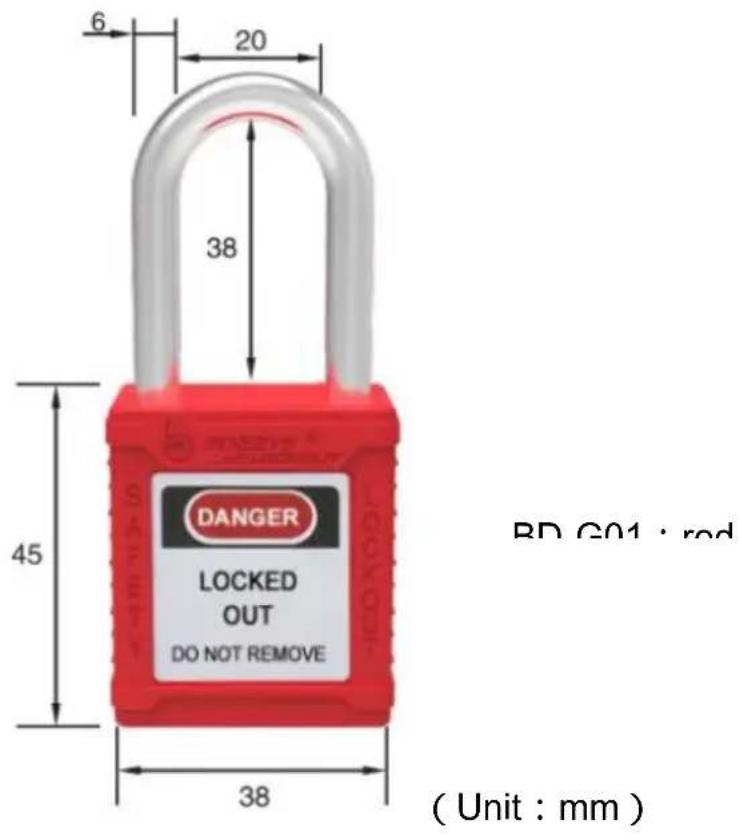

6 20 38 45 DANGER LOCKED OUT DO NOT REMOVE 38 (Unit : mm) RD G01 : rod

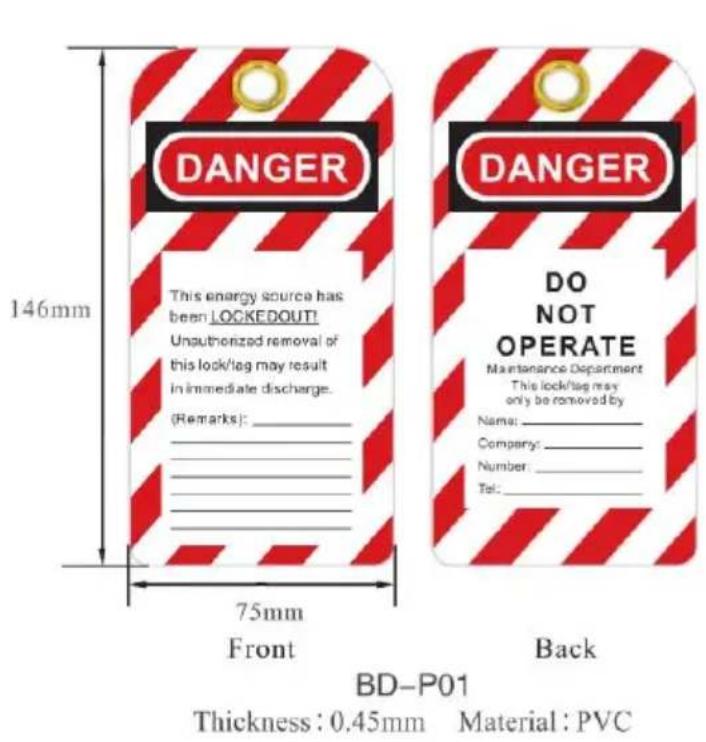

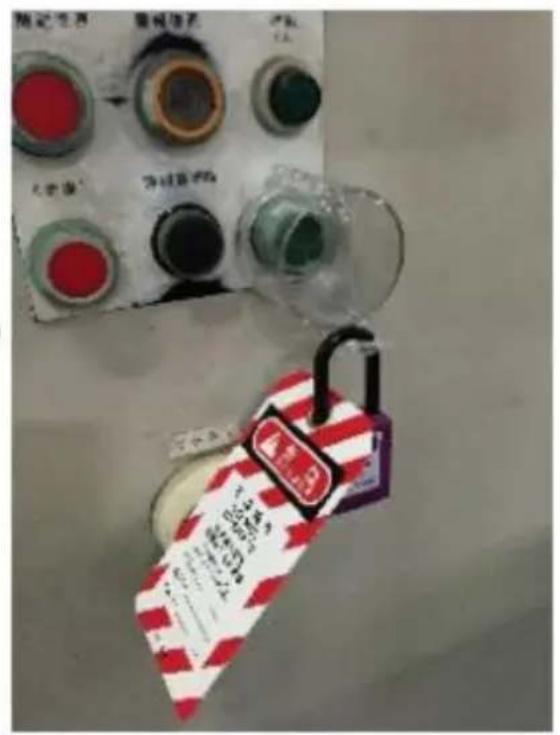

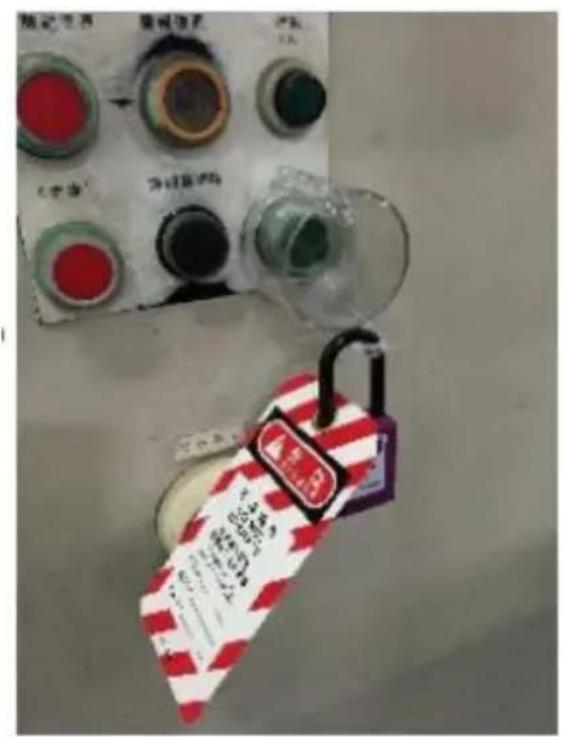

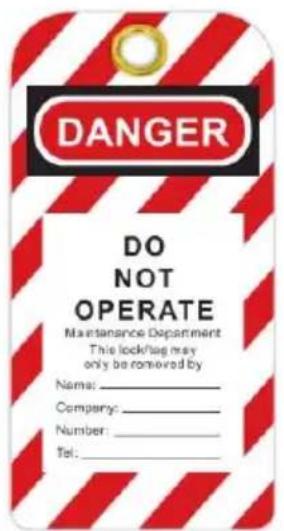

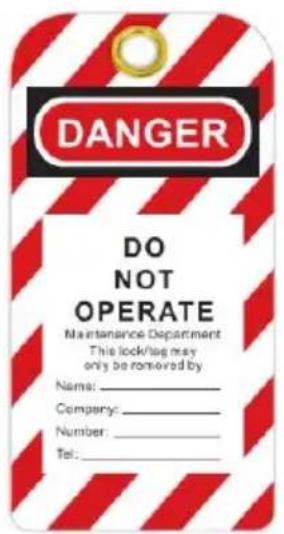

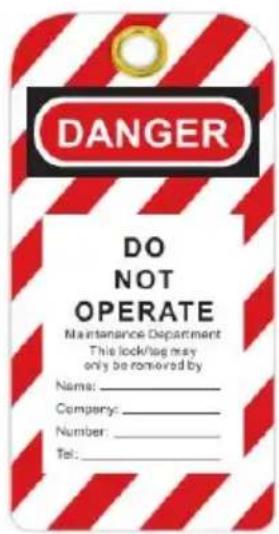

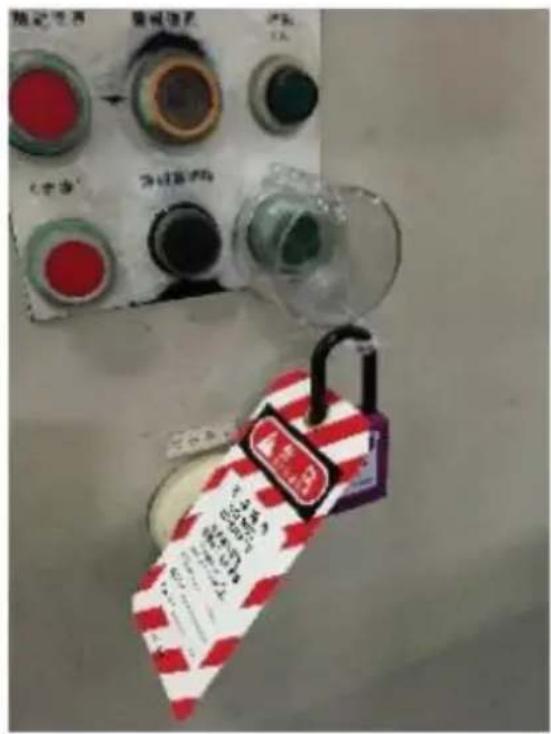

LOCKOUT TAGOUT

a. Lockout tagout can be used to make a holistic control of the equipment to protect workers from accident and equipment from damage.
b. Use with padlock to remind that the device has been locked and can not operate. It can only be opened by the one who lock it. It enables people who lock it and so that they know it is danger to operate the device.
c. On the tag, you can see "Danger/Do not operate/caution" etc security warning language and also "Name/department/Date" etc blank for you to fill in.
d. Offer language customization.

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/tag may result in immediate discharge. (RRemarks): ____ 75mm Front 146mm 75mm Back DO NOT OPERATE Maintenance Department This lock/tag may only be removed by Name: ____ Company: ____ Number: ____ Tel: ____ BD-P01 Thickness: 0.45mm Material: PVC

Photo of a red and white striped tag with handwritten text, next to an industrial control panel with Chinese labels.

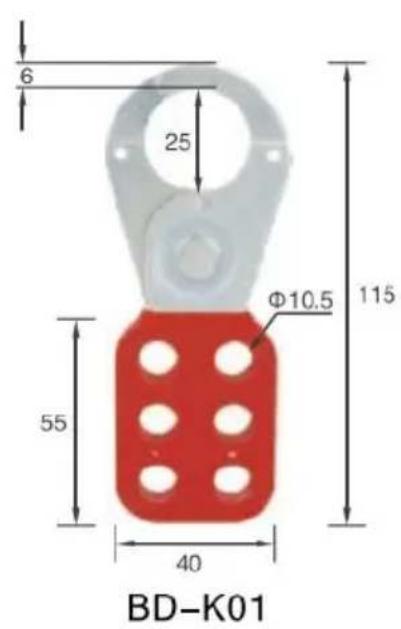

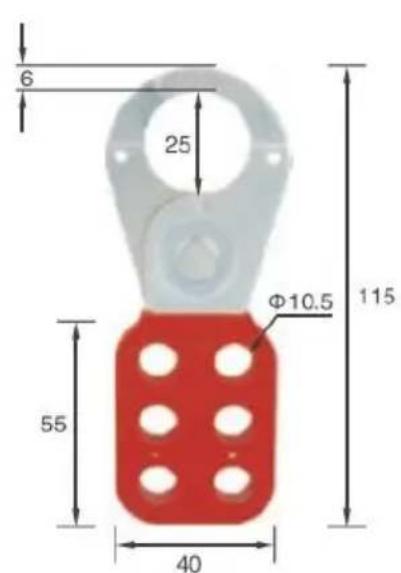

PA COATED STEEL HASP

a. Made from Engineering plastic nylon PA injection molding, galvanize rustproof surface.
b, Lock hole diameter: 10.5mm(2/5").
c.Lock shackle diameter: 25mm(1")&38mm(1.5")
d. Such as custom made stainless steel material, the model behind p "S".

Part Code	Description
BD-K01	Lock shackle 25mm(1”)
BD-K02	Lock shackle 38mm (1.5”)

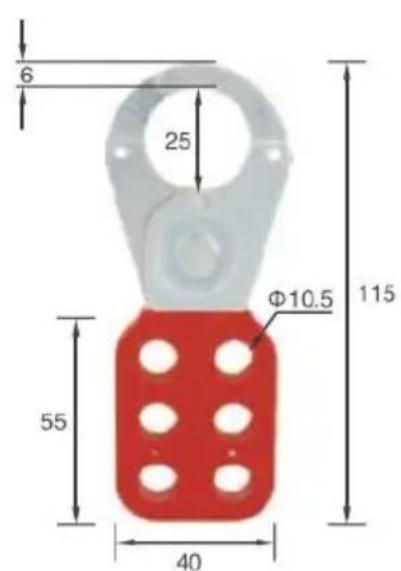

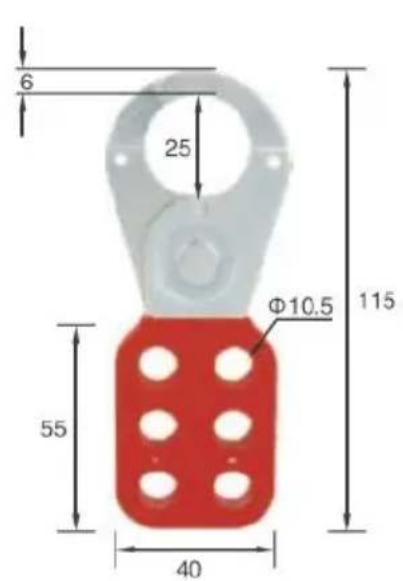

6 25 Φ10.5 115 55 40 BD-K01

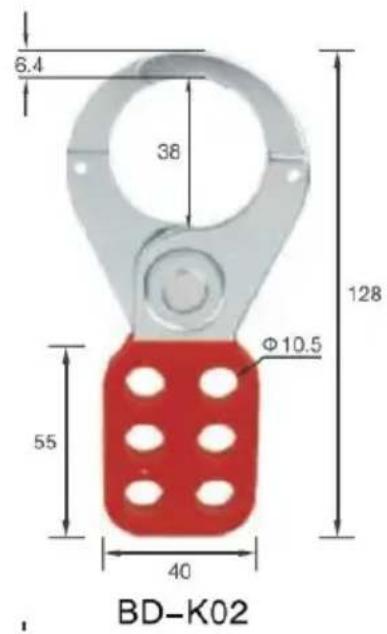

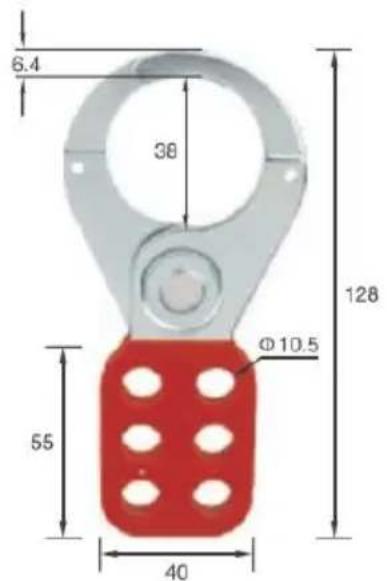

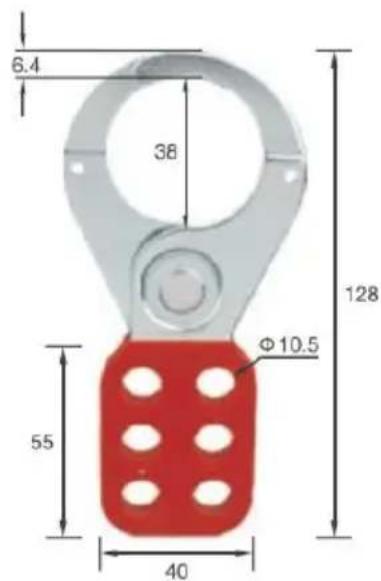

6.4 38 128 Φ10.5 55 40 BD-K02

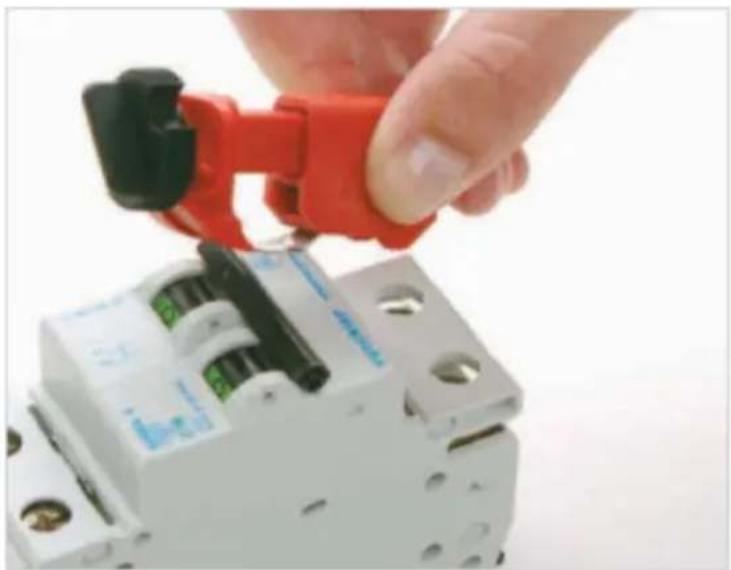

MINIATURE CIRCUIT BREAKER LOCKOUT

e. Made from engineering plastic strengthened nylon PA.
f. Fit most existing types of European and Asia Circuit Breaker.
g. Easily installed with the aid a push button or rotate roller.
h. Available for single and multi-pole circuit breaker

i. Recommended to use in combination with a padlock for added safety.

j. Can use padlocks with a shackle diameter up to 7mm.

Part Code	Description
BD-D03	TBLO (Tie bar Lockout)

Close-up of a hand adjusting a red plastic clip on a white electrical circuit breaker (no text or symbols visible)

BD-D03(Tie bar Lockout)

a. Made from rugged polypropylene PP and impact modified PA.
b. Use thumbscrew to clamp lockout securely onto switch tongue, then pull cov and lock in place to prevent clamp from being loosened.
c. New blade design provides tighter grip with less torque on thumb screw.
d. Detachable cleats expand the range of applicable breakers.
e. The lockouts can take padlocks with a shackle diameter up to 7mm.

Part Code	Description
BD-D11	Can lock handle width ≤slant 18mm
BD-D12	Can lock handle width ≤slant 42mm
BD-D13	Can lock handle width ≤slant 72mm

Red and black plastic mechanical component with a U-shaped groove (no text or symbols visible)

Lockable range:10mm × 16mm BD-D11

Red and black plastic mechanical component with a clamping mechanism (no text or symbols visible)

Lockable range: 13 mm × 38 mm BD-D12

Two red plastic components attached to a black square base, no text or symbols visible.

Lockable range:22mm × 68mm BD-D13

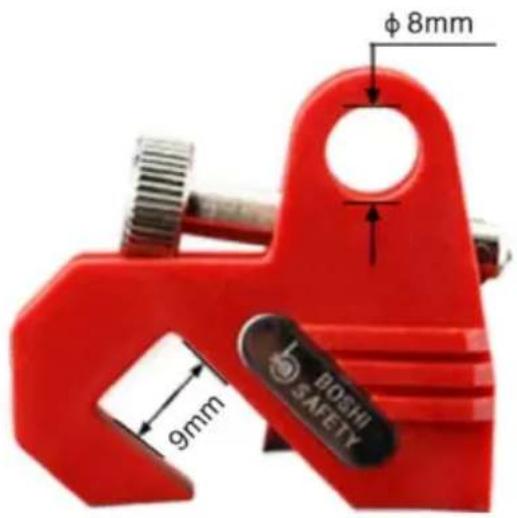

MULTI-FUNCTION MINIATURE BREAKER LOCKOUT

a. Made from engineering plastic strengthened nylon PA and chrome plated by screw.
b. With locking screws, can be locked without tools.
c. Widely used: applicable to all kinds of small and medium sized MCCB, and miniature circuit breaker.
d.Can be customized stainless steel brand.

Part Code	Description
BD-D14	Allow 1 padlock with shackle diameter ≤ 7 mm

φ 8mm 9mm BOSHI SAFETY

a. Made from Die-cast aluminum alloy & Nylon & ABS, The surface sprays
b. With locking screws, can be locked without tools.
c. Widely used,

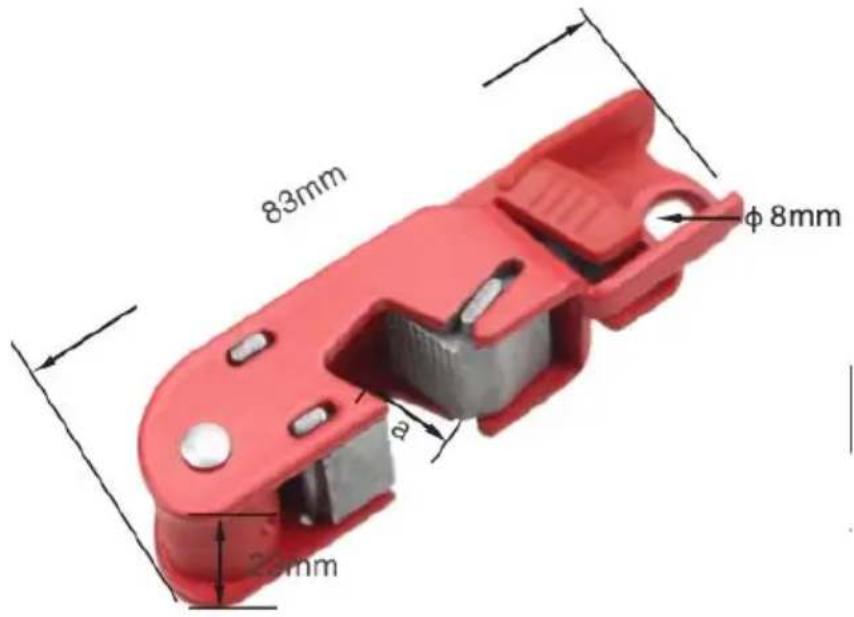

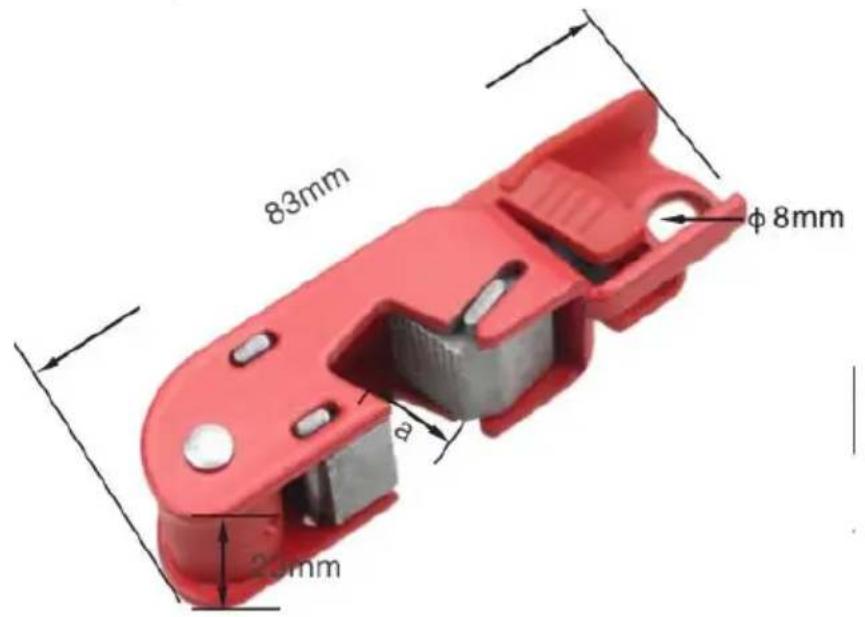

BD-D17, suitable for small and medium sized circuit breaker (handle<12mm)

Part Code	Description
BD-D17	7.5mm ≤ a ≤ 12mm

83mm φ8mm 20mm

BD-D17

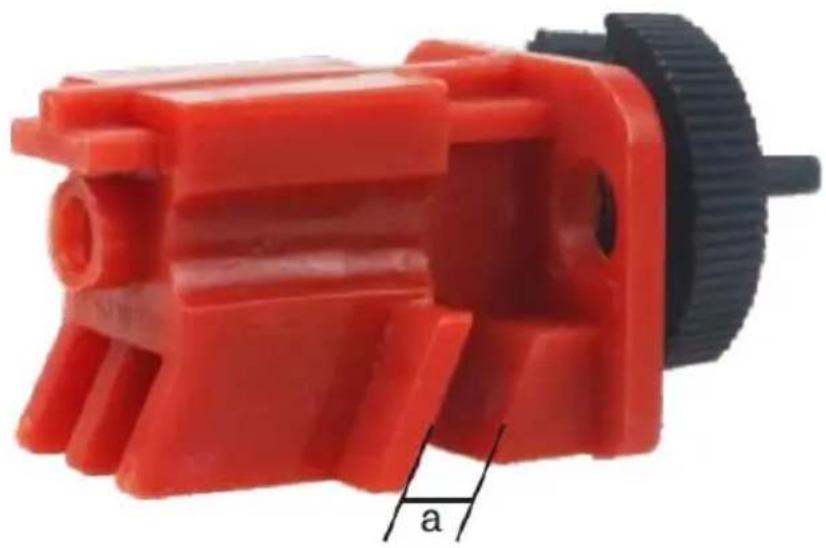

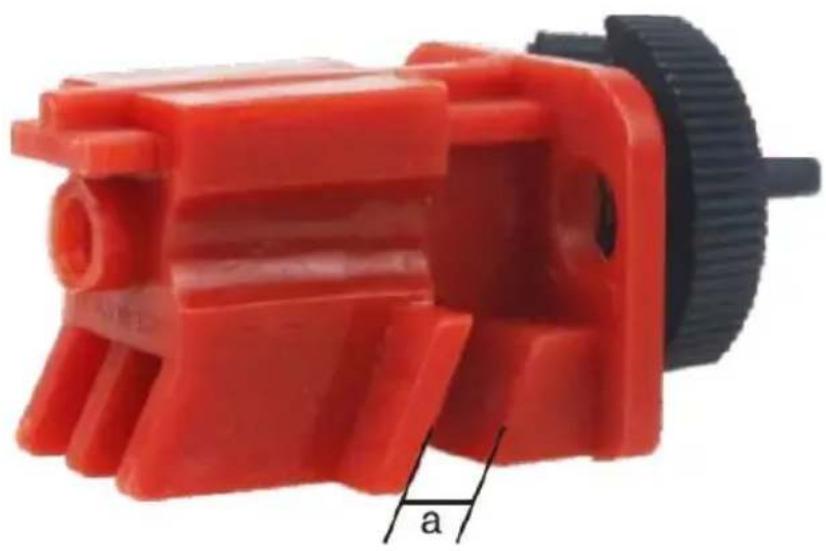

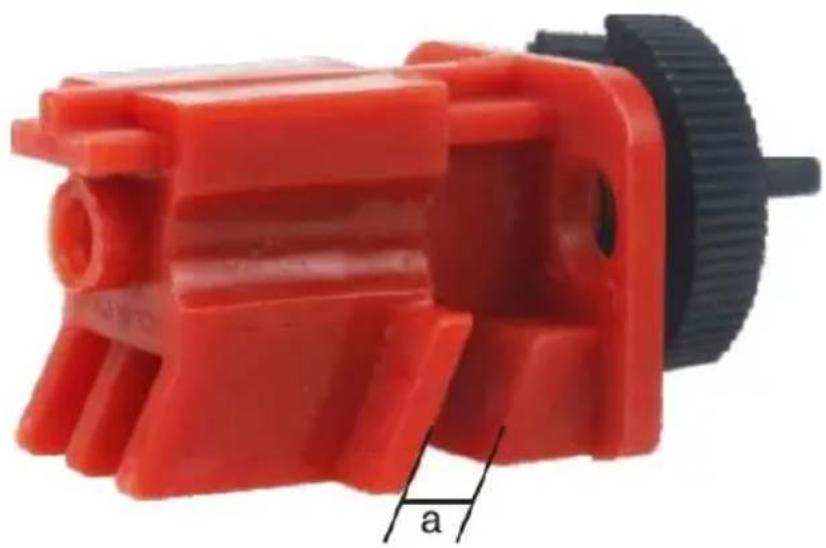

SMALL-SCALE CIRCUIT BREAKER LOCKOUT

a. Made from Nylon & ABS.
b. With locking screws, can be locked without tools.c.Widely used,suitable for small size circuit breaker (handle<15mm)

Part Code	Description
BD-D20	7mm ≤ a ≤ 15mm

Red plastic mechanical component with a black gear and labeled dimension 'a' (no text or symbols on the component itself)

BD-D20

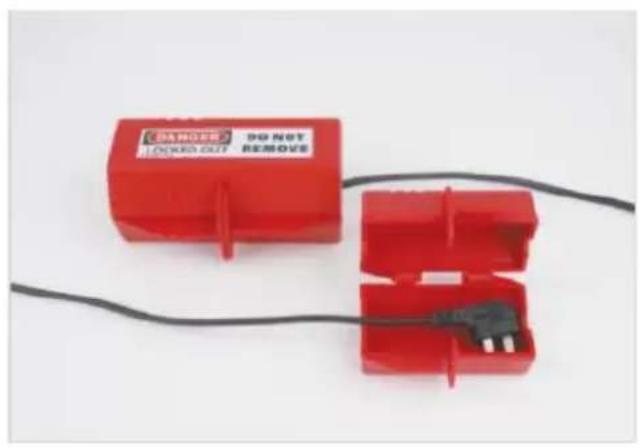

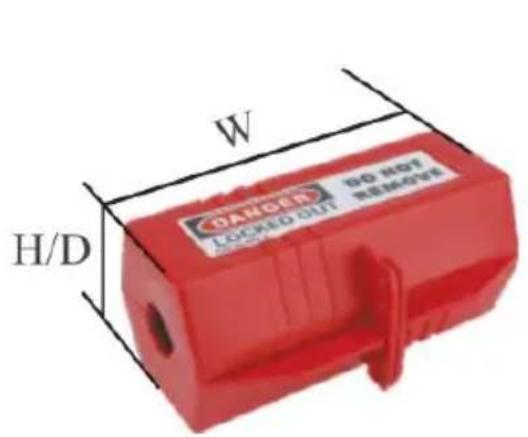

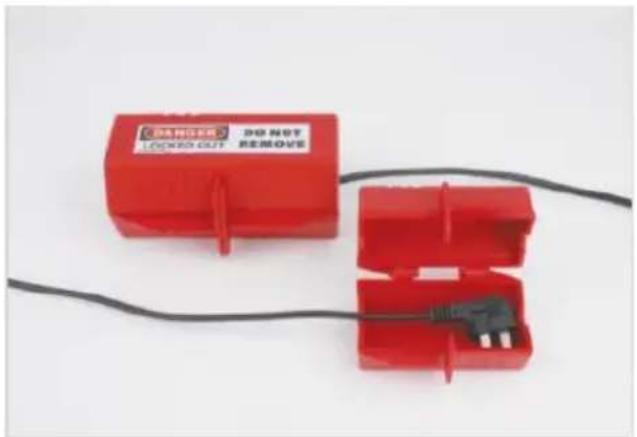

a. Made from rugged polypropylene.
b. Double open and hexagon lockout design, suitable for all kinds of industrial plugs.
c. Accommodates 2 to 4 pieces padlocks with shackle diameter less than 7 ~m lock it at the same time.

Part Code	Description

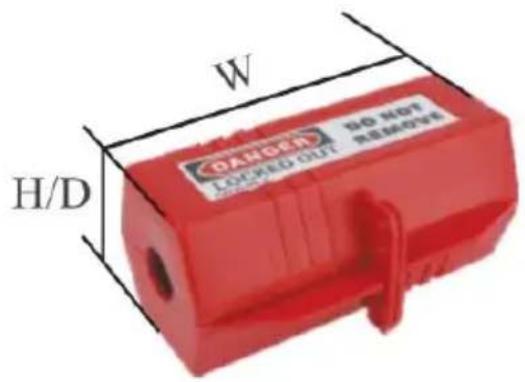

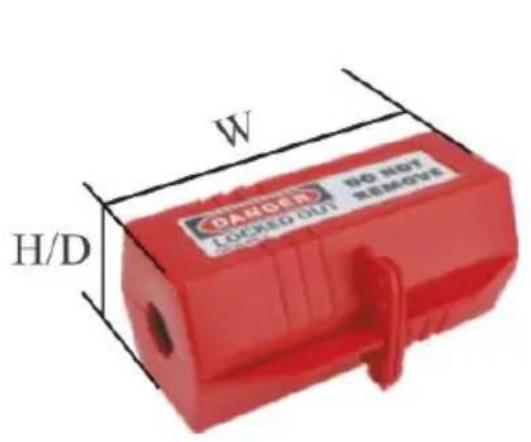

BD-D43	83mm(height)*83mm(thickness)*178mm(width), for cable diameter 25mm

W H/D CANDER LOCKED OUT H/O HOT LED CAP/OPEN

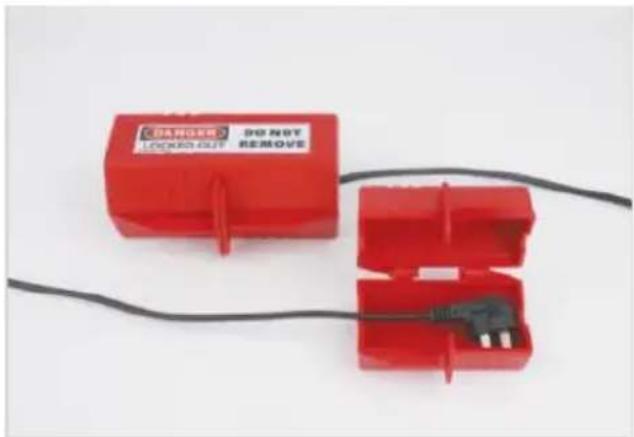

Two red plastic electrical connectors with black wires, one labeled 'LOCKED OUT' and the other 'DO NOT REMOVE', no visible text or symbols on the devices themselves.

LOCKOUT BAG

Ideal device for locking out junction boxes and elevator controllers.

a. Made from wear resisting polyester cloth.
b. With PVC liner to prevent others to contact the button of the elevator controller.
c. With enough space can lock many kinds of driving controller button, or all kinds of special large size plug and accessories.
d. Warning labels available.

Part Code	Description
BD-D71	To lock by adjust the bag mouth, 6 padlocks or hasps can be equipped with

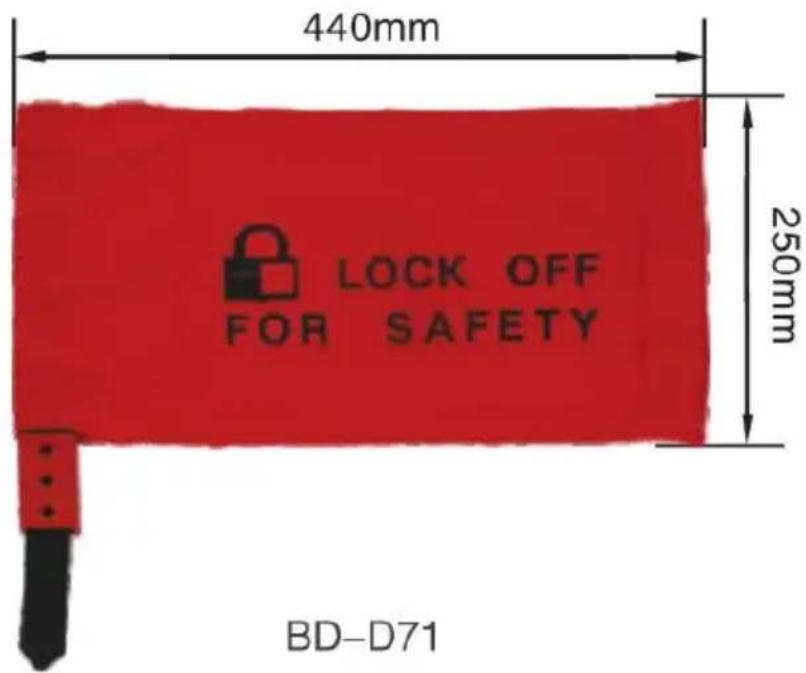

440mm 250mm LOCK OFF FOR SAFETY BD-D71

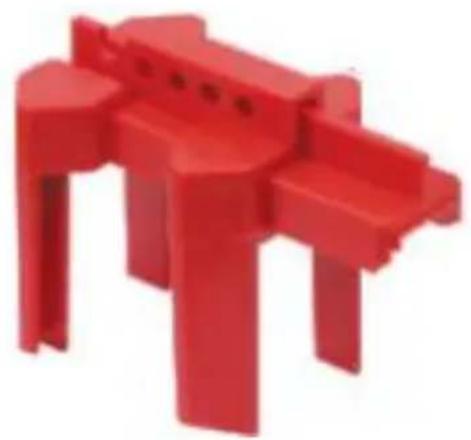

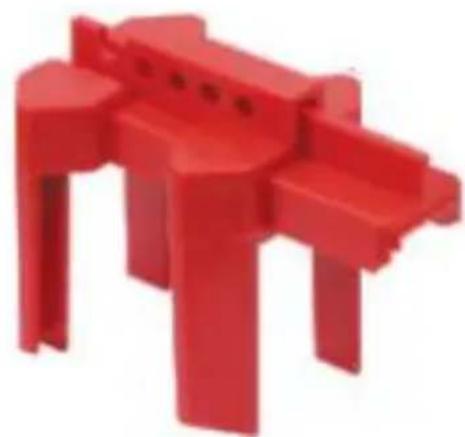

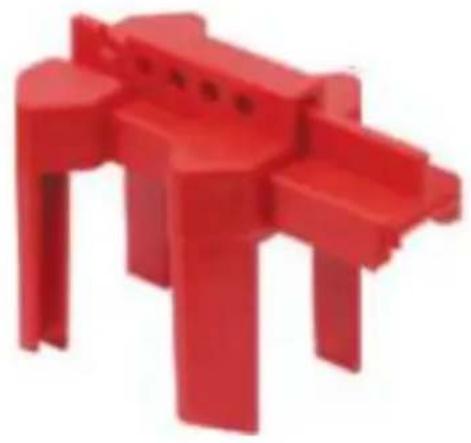

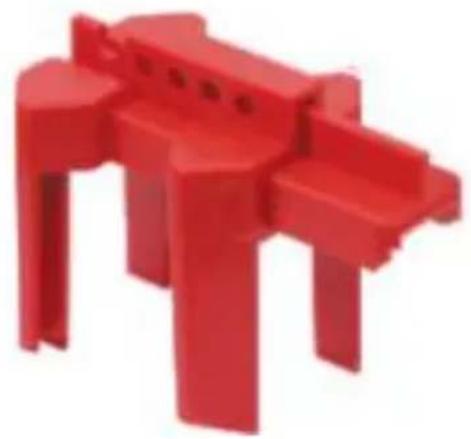

ADJUSTABLE BALLVALVE LOCKOUT

a. Made from polypropylene PP.
b. Applied Sizes:

BD-F01 locks out pipes from 13mm(1/2")to 64mm(2 1/2")in diameterb)

c. Padlock locked shackle max diameter:9mm
d. d.Color:red, other colors need to be customized.

Part Code	Description
BD-F01	Suitable for 13mm(1/2")to 64mm(2 1/2")pipes

Red 3D model of a mechanical bracket or support structure (no text or symbols visible)

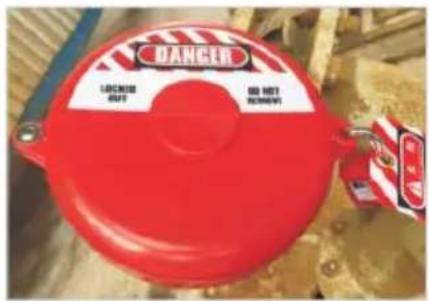

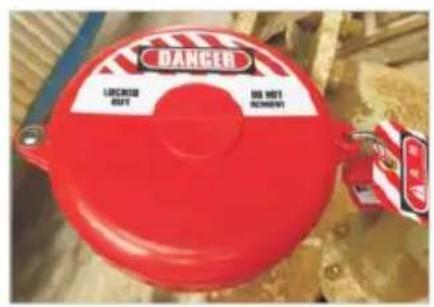

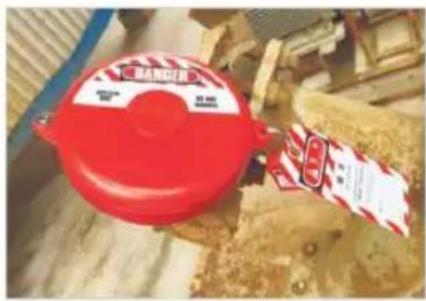

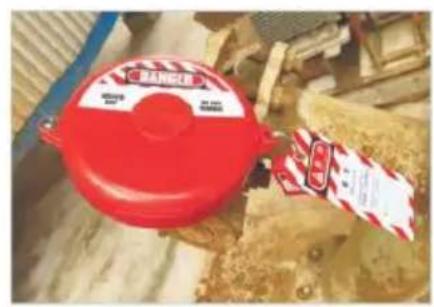

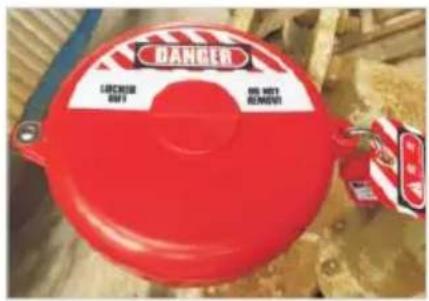

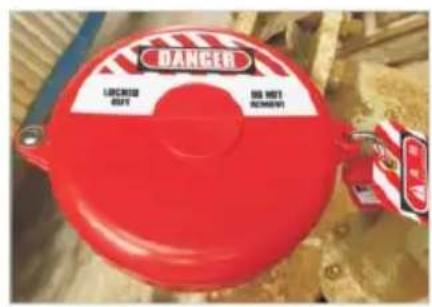

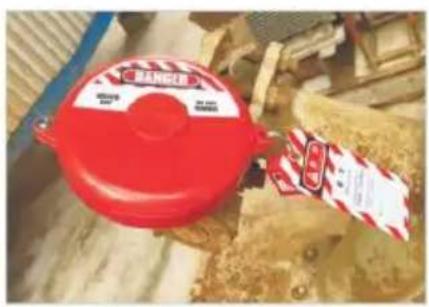

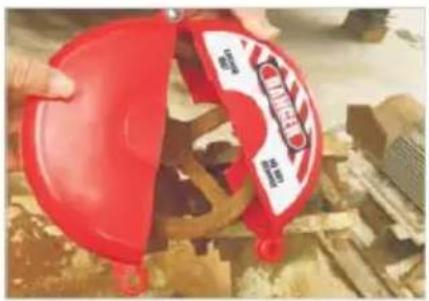

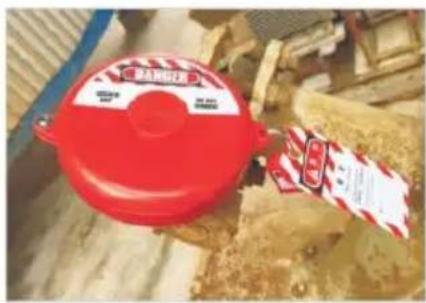

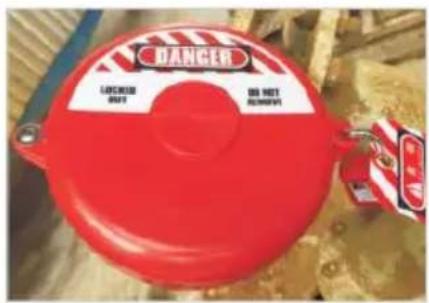

GATE VALVE LOCKOUT

a. Engineering plastic nylon ABS;
b. Lock the hand wheel diameter 25mm-640mm valve(As sheet description)
c. Locked by one padlock, lock shackle diameter 7mm.
d. Color:F11:Red ,other colors need to be customized:Tagout is available.

Part Code	Description
BD-F11	Valve rod diameter 25mm-64mm(1"-2.5")

Red hand holding a red circular object with a white label, placed on a wooden surface (no visible text or symbols)

DANGER BUY BUY NOT REMOVER

Red portable soap dispenser with white label, placed on wooden surface (no readable text or symbols)

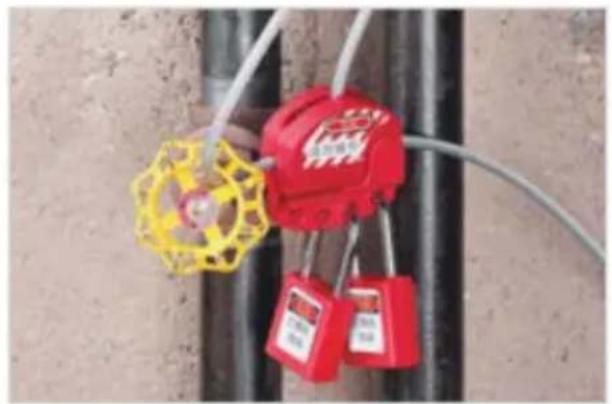

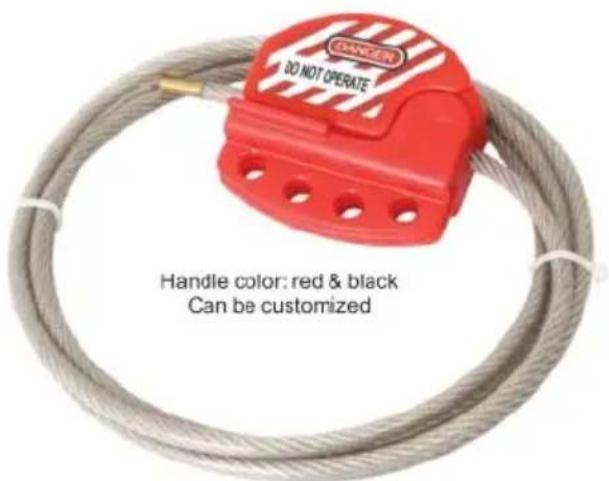

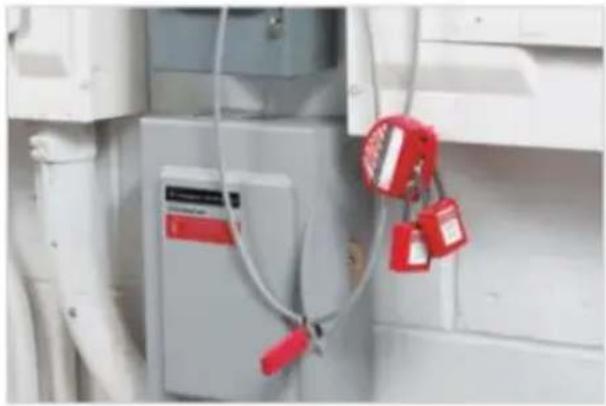

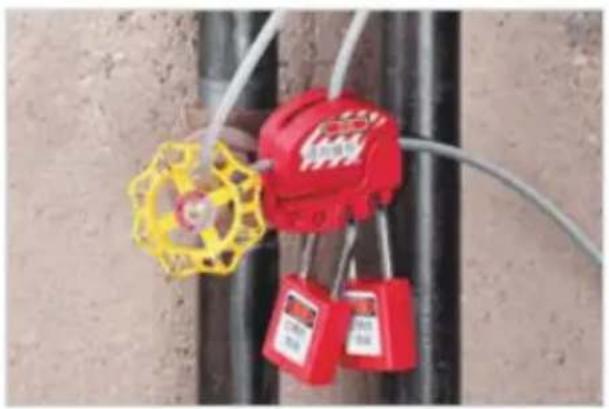

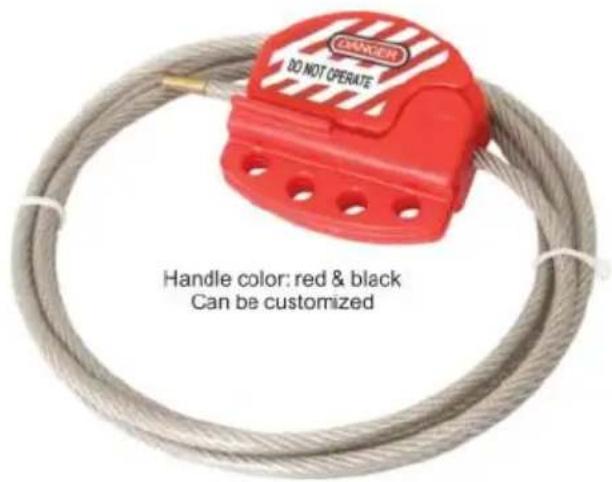

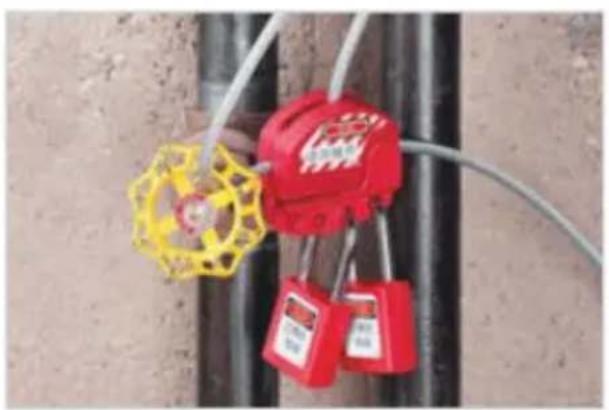

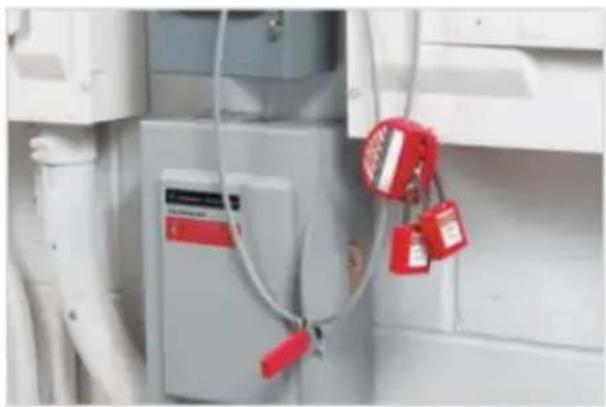

ADJUSTABLE CABLE LOCKOUT

e. Made from impact resistant engineering plastic PC, other colors can be customized.
f. Used 1.8 meter cable, the outer layer of cable is made from anti-UV PVC(diameter6mm), the cable can be customized with different length and color g. Withstand extra temperatures of -46°C to 149°C .
h. Locked with 4 padlocks, lock shackle diameter is less than 7mm.

Part Code	Description
BD-L11-1	Cable specification:4mm*1.8m
BD-L11-2	Cable specification:6mm*1.8m

Close-up of red safety warning boxes and a yellow valve attached to black pipes (no text or symbols visible)

Interior view of an electrical cabinet with red safety warning labels and wiring (no readable text or symbols)

CHANSER DO NOT OPERATE Handle color: red & black Can be customized

BD-L11

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: BD-X07-D41

Collection of red safety lockout components including lock-out stations, safety locks, and safety enclosures (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OSTRZEŻENIE:

Yellow plastic enclosure with visible internal structure and side panel (no text or symbols)

Yellow safety guard cabinet with red electrical components and a door open (no visible text or symbols)

Yellow industrial cabinet with red plastic components, no visible text or symbols on the cabinet itself

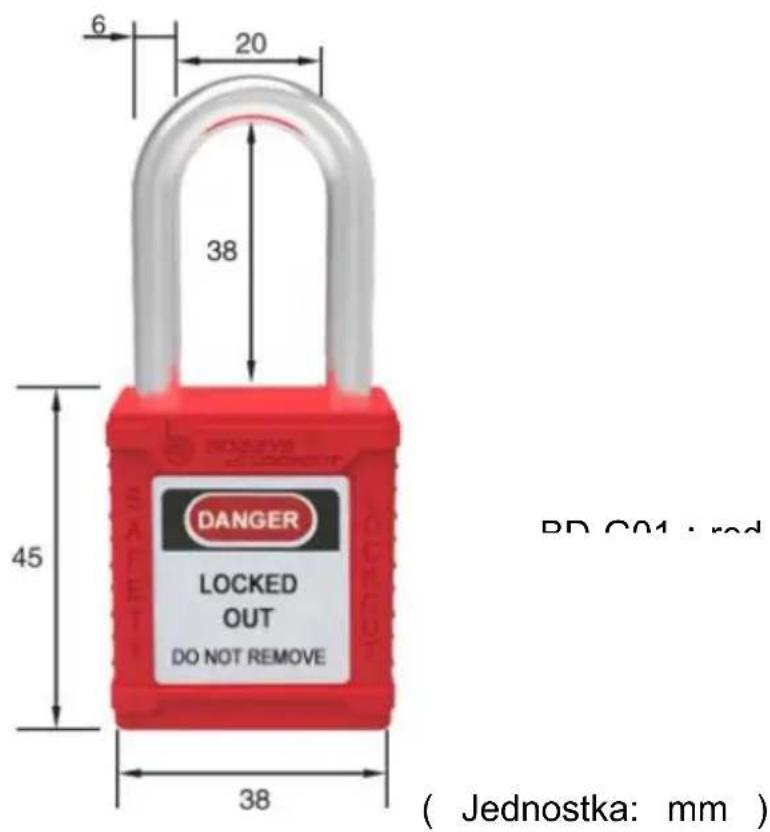

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number DANGER LOCKED OUT DO NOT REMOVE Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

6 20 38 45 38 DANGER LOCKED OUT DO NOT REMOVE PD C01 : rod ( Jednostka: mm )

ZABLOKUJ TAGOUT

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/leg may result in immediate discharge. (RRemarks): _ 75mm Front 146mm 75mm Back DO NOT OPERATE Maintenance Department This lock/leg may only be removed by Name: _ Company: _ Number: _ Tel: _ BD-P01 Thickness: 0.45mm Material: PVC

Photo of a red and white striped tag with handwritten text, next to a control panel with Chinese labels and buttons.

KLAPKA STALOWA POWLEKANA PA

Part Code	Description
BD-K01	Lock shackle 25mm(1”)
BD-K02	Lock shackle 38mm (1.5”)

6 25 Φ10.5 115 55 40

BD-K01

6.4 38 128 Φ10.5 55 40

BD-K02

BLOKADA WYŁĄCZNIKA MINIATUROWEGO

Close-up of a hand adjusting a red plastic clip on a white electrical circuit breaker (no text or symbols visible)

BD-D03(Tie bar Lockout)

BLOKADA WYŁĄCZNIKA ZACISKOWEGO

Part Code	Description
BD-D11	Can lock handle width ≤18mm
BD-D12	Can lock handle width ≤42mm
BD-D13	Can lock handle width ≤72mm

Red and black plastic mechanical component with a square base (no visible text or symbols)

Lockable range:10mm × 16mm BD-D11

Red and black plastic mechanical component with a square base (no text or symbols visible)

Lockable range: 13mm × 38mm BD-D12

Two red plastic clips attached to a black rectangular base (no text or symbols visible)

Lockable range:22mm × 68mm BD-D13

WIELOFUNKCYJNA BLOKADA WYŁĄCZNIKA MINIATUROWEGO

Part Code	Description
BD-D14	Allow 1 padlock with shackle diameter ≤ 7 mm

φ 8mm 9mm BOSHI SAFETY

BLOKADA WYŁĄCZNIKA ŚREDNIEGO

Part Code	Description
BD-D17	7.5mm ≤ a ≤ 12mm

83mm φ 8mm 20mm

BD-D17

BLOKADA WYŁĄCZNIKÓW MAŁYCH

Part Code	Description
BD-D20	7mm ≤ a ≤ 15mm

Red plastic mechanical component with a black gear and labeled dimension 'a' (no text or symbols on the component itself)

BD-D20

BLOKADA WTYCZKI ELEKTRYCZNEJ

Part Code	Description
BD-D43	83mm(height)*83mm(thickness)*178mm(width), for cable diameter 25mm

W H/D DAHORN LOCKED OUT DRG MOUNT DRG MOUNT/INS

Two red electrical components with black wires, one labeled 'DO NOT REMOVE' (no other text or symbols visible)

TORBA NA BLOKADY

Part Code	Description
BD-D71	To lock by adjust the bag mouth, 6 padlocks or hasps can be equipped with

440mm 250mm LOCK OFF FOR SAFETY BD-D71

REGULOWANA BLOKADA ZAWORÓW KULOWYCH

Part Code	Description
BD-F01	Suitable for 13mm(1/2")to 64mm(2 1/2")pipes

Red 3D model of a mechanical bracket or support structure (no text or symbols visible)

BLOKADA ZAWORÓW

Close-up of hands holding a red plastic bag with visible branding, placed on wooden blocks (no text or symbols)

DANGER SPRING OUT RR HUT REMOPE

Red industrial pipe stabilizer with label, placed on wooden surface (no readable text or symbols)

REGULOWANA BLOKADA LINKI

Part Code	Description
BD-L11-1	Cable specification:4mm*1.8m
BD-L11-2	Cable specification:6mm*1.8m

Close-up of red safety warning boxes and a yellow valve attached to black pipes (no text or symbols visible)

Interior view of an electrical cabinet with red safety warning labels and wiring (no readable text or symbols)

CHANSER DO NOT OPERATE Handle color: red & black Can be customized

BD-L11

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Szunghaj

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

2122 Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

LOCKOUT-TAGOUT-KIT

Benutzerhandbuch \_

MODELL: BD-X07-D41

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LOCKOUT TAGOUT KIT

MODELL: BD-X07-D41

Collection of red safety lockout components including lock-out stations, safety locks, and safety enclosures (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNUNG:

Yellow plastic enclosure with internal shelves and ventilation grilles, no visible text or symbols

Yellow safety guard cabinet with red mechanical components and a door open (no visible text or symbols)

Yellow industrial safety cabinet with red plastic components, no visible text or symbols on the cabinet itself

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number LOCKED OUT DO NOT REMOVE DANGER Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

6 20 38 45 DANGER LOCKED OUT DO NOT REMOVE 38 ( Einheit: mm )

SPERR -TAGOUT

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/tag may result in immediate discharge. (Remarks): _ 75mm Front 146mm 75mm Back DO NOT OPERATE Maintenance Department This lock/tag may only be removed by Name: _ Company: _ Number: _ Tel: _ BD-P01 Thickness: 0.45mm Material: PVC

Photo of industrial control panel with Chinese labels and a red-and-white striped tag, likely indicating inspection or testing.

Part Code	Description
BD-K01	Lock shackle 25mm(1”)
BD-K02	Lock shackle 38mm (1.5”)

6 25 Φ10.5 115 55 40

BD-K01

6.4 38 128 Φ10.5 55 40

BD-K02

Close-up of a hand adjusting a red and black plastic component on a white electrical circuit board (no visible text or symbols)

BD-D03(Tie bar Lockout)

KLEMME SCHALTERVERRIEGELUNG

Part Code	Description
BD-D11	Can lock handle width ≤18mm
BD-D12	Can lock handle width ≤42mm
BD-D13	Can lock handle width ≤72mm

Red and black plastic mechanical component with a slot, no visible text or symbols

Lockable range:10mm×16mm
BD-D11

Red and black plastic mechanical component with mounting bracket (no text or symbols visible)

Lockable range: 13mm × 38mm
BD-D12

Two red plastic clips attached to a black rectangular base (no text or symbols visible)

Lockable range:22mm × 68mm
BD-D13

MULTIFUNKTIONS-MINIATUR-SCHALTERVERRIEGELUNG

Part Code	Description
BD-D14	Allow 1 padlock with shackle diameter ≤ 7 mm

φ 8mm 9mm BOSHI SAFETY

Part Code Description BD-D17 7.5mm ≤ a ≤ 12mm 83mm φ 8mm 20mm

BD-D17

Part Code	Description
BD-D20	7mm ≤ a ≤ 15mm

Red plastic mechanical component with a black gear and labeled dimension 'a' (no text or symbols on the component itself)

BD-D20

ELEKTRISCHE STECKERVERRIEGELUNG

Part Code	Description
BD-D43	83mm(height)*83mm(thickness)*178mm(width), for cable diameter 25mm

W H/D TIG-HOT METER-DOTER

DO NOT REMOVE LOCKED OUT

LOCKOUT-TASCHE

Part Code	Description
BD-D71	To lock by adjust the bag mouth, 6 padlocks or hasps can be equipped with

440mm 250mm LOCK OFF FOR SAFETY BD-D71

EINSTELLBARE KUGELVENTILVERRIEGELUNG

Part Code	Description
BD-F01	Suitable for 13mm(1/2")to 64mm(2 1/2")pipes

Red 3D model of a mechanical bracket or support structure (no text or symbols visible)

Absperrschieber

Red circular object with a white label partially removed, placed on a wooden surface (no visible text or symbols)

DANCEER LOCKED 80%1 RR NOT REPRODUT

Red portable air filter with label, placed on wooden surface (no readable text or symbols)

EINSTELLBARE KABELVERRIEGELUNG

Part Code	Description
BD-L11-1	Cable specification:4mm*1.8m
BD-L11-2	Cable specification:6mm*1.8m

Close-up of red safety warning box with yellow valve and two red padlocks attached to a black pipe (no text or symbols visible)

Interior view of an electrical cabinet with red safety clips attached to a white panel (no visible text or symbols)

DO NOT OPERATE Handle color: red & black Can be customized

BD-L11

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE: BD-X07-D41

Collection of red safety lockout components including lock-out stations, safety locks, and safety enclosures (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERTISSEMENT:

Yellow plastic enclosure with internal shelves and ventilation grilles, no visible text or symbols

Yellow safety guard cabinet with red mechanical components and a door open (no visible text or symbols)

Yellow industrial safety cabinet with red plastic components, no visible text or symbols on the cabinet itself

CADENAS DE SÉCURITÉ

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number DANGER LOCKED OUT DO NOT REMOVE Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

6 20 38 45 DANGER LOCKED OUT DO NOT REMOVE 38 ( Unité : mm ) PD C01 : rod

ÉTIQUETAGE DE VERROUILLAGE

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/tag may result in immediate discharge. (RRemarks): ____ 75mm

Front

DANGER DO NOT OPERATE Maintenance Department This lock/log may only be removed by Name: _ Company: _ Number: _ Tel: _

Back
BD-P01

Thickness: 0.45mm Material: PVC

Photo of a red and white striped tag with Chinese text, next to an industrial control panel with buttons and labels.

Part Code	Description
BD-K01	Lock shackle 25mm(1”)
BD-K02	Lock shackle 38mm (1.5”)

6 25 Φ10.5 115 55 40

BD-K01

6.4 38 128 Φ10.5 55 40

BD-K02

VERROUILLAGE DE DISJONCTEUR MINIATURE

Close-up of a hand adjusting a red plastic clip on a white electrical circuit breaker (no text or symbols visible)

BD-D03(Tie bar Lockout)

VERROUILLAGE DU DISJONCTEUR À PINCE

Red and black plastic mechanical component with a slot, no visible text or symbols

Lockable range:10mm × 16mm BD-D11

Red and black plastic mechanical component with mounting bracket (no text or symbols visible)

Lockable range: 13 mm × 38 mm BD-D12

Two red plastic clips attached to a black rectangular base (no text or symbols visible)

Lockable range:22mm × 68mm BD-D13

VERROUILLAGE DE DISJONCTEUR MINIATURE MULTIFONCTION

Part Code	Description
BD-D14	Allow 1 padlock with shackle diameter ≤ 7 mm

φ 8mm 9mm BOSHI SAFETY

VERROUILLAGE DU DISJONCTEUR MOYEN

Part Code Description BD-D17 7.5mm ≤ a ≤ 12mm 83mm φ 8mm 20mm

BD-D17

VERROUILLAGE DE DISJONCTEUR À PETITE ÉCHELLE

©

W H/D DO NOT REMOVER LOCKED OUT

DO NOT REMOVE DO KED OUT

SAC DE VERROUILLAGE

Part Code	Description
BD-D71	To lock by adjust the bag mouth, 6 padlocks or hasps can be equipped with

440mm 250mm LOCK OFF FOR SAFETY BD-D71

VERROUILLAGE DE VANNE À BILLE RÉGLABLE

Part Code	Description
BD-F01	Suitable for 13mm(1/2")to 64mm(2 1/2")pipes

Red 3D model of a mechanical bracket or support structure (no text or symbols visible)

VERROUILLAGE DU VANNE-VANNE

Close-up of hands holding a red and white plastic bag with visible branding, set against a blurred background of debris and wood (no readable text or symbols)

DANGER LOCKED BEET BE HOT BEHINDI

Red industrial pipe pump with warning label and attached red paper label, placed on wooden surface (no readable text or symbols)

Part Code	Description
BD-L11-1	Cable specification:4mm*1.8m
BD-L11-2	Cable specification:6mm*1.8m

Close-up of red safety warning boxes and a yellow valve attached to black pipes (no text or symbols visible)

Interior view of an electrical cabinet with red safety warning labels and wiring (no readable text or symbols)

CHANCER DO NOT OPERATE Handle color: red & black Can be customized

BD-L11

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETASTWC

NSW 2122 Australie

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LOCKOUT TAGOUT KIT

MODEL: BD-X07-D41

Collection of red safety lockout components including lock-out stations, safety locks, and a warning box (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING:

Yellow plastic enclosure with internal shelves and ventilation grilles, no visible text or symbols

Yellow safety guard cabinet with red mechanical components and a door open (no visible text or symbols)

Yellow industrial safety cabinet with red plastic components, no visible text or symbols on the cabinet itself.

VEILIGHEIDSHANGSLOT

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number LOCKED OUT DO NOT REMOVE DANGER Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

6 20 38 45 DANGER LOCKED OUT DO NOT REMOVE 38 ( Eenheid: mm )

VERGRENDELING TAGOUT

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/leg may result in immediate discharge. (Remarks): _ 75mm Front BD-P01 Thickness: 0.45mm Material: PVC 146mm 75mm Back DO NOT OPERATE Maintenance Department This lock/leg may only be removed by Name: _ Company: _ Number: _ Tel: _

PA GECOAT STALEN HASP

Part Code	Description
BD-K01	Lock shackle 25mm(1”)
BD-K02	Lock shackle 38mm (1.5”)

6 25 Φ10.5 115 55 40

BD-K01

6.4 38 128 Φ10.5 55 40

BD-K02

MINIATUURVERGRENDELING VOOR STROOMONDERBREKER

Close-up of a hand using a red clamp to adjust or install a white circuit breaker (no text or symbols visible)

BD-D03(Tie bar Lockout)

Part Code	Description
BD-D11	Can lock handle width ≤18mm
BD-D12	Can lock handle width ≤42mm
BD-D13	Can lock handle width ≤72mm

Red and black plastic mechanical component with a slot, no visible text or symbols

Lockable range:10mm × 16mm BD-D11

Red and black plastic mechanical component with mounting bracket (no text or symbols visible)

Lockable range: 13 mm × 38 mm BD-D12

Two red plastic clips attached to a black rectangular base (no text or symbols visible)

Lockable range:22mm × 68mm BD-D13

MULTIFUNCTIONELE MINIATUURBLOKKERINGSBLOKKERING

Part Code	Description
BD-D14	Allow 1 padlock with shackle diameter ≤ 7 mm

φ 8mm 9mm MOSHI SAFETY

MIDDELGROTE STROOMONDERBREKERBLOKKERING

Part Code	Description
BD-D17	7.5mm ≤ a ≤ 12mm

83mm φ 8mm 20mm

BD-D17

KLEINSCHALIGE VERGRENDELING VOOR STROOMONDERBREKER

Part Code	Description
BD-D20	7mm ≤ a ≤ 15mm

Red plastic mechanical component with a black threaded end and dimension label 'a' (no text or symbols on the component itself)

BD-D20

ELEKTRISCHE STEKKERVERGRENDELING

Part Code	Description
BD-D43	83mm(height)*83mm(thickness)*178mm(width), for cable diameter 25mm

W H/D TIG-HOT METER-DRAW

DO NOT REMOVE LOCKED OUT

VERGRENDELINGZAK

Part Code	Description
BD-D71	To lock by adjust the bag mouth, 6 padlocks or hasps can be equipped with

440mm 250mm LOCK OFF FOR SAFETY BD-D71

VERSTELBARE KOGELKLEPBLOKKERING

Part Code	Description
BD-F01	Suitable for 13mm(1/2")to 64mm(2 1/2")pipes

Red 3D model of a mechanical bracket or support structure (no text or symbols visible)

BLOKKERING VAN POORTKLEP

Red circular object with a white label partially removed, placed on a wooden surface (no visible text or symbols)

DANCE UPC002 80% 99 MHT 30%

Red portable air filter with label, placed on wooden surface (no readable text or symbols)

VERSTELBARE KABELBLOKKERING

Part Code	Description
BD-L11-1	Cable specification:4mm*1.8m
BD-L11-2	Cable specification:6mm*1.8m

Close-up of red safety warning box with yellow valve and two red padlocks attached to a black pipe (no text or symbols visible)

Interior view of an electrical cabinet with red safety clips attached to a white panel (no visible text or symbols)

DO NOT OPERATE Handle color: red & black Can be customized

BD-L11

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LOCKOUT TAGOUT KIT

MODELL: BD-X07-D41

Collection of red safety lockout components including lock-out stations, safety locks, and safety enclosures (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Yellow industrial machine compartment with visible internal structure and mounting brackets (no text or symbols)

Yellow safety guard cabinet with red fire extinguishers and boxes (no visible text or symbols)

Yellow industrial safety cabinet with red components, no visible text or symbols on the cabinet itself

SÄKERHETSHÄNGLÅS

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number DANGER LOCKED OUT DO NOT REMOVE Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

6 20 38 45 DANGER LOCKED OUT DO NOT REMOVE 38 ( Enhet : mm )

L OCKOUT TAGOUT

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/leg may result in immediate discharge. (RRemarks): _ 75mm Front 146mm 75mm Back DO NOT OPERATE Maintenance Department This lock/leg may only be removed by Name: _ Company: _ Number: _ Tel: _ BD-P01 Thickness: 0.45mm Material: PVC

Part Code	Description
BD-K01	Lock shackle 25mm(1”)
BD-K02	Lock shackle 38mm (1.5”)

6 25 Φ10.5 115 55 40 BD-K01

6.4 38 128 Φ10.5 55 40 BD-K02

MINIATYRSKRETSBRYTARE LOCKOUT

Close-up of a hand adjusting a red plastic clip on a white electrical circuit breaker (no text or symbols visible)

BD-D03(Tie bar Lockout)

Red and black plastic mechanical component with a U-shaped groove (no text or symbols visible)

Lockable range:10mm × 16mm BD-D11

Red and black plastic mechanical component with a clamping mechanism (no text or symbols visible)

Lockable range: 13mm × 38mm BD-D12

Two red plastic components attached to a black square base, no text or symbols visible.

Lockable range:22mm × 68mm BD-D13

MULTIFUNKTIONER MINIATYR BREAKER LOCKOUT

Part Code	Description
BD-D14	Allow 1 padlock with shackle diameter ≤q 7 mm

φ 8mm 9mm BOSHI SAFETY

MEDELKRETSBRYTARE LOCKOUT

Part Code	Description
BD-D17	7.5mm ≤ a ≤ 12mm

83mm φ 8mm 20mm

BD-D17

SMÅSKALIG KRETSBRYTARE LOCKOUT

Part Code	Description
BD-D20	7mm ≤ a ≤ 15mm

Red plastic mechanical component with a black gear and labeled dimension 'a' (no text or symbols on the component itself)

BD-D20

ELEKTRISKT STOPPLÅS

Part Code	Description
BD-D43	83mm(height)*83mm(thickness)*178mm(width), for cable diameter 25mm

W H/D LOADED OUT H/D HUST 禁止吸烟安全

Two red plastic electrical enclosures with black wires, one labeled 'DO NOT LOCKOUT REMOVE' (no other text or symbols visible)

LOCKOUT VÄSKA

Part Code	Description
BD-D71	To lock by adjust the bag mouth, 6 padlocks or hasps can be equipped with

440mm 250mm LOCK OFF FOR SAFETY BD-D71

JUSTERBAR KULVENTILSLÅS

Part Code	Description
BD-F01	Suitable for 13mm(1/2")to 64mm(2 1/2")pipes

Red 3D model of a mechanical bracket or support structure (no text or symbols visible)

LUCKVENTILSLÅS

Red plastic bag with white label, partially open to cut a wooden surface (no visible text or symbols)

DANGER LPGCHUS BUY RR HIT REMEMS

Red industrial pipe filter with warning label and red tag, placed on wooden surface (no readable text or symbols)

JUSTERBAR KABELLOCKOUT

Part Code	Description
BD-L11-1	Cable specification:4mm*1.8m
BD-L11-2	Cable specification:6mm*1.8m

Close-up of red safety warning boxes and a yellow valve attached to black pipes (no text or symbols visible)

Interior view of an electrical cabinet with red safety warning labels and wiring (no readable text or symbols)

CHANCER DO NOT OPERATE Handle color: red & black Can be customized

BD-L11

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOC

NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: BD-X07-D41

Collection of red safety lockout components including lock-out stations, safety locks, and safety enclosures (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA:

Yellow plastic enclosure with internal channels and ventilation slots, no visible text or symbols

Yellow safety guard cabinet with red mechanical components and a door open (no visible text or symbols)

Yellow industrial safety cabinet with red plastic components, no visible text or symbols on the cabinet itself

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number DANGER LOCKED OUT DO NOT REMOVE Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

6 20 38 45 DANGER LOCKED OUT DO NOT REMOVE 38 ( Unidad: mm )

Y ETIQUETADO

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/tag may result in immediate discharge. (RRemarks): ____ 75mm

Front

DANGER DO NOT OPERATE Maintenance Department This lock/leg may only be removed by Name: _ Company: _ Number: _ Tel: _

Back
BD-P01

Thickness: 0.45mm Material: PVC

Photo of industrial control panel with Chinese labels and a red-and-white striped tag, showing warning signs and a hanging tag.

Part Code	Description
BD-K01	Lock shackle 25mm(1”)
BD-K02	Lock shackle 38mm (1.5”)

6 25 Φ10.5 115 55 40

BD-K01

6.4 38 128 Φ10.5 55 40

BD-K02

BLOQUEO DEL DISYUNTOR MINIATURA

Close-up of a hand adjusting a red plastic clip on a white electrical circuit breaker (no text or symbols visible)

BD-D03(Tie bar Lockout)

BLOQUEO DEL DISYUNTOR DE ABRAZADERA

Red and black plastic mechanical component with a square base (no visible text or symbols)

Lockable range:10mm × 16mm BD-D11

Red and black plastic mechanical component with a square base (no text or symbols visible)

Lockable range: 13mm × 38mm BD-D12

Two red plastic clips attached to a black rectangular base (no text or symbols visible)

Lockable range:22mm × 68mm BD-D13

Part Code	Description
BD-D14	Allow 1 padlock with shackle diameter ≤ 7 mm

φ 8mm 9mm BOSHI SAFETY

Part Code	Description
BD-D17	7.5mm ≤ a ≤ 12mm

83mm φ 8mm 20mm

BD-D17

Part Code	Description
BD-D20	7mm ≤ a ≤ 15mm

Red plastic mechanical component with a black gear and labeled dimension 'a' (no text or symbols on the component itself)

BD-D20

Part Code	Description
BD-D43	83mm(height)*83mm(thickness)*178mm(width), for cable diameter 25mm

W H/D W CANDER LOCKED OUT H/D HOT 热泵温度/定温

Two red plastic electrical enclosures with black wires, one labeled 'DO NOT LOCKING OUT REMOVE' (no other text or symbols visible)

BOLSA DE BLOQUEO

Part Code	Description
BD-D71	To lock by adjust the bag mouth, 6 padlocks or hasps can be equipped with

440mm 250mm LOCK OFF FOR SAFETY BD-D71

Part Code	Description
BD-F01	Suitable for 13mm(1/2")to 64mm(2 1/2")pipes

Red 3D model of a mechanical bracket or support structure (no text or symbols visible)

Close-up of hands holding a red circular object with a white label, placed on wooden blocks (no visible text or symbols)

DANGER UPCUCED OUT NO HIT REMOOUT

Red industrial pipe stabilizer with attached label, placed on a textured surface (no visible text or symbols)

BLOQUEO DE CABLE AJUSTABLE

Part Code	Description
BD-L11-1	Cable specification:4mm*1.8m
BD-L11-2	Cable specification:6mm*1.8m

Close-up of red safety warning box with yellow valve and two red latches hanging against a black pipe (no text or symbols visible)

Interior view of an electrical cabinet with red safety warning labels and wiring (no readable text or symbols)

CHICKERS DO NOT OPERATE Handle color: red & black Can be customized

BD-L11

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: BD-X07-D41

Collection of red safety lockout components including lock-out stations, safety locks, and safety enclosures (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVVERTIMENTO:

Yellow plastic enclosure with internal channels and ventilation slots, no visible text or symbols

Yellow safety guard cabinet with red mechanical components and a door open (no visible text or symbols)

Yellow industrial safety cabinet with red plastic components, no visible text or symbols on the cabinet itself.

LUCCHETTO DI SICUREZZA

Suitable for use in closed space, such as: chemical, Military, oil extraction and power industry Steel shackle With rewritable safety warning signs (can customize luminous PVC material, language, logo, department and so on) Can print key number DANGER LOCKED OUT DO NOT REMOVE Normal color: RED, YLW, BLU, GRN, ORG, PRP, BLK, WHT, Other colors can be custom made. Durable non-conductive PA lock body, withstand temperature from -20°C to 150°C, resistance of UV rays. Copper cylinder Zinc alloy cylinder • Normal version, old version padlock (copper/ zinc alloy lock cylinder) Key retention-the key cannot be pulled out in the open state, ensuring that the padlock will not be left behind • New padlock (zinc alloy lock cylinder) Self-rebound self-reset -lock shackle with self-elastic function When the padlock is opened, the key is automatically reset to the initial position and the key can be removed.

6 20 38 45 DANGER LOCKED OUT DO NOT REMOVE 38 ( Unità: mm )

BLOCCO TAGOUT

DANGER This energy source has been LOCKEDOUT! Unauthorized removal of this lock/tag may result in immediate discharge. (RRemarks): ____ 75mm

Front

DANGER DO NOT OPERATE Maintenance Department This lock/leg may only be removed by Name: _ Company: _ Number: _ Tel: _

Back
BD-P01

Thickness: 0.45mm Material: PVC

Photo of industrial control panel with red and green buttons, a hanging tag with Chinese text, and a red-and-white striped label with a red seal.

HASP IN ACCIAIO RIVESTITO PA

Part Code	Description
BD-K01	Lock shackle 25mm(1”)
BD-K02	Lock shackle 38mm (1.5”)

6 25 Φ10.5 115 55 40

BD-K01

6.4 38 128 Φ10.5 55 40

BD-K02

BLOCCO INTERRUTTORE MINIATURA

Close-up of a hand using a red clamp to adjust or install a white circuit breaker (no text or symbols visible)

BD-D03(Tie bar Lockout)

BLOCCO DELL'INTERRUTTORE A MORSA

Red and black plastic mechanical component with a cylindrical pin (no text or symbols visible)

Lockable range:10mm × 16mm BD-D11

Red and black plastic mechanical component with a slot, shown against a white background (no text or symbols visible)

Lockable range: 13 mm × 38 mm BD-D12

Two red plastic electronic components with black bases, one attached to a square hole (no text or symbols visible)

Lockable range:22mm × 68mm BD-D13

BLOCCO INTERRUTTORE MINIATURE MULTIFUNZIONE

Part Code	Description
BD-D14	Allow 1 padlock with shackle diameter ≤ 7 mm

φ 8mm 9mm MOSHI SAFETY

BLOCCO INTERRUTTORE MEDIO

Part Code Description BD-D17 7.5mm ≤ a ≤ 12mm 83mm φ8mm 20mm BD-D17

BLOCCO CON INTERRUTTORE DI PICCOLA SCALA

Part Code	Description
BD-D20	7mm ≤ a ≤ 15mm

Red plastic mechanical component with a black gear and labeled dimension 'a' (no text or symbols on the component itself)

BD-D20

BLOCCO PRESA ELETTRICA

Part Code	Description
BD-D43	83mm(height)*83mm(thickness)*178mm(width), for cable diameter 25mm

W H/D TIG-HOT METER-DOTER

DO NOT REMOVE LOCKED OUT

BORSA DI BLOCCO

Part Code	Description
BD-D71	To lock by adjust the bag mouth, 6 padlocks or hasps can be equipped with

440mm 250mm LOCK OFF FOR SAFETY BD-D71

BLOCCO CON VALVOLA A SFERA REGOLABILE

Part Code	Description
BD-F01	Suitable for 13mm(1/2")to 64mm(2 1/2")pipes

Red 3D model of a mechanical bracket or support structure (no text or symbols visible)

BLOCCO DELLA VALVOLA A SARACINESCA

Red and white plastic bag with cut-out pieces, placed on a wooden surface (no visible text or symbols)

DANGER LICR10 80%1 99 HOT REMOYA1

Red portable pump dispenser with warning label, placed on wooden surface (no readable text or symbols)

BLOCCO DEL CAVO REGOLABILE

Part Code	Description
BD-L11-1	Cable specification:4mm*1.8m
BD-L11-2	Cable specification:6mm*1.8m

Close-up of red safety warning box with yellow valve and two red latches attached to a black pipe (no text or symbols visible)

Interior view of an electrical cabinet with red safety clips attached to a white panel (no visible text or symbols)

DO NOT OPERATE Handle color: red & black Can be customized

BD-L11

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
