Product Type	Safety Shower with Eyewash
Brand	Vevor
Model	YX-FH-D
Main Material	SUS304 Stainless Steel
Total Capacity	14 gallons (approx. 53 liters)
Eyewash Flow Rate	9 to 16 L/min
Shower Flow Rate	120 to 180 L/min
Eye Rinse Duration	15 minutes continuous
Inlet Size	NPT 1-1/4"
Outlet Size	NPT 1-1/4"
Total Height	Approx. 2340 mm
Base Diameter	Approx. 260 mm
Electrical Safety Distance	No electrical switch within a 1.5 m radius
Recommended Water Source	Clean tap water or filtered water
Operating Temperature	Ambient temperature, caution against freezing in cold areas
Maintenance	Check twice a week, clean if clogged
Installation	Floor or wall mounting with expansion bolts, PTFE fittings
Package Contents	Base, pipes, shower head, eyewash basin, valves, PTFE tape, etc.
Warranty	Electronic warranty certificate, technical support via www.vevor.com/support

Frequently Asked Questions - YX-FH-D Vevor

How to install the Vevor YX-FH-D safety shower?

Installation must follow the provided diagram. Drill 3 fixing holes, secure the base with expansion bolts. Connect pipes using PTFE tape for sealing. Ensure the base is stable and drain alignment is correct. Open the water valve to test.

What type of water to use for the eyewash?

Use clean tap water or filtered water with an appropriate filter to avoid impurities.

How to use the eyewash?

Gently press the manual pressure valve to make water spray from the nozzle. After use, reset the valve and replace the dust cover.

How to use the safety shower?

Pull the valve pull rod downward to make water spray from the shower. Push the rod back up after use.

What is the capacity of the shower?

The total capacity is 14 gallons (approx. 53 liters), ensuring a continuous 15-minute rinse for the eyewash.

What maintenance is required?

Check the equipment twice a week. If clogged, find the cause and treat promptly. Clean nozzles if necessary.

What are the dimensions of the YX-FH-D shower?

Total height is approx. 2340 mm, base diameter is 260 mm. Pipes have a diameter of 42 mm.

Can I install the shower outdoors?

Yes, but in cold regions, pay attention to antifreeze for the pipes to avoid freezing.

What materials are used?

The product is mainly made of SUS304 stainless steel, resistant to corrosion.

What to do in case of a leak?

Shut off the water source, check connections, and reseal with PTFE tape. If the leak persists, contact technical support.

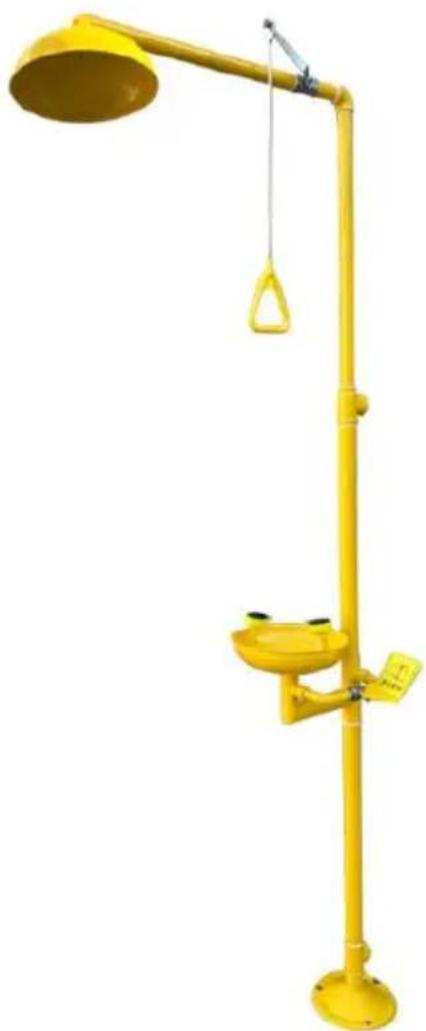

USER MANUAL YX-FH-D Vevor

EMERGENCY EYE WASH

MODEL:YX-FH-D

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

EMERGENCY EYE WASH

MODEL:YX-FH-D

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

INSTRUCTIONS

Applying to accident rescue and rapid flushing for hazardous substances on human body, emergency shower and eyewash devices realize emergency treatment by spraying lots of water quickly and then alleviating injury, which is also an economical and feasible decontamination method. Users should read this manual before operating the product.

1. Technical Parameters

a. Total capacity: 14 gallons

b. Water flow of eyewash device: Continuous rinsing at natural flow rate for 15 minutes

2. Applicable Environment

a. Places with splashing hazardous substances, such as chemical equipment, hazardous equipment, and hazardous liquids and solids.

b. Polluted environments.

c. Places where burning may occur.

d. Pay attention to pipeline anti-freezing in cold regions.

3. Installation Conditions

a. The working position should have at least three directions with an effective rescue radius of 10 or 5 meters. The position should be attached with a visible sign, and no barriers should be in the surrounding area to allow rapid operation of the product.

A visible sign and no barrier should be in the surrounding area, so as to operate the product rapidly.

c. There should be no electrical switches within a 1.5-meter radius of the composite eyewash device to avoid electrical short circuits.

c. There should be no electrical switch within a 1.5 m radius of the composite.

eyewash device, so as to avoid electrical short circuit.

d. The water source for the eyewash device should be clean tap water or water filtered through a suitable filter medium.

e. It is required to follow product specifications for pipeline diameter connection, i.e., 1-1/4" for both water inlet and outlet sizes, to ensure normal operation of the equipment.

4. Installation Requirements:

a. Installation should be in accordance with the installation diagram (accompanying diagram), and the pipe connecting part should be wrapped with sealing tape (made of PTFE).

5. Operating Introduction

a. Cleaning water will squirt automatically from the eyewash shower nozzle after gently pushing the hand-push valve before washing eyes. After washing eyes, it is required to reset the hand-push valve and dust proof cover.

b. Washing other parts of body: Water will squirt automatically from the shower nozzle after dragging the valve pull rod downwards with hands. Reset the pull upwards after use.

c. This product can only alleviate injury to the body temporarily under emergency circumstances, and it is required to follow doctor's guidance for further treatment.

6. Maintenance

a. Offer sufficient knowledge training and trial operating training to users before using the product.

b. Check the equipment regularly (twice a week recommended). In case of any blocking, investigate the reason and treat the problem timely.

PERFORMANCE PARAMETER

Model	YX-FH-D
Types of eyewash	Stand Plumbing Eye washing
Main materials	SUS304 Stainless Steel
Eyewash Flow	9-16L/min
Shower Flow	120-180L/min
Inlet size	NPT 1-1/4"
outlet size	NPT 1-1/4"

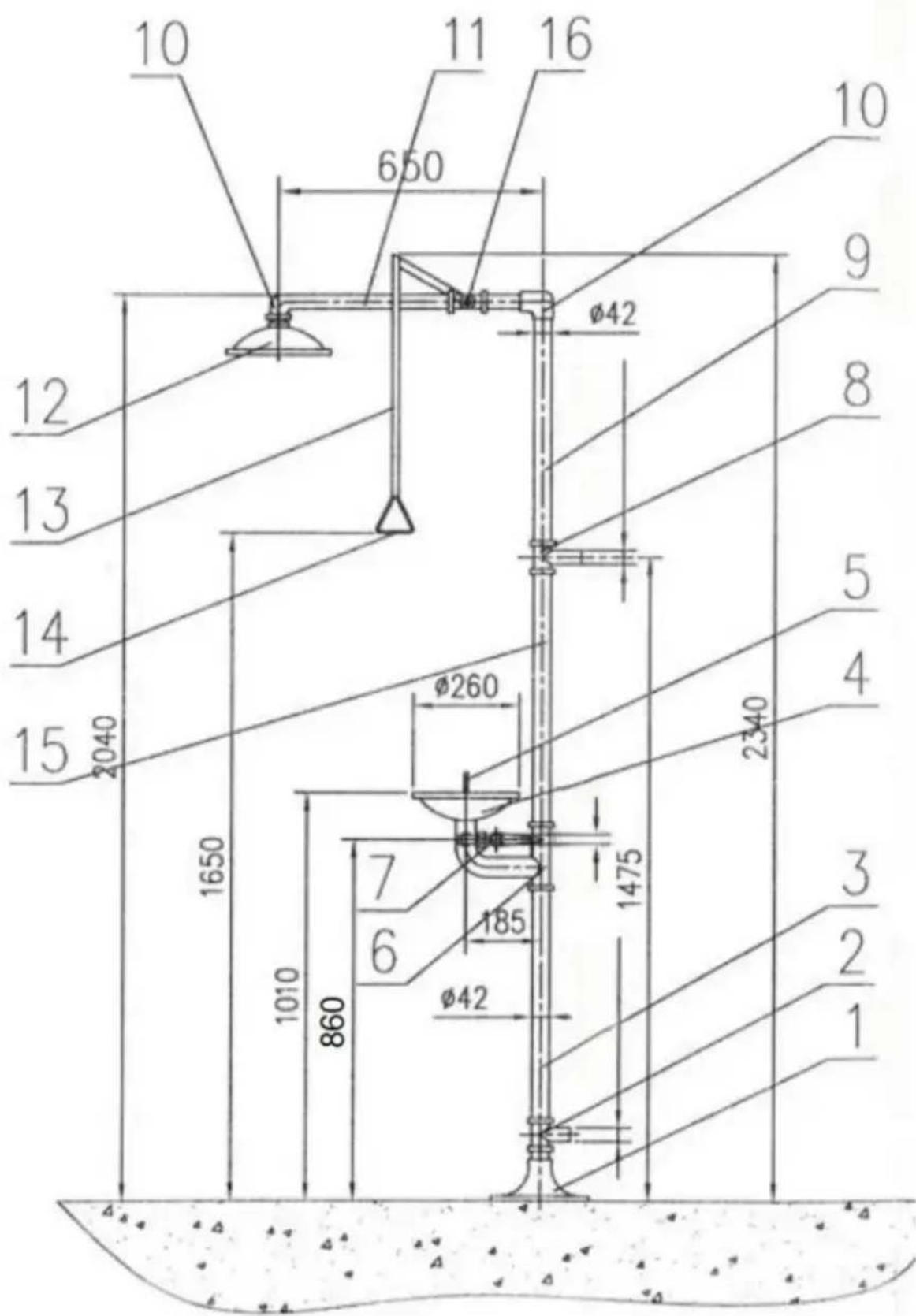

DIMENSIONS

Serial Numbe	Parts Name	Amount	Material
1	Base	1	SUS304
2	Three-way Valve	1	SUS304
3	Bottom Pipe	1	SUS304
4	Eyewash Basin	1	SUS304
5	Eyewash Sprayer	1	SUS304
6	Connection	1	SUS304
7	1/2” Pipe	1	SUS304
8	Three-way Valve	1	SUS304
9	Upper Pipe	1	SUS304
10	Bend Pipe	1	SUS304
11	Shower Pipe	1	SUS304
12	Shower Head	1	SUS304
13	Push Chin	1	SUS304
14	Pull Tab	1	SUS304
15	Middle Pipe	1	SUS304
16	Shower Ball Valve	1	SUS304

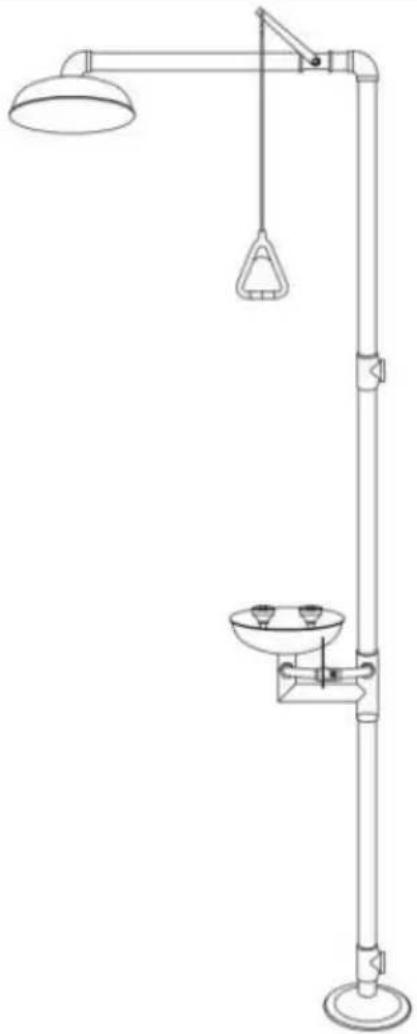

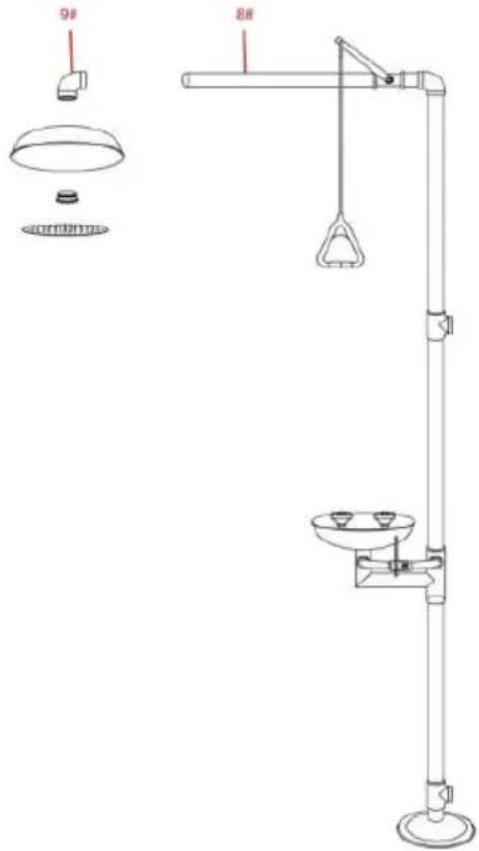

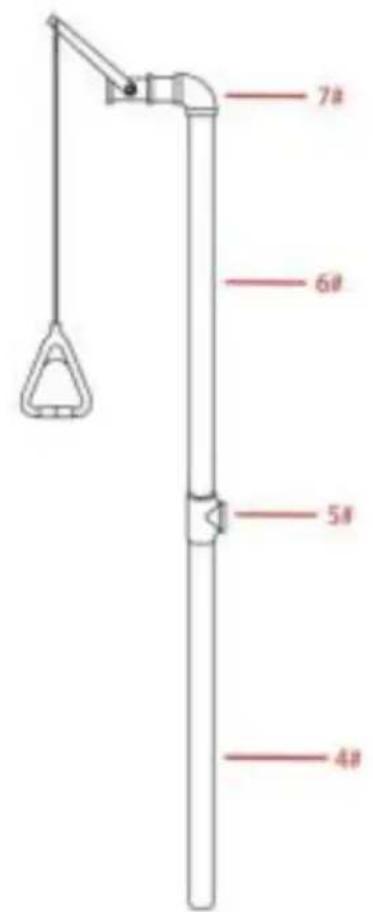

INSTALLATION STEPS

Serial Number	Step by Step Illustration	Textual Statement
1		Drill holes as 3*12mm in predetermined locations and fix the expansion screws on the f or wall.Ensure that the base is stable does not shake.Installation of serial numbers 2#-3# in sequence using seal tape.
2		Connect the H type welding assembly with 3# vertical pipe, make sure that the alignment is directly behind the welded assembly.Connect the hand push valve, eyewash bowl in sequence and spin bullhorn nozzle to fasten bowl Securely.

3

Wrap and secure 4#-5#-6#-7# shower tie rods and valve fitting with sealant tape, to make sure the 4# water inlet is directly the welded assembly.

4		Use sealed tapes to secure 7#-8 pipes and use cap screws to sethe spray basin and spray screesieves
5		Commissioning and Inspection:Water test: open the watersource valve, check whether theyewash nozzle can spray waternormally. Observe the water flowand pressure, the water flowshould be moderate, the pressuresis generally required to stabilizethe appropriate range, to ensurethat the eyes can be effectivelyrinsed without causing harm to eyes.Check the sealing: carefully checked whether there is any leakage ineach connection part of the whowelding assembly, if there is anyleakage, turn off the water sourcand re-seal the leakage part.

ACCESSORIES LIST

1. Base*1 2. φ42x620mm Bottom Pipe *2 3. φ32x640mm Upper Pipe *1 4. φ32x495mm Shower Pipe *1 5. Shower Head*1 6. Eyewash Basin*1 7. Eyewash Sprayer*1 8. Eye wash valve*1 9. Hand push plate for eye wash valve*1 10. Shower Ball Valve*1 11. Bend Pipe*2 12. Three-way Valve*2 13. Welded assembly*1 14. Expansion screws*3 15. PTFE Tape*2 16. User Manual*1 17. Eyewash labels*1 18. Pull Tab*1 19. Strainer*1 20. Circular gasket * 2

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Room 1602A-1609, No. 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
