USER MANUAL YMK40202 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

OPERATING MANUAL OF DISTILLED WATER MACHINE

MODEL:YMK40202

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

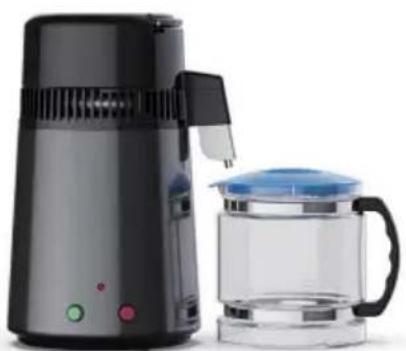

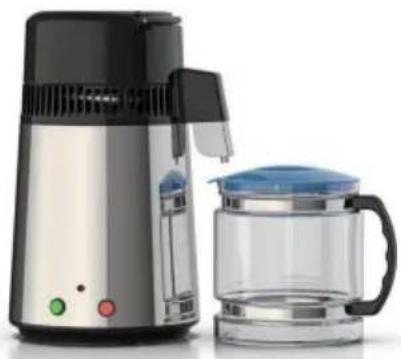

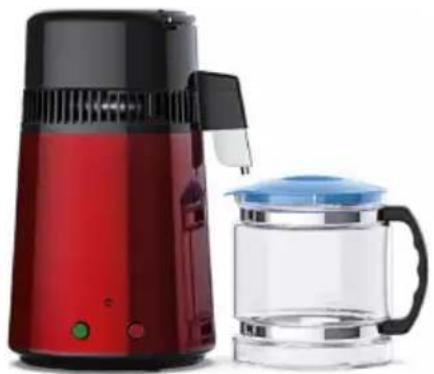

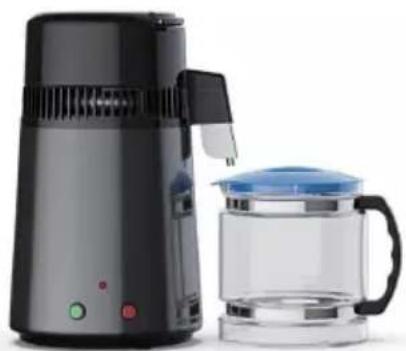

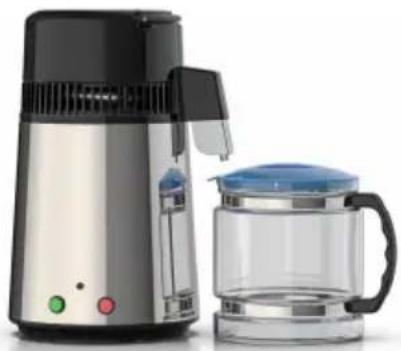

MODEL: YMK40202

Red and clear glass coffee maker with blue lid, no visible text or symbols

Black and clear glass coffee maker with blue lid, next to a smaller transparent cup (no visible text or symbols)

Two kitchen appliances: a black and silver blender and a clear glass coffee maker with blue lid (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that m cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

PARAMETER

Model	YMK40202
Material	304 Stainless Steel,
	Polypropylene
Input Power	AC 220-240V, 50-60Hz
RatedPower	750W
DistillerVolumeBottle Volume	4.2Qt 1.1gal 4L
Processing Rate	1.1 qt./hr.0.26 gph1L/H
Safety Cutoff Temperature	300°F150°C

Thank you for purchasing VEVOR water distiller. Before using our distill, please confirm all parts are in good condition and read the instruction carefully.

SAFETY INSTRUCTIONS - Read Before Operating SCALDING DANGER!

IMPORTANT SAFETY INSTRUCTIONS

( WARNING: To reduce the risk of burns, electrocution, fire or injury persons!)

Do not immerse the head and base in water or other liquid, nor fluss faucet.

After the water in the distillation barrel is dried and automatically prot by the anti-dry protection system, the machine assembly shall be open after an interval of about 15 minutes to avoid possible hurt caused by steam in the barrel.

Before the product is connected to the power supply, confirm whether marked voltage is consistent with the local used voltage.

If the plug, socket or product is damaged, do not remove the machine repair without permission, to avoid the wrong connection of the internal circuit, resulting in power short circuit and other dangers.

This appliance can be used by children aged from 8 years and abov

they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless are older than 8 and supervised. Keep the appliance and its cord out reach of children aged less than 8 years. This product is not suitable people with physical or mental disorders, to avoid harm caused by w use.

Do not touch hot surface without any protection

ELECTRICAL PRECAUTIONS

Do not disassemble the unit except for the authorized serviceman. Unthe unit before filling it Do not exceed the MAX mark.

Do not touch the socket with a wet hand to reduce the risk of elec. If the plug, socket, or product is damaged, do not remove the machine repair without permission, to avoid the wrong connection of the internal circuit, resulting in a power short circuit and other dangers.

When taking the head components or cleaning products, press the OF switch first, and unplug the power plug of the head components and host power plug.

Do not share the same outlet with other high-wattage appliances while operating in order to prevent overloading

Always unplug the Main Power Cord before filling or cleaning the uni whenever not in use

INSTRUCTIONS BEFORE FIRST USE

Due to the brand-new stainless steel in the still tank, you may perceive very slight “new smell” or faint taste from the first couple of cycles or so.

However, the water is completely pure and safe to consume. Any res

scent or taste dissipates with each use until the water becomes comp odorless and tasteless. After the first few cycles, there should be hard any taste at all and in fact, it will “taste” better than any other filtered or bottled water.

Remove the head of the stiller or clean the stiller, press the OFF switch and unplug the power cord

For the first time, add 1.0L of water and 2 tablespoons of citric acid tank of the main engine, boil water for about 20 minutes, after pouring the water, rinse the tank and the distillation cover with clean water (distilled water made for the first time cannot be drunk).

When cleaning the interior, it is forbidden to use steel wire brush (ve and other hard articles to scrub the inner tank of the main engine a inner tank of the machine head, so as to avoid scratches formed on surface of the inner tank, which will cause dirt accumulation in the g fine scratches.

When it is necessary to stop the production, you can press the OFF There is no need to wait for the water in the tank of the host mac up completely.

This product can continuously produce distilled water, press the OFF switch and turn on the head component after an interval of about 15 minutes. Add the water with the largest scale into the inner tank of machine, and press the ON switch to restart the distilling.

PRODUCT FEATURES

Black cylindrical object with a small protrusion and a blue light beam, resembling a stylized lamp or device (no text or symbols visible)

Upper Lid

Fan:Aluminum

Illustration of a robotic arm with a propeller and gear base (no text or symbols)

Cooling Duct:

304 Stainless steel pipe

Aluminum Fins

Inner Lid:

304 Stainless steel

Nozzle:

304 Stainless steel

Inner Layer:

304 Stainless steel

Black cylindrical electronic device with a blue horizontal line and square button at the bottom (no visible text or symbols)

During the distillation process, the water source is in full contact with 304 stainless steel and does not come into contact with plastic materials

VEVOR Water Distiller Boils the water to kill Bacteria and Parasites, collects the purified steam, and leaves behind impurities. Cools and condenses the steam into pure distilled water.

VEVOR still tank and nozzle are made of 304 stainless steel, equipped with a food-grade silicone tube and high-quality Carafe. At no point during the water touch plastic. 100 % boiled and sterilized, pure, and safe. Drinking distilled water on a daily basis can keep you hydrated and Advanced silent fan + Super cooling technology: Steam supercooling. ON/OFF switch: Start or stop condensate production at any time.

Anti-dry protection function: When the water in the still tank completely evaporates, the temperature control will automatically turn off the power protect the machine.

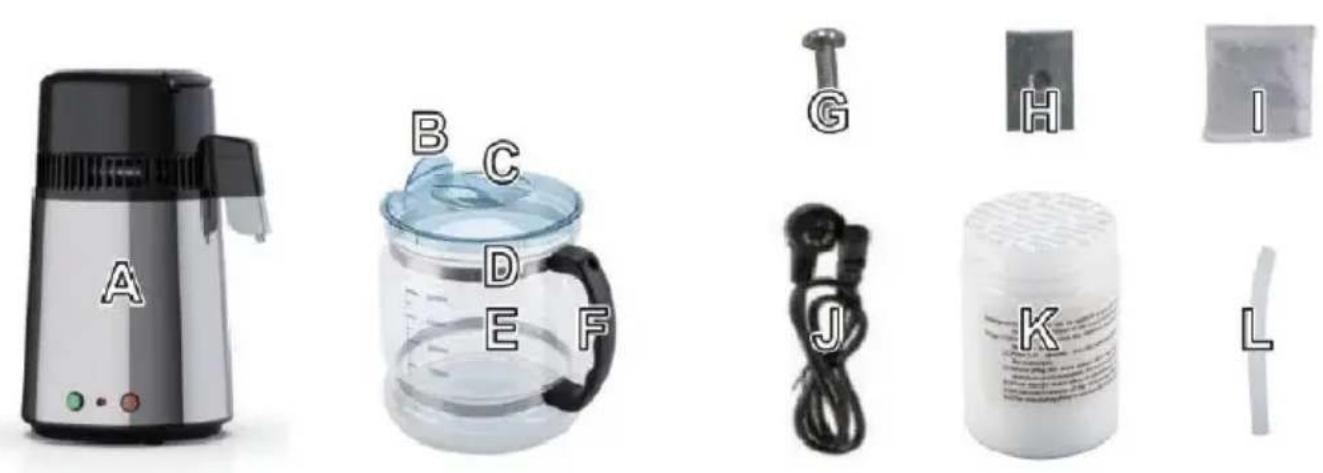

PACKAGE CONTENT

No.	Name	Qty.		No.	Name	Qty.
A	Water Distiller	1		G	Bolts	2
B	Collection Cap	1		H	Square Nuts	2
C	Carafe Lid	1		I	Activated Charcoal Sachet (The one in the Nozzle)	4
D	Stainless Steel Straps	2		J	Power Cord	1
E	Carafe	1		K	Citric Acid	1
F	Handle	1		L	Silicone Tube	1

OPERATING INSTRUCTIONS

Install water storage tank	Placing activated carbon	Installing silicone tubing
Put citric acid cleanir agent into the bucke and clean the inner bucket	Fill water into the distiller tank, do not exceed the water lev	Insert the head power cord into the head power cord socket
Connect the powercord of the bod to the main body	Connect the power cord plug of the bod the wall socket hole a suitable cable tray	Place the water storage tank properly

Illustration of a hand interacting with a kitchen appliance, showing a finger pressing a button (no text or symbols visible)

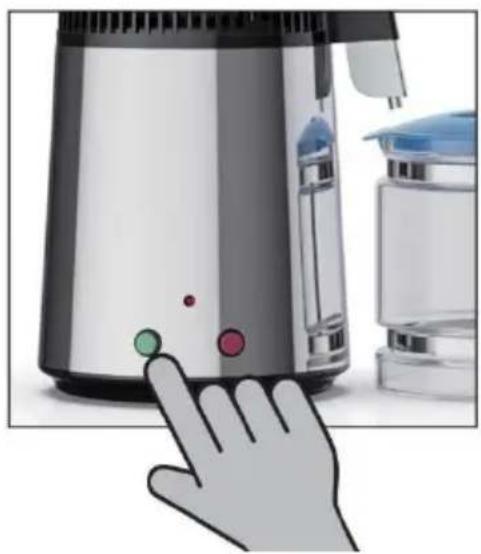

Press the ON switch to start distillation. (the green one)

Hand interacting with a stainless steel electric water heater and a glass container (no visible text or symbols)

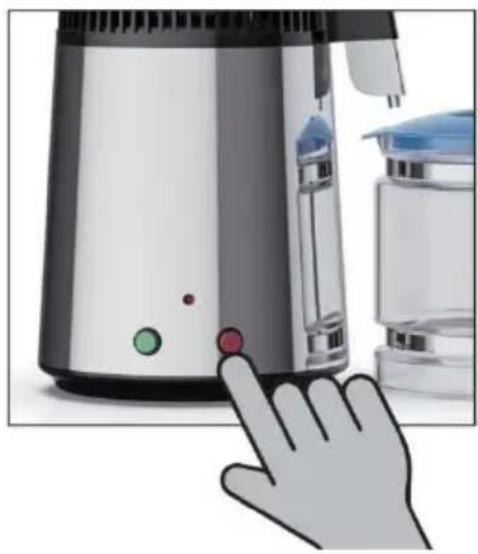

Press the OFF switch to stop distillation. (the red one)

Do not share the same outlet with other high-wattage appliances while operating in order to prevent overloading, and make sure the surface and the unit is completely assembled

1. Fill water into the distiller tank, do not exceed the water max level

※Using hot or boiled water can reduce the distillation time

1. Place the top of the distiller tank back, Position the collection jar u the distilled water outlet

※ Check whether the sealing ring of the machine head is properly or leaking

1. Connect the power cords with the socket and distiller machine

※ Please make sure power cords are properly connected and fasten

1. Press the GREEN switch on the distiller machine. The indicator of the start button lights up, the head fan starts to turn, and the distiller must starts to heat up.

2. The distiller machine is heated for about 30 minutes, and the distilled water starts to drip out slowly from the distiller to the Carafe

3. Stop the distillation by pressing the RED switch or disconnecting the main power cord from the socket

※ VEVOR distiller is specially equipped with anti-dry protection system automatically stops when the still tank is dry to ensure safety

CLEANING INSTRUCTION

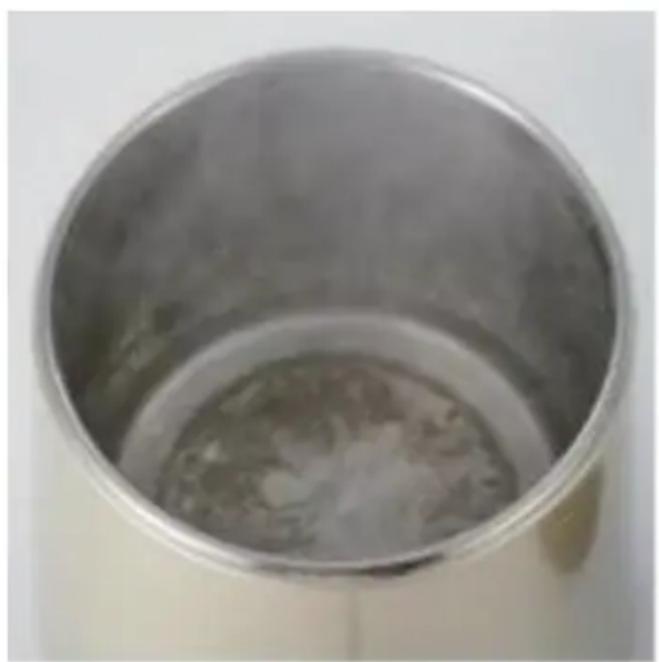

Top-down view of a metallic cylindrical container with a textured interior (no text or symbols visible)

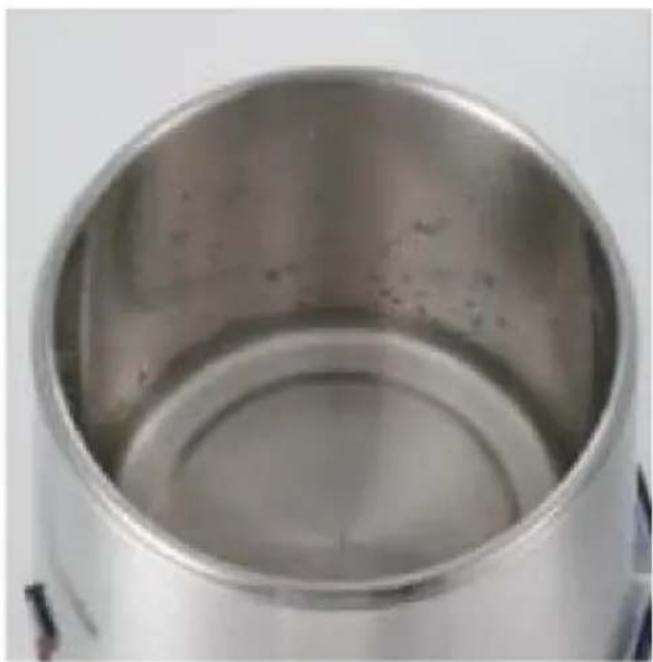

Close-up of a metallic cylindrical container with a circular opening, showing internal structure (no text or symbols visible)

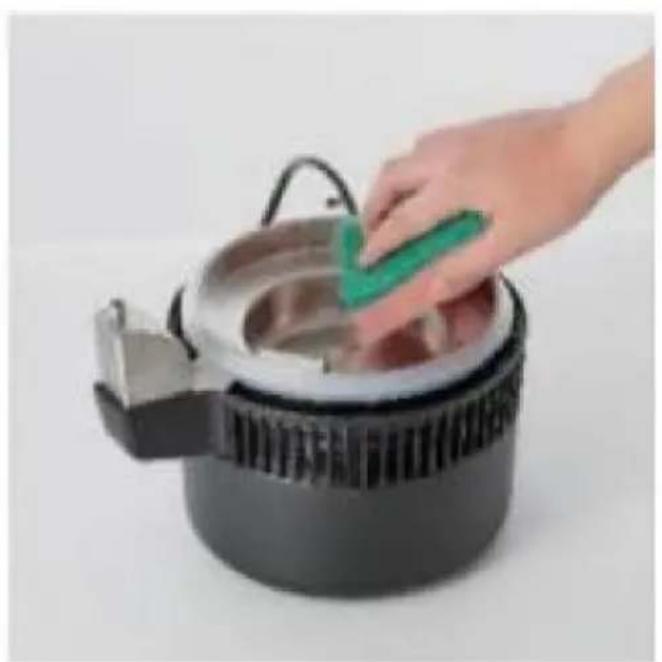

Hand placing a green plastic item into a metal cylindrical container (no text or symbols visible)

Hand placing a green checkmark into a black electric cooker interior (no text or symbols visible)

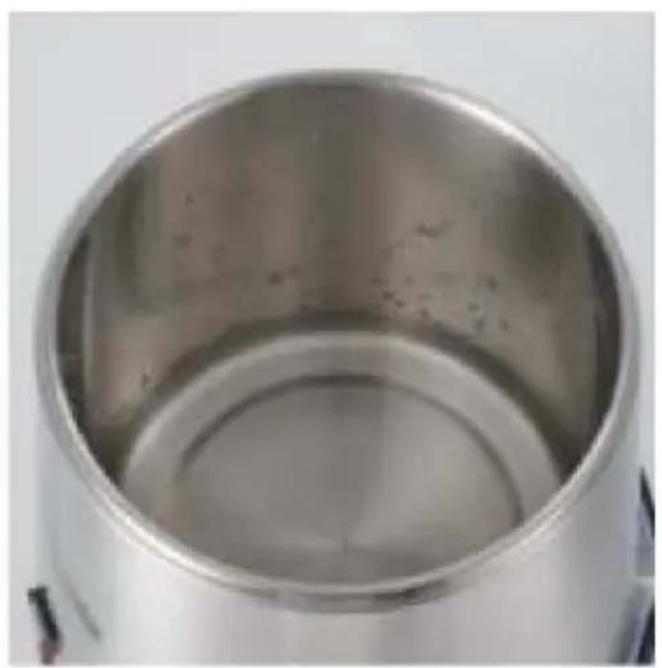

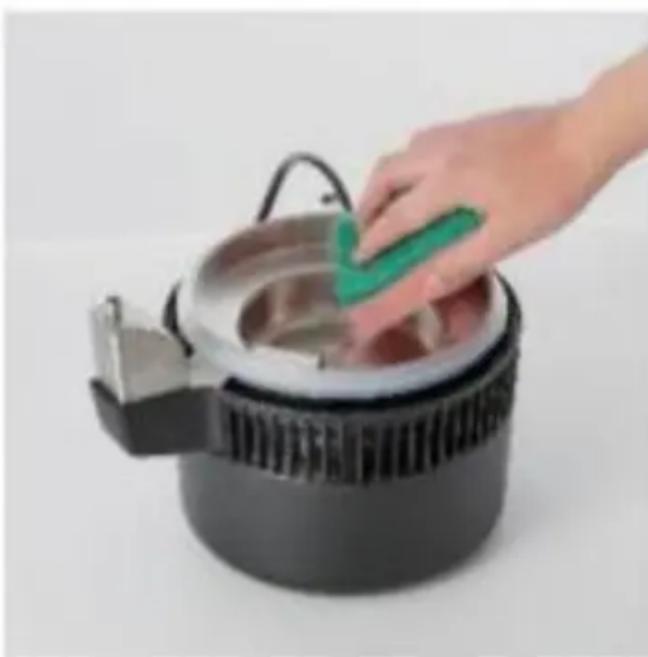

※When using it for the first time, please boil it with citric acid and

and then clean it.

1. Add 1.0L of water and 2 tablespoons of citric acid into the still tar the top back on, and boil water for about 20 minutes.

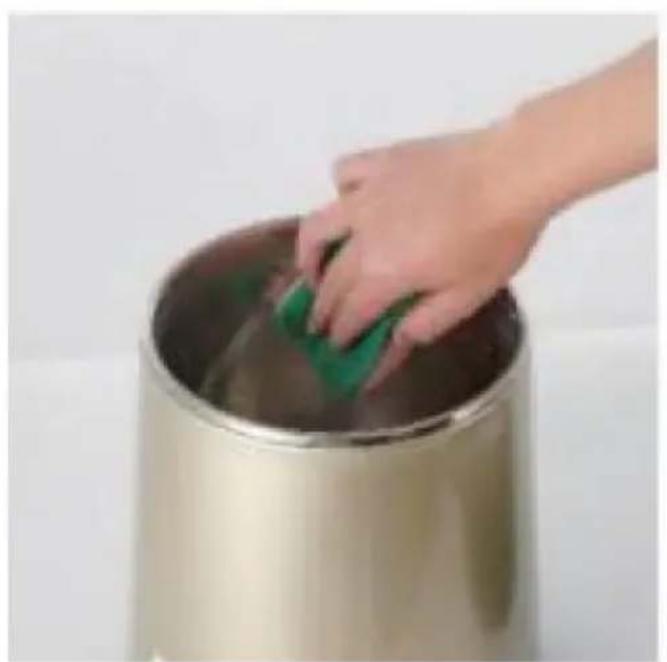

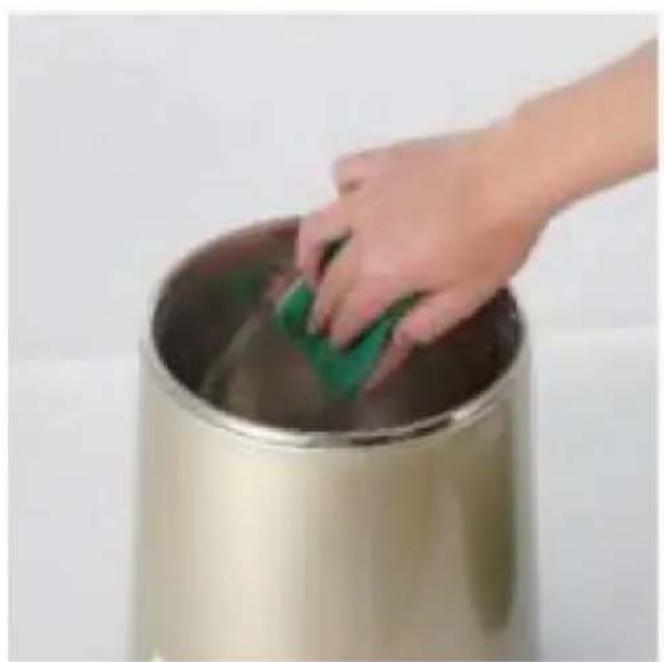

2. After pouring out the water, wash the distiller's tank and cap with cloth (the distilled water made for the first time cannot be drunk).
3. Rinse these parts with clean water while not allowing any electrical components to become wet.

WARM TIPS:

Clean the inside of the boiling tank after each cycle has ended and has cooled for at least 30 minutes. Disconnect the distiller from power allow time for it to fully cool before any cleaning, maintenance, or re Never use caustic chemicals or harsh abrasives, which might damage steel lining.

Rinse and wipe the distiller's tank daily using clean water and a sc Clean the distiller's tank and cap at least monthly to remove mineral deposits and other buildup from the stainless steel lining.

Clean the collection bottle at least monthly with warm soapy water and rinse it thoroughly afterward to remove any soap residue. Never alter between hot and cold water quickly as this may damage the bottle. If this device will not be used for an extended period of time, remove collection cap from the lid, install the storage cap in its place, and s distiller in a cool dry location out of direct sunlight and inaccessible t children.

※ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

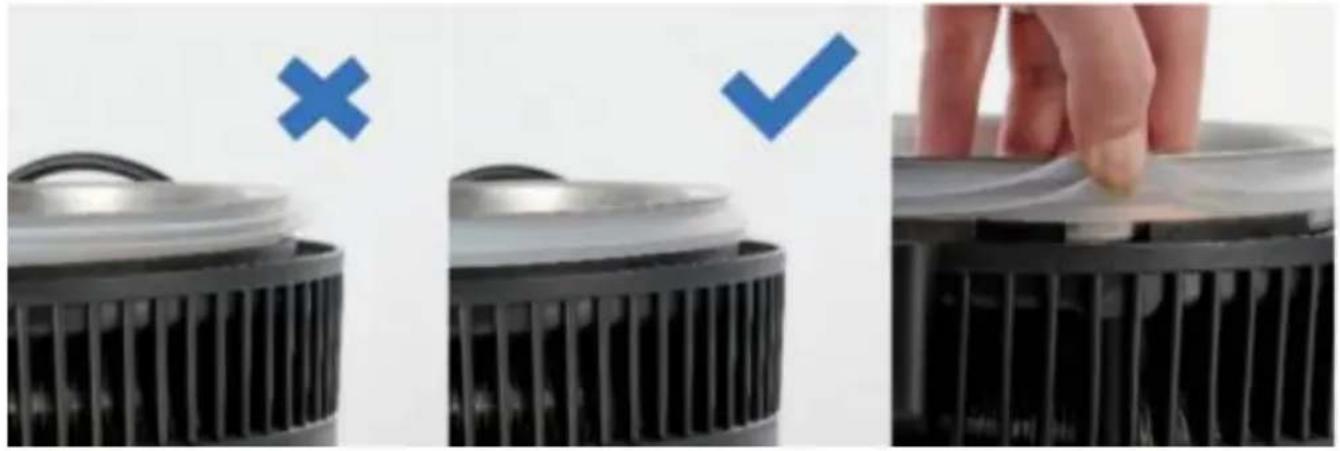

SILICONE SEAL ASSEMBLY

The silicone seal prevents water from escaping the distiller. When pla

or replacing it, ensure that the rounded side is facing up.

Three-panel image showing a car hood with a hand adjusting a lid, marked with blue X and ✓ symbols (no text or symbols present)

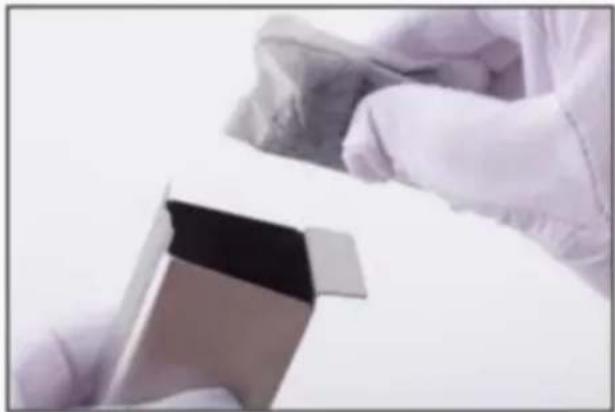

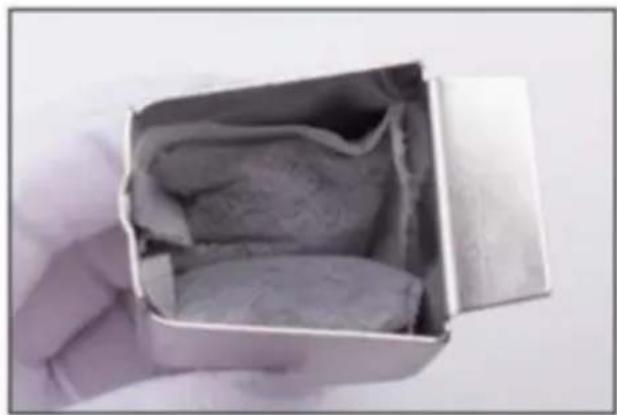

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

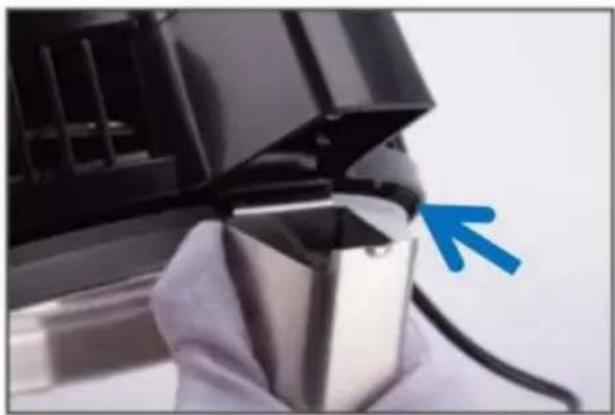

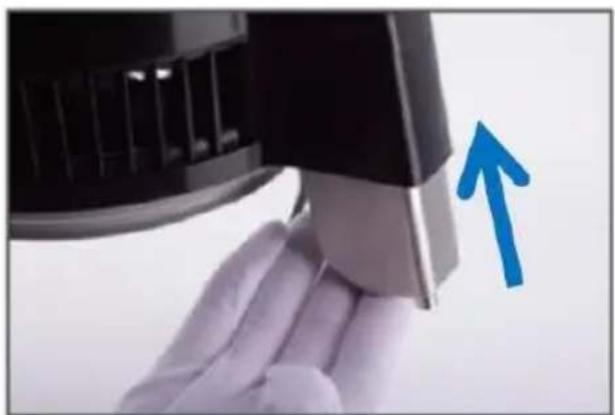

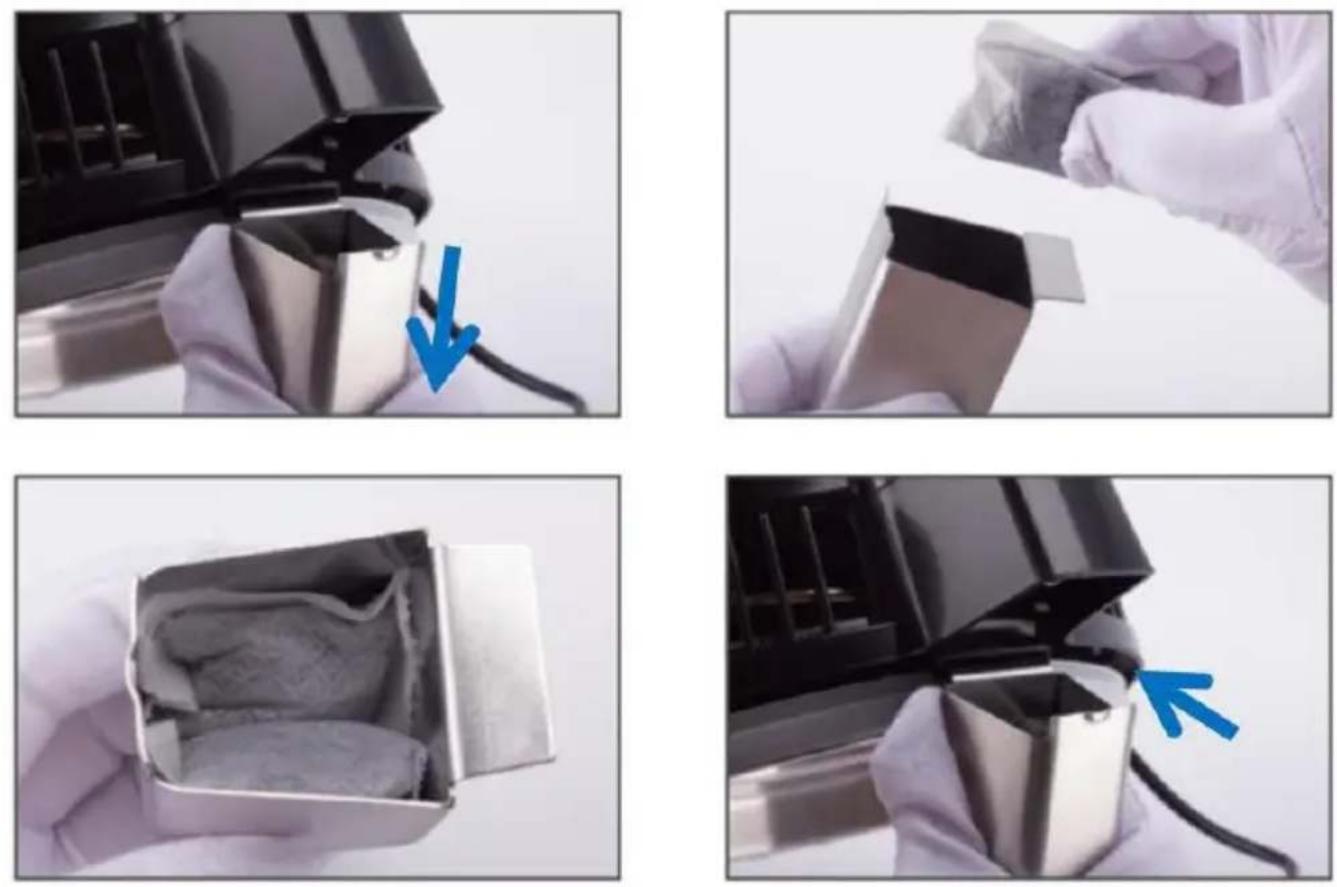

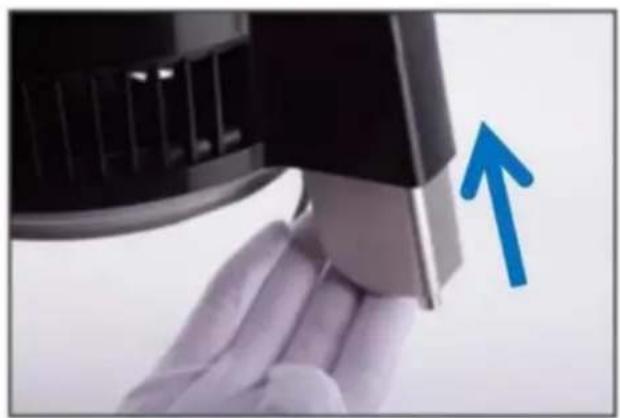

Installation and disassembly of outlet nozzle are shown in the diagram the right. Before the water outlet nozzle is installed into the machine the activated carbon shall be installed into the stainless steel water o nozzle first. Check that the seal remains in place.

Close-up of a hand pressing down on a black industrial component with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a mechanical component (no visible text or symbols)

Close-up of a metallic industrial component with a blue arrow pointing to a downward arrow (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a glass lid and a hand mixer, no visible text or symbols

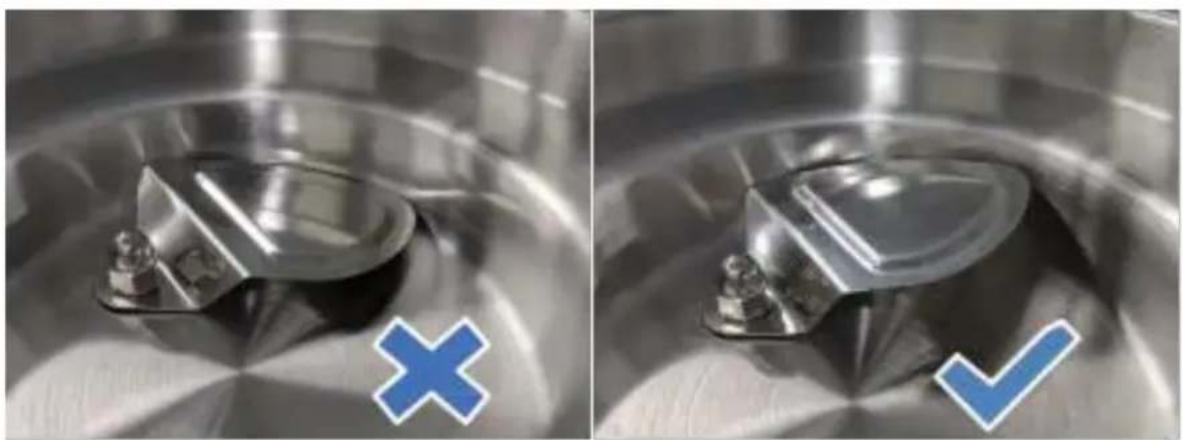

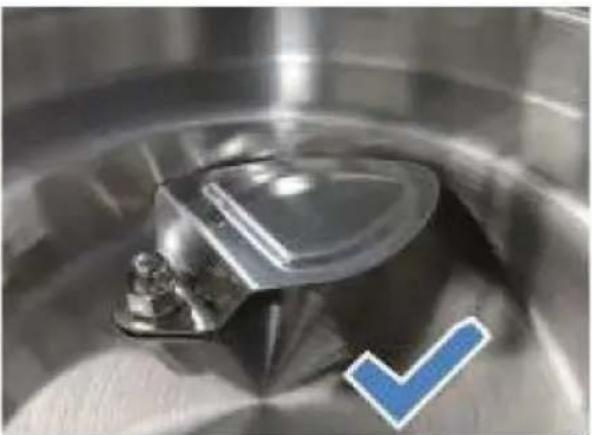

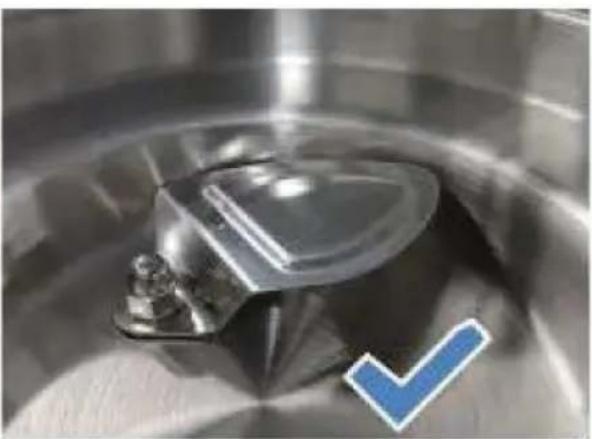

※ If the steam baffle is deformed, please correct it manually, otherwise it will affect the water outlet efficiency.

Two metallic mechanical components with a blue 'X' and '√' marks, shown side by side (no text or symbols on the components themselves)

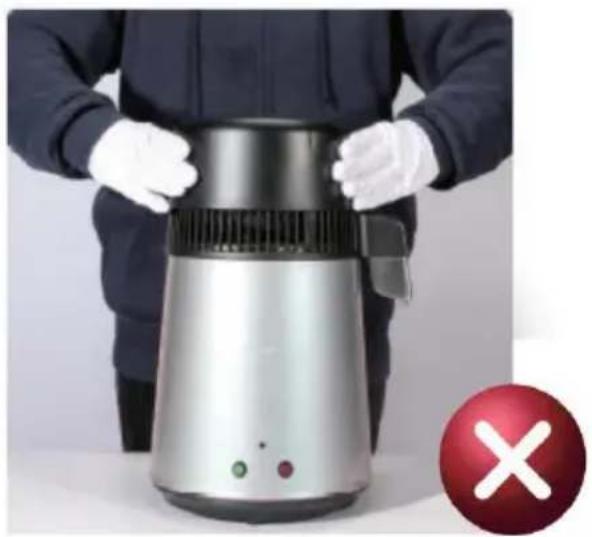

DISTILLER LID OPEN INSTRUCTION

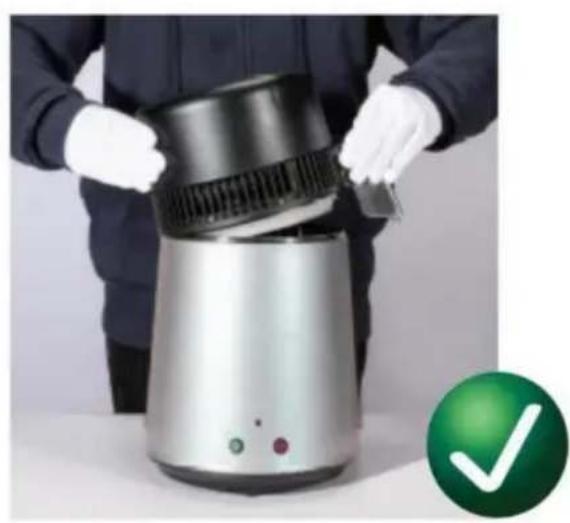

Wait 15 minutes after stop the distillation before removing the lid. Ca open the lid from the side to avoid scald

Person in uniform holding a stainless steel electric heater with control buttons, next to a red circular icon with a white 'X' symbol (no text or symbols on the device itself)

Person in gloves handling a black and silver portable heater with a green checkmark icon (no text or symbols on the device itself)

※ Remove the upper lid 15 minutes after stop distillation

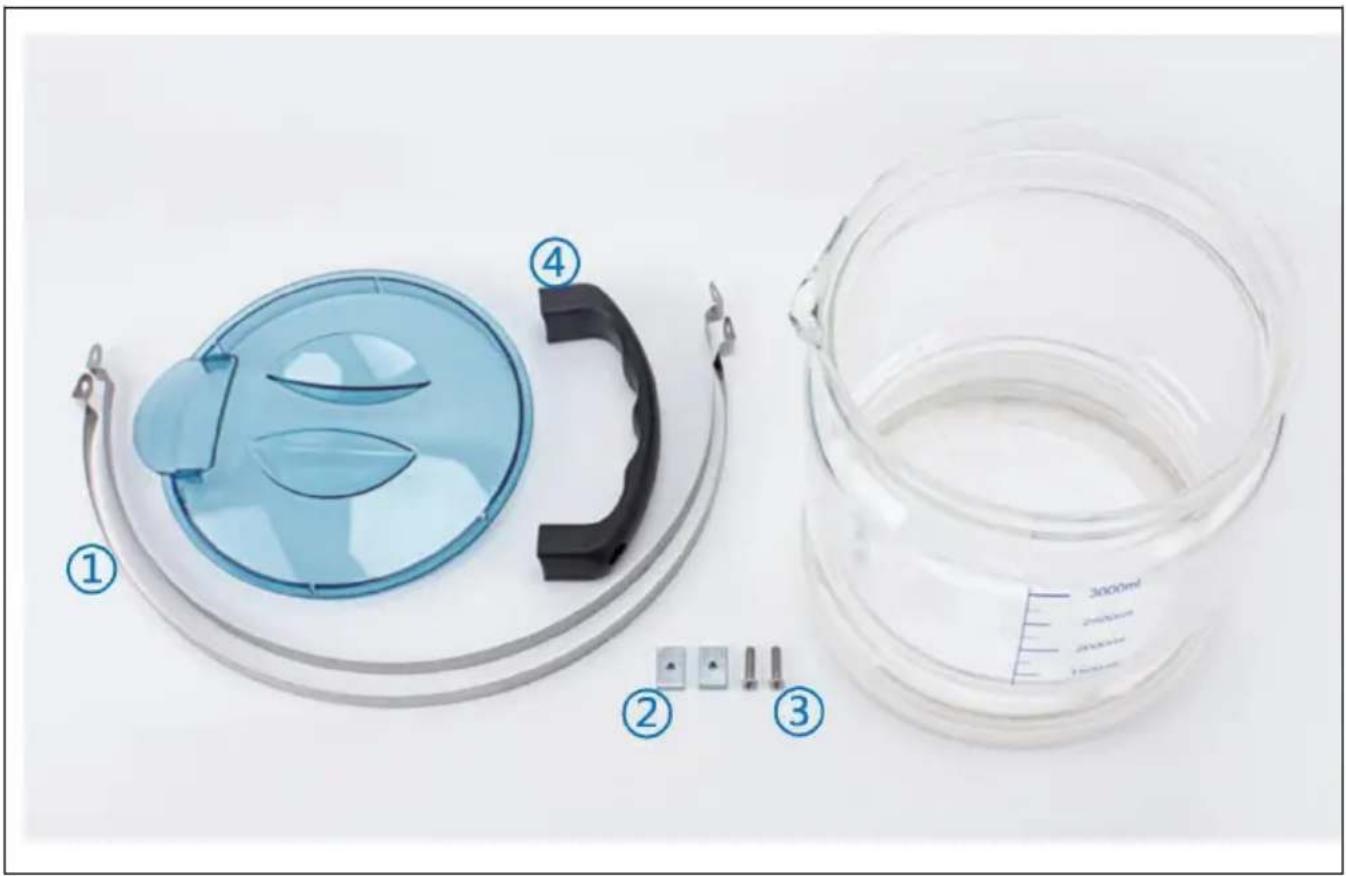

THE CARAFE ASSEMBLY

Product diagram showing a blue eyeglass with labeled parts including a transparent lid, a plastic container, and a measuring scale.

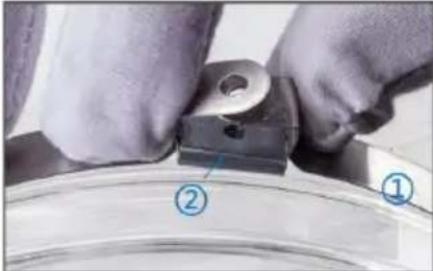

Put the stainless ste straps 1 into the s of the Carafe;	Insert the square nut into the stainless ste strap groove1	Fit the concave pa of the handle 4wit the convex part of the stainless ste straps1
Tighten the upper screw and lower screw 3. with a cross screwdriver	The same applies to the other side of the handle	Place the lid on th Carafe with the opening facing the Carafe spout.

ACTIVATED CHARCOAL SACHET

Activated charcoal ingredients: Natural coconut shell. Functions: Remove odors and improves taste.

Validity date: Each activated charcoal sachet should be replaced within period of 25 days. If a strange taste or odor is discovered in the dis water, please replace the activated charcoal sachet immediately. Water will be tastier if you use 2 sachets at a time.

Please do not place an unused or currently used activated charcoal in the refrigerator to avoid odor absorption that would result in poor water taste.

Used activated charcoal sachet can be re-used for odor removal by

it in shoes or refrigerator. New activated charcoal sachets can release small trace of black powder, which is completely harmless to human body. It is just powdered charcoal. Please use at ease.

New activated charcoal sachets are sealed in sealed plastic bags and should be kept in a cool place.

The stored lifespan of a new activated charcoal sachet is 2 years

DISTILLER CLEANERS

Cleaner ingredients: Food-grade citric acid (made of natural crops such potatoes and corn). Functions: Can dissolve dirt and hard residues, an inhibit the growth of bacteria.

Objective: Cleaning the remaining residue after a distillation process

TROUBLE SHOOTING

Problems	Causes	Solutions
1. Weird noise occurs in the top	(1)Too much dirt on the Motor that cause this part to become defective or weird nois	clean motor and reassemble top
2. Top has function	(1)Motor shaft is stuck	Seeking customer service assistance
	(2)Motor wire connection error	Check the motor wire connection
	(3)Motor fuse malfunction	Replace motor and reassemb
	(4)Power disconnected from the body	Distiller body reexamination
3.Water leakage	(1)Top has bad heat dissipation problem	Be sure the main power co plug into the wall outlet
from the top during the distillation process	(2) Fan stops running excessive dust	Re-examine the top's function and clean dust
	(3)Cushion rubber ring has hardened	Replace the cushion rubber ring
	(4)Cushion rubber ring has incorrectly installed	Please recheck cushion rubber ring
	(5)Cooling duct is clogged or the distilled water doesn't drips smoothly	Re-examine the cooling duct and remove foreign matter.Check the distilled water flow back
	(6)The nozzle has incorrectly installed and causing distilled water leak	Please install correctly after confirmation
	(7)Other Water leakage	The nozzle and the spout water container did not align properly

Problems	Causes	Solutions
4. Body heatin problem	(1)No power supply to the body,power cords and sockets have connection problem.(2)Blown fuse( It sometimes happens in the middle of the distillation process)	Check 2 sides of power con and sockets having any bad connection problem or not.Check the function of wall o is normal or not.Check the Ma power switch is in“ON” position or not.Replace fuse
	(3)Main Power cord malfunction	Replace the main power co
5.Burnt sockets	The power cords were not properly plugged in that results in a poor connection ar it's melted	Replace sockets
6.Burnt main power cord	Power cord is deform due to improper operation	Replace main power cord
7.Water leakage from the body	(1)The stainless steel tank is broken	Replace the stainless steel tank
	(2)Water drips from T to thebottom	Check the Top during the distillation
8.Collected distilled waterless than 4 liters	(1)Poured less than liters ofwater	Pour the water till the “FUL”
	(2)The fan stops running that causes to lose the steam	Check the function of fan a power is normal or not
9.Main power switch is malfunctioned	Unable to switch	Replace Main power switch

NOTE

This appliance is intended to be used in household and similar applica such as:

staff kitchen areas in shops, offices and other working environments. 1 houses.

by clients in hotels, motels and other residential type environments. be and breakfast type environments.

If the manufacturer wants to limit the use of the appliance to less than above, this is clearly stated in the instructions. Before using this product please read this instruction carefully and keep it for future reference.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Red and clear glass coffee maker with blue lid, no visible text or symbols

Black and clear glass coffee maker with blue lid, next to a smaller transparent cup (no visible text or symbols)

Two kitchen appliances: a black and white blender and a clear glass coffee mug, both with control buttons (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

CARACTÉRISTIQUES DU PRODUIT

Black cylindrical object with a small protrusion and a light blue laser beam (no text or symbols visible)

Upper Lid

Fan:Aluminum

Illustration of a mechanical device with rotating components and a beam of light (no text or symbols)

Cooling Duct:

304 Stainless steel pipe

Aluminum Fins

Inner Lid:

304 Stainless steel

Nozzle:

304 Stainless steel

Inner Layer:

304 Stainless steel

Black cylindrical electronic device with a blue horizontal line overlay (no visible text or symbols)

During the distillation process, the water source is in full contact with 304 stainless steel and does not come into contact with plastic materials

Exterior view of a modern stainless steel electric shaver with labeled 'A' and control buttons (no text beyond label)

B C D E F

K

Hand interacting with a modern kitchen appliance via a finger press, showing control buttons and a green indicator (no text or symbols visible)

Illustration of a hand pressing a button on a stainless steel appliance (no text or symbols visible)

Top-down view of a metallic cylindrical container filled with granular material (no text or symbols visible)

Close-up of a metallic cylindrical container with a circular opening, showing internal structure (no text or symbols visible)

Hand placing a green object into a metallic cylindrical container (no text or symbols visible)

Hand placing a green tool into a black electric cooker interior (no text or symbols visible)

Three-panel image showing a car hood with a blue X and a blue checkmark, before and after being held by a finger (no text or symbols)

ENSEMBLE CHARBON ACTIF ET BUSE

Close-up of a hand pressing down on a device component with a blue upward arrow indicating motion (no text or symbols visible)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with ventilation grilles and a blue arrow pointing to a drop (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid and a small glass container (no visible text or symbols)

Close-up of a metallic mechanical component with a blue 'X' symbol overlay (no text or symbols on the main subject)

Close-up of a metallic mechanical component with a blue checkmark overlay (no text or symbols)

INSTRUCTION D'OUVERTURE DU COUVERCLE DU DISTILLATEUR

Person in uniform standing beside a stainless steel electric vacuum cleaner with control buttons, next to a red circular icon with a white 'X' (no text or symbols on device)

Person in gloves handling a smart air conditioner unit (no visible text or symbols)

Product diagram showing a blue eyeglass with labeled parts including a transparent container, a plastic jar, and a numbered inset for assembly or inspection.

Red and clear glass coffee maker with blue lid, no visible text or symbols

Black and clear glass coffee maker with blue lid, no visible text or symbols

Two kitchen appliances: a black and white blender and a clear glass coffee mug, both with control buttons (no visible text or symbols)

Black cylindrical object with a small protrusion and a light blue laser beam (no text or symbols visible)

Upper Lid

Fan:Aluminum

Illustration of a mechanical device with rotating components and a beam of light (no text or symbols)

Cooling Duct:

304 Stainless steel pipe

Aluminum Fins

Inner Lid:

304 Stainless steel

Nozzle:

304 Stainless steel

Inner Layer:

304 Stainless steel

Black cylindrical electronic device with a blue horizontal line overlay (no visible text or symbols)

During the distillation process, the water source is in full contact with 304 stainless steel and does not come into contact with plastic materials

Hand interacting with a modern kitchen appliance via a finger press, showing control buttons and a green indicator (no text or symbols visible)

Illustration of a hand pressing a button on a stainless steel appliance (no text or symbols visible)

Top-down view of a metallic cylindrical container filled with granular material (no text or symbols visible)

Close-up of a metallic cylindrical container with a circular opening, showing internal structure (no text or symbols visible)

Hand placing a green object into a metallic cylindrical container (no text or symbols visible)

Hand placing a green checkmark into a black electric cooker (no text or symbols visible)

Three-panel image showing a car hood with a blue X and a blue checkmark, before and after cleaning the lid (no text or symbols)

AKTIVKOHLE & DÜSENBAUGRUPPE

Close-up of a hand holding a device with a blue upward arrow indicating motion (no text or symbols visible)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with ventilation grilles and a blue arrow pointing to a drop (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid, no visible text or symbols

Two-panel image showing a metallic mechanical component with a blue 'X' and a blue checkmark, no visible text or symbols.

Person in uniform standing beside a stainless steel electric vacuum cleaner with control buttons, next to a red circular icon with a white 'X' (no text or symbols on device)

Person in gloves handling a smart air conditioner unit (no visible text or symbols)

Product diagram showing a blue eyeglass with labeled parts including a transparent container, a plastic jar, and a numbered inset for assembly or inspection.

Black cylindrical object with a small protrusion and a light blue laser beam (no text or symbols visible)

Upper Lid

Fan:Aluminum

Illustration of a mechanical device with rotating components and a beam of light (no text or symbols)

Cooling Duct:

304 Stainless steel pipe

Aluminum Fins

Inner Lid:

304 Stainless steel

Nozzle:

304 Stainless steel

Inner Layer:

304 Stainless steel

Black cylindrical electronic device with a blue horizontal line overlay (no visible text or symbols)

During the distillation process, the water source is in full contact with 304 stainless steel and does not come into contact with plastic materials

Exterior view of a modern stainless steel electric shaver with labeled 'A' and control buttons (no text beyond label)

B C D E F

K

Hand interacting with a modern kitchen appliance via a finger press, showing control buttons and a green indicator (no text or symbols visible)

Illustration of a hand pressing a button on a stainless steel appliance (no text or symbols visible)

Top-down view of a metallic cylindrical container filled with granular material (no text or symbols visible)

Close-up of a metallic cylindrical container with a circular opening, showing internal structure (no text or symbols visible)

Hand placing a green object into a metallic cylindrical container (no text or symbols visible)

Hand placing a green checkmark into a black electric cooker (no text or symbols visible)

Three-panel image showing a car hood before and after cleaning, with blue X and ✓ symbols indicating inspection or repair (no text or symbols present)

GRUPPO CARBONE ATTIVO E UGELLO

Close-up of a hand holding a device with a blue upward arrow indicating motion (no text or symbols visible)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with ventilation grilles and a blue arrow pointing to a drop (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid and a small glass container (no visible text or symbols)

Two-panel image showing a metallic mechanical component with a blue 'X' and a blue checkmark, no visible text or symbols.

ISTRUZIONI PER L'APERTURA DEL COPERCHIO DEL DISTILLATORE

Person in uniform standing beside a stainless steel electric vacuum cleaner with control buttons, next to a red circular icon with a white 'X' (no text or symbols on device)

Person in gloves handling a smart air conditioner unit (no visible text or symbols)

Product diagram showing a blue eyeglass with labeled parts including a transparent container, a plastic jar, and a numbered inset for assembly or inspection.

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Importato negli USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

Gruppo Pooledas Ltd

Red and clear glass coffee maker with blue lid, no visible text or symbols

Black and clear glass coffee maker with blue lid, next to a smaller transparent cup (no visible text or symbols)

Two kitchen appliances: a black and white blender and a clear glass coffee mug, both with control buttons (no visible text or symbols)

www.vevor.com/support

Black cylindrical object with a small protrusion and a light blue laser beam (no text or symbols visible)

Upper Lid

Fan:Aluminum

Illustration of a mechanical device with rotating components and a beam of light (no text or symbols)

Cooling Duct:

304 Stainless steel pipe

Aluminum Fins

Inner Lid:

304 Stainless steel

Nozzle:

304 Stainless steel

Inner Layer:

304 Stainless steel

Black cylindrical electronic device with a blue horizontal line overlay (no visible text or symbols)

During the distillation process, the water source is in full contact with 304 stainless steel and does not come into contact with plastic materials

Hand interacting with a stainless steel appliance and a water dispenser (no visible text or symbols)

Illustration of a hand pressing a button on a stainless steel appliance (no text or symbols visible)

Top-down view of a metallic cylindrical container filled with granular material (no text or symbols visible)

Close-up of a metallic cylindrical container with a circular opening, showing internal structure (no text or symbols visible)

Hand placing a green object into a metallic cylindrical container (no text or symbols visible)

Hand placing a green tool into a black electric cooker (no text or symbols visible)

Three-panel image showing a car hood with a blue X and a blue checkmark, before and after a hand pressing down on a metal component (no text or symbols visible)

CONJUNTO DE BOQUILLA Y CARBÓN ACTIVADO

Close-up of a black robotic device with a blue arrow pointing to a component (no visible text or symbols)

Close-up of gloved hands holding a small white object with a black square on a light surface (no visible text or symbols)

Hand holding a metal box containing two wrapped food items, no visible text or symbols

Close-up of a stainless steel electrical enclosure with a blue arrow pointing to a component (no visible text or symbols)

Close-up of a hand pressing down on a device component with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with a blue arrow pointing to a drop in the air (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid and a pipette inserted into it (no visible text or symbols)

Close-up of a metallic mechanical component with a blue 'X' symbol overlay (no text or symbols on the main subject)

Close-up of a metallic mechanical component with a blue checkmark overlay (no text or symbols)

Person in uniform standing beside a stainless steel electric vacuum cleaner with control buttons, next to a red circular icon with a white 'X' (no text or symbols on device)

Person in gloves handling a smart air conditioner unit (no visible text or symbols)

Product diagram showing a blue eyeglass with labeled parts including a transparent container, a plastic jar, and a numbered inset for assembly or inspection.

Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DEL REINO UNIDO

Grupo Pooledas Ltd.

Red and clear glass coffee maker with blue lid, no visible text or symbols

Black and clear glass coffee maker with blue lid, next to a smaller transparent cup (no visible text or symbols)

Two kitchen appliances: a black and white blender and a clear glass coffee mug, both with control buttons (no visible text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Black cylindrical object with a small protrusion and a light blue laser beam (no text or symbols visible)

Upper Lid

Fan:Aluminum

Illustration of a mechanical device with rotating components and a beam of light (no text or symbols)

Cooling Duct:

304 Stainless steel pipe

Aluminum Fins

Inner Lid:

304 Stainless steel

Nozzle:

304 Stainless steel

Inner Layer:

304 Stainless steel

Black cylindrical electronic device with a blue horizontal line overlay (no visible text or symbols)

During the distillation process, the water source is in full contact with 304 stainless steel and does not come into contact with plastic materials

Hand interacting with a modern kitchen appliance via a finger press, showing control buttons and a green indicator (no text or symbols visible)

Illustration of a hand pressing a button on a stainless steel appliance (no text or symbols visible)

Top-down view of a metallic cylindrical container filled with granular material (no text or symbols visible)

Close-up of a metallic cylindrical container with a circular opening, showing internal structure (no text or symbols visible)

Hand placing a green object into a metallic cylindrical container (no text or symbols visible)

Hand placing a green tool into a black electric cooker (no text or symbols visible)

Three-panel image showing a car hood with a checkmark and a hand pressing down on a surface (no text or symbols)

WĘGIEL AKTYWOWANY I ZESTAW DYSZY

Close-up of a hand pressing down on a device component with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with ventilation grilles and a blue arrow pointing to a drop (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid, no visible text or symbols

Two-panel image showing a metallic mechanical component with a blue 'X' and a blue checkmark, no visible text or symbols.

INSTRUKCJA OTWIERANIA POKRYWY DESTYLATORA

Person in uniform standing beside a stainless steel electric vacuum cleaner with control buttons, next to a red circular icon with a white 'X' (no text or symbols on device)

Person in gloves handling a smart air conditioner unit (no visible text or symbols)

Product diagram showing a blue eye mask with labeled parts and a transparent container with measurement markings.

Importowane do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIEL KIEJ BRYTANII

Grupa Pooledas Ltd.

HULP NODIG? NEEM CONTACT MET ONS OP!

Black cylindrical object with a small protrusion and a light blue laser beam (no text or symbols visible)

Upper Lid

Fan:Aluminum

Illustration of a mechanical device with rotating components and a beam of light (no text or symbols)

Cooling Duct:

304 Stainless steel pipe

Aluminum Fins

Inner Lid:

304 Stainless steel

Nozzle:

304 Stainless steel

Inner Layer:

304 Stainless steel

Black cylindrical electronic device with a blue horizontal line overlay (no visible text or symbols)

During the distillation process, the water source is in full contact with 304 stainless steel and does not come into contact with plastic materials

Exterior view of a modern stainless steel electric shaver with labeled 'A' and control buttons (no text beyond label)

B C D E F

K

Hand interacting with a modern kitchen appliance via a finger press, showing control buttons and a green indicator (no text or symbols visible)

Illustration of a hand pressing a button on a stainless steel appliance (no text or symbols visible)

Top-down view of a metallic cylindrical container filled with granular material (no text or symbols visible)

Close-up of a metallic cylindrical container with a circular opening, showing internal structure (no text or symbols visible)

Hand placing a green object into a metallic cylindrical container (no text or symbols visible)

Hand placing a green tool into a black electric cooker interior (no text or symbols visible)

Three-panel image showing a car hood with a blue X and a blue checkmark, before and after a hand pressing down on a metal component (no text or symbols visible)

GEACTIVEERDE HOUTSKOOL & SPUITMOND MONTAGE

Close-up of a hand pressing down on a device component with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with a blue arrow pointing to a drop in the air (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid and a small glass container (no visible text or symbols)

Two-panel image showing a metallic mechanical component with a blue 'X' and a blue checkmark, no visible text or symbols.

INSTRUCTIE VOOR HET OPENEN VAN HET DEKSEL VAN DE DISTILLEERDER

Person in uniform holding a stainless steel electric heater with control buttons, next to a red circular icon with a white 'X' (no text or symbols on the device itself)

Person in gloves handling a smart air conditioner unit (no visible text or symbols)

Product diagram showing a blue eyeglass with labeled parts including a transparent container, a plastic jar, and a numbered inset for assembly or inspection.

Unit 5 Albert Edward House, De Paviljoens

Black cylindrical object with a small protrusion and a light blue laser beam (no text or symbols visible)

Upper Lid

Fan:Aluminum

Illustration of a mechanical device with rotating components and a beam of light (no text or symbols)

Cooling Duct:

304 Stainless steel pipe

Aluminum Fins

Inner Lid:

304 Stainless steel

Nozzle:

304 Stainless steel

Inner Layer:

304 Stainless steel

Black cylindrical electronic device with a blue horizontal line overlay (no visible text or symbols)

During the distillation process, the water source is in full contact with 304 stainless steel and does not come into contact with plastic materials

Hand interacting with a stainless steel appliance via a finger icon (no text or symbols visible)

Illustration of a hand pressing a button on a stainless steel appliance (no text or symbols visible)

Top-down view of a metallic cylindrical container filled with granular material (no text or symbols visible)

Close-up of a metallic cylindrical container with a circular opening, showing internal structure (no text or symbols visible)

Hand placing a green object into a metallic cylindrical container (no text or symbols visible)

Hand placing a green tool into a black electric cooker (no text or symbols visible)

Three-panel image showing a mechanical component before and after, with blue X and check symbols indicating inspection or modification (no text or symbols present)

MONTERING AV AKTIVAT KOL OCH MUNSTRYCK

Close-up of a hand pressing down on a device component with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with ventilation grilles and a blue arrow pointing to a drop (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid, no visible text or symbols

Two-panel image showing a metallic mechanical component with a blue 'X' and a blue checkmark, no visible text or symbols.

DISTILLERLOCK ÖPPEN INSTRUKTION

Person in uniform standing beside a stainless steel electric vacuum cleaner with control buttons, next to a red circular icon with a white 'X' (no text or symbols on device)

Person in gloves handling a smart air conditioner unit (no visible text or symbols)

Product diagram showing a blue eye mask with labeled parts and a transparent container with measurement markings.

Enhet 5 Albert Edward House, The Pavilions
