USER MANUAL BSK-T4-F3-G Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

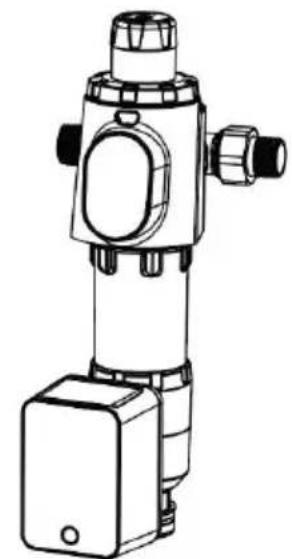

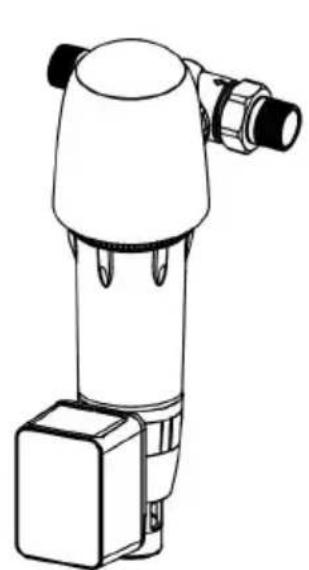

PRE-FILTER

BSK-T4-F3-N BSK-T4-F3-G

BSK-T4-Q2-N BSK-T4-Q2-G

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:BSK-T4-F3--N BSK-T4-Q2--N

BSK-T4-F3-G BSK-T4-Q2-G

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Product Introduction

The Whole House Pre-filter is mainly used to intercept contaminants as granules, impurities, sediment, rust, floating objects and so on. And can also provide positive protection for the downstream pipeline, water purifier, water heater, wall hung gas boiler, washing machine, shower other terminal water equipment.

PRODUCT CHARACTERISTICS

1.Using 316L food grade stainless steel precision mesh;
2. The core components are specially made of imported materials, with strong pressure resistance, safety and reliability;
3.Special explosion-proof transparent outer cover, visualization of the use effect, visualization of the sewage effect, more convenient to use;
4. Clean sewage disposal is more convenient by a few gentle rotations, resulting in the cleanse of the filter mesh and filter bottle.
5.Intelligent timed sewage discharge for easier maintenance.

ATTENTIONS

1. The installation, commissioning and maintenance should be carried by professionals .
2. The series of products can only be installed at an indoor and dry environment. Please avoid getting close to any heat source; the series products only apply to municipal tap water at. Please do not use for waste water or corrosive liquid.
3. When it's installed, please pay attention to whether the direction of marked on the valve body are consistent with the flow direction of the

4. Please make sure that install position has reliable drainage system

5. Depending on the water quality of different locations, please wash filter normally at least once a month.

6. In the normal cleaning and maintenance process, please pay attention to the protection of the components.
7. BSK-T4-Q2 models suggest replacing the pressure control valve core within 5 years.
   8.Product Example Line Diagram Taking BSK-T4-Q2-G as an Example 9. Our company provides complete and reliable products. We are not responsible for any product damage or loss of personal injury, property environment resulting from the replacement, installation and setting of a debugging parts of our products without our approval. If you have any questions about our products, please contact us .

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all

accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a corner point for recycling electrical and electronic devices.

FCC Information

CAUTION: Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is such that the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party. Responsible for compliance could void the use authority to operate the product.

Note: This product has been tested and found to comply with the IIR a Class B digital device pursuant to Part 15 of the FCC Rules. The rules are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception which can be determined by turning the product off and on, the user encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista. This product is subject to the provision of European Directive 2012/19. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical electronic devices.

TECHNICAL PARAMETERS

Product Name	Pre-filter
Product Model	BSK-T4-F3-G	BSK-T4-F3-N	BSK-T4-Q2-G	BSK-T4-Q2-N
Connector	1" or 3/4"	1" NPT or 3/4" NPT	1" or 3/4"	1" NPT or 3/4" NPT
Product Sizes	172*219*397	172*219*397	151*195*347	151*195*347
Clean Water Flow	8T/H		4T/H
Filtration Precision	40μm
Applicable Water Temperature	5℃~38℃
Applicable Water Pressure	0.15MPa~1MPa
Applicable Water	Quality Municipal Tap Water

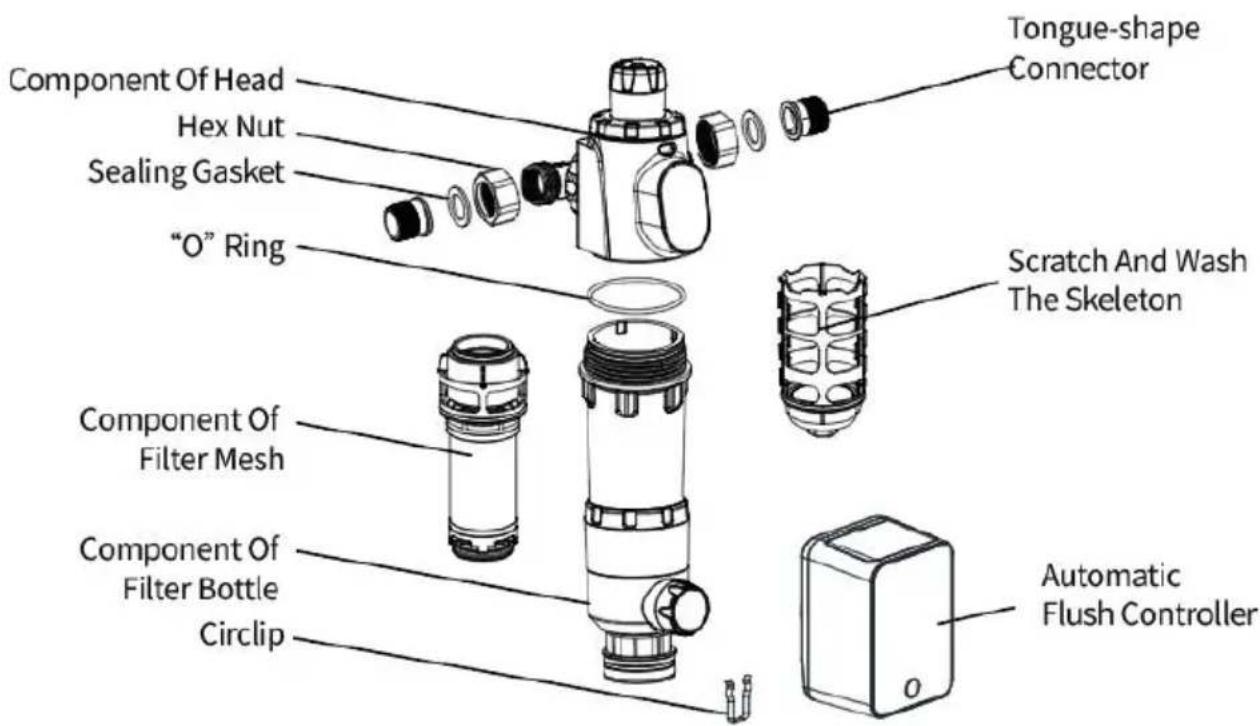

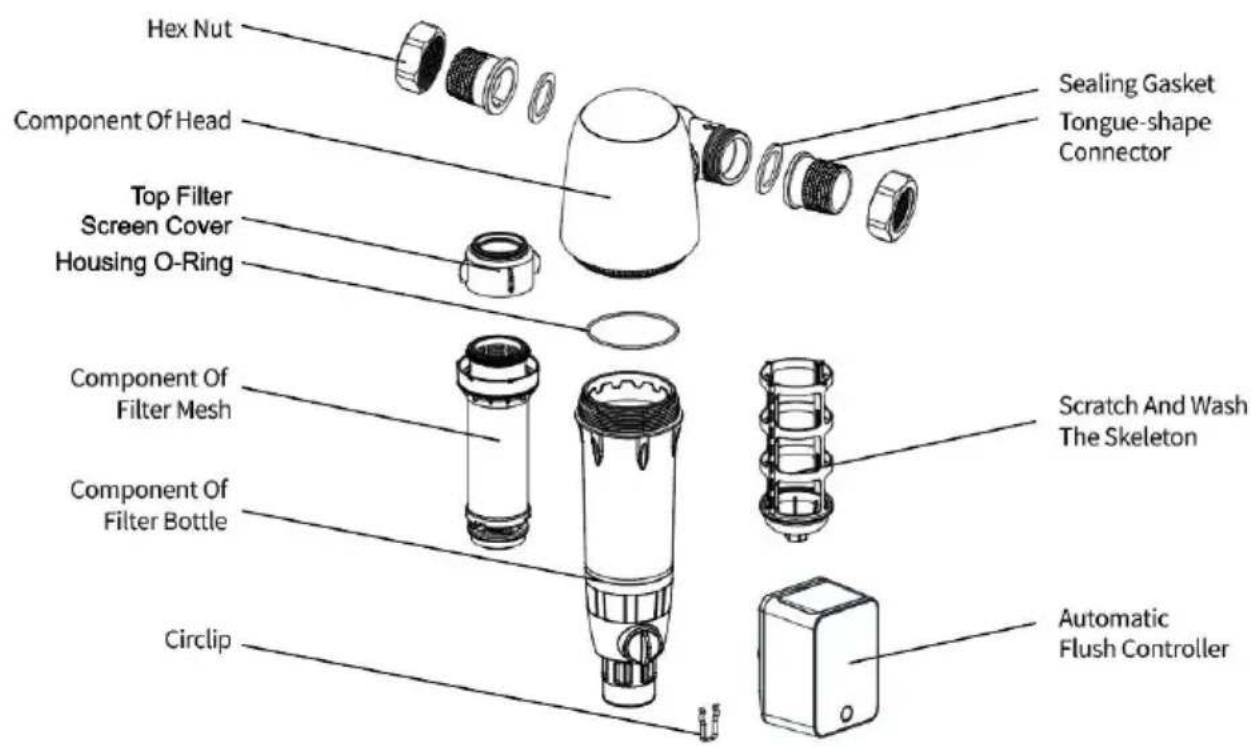

NAME OF EACH COMPONENT

BSK-T4-F3-N/BSK-T4-F3-G

BSK-T4-Q2-N/BSK-T4-Q2-G

(Note: the decomposition of product structure is for reference of inconsistent with the actual product, it's subject to the actual

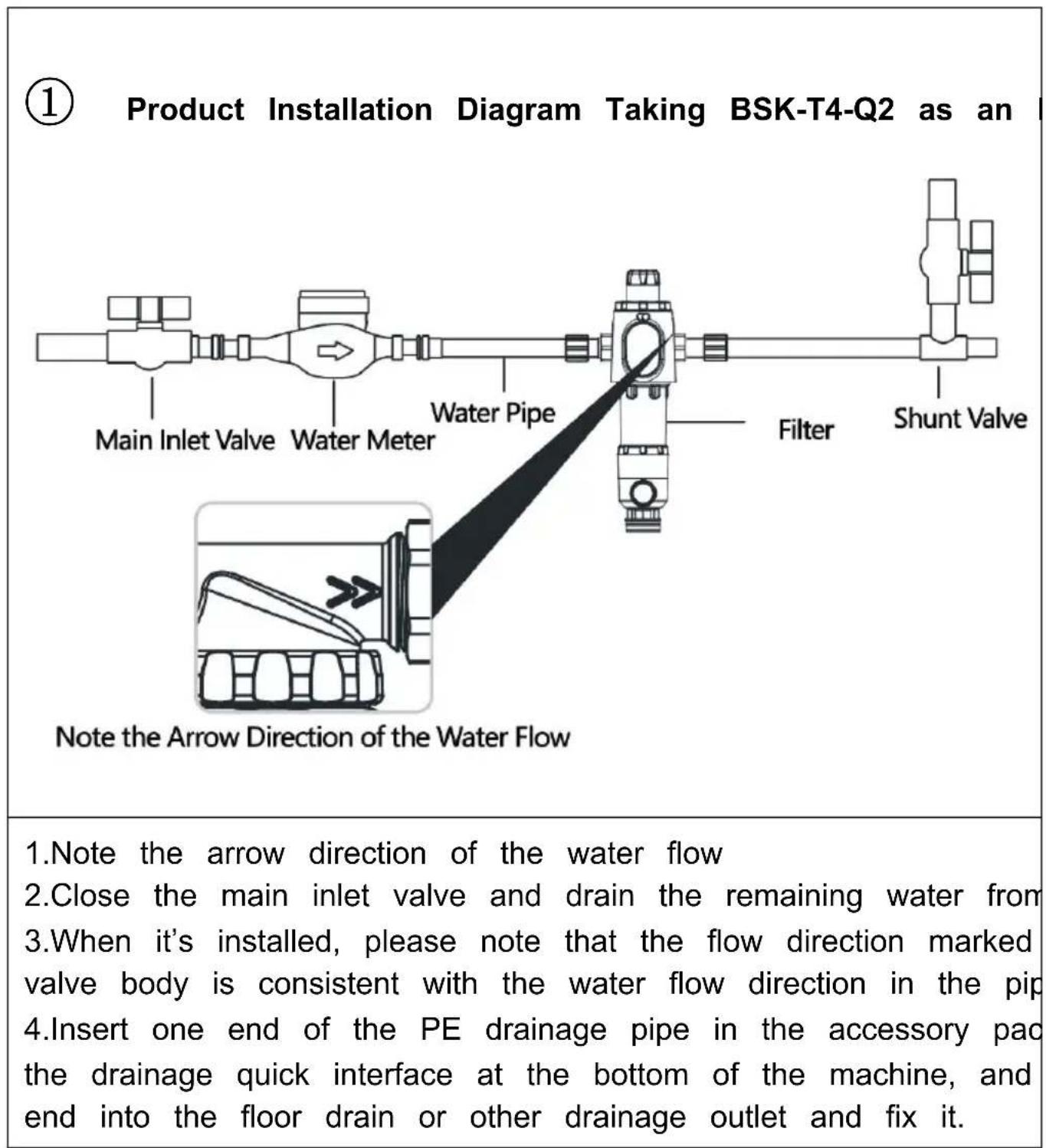

TECHNICAL PARAMETERS

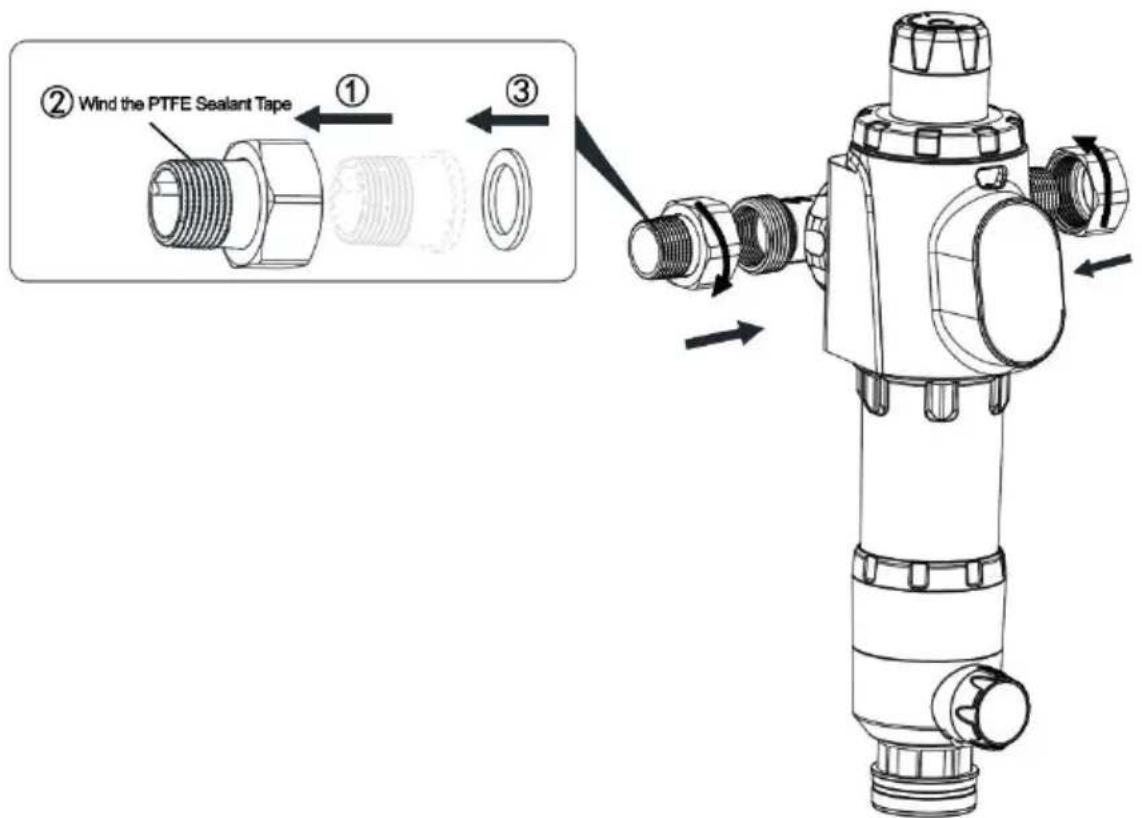

1. The wrapping of Teflon tape should be installed by profession. Before the installation, please check if the components are com
   2.PPR pipe installation needs special welding equipment, and the welding should be strong.
   3.If the metal hard pipe is installed, it is necessary to add the according to the actual situation.
2. This product should not be installed outdoors, and it should be far as possible away from UV, heat sources, fuel and various
   5.When the Teflon tape is wrapped, it should be fully and ever wrapped.
3. When the hexagonal nuts are tightened with wrenches, make other parts do not rotate with the hexagonal nuts.
4. After installation, observe carefully whether there is water leak at the joint connectors.

USER MANUAL

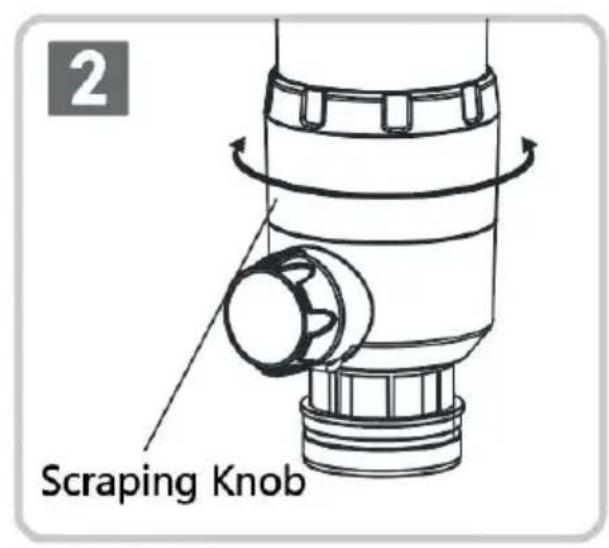

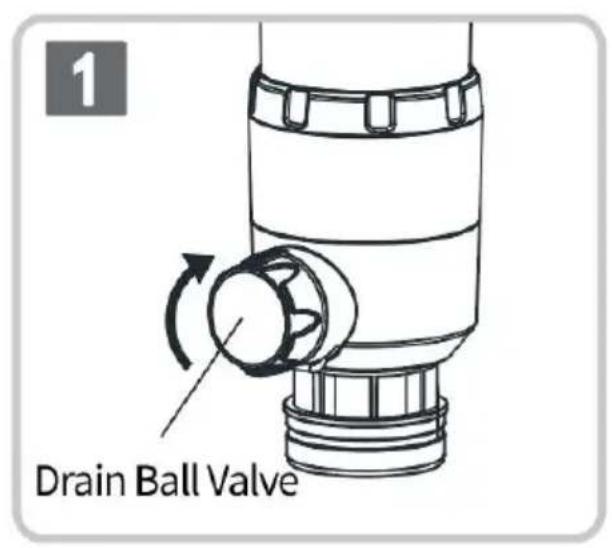

1. After installation, open the main inlet valve and flush it.
   2.Before the flushing, make sure there is a reliable drainage sys. use a suitable container to hold the waste water after flushing. the ball valve handle in the lower part of the filter counterclock then turning the black scraping knob at the lower part of the fi clockwise or counterclockwise for 3 or 4 rounds, then the intern the filter bottle can be cleaned and drained Depending on the quality of different locations.
2. Please wash the product at least once a month, and switch to drainage ball valve for flushing 3 times a month, each flushing 2 seconds.
3. During normal cleaning and maintenance, all parts should be p and original parts should be used for maintenance.

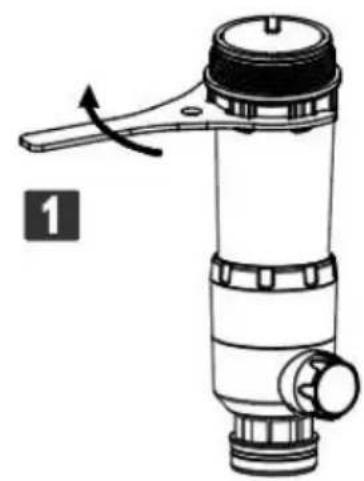

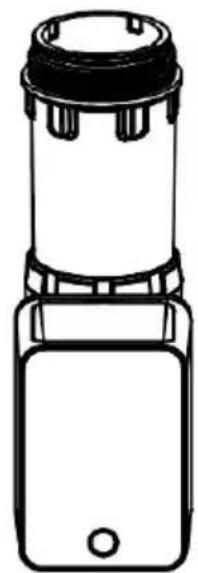

Dismantle and Wash the Filtering Components

Professional operating is recommended.
When normal scraping or flushing can not remove the dirt on the filter mesh, an normal water use is affect it is recommended to take out the filter mesh and wait.
Open the filter bottle counterclockwise with the wrench offered in the pack Remove the filter mesh fro inside the bottle and softly clean off the dirt embedde (No need to take out the scraping component when washing the filter mesh)
Note: The scraping components do not need to be removed when the filtemesh components are being cleaned.

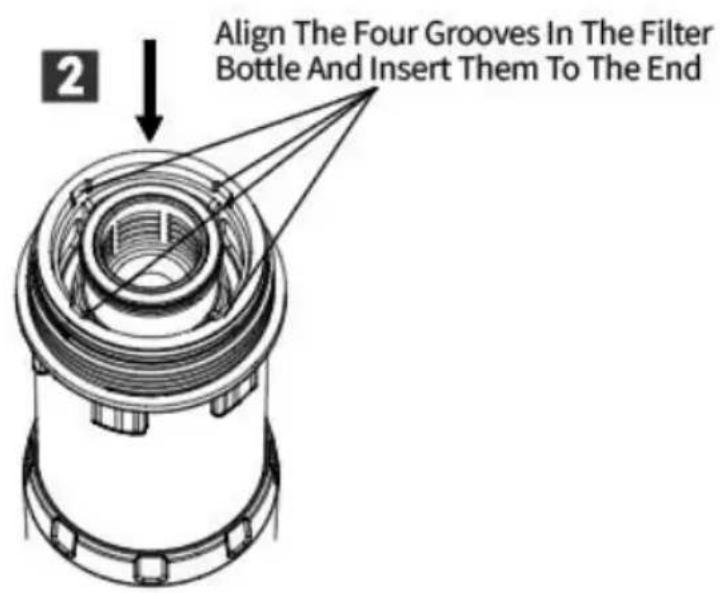

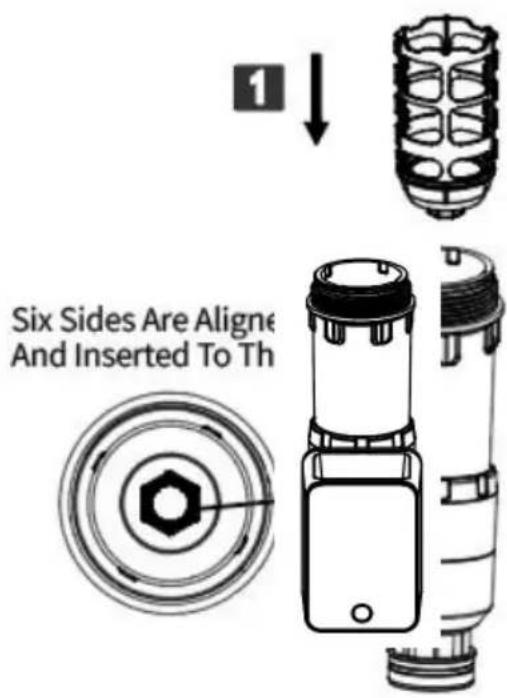

Install the Scaper and Mesh

When the scraping components are installe into the filter bottle, please make sure the quadrilateral holes with round corner in the scraping components are fitted with the quadrilateral column on the water discharge copper parts at the bottom of the filter bot and the holes are inserted to the end of column.

When the filter bottle components are installed, pay attention insert the four bumps the inner filter component of the scraping component to the four grooves in the filter bottle, and insert them to the end of the grooves.

Installation Of Scraping Components And Filter Mesh Comp

It should be installed by professionals. Before the installation, pl check if the components are complete. After installation, you must manually switch the controller several to see if there is any abnormal phenomenon. The reverse operation process can remove the automatic control

Six Sides Are Aligned And Inserted To The End Align The Four Grooves In The Filter Bottle And Insert Them To The End

Description of Pressure Control Function(Pressure control products have this function)

■ The product has the function of reducing pressure and stabilizing pressure, which can effectively prevent the damage caused by high water pressure or water hammer to the water pipe and water equipment. If the parameters of the pressure control need to be adjusted, please adjust according to the following steps. ■ With a straight screwdriver, loosen the screws in the pressure adjusting knob counterclockwise; ■ Turn the pressure adjusting knob clockwise to raise the water outlet pressure (but make sure the water pressure is always lower than the inlet pressure); ■ Turn the pressure adjusting knob counterclockwise to lower the water outlet pressure; ■ After adjustment, tighten the screw clockwise. ■ Notes: before adjusting the pressure, make sure that the domestic water equipment is closed. Open / close the drain ball valve several times during the pressure regulation, and check the number of the pressure gauge number in the closed state.

Operation Instructions of The Ball Valve Automatic

Controller

Panel Display / Key Description
Double Digit Display Decreasing Key Manual On/Off key Setting up AUTO Key Wake-up / Restart Key (Restart after a long press of 8 seconds)	Interval "Day" icon for the Switch Increasing Key Icon for standby countdown tate "Second" icon for turning on the time Set the "Day" / "Second" Key
Set The Opening Time State For The Ball Valve
The left illustration shows the opening time state of the ball valve, and press"Set"Switch the state to "S", and set the opening time for the ball valve 15 seconds / 30 seconds / 45 seconds / 60 seconds / 90 seconds, press "+" "-" key to set the required opening time for the ball valve.	-45s Auto Set
Show The Self-inspection Status
The left illustration shows the self-inspection state of the ball valve after the product is recharged or restarted, and the drain icon flashes. Note: other functions cannot be used during self-inspection status.	Drain
Set The Switch Interval State Of The Ball Valve
The left illustration shows setti the switch interval state of the valve. Press "set" key and it change to the state "D". In the state, the ball valve interval can be set at every 1-99 days to on/off the ball vale once and such interval in circulation. Pre "+" "-" key to set the required days.	-88° Auto Auto Set
Display The Standby State In Auto Mode
The left illustration shows that under its factory default state(same as the state after restarting the "AUTO" state, the controller will open the ball valve for draining of 15 seconds after a interval of 15 days, and then automatically close the ball valve. And it will circulate at such c During the interval, press the wake-up key to show how ma days left for automatically opening the ball valve. In this wake-up state, you can press "drain" button to manually ope the ball valve. After you manu open the ball valve, it will sta days' timekeeping again.	15 D Auto Drain Set
Operation Instructions Of The Ball Valve Automatic Contr
The left illustration shows that under the manual switch state, the countdown figure of the b valve such as "15" will flash during the switching time. Whe it's fully open, the number sta countdown. When the countdow is finished, it will display"00" flickering indicating the ball val in a closed state and the bal valve will always flash during opening and closing process.	15 Drain O

PRODUCT FAULT ANALYSIS

Troubleshooting

Problem	Possible Causes	Possible Solution
No Product Water	1.Water supply is shut off. 2.Inlet valve is not open.	1.Wait water supply restore. 2.Open the inlet valve.
Not Enough Product Water	1.Inlet valve is not fully open. 2.Filter screen is clogged.	1.Open the inlet valve completely. 2 Flush and clean the filter screen assembly, remove the debris.
Leaks on Connection	1.Connection is not installed well. 2.Connection is not tightened. 3.Not winding enough thread tape. 4.Sealing gasket is aging and damaged.	1.Checked and make sure the sealing gasket is flat and not be squeezed. 2.Use the wrench to tight it. 3.Use enough thread tape and make sure it is winding evenly. 4 REPLACE the sealing gasket.
No Pressure Displayed	1 PRESSURE gauge damaged. 2.No water supply.	1 REPLACE the pressure gauge. 2.Open the inlet valve.
Display Error Code "E0"	Low Battery Power	Replace Battery Power
Display Error Code "E1"	Ball valve not open completely.	1. Press and hold Reset Key for 8s to reset control module. 2. If Reset process not work, replace control module.
Display Error Code "E2"	Ball valve not closed completely.	1. Press and hold Reset Key for 8s to reset control module. 2. If Reset process not work, replace control module.

Fault Map

Power Shortage Alarm Prompt

Open Fault Alarm Prompt

Turn Off Fault Alarm Prompts

Packing List

1 set of Pre-filter
1 set of User Manual

1 set of Attachment Package (mounting wrench, sewer drain connector, sewage drain pipe, etc.)

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®
