USER MANUAL BSK-T2-N12-G Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PRE-FILTER

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PRE-FILTER

MODEL:BSK-T2-S3--N

BSK-T2-S3-G

BSK-T2-N12--N

BSK-T2-N12-G

BSK-T2-S1--N

BSK-T2-S1-G

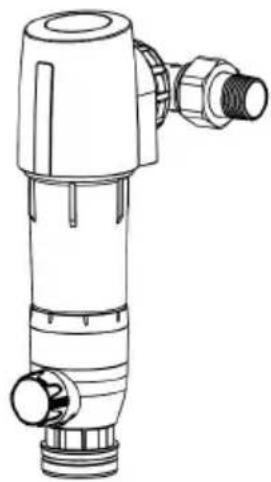

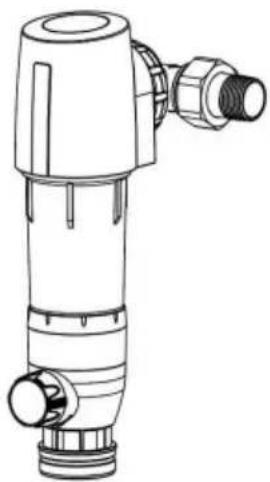

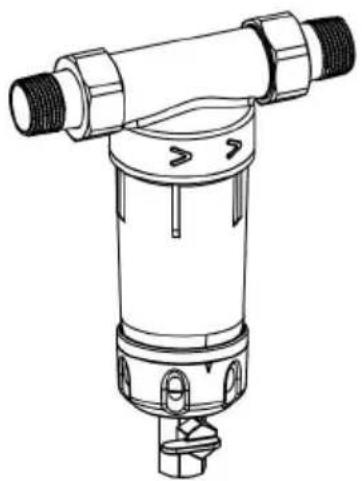

Technical line drawing of a cylindrical industrial water filter or pressure vessel with no visible text or symbols

Technical line drawing of a cylindrical mechanical device with ports and mounting flanges (no text or symbols)

Technical line drawing of a cylindrical mechanical device with flanged ends and a threaded port (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Product Introduction

The Whole House Pre-filter is mainly used to intercept contaminants such as granules, impurities, sediment, rust, floating objects and so on. And can also provide positive protection for the downstream pipeline, water purifier, water heater, wall hung gas boiler, washing machine, shower other terminal water equipment.

PRODUCT CHARACTERISTICS

1. Using 316L food grade stainless steel precision mesh;
2. The core components are specially made of imported materials, with strong pressure resistance, safety and reliability;
3. Special explosion-proof transparent outer cover, visualization of the use effect, visualization of the sewage effect, more convenient to use;
4. Clean sewage disposal is more convenient by a few gentle rotations resulting in the cleanse of the filter mesh and filter bottle.

ATTENTIONS

1. The installation, commissioning and maintenance should be carried by professionals.
2. The series of products can only be installed at an indoor and dry environment. Please avoid getting close to any heat source; the series products only apply to municipal tap water at. Please do not use for waste water or corrosive liquid.
3. When it's installed, please pay attention to whether the direction of marked on the valve body are consistent with the flow direction of the
4. Please make sure that install position has reliable drainage system.
5. Depending on the water quality of different locations, please wash

filter normally at least once a month.

1. In the normal cleaning and maintenance process, please pay attention to the protection of the components.
2. Product Example Line Diagram Taking BSK-T2-S3-G as an Example
3. Our company provides complete and reliable products. We are not responsible for any product damage or loss of personal injury, property environment resulting from the replacement, installation and setting of a debugging parts of our products without our approval. If you have an questions about our products, please contact us.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all

accessories marked with this symbol. Products marked as such may be discarded with normal domestic waste, but must be taken to a co-point for recycling electrical and electronic devices.

FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party. Responsible for compliance could void the use

authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules. The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista. This product is subject to the provision of European Directive 2012/19. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol.

Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical electronic devices.

TECHNICAL PARAMETERS

Product Name	Pre-filter
Product Model	BSK-T2-S3-G	BSK-T2-S3-N	BSK-T2-N1-G	BSK-T2-N1-N	BSK-T2-N12-G	BSK-T2-N12-N
Connector	1" or 3/4"	1" NPT or 3/4"NPT	1" or 3/4"	1" NPT or 3/4"NPT	1" or 3/4"	1" NPT or 3/4"NPT
Product Sizes	153*66*210mm	153*66*210mm	171*84*280mm	171*84*280mm	151*137*274mm	151*137*274mm
Filtration Precision	40μm
Clean Water Flow	4T/H
Applicable Water Temperature	5°C~38°C
Applicable Water Pressure	0.15MPa~1MPa
Applicable Water	Quality Municipal Tap Water

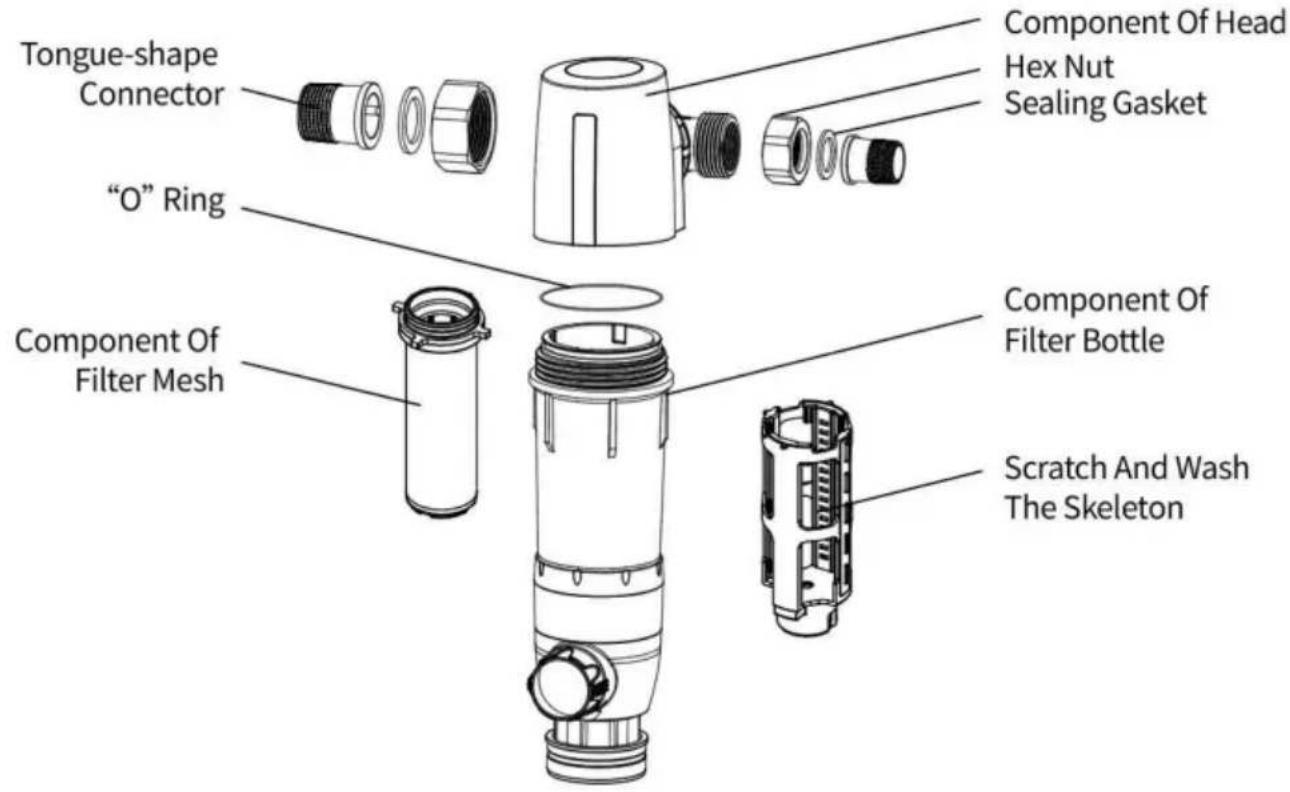

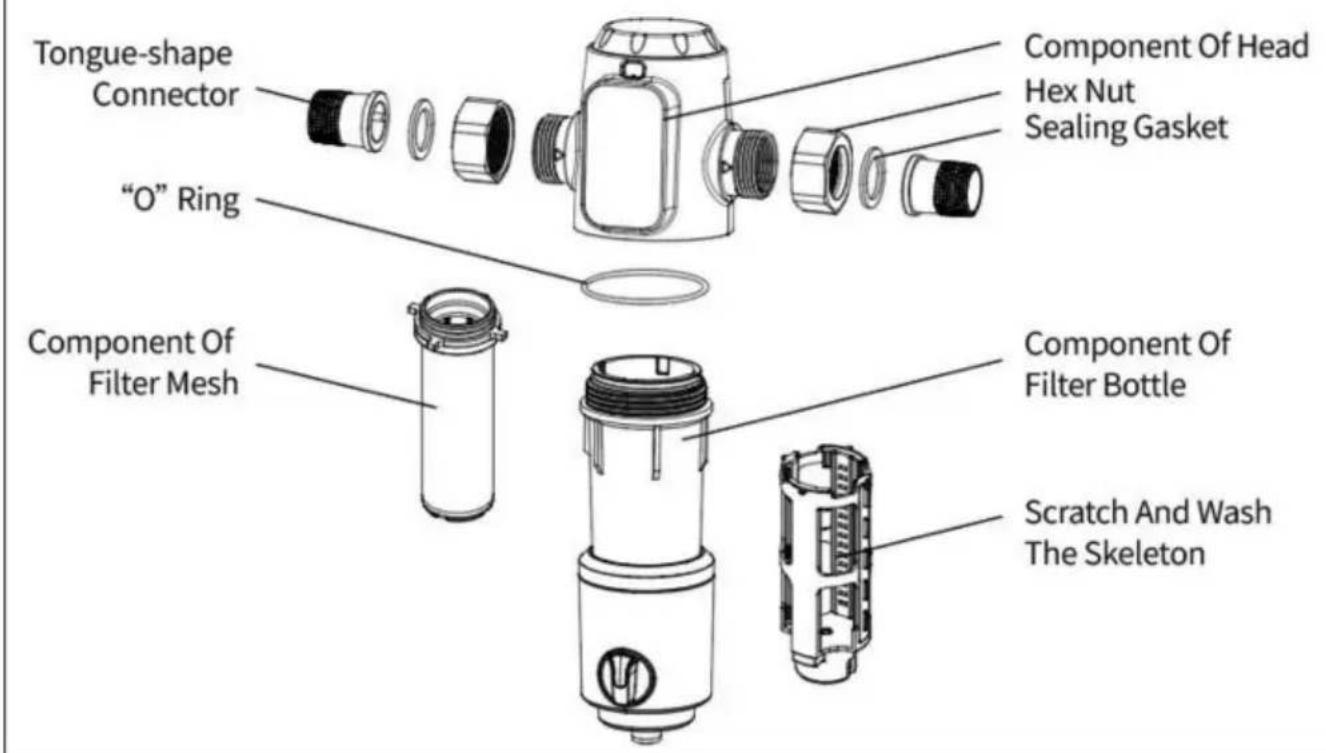

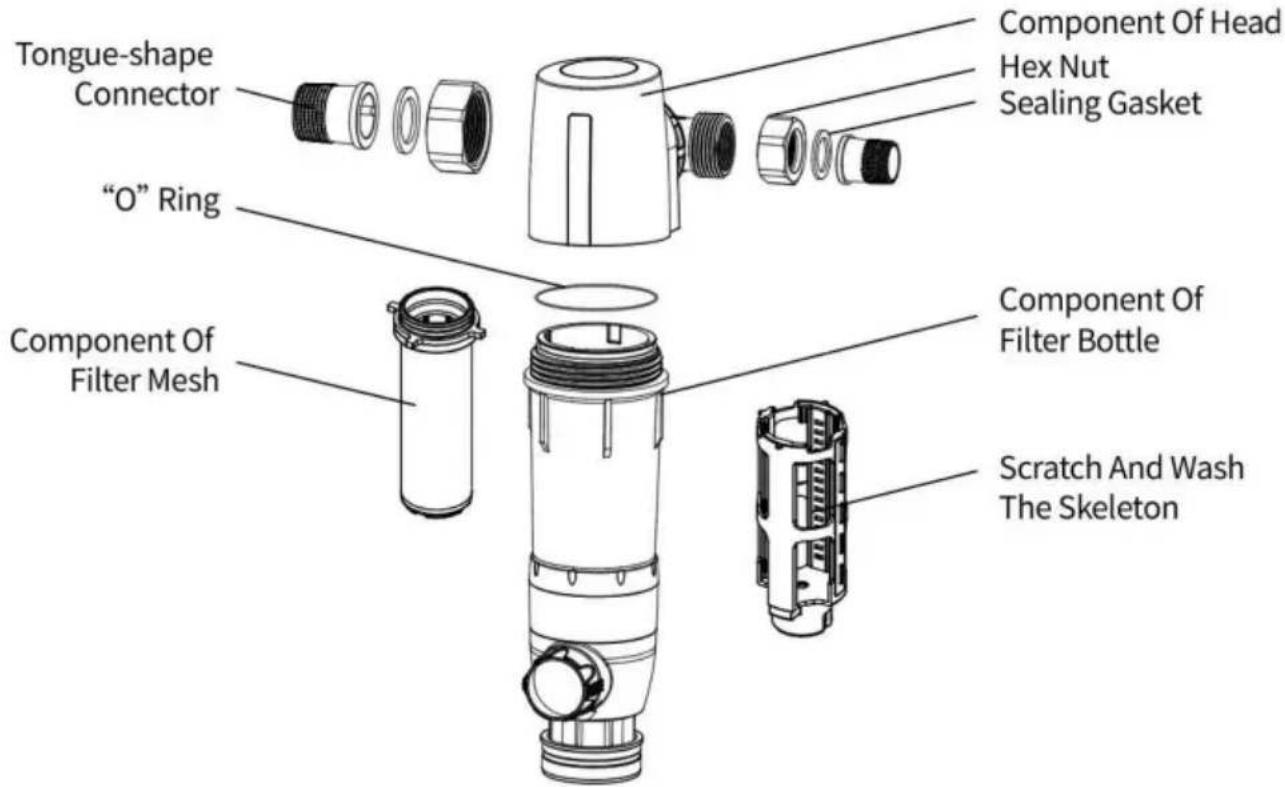

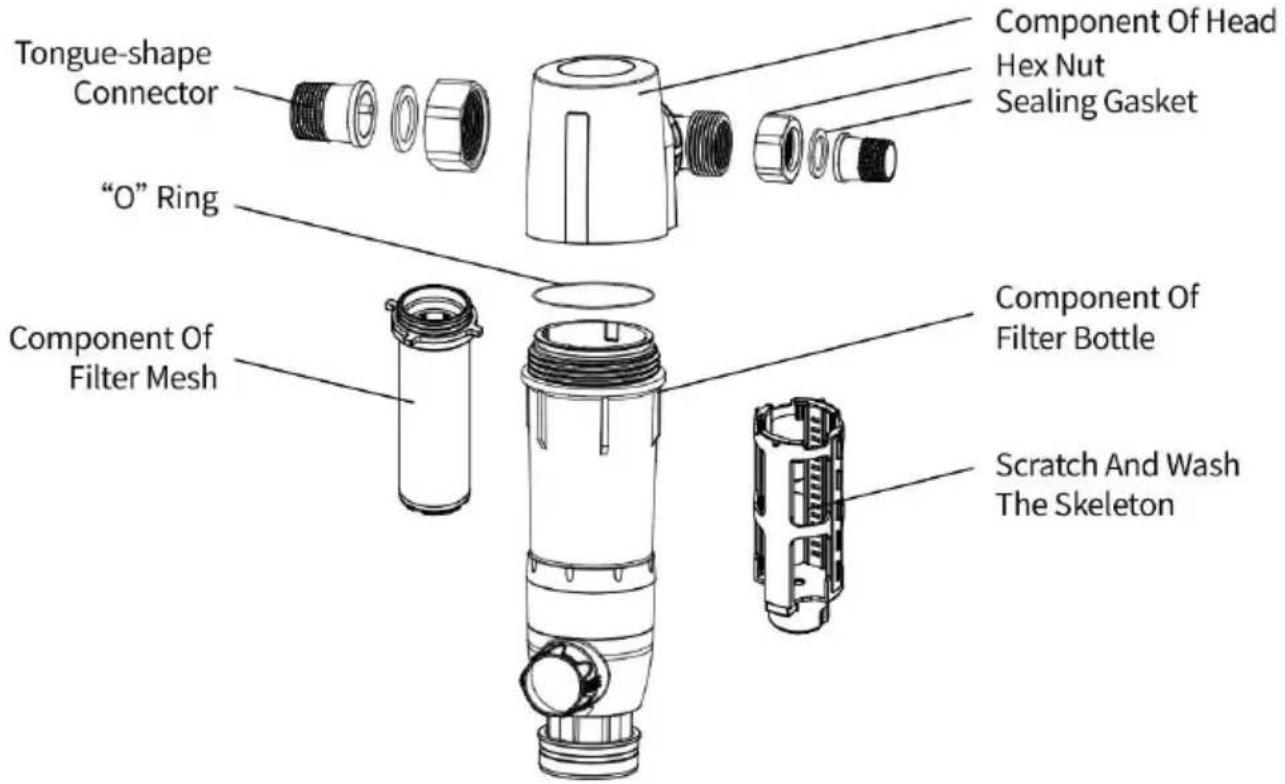

NAME OF EACH COMPONENT

Head Hex Nut Sealing Gasket Tongue-shape Connector Filter Mesh Filter Bottle Scraper

BSK-T2-N1--N/BSK-T2-N1-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Scratch And Wash The Skeleton Component Of Head Hex Nut Sealing Gasket

BSK-T2-N12-N/BSK-T2-N12-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Head Hex Nut Sealing Gasket Component Of Filter Bottle Scratch And Wash The Skeleton

(Note: the decomposition of product structure is for reference or inconsistent with the actual product, it's subject to the actual p

TECHNICAL PARAMETERS

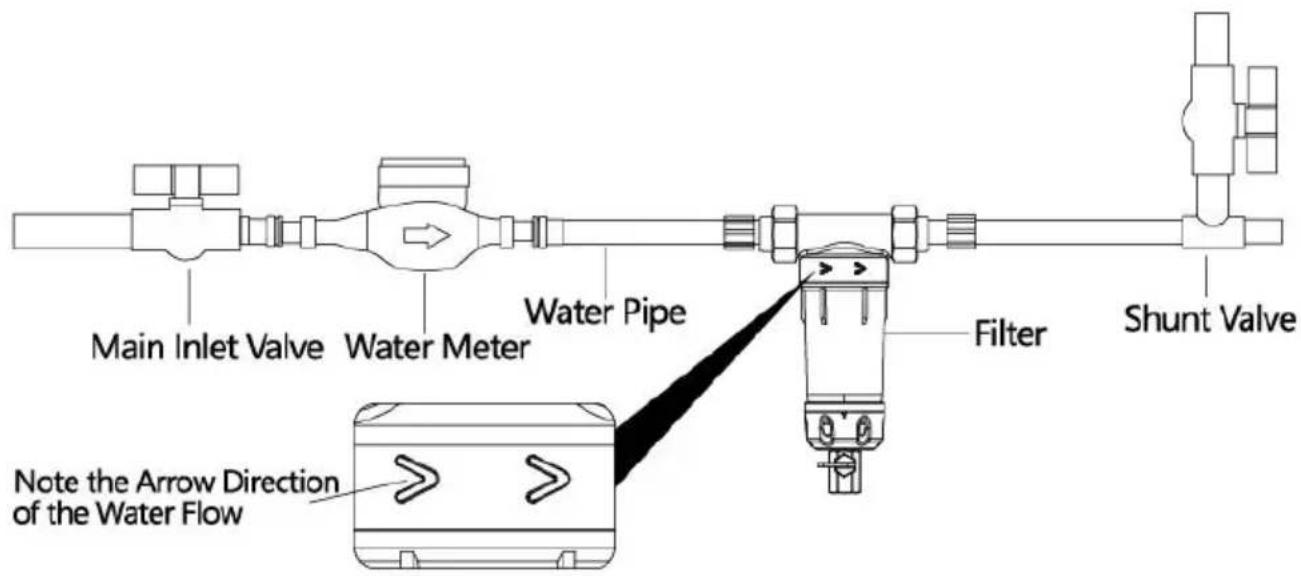

① Product Installation Diagram Taking BSK-T2-S3 as an

Main Inlet Valve Water Meter Water Pipe Filter Shunt Valve Note the Arrow Direction of the Water Flow

1. Note the arrow direction of the water flow.
2. Close the main inlet valve and drain the remaining water from
3. When it's installed, please note that the flow direction marked valve body is consistent with the water flow direction in the pip
4. Insert one end of the PE drainage pipe in the accessory pad the drainage quick interface at the bottom of the machine, and end into the floor drain or other drainage outlet and fix it.

②

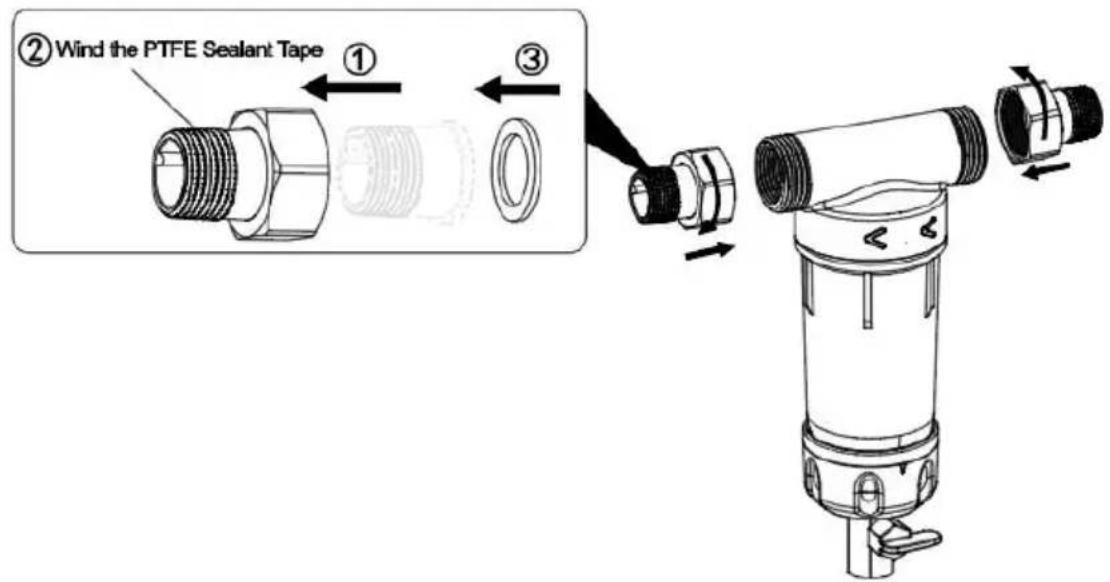

② Wind the PTFE Sealant Tape ① ③

1. The wrapping of Teflon tape should be installed by profession Before the installation, please check if the components are com

2.PPR pipe installation needs special welding equipment, and the welding should be strong.

1. If the metal hard pipe is installed, it is necessary to add the according to the actual situation.

2. This product should not be installed outdoors, and it should be far as possible away from UV, heat sources, fuel and various

3. When the Teflon tape is wrapped, it should be fully and even wrapped.

4. When the hexagonal nuts are tightened with wrenches, make other parts do not rotate with the hexagonal nuts.

5. After installation, observe carefully whether there is water leak the joint connectors.

USER MANUAL

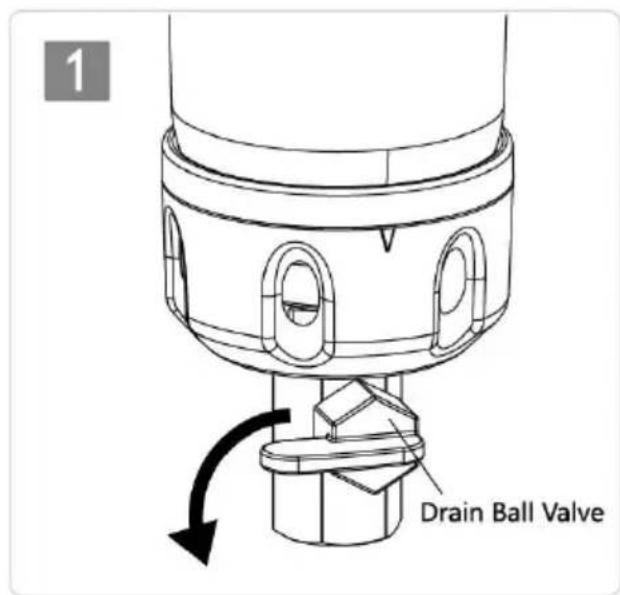

1 Drain Ball Valve

2 Scraping Knob

1. After installation, open the main inlet valve and flush it.
   2.Before the flushing, make sure there is a reliable drainage sy to use a suitable container to hold the waste water after flushi turning the ball valve handle in the lower part of the filter counterclockwise by 90 , then turning the black scraping knob a lower part of the filter clockwise or counterclockwise for 3 or 4 then the internal parts of the filter bottle can be cleaned and Depending on the water quality of different locations.
2. Please wash the product at least once a month, and switch drainage ball valve for flushing 3 times a month, each flushing seconds.
3. During normal cleaning and maintenance, all parts should be protected, and original parts should be used for maintenance.

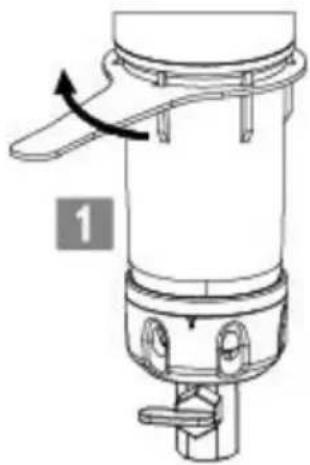

Dismantle and Wash the Filtering Components

Professional operating is recommended.

When normal scraping or flushing can not remove the dirt on the filter mesh, and normal water use is affected it is recommended to take the filter mesh and wash in Open the filter bottle counterclockwise with the wrench offered in the pack. Remove the filter mesh from inside the bottle and softly clean off the dirt embedded (No need to take out the scraping component when washing the filter mesh)

Technical line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a cylindrical container with a lid and an arrow pointing upward (no text or symbols)

Diagram of a cylindrical mechanical or architectural component with internal structure and an arrow indicating direction (no text or symbols)

Note: The scraping component do not need to be removed when the filter mesh is being cleaned.

Technical line drawing of a cylindrical mechanical device with mounting bracket (no text or symbols)

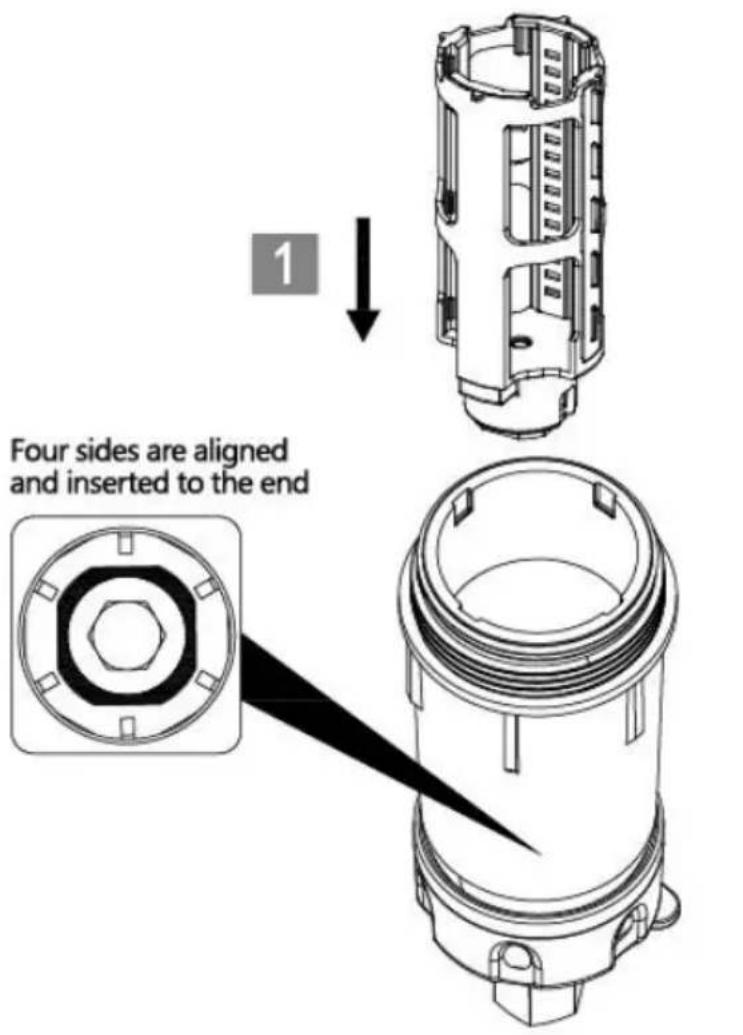

Install the Scraper and Mesh

When the scraping components are installed into the filter bottle, plea make sure the quadrilateral holes with round corner in the scraping components are fitted with the quadrilateral column on the water discharge copper parts at the bottom of the filter bottle, and the holes are inserted to the end of the column.

When the filter bottle components are installed, pay attention to insert th four bumps in the inner filter component of the scraping component to th four grooves in the filter bottle, and insert them t the end of the grooves.

1 Four sides are aligned and inserted to the end

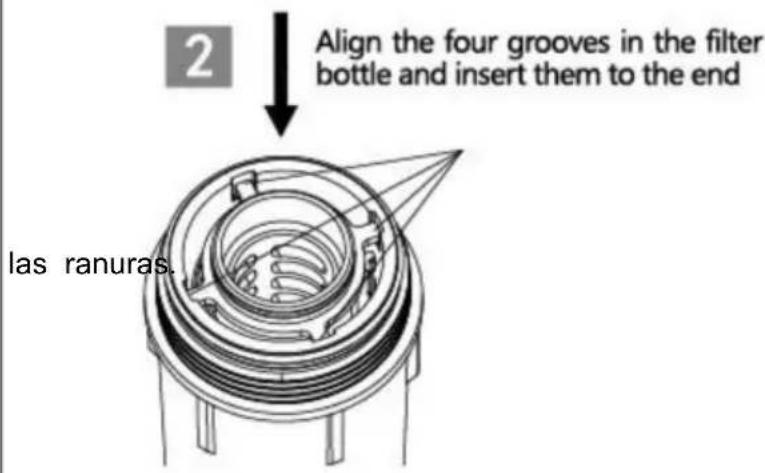

2 Align the fo bottle and ir

PRODUCT FAULT ANALYSIS

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring
Do Not Display Pressure (Suitable for models with pressure gauges)	Pressure gauge damaged	Replace the pressure gauge
	Is the main inlet valve open	Open the main inlet valve

Packing List

1 set of Pre-filter
1 set of User Manual
1 set of Attachment Package (mounting wrench, sewer drain connector sewage drain pipe, etc.)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a cylindrical industrial filter or separator component with threaded ports and internal components (no text or symbols)

Technical line drawing of a cylindrical mechanical device with three ports and a central housing (no text or symbols)

Technical line drawing of a cylindrical mechanical device with flanges and ports (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

CARACTÉRISTIQUES DU PRODUIT

Head Hex Nut Sealing Gasket Tongue-shape Connector Filter Mesh Filter Bottle Scraper

BSK-T2-N1--N/BSK-T2-N1-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Scratch And Wash The Skeleton Component Of Head Hex Nut Sealing Gasket

BSK-T2-N12-N/BSK-T2-N12-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Head Hex Nut Sealing Gasket Component Of Filter Bottle Scratch And Wash The Skeleton

Main Inlet Valve Water Meter Water Pipe Filter Shunt Valve Note the Arrow Direction of the Water Flow

② Wind the PTFE Sealant Tape ① ③

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

Simple line drawing of a cylindrical container with a lid and an arrow pointing upward (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Note: The scraping component do not need to be removed when the filter mesh is being cleaned.

Technical line drawing of a cylindrical mechanical device with mounting bracket (no text or symbols)

1 Four sides are aligned and inserted to the end

2 Align the fo bottle and in

ANALYSE DES DÉFAUTS DU PRODUIT

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring
Do Not Display Pressure (Suitable for models with pressure gauges)	Pressure gauge damaged	Replace the pressure gauge
	Is the main inlet valve open	Open the main inlet valve

Liste de colisage

Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRÉSENTANT DU ROYAUME-UNI

REPRÉSENTANT CE

YH CONSULTING LIMITÉE. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Technical line drawing of a cylindrical industrial filter or pressure vessel with flanged ends and internal components (no text or symbols)

Technical line drawing of a cylindrical mechanical device with three ports and a central hub (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Head Hex Nut Sealing Gasket Tongue-shape Connector Filter Mesh Filter Bottle Scraper

BSK-T2-N1--N/BSK-T2-N1-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Scratch And Wash The Skeleton Component Of Head Hex Nut Sealing Gasket

BSK-T2-N12-N/BSK-T2-N12-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Head Hex Nut Sealing Gasket Component Of Filter Bottle Scratch And Wash The Skeleton

Main Inlet Valve Water Meter Water Pipe Filter Shunt Valve Note the Arrow Direction of the Water Flow

② Wind the PTFE Sealant Tape ① ③

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

Simple line drawing of a cylindrical container with a lid and an arrow pointing upward (no text or symbols)

Diagram of a cylindrical mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Note: The scraping component do not need to be removed when the filter mesh is being cleaned.

Technical line drawing of a cylindrical mechanical device with mounting bracket (no text or symbols)

1 Four sides are aligned and inserted to the end t

2 Align the fo bottle and in

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring
Do Not Display Pressure (Suitable for models with pressure gauges)	Pressure gauge damaged	Replace the pressure gauge
	Is the main inlet valve open	Open the main inlet valve

Packliste

YH CONSULTING LIMITED. C/O YH Consulting Limited Büro 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Head Hex Nut Sealing Gasket Tongue-shape Connector Filter Mesh Filter Bottle Scraper

BSK-T2-N1--N/BSK-T2-N1-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Scratch And Wash The Skeleton Component Of Head Hex Nut Sealing Gasket

BSK-T2-N12-N/BSK-T2-N12-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Component Of Head Hex Nut Sealing Gasket Scratch And Wash The Skeleton

Main Inlet Valve Water Meter Water Pipe Filter Shunt Valve Note the Arrow Direction of the Water Flow

② Wind the PTFE Sealant Tape ① ③

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

Simple line drawing of a cylindrical container with a lid and an arrow pointing upward (no text or symbols)

Diagram of a cylindrical mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Note: The scraping component do not need to be removed when the filter mesh is being cleaned.

Technical line drawing of a cylindrical mechanical device with mounting bracket (no text or symbols)

1 Four sides are aligned and inserted to the end

2 Align the fo bottle and in

ANALISI DEI DIFETTI DEL PRODOTTO

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring
Do Not Display Pressure (Suitable for models with pressure gauges)	Pressure gauge damaged	Replace the pressure gauge
	Is the main inlet valve open	Open the main inlet valve

Lista imballaggio

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Importato negli

Stati Uniti: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP. DEL

REGNO UNITO

REP.CE

YH CONSULENZA LIMITATA. C/O YH Consulting

Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

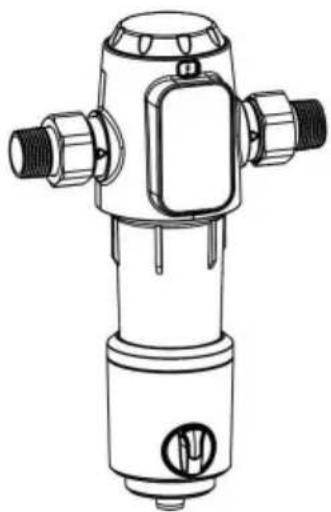

Head Hex Nut Sealing Gasket Tongue-shape Connector Filter Mesh Filter Bottle Scraper

BSK-T2-N1--N/BSK-T2-N1-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Scratch And Wash The Skeleton Component Of Head Hex Nut Sealing Gasket

BSK-T2-N12-N/BSK-T2-N12-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Head Hex Nut Sealing Gasket Component Of Filter Bottle Scratch And Wash The Skeleton

Main Inlet Valve Water Meter Water Pipe Filter Shunt Valve Note the Arrow Direction of the Water Flow

② Wind the PTFE Sealant Tape ① ③

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

Simple line drawing of a cylindrical container with a lid and an arrow pointing upward (no text or symbols)

Diagram of a cylindrical mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Note: The scraping component do not need to be removed when the filter mesh is being cleaned.

Technical line drawing of a cylindrical mechanical device with mounting bracket (no text or symbols)

1 Four sides are aligned and inserted to the end

2 Align the four grooves in the filter bottle and insert them to the end las ranuras.

ANÁLISIS DE FALLAS DEL PRODUCTO

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring
Do Not Display Pressure (Suitable for models with pressure gauges)	Pressure gauge damaged	Replace the pressure gauge
	Is the main inlet valve open	Open the main inlet valve

Lista de embalaje

Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DEL REINO UNIDO

YH CONSULTING LIMITADO. C/O YH Consulting

Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

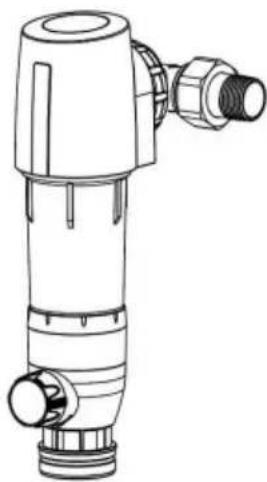

Technical line drawing of a cylindrical industrial water filter or separator component (no text or symbols)

Technical line drawing of a cylindrical mechanical device with three ports and a central hub (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Head Hex Nut Sealing Gasket Tongue-shape Connector Filter Mesh Filter Bottle Scraper

BSK-T2-N1--N/BSK-T2-N1-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Scratch And Wash The Skeleton Component Of Head Hex Nut Sealing Gasket

BSK-T2-N12-N/BSK-T2-N12-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Component Of Head Hex Nut Sealing Gasket Scratch And Wash The Skeleton

Main Inlet Valve Water Meter Water Pipe Filter Shunt Valve Note the Arrow Direction of the Water Flow

② Wind the PTFE Sealant Tape ① ③

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

Simple line drawing of a cylindrical container with a lid and an arrow pointing upward (no text or symbols)

Diagram of a cylindrical mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Note: The scraping component do not need to be removed when the filter mesh is being cleaned.

Technical line drawing of a cylindrical mechanical device with mounting bracket (no text or symbols)

1 Four sides are aligned and inserted to the end

2 Align the fo bottle and in

ANALIZA WAD PRODUKTU

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring
Do Not Display Pressure (Suitable for models with pressure gauges)	Pressure gauge damaged	Replace the pressure gauge
	Is the main inlet valve open	Open the main inlet valve

Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ODPOWIEDZIALNOŚCIĄ. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW1

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VOORFILTER

Technical line drawing of a cylindrical industrial filter or separator component with threaded ports and internal components (no text or symbols)

Technical line drawing of a cylindrical mechanical device with ports and mounting flanges (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Head Hex Nut Sealing Gasket Tongue-shape Connector Filter Mesh Filter Bottle Scraper

BSK-T2-N1--N/BSK-T2-N1-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Scratch And Wash The Skeleton Component Of Head Hex Nut Sealing Gasket

BSK-T2-N12-N/BSK-T2-N12-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Component Of Head Hex Nut Sealing Gasket Scratch And Wash The Skeleton

Main Inlet Valve Water Meter Water Pipe Filter Shunt Valve Note the Arrow Direction of the Water Flow

② Wind the PTFE Sealant Tape ① ③

Demonteer en was de filtercomponenten

Professioneel opereren is aanbevolen.

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

Simple line drawing of a cylindrical container with a lid and an arrow pointing upward (no text or symbols)

Diagram of a cylindrical mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Note: The scraping component do not need to be removed when the filter mesh is being cleaned.

Technical line drawing of a cylindrical mechanical device with mounting bracket (no text or symbols)

1 Four sides are aligned and inserted to the end

2 Align the fo bottle and in

PRODUCTFOUTANALYSE

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring
Do Not Display Pressure (Suitable for models with pressure gauges)	Pressure gauge damaged	Replace the pressure gauge
	Is the main inlet valve open	Open the main inlet valve

Paklijst

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG REP

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a cylindrical industrial filter or pressure vessel with flanged ends and internal components (no text or symbols)

Technical line drawing of a cylindrical mechanical device with three ports and a central hub (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

BEHÖVS HJÄLP? KONTAKTA OSS!

Head Hex Nut Sealing Gasket Tongue-shape Connector Filter Mesh Filter Bottle Scraper

BSK-T2-N1--N/BSK-T2-N1-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Filter Bottle Scratch And Wash The Skeleton Component Of Head Hex Nut Sealing Gasket

BSK-T2-N12-N/BSK-T2-N12-G

Tongue-shape Connector "O" Ring Component Of Filter Mesh Component Of Head Hex Nut Sealing Gasket Component Of Filter Bottle Scratch And Wash The Skeleton

Main Inlet Valve Water Meter Water Pipe Filter Shunt Valve Note the Arrow Direction of the Water Flow

② Wind the PTFE Sealant Tape ① ③

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

Simple line drawing of a cylindrical container with a lid and an arrow pointing upward (no text or symbols)

Diagram of a cylindrical mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Note: The scraping component do not need to be removed when the filter mesh is being cleaned.

Technical line drawing of a cylindrical mechanical device with mounting bracket (no text or symbols)

1 Four sides are aligned and inserted to the end

2 Align the fo bottle and in

PRODUKTFELANALYS

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring
Do Not Display Pressure (Suitable for models with pressure gauges)	Pressure gauge damaged	Replace the pressure gauge
	Is the main inlet valve open	Open the main inlet valve

Packlista

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support
