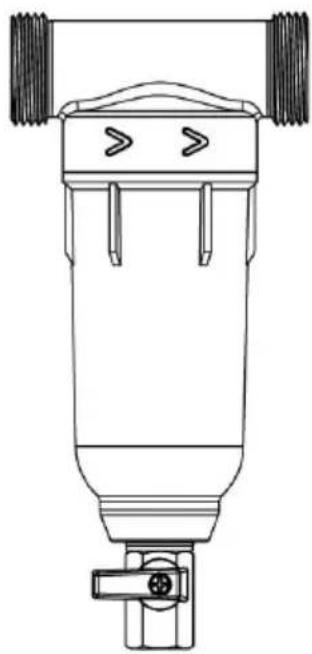

Technical line drawing of a cylindrical mechanical device with mounting flanges and internal components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Product Introduction

The Whole House Pre-filter is mainly used to intercept contaminants s as granules, impurities, sediment, rust, floating objects and so on. And can also provide positive protection for the downstream pipeline, water purifier, water heater, wall hung gas boiler, washing machine, shower other terminal water equipment.

PRODUCT CHARACTERISTICS

1. Using 316L food grade stainless steel precision mesh;
2. The core components are specially made of imported materials, with strong pressure resistance, safety and reliability;
3. Special explosion-proof transparent outer cover, visualization of the effect, visualization of the sewage effect, more convenient to use;
   4.

ATTENTIONS

1. The installation, commissioning and maintenance should be carried by professionals.
2. The series of products can only be installed at an indoor and dry environment. Please avoid getting close to any heat source; the series products only apply to municipal tap water at. Please do not use for waste water or corrosive liquid.
3. When it's installed, please pay attention to whether the direction of marked on the valve body are consistent with the flow direction of the
4. Please make sure that install position has reliable drainage system
5. Depending on the water quality of different locations, please wash filter normally at least once a month.
6. In the normal cleaning and maintenance process, please pay attention

to the protection of the components.

1. Our company provides complete and reliable products. We are not responsible for any product damage or loss of personal injury, property environment resulting from the replacement, installation and setting of a debugging parts of our products without our approval. If you have an questions about our products, please contact us.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all

accessories marked with this symbol. Products marked as such may be discarded with normal domestic waste, but must be taken to a co-point for recycling electrical and electronic devices.

FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is su the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party. Responsible for compliance could void the use authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules. The are designed to provide reasonable protection against harmful interferer

in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception which can be determined by turning the product off and on, the user encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

TECHNICAL PARAMETERS

Product Name	Pre-filter
Product Model	BSK-T1-Z1-G	BSK-T1-Z1-N
Connector	1" or 3/4"	1" NPT or 3/4" NP
Filtration Precision	40μm or 300μm
Clean Water Flow	4T/H
Applicable Water Temperature	5°C~38°C
Applicable Water Pressure	0.15MPa~1MPa
Product Sizes	97*66*198mm
Applicable Water	Quality Municipal Tap Water

NAME OF EACH COMPONENT

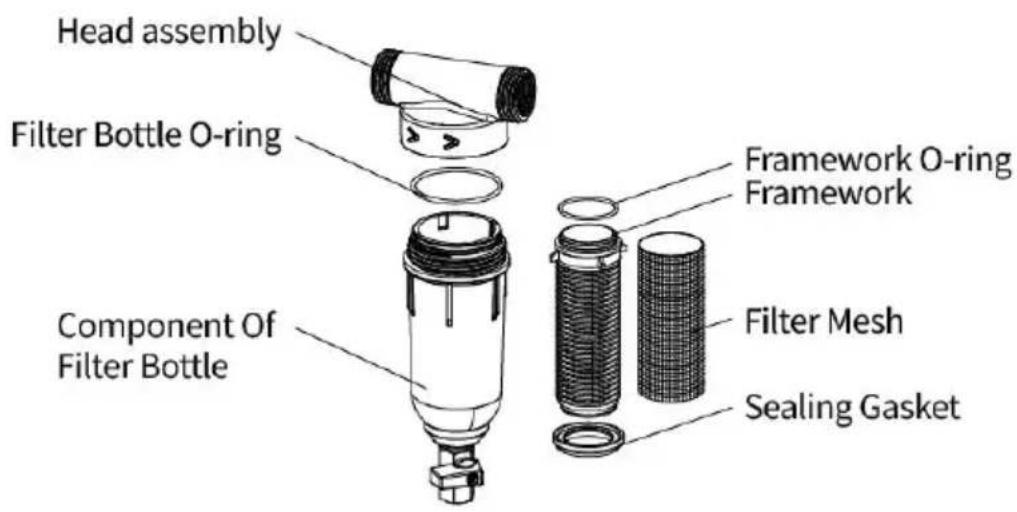

Head assembly Filter Bottle O-ring Component Of Filter Bottle Framework O-ring Framework Filter Mesh Sealing Gasket

(Note: the decomposition of product structure is for reference or inconsistent with the actual product, it's subject to the actual

TECHNICAL PARAMETERS

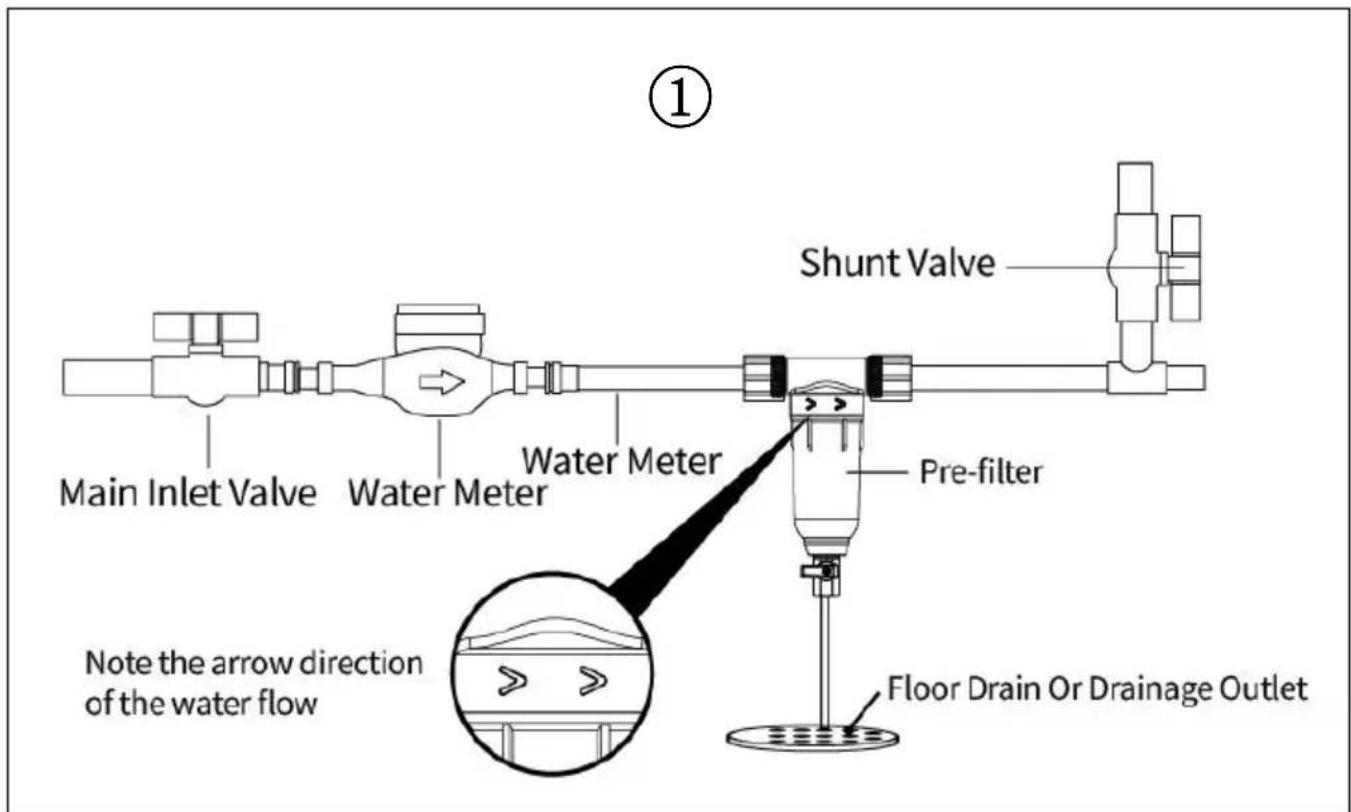

① Shunt Valve Main Inlet Valve Water Meter Water Meter Pre-filter Note the arrow direction of the water flow Floor Drain Or Drainage Outlet

1. Note the arrow direction of the water flow
2. Close the main inlet valve and drain the remaining water from
3. When it's installed, please note that the flow direction marked valve body is consistent with the water flow direction in the pin
4. Insert one end of the PE drainage pipe in the accessory pad, the drainage quick interface at the bottom of the machine, and end into the floor drain or other drainage outlet and fix it.

②

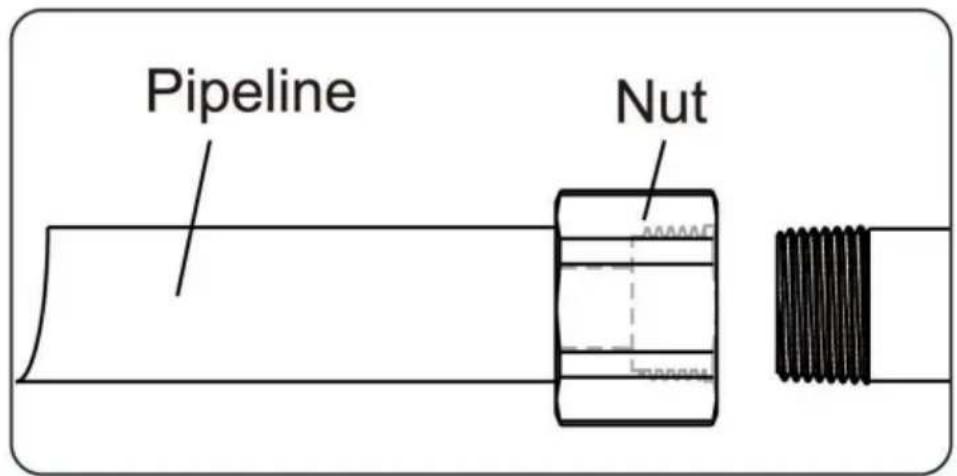

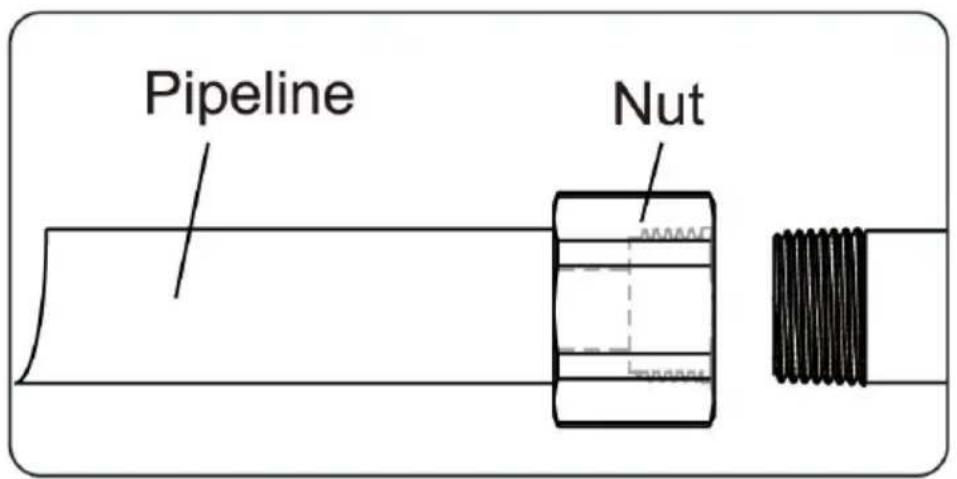

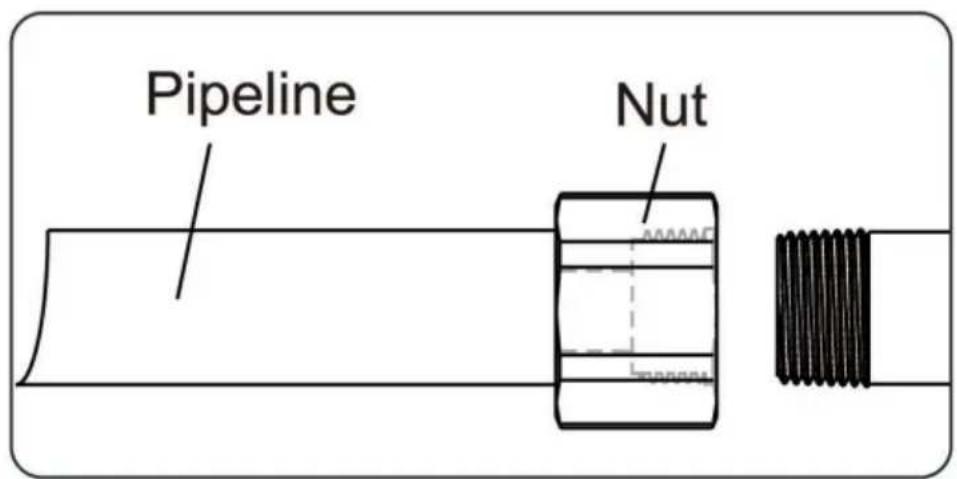

External Tooth Connection To Pipeline

Pipeline Nut

1. The wrapping of Teflon tape should be installed by profession Before the installation, please check if the components are com
   2.PPR pipe installation needs special welding equipment, and the welding should be strong.
2. If the metal hard pipe is installed, it is necessary to add the according to the actual situation.
3. This product should not be installed outdoors, and it should be far as possible away from UV, heat sources, fuel and various
4. When the Teflon tape is wrapped, it should be fully and even wrapped.
5. When the hexagonal nuts are tightened with wrenches, make

other parts do not rotate with the hexagonal nuts.

1. After installation, observe carefully whether there is water leak the joint connectors.

USER MANUAL

Technical diagram showing four different mechanical assembly configurations with numbered labels and directional arrows indicating motion or movement.

1. After installation, open the main water inlet valve and flush
2. Before flushing, to ensure a reliable drainage system, the us also use a suitable container to hold the flushing water.
   3 Turn the ball valve handle 90^ in the direction of the arrow drain the water.
3. Depending on the local water quality, the flushing is done a month, when flushing, the drain ball valve is switched on an times for 30 seconds each time.

4. This product is used continuously for 8-12 months, and the fi to be cleaned.

5. During normal cleaning and maintenance care should be take protect all parts in good condition.Instructions for disassembling a cleaning the filter:

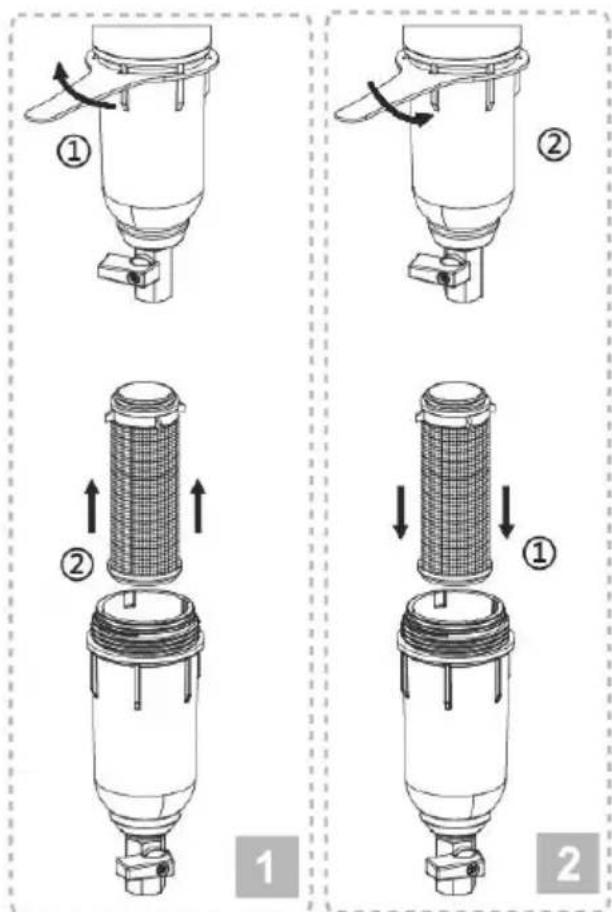

6. As shown in Figure 2 on the right, ①Turn the filter bottle counterclockwise with the special handle Take out the filter asse and clean the filter.
7. As shown in Figure 2 on the right,①Put the cleaned filter into the filter bottle. ②Use the special handle to turn the filter direction of the arrow as shown in the figure.

PRODUCT FAULT ANALYSIS

Fault Phenomenon	Possible Cause	Troubleshooting
No Water	Is there water in the water source?	Wait for the water supply
	Is the main inlet valve completely opened?	Open the main inlet valve
Small Output Of Water	Is the main inlet valve completely opened	Open the main inlet valve completely
	Partially blocked on the surface of the filter mesh	Fush the filter, and clear away the sundries
Joint leakage	Whether the filter parts have been disassembled by the users;	Check if the sealing ring is misplaced or falls off
	The loose parts in the seepage place;	Retighten the threaded joint with a wrench
	The Teflon tape in the thread connection is not well wrapped;	Rewind and tighten the Teflon tape
	The aged or damaged rubber sealing ring in the seepage place	Replacement of rubber sealing ring

Packing List

1 set of Pre-filter
1 set of User Manual
1 set of Attachment Package (mounting wrench, sewer drain connector sewage drain pipe, etc.)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
