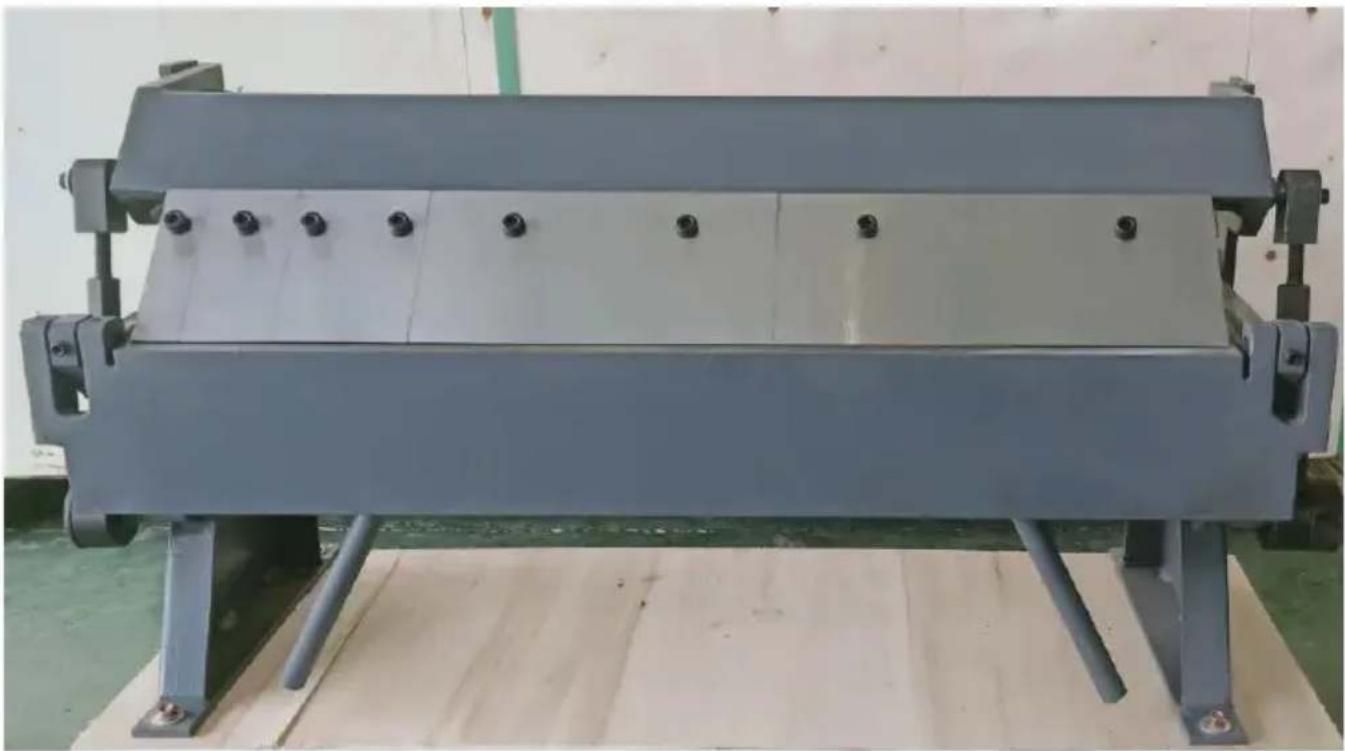

Industrial machine component with metal frame and mounting brackets, displayed on a wooden platform (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Unpacking

The Pan & Box Brake is shipped from the manufacturer in a careful packed ply-wood case. Thoroughly inspect the product upon opening package.

After unpacking the unit, carefully inspect for any damage that may have occurred during transit. Check for loose, missing, or damaged parts. Immediately report missing parts to dealer.

If damage has occurred, shipping damage claims must be filed with the carrier and are the responsibility of the user.

Specifications

The Model W-4816Z Pan & Box Brake is hand operated and capable bending up to 16 ga. (1.52mm) mild steel and 20 ga. (.912mm) stair 48"(1219mm) long allowing it to fabricate pans, channels, angles, and other shapes. Adjustable counterweights allow the operator to balance the bending leaf to correspond to material thickness. An adjustable st# gauge is included to allow the operator to perform repeat bends.

Model.....W-1.0 X 610A

Bending Length....24 " ( 610mm )

Bending Thickness....20Ga (1mm)

Bending Angle.... 0 - 1 3 5 °

SAVE THESE INSTRUCTIONS

Thank you for purchasing our W-4816Z Pan and Box Brake. Before attempting to operate your new tool please read these instructions thoroughly. You will need these instructions for the safety warnings, precautions, assembly, operation, maintenance procedures, parts list and diagrams. Keep your invoice number with these instructions. Write the invoice number on the inside of front cover. Keep the instructions and invoice in a safe, dry place for future reference.

General Safety Information

CAUTION

For your own safety, read all of the instructions and precautions before operating tool.

SAFETY RULES

1. Wear proper apparel. Do not wear loose clothing, gloves, neckties, bracelets or other jewelry which may get caught in moving parts of machine.
2. Wear protective hair covering to contain long hair.
3. Wear safety shoes with non-slip soles.
4. Wear safety glasses. Everyday glasses have only impact resistant lenses. They are NOT safety glasses.
5. Be alert and think clearly. Never operate tools when tired, intoxication when taking medications that cause drowsiness.
6. Keep work area clean. Cluttered work areas invite accidents.
7. Work area should be properly lit.
8. Keep visitors at a safe distance from work area.
9. Keep children out of workplace. Make workshop childproof. Use padlocks to prevent any unintentional use of tools.
10. Assemble only according to these instructions. Improper assembly can create hazards.
11. When tools are not in use, store them in a dry, secure place or reach of children. Inspect the tools prior to storage and before reuse.
12. Maintain product labels and nameplates. These carry important safety information.

KNOW HOW TO USE TOOL

1. Use the right tool for the job. DO NOT attempt to force a small attachment to do the work of a large industrial tool. DO NOT use a purpose for which it was not intended.

2. Do not force tool. Your machine will do a better and safer job if

intended. DO NOT use inappropriate attachments in an attempt to excise the machines rated capacity.

1. Overloading machine. By overloading the machine you may cause injury from flying parts. DO NOT exceed the specified machine capacity
2. Machine usage. DO NOT use the brake as a press or crushing t
3. Dressing material edges. Before bending sheet metal, always chamf and deburr all sharp edges.
4. Dressing material edges. Before bending sheet metal, always chamf and deburr all sharp edges.
   6 .Blade adjustments and maintenance.Always keep blades sharp and properly adjusted for optimum performance.7.Check for damaged parts. Before using any tool or machine, carefully check any part that appears damaged.Check for alignment and binding of moving parts that may affect proper machine operation

WARNING

The warnings, cautions, and instructions discussed in this instruction ma cannot cover all possible conditions or situations that could occur. It mus understood by the operator that common sense and caution are factors cannot be built into this product, but must be supplied by the operator.

Important:

Your machine may be shipped with a rustproof waxy oil coating and on the exposed unpainted metal surfaces. To remove this protective coating, use a degreaser or solvent c leaner. For am or e thorough cleaning, some parts will occasionally have to be removed. DO NOT U acetone or brake cleaner as they may damage painted surfaces.

Follow manufacturer's label instructions when using any type of cleanir product. After cleaning, wipe unpainted metal surfaces with a light coat of quality oil or grease for protection.

WARNING

DO NOT USE gasoline or other petroleum products to clean the mad They have low flash points and can explode or cause fire.

CAUTION

When using cleaning solvents work in a well-ventilated area. Many of solvents are toxic if inhaled.

Assembly

IMPORTANT:

Consider the following when looking for a suitable location to place the machine:

1. Overall weight of the machine.
2. Weight of material being processed.
3. Sizes of material to be processed through the machine.
4. Space needed for auxiliary stands, work tables, or other machinery
5. Clearance from walls and other obstacles.
6. Maintain an adequate working area around the machine for safety.
7. Have the work area well illuminated with proper lighting.
8. Keep the floor free of oil and make sure it is not slippery.
9. Remove scrap and waste materials regularly, and make sure the area is free from obstructing objects.
10. If long lengths of material are to be fed into the machine, make that they will not extend into any aisles.

Before beginning assembly, take note of the following precautions and suggestions.

1. Is the machine is bolted to the pallet? Before attempting any of the assembly procedures remove all of the loose parts and hardware and unbolt the machine from the pallet.

2. LEVELING: The machine should be sited on a level, concrete floor. Provisions for securing it should be in position prior to placing the m. The accuracy of any machine depends on the precise placement of it to the mounting surface.

3. FLOOR: This tool distributes a large amount of weight over a small area. Make certain that the floor is capable of supporting the weight the machine, work stock, and the operator. The floor should also be a level surface. If the unit wobbles or rocks once in place, be sure eliminate by using shims.

4. WORKING CLEARANCES: Take into consideration the size of the material to be processed. Make sure that you allow enough space fo to operate the machine freely.

Anchoring the Machine

1. Position the machine or firm and level concrete floor.
2. Maintain a safe operating distance around the machine.

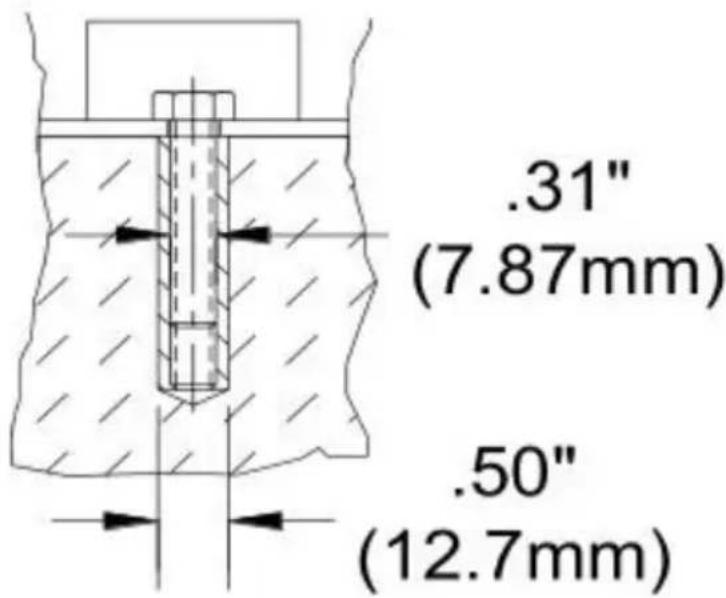

3. Anchor the machine to floor, as shown in the dial using bolts and expansion plugs or sunken tie rods to connect through holes in the base of the stand.(Pic.1)

.31" (7.87mm) .50" (12.7mm)

Attaching the Counterweight

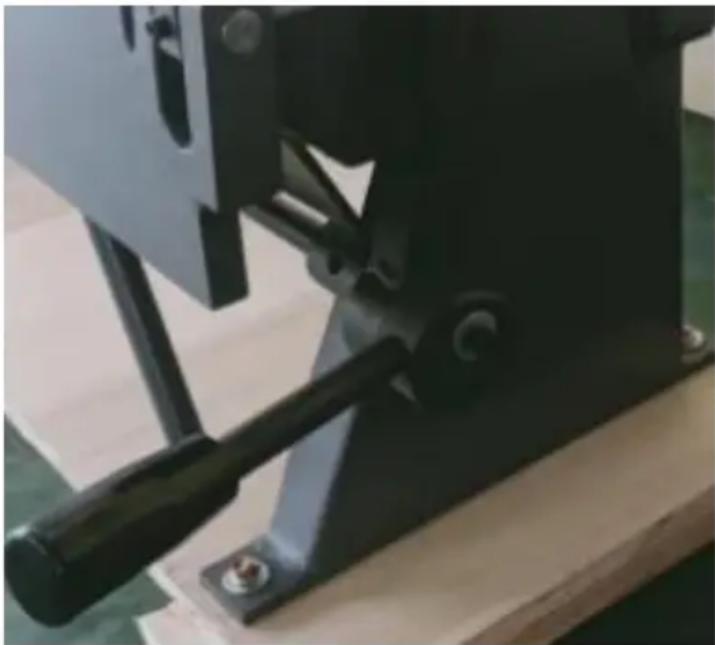

1. Have a helper hold the counterweight.
2. Back off the two hex bolts and slide the counterweight rod into the receiver
3. When the rod is flush with the bottom of the receiver, tighten the hex bolts.(Pic.2)

Close-up of a black mechanical lever mechanism with a wooden base and mounting bracket (no visible text or symbols)

NOTE

DO NOT use the counterweight handle to raise the bending leaf. You damage the hinges or the bending leaf.

Adjusting the Stop Rod

The stop rod is used for repeat bending when you want the bending stop at the same position each time.

1. Loosen the stop nut and washer and make your bend, stopping a top of the bend.
2. Tighten the nut and washer up to the stop block.
3. The bending angle can now be repeated until reset by the operat

Adjusting the Setback

Setback is the distance from the front edge of the finger to the front the clamp block as shown in picture. This distance is determined by

gauge (thickness) of the piece part and inside radius of the bend. setback is typically 1-1/2-2 times the material thickness. (Pic.4)

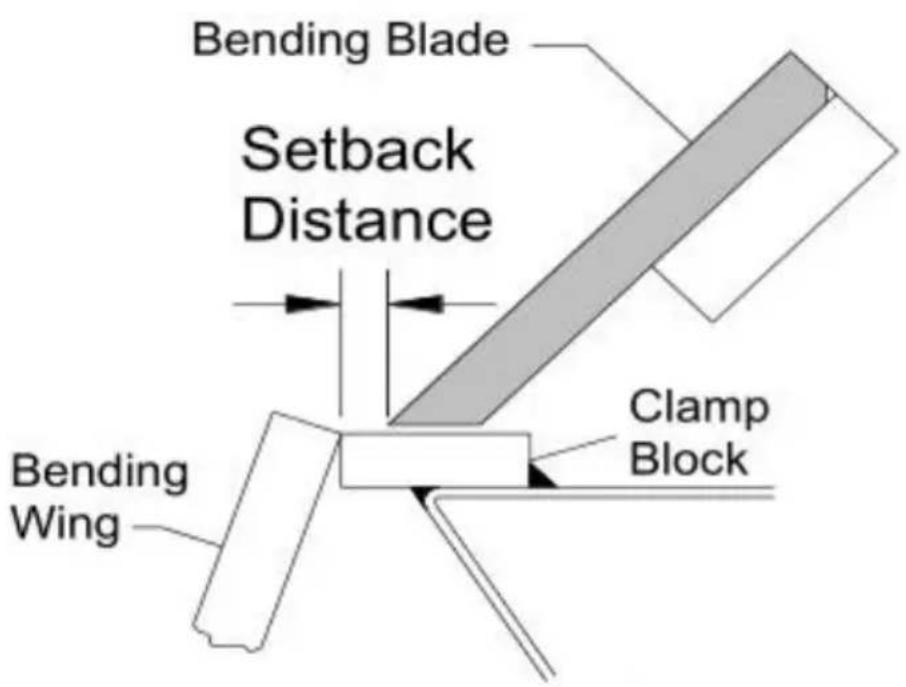

Bending Blade Setback Distance Clamp Block Bending Wing

1. To adjust, make sure all the fingers are properly aligned to each and the hold down assembly is not locked in the down position.

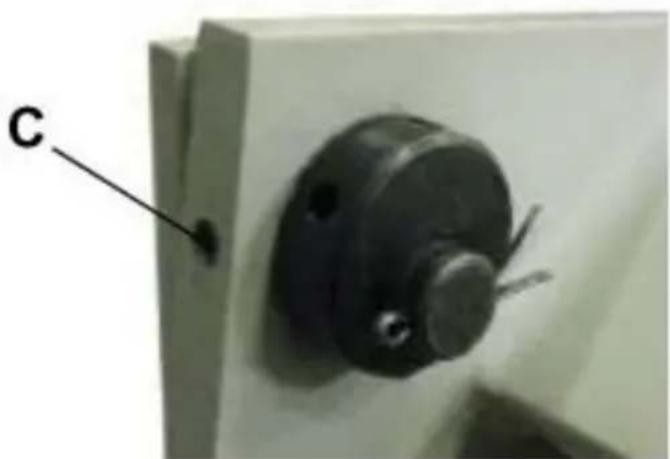

2. Loosen the setscrews (C) at the back of the hold down assembly 5).
3. Insert a tool, such as an allen wrench, into one of the spoke holes eccentric hub and rotate it, which moves the hold down assembly either forward or back.
4. When the fingers are at the correct setback distance and parallel clamp block edge, tighten the setscrews (C).

Close-up of a mechanical component with labeled point C, no visible text or symbols beyond the label

Adjusting the Clamping Pressure

CAUTION

1. Excessive clamping pressure can "pre load" and permanently distort the
   2.DO NOT bend material heavier than the rated capacity,even in short
2. Use material with square-sheared edges.(a rolled edge will cause bo
   4.Bending a round object will warp or nick the clamp edge.
3. Adjust the clamp pressure accordingly for different metal gauges.
   6.Do not use a pipe extension on the clamp bars to get more levera

The clamping pressure may have to be adjusted as the thickness of piece part changes. A suitable pressure should have a medium resistant when pulling back on the hold down handle(s). At the end of the string there should be a definite locking of the piece part under the clamp. To adjust the pressure, move the nuts on the threaded link shaft either down.

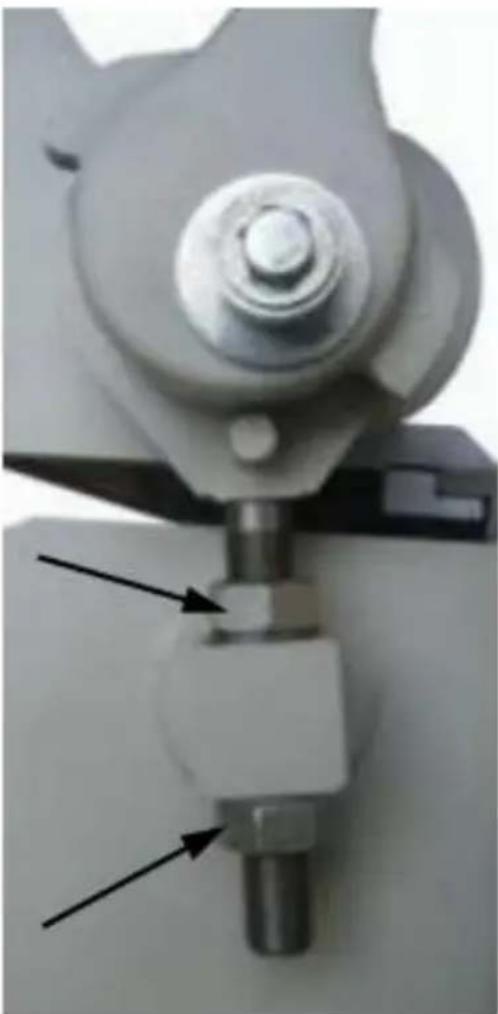

1. To adjust the clamping pressure, tighten both sides of the clamping I with a piece part in the brake.

a. If the clamping pressure seems light and the piece part is loose clamp, move the adjusting nuts UP.

b. If the clamping pressure seems hard and you can't lock the hand move the adjusting nuts DOWN.

c. Once the pressure feels right, no further adjustments are necessary this thickness piece part. (When changing thickness it may become necessary to adjust again.)

1. Remove the piece part from under the clamping leaf, lock down with the handles, and loosen pressure on the top nut.

2. Unlock the clamping leaf and turn the bottom nut 12 turn in the direction.

3. Lock the clamping leaf, re-tighten the top nut, and repeat Step 1 until the desired pressure is reached.

Close-up of a mechanical component with a bolt and nut assembly, showing no visible text or symbols.

Clamp Alignment(end to end)

Make a 90°test bend about 2"(50.8mm)in from each end of the machine.Stack the bent strips on top of each other and check that the bent to the same degree.

If a strip is over bent, increase the setback distance on that side. If a under bent, decrease the setback distance on that side. Again, move the setback adjustment past the desired set back point, and then forward to remove the slack.

Bending Wing Alignment

Bending accuracy is dependent on the top surface of the bending leaf, the attached bending wing being flush with the top face of the clamp block when the bending leaf is in the lowered position. If it appears that adjustment is necessary, contact service team local, or manufacture.

Operation

When performing basic bending operations it is important that the fingers of the brake are parallel with the edge of the clamping block. Also make sure have the proper setback and clamping pressure set for the thickness material being bent.

CAUTION

Always wear proper eye protection with side shields, safety footwear, an gloves to protect from burrs and sharp edges.

CAUTION

Keep hands and fingers clear of the clamping beam. Stand off to the machine to avoid getting hit with the bending apron as it comes up to

CAUTION

When handling large heavy sheets make sure they are properly supp

Bending Sheet Metal

1. Lift and rotate the clamping handle (cw) clockwise to raise the clas assembly.
2. Insert the piece part between the clamp block and the brake finger
3. Align the fingers of the hold down assembly to the scribed bend the piece part and clamp in place by pulling the clamp handle back.

NOTE

DO NOT force the clamping handle. The holding pressure only needs tight enough to hold the sheet metal from moving when bending.

1. Pull up on the bending leaf handles until the piece part has reached desired bend angle.
2. Lower the bending leaf, raise the hold down assembly, and remove the bent piece part.
3. If you are doing box and pan bending, choose fingers that closely in the dimensions of the finished piece.

BENDING ALLOWANCE

In order to bend sheet me ta I accurately, you will need to consider length of each bend. This is referred to as bend allowance. Subtract the bend allowance from the sum of the outside dimensions of the piece obtain the actual overall length or width of the piece. Because of difference in sheet metal hardness, and whether the bend is made with the gradient against it, exact allowances must sometimes be made by trial and er However bend allowances for general use can be obtained from meta working books or from the Internet.

UNDER STANDING SPRINGBACK

Springback, also known as elastic recovery, is the result of the metal wanting to return to its original shape after undergoing compression a stretch. After the bending leaf is removed from the metal and the I released, the piece part relaxes, forcing the bent portion of the metal return slightly to its original shape.

The key to obtaining the correct bend angle is to over bend the me and allow it to spring back to the desired angle. All metals exhibit amount of spring back.

CAUTION

It must be determined by the customer that materials being processed through the machine are NOT potentially hazardous to operator or person working nearby.

When selecting materials keep these instructions in mind:

1. Material must be clean and dry. (without oil)
2. Material should have a smooth surface so it processes easily.
3. Dimensional properties of material must be consistent and not exceed the machine capacity values.
4. Chemical structure of material must be consistent.
5. Buy certificated steel from the same vendor when possible.

LUBRICATION AND MAINTENANCE

WARNING

Maintenance should be performed on a regular basis by qualified person. Always follow proper safety precautions when working on or around any machinery.

1. Check daily for any unsafe conditions and fix immediately.
2. Check that all nuts and bolts are properly tightened.
3. On a weekly basis clean the machine and the area around it.
4. Lubricate threaded components and sliding devices.
5. Apply rust inhibitive lubricant to all non-painted surfaces.

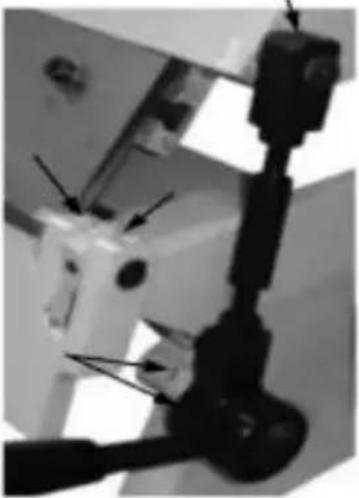

Oil Ports

Using an oil can with a good quality #30W oil,apply 5-6 drops into of the ports on both ends of the machine.Repeat weekly or more

often depending on usage.Wipe off any excess oil.

Close-up of mechanical components with no visible text or symbols

NOTE

Proper maintenance can increase the life expectancy of your machine.

TROUBLESHOOTING

FAULT	PROBABLE CAUSE	REMEDY
INACCURATE BENDS	1. Fingers are not aligned2. Setback distance is no equal from one side to th other3. Clamping assembly is holding piece part securely	Follow proper finger alignment procedure.Accurately measure distance and set accordingly.Re-adjust the clamping pressure.
BENDING LEAF HARD TO LIFT AND BEND.	1. Exceeding the bending limits of the brake.2. Counterweight is not o leaf.	Do not bend material thicker than the machin was designed for.Attach the counterweigh to lessen force needed lift bending leaf.

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

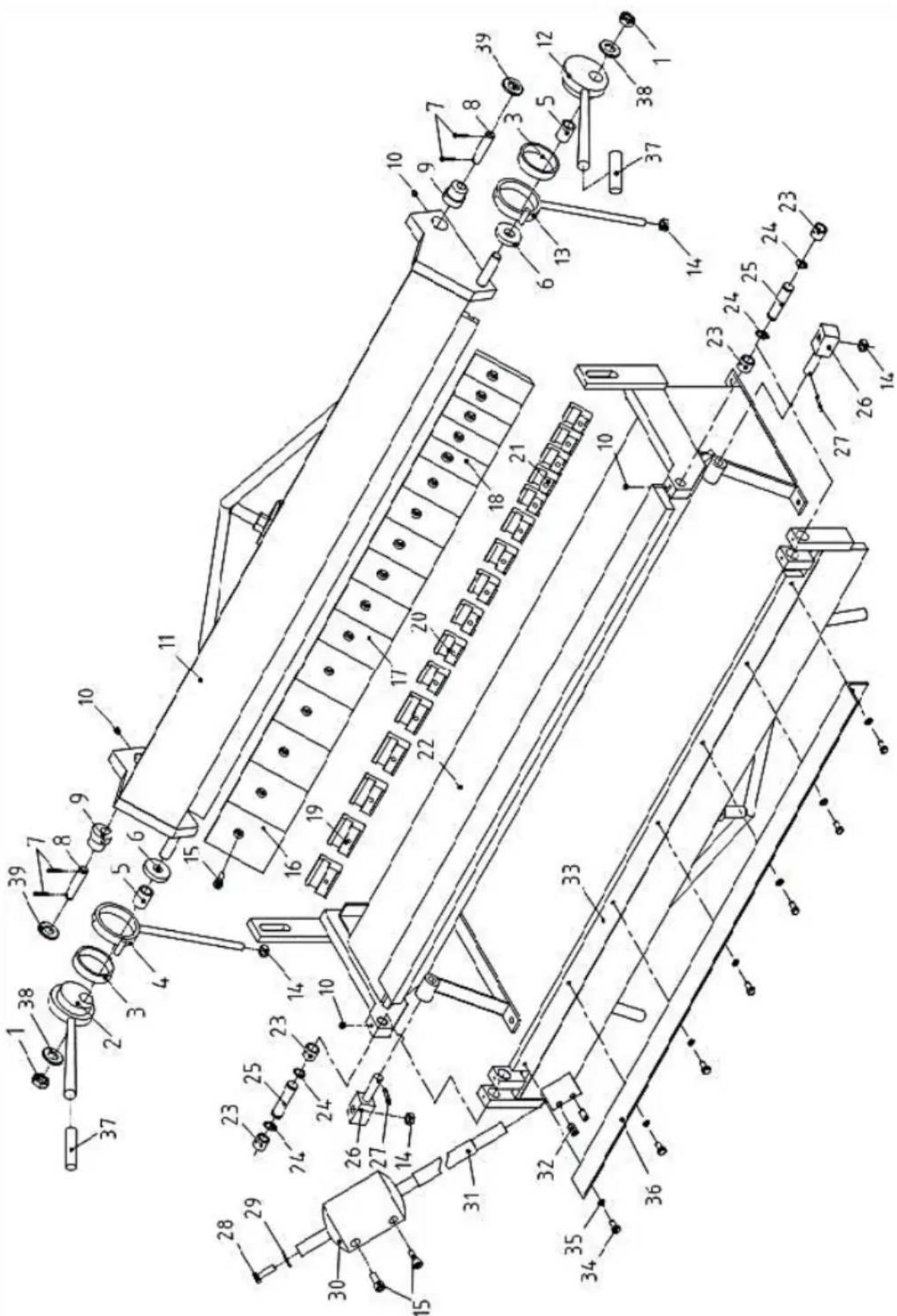

Ref.	Description	QTY.
1	Nut M18	2
2	Left Eccentric Handle	1
3	Big Washer	2
4	Left Connecting Rod	1
5	Washer	2
6	Spacer Bush	2
7	Cotter Pin φ4X25	4
8	Pin φ16X70	2
9	Eccentric Shaft	2
10	Set Screw M8X8	4
11	Upper Die Framework	1
12	Right Eccentric Handle	1
13	Right Connecting Rod	1
14	M12	4
15	M10X25	18
16	Brake Dies 4"	5
17	Brake Dies 3"	6
18	Brake Dies 2"	5
19	Clamp Plate 63mm	5
20	Clamp Plate 45mm	6

Ref.	Description	QTY.
21	Clamp Plate 34mm	5
22	Frame	1
23	Case	4
24	Shaft Ring Φ18	4
25	Shaft	2
26	Shaft	2
27	Cotter Pin φ5X25	2
28	Hex. Bolt M10X35	1
29	Flat Gasket Φ10	1
30	Counterweight	1
31	Counterweight Rod	1
32	Set Screw M12X20	2
33	Bending Leaf	1
34	Hex. Bolt M8X16	7
35	Φ8	7
36	Limit Angle plate	1
37	Handle Grip	2
38	Φ18	2
39	Φ16	2

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODÈLE : W-1.0X610A

Industrial machine component with metal frame and mounting brackets, displayed on a wooden platform (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Déballage

.31" (7.87mm) .50" (12.7mm)

Close-up of a mechanical lever mechanism with black components and wooden base (no visible text or symbols)

NOTE

Bending Blade Setback Distance Clamp Block Bending Wing

Close-up of a mechanical component with a labeled part 'C' and a circular feature (no readable text or symbols)

Close-up of a mechanical component with a bolt and threaded shaft, showing no visible text or symbols.

Close-up of mechanical components with no visible text or symbols

NOTE

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODELL: W-1.0X610A

Industrial machine component with metal frame and mounting brackets (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Auspacken

Biegedicke 20Ga (1mm

.31" (7.87mm) .50" (12.7mm)

Close-up of a mechanical lever mechanism with black components and wooden base (no visible text or symbols)

NOTIZ

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical component with a bolt and nut assembly, showing no visible text or symbols.

Close-up of mechanical components with no visible text or symbols

NOTIZ

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODELLO: W-1.0X610A

Industrial machine component with metal frame and mounting brackets, displayed on a wooden platform (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Disimballaggio

.31" (7.87mm) .50" (12.7mm)

Close-up of a black mechanical lever mechanism with a handle and mounting base (no visible text or symbols)

NOTA

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical component with a bolt and threaded shaft, showing no visible text or symbols.

COMPRENSIONE RITORNO ELASTICO

Close-up of mechanical components with no visible text or symbols

NOTA

Technical schematic diagram of a mechanical assembly with numbered components for identification.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODELO: W-1.0X610A

Industrial machine component with metal frame and mounting brackets, displayed on a wooden platform (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Desembalaje

.31" (7.87mm) .50" (12.7mm)

Close-up of a mechanical lever mechanism with black handle and wooden base (no visible text or symbols)

NOTA

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical assembly with a bolt and nut, showing no visible text or symbols.

Close-up of mechanical components with no visible text or symbols

NOTA

Technical schematic diagram of a mechanical assembly with numbered components for identification.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODELE: W-1.0X610A

Industrial machine component with metal frame and mounting brackets, displayed on a wooden platform (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Rozpakowywanie

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

.31" (7.87mm)

.50" (12.7mm)

Close-up of a mechanical lever mechanism with black components and wooden base (no visible text or symbols)

NOTATKA

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a small hole, no readable text or symbols present.

Close-up of a mechanical component with a bolt and nut assembly, showing no visible text or symbols.

Close-up of mechanical components with no visible text or symbols

NOTATKA

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

HAND BUIGEN

GEBRUIKSAANWIJZING

MODEL: W-1.0X610A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODEL: W-1.0X610A

Industrial machine component with metal frame and mounting brackets, displayed on a wooden platform (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Uitpakken

.31" (7.87mm) .50" (12.7mm)

Close-up of a mechanical lever mechanism with black components and wooden base (no visible text or symbols)

OPMERKING

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical component with a bolt and threaded shaft, showing alignment arrows (no text or symbols)

Close-up of mechanical components with no visible text or symbols

OPMERKING

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODELL: W-1.0X610A

Industrial machine component with metal frame and mounting brackets, displayed on a wooden platform (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Uppackning

.31" (7.87mm) .50" (12.7mm)

Fästa motvikten

Close-up of a mechanical lever mechanism with black components and wooden base (no visible text or symbols)

NOTERA

Bending Blade Setback Distance Clamp Block Bending Wing

Close-up of a mechanical component with a labeled point 'C' pointing to a circular feature (no text or symbols beyond label)

Close-up of a mechanical component with a bolt and nut assembly, showing no visible text or symbols.

Close-up of mechanical components with no visible text or symbols

NOTERA

Technical schematic diagram of a mechanical assembly with numbered components for identification.

www.vevor.com/support
