USER MANUAL WPSR-XM012 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PIPE SHELVES

MODEL:WPSR-XM012

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: WPSR-XM012

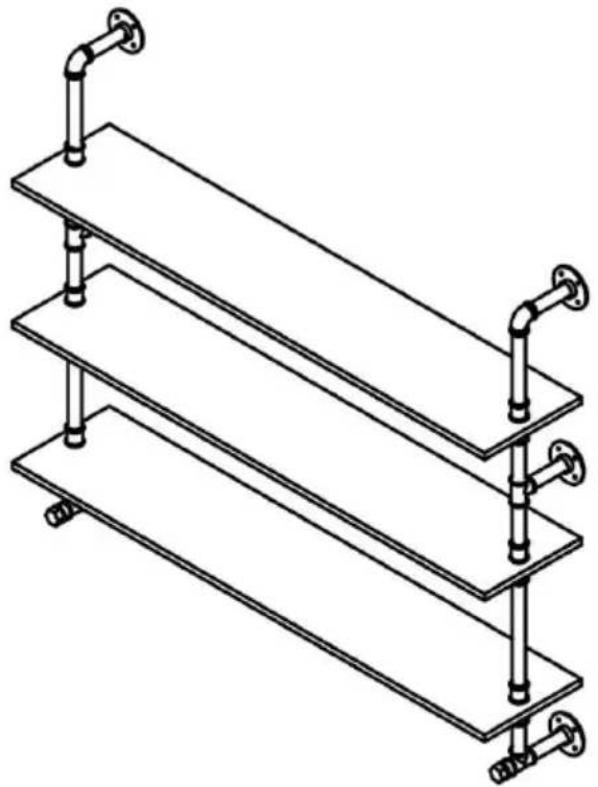

Isometric line drawing of a three-tiered shelf with metal fittings and piping (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do not allow children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Do not place too heavy weight on the pipe shelves, it may bend or ev break the board, we recommend placing the weight of no more than 30lb
• The pipe shelves is installed only on solid walls, such as solid brick wall and concrete walls. If the pipe shelves is installed on wooden walls, the thickness of the wooden wall be at least 6cm.

CAUTION:

• When installing the pipe shelves, pay attention to keeping the board in horizontal state, so as to have a better experience of placing items
• This product is intended for indoor installation use only.

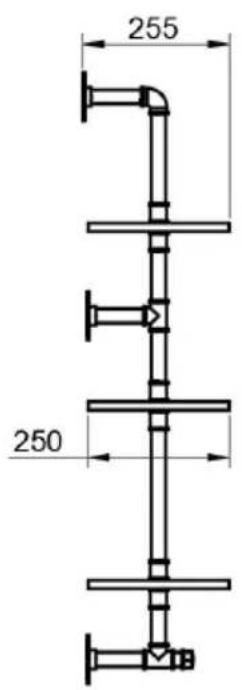

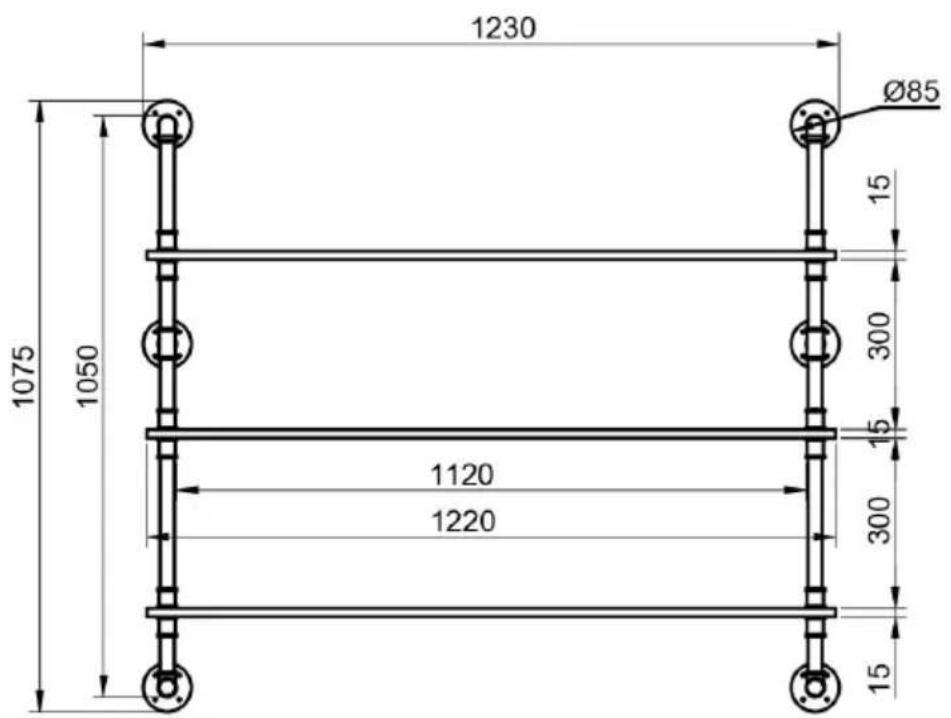

SPECIFICATION

1230 Ø85 15 1075 1050 300 15 1120 1220 300 15

255 250

Note: The number unit in the figure is mm.

Part List

Mark	Name	Picture	QTY	Specifications
A	Two way connector		12	/
B	elbow connector		2	/
C	Mounting flange		6	/
D	Board		3	/
E	Pipe		8	L=38mm
F	Pipe		12	L=112mm
G	Pipe		2	L=179mm
H	Pipe		2	L=254mm
I	Nut		2	/
J	Tee connector		4	/

Install accessories

Mark	Name	Specifications	Picture	QTY
R	Screw	M5*40mm		24
S	Plastic expansion tube	D=8mm		24

PIPE SHELVES ASSEMBLE

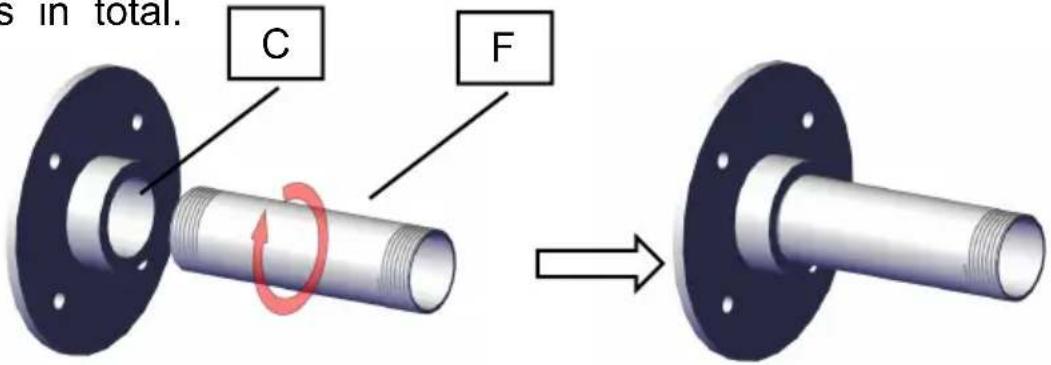

STEP1.Screw the mounting flange C together with the round pipe F. 4 groups in total.

s in total. C F

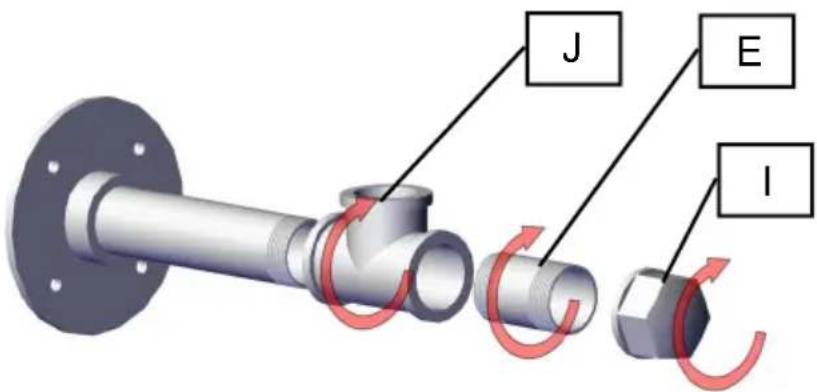

STEP2. Tighten the tee connector, pipe E, and nut into the previous component. 2 groups in total.

J E I

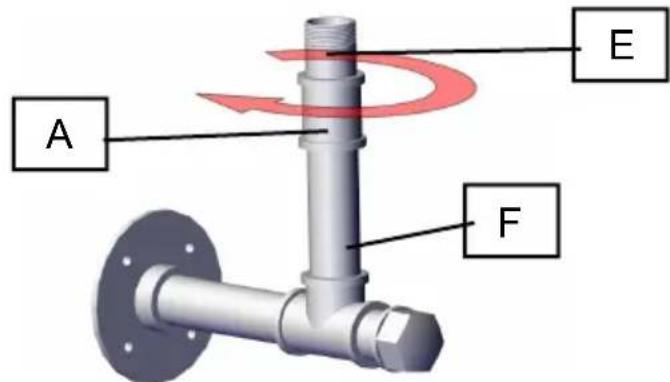

STEP3. Install bottom standpipe F, Two way connector A and plank positioning pipes E.

A E F

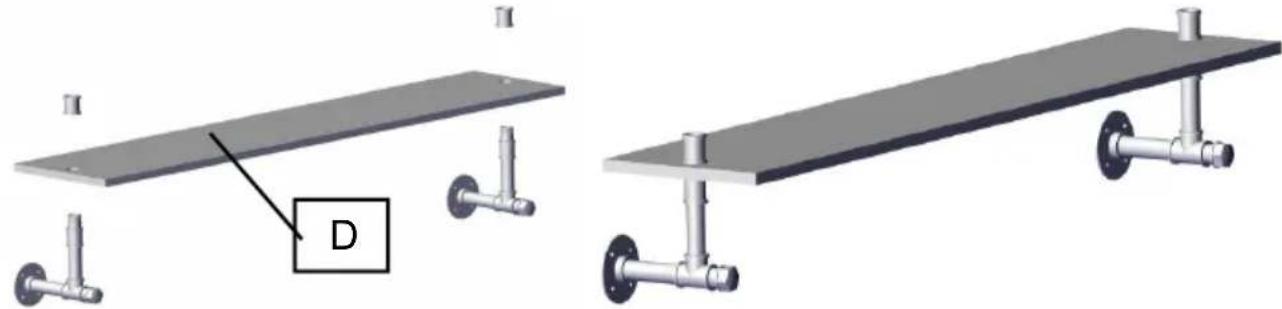

STEP4.Insert board D and secure with A.

Two metal structural components with flanged ends and a labeled section D (no text or symbols beyond label)

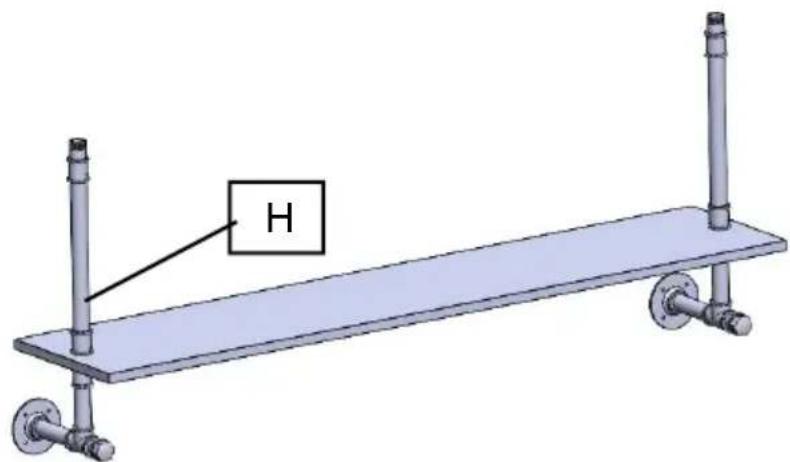

STEP5. Install pipe H and then Screw A and E. .

H

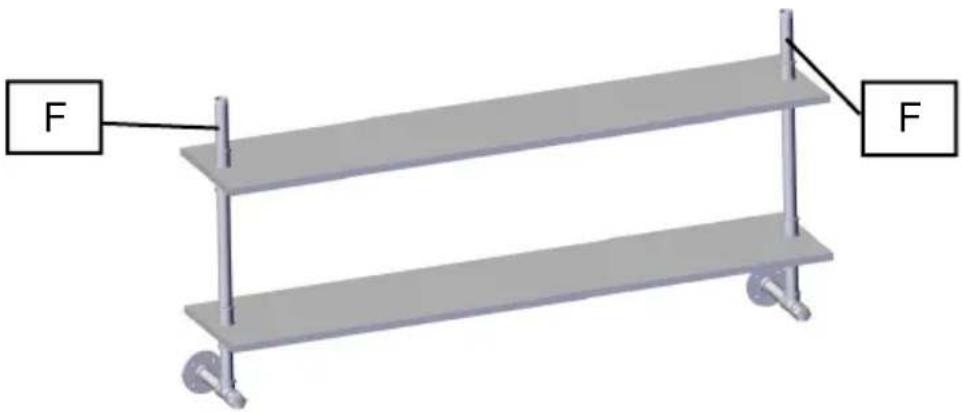

STEP6.Repeat Step4 and then screw on pipe F.

3D diagram of a two-tiered shelving unit with two force indicators (F) on both sides, no text or symbols present.

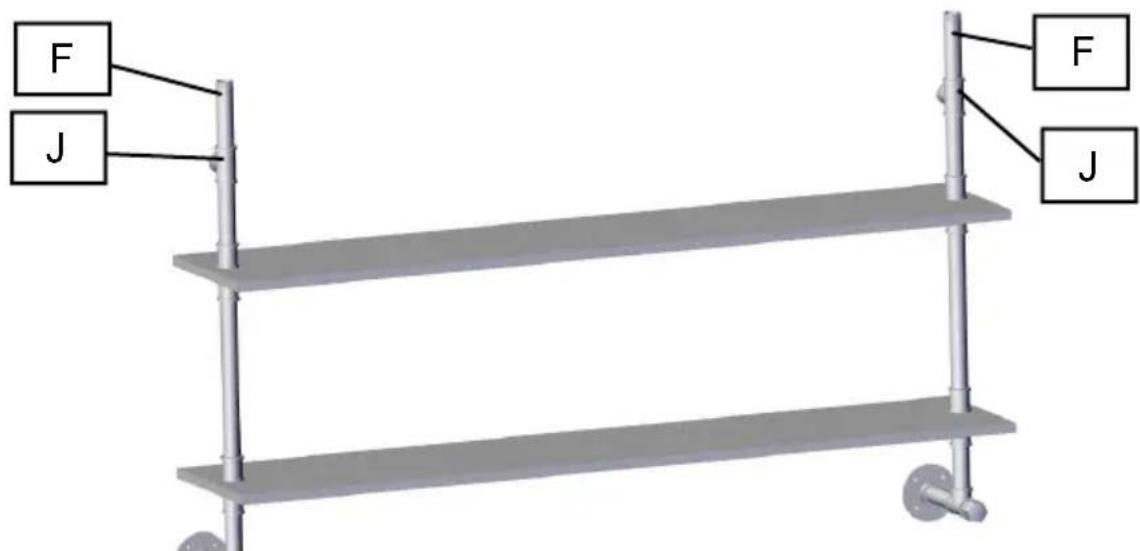

STEP7.Screw in the tee connector J and pipe F successively.

F J F J

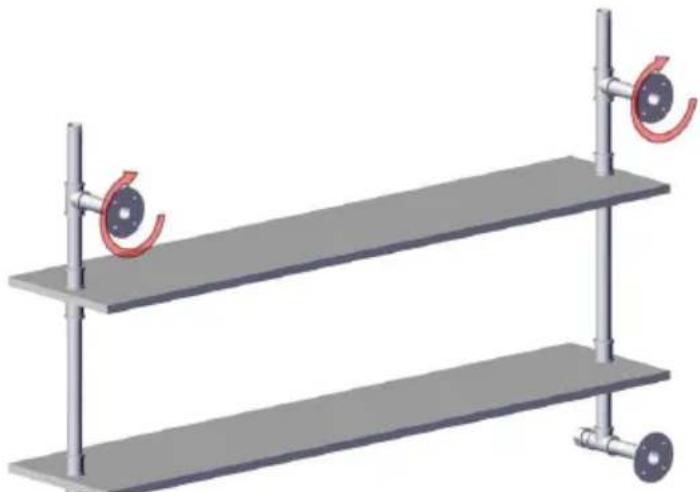

STEP8.Screw in the components of step 1.

3D rendering of two parallel metal racks with red circular components on top (no text or symbols)

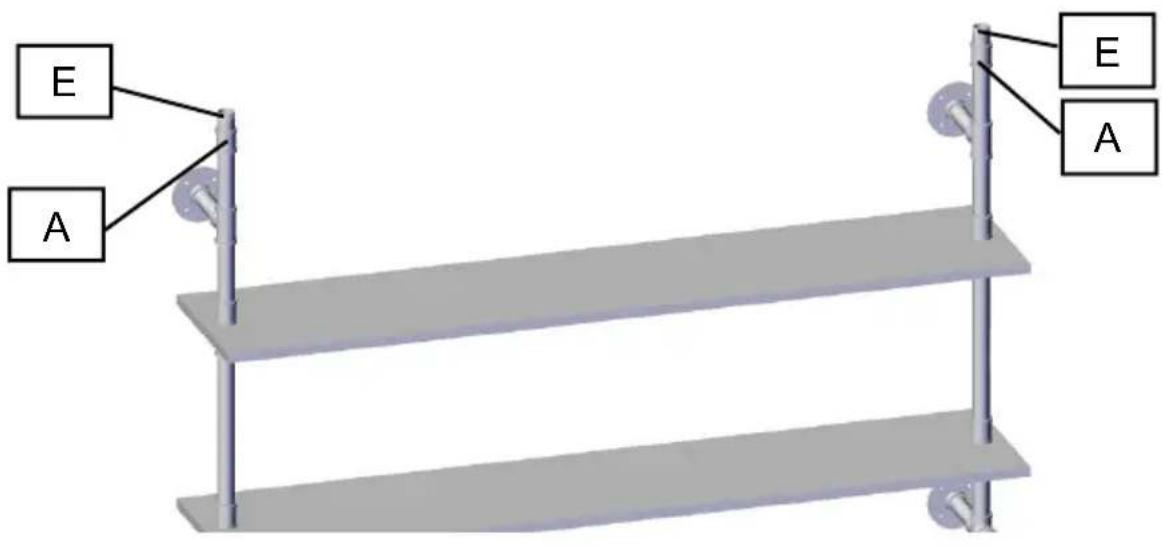

STEP9.Screw in the Two way connector A and tube E successively.

E A E A

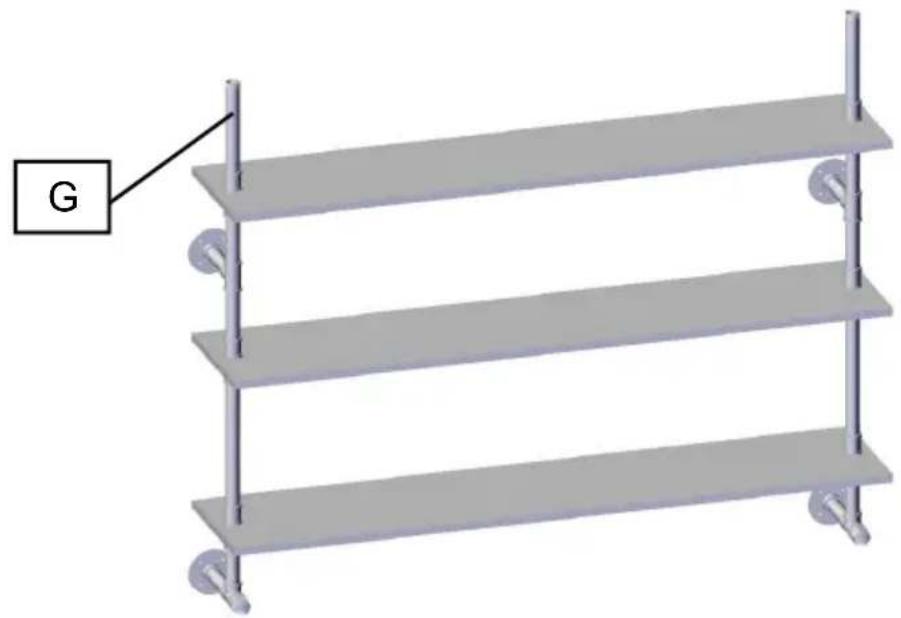

STEP10.Repeat Step4 and then screw on pipe G.

3D diagram of a three-tiered shelving unit with wheels and metal railings, labeled 'G' (no text or symbols on the structure itself)

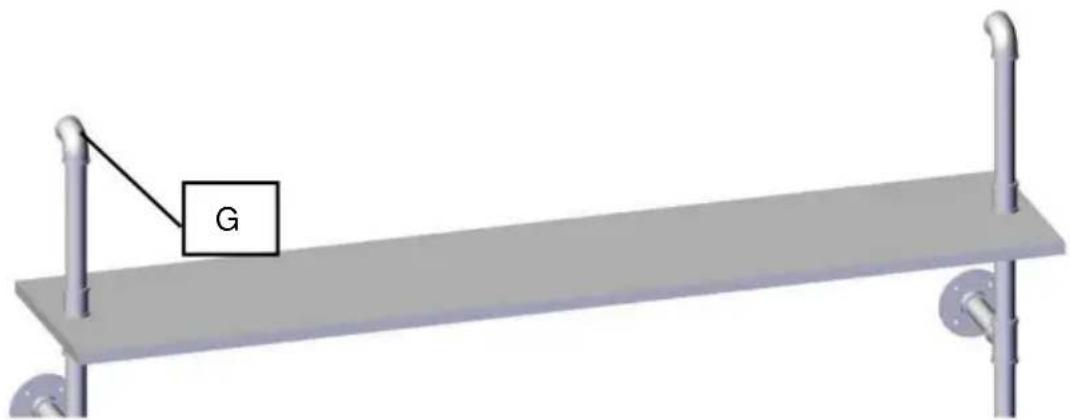

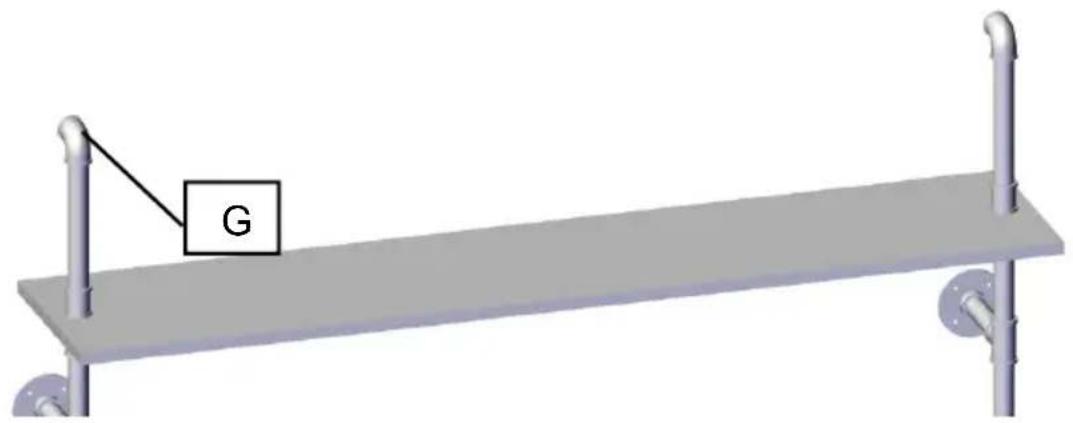

STEP11.Install the elbow connector B.

G

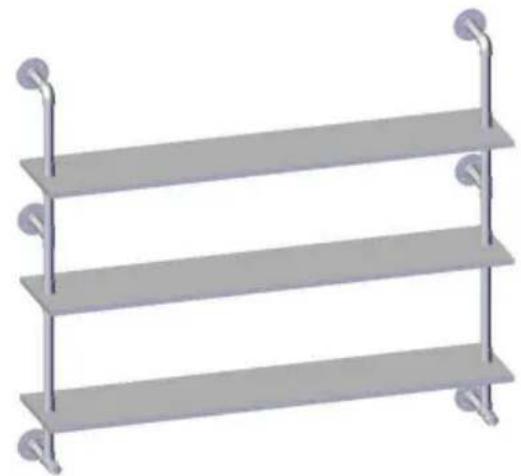

STEP12. Install the component of step1.

3D rendering of a three-tiered shelf with metal railings and scroll handles (no text or symbols)

ATTACH PIPE SHELVES TO THE WALL

Note: At least one assistant is recommended.

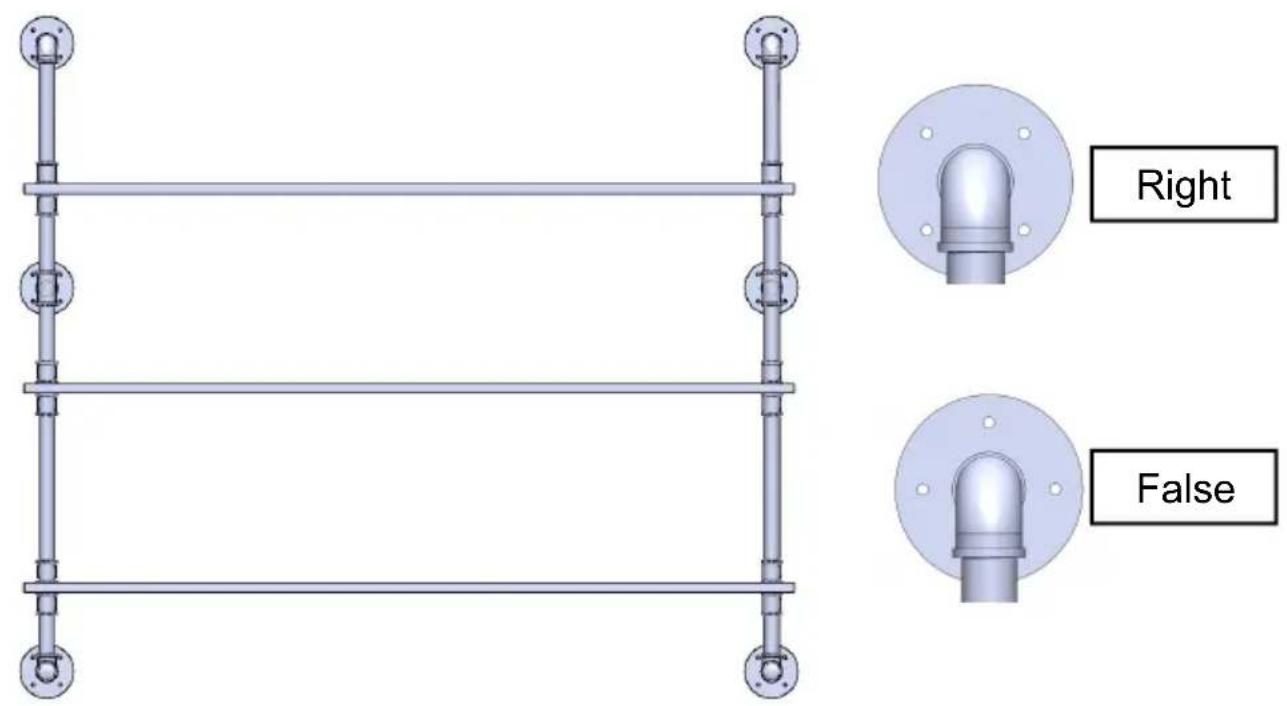

STEP1: Locate the pipe shelves to the wall and determine the height you want to install them at. Use a level to make sure the boards are level, mark the location holes on the mounting flange.

Right False

Note: The fixed points of the flange should be distributed on both of the tube for better operation to tighten the screw.

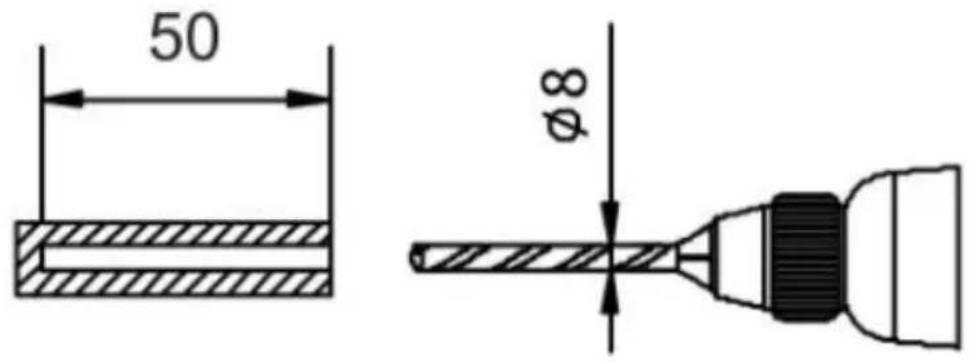

STEP2: Drill holes in the concrete wall with an impact drill bit. The size of the holes is shown below.(If mounted on a wooden wall, drill holes with common drill bit.)

50 Ø8

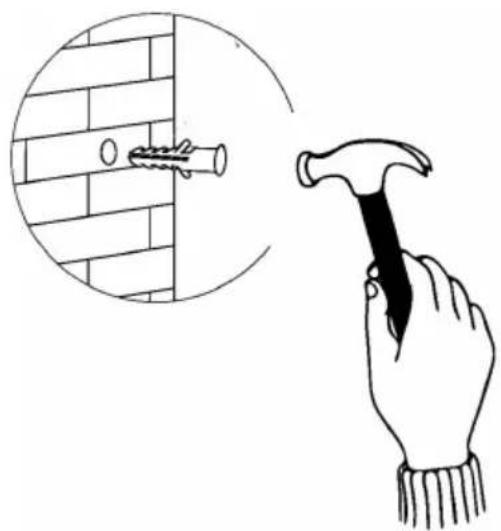

STEP3:Drive Plastic expansion tube into each hole.

Illustration of a hand using a hammer to tighten a bolt on a brick wall, with a magnified inset showing the tool (no text or symbols present)

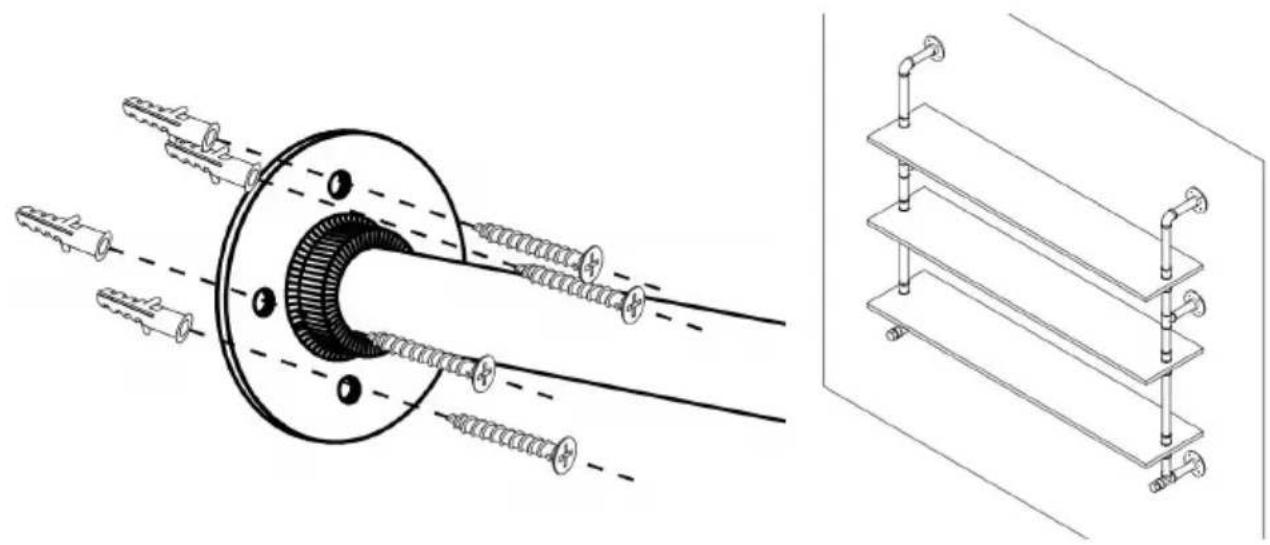

STEP4: For each mounting hole, secure pipe shelves with tapping screws.

Technical illustration of a mechanical assembly with threaded fasteners and a separate plan view of a multi-tiered rack (no text or symbols)
