USER MANUAL WRC302-SYT Vevor

Electrical Wire Caddy

Model: WRC302-SYT

VEVOR

Electrical Wire Caddy

MODEL: WRC302-SYT

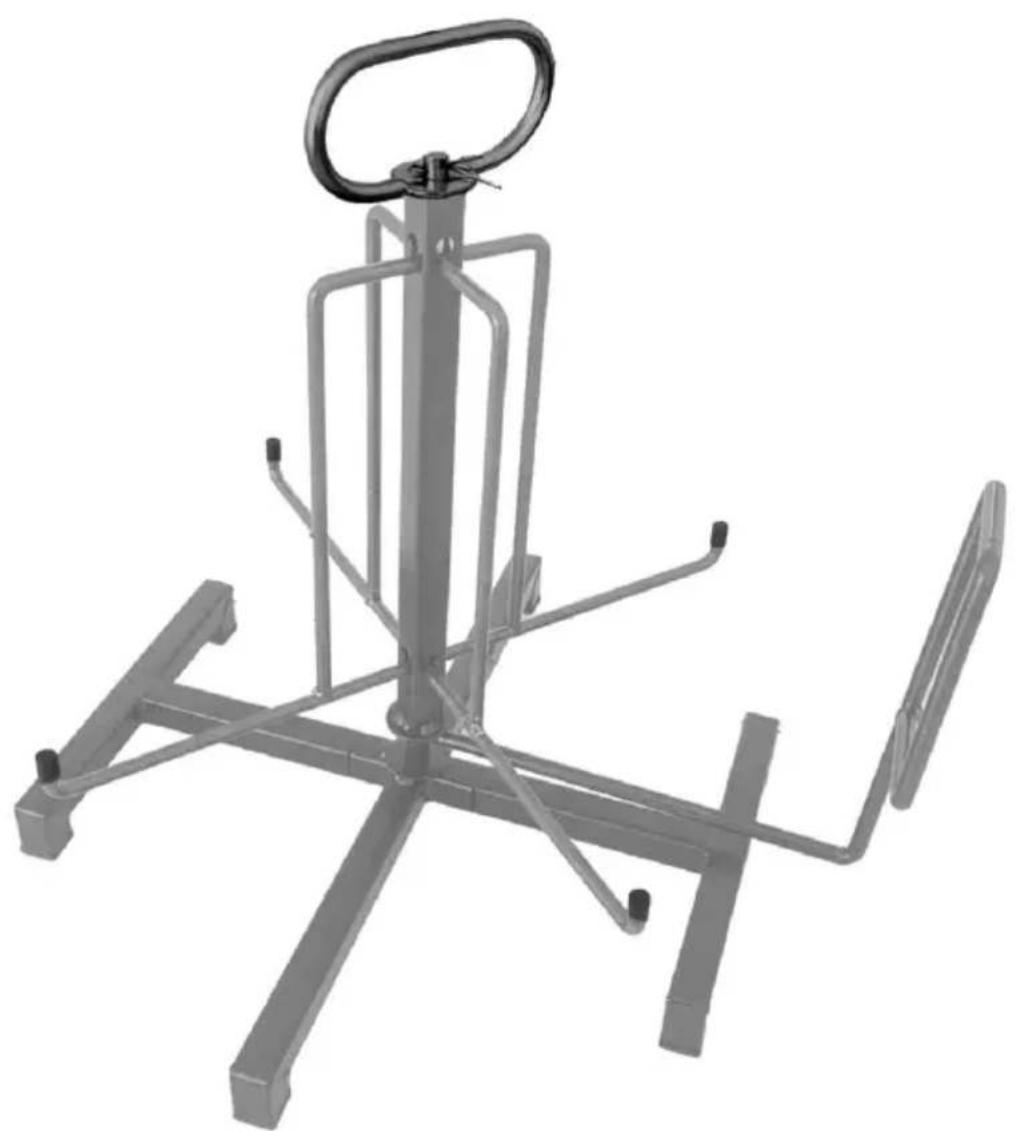

3D rendered mechanical device with a handle and four arms, no visible text or symbols.

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

SAFETY RULES

This product was designed for certain applications only. We strongly recommend that this product not be modified and/or used for any purpose other than that for which it was designed.

Vevor WRC302-SYT - SAFETY RULES - 1

CAUTION: Use care when lifting the Cable Dispenser.

Pulling cable from dispenser too fast may result in tangling.

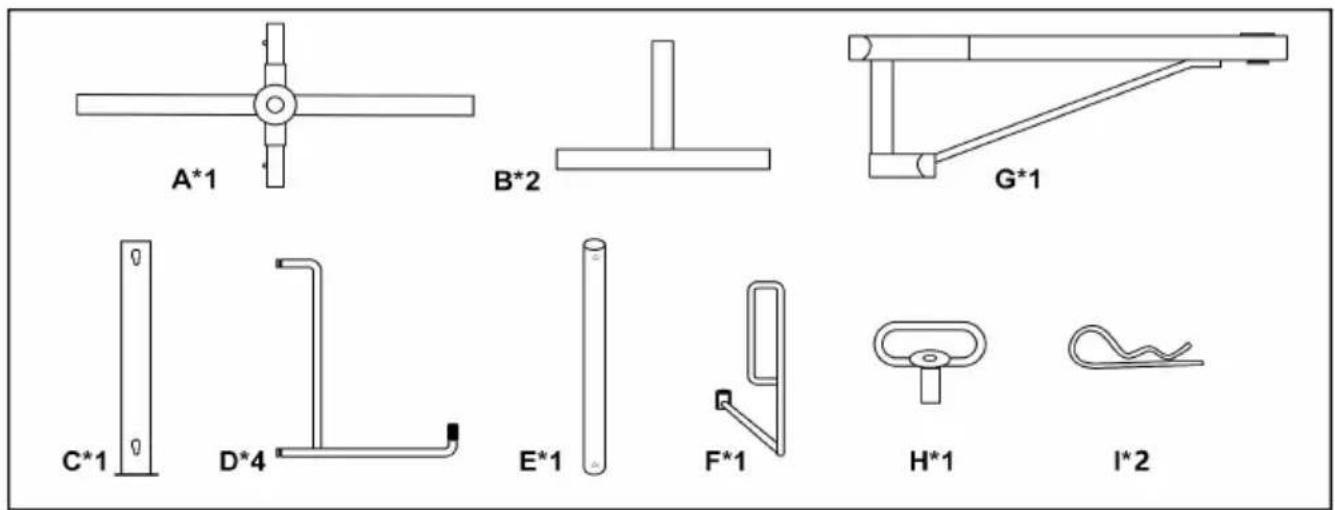

A*1, B*2, G*1, C*1, D*4, E*1, F*1, H*1, I*2

Step 1: B, A, B. Step 2: C, D.

Step 3: E or G. Step 4: H, F, E.

STEP 1 - Floor Support Frame Assembly

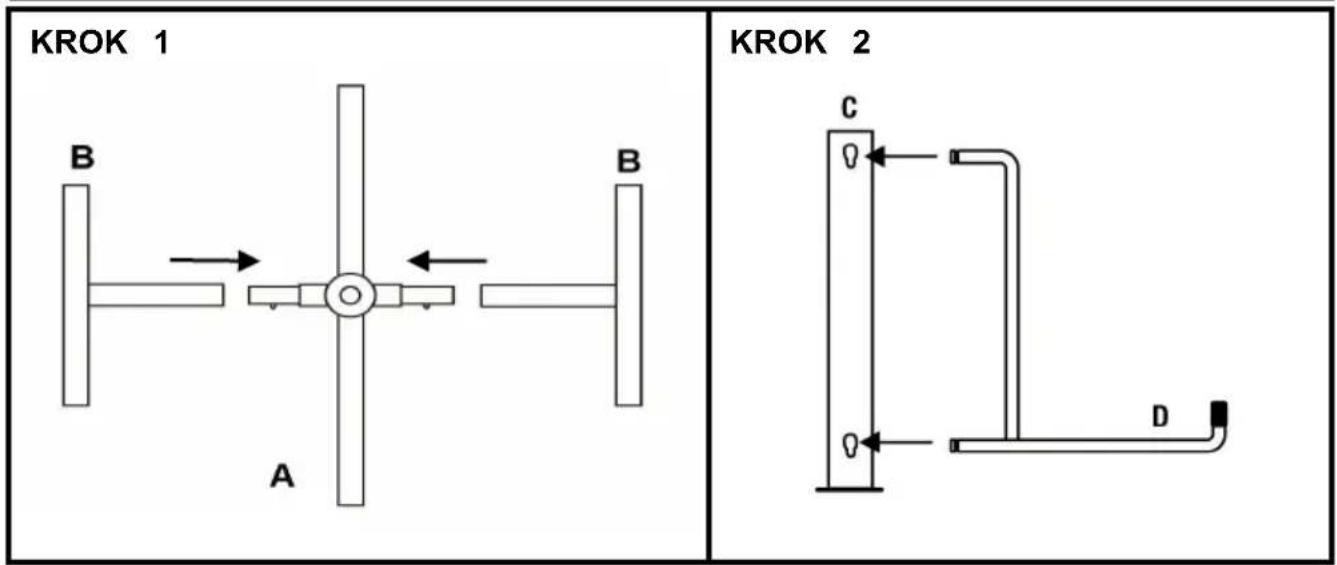

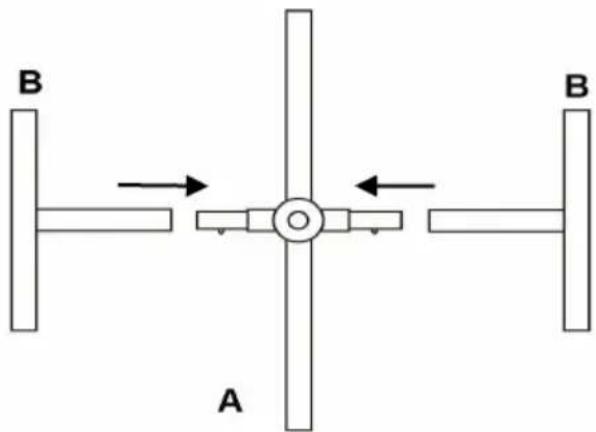

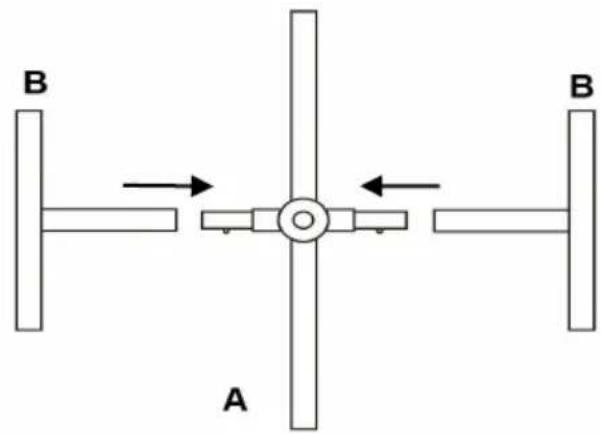

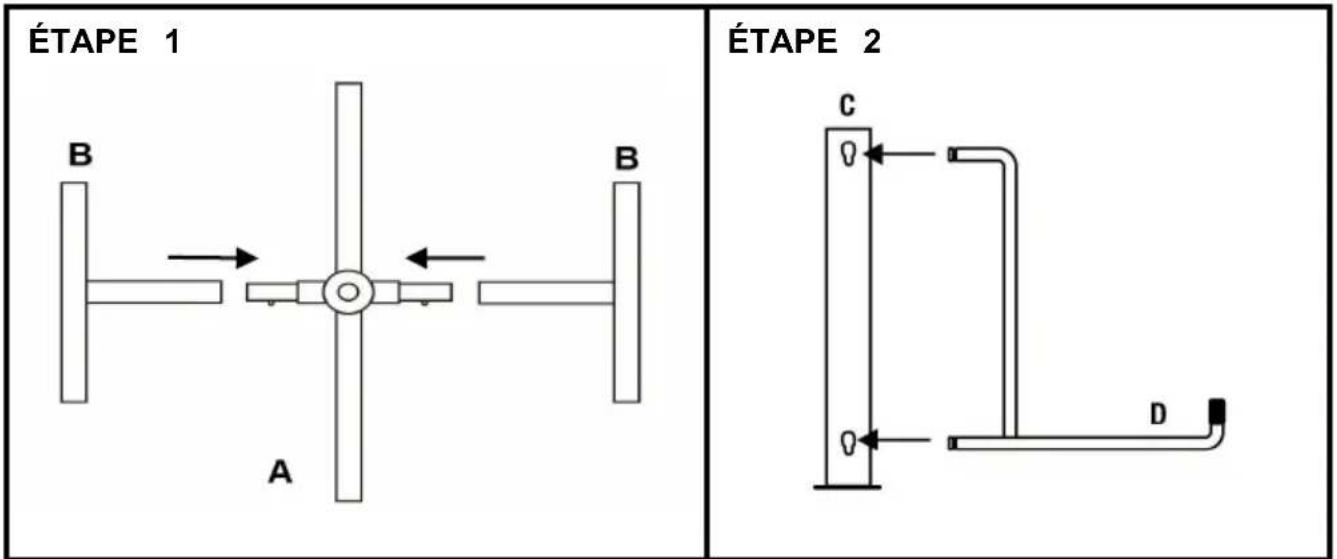

Insert Floor Support Sides (B) into the Floor Support Center (A). Make certain the spring loaded buttons on the Floor Support Center (A) snap into the holes on the Floor Support Legs (B).

STEP 2 - Extension Arm Assembly

Insert Extension Arm (D) into the Center Frame (C). Line up the groove at the end of the Extension Arm (D) with the holes in the Center Frame and push down until the grooves slide to the bottom of the keyway. Repeat the process for the other three Extension Arms (D).

STEP 3

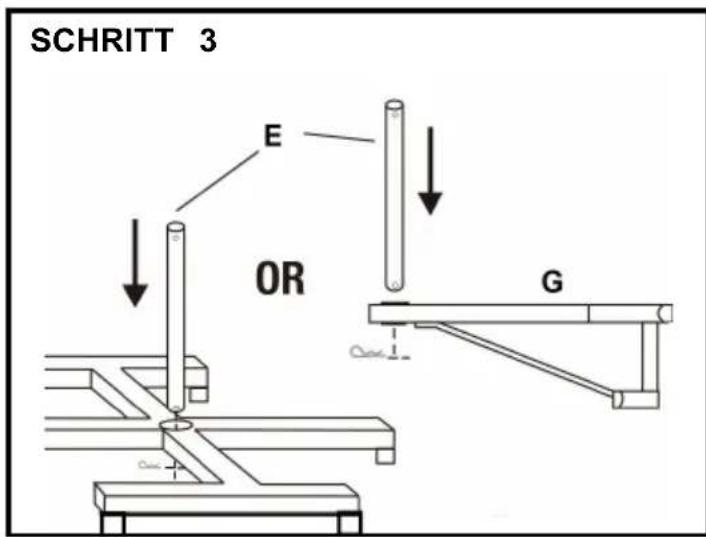

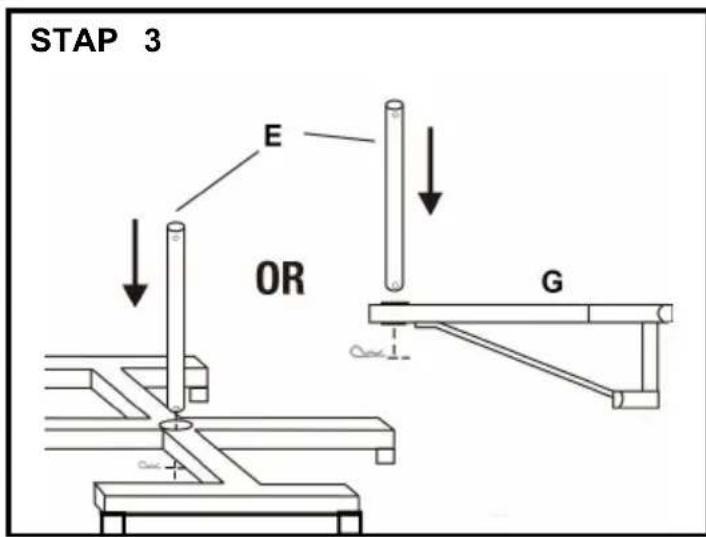

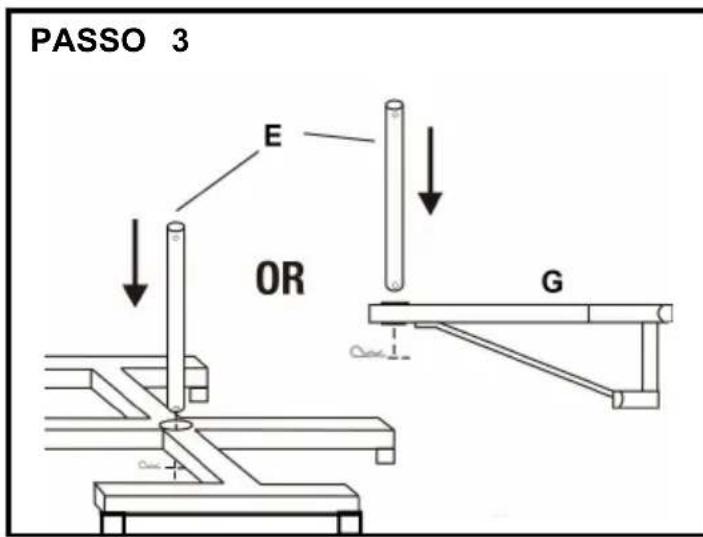

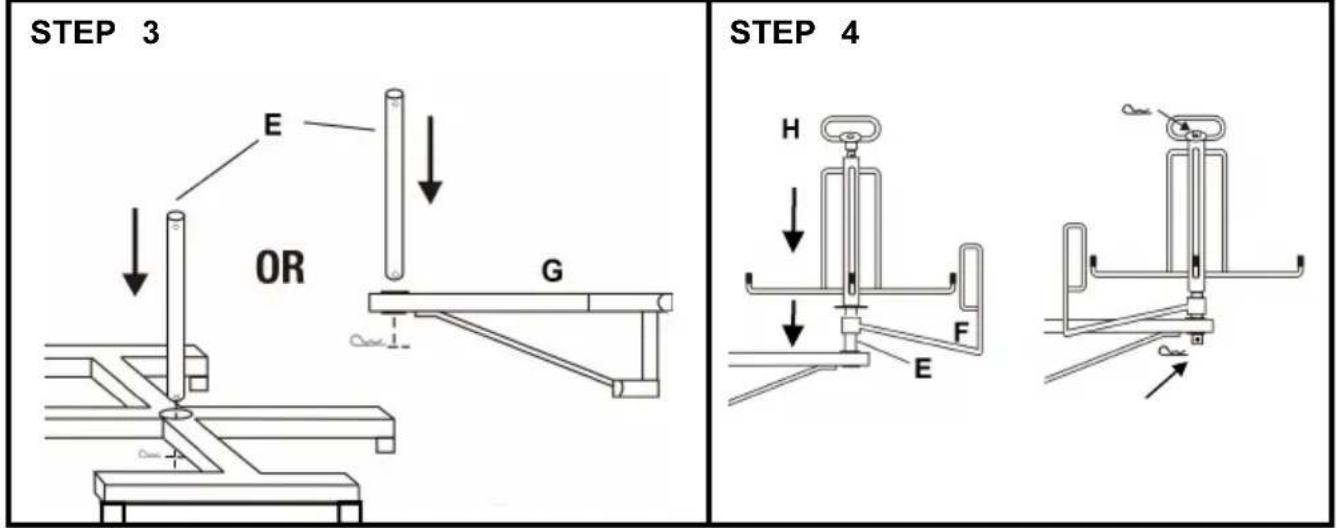

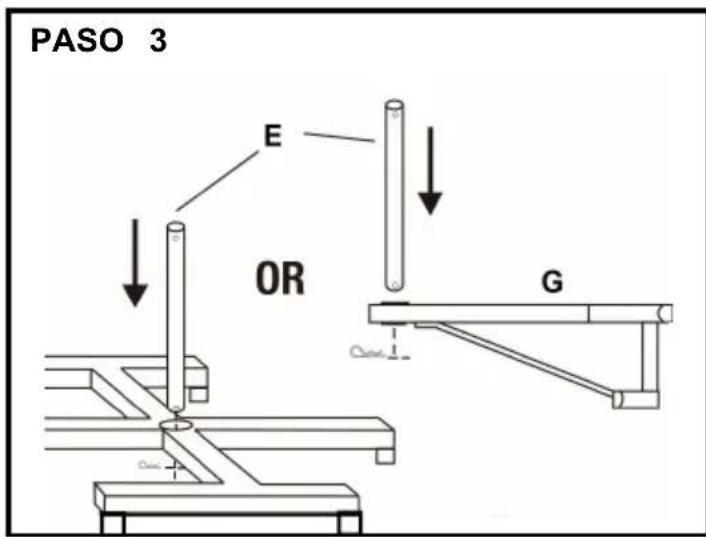

Choose the Floor Support Frame Assembly or Stud Support Frame (G) and insert the Center Shaft (E) into the hole in the Support Frame, fixed by a pin (I). Note: Floor Support Frame Assembly can be interchanged with Stud Support Frame (G) easily for different uses.

STEP 4

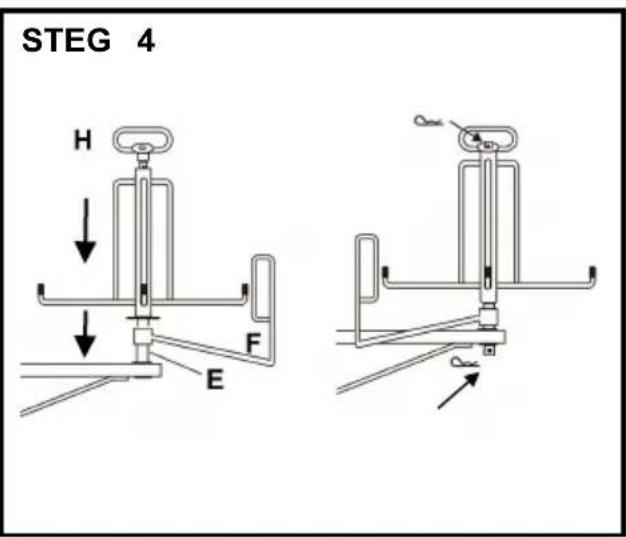

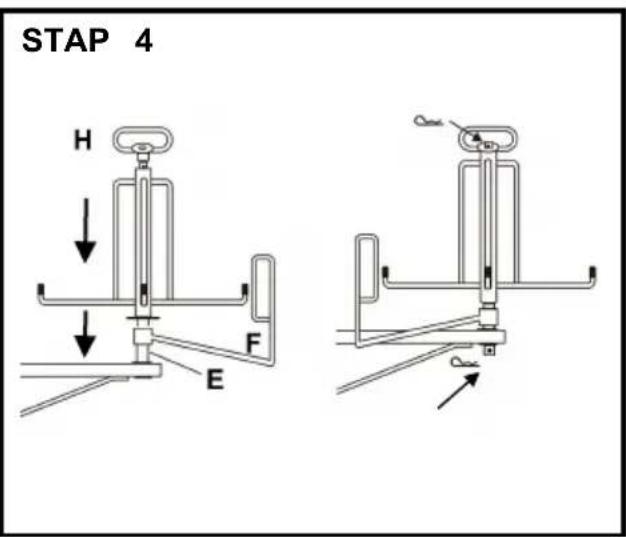

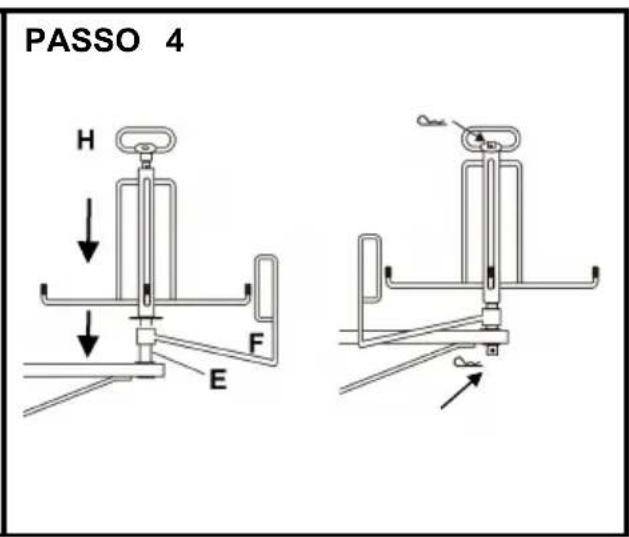

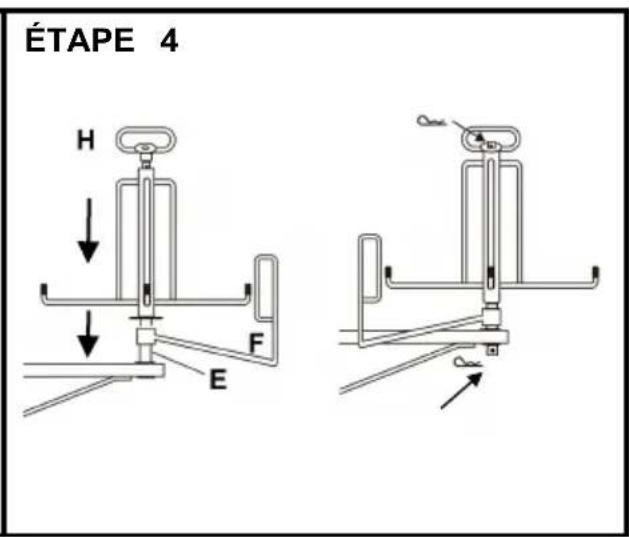

Slide the Cable Eyelet (F), Extension Arm Assembly, and Handle (H) onto the Center Shaft (E), fixed by a pin.

LOADING/OPERATING INSTRUCTIONS

FLOOR SUPPORT FRAME

Load a coil of armored cable or NM-B over the Extension Arm assembly and thread the end of the cable through the Cable Eyelet (F).

STUD SUPPORT FRAME

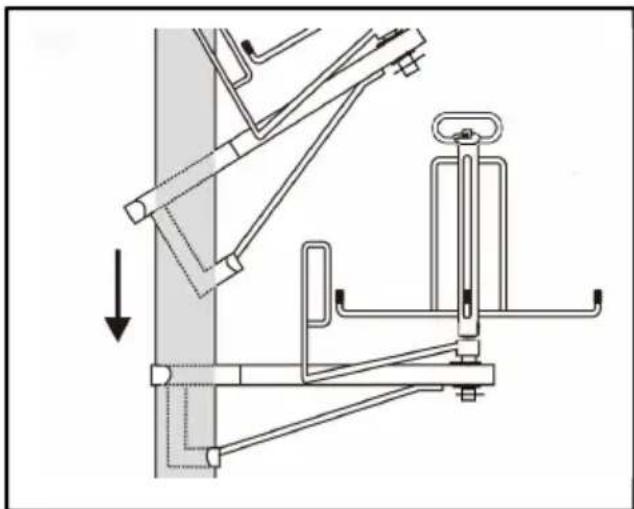

Mount Stud Support Frame (G) onto a 2" x 4" wood stud.

Ensure wood stud is secure. No fasteners are required to secure Support Frame to stud.

Load a coil of armored cable (NM-B) over the Extension Arm assembly and thread the end of the cable through the Cable Eyelet.

Technical line drawing of a mechanical lifting or bracket assembly, no text or symbols.

FOR USE WITH REELS OF WIRE

The Cable Dispenser can also be used for reel coiled wire and cable. Remove Pin (I) and Handle (H).

Remove all Extension Arms (D) from Center Frame (C).

Slide Reel over Center Frame (C).

Re-insert the Handle (H) into the top of the Center Frame (C), fixed by a pin (I).

Vevor WRC302-SYT - FOR USE WITH REELS OF WIRE - 1

Warning: To reduce the risk of injury, the user must read the instruction manual carefully.

Warning: It is not allowed to exceed the maximum load-bearing capacity of the product.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.

Electrical Wire Caddy

MODEL: WRC302-SYT

3D rendered mechanical device with a handle and four arms, no visible text or symbols.

CAUTION: Use care when lifting the Cable Dispenser.

Pulling cable from dispenser too fast may result in tangle

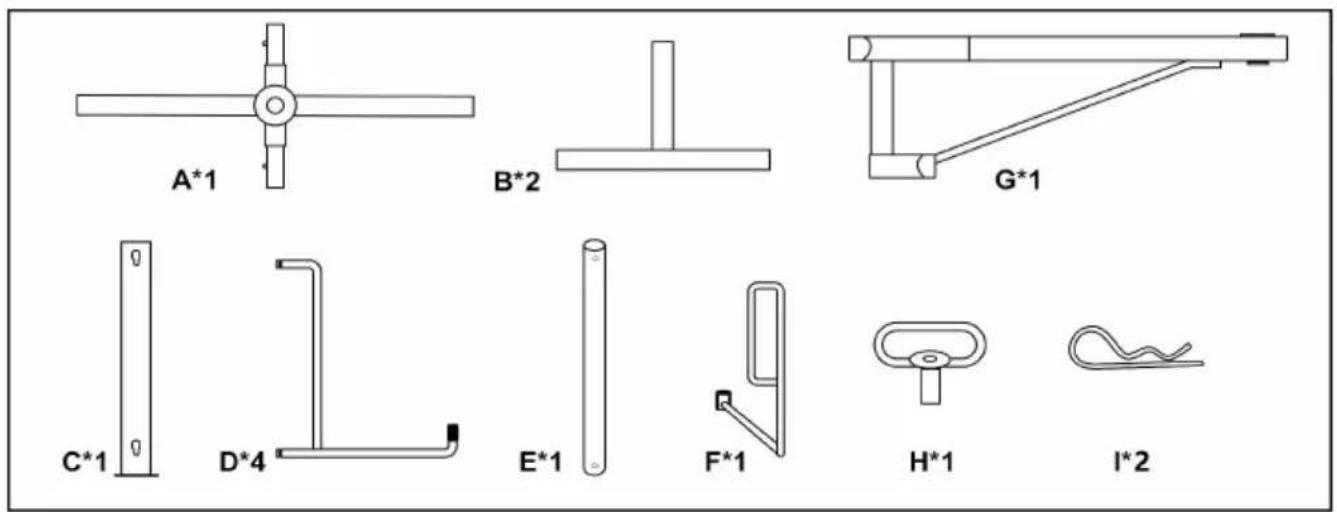

A*1, B*2, G*1, C*1, D*4, E*1, F*1, H*1, I*2

Step 1: B, A, B. Step 2: C, D.

Step 3: E or G.

Step 4: H, F, E.

Location: Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

REP

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.

Vevor WRC302-SYT - MODEL: WRC302-SYT - 6

VEVOR

Affordable. Reliable. Home Improvement.

Electrical Wire Caddy

MODEL: WRC302-SYT

3D rendering of a mechanical support structure with metal frame and lever, no text or symbols.

CAUTION: Use care when lifting the Cable Dispenser.

Pulling cable from dispenser too fast may result in tangle

Pure mechanical component diagram with no text or symbols.

Simple geometric diagram of a T-shaped structure with no text or symbols.

Pure mechanical linkage diagram without any text, numbers, or symbols.

Vevor WRC302-SYT - MODEL: WRC302-SYT - 5

Pure geometric L-shaped line drawing without any text, numbers, or symbols.

Vevor WRC302-SYT - MODEL: WRC302-SYT - 7

Vevor WRC302-SYT - MODEL: WRC302-SYT - 8

Vevor WRC302-SYT - MODEL: WRC302-SYT - 9

Vevor WRC302-SYT - MODEL: WRC302-SYT - 10

STEP 1 B A B

STEP 2 C D

STEP 3 E OR G

STEP 4 H F E

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.

Electrical Wire Caddy

MODEL: WRC302-SYT

3D rendering of a mechanical support structure with metal frame and lever (no text or symbols).

CAUTION: Use care when lifting the Cable Dispenser.

Pulling cable from dispenser too fast may result in tangle

A*1 B*2 G*1 C*1 D*4 E*1 F*1 H*1 I*2

STEP 1 B A B STEP 2 C D

STEP 3 E OR G

STEP 4 H F E

FOR USE WITH WIRE REELS

Imported in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

New South Wales 2122 Australia

Imported in USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.

Electrical Wire Caddy

MODEL: WRC302-SYT

3D rendered mechanical device with a handle and four arms, no visible text or symbols.

CAUTION: Use care when lifting the Cable Dispenser.

Pulling cable from dispenser too fast may result in tangle

Pure mechanical component diagram with no text or symbols.

Simple geometric diagram of a T-shaped structure with no text or symbols.

Pure mechanical linkage diagram without any text, numbers, or symbols

Vevor WRC302-SYT - MODEL: WRC302-SYT - 5

Pure geometric L-shaped line drawing without any text, numbers, or symbols

Vevor WRC302-SYT - MODEL: WRC302-SYT - 7

Vevor WRC302-SYT - MODEL: WRC302-SYT - 8

Vevor WRC302-SYT - MODEL: WRC302-SYT - 9

Vevor WRC302-SYT - MODEL: WRC302-SYT - 10

STEP 1 B A B

STEP 2 C Q Q D

STEP 3 E OR G

STEP 4 H F E

FOR USE WITH WIRE REELS

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.

Electrical Wire Caddy

MODEL: WRC302-SYT

3D rendered mechanical device with a handle and four arms, no visible text or symbols

CAUTION: Use care when lifting the Cable Dispenser.

Pulling cable from dispenser too fast may result in tangle.

A*1 B*2 G*1 C*1 D*4 E*1 F*1 H*1 I*2

STEP 1 B A B STEP 2 C D

STEP 3 E OR G

STEP 4 H F E

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.

Electrical Wire Caddy

MODEL: WRC302-SYT

3D rendering of a mechanical support structure with metal frame and lever (no text or symbols)

CAUTION: Use care when lifting the Cable Dispenser.

Pulling cable from dispenser too fast may result in tangle.

A*1 B*2 G*1 C*1 D*4 E*1 F*1 H*1 I*2

STEP 1 B A B STEP 2 C D

STEP 3 E OR G

STEP 4 H F E

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.

Electrical Wire Caddy

Model: WRC302-SYT

VEVOR

Affordable. Reliable. Home Improvement.

Electrical Wire Caddy

MODEL: WRC302-SYT

3D rendered mechanical device with a handle and four arms, no visible text or symbols

CAUTION: Use care when lifting the Cable Dispenser.

Pulling cable from dispenser too fast may result in tangle

A*1 B*2 G*1 C*1 D*4 E*1 F*1 H*1 I*2

STEP 3 E OR G

STEP 4 H F E

CABLE DRUM FOR REELS

FOR USE WITH WIRE REELS

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP
