USER MANUAL TT-P12 Vevor

Affordable. Reliable. Home Improvement.

ELECTRIC FENCE CHARGER

MODEL: TT-P12

VEVOR

Affordable. Reliable. Home Improvement.

ELECTRIC FENCE

CHARGER

MODEL: TT-P12

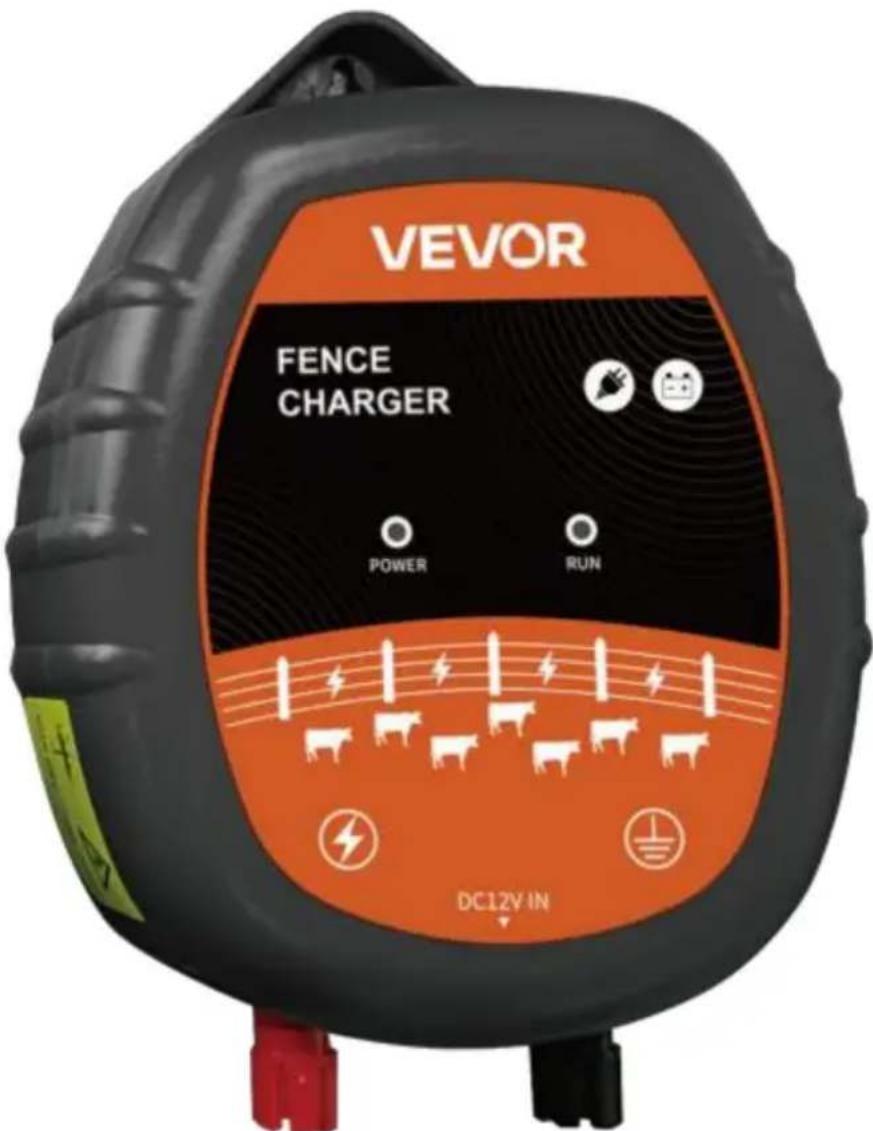

VEVOR FENCE CHARGER POWER RUN DC12V IN

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual before installation and use, be familiar with the correct use method of this product and standardize the operation otherwise all the consequences will be borne by the user.

Precautions for installation: The voltage generated by the product pulse voltage.

1. This product has high voltage inside during operation avoid electric shock, please do not disassemble it with permission;
2. There is 5000V\~10000V high voltage at the output e front end of the product. Do not touch it when the working; Please install the host after correctly installing front fence rod sub alloy wire and the correct circuit install the host with electricity.
3. Do not install electric fence during lightning;
4. Do not install the pulse host directly outdoors or in place.
5. In case of any abnormality of the product, the power shall be cut off first, and the professional installation maintenance personnel shall be notified in time. Do disassemble or repair by yourself, or you will bear the consequences;
6. The user shall not open the host for maintenance, otherwise our company will not provide warranty;
7. Users of this product must have knowledge of electric safety and electric shock rescue;
8. Please read this manual before installation and use, familiar with the correct use method of this product standardize the operation, otherwise all the consequent will be borne by the user.

PARTS LIST

VEVOR FENCE CHARGER OFFICE ON DC 20kW

Fence Charger

Two black electronic charging devices with attached cables, placed on a wooden surface (no visible text or symbols)

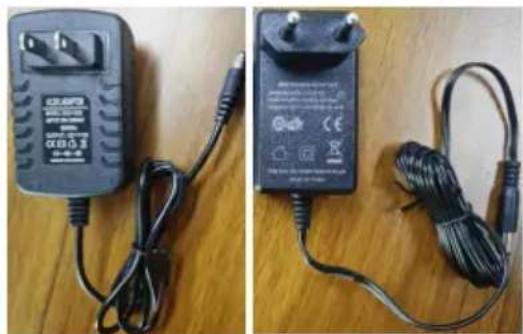

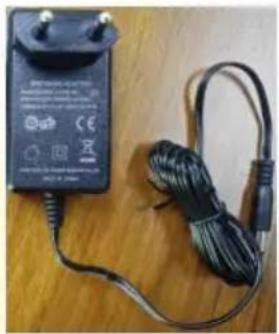

Power Adapter U.S.-spec or Euro-spec

DC Power Cable

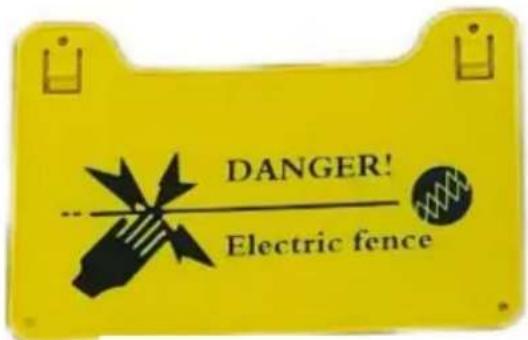

DANGER! Electric fence

Warning Sign

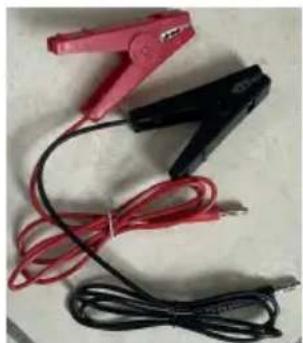

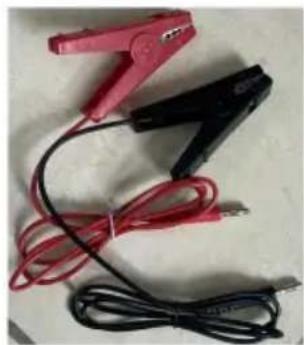

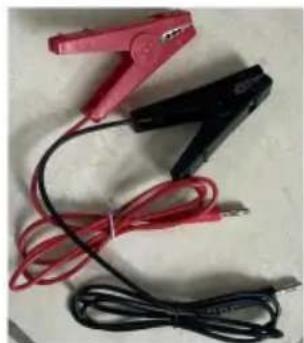

Two red and black clamp clips with coiled wires, placed on a plain surface (no text or symbols visible)

Power Output cable

VEVOR Affordable, Reliable, Home Improvement. ELECTRIC FENCE CHARGER MODEL: TT-P12 Technical Support and /J. Alturity Certificate www.veevor.com/support

Manual

PRODUCT PARAMETER

Model	TT-P12
Equipment power supply	Power Adapter: DC12V 2A
Equipment power	≤3W
Energy output	1.0J
Voltage output	10kV
pulse amplitude	10kV
pulse width	≤1ms
Discharge interval	1.0s
Single line reachable length	1~3km
Protection grade	IP65
Relative Temperature	-20 °C ~ +50 °C
Relative humidity	Less than 95%
Host pulse output port	Single channel pulse output
Product Size	135mm * 200mm * 55mm

EQUIPMENT INSTALLATION

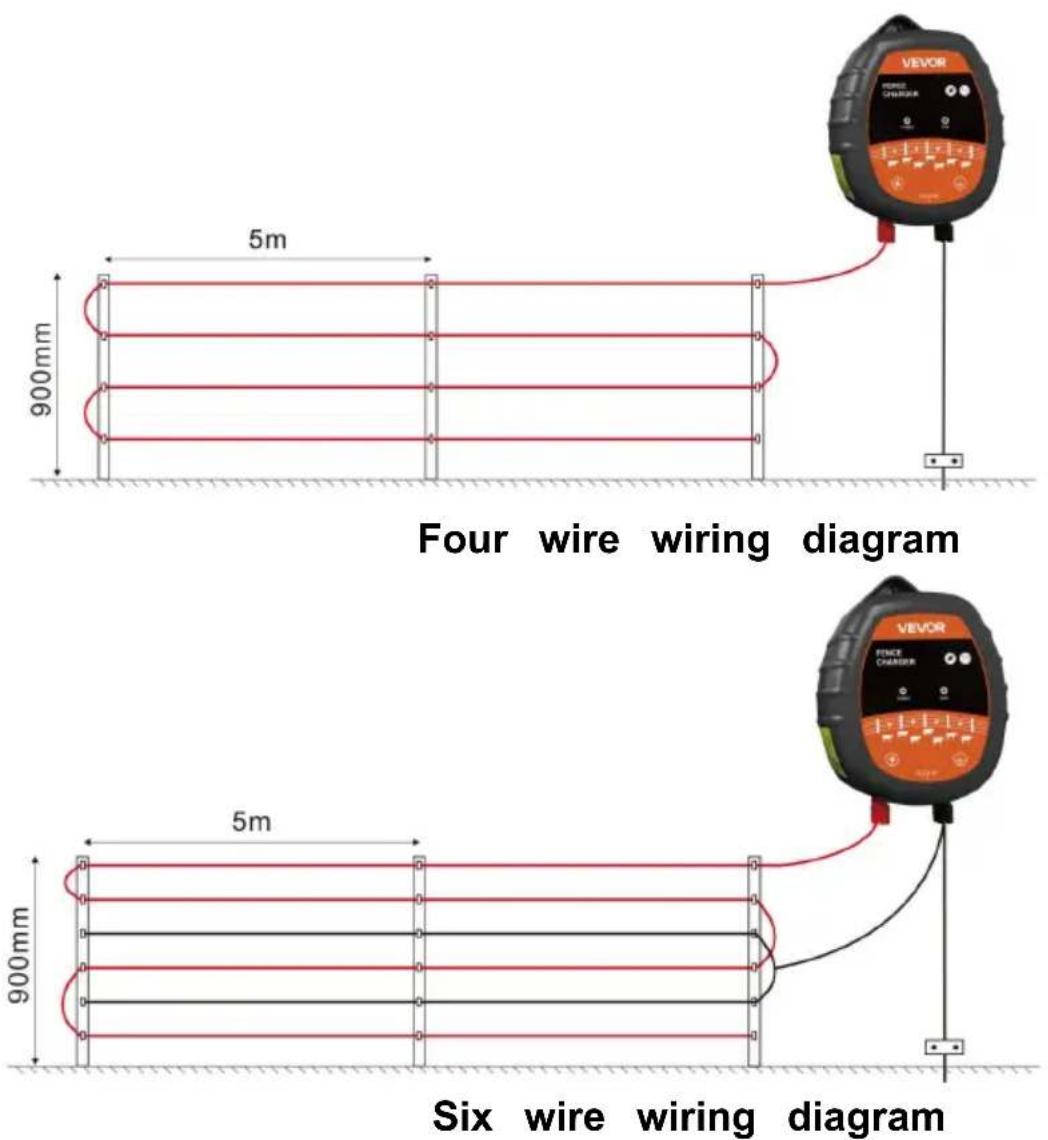

(一)Installation of metal conductive cable

The wiring method of the front conductive cable needs to be reasona installed according to the type, size and conductive materials of the animals in captivity. The following are some typical wiring diagrams. F the same and similar wiring methods according to your needs.

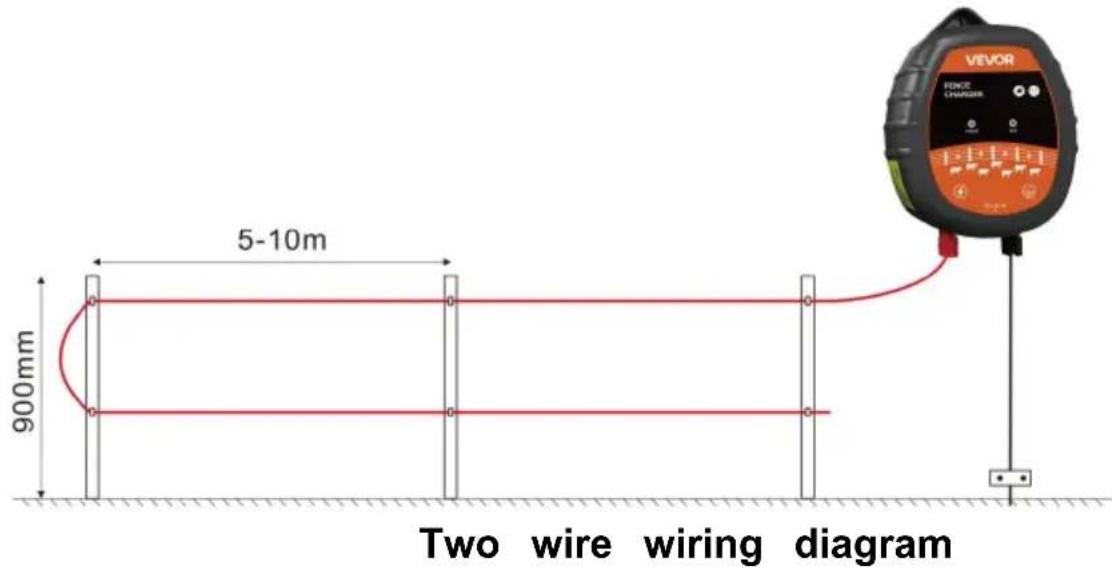

5-10m 900mm Two wire wiring diagram

5-10m 900mm Three wire wiring diagram

(二)Equipment installation

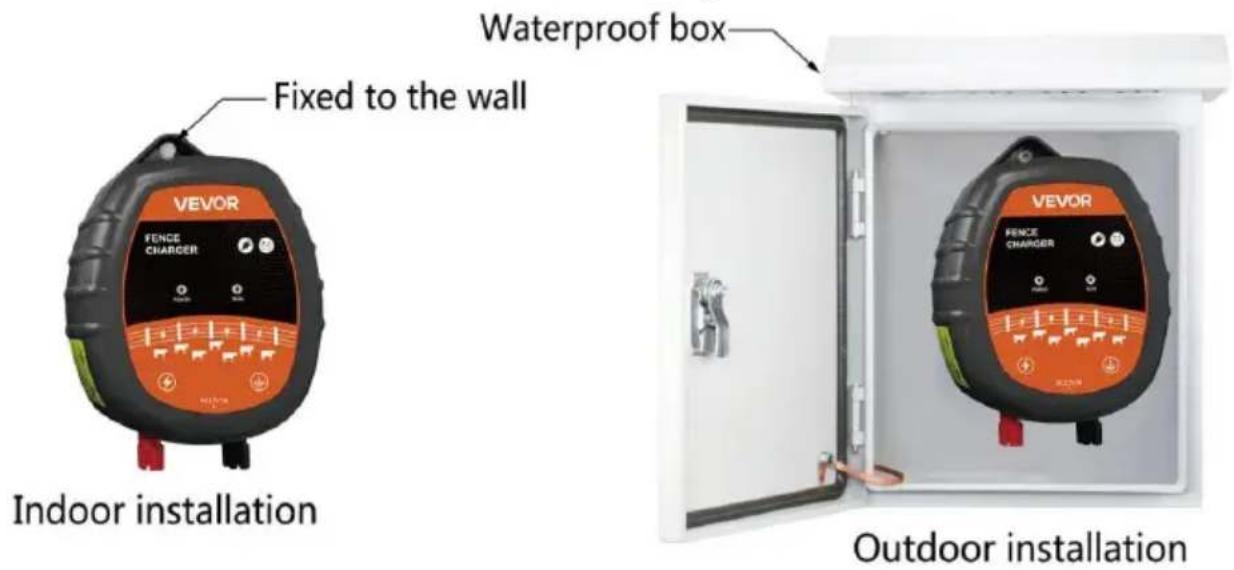

1. Fix the pulse electric fence host indoors, and if it is installed out needs to be installed in a waterproof box.

Fixed to the wall Waterproof box Indoor installation VEVOR FENCE CHARGER Outdoor installation

1. There are one red terminal and one black terminal at the terminal pulse electric fence. The red terminal is the high-voltage pulse out terminal, and the black terminal is the grounding terminal.

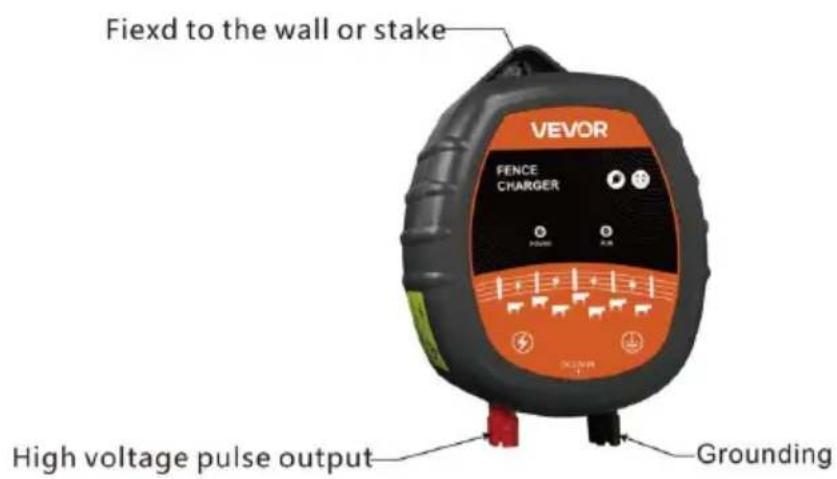

Fiexd to the wall or stake VEVOR FENCE CHARGER High voltage pulse output Grounding

1. Install insulator, spring, insulating handle and other accessories on front wooden pile.

Close-up of a black mechanical component with blue and white diagonal stripes extending from its side (no text or symbols visible)

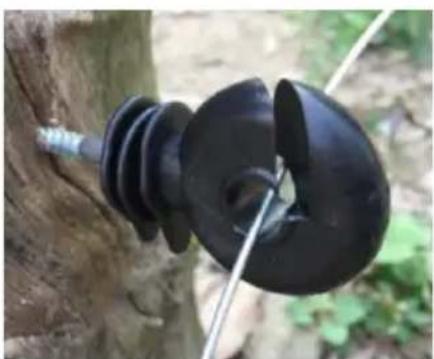

Terminal rod insulator

It is mainly used to fix at the corner or the terminal wooden pile, fix and tighten the power on rope, and ensure the insulation with the wooden pile.

Close-up of a black industrial insulator mounted on a tree trunk, with a wire inserted (no visible text or symbols)

Self-tapping insulator

It is mainly installed on the upright pole with s material such as wooden pile or plastic pile, which plays the role of supporting conductive rope and insulation.

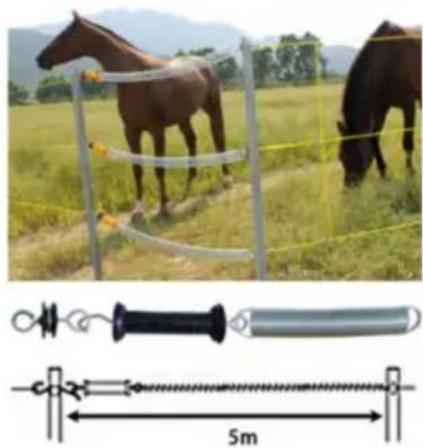

Two horses in a grassy field with metal fence and scale bar (no text or symbols on the animals)

Spring door

It is composed of two-way hook insulator, insulating handle and door spring. After the fence door is determined, it is connected to the upright rods on both sides of the door, which can be removed at any time to facilitate the access of people or animals and ensure the integrity of the perimeter when the door is closed.

1. There are one red terminal and one black terminal at the terminal pulse electric fence. The red terminal is the high-voltage pulse out terminal, and the black terminal is the grounding terminal, The grounding terminal can also be connected to a wire on the fence being connected to the grounding pile (this wiring mode can make animals feel stronger blows when they encounter the red pulse ou wire and the black grounding wire at the same time. Note: the bl grounding wire must not have any contact with the red pulse out wire on the fence).

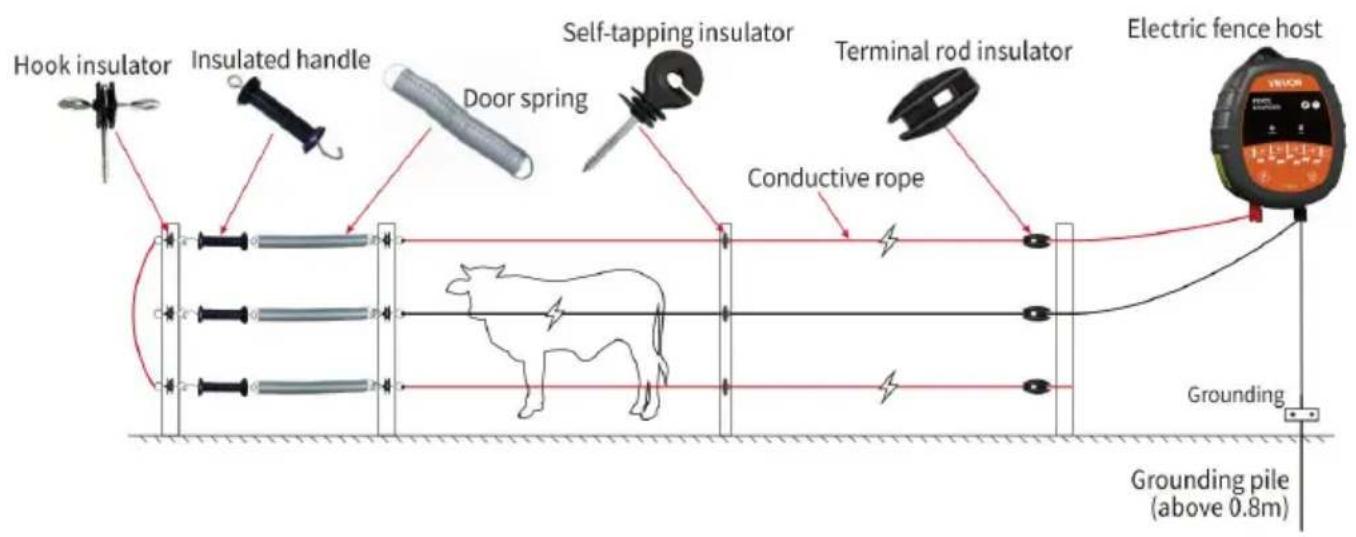

Hook insulator Insulated handle Door spring Self-tapping insulator Terminal rod insulator Electric fence host Conductive rope Grounding Grounding pile (above 0.8m)

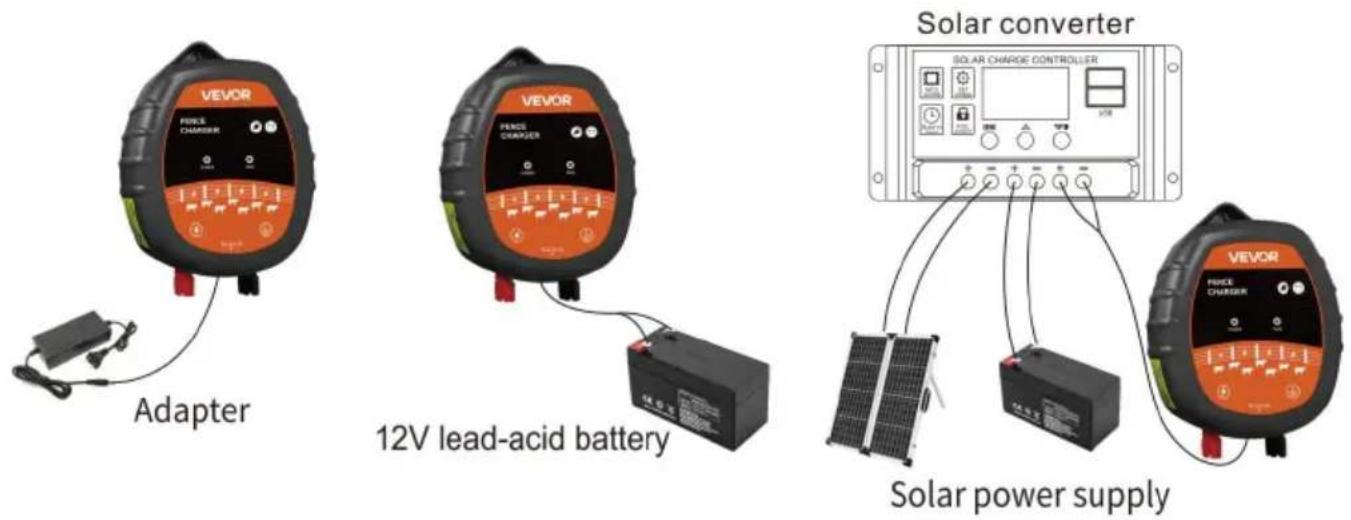

1. Pulse electric fence is powered by power adapter, lead-acid battery solar energy (one out of three)

VEVOR FORCE CHARGER Adapter VEVOR FORCE CHARGER 12V lead-acid battery Solar converter SOLAR CHARGE CONTROLLER VEVOR FORCE CHARGER Solar power supply

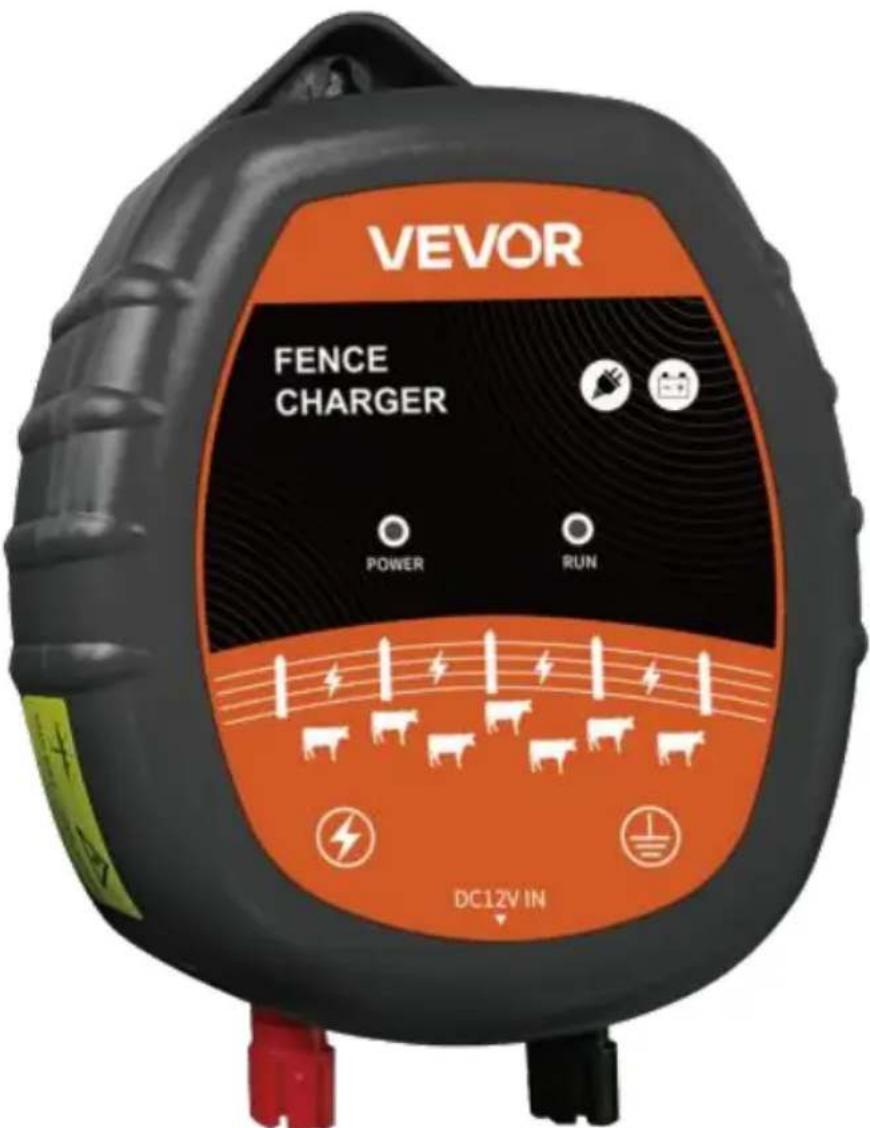

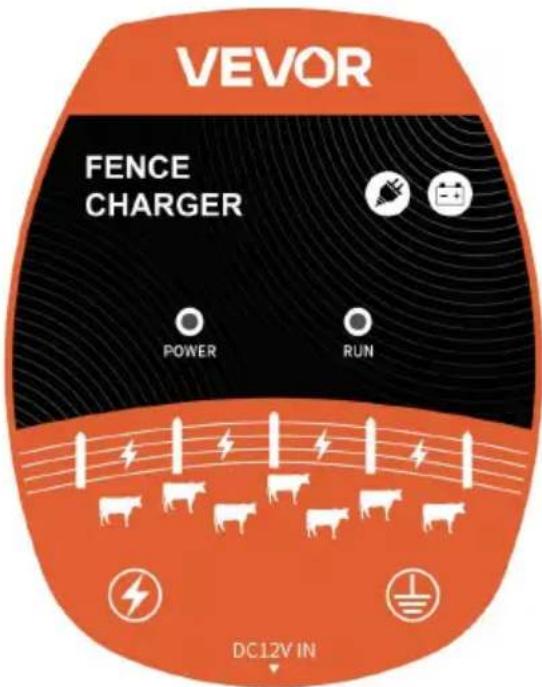

DESCRIPTION OF ELECTRIC FENCE PANEL

VEVOR FENCE CHARGER POWER RUN DC12V IN

Power indicator light

Work operation indicator light

INSTALLATION PRECAUTIONS

1. The installed metal conductor must be insulated from the support, whether it is a wooden pile or a metal support pole, special insulator be installed.
2. If the wire connected to the output end is connected to other me connected to the ground in rainy and humid environment, the output voltage of the equipment will be pulled down, reducing the impact on animals.
3. It must be effectively grounded. If there is no rain for a long time northern region, the land is very dry, or in a desert area, the strike

the voltage will be reduced, and a slightly humid environment should selected as far as possible.

1. This product is only used for breeding and special places. Do not pulse high-voltage equipment.
2. Weeds and branches around the metal conductive cables, such as entangled wires, need to be cleaned in time, otherwise the voltage was reduced and the equipment will lose its function. Especially when it raised the conductor will be fully grounded and the voltage will drop to a low level.
3. The transition wire from the impulse output terminal and the ground terminal of the electric fence to the front metal conductor and the grupile cannot use a multi-core power line for transition. Two independent power lines must be used and the spacing between the two lines should more than 16 feet.
4. In case of the following conditions during installation, it is recommended that the host of the electric fence should lead out a metal wire on while grounding the black grounding terminal (as shown in the above wire installation legend): the environment ground is dry, large animals kept in captivity, and long-distance places (more than 0.6 mile).

FAQ

Q: How to judge whether the test equipment is working normally?

A: 1. If the screen lights up, the power indicator light stays on, and running light is flashing, it is considered normal; If the running light is constantly on, it indicates a device malfunction.
2. After the host is turned on normally, listen to whether there is a pulse voltage output sound from the host (when the host is working normally, it will emit a ticking discharge sound, and if there is no so indicates equipment failure). Connect one end of an insulated wire to

red output terminal and the other end close to the black ground term (within 0.1 inch), and check for any electrical sparks. If there is a cl sound or spark, it indicates that the equipment is working properly. If is no electric spark, it indicates that the equipment is faulty.

Q: What is the reason for the electric fence with little or no electric (animals do not respond when touched)?

A: 1. First check whether the device is running normally. (Refer to Question 1).
2. Check if the connection between the red output port on the host black ground port is loose.
3. Check whether the line connected to the red output port on the f in contact with weeds, trees, metal objects and the ground (if so, ple adjust the line on the fence in time).
4. Check whether the wire connected to the red output port on the in contact with the wire on the black ground terminal. (The wire on output terminal must not be in contact with the wire on the black gr terminal).
5. Check whether the grounding place of the host is dry or the grou pile is not deep enough (try to avoid too dry environment for ground and the grounding pile needs to be buried in the ground more than When the electric fence installation environment is dry and the ground poor, you can refer to the installation instructions in the manual to le ground wire to the fence.

DISCLAIMER

(1). The voltage generated by the product is pulse voltage. It has high voltage inside during operation. To avoid electric shock, please do not disassemble it without permission.
(2). There is high voltage at the output end and the front end of the product. Do not touch it when the product is working; please install the front pole, alloy wire and correct circuit before installing the solar charger. Do not

install the solar charger with power on.

(3). Never Install Electric Fences During Thunderstorms.
(4). Please read this manual before installation and use, familiarize yourself with the correct use of this product and standardize the oper otherwise all the consequences will be borne by the user.
(5). The manufacturer's packaging pattern may change without notice, the store pictures will be updated as much as possible to ensure the product types.

CORRECT DISPOSAL

This product is subject to the provision of European Direct 2012/19/EU. The symbol showing a wheelie bin crossed that indicates that the product requires separate refuse collection. European Union. This applies to the product and all access marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken in collection point for recycling electrical and electronic device.

FCC INFORMATION

CAUTIONS: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits of Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
