UY360-HF1220 - Battery charger Vevor - Free user manual and instructions

Product type	Battery charger
Brand	Vevor
Model	UY360-HF1220
Power supply	220-240 VAC, 50 Hz
Charging voltage	14.6 V
Charging current	20 A ±5%
Efficiency	≥ 80%
Input current (type)	2.7 A / 230 VAC
Ripple voltage	≤ 2 % of VOUT_MAX
Leakage current	<0.75 mA
Charging technology	CPU control and PFM, 3-phase charging (CC, CV, float)
LED indicators	LED1 red, LED2 white: standby/full (red+green), charging (red+red)
Protection	Thermal, reverse polarity, output fuse
Included accessories	Adapter cable, power cord, fuse tube (2), instruction manual
Maintenance	Clean vents and fan, wipe housing with alcohol-soaked cloth
Safety	Do not cover, keep out of reach of children, use in ventilated area, do not disassemble
Reparability	Return to dealer for repair; do not open yourself (high voltage)
Compliance	FCC Part 15, European Directive 2012/19/EC (WEEE)

Frequently Asked Questions - UY360-HF1220 Vevor

How to connect the charger to the battery?

Before use, check the battery specifications. Connect the positive ring terminal of the charger to the positive terminal of the battery, and the negative terminal to the negative terminal. Then plug the charger into a power outlet.

What do the LED indicators mean?

LED1 red, LED2 white. If both LEDs are red, the charger is charging. If LED1 is red and LED2 is green, the charger is in standby or the battery is full.

The charger does not turn on, what should I do?

Check that the power cord is properly plugged in. If the output fuse is blown, replace it with a fuse of the same type and specifications. If the problem persists, contact your dealer.

What type of battery can I charge?

This charger is designed for 12 V lead-acid batteries (charging voltage 14.6 V). Ensure that the voltage and capacity of the battery match the charger specifications.

Can I leave the charger plugged in permanently?

It is not recommended to leave the charger plugged in unattended. Once the battery is full, the charger switches to float mode, but for safety reasons, unplug it after use.

How to maintain the charger?

Regularly clean dust from the vents and fan with an alcohol-soaked cloth. Do not use the charger in a humid or high-temperature environment.

What to do if the charger overheats?

The charger has thermal protection. If it overheats, it goes into standby. Let it cool in a ventilated area; it will resume operation automatically.

Can I use this charger with a frozen or damaged battery?

No, never attempt to charge a frozen or damaged battery, as this could cause an explosion. Use only batteries in good condition and compatible.

Is the charger compatible with 110 V voltage?

No, the model UY360-HF1220 is designed for an input voltage of 220-240 VAC. For 110 V use, refer to model UY360-LF1220.

How to replace the output fuse?

Disconnect the charger from the battery and the mains. Open the fuse holder and replace the blown fuse with a fuse of the same type (see the manual for exact specification). Close the fuse holder.

USER MANUAL UY360-HF1220 Vevor

LIFEPO4 BATTERY CHARGER

MODEL: UY240-LF1210 / UY240-HF1210

/ UY360-LF1220 / UY360-HF1220

MODEL: UY240-LF1210 / UY240-HF1210 / UY360-LF1220 / UY360-HF1220

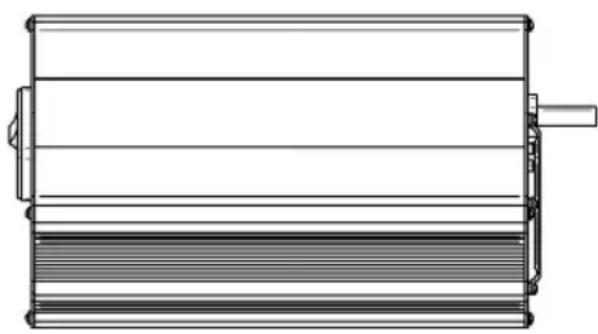

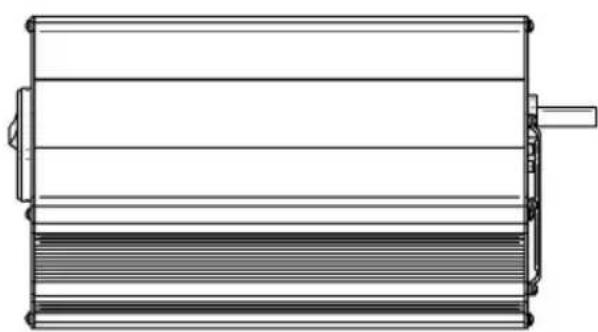

UY240-LF1210 / UY240-HF1210

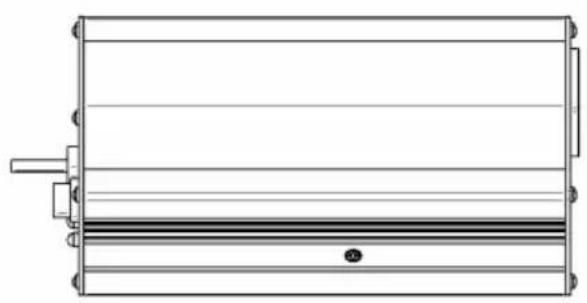

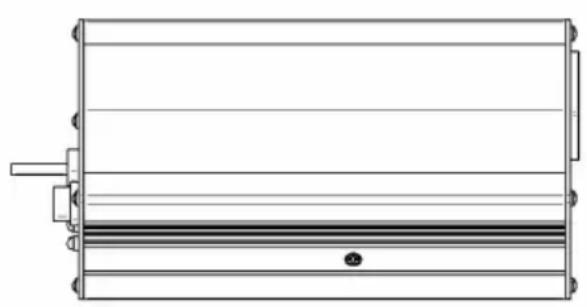

UY360-LF1220 / UY360-HF1220

(Visuals are for reference only. Product may differ)

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

WARNING

This Operating Manual covers information on safety and cautions. Please read it carefully before charging.

1. READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING THIS PRODUCT. Failure to follow these safety instructions may result in ELECTRICAL SHOCK, EXPLOSION, FIRE, which may result in SERIOUS INJURY, DEATH, or PROPERTY DAMAGE.
2. Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not cut power cords. Do not submerge in water or get wet.
3. Explosion. Unmanned monitoring, incompatible, or damaged batteries can explode if used with product. Do not leave product unattended while in use. Do not attempt to jump start a damaged or frozen battery. Use only with batteries of recommended voltage. Operate product in well-ventilated areas.
4. Fire. Product is an electrical device that emits heat and is capable of causing burns. Do not cover the product. Do not smoke or use any source of electrical spark or fire when operating the product. Keep the product away from combustible materials.
5. The plug must be plugged into a grounded outlet for use.

OVERVIEW

With CPU control and PFM technology, the charger has advantages such as high efficiency, good stability, low-carbon and energy-saving.

Three-section charging mode ---- Controlling the charging current and voltage automatically and precisely, both ensure that the battery is charged fully, and not overcharged. Your battery life will be protected.

LED INDICATOR

	LED1 (Red color)	LED2 (White color)	Charger state
LED Status	RED	GREEN	Standby or Full
	RED	RED	Charging

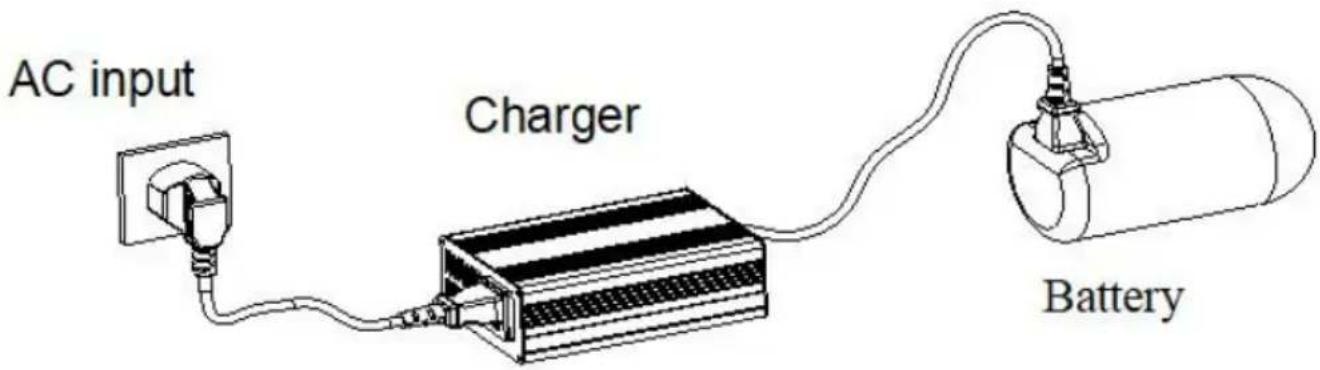

HOW TO CONNECT

1. Before using, please check the battery specification carefully, ensure that the battery matches the charge mode.
2. Connect the ring terminal of the charger to the batteries, positive to positive, negative to negative.
3. Plug the AC plug into the grid power.

ELECTRONIC CHARACTERISTICS

Item		UY240-LF1210	UY240-HF1210
Output	Charge voltage	14.6V	14.6V
	Charge current	10A ±5%
	Voltage fluctuation	±0.3V
	Ripple voltage	≤2%VOUTMAX
Input	Voltage Range	100-120VAC	220-240VAC
	Frequency range	60Hz	50Hz
	Efficiency	≥80%
	Input current(type)	2.3A/115Vac	1.4A/230Vac
	Vomit (type)	COLD START ≤50A at 230VAC
	Leakage Current	<0.75mA
Item		UY360-LF1220	UY360-HF1220
Output	Charge voltage	14.6V	14.6V
	Charge current	20A ±5%
	Voltage fluctuation	±0.3V
	Ripple voltage	≤2%VOUTMAX
Input	Voltage Range	100-120VAC	220-240VAC
	Frequency range	60Hz	50Hz
	Efficiency	≥80%
	Input current(type)	4.6A/115Vac	2.7A/230Vac
	Vomit (type)	COLD START ≤50A at 230VAC
	Leakage Current	<0.75mA

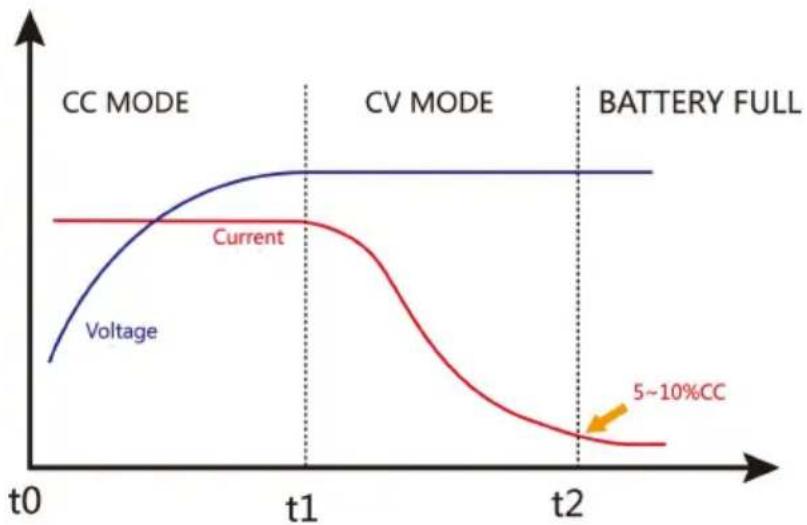

CHARGE CURVE

1. T0 Constant Current (CC) Stage: The charger delivers maximum output current for rapid charging. The stage automatically terminates when battery voltage reaches the maximum charging voltage.

2. T1 Constant Voltage (CV) Stage: The charger maintains output voltage at full-charge level while charging current gradually decreases. Charging completes when current drops to 5% - 10% of maximum value, at which point the battery is determined as fully charged.

MAINTENANCE

WARNING: Before carrying out the following operations, make sure the charger is disconnected from the battery and the power supply.

1. Routine maintenance
2. Regularly clean dust from the vents and fan to ensure proper heat dissipation of the charger.
3. Periodically wipe the case with a cloth moistened with a little alcohol.
4. Do not use or store the charger in a humid or high-temperature environment.

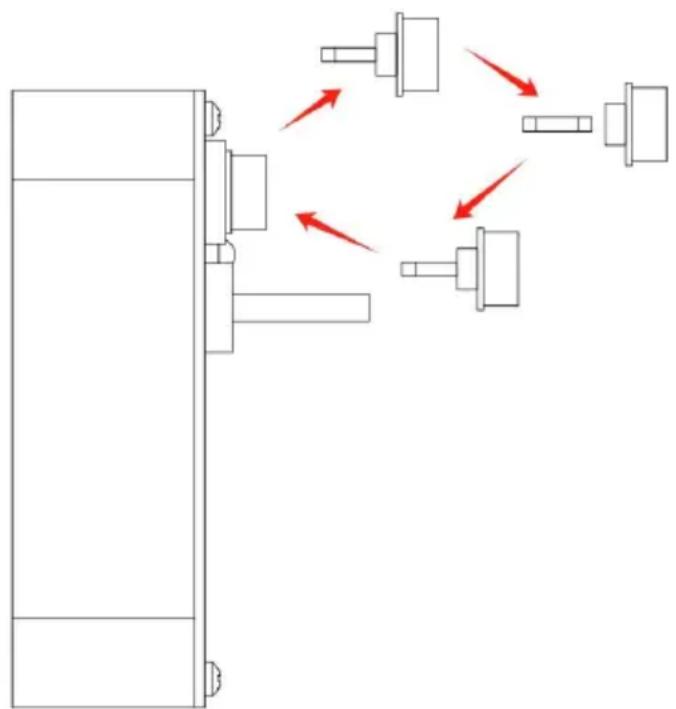

5. Replacing the fuse

If the charger fails to charge, check whether the output fuse is blown. Replace it with a fuse of the same type and rating as specified, and ensure it is securely seated in the holder.

PRECAUTIONS

1. Do not cover the charger or its air intakes during charging.
2. Place the charger out of reach of children.
3. Please charge in an indoor area with good ventilation and heat dissipation. Charging is prohibited in humid, high-temperature, or flammable/explosive gas environments.

High voltage is present inside the charger case. Do not disassemble it without authorization.

1. The manufacturer shall not be liable for any losses caused by failure to operate the device in accordance with the instruction manual.
2. If the circuit breaker trips while using the charger, please turn off other electrical appliances.
3. Due to line voltage drop, the charging current begins to decrease as it approaches the maximum charge voltage.
4. When not charging or after charging is complete, be sure to unplug the DC terminal and the AC terminal.

COMMON FAULTS AND HANDLING METHODS

Phenomenon	Cause	Solution
After connecting charger and battery, charger can not work or, LED2 shows green	Connecting reverse, output fuse blow.	Please replace the fuse, ar then connect charger and battery correctly.
	Connecting reverse, relay has no action.
Battery isn't charged fully, but LED2 flashe between red and green.	Charger and battery is disconnected.	Reconnect charger and battery.
	Charger overheating, into thermal protection mode and standby.	Cooling charger, Charger ca auto-resume to work when temperature cool down.
After connect charger to AC power, charger can not work, and tw LED1 don't light.	Plug loose, charger does not connect to AC power.	Reconnect the AC wire, an make sure that is OK.
	Charger has damaged	Send charger back to local dealer for repair. There is high-voltage inside charger, please don't open the charger personally.
Model	Accessories list
UY240-LF1210	Adapter cable * 1Power cord * 1Insurance tube * 2Instruction manual * 1
UY240-HF1210
UY360-LF1220
UY360-HF1220
