LIFEPO4 BATTERY CHARGER
MODEL:UY240-LF1210 / UY240-HF1210
/ UY360-LF1220 / UY360-HF1220
MODEL:UY240-LF1210 / UY240-HF1210 / UY360-LF1220 / UY360-HF1220


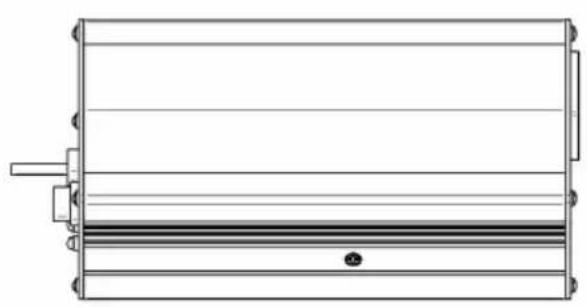

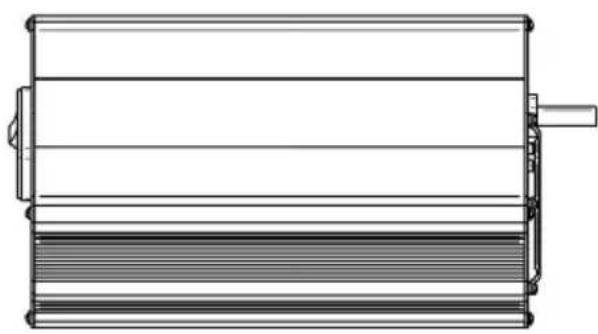

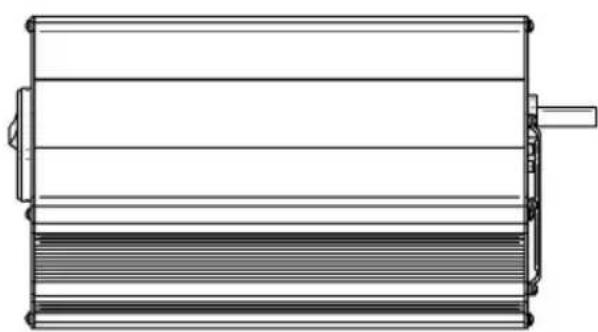

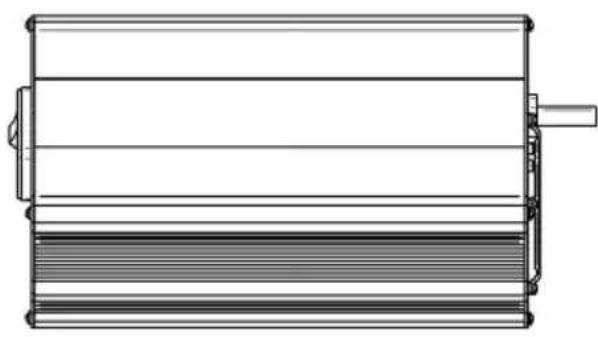

Technical line drawing of a rectangular mechanical component with mounting holes and a central striped band (no text or symbols)UY240-LF1210/UY240-HF1210


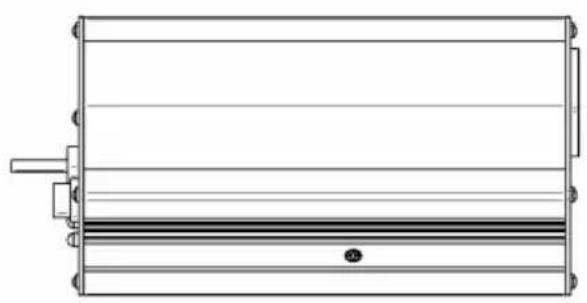

Technical line drawing of a cylindrical mechanical component with no visible text or symbolsUY360-LF1220/UY360-HF1220
(Visuals are for reference only. Product may differ)
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
 | Warning-To reduce the risk of injury, user must read instructi manual carefully. |
 | This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper |
 | This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices |
WARNING
This Operating Manual covers information on safety and cautions. Please read it carefully before charging.
- READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING THIS PRODUCT. Failure to follow these safety instructions may result in ELECTRICAL SHOCK, EXPLOSION, FIRE, which may result SERIOUS INJURY, DEATH, or PROPERTY DAMAGE.
- Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not cut power cords. Do not submerge in wet get wet.
-
Explosion. Unmanned monitoring, incompatible, or damaged batteries can explode if used with product. Do not leave product unattended w use. Do not attempt to jump start a damaged or frozen battery. Use only with batteries of recommended voltage. Operate product in well ventilated areas.
-
Fire. Product is an electrical device that emits heat and is capable causing burns. Do not cover product. Do not smoke or use any source electrical spark or fire when operating product. Keep product away from combustible materials.
- The plug must be plugged into a grounded outlet for use.
OVERVIEW
With CPU control and PFM technology, the charger has the advantage like high efficiency, good stability, low-carbon and energy-saving.
Three-section charging mode ---- Controlling the charging current and voltage automatically and precisely, both ensure that battery is charged fully, and not over charged. Your battery life will be protected.
LED INDICATOR
| LED1 (Red color) | LED2 (White color) | Charger state | |
| LED Status | RED | GREEN | Standby or Full |
| RED | RED | Charging |
HOW TO CONNECT


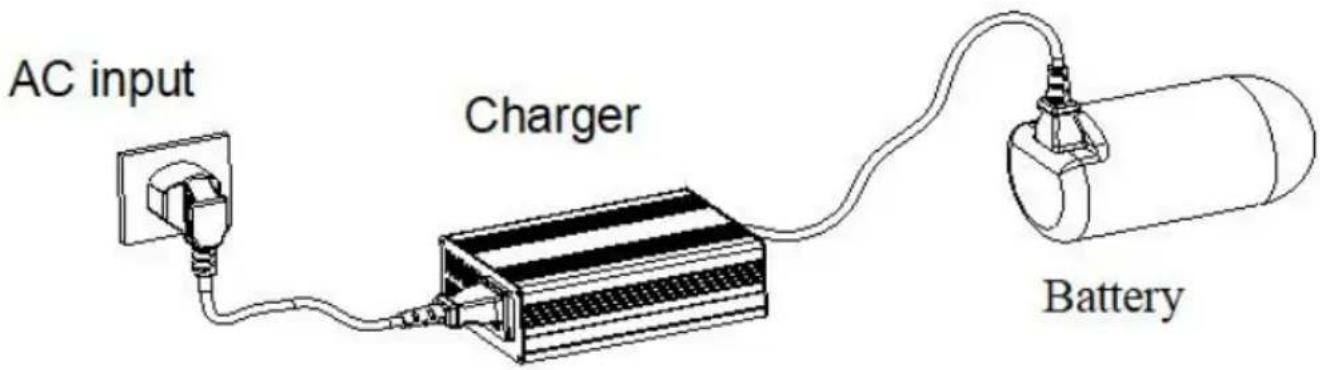

AC input Charger Battery- Before using, please check the battery specification carefully, ensure that the battery matches the charge mode.
- Connect the ring terminal of the charger to the batteries, positive to positive, negative to negative.
- Plug the AC plug to the grid power.
ELECTRONIC CHARACTERISTICS
| Item | UY240-LF1210 | UY240-HF1210 | |
| Output | Charge voltage | 14.6V | 14.6V |
| Charge current | 10A ±5% | ||
| Voltage fluctuation | ±0.3V | ||
| Ripple voltage | ≤2% VOUT_MAX | ||
| Input | Voltage Range | 100-120VAC | 220-240VAC |
| Frequency range | 60Hz | 50Hz | |
| Efficiency | ≥80% | ||
| Input current(type) | 2.3A/115Vac | 1.4A/230Vac | |
| Vomit (type) | COLD START ≤50A at 230VAC | ||
| Leakage Current | <0.75mA | ||
| Item | UY360-LF1220 | UY360-HF1220 | |
| Output | Charge voltage | 14.6V | 14.6V |
| Charge current | 20A ±5% | ||
| Voltage fluctuation | ±0.3V | ||
| Ripple voltage | ≤2%VOUTMAX | ||
| Input | Voltage Range | 100-120VAC | 220-240VAC |
| Frequency range | 60Hz | 50Hz | |
| Efficiency | ≥80% | ||
| Input current(type) | 4.6A/115Vac | 2.7A/230Vac | |
| Vomit (type) | COLD START ≤50A at 230VAC | ||
| Leakage Current | <0.75mA | ||
CHARGE CURVE
line

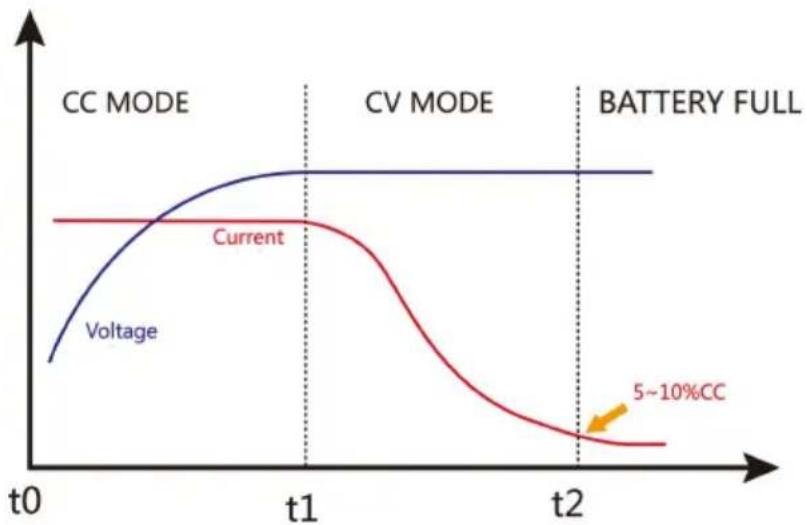

| Time | Voltage (Current) | Voltage (CC MODE) | |------|-------------------|-------------------| | t0 | 5 |- T0 Constant Current (CC) Stage: The charger delivers maximum output current for rapid charging. The stage automatically terminates when battery voltage reaches the maximum charging voltage.
2.T1 Constant Voltage (CV) Stage: The charger maintains output voltage at full-charge level while charging current gradually decreases. Charging completes when current drops to 5% - 10% of maximum value, at which point the battery determined as fully charged.
3.T2 Battery Full Stage:Low-current trickle charges battery.
MAINTENANCE
WARNING: Before conducting the following operations, make sure the charger is disconnected with the battery and power connection.
-
Routine maintenance
-
Clear dust on vents and fan regularly, to ensure the charger has heat dissipation.
- Periodically wipe the case with a cloth with some alcohol.
-
Do not use or store the charger in a place of humidity or high temperature.
-
Replace the fuse

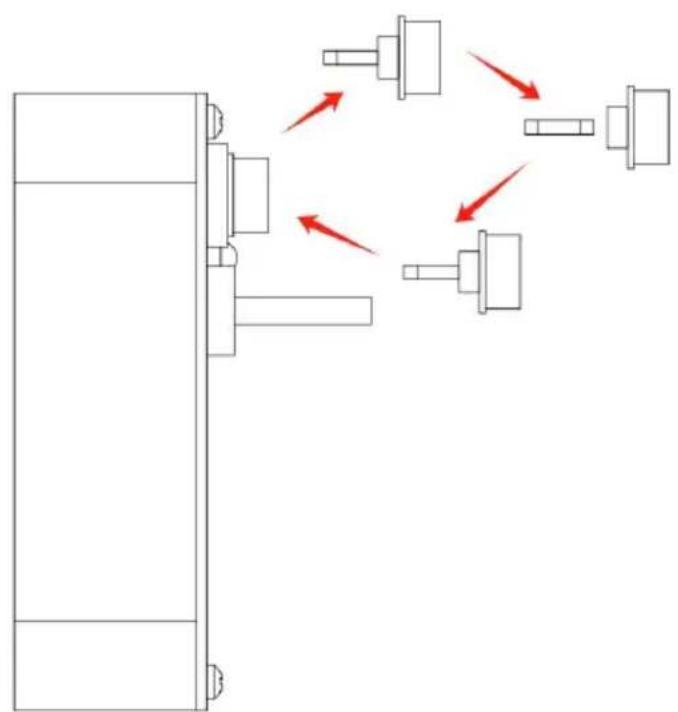

If charger can not charge, please confirm whether the output fuse is out or not. Install the replacement fuse with the identical type and specification as follows and make sure the fuse is fixed firmly in the holder.
MATTERS NEED ATTENTION
- Don't cover the charger or intake during charging.
- The charger should be placed where children could not touch.
- Please charging in indoor area where good ventilation and heat dissipation is. Prohibited charging where is humid, high temperature or flammable, explosive gas surrounding.
It's danger of high voltage in charger case please do not disassemble unauthorized.
-
The losses caused by not operating according to the instruction made operation, manufacturer does not bear any responsibility.
-
If the circuit breaker trips while using charger, please turn off other electrical appliances.
-
Due to line voltage drop, the charging current begins to decrease a approaches the maximum charge voltage.
-
No charging or after charging complete, be sure to unplug the DC terminal and the AC terminal.
COMMON FAULTS AND HANDLING METHODS
| Phenomenon | Cause | Solution |
| After connecting charger and battery, charger can not work or, LED2 shows green | Connecting reverse, output fuse blow. | Please replace the fuse, ar then connect charger and battery correctly. |
| Connecting reverse, relay has no action. | ||
| Battery isn't charged fully, but LED2 flashe between red and green. | Charger and battery is disconnected. | Reconnect charger and battery. |
| Charger overheating, into thermal protection mode and standby. | Cooling charger, Charger ca auto-resume to work when temperature cool down. | |
| After connect charger to AC power, charger can not work, and tw LED1 don't light. | Plug loose, charger does not connect to AC power. | Reconnect the AC wire, an make sure that is OK. |
| Charger has damaged | Send charger back to local dealer for repair. There is high-voltage inside charger, please don't open the charger personally. | |
| Model | Accessories list | |
| UY240-LF1210 | Adapter cable * 1Power cord * 1Insurance tube * 2Instruction manual * 1 | |
| UY240-HF1210 | ||
| UY360-LF1220 | ||
| UY360-HF1220 | ||
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
| EC | REP |
