TR-GTB-013 - Car accessory Vevor - Free user manual and instructions

Product Type	Truck Running Boards
Brand	Vevor
Model	TR-GTB-013
Material	Steel
Color	Black
Load Capacity	150 kg
Dimensions (approx.)	Length 60-90 cm, width 20-30 cm
Weight (approx.)	5-8 kg per pair
Package Contents	2 running board bars, 6 mounting brackets, 12 bolt plates, M8/M6 bolts, washers, nuts, 2 pairs of gloves
Installation	Uses factory threaded holes or inserts, bolt-on attachment
Maintenance	Periodically check tightness of fasteners
Use	Side mounting on truck, step for access
Country of Manufacture	China
Certifications	CE, UKCA
Warranty	1 year (technical support via www.vevor.com/support)
Repairability	Spare parts available (bolts, brackets)
Safety Instructions	Professional installation recommended, regular tightening check

Frequently Asked Questions - TR-GTB-013 Vevor

What type of vehicle is compatible with the Vevor TR-GTB-013 running board?

This running board is designed for trucks and SUVs. It fits most models using factory threaded holes or inserts. Check if your vehicle has M8 or M6 mounting points.

Are the running boards delivered with all mounting hardware?

Yes, the kit includes: 2 running board bars, 6 mounting brackets, M8 and M6 hex bolts, flat and lock washers, hex nuts, bolt plates, and 2 pairs of gloves.

Is it necessary to drill holes for installation?

No, this running board uses the vehicle's existing threaded holes. If your truck does not have threaded inserts, the kit provides bolt plates for attachment from inside the rocker panel.

What is the maximum load capacity of these running boards?

The load capacity is about 150 kg, which is sufficient for normal use. Do not exceed this limit and do not step on the edges.

How to maintain the Vevor TR-GTB-013 running boards?

Regularly inspect the fasteners and retighten bolts if necessary. Clean dirt and debris around mounting points. In case of corrosion, treat with a rust-proofing product.

Are the running boards rust-resistant?

They are made of steel with a black coating, offering moderate corrosion resistance. For maximum durability, avoid prolonged exposure to salt water and apply rust treatment if needed.

Can I install these running boards myself?

Professional installation is recommended, but an experienced DIYer can do it. Carefully follow the instructions, use appropriate tools, and check torque: 15 ft-lb for M8 bolts, 6 ft-lb for M6.

What is the step-by-step mounting procedure?

1. Clean the mounting points. 2. Attach brackets to the rocker panel with bolt plates or directly. 3. Slide the running board bar onto the brackets. 4. Secure with M8 bolts and washers. 5. Tighten to recommended torque. Repeat on the other side.

Where to find spare parts if needed?

Contact Vevor customer service via www.vevor.com/support. Bolts, washers, and brackets are available separately.

Are these running boards approved for road use?

Yes, they are CE and UKCA certified, ensuring compliance with European and British safety standards.

USER MANUAL TR-GTB-013 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TRUCK RUNNING BOARDS

MODEL:TR-GTB-013

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

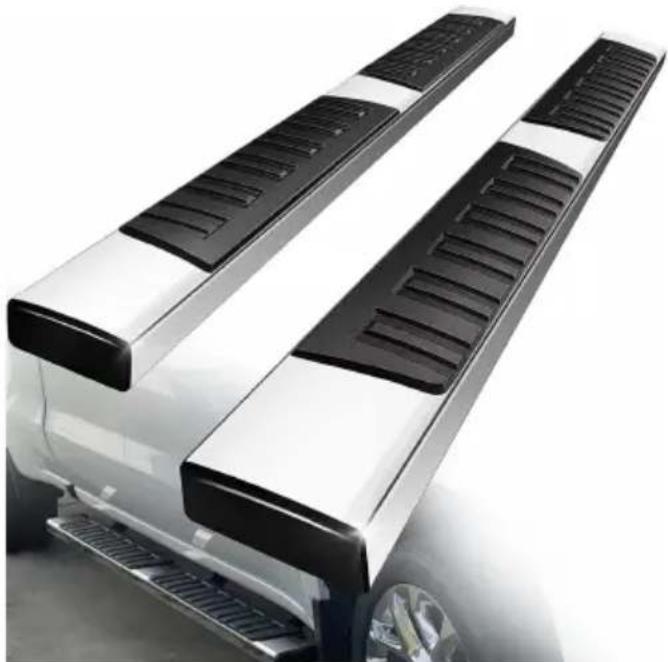

TRUCK RUNNING BOARDS

MODEL:TR-GTB-013

Exterior view of a white pickup truck showing two side slats with black trim and side grilles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Parts List

	Qty.	Description
A	×6	Mounting Bracket
B	×12	M8 Bolt Plate
C	×12	M8 Hexagon Bolt
D	×12	M6 Hexagon Bolt
E	×12	M8 Flat Washer
F	×24	M6 Flat Washer
G	×12	M8 Lock Washer
H	×12	M6 Lock Washer
I	×12	M8 Hexagon Nut
J	×12	M6 Hexagon Nut
K	×2	Glove
Pre-Install on Step Bar
L	×12	M8 Hexagon Bolt
M	×12	M8 Flat Washer

A B C D

E F G H

I J K L

M

CARE AND USE INSTRUCTIONS

1. Before Installation

Read this instruction carefully before starting installation.

Proper tools will improve the quality of installation and reduce the time require. If missing parts or any damage is found, please take a picture and contact

Professional installation would be highly recommended.

Periodic check to ensure all mounting hardware remains secure and tight.

Step1

1. Locate (3) mounting positions each side.
2. Remove the factory tape and clean the sealant and dirt around factory I mounting positions.
3. Clean the factory threaded holes if equi

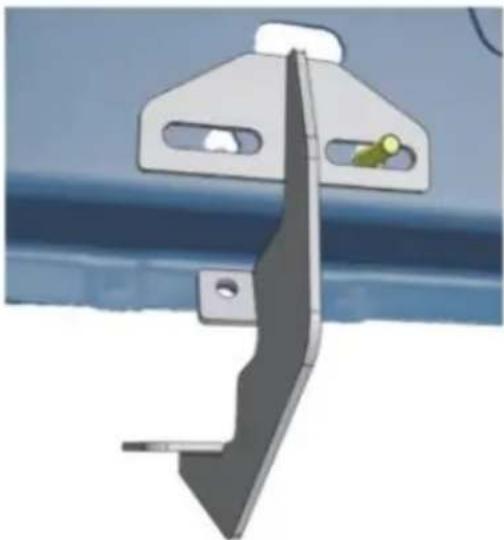

Step2A

For models w/o factory thread inserts

1. Attach the bracket to the inner rocker | align the upper and lower mounting holes.
2. Take the thread of the M8 bolt plate at the flat side into the hexagon holes on the rocker panel.
   3 . Hold the bolt plate and secure the bra

( 1 ) M8 flat washer, ( 1 ) M8 lock washer, ( 1 ) M8 hex nut.

Mechanical component diagram showing a bracket with mounting holes and a green insert, mounted on a blue surface (no text or symbols)

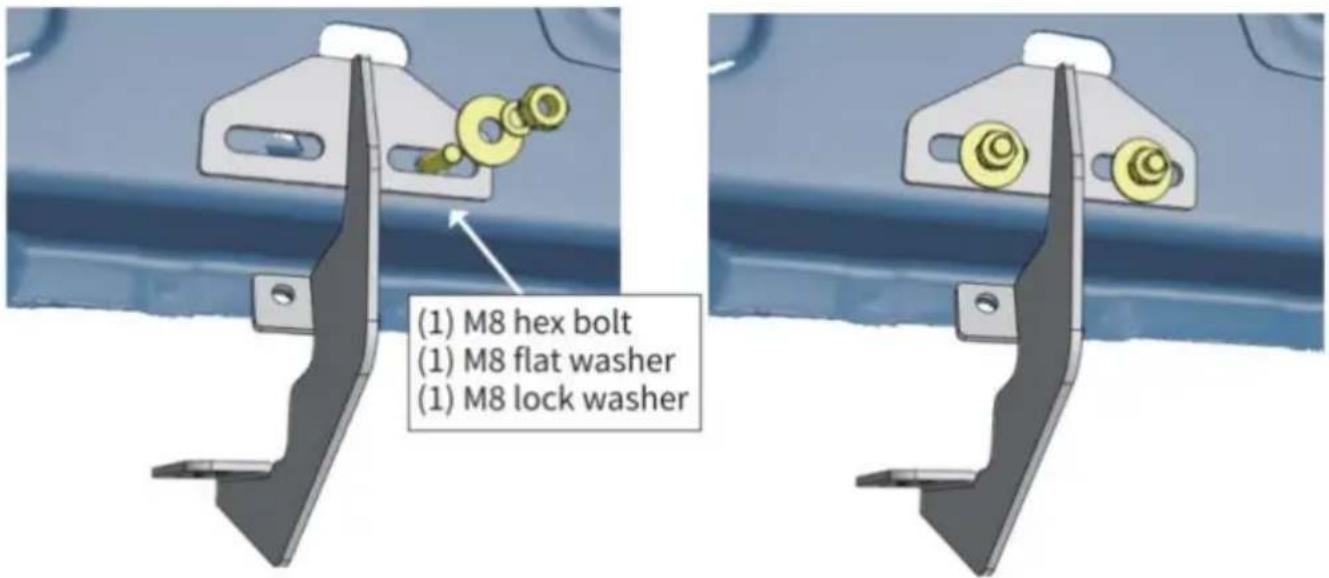

1. Insert another M8 bolt plate into the other hexagon hole and secure the with (1) M8 flat washer, (1) M8 lock washer, (1) M8 hex nut.

(1) M8 hex bolt (1) M8 flat washer (1) M8 lock washer

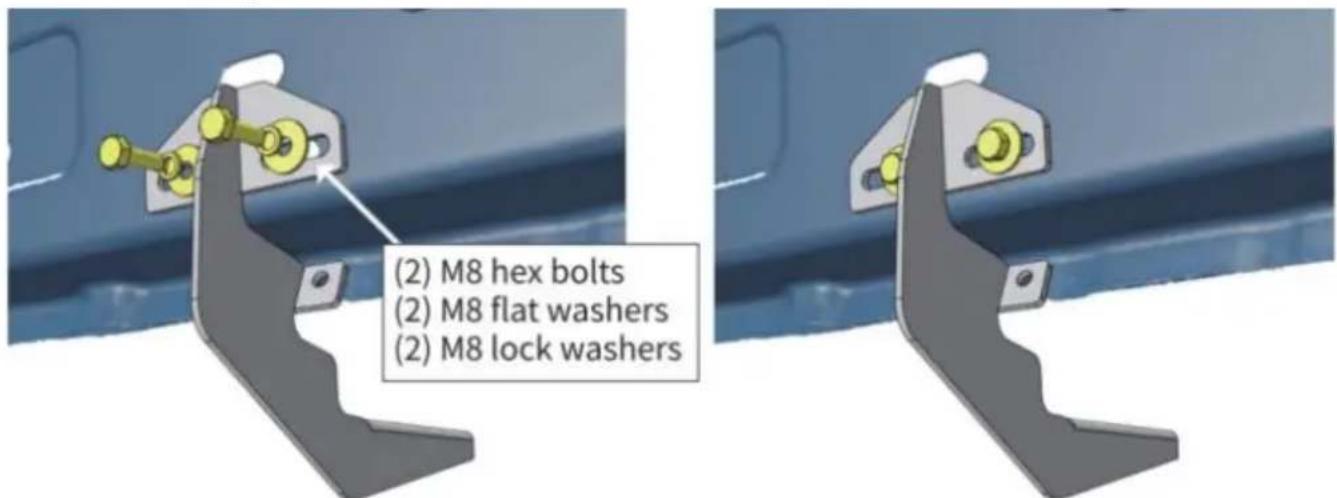

Step2B

For models w/ factory thread inserts

1. For the front and rear mounting positions, attach the bracket to the inner panel.
2. Secure the bracket on rocker panel with ( 2 ) M8 hex bolts, ( 2 ) M8 fla ( 2 ) M8 lock washers .
3. Refer to step 2A to install the center bracket.

(2) M8 hex bolts (2) M8 flat washers (2) M8 lock washers

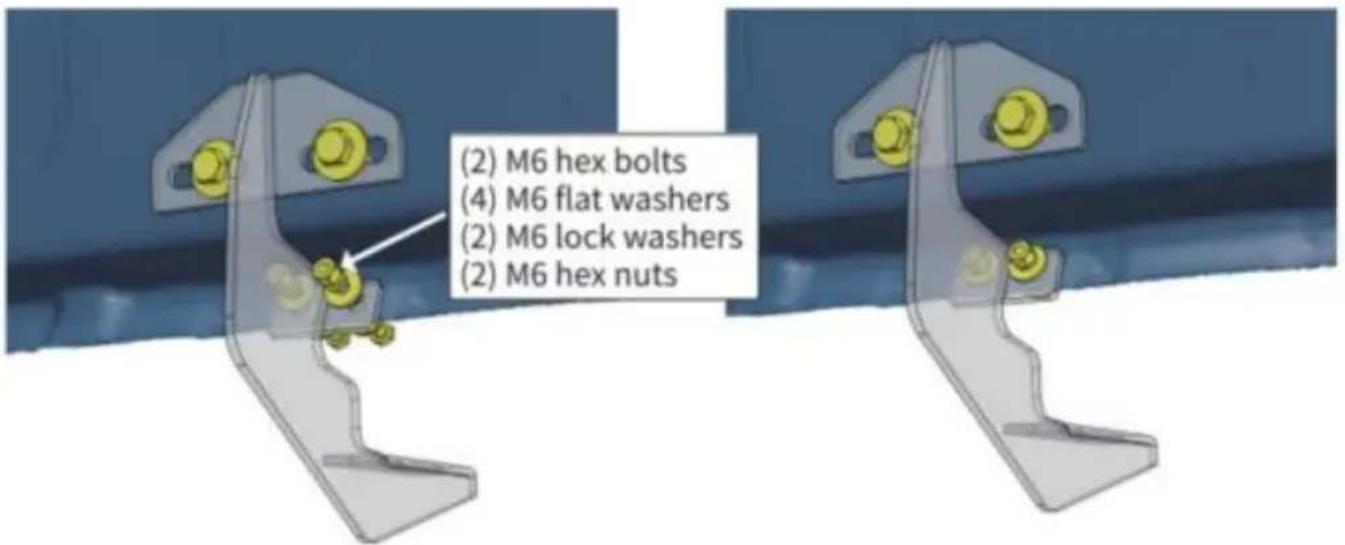

Step3

1. Slide the bracket to line up with the mounting holes on the pinch weld.
2. Secure the bracket to pinch weld with (2) M6 hex bolts, (4) M6 fla (2) M6 lock washers, (2) M6 hex nuts.

(2) M6 hex bolts (4) M6 flat washers (2) M6 lock washers (2) M6 hex nuts

Step4

1. Remove (6) M8 hex bolts and (6) washers underneath the step bar.
2. Slide mounting track to proper positions.
3. With assistance, take the step bar to brace Secure the step bar on brackets with (6) bolts and (6) M8 flat washers.
4. Repeat to install the other side step bar.

Close-up of two yellow mechanical components on a dark surface (no text or symbols visible)

Note :

M8(L) Hexagon Bolt and M8(M) Flat Washer Pre-Install on Step Bar.

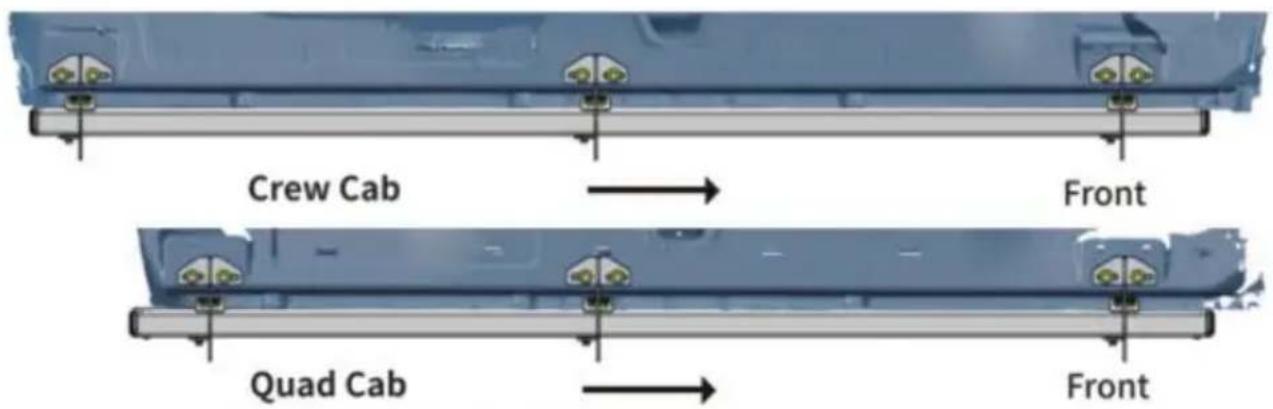

Crew Cab Front Quad Cab Front

Step5

1. Tighten M8 hex bolts and nuts to 15 ft lbs torque.
2. Tighten M6 hex bolts and nuts to 6 ft lbs torque.
3. Repeat the above steps on the passenger side.
