BALL MOUNT HITCHES

MODEL: 2"-DROP6" / 2"-DROP8" / 2"-DROP10" /

2.5"-DROP6" / 2.5"-DROP8" / 2.5"-DROP10"/

TK-2"-DROP6" /TK-2"-DROP8" /TK-2"-DROP10" /

TK-2.5"-DROP6" /TK-2.5"-DROP8"/TK-2.5"-DROP10"

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:2"-DROP6"/2"-DROP8"/2"-DROP10"/2.5"-DROP6"/

2.5"-DROP8" / 2.5"-DROP10"/TK-2"-DROP6" /TK-2"-DROP8"

/TK-2"-DROP10" /TK-2.5"-DROP6" /TK-2.5"-DROP8"/TK-2.5"-DROP10"

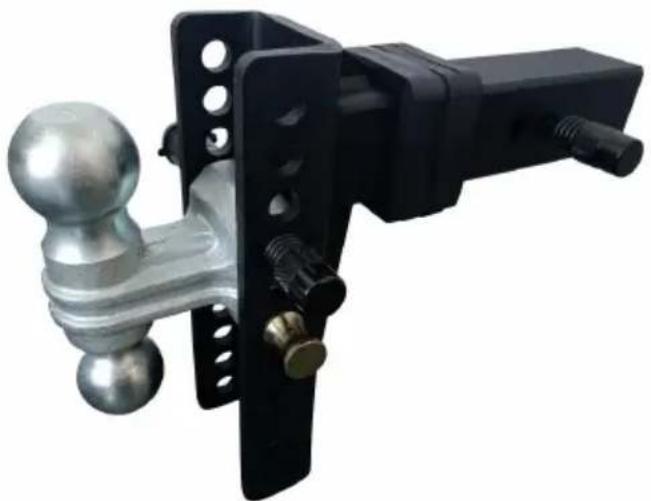

Mechanical clamp device with metallic handle and black frame (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, users must read instructions manual carefully.

WARNING:

1. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of tl towing system it is being used with. The consumer or operator is str advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.
2. Use of any pin other than that of the mount system manufacturer be a serious safety hazard and will void the warranty. Never hook u safety chains to the mounting system.
3. Installing a safety chain between the vehicle and accessories is high recommended.
4. Be aware of the danger of “dynamic loading.” This situation arises a load is dropped onto the product, resulting in an excessive short-te load. Dynamic loading can damage and fail the product and/or the attached accessory and cause personal injury to people nearby.
5. Ensure the safety chains operate freely around the mounting system and do not become entangled.
6. This product is not a toy and cannot be used as a toy for child
7. Remember that the previously discussed warnings cannot cover all possible events and circumstances. The person setting up and using the product must always use common sense.

CAUTION:

1. Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.
2. During their period of use, accessories must be checked for wear, and other damage.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	Receiver Tube	Maximum Drop	Trailer Ball	Max. Gross Trailer WT
2"-DROP6"	2"	6"	2" + 2-5/16"	10000lbs/ 14000lbs
2"-DROP8"	2"	8"
2"-DROP10"	2"	10"
2.5"-DROP6"	2.5"	6"		10000lbs/ 14500lbs
2.5"-DROP8"	2.5"	8"
2.5"-DROP10"	2.5"	10"
TK-2"-DROP6"	2"	6"		12500lbs/ 21500lbs
TK-2"-DROP8"	2"	8"
TK-2"-DROP10"	2"	10"
TK-2.5"-DROP6"	2.5"	6"		15000lbs/ 22000lbs
TK-2.5"-DROP8"	2.5"	8"
TK-2.5"-DROP10"	2.5"	10"

PARTS LIST

Black plastic mechanical component with side grooves and a flat base (no text or symbols visible)

Metal mechanical component with three rounded ends and a central hole (no text or symbols visible)

Two black cylindrical mechanical components with two small accessories (no text or symbols visible)

1 Channel mount x 1 #2 Dual ball x 1 #3 Security lock x 2

4 Plug x 1 #5 Hitch pin x 3 #6 Silencer pad x 4

ASSEMBLY & INSTALLATION

Step 1:

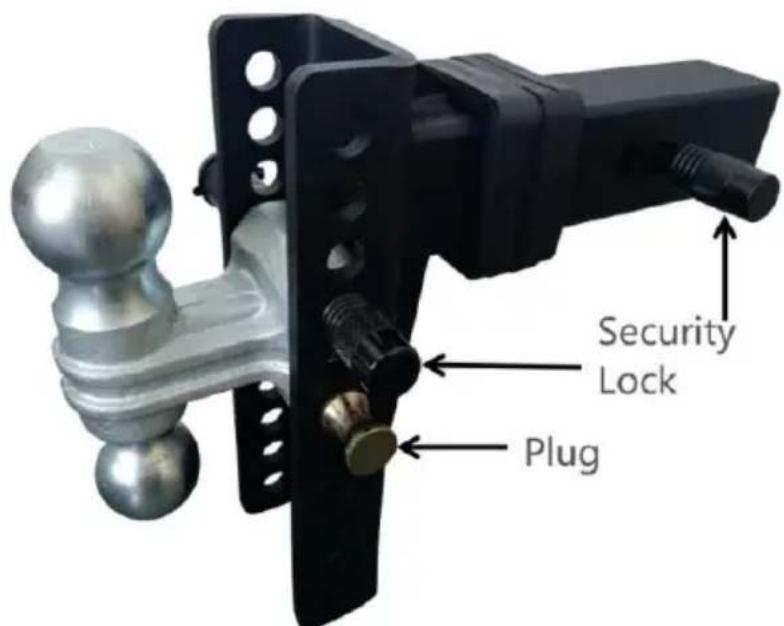

Insert into the Trailer Hitch Begin by installing the channel mount (#1 the trailer hitch receiver. Then, secure it with the hitch pin (#5).

Security Lock Plug

Step 2:

Determine Required Ball Height Determine the proper ball height by leveling the trailer and measuring from the bottom of the trailer tongue the ground. See below.

Rise Drop Receiver Height Coupler Height Level Ground

Find the hole closest to that measurement on the channel mount (#1 top pin of the dual-ball (#2) will go in that hole. Secure all security and plug (#4) with the hitch pins (#5).

INSTALLATION DETAILS

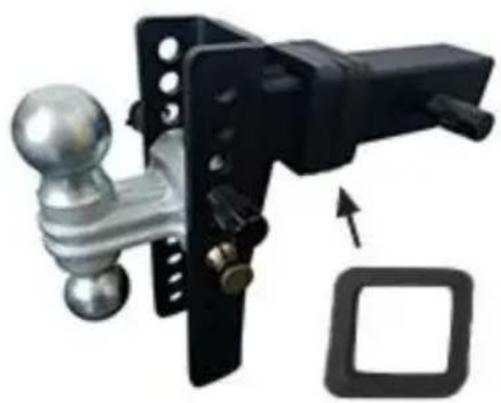

1. A shock-absorbing pad is installed on the back of the dual ball h (installed at the factory and does not need to be installed by the us ensure that the product will not make abnormal noise when the vehic

driving.

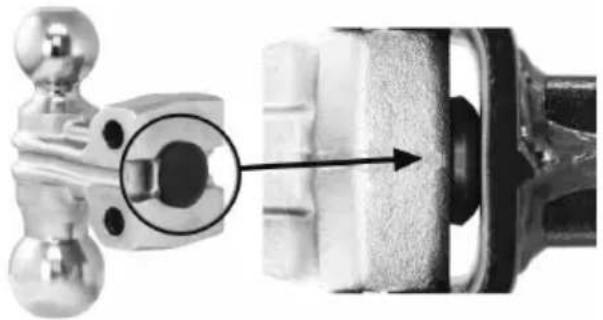

Close-up of a mechanical component with a magnified inset showing a circular feature (no text or symbols visible)

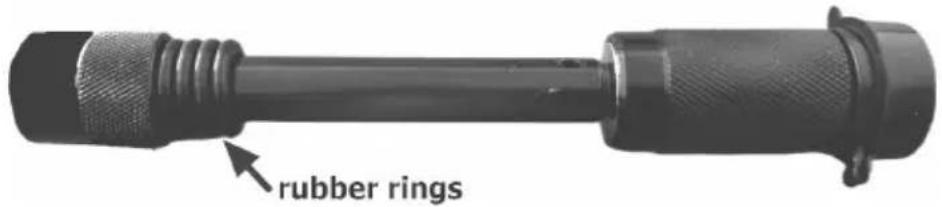

1. To prevent the security lock from shaking after installation, the sec lock is equipped with 4 rubber rings. The installation may not require rubber rings, and some can be removed as needed.

rubber rings

1. There are 4 silencer pads in the accessories; choose the correspo quantity according to the installation needs.

Mechanical component with metallic handle and mounting bracket, showing a close-up of a square component (no text or symbols visible)

MAINTENANCE

1. Check bolts and safety pins regularly. Inspect all equipment for loc worn parts before each use and replace or tighten as needed.
2. Do not overload.
3. Please clean up the product at a time when sand or gravel sticks

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730
