Product Type	Ball hitch (adjustable drop hitch mounting system)
Brand	Vevor
Model	AL-2-DROP8
Maximum Towing Capacity	8,000 lb (3,629 kg) with 1-7/8 in ball 10,000 lb (4,536 kg) with 2 in ball 15,000 lb (6,804 kg) with 2-5/16 in ball
Drop/Rise Height	8 inches (203 mm)
Included Ball Sizes	1-7/8 in, 2 in, and 2-5/16 in (interchangeable)
Compatible Receiver Size	2 inches
Material	Aluminum alloy
Color	Silver
Dimensions (approx.)	Width: 7.87 in (200 mm) Drop Height: 8 in (203 mm) Pin Hole Diameter: 0.67 in (17 mm)
Main Features	Adjustable rotation for alignment; anti-theft design with quick removal of ball; noise reduction via rubber rings
Maintenance and Cleaning	Clean after use to remove sand or gravel; regularly check bolts and safety pins; replace worn parts
Safety	Do not exceed vehicle's towing capacity; use safety chains; never use non-manufacturer pin; inspect before each use
Spare Parts and Repairability	Interchangeable trailer balls available; trailer pins and locks; contact Vevor support for parts
General Information	Electronic warranty and technical support at www.vevor.com/support; made in China; imported by Sanven Technology (USA)

Frequently Asked Questions - AL-2-DROP8 Vevor

What is the maximum towing capacity of the AL-2-DROP8 model?

The capacity depends on the ball used: with the 1-7/8 in ball, the maximum gross trailer weight is 8,000 lb; with the 2 in ball, it is 10,000 lb; with the 2-5/16 in ball, it is 15,000 lb. Never exceed the capacity recommended by your vehicle manufacturer.

What ball sizes are included with the hitch?

The AL-2-DROP8 model comes with three interchangeable balls: 1-7/8 in, 2 in, and 2-5/16 in. They can be changed quickly thanks to the quick-release design.

How do I install the mounting system?

Installation is done in several steps: 1) Install the ball mount into the receiver. 2) Insert the chosen ball. 3) Tighten the bolt by hand then with a tool. 4) Adjust the desired height and secure with the trailer lock. Refer to the manual for complete details.

How do I change the trailer ball?

To change the ball, remove the safety lock, loosen the center bolt, then rotate the ball to remove it. You can then insert another ball and tighten again. For the 2 in and 2-5/16 in balls, simply flip the entire assembly without disassembling the individual balls.

Is this model compatible with a 2-inch receiver?

Yes, the AL-2-DROP8 model is designed to fit a 2-inch receiver. Make sure your vehicle is equipped with this type of receiver before installation.

What safety precautions should I take?

Never exceed the maximum towing capacity. Always use safety chains between the vehicle and trailer. Regularly check bolts and pins. Do not use any pin other than the manufacturer's. Inspect the equipment before each use for cracks or wear.

How do I maintain the hitch?

Clean the product after each use to remove sand, gravel, or dirt. Regularly check bolts and safety pins. Replace any worn or damaged parts immediately. Lubricate moving parts if necessary.

What if I lose a safety pin?

Use only a Vevor manufacturer safety pin. Using a non-matching pin can be dangerous and void the warranty. Contact Vevor support for a replacement part or check the product page online.

Can I use this hitch for boat trailers?

Yes, the AL-2-DROP8 hitch is suitable for boat trailers, as long as the maximum towing capacity is respected and the correct ball for the trailer is used. Also ensure that safety chains are properly installed.

Where can I find the full manual?

The full manual is available for free download in PDF format on notice-facile.com. You can also contact Vevor technical support via www.vevor.com/support for assistance or a copy of the manual.

USER MANUAL AL-2-DROP8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

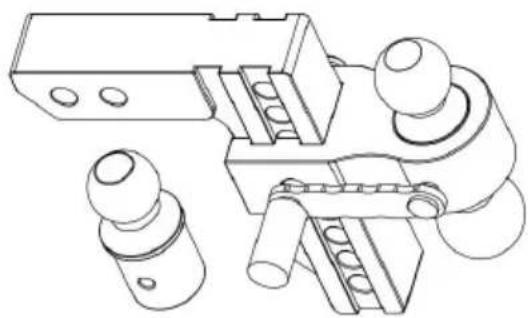

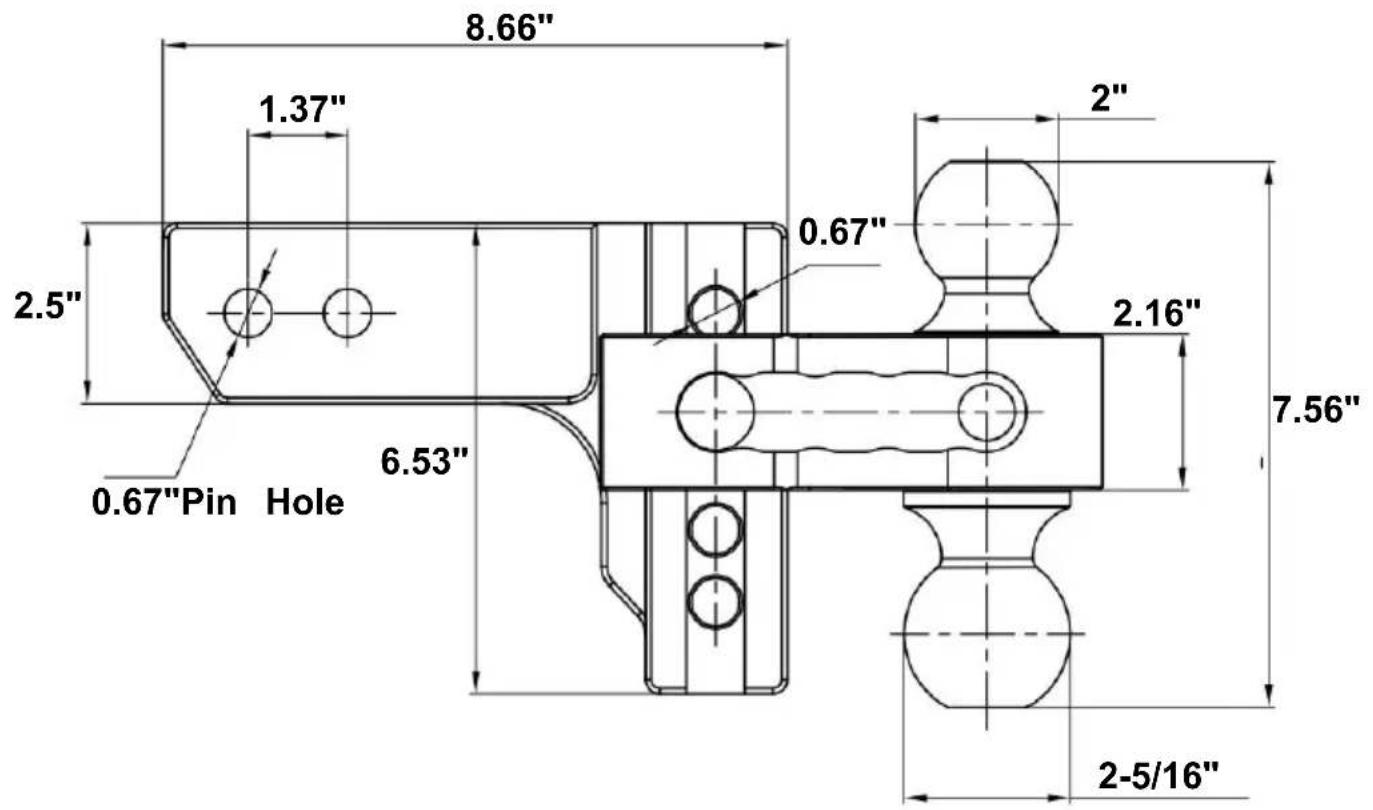

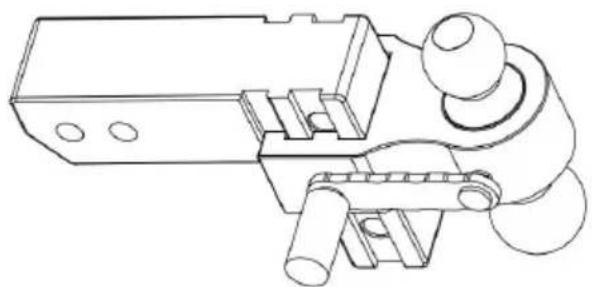

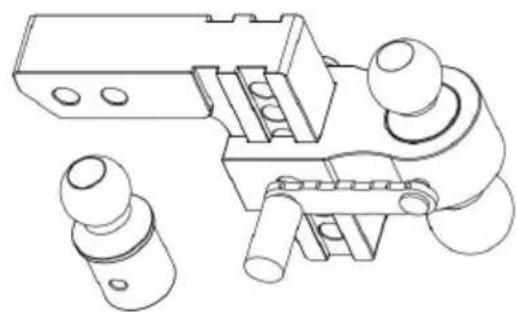

BALL MOUNT HITCHES

MODEL: AL-2-DROP6"

AL-2-DROP8"

AL-2.5-DROP4"

AL-2.5-DROP8"

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

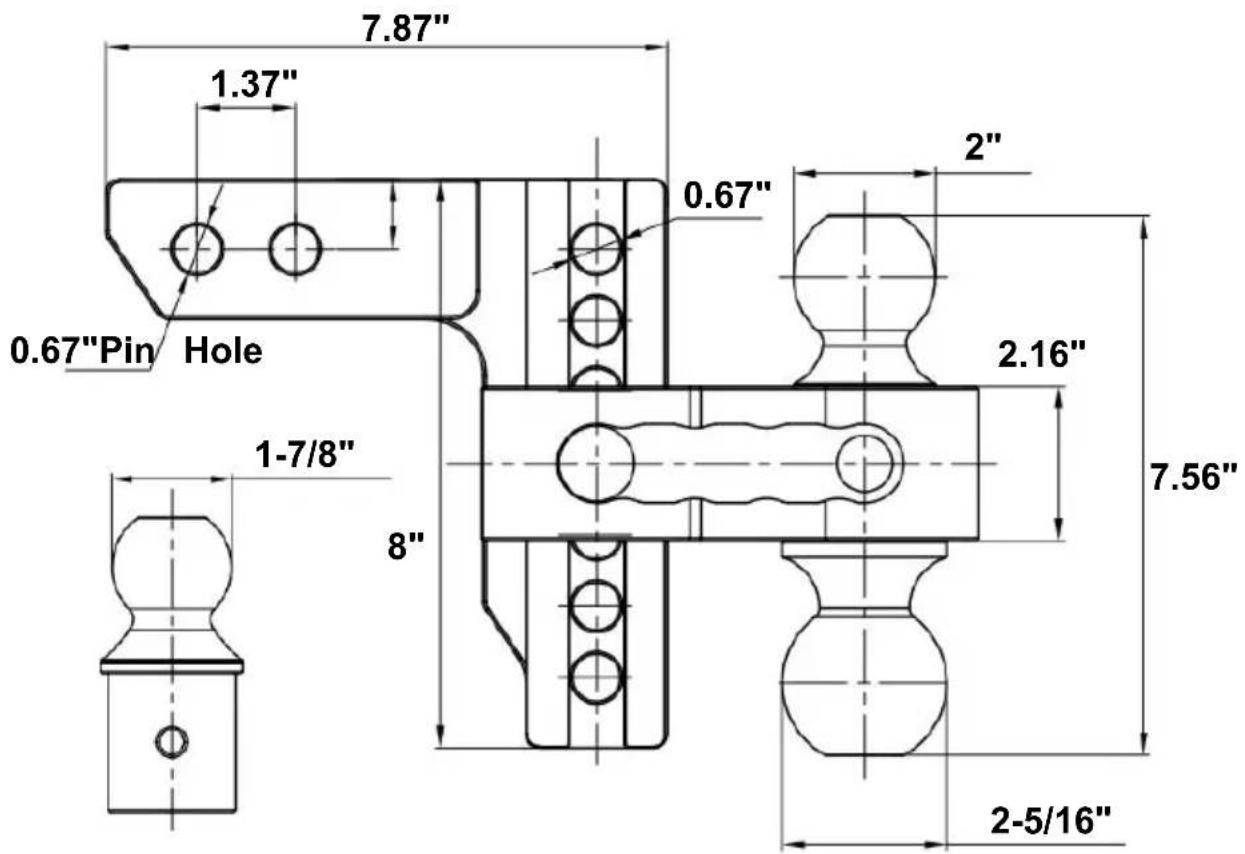

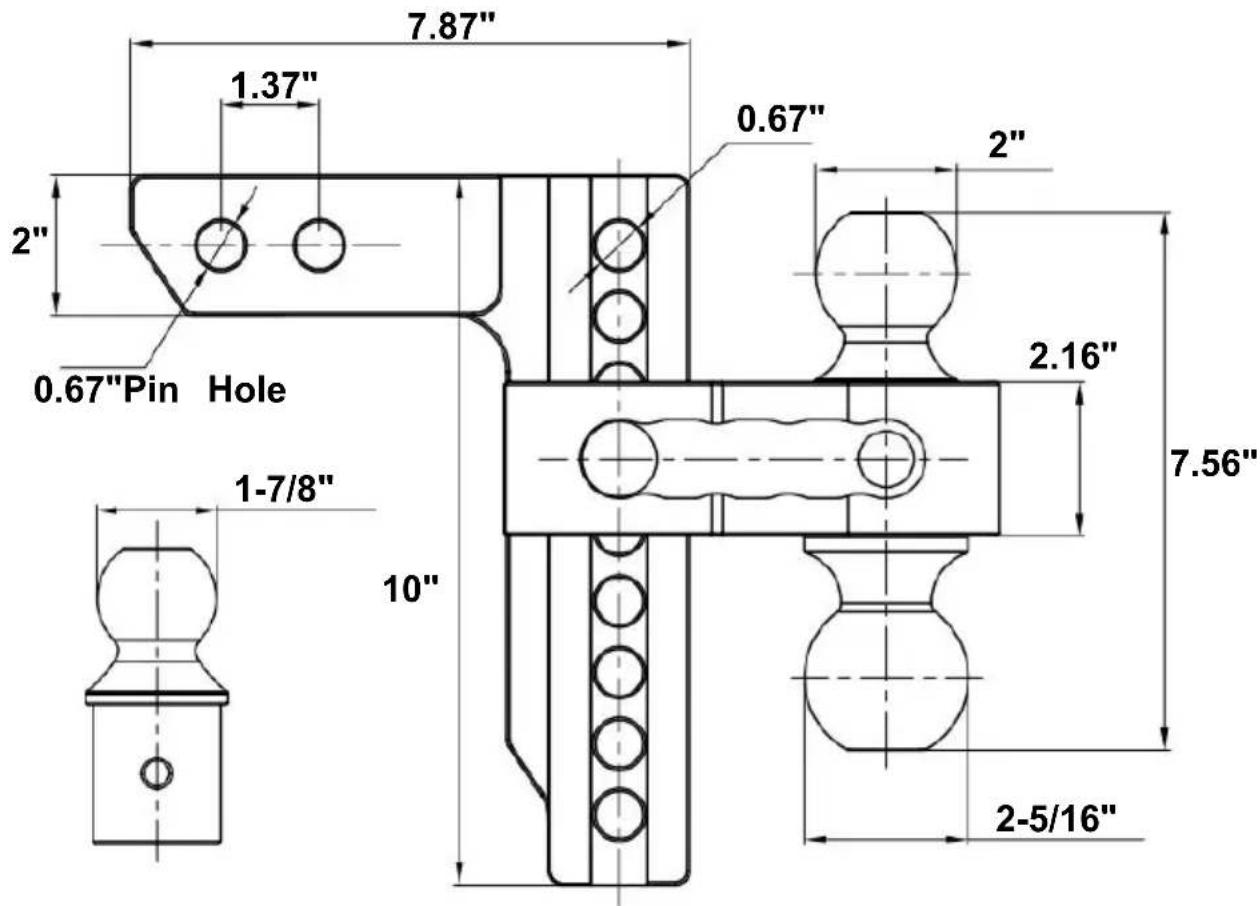

BALL MOUNT HITCHES

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

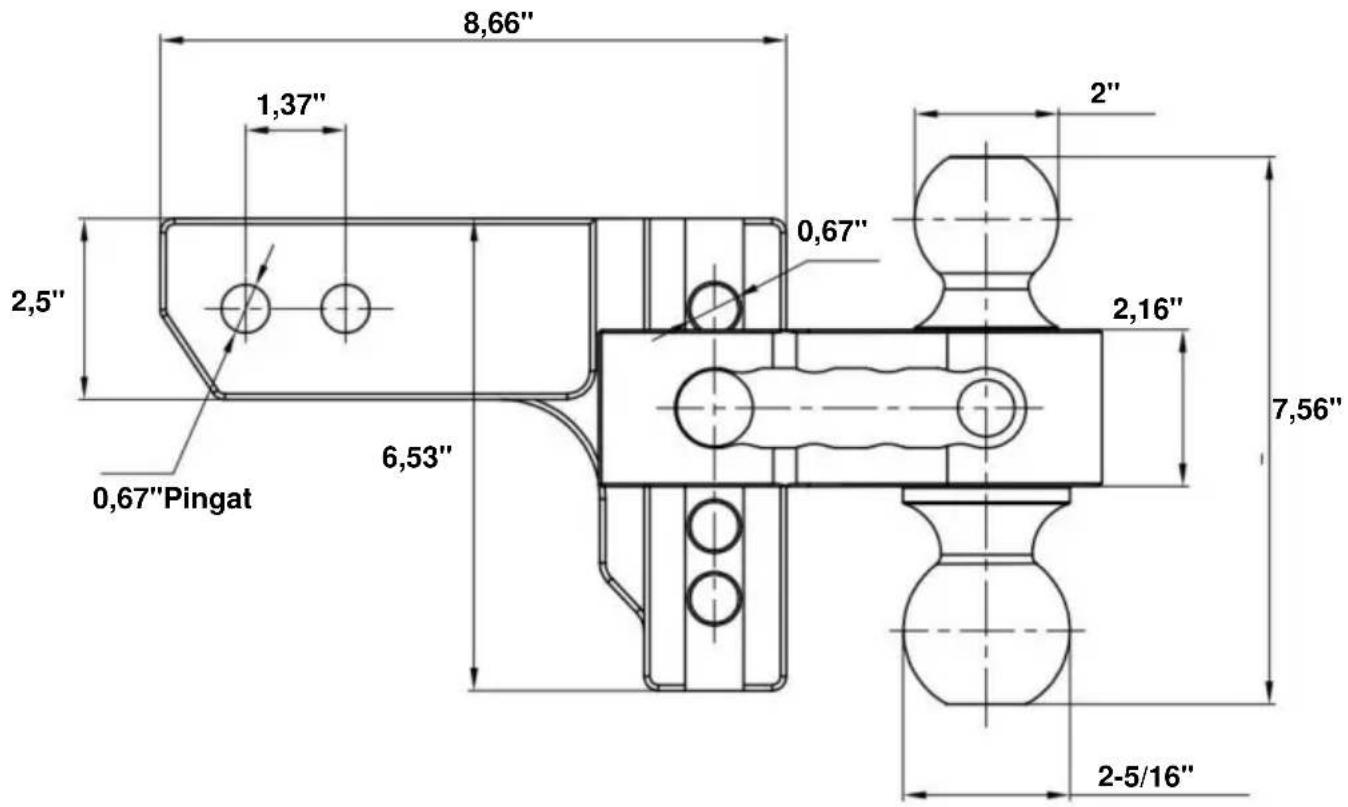

AL-2-DROP6"

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

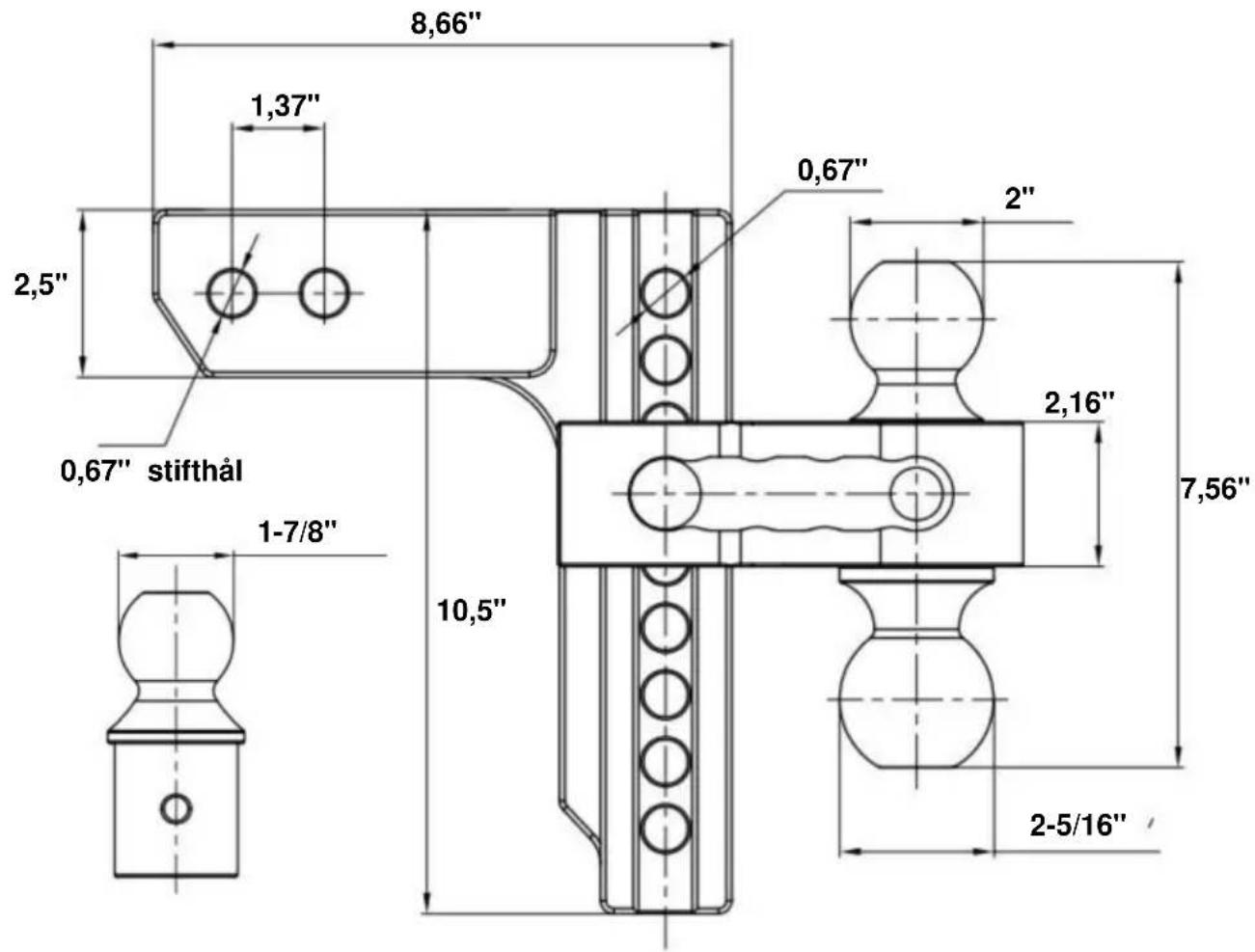

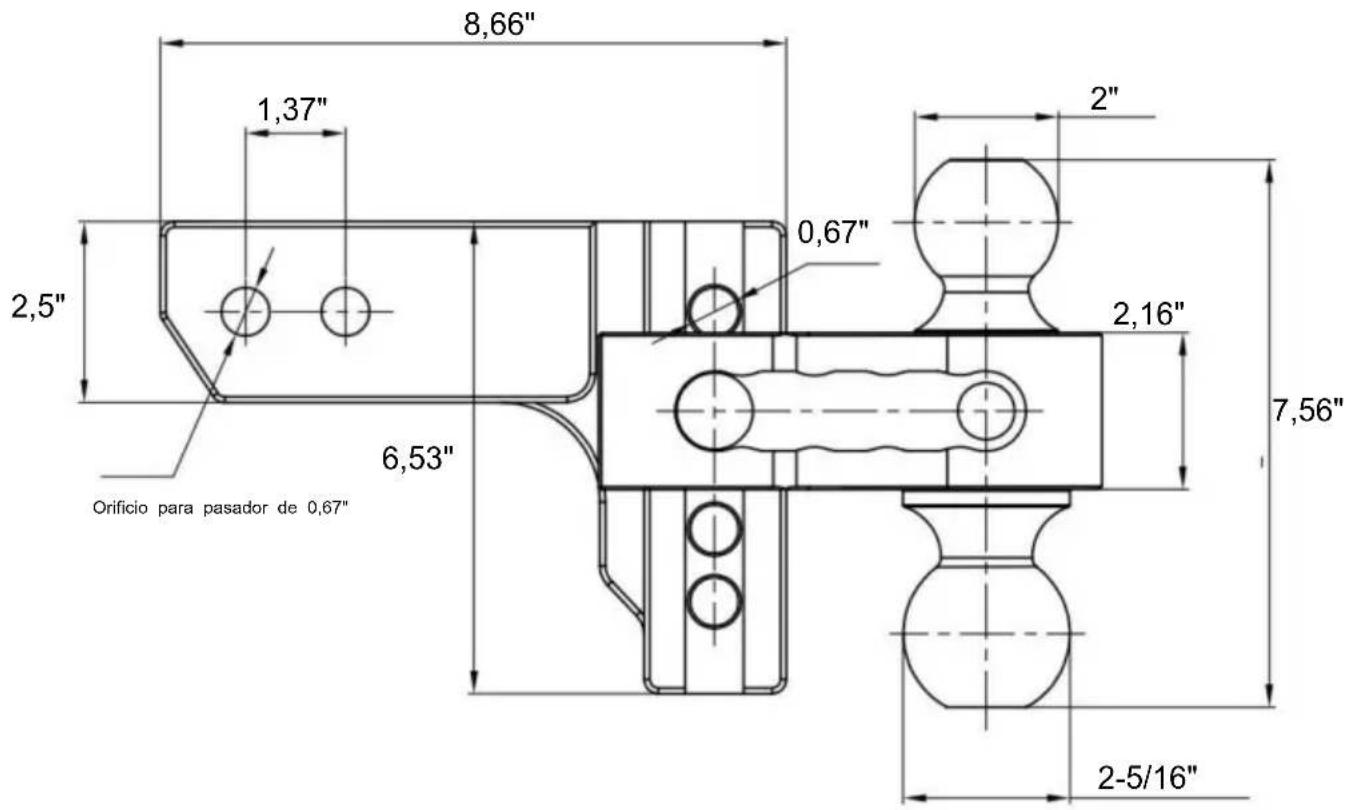

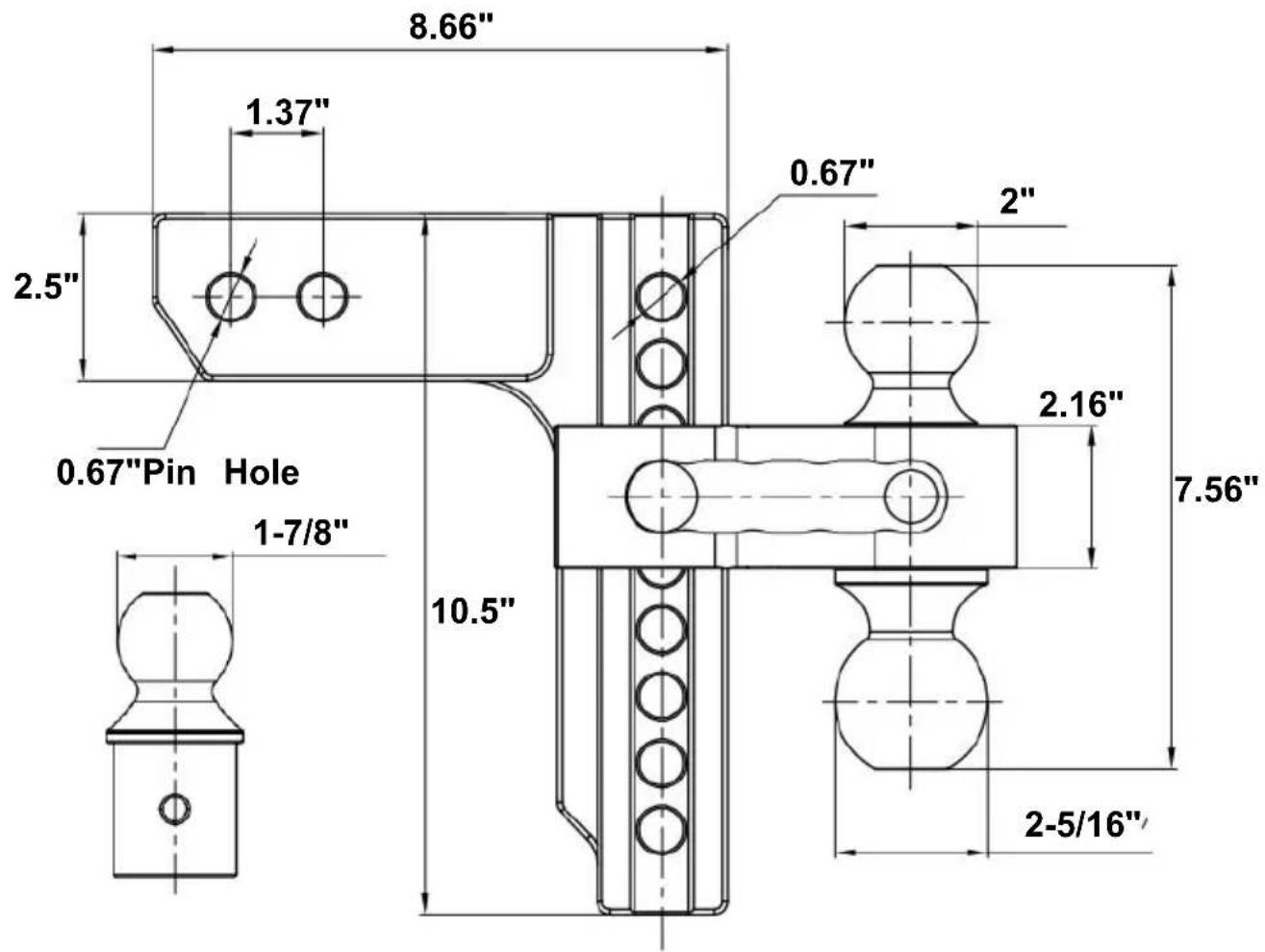

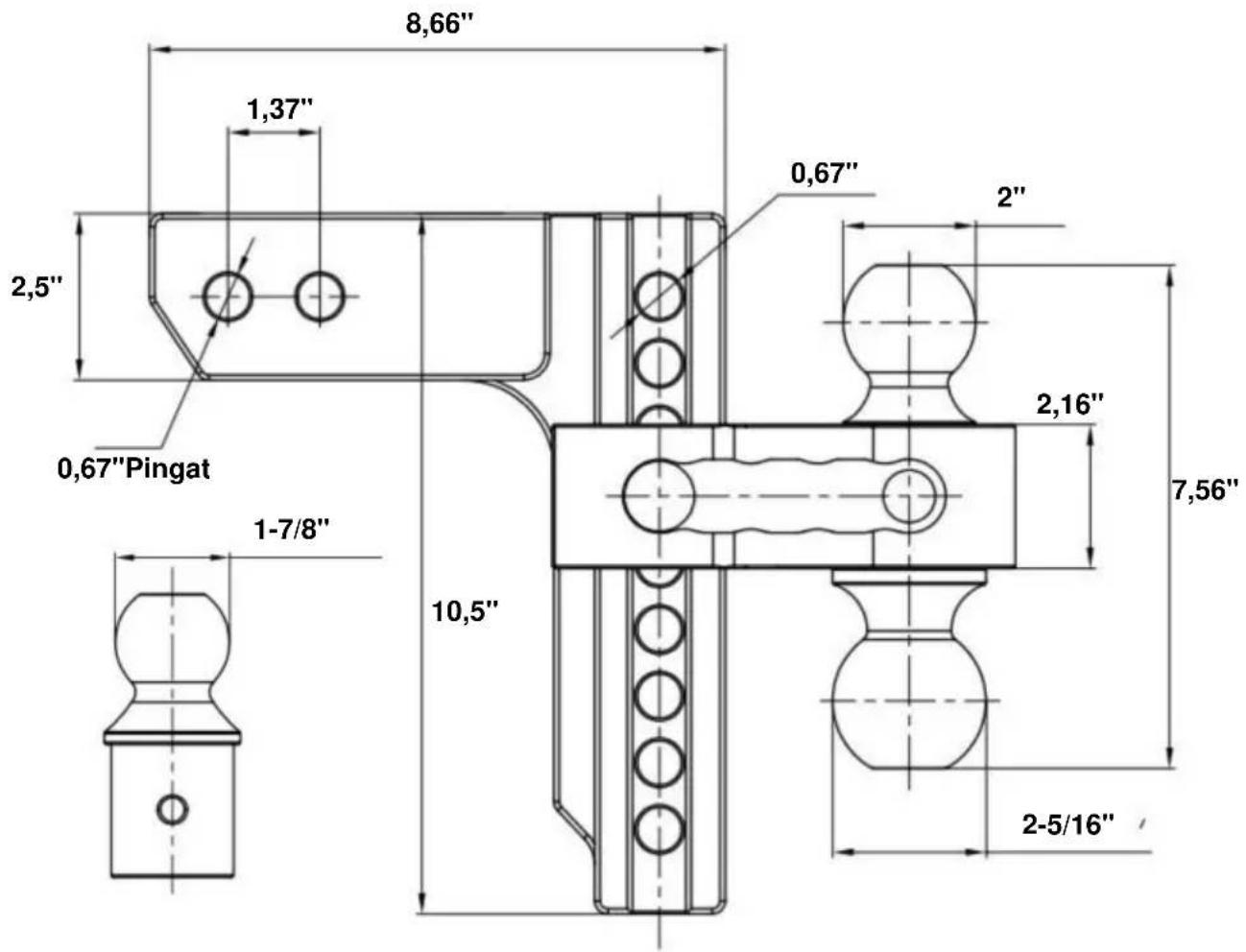

AL-2-DROP8"

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

AL-2.5-DROP4"

Technical line drawing of mechanical components including a bracket, clamping mechanism, and two cylindrical parts (no text or symbols)

AL-2.5-DROP8"

NOTE: Photo for Reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of tl towing system it is being used with. The consumer or operator is str advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.
2. Use of any pin other than that of the mount system manufacturer be a serious safety hazard and will void the warranty. Never hook u safety chains to the mounting system.
3. Installing a safety chain between the vehicle and accessories is high recommended.
4. Be aware of the danger of “dynamic loading.” This situation arises a load is dropped onto the product, resulting in an excessive short-te load. Dynamic loading can damage and fail the product and/or the attached accessory and cause personal injury to people nearby.
5. Ensure the safety chains operate freely around the mounting system and do not become entangled.
6. This product is not a toy and cannot be used as a toy for child
7. Remember that the previously discussed warnings cannot cover all possible events and circumstances. The person setting up and using the product must always use common sense.

CAUTION:

1. Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.

2. During their period of use, accessories must be checked for wear, and other damage.

SAVE THESE INSTRUCTIONS

NOTE: Please match your purchase.

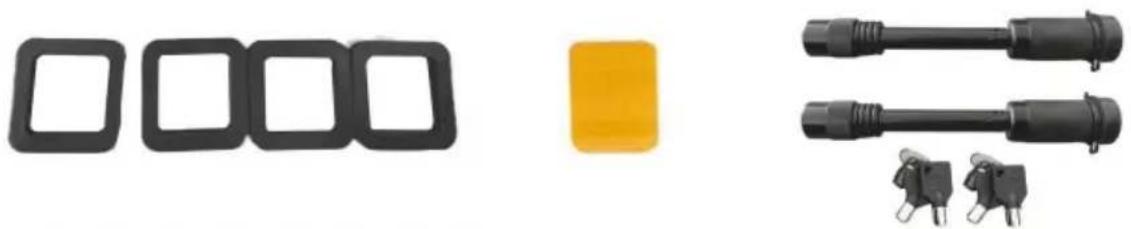

Parts list:

Four identical black rectangular shapes arranged horizontally (no text or symbols)

Two black cylindrical electronic components with two small accessories (no visible text or symbols)

Model	AL-2-drop6"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2"
Drop/Rise	6"
Max. Gross Trailer W	8000lbs(1-7/8")/10000lbs(2")/15000lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

Parts list:

Four identical black rectangular shapes arranged horizontally (no text or symbols)

Two black cylindrical electronic components with two metallic clips attached (no text or symbols visible)

Model	AL-2-drop8"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2"
Drop/Rise	8"
Max. Gross Trailer W	8000lbs(1-7/8")/10000lbs(2")/15000lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

Parts list:

Four black rectangular blocks arranged horizontally (no text or symbols)

Two black cylindrical mechanical components with three small metallic clips below (no text or symbols visible)

Model	AL-2.5-drop4"
Trailer Ball	2"+2-5/16"
Fits receiver	2.5"
Drop/Rise	4"
Max. Gross Trailer W	8000lbs(2")/18500lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

Parts list:

Product display showing four black rectangular components and two yellow square buttons with three small accessories (no text or symbols visible)

Model	AL-2.5-drop8"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2.5"
Drop/Rise	8"
Max. Gross Trailer W	8000lbs(1-7/8")/15000lbs(2")/18500lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

INSTALLATION

This product has a unique design, the ball head can be quickly and easily replaced! It can prevent the ball head from being stolen.

The following installation procedure uses the model AL-2-drop6" as an example. Other models are similar.

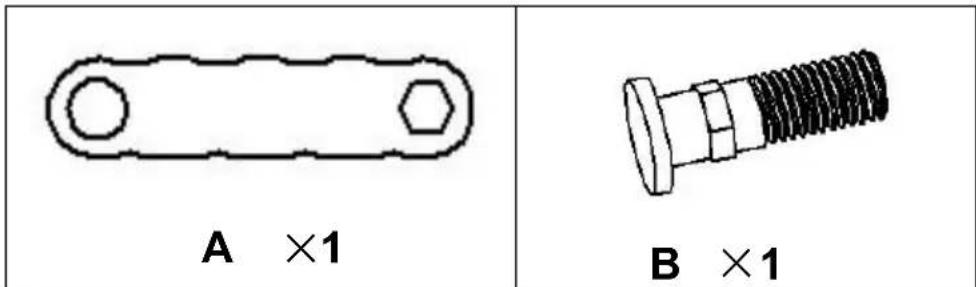

NOTE: Please check you have the key parts as shown below.

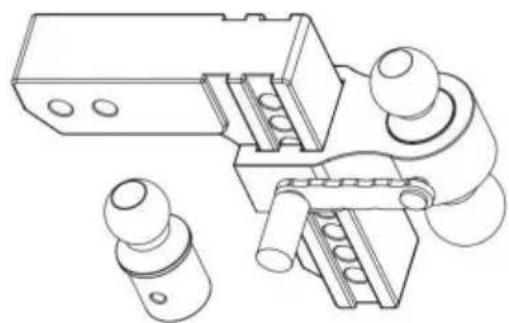

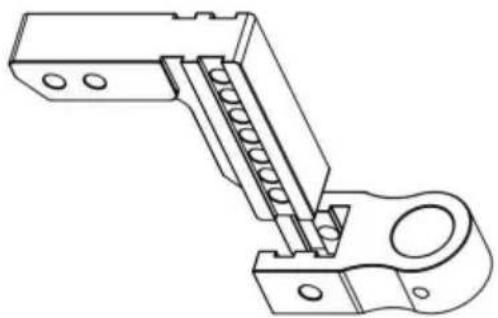

STEP 1: Install the ball seat.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

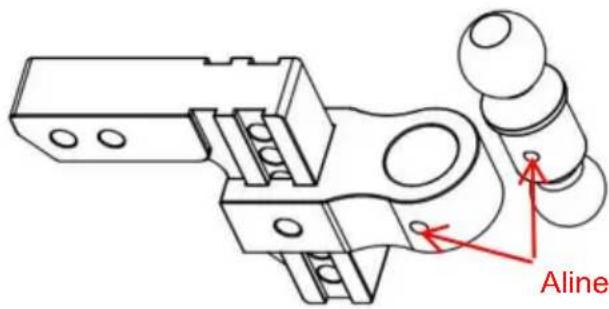

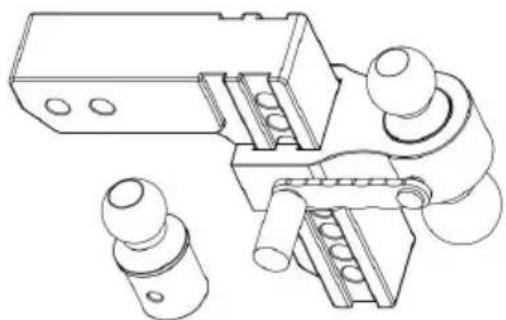

STEP 2: Install the ball.

Note: If the hole pair is not com turn it over and try again.

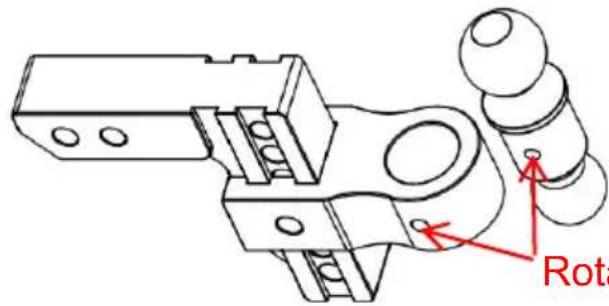

Rotation alignment

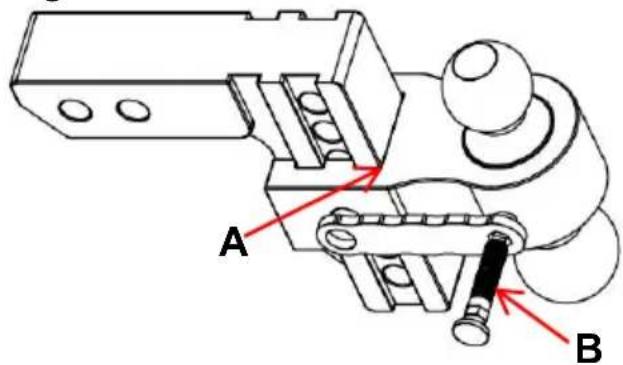

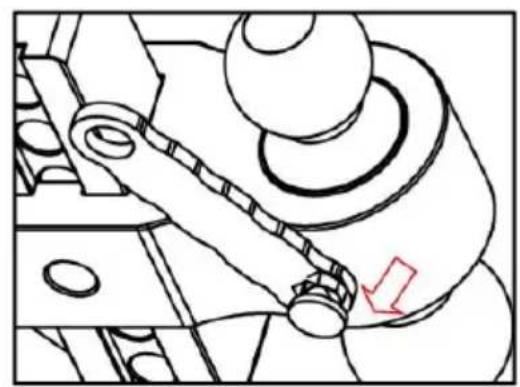

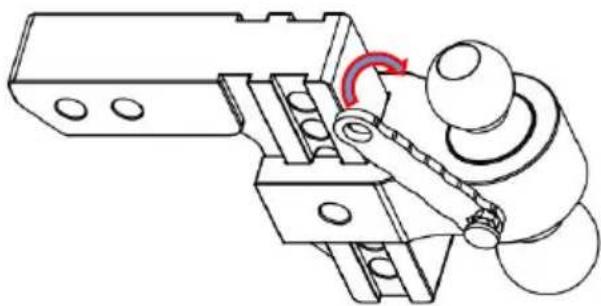

STEP 3: B goes through A, spins into the ball, and twists with your until it is slightly tight.

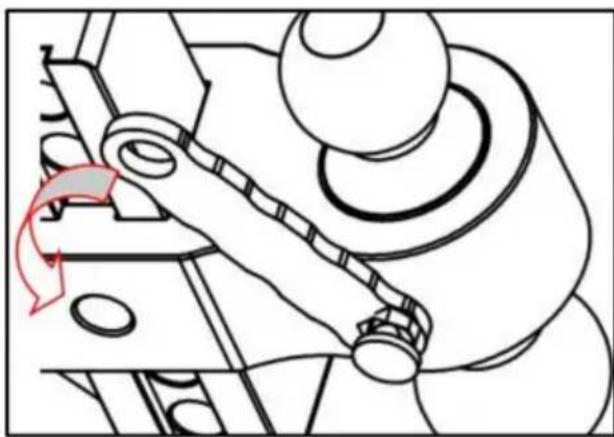

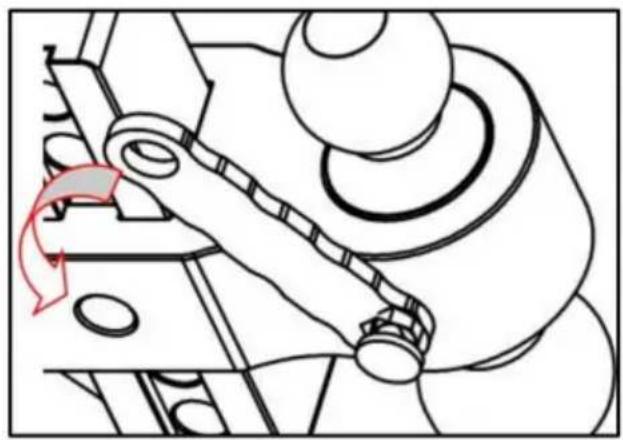

STEP 4: Use A to continue tightening bolt B.

Technical line drawing of a mechanical assembly with a red rotation arrow indicating motion (no text or symbols)

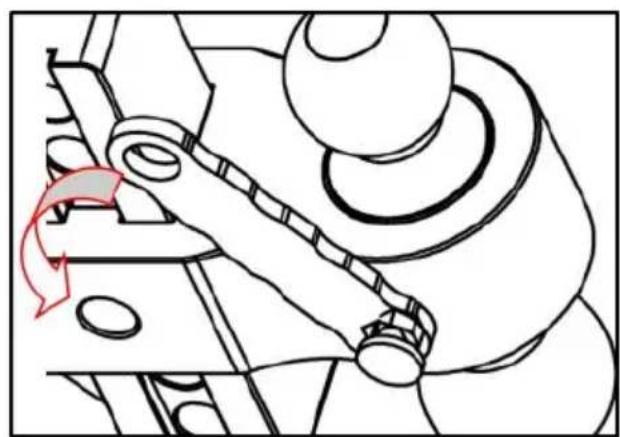

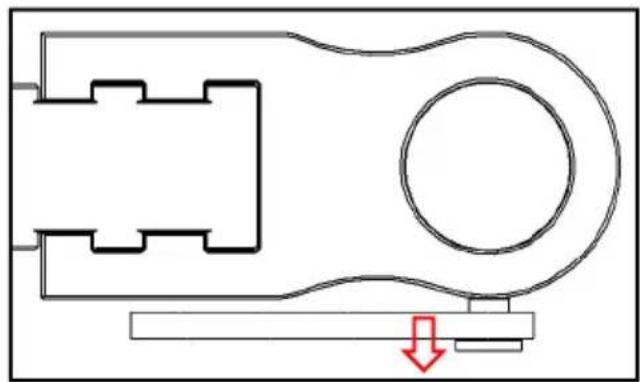

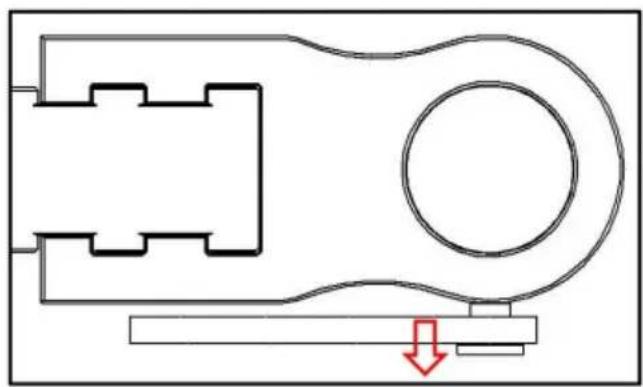

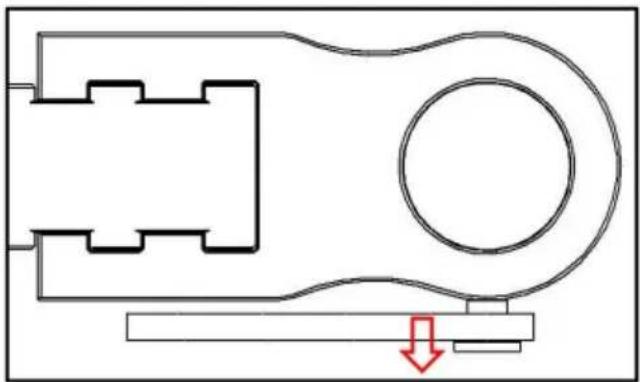

STEP 5: A go out, and rotate to line up with the tee hole.

Mechanical assembly diagram showing a chain and bearing mechanism (no text or labels)

Pure electrical circuit lines without any symbols

Mechanical assembly diagram showing a chain and gear mechanism with no visible text or symbols

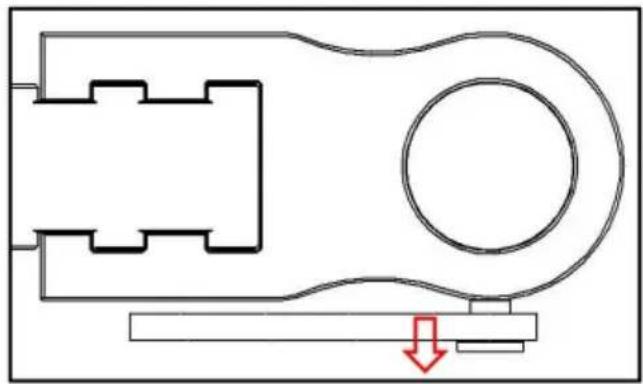

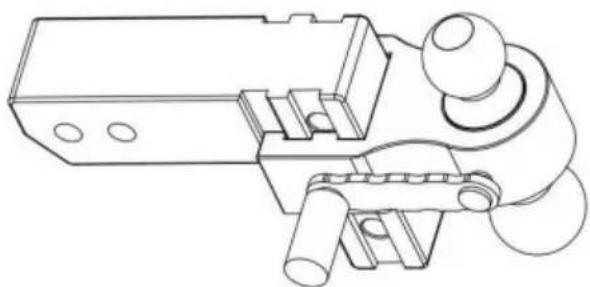

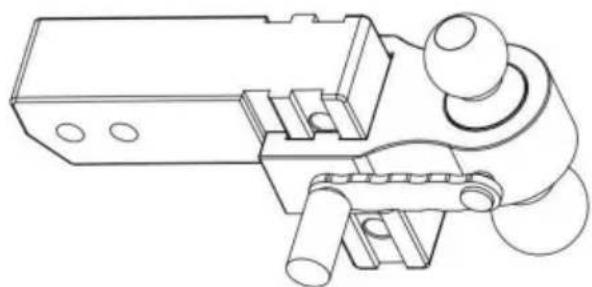

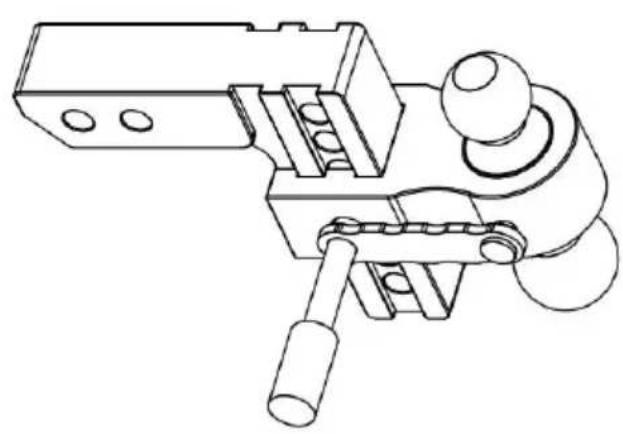

STEP 6: Fix with the trailer lock after moving to the appropriate height

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

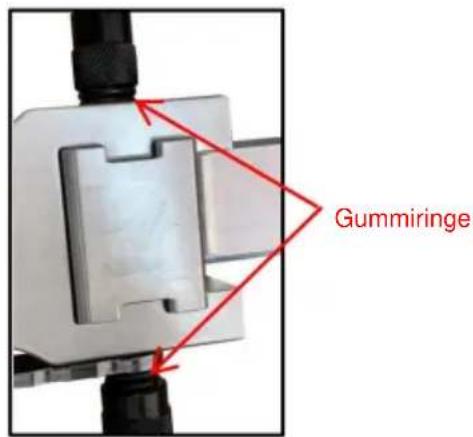

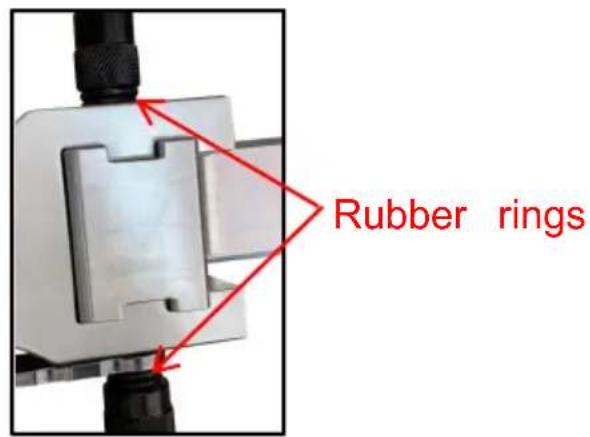

NOTE: Rubber rings are placed on both inner sides as needed to re noise.

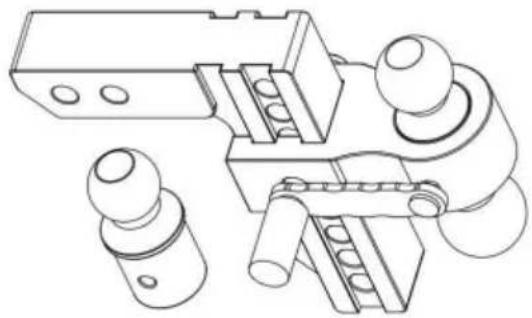

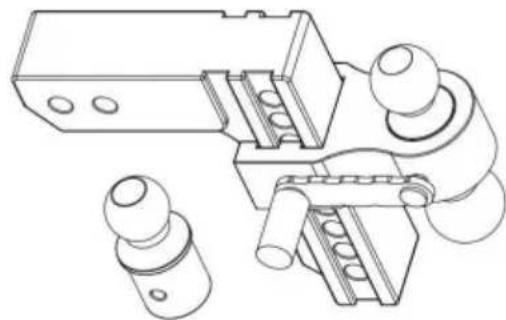

STEP 7: Installation complete. If you need to remove and replace other ball heads, refer to the preceding steps.

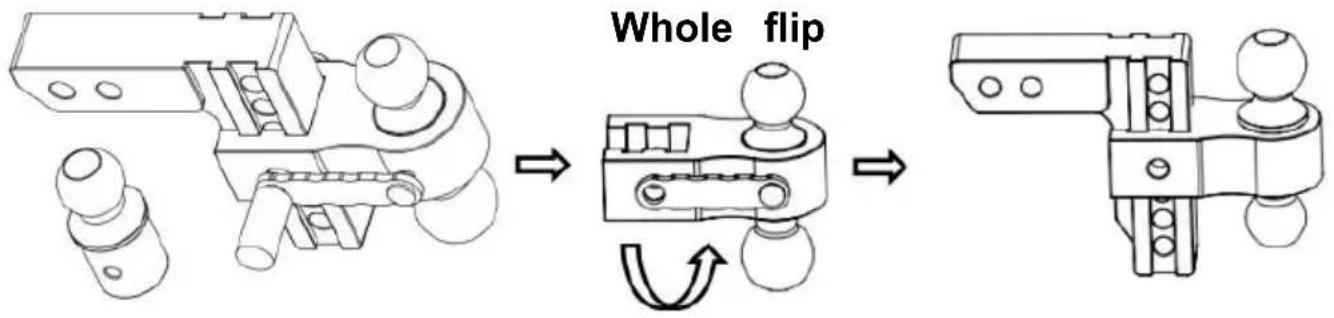

NOTE!

The conversion of 2" and 2-5/16" ball heads does not require separate removal of the ball heads, only the whole component is turned over a installed.

APPLICATION SCENARIOS

Two outdoor vehicles: a blue MiQICTOUR vehicle with a bicycle roof and a green off-road vehicle with 'Offshore' signage, both parked on a dirt field (no visible text beyond branding)

MAINTENANCE

1. Check bolts and safety pins regularly. Inspect all equipment for loc worn parts before each use and replace or tighten as needed.
2. Do not overload.
3. Please clean up the product at a time when sand or gravel sticks
