Product Type	Trailer Hitch (Multi-Ball)
Brand	Vevor
Model	TK-STS-2
Main Material	Steel
Color	Black
Available Ball Diameters	1-7/8", 2", 2-5/16"
Max Gross Weight Capacity (1-7/8")	5000 lb (2268 kg)
Max Gross Weight Capacity (2")	7500 lb (3402 kg)
Max Gross Weight Capacity (2-5/16")	10000 lb (4536 kg)
Max Gross Weight Capacity (Hook)	10000 lb (4536 kg)
Estimated Weight	Approximately 10 kg
Included Parts	Ball mount, channel bracket, D-ring shackle, reflective sticker, manual
Recommended Maintenance	Regularly check bolts and pins; inspect for wear before each use; clean if sand or gravel adhere
Safety Instructions	Do not exceed vehicle capacity; use safety chains; beware of dynamic loading; replace defective accessories immediately
Repairability	Spare parts available (hitch, bracket, shackle); replace worn or damaged parts
Intended Use	Towing vehicles or loads suitable for the indicated capacities
Country of Origin	China (manufacturer: Shanghai Muxin Muye Co., Ltd.)
Technical Support	www.vevor.com/support

Frequently Asked Questions - TK-STS-2 Vevor

What are the available ball diameters on the Vevor TK-STS-2?

The TK-STS-2 model comes with three ball diameters: 1-7/8", 2" and 2-5/16". It also includes a hook with a capacity of 10,000 lb.

What is the maximum towing capacity of this hitch?

The capacity depends on the ball diameter: 5000 lb for 1-7/8", 7500 lb for 2", 10,000 lb for 2-5/16" and for the hook. Never exceed your vehicle's capacity.

How to properly install the Vevor TK-STS-2 hitch?

Installation must follow the manual instructions. Ensure all bolts and safety pins are tightened. Use safety chains between the vehicle and trailer.

What maintenance is needed for this hitch?

Before each use, check the wear of parts and tighten bolts if necessary. Clean the product if sand or gravel accumulates. Replace any defective accessory immediately.

Can I use a safety pin not supplied by Vevor?

No, using a pin other than the manufacturer's can pose a serious safety hazard and will void the warranty. Use only original parts.

Is this hitch compatible with all vehicles?

It is designed to mount on standard trailer hitches. Check compatibility with your vehicle's towing system and respect the maximum capacities.

What does 'dynamic loading' mean and why is it dangerous?

Dynamic loading occurs when a load is suddenly placed on the hitch, creating a temporary overload. This can damage the product and cause injury. Avoid shocks and abrupt load deposits.

How to clean the Vevor TK-STS-2 hitch?

Clean it with a damp cloth to remove sand or gravel. Avoid abrasive products that could damage the black finish. Dry it after cleaning to prevent rust.

Where to find spare parts for this hitch?

Spare parts (ball mount, channel bracket, D-ring shackle) are available from Vevor. Visit www.vevor.com/support for technical support and parts.

Can I use this hitch for professional use?

Yes, as long as you respect the weight capacities and safety instructions. Regularly check the condition of the equipment and replace worn parts. Intensive use may require more frequent maintenance.

USER MANUAL TK-STS-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BALL MOUNT HITCHES

MODEL: TK-STS-2"

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BALL MOUNT

HITCHES

MODEL:TK-STS-2"

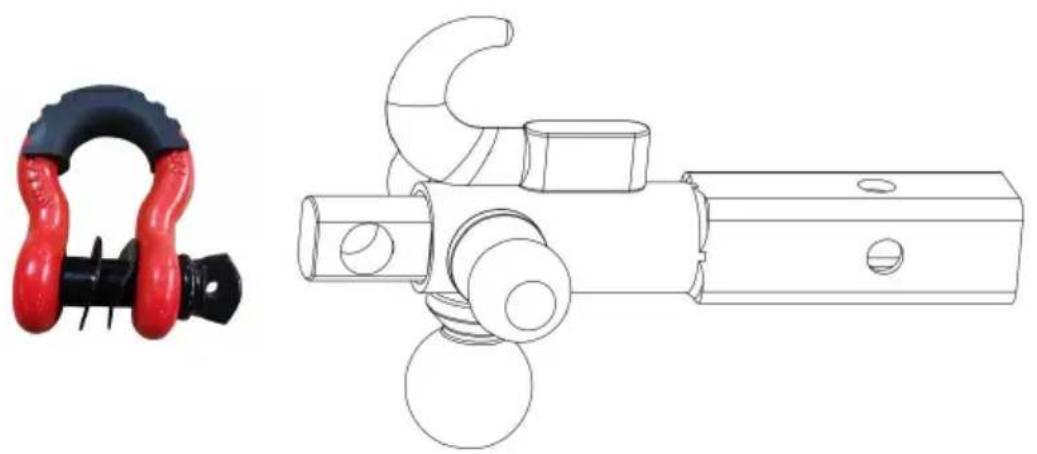

Technical line drawings of two mechanical components: a red and black weight switch and a mechanical clamp assembly (no text or symbols)

NOTE: Photo for Reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of tl towing system it is being used with. The consumer or operator is str advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.
2. Use of any pin other than that of the mount system manufacturer be a serious safety hazard and will void the warranty. Never hook u safety chains to the mounting system.
3. Installing a safety chain between the vehicle and accessories is high recommended.
4. Be aware of the danger of “dynamic loading.” This situation arises a load is dropped onto the product, resulting in an excessive short-te load. Dynamic loading can damage and fail the product and/or the attached accessory and cause personal injury to people nearby.
5. Ensure the safety chains operate freely around the mounting system and do not become entangled.
6. This product is not a toy and cannot be used as a toy for child
7. Remember that the previously discussed warnings cannot cover all possible events and circumstances. The person setting up and using the product must always use common sense.

CAUTION:

1. Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.

2. During their period of use, accessories must be checked for wear, and other damage.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

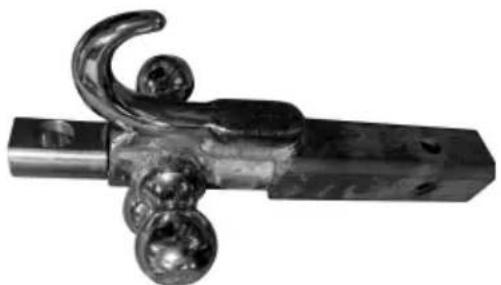

Close-up of a metallic mechanical tool with a curved handle and spherical protrusions (no text or symbols visible)

Red and black weight-lift shoe with a metallic clip (no text or symbols visible)

Model	TK-STS-2"
Trailer Ball	1-7/8"+2"+2-5/16"
Max. Gross Traile WT	5000(1-7/8")/7500(2")/10000lbs(2-5/16")/10000lbs(Hook)
Color	Black
Material	Steel

PARTS LIST

Close-up of a metallic mechanical tool with a curved handle and spherical base (no text or symbols visible)

Ball mount Hitch x1

Channel mount x1se

Reflective sticker x

D shackle x1

User manual x1

APPLICATION SCENARIOS

Exterior view of a military vehicle back panel with mounted equipment and a blue oxygen gun (no visible text or symbols)

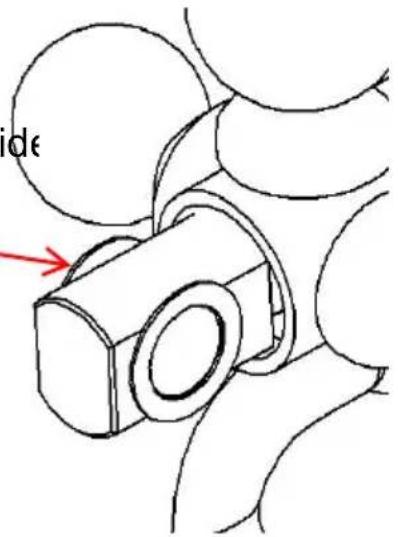

Shims on both side reduce noise and protect the finish.

NOTE: Photo for Reference. Please refer to your purchase.

MAINTENANCE

1. Check bolts and safety pins regularly. Inspect all equipment for loc worn parts before each use and replace or tighten as needed.
2. Do not overload.
3. Please clean up the product at a time when sand or gravel sticks

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4
