Product Type	Ball hitch trailer coupler with adjustable shank
Brand	Vevor
Model	TK-2.5"-DROP8
Category	Trailer hitch
Receiver tube	2.5 inches
Drop height	8 inches
Ball diameters	2 inches and 2-5/16 inches
Maximum towing capacity	15,000 lb (gross trailer weight) / 22,000 lb (gross trailer weight with weight distribution)
Material	Heavy-duty steel
Included parts	Channel shank, double ball, safety locks x2, plug, hitch pins x3, noise-dampening pads x4
Installation	Insert the shank into the vehicle's receiver, secure with hitch pin, adjust ball height
Safety	Do not exceed vehicle capacity; use safety chains; regularly check fasteners
Maintenance	Clean after use on sandy or gravelly terrain; inspect worn parts before each use
Repairability	Spare parts available: pins, locks, pads, ball; replace defective accessories immediately
Warranty	Electronic warranty certificate available at www.vevor.com/support
Country of origin	China (Shanghai)

Frequently Asked Questions - TK-2.5"-DROP8 Vevor

What is the maximum weight that the TK-2.5"-DROP8 hitch can tow?

The maximum towing capacity is 15,000 lb for gross trailer weight and 22,000 lb for gross trailer weight with weight distribution. Never exceed the recommended capacity of your vehicle manufacturer.

How do I install the hitch on my vehicle?

Insert the channel shank into the vehicle's hitch receiver, then secure it with the provided hitch pin. Adjust the ball height to match the level of the trailer, then insert the top pin into the corresponding hole. Secure the safety locks and the plug.

What ball diameters are available?

This hitch comes with a double ball of 2 inches and 2-5/16 inches, allowing it to fit different trailers.

Can I use this hitch with a 2-inch receiver?

No, the TK-2.5"-DROP8 model is designed for a 2.5-inch receiver. For a 2-inch receiver, choose models from the 2"-DROP series.

How do I maintain the hitch?

Clean the hitch after use on sandy or gravelly terrain to avoid abrasion. Regularly inspect bolts, pins, and worn parts before each use. Replace any defective part immediately.

What if the hitch makes noise while driving?

Noise-dampening pads are included to reduce vibrations. Install the 4 pads between the shank and the receiver. If the noise persists, check that the pins are tight and the safety locks are in place.

Can I use safety chains with this hitch?

Yes, it is highly recommended to install safety chains between the vehicle and trailer. Ensure they do not tangle around the hitch system and that they operate freely.

Is it possible to change the drop height?

Yes, the drop height is adjustable thanks to the different holes on the channel shank. Choose the hole closest to the measured height between the bottom of the trailer tongue and the ground, so the trailer is level.

Where can I get spare parts?

Spare parts (pins, locks, pads, ball) can be ordered via www.vevor.com/support or from your retailer. Only use manufacturer parts to ensure safety.

Is this product guaranteed?

Yes, Vevor offers an electronic warranty certificate. In case of issues, contact technical support via www.vevor.com/support. Keep your proof of purchase.

USER MANUAL TK-2.5"-DROP8 Vevor

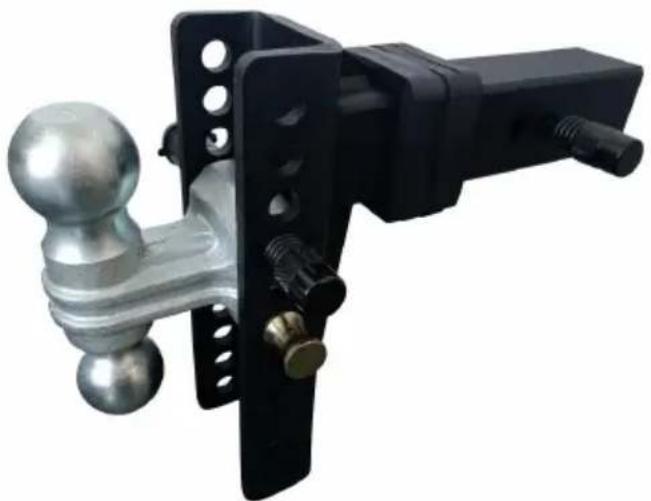

BALL MOUNT HITCHES

MODEL: 2"-DROP6" / 2"-DROP8" / 2"-DROP10" /

2.5"-DROP6" / 2.5"-DROP8" / 2.5"-DROP10"/

TK-2"-DROP6" /TK-2"-DROP8" /TK-2"-DROP10" /

TK-2.5"-DROP6" /TK-2.5"-DROP8"/TK-2.5"-DROP10"

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: 2"-DROP6" / 2"-DROP8" / 2"-DROP10" / 2.5"-DROP6" /

2.5"-DROP8" / 2.5"-DROP10" / TK-2"-DROP6" / TK-2"-DROP8"

/ TK-2"-DROP10" / TK-2.5"-DROP6" / TK-2.5"-DROP8" / TK-2.5"-DROP10"

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning - To reduce the risk of injury, users must read the instruction manual carefully.

WARNING:

1. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to represent the product's capability and in no way reflect the ratings or capacity of the towing system it is being used with. The consumer or operator is strongly advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component used.
2. Use of any pin other than that of the mount system manufacturer can be a serious safety hazard and will void the warranty. Never hook up safety chains to the mounting system.
3. Installing a safety chain between the vehicle and accessories is highly recommended.
4. Be aware of the danger of “dynamic loading.” This situation arises when a load is dropped onto the product, resulting in an excessive short-term load. Dynamic loading can damage and fail the product and/or the attached accessory and cause personal injury to people nearby.
5. Ensure the safety chains operate freely around the mounting system and do not become entangled.
6. This product is not a toy and cannot be used as a toy for children.
7. Remember that the previously discussed warnings cannot cover all possible events and circumstances. The person setting up and using the product must always use common sense.

CAUTION:

1. Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.
2. During their period of use, accessories must be checked for wear and other damage.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	Receiver Tube	Maximum Drop	Trailer Ball	Max. Gross Trailer WT
2"-DROP6"	2"	6"	2" + 2-5/16"	10000lbs/ 14000lbs
2"-DROP8"	2"	8"
2"-DROP10"	2"	10"
2.5"-DROP6"	2.5"	6"		10000lbs/ 14500lbs
2.5"-DROP8"	2.5"	8"
2.5"-DROP10"	2.5"	10"
TK-2"-DROP6"	2"	6"		12500lbs/ 21500lbs
TK-2"-DROP8"	2"	8"
TK-2"-DROP10"	2"	10"
TK-2.5"-DROP6"	2.5"	6"		15000lbs/ 22000lbs
TK-2.5"-DROP8"	2.5"	8"
TK-2.5"-DROP10"	2.5"	10"

PARTS LIST

1 Channel mount x 1 #2 Dual ball x 1 #3 Security lock x 2

4 Plug x 1 #5 Hitch pin x 3 #6 Silencer pad x 4

ASSEMBLY & INSTALLATION

Step 1:

Insert into the Trailer Hitch Begin by installing the channel mount (#1) into the trailer hitch receiver. Then, secure it with the hitch pin (#5).

Step 2:

Determine Required Ball Height Determine the proper ball height by leveling the trailer and measuring from the bottom of the trailer tongue to the ground. See below.

Find the hole closest to that measurement on the channel mount (#1). The top pin of the dual-ball (#2) will go in that hole. Secure all security locks and plug (#4) with the hitch pins (#5).

INSTALLATION DETAILS

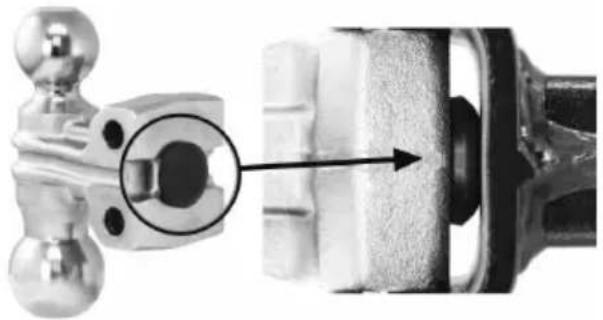

1. A shock-absorbing pad is installed on the back of the dual ball (installed at the factory and does not need to be installed by the user) to ensure that the product will not make abnormal noise when the vehicle is

driving.

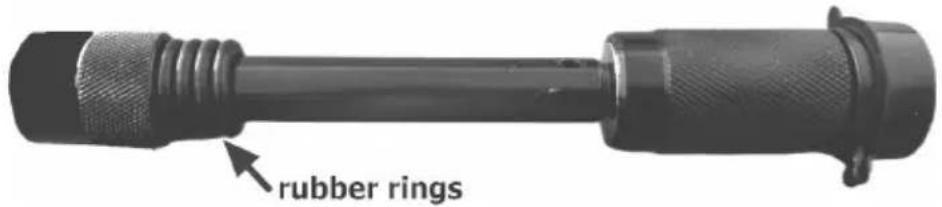

1. To prevent the security lock from shaking after installation, the security lock is equipped with 4 rubber rings. The installation may not require all rubber rings, and some can be removed as needed.

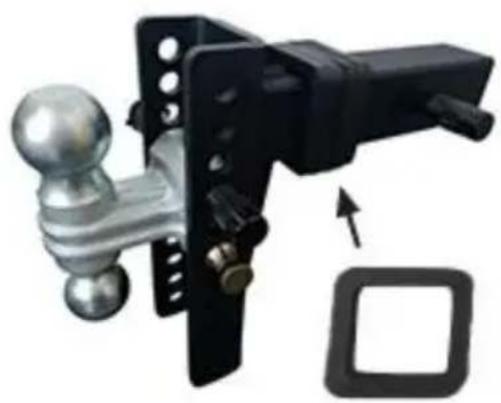

1. There are 4 silencer pads in the accessories; choose the corresponding quantity according to the installation needs.

MAINTENANCE

1. Check bolts and safety pins regularly. Inspect all equipment for worn parts before each use and replace or tighten as needed.
2. Do not overload.
3. Please clean the product when sand or gravel sticks to it.
